OMRON G3JRelays/ Solid-state Relays/For Three-phase Motors
OMRON G3J Relays
OMRON G3J Dimensions
/Images/l_982-25-118857-198x198.jpglast update: January 7, 2019
• Certified for UL, CSA, and CCC.
• Mount with screws or to DIN tracks.
• Compact monoblock construction (W: 80 × H: 100 × D: 100 mm) with a heat sink.
• Snubber circuit and varistor are built-in.
• Operation indicator.
• Two-element models added to series.
last update: January 7, 2019
Purchase the OMRON For Three-phase Motors Please fill in the following
If you have just landed here, this product OMRON G3J Relays,Relays is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Relays at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the G3J We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON G3JRelays tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
A7CN / A7CN-L Thumbwheel Switch/Features
CP1H CP series CP1H CPU Unit/Features
EE-SPX-W Slot-type Photomicrosensor with Cable/Features
NL Limit Touch Switch/Features
ZS-CRT Sensor Communications Unit/Features
OMRON G3J specification
G3J Simple Solid State Contactors/Specificationslast update: January 7, 2019
Ratings (at an Ambient Temperature of 25°C)
Operation Circuit
| Item | DC-input models | AC-input models |
|---|---|---|
| Rated supply voltage | 12 to 24 VDC | 100 to 240 VAC (50/60 Hz) |
| Operating voltage range | 9.6 to 26.4 VDC | 75 to 264 VAC (50/60 Hz) |
| Rated input current (impedance) | 15 mA max. (at 12 to 24 VDC) | 36 kΩ ±20% (100 to 240 VAC) |
| Must operate voltage | 9.6 VDC max. | 75 VAC max. |
| Must release voltage | 3.6 VDC min. | 20 VAC min. |
Main Circuit
| Item | G3J-211BL, G3J-211BL-2 | G3J-205BL, G3J-205BL-2 | |
|---|---|---|---|
| Rated load voltage | 100 to 240 VAC (50/60 Hz) | ||
| Load voltage range | 75 to 264 VAC (50/60 Hz) | ||
| Rated carry current *3 | 11.1 A (Ta = 40°C) | 4.8 A (Ta = 40°C) | |
| Min. load current | 0.1 A | ||
| Peak-value current resistivity | 350 A, 60 Hz, 1 cycle | 150 A, 60 Hz, 1 cycle | |
| Overload resistance | Refer to Safety Precautions for the G3J-T, G3J-S, and G3J. | ||
| Closed current (effective value) | AC3 | 111 A | 48 A |
| AC4 | 133.2 A | 57.6 A | |
| Breaking current (effective value) | AC3 | 88.8 A | 38.4 A |
| AC4 | 111 A | 48 A | |
| Applicable load | 3-phase inductive motor (AC3 AC4 AC53-a) | 200 to 220 VAC, 2.2 kW, (11.1 A) | 200 to 220 VAC, 0.75 kW, (4.8 A) |
| Motors passing the AC3-class, AC4-class, and AC53-a-class switching frequency test (Ta = 40°C) under conditions specified by OMRON. | |||
| Single-phase motor (AC3) *1 | 100 VAC, 0.4 kW (11.1 A) 200 VAC, 0.75 kW (8.8 A) | 100 VAC, 0.1 kW, (5.1 A) 200 VAC, 0.4 kW (5.5 A) *2 | |
| Resistive load (AC1) | 100 to 240 VAC, 11.1 A | 100 to 240 VAC, 4.8 A | |
*1. With 2-element models, L2 and T2 are shorted internally.
*2. When using 0.75 kW models with 3 poles ON simultaneously, use either combination at 4.8 A max.
*3. The rated carry current varies depending on the ambient temperature. Refer to Load Current vs. Ambient
Temperature under Engineering Data in the Information Common to the G3J-T, G3J-S, and G3J for details.
Characteristics
| Item | DC-input models | AC-input models |
|---|---|---|
| Operate time | 1 ms max. | 50 ms max. |
| Release time | 5/6 of the load power supply cycle time + 1 ms max. | 3/2 of the load power supply cycle time + 1 ms max. |
| Output ON-voltage drop | 1.6 VRMS max. | |
| Leakage current * | 10 mA max. (at 200 VAC) | |
| Insulation resistance | 100 MΩ min. (at 500 VDC) | |
| Dielectric strength | 2,500 VAC, 50/60 Hz for 1 min | |
| Vibration resistance | Destruction: 10 to 55 to 10 Hz, 0.75-mm single amplitude | |
| Shock resistance | Destruction: 294 m/s2 | |
| Ambient temperature | Operating: -20°C to 60°C (with no icing or condensation) Storage: -30°C to 70°C (with no icing or condensation) | |
| Ambient humidity | Operating: 45% to 85% | |
| Weight | Approx. 700 g | |
| Standards | UL508, CSA22.2 No. 14, CCC GB/T 14048.6 No. 2016010304855599, IEC947-4-1 | |
* With 2-element models, the S-phase leakage current will be larger by a factor of √3.
last update: January 7, 2019
OMRON G3J dimension
G3J Simple Solid State Contactors/Dimensionslast update: November 06, 2012
Solid State Contactors

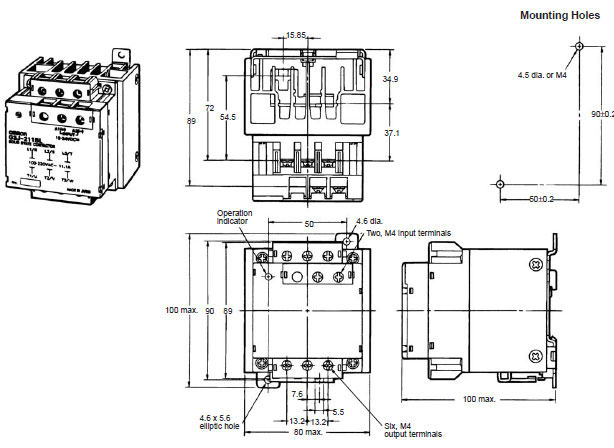

G3J-211BL, G3J-205BL, G3J-211BL-2, G3J-205BL-2
