• Four inputs.
• Thermocouples and platinum resistance thermometer models are available.
• Conversion time is only 250 ms for 4 inputs.
• The Configurator can be used to calibrate temperatures.
• The circuit section can be removed, so rewiring isn’t required during maintenance.
• DIN track mounting.
last update: December 19, 2013
Purchase the OMRON DeviceNet Please fill in the following
If you have just landed here, this product OMRON GT1-TS04[] Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the GT1-TS04[] We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON GT1-TS04[]Automation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
CP1H CP series CP1H CPU Unit/Features
E3JK (NEW) Built-in Power Supply Photoelectric Sensor/Features
1ZAP2 / 1VAP2 Door Switches/Features
G3R-I/O I/O Solid State Relays/Features
CJ1W-EIP21 CJ-series EtherNet/IP Unit/Features

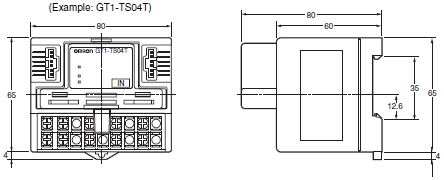

OMRON GT1-TS04[] dimension
