• Installation in electrical facilities, equipment doors, and other openings helps ensure safety by reliably preventing accidents.
• A Basic Switch if built in to provide a large switching capacity and long service life.
last update: December 19, 2013
Purchase the OMRON Basic Switches (Z-Size) Please fill in the following
If you have just landed here, this product OMRON 1ZAP2 / 1VAP2 Switches,Switches is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Switches at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the 1ZAP2 / 1VAP2 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON 1ZAP2 / 1VAP2Switches tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
E2EZ Chip-immune Inductive Proximity Sensor/Features
61F-WLA / -GPN-V50 Water Leak Alarm/Detector/Features
TZ High-temperature Basic Switch/Features
VB Multiple Limit Switch/Features
E5CSV Temperature Controllers/Features
OMRON 1ZAP2 / 1VAP2 specification
1ZAP2 / 1VAP2 Door Switches/Specificationslast update: September 24, 2012
| Model | 1ZAP2 | 1VAP2- [] | |
|---|---|---|---|
| Built-in Switch | Z-15GL42-B | V-15-1B6/V-15-3B6 | |
| Rating | 15 A, 125 VAC (resistive load) 15 A, 250 V (resistive load) | 15 A, 125 VAC (resistive load) 15 A, 250 V (resistive load) | |
| Ambient operating temperature | -25 to 80 ° C (with no icing or condensation) | ||
| Ambient operating humidity | 35% to 85%RH | ||
| Durability | Mechanical | 100,000 operations min. | 100,000 operations min. |
| Electrical | 100,000 operations min. | 25,000 operations min. | |
| Degree of protection | IP00 | ||
| Electric shock protection class | Class II | ||
| PTI (proof tracking index) | 175 | ||
| Pollution degree | 3 (IEC 947-5-1) | ||
Note:Note:
Note:The 1VAP2-6 is also available with SPDT contacts. The model number is 1VAP2-6 (V-15-1B6).
Note:The built-in switch cannot be replaced.
last update: September 24, 2012
OMRON 1ZAP2 / 1VAP2 lineup
1ZAP2 / 1VAP2 Door Switches/Lineuplast update: September 24, 2012
List of Models
| Operation | Built-in Switch | Model | |
|---|---|---|---|
| Push operation | Pull operation | ||
| Self-reset | Hold | Z-15GL42-B | 1ZAP2 |
| V-15-1B6 | 1VAP2-1 | ||
| 1VAP2-2 | |||
| V-15-3B6 | 1VAP2-6 | ||
last update: September 24, 2012
OMRON 1ZAP2 / 1VAP2 catalog
1ZAP2 / 1VAP2 Door Switches/Catalog- Catalog
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 1ZAP2, 1VAP2 Data Sheet | - [471KB] | Aug 24, 201220120824 | 1ZAP2, 1VAP2 Data Sheet |
OMRON 1ZAP2 / 1VAP2 dimension
1ZAP2 / 1VAP2 Door Switches/Dimensionslast update: September 24, 2012

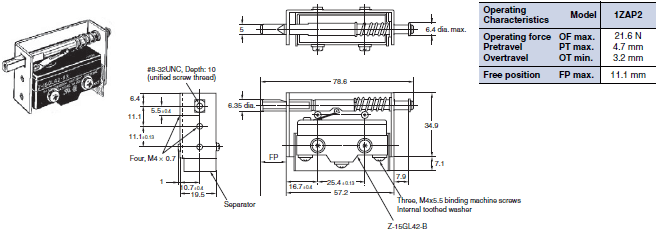

1ZAP2

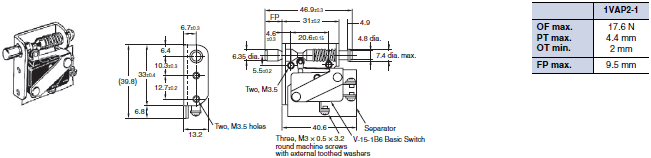

1VAP2-1

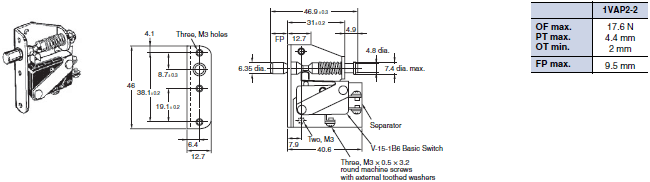

1VAP2-2

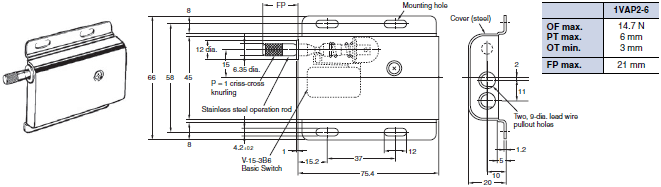

1VAP2-6
Note:Note:
Note:The standard 1VAP2-6 has SPST-NO contacts.
Note:The 1VAP2-6 is also available with SPDT contacts. If SPDT contacts are required, order using the following model number. (The built-in switch is the V-15-1B6.) 1VAP2-6 (V-15-1B6)
last update: September 24, 2012
