A165S / W Knob-type Selector Switch (Detachable) (Cylindrical 16-dia.)/Lineup

last update: September 09, 2015

Ordering as a Set

The model numbers used to order sets of Units are given in the following tables. One set comprises the Selector, Lamp (lighted models only), and Switch.

Solder Terminals

Rectangular

A165S / W Lineup 3

A165[]-J

No. of
notches		OutputReset methodLighting methodModel
2 notchesSPDTManual1102_lu_1_1LEDA165W-J2M[]-24D-1
Non-lightedA165S-J2M-1
Automaticl1102_lu_1_2LEDA165W-J2A[]-24D-1
Non-lightedA165S-J2A-1
DPDTManual1102_lu_1_1LEDA165W-J2M[]-24D-2
Non-lightedA165S-J2M-2
Automaticl1102_lu_1_2LEDA165W-J2A[]-24D-2
Non-lightedA165S-J2A-2
3 notchesDPDTManual1102_lu_1_3LEDA165W-J3M[]-24D-2
Non-lightedA165S-J3M-2

Note: Enter the desired color symbol for the Selector in []: R (red); Y (yellow); G (green). The Selector for non-lighted
          models is black.

Square

A165S / W Lineup 6

A165[]-A

No. of
notches		OutputReset methodLighting methodModel
2 notchesSPDTManual1102_lu_2_1LEDA165W-A2M[]-24D-1
Non-lightedA165S-A2M-1
Automaticl1102_lu_2_2LEDA165W-A2A[]-24D-1
Non-lightedA165S-A2A-1
DPDTManual1102_lu_2_1LEDA165W-A2M[]-24D-2
Non-lightedA165S-A2M-2
Automaticl1102_lu_2_2LEDA165W-A2A[]-24D-2
Non-lightedA165S-A2A-2
3 notchesDPDTManual1102_lu_2_3LEDA165W-A3M[]-24D-2
Non-lightedA165S-A3M-2

Note: Enter the desired color symbol for the Selector in []: R (red); Y (yellow); G (green). The Selector for non-lighted
          models is black.

Round

A165S / W Lineup 9

A165[]-T

No. of
notches		OutputReset methodLighting methodModel
2 notchesSPDTManual1102_lu_3_1LEDA165W-T2M[]-24D-1
Non-lightedA165S-T2M-1
Automaticl1102_lu_3_2LEDA165W-T2A[]-24D-1
Non-lightedA165S-T2A-1
DPDTManual1102_lu_3_1LEDA165W-T2M[]-24D-2
Non-lightedA165S-T2M-2
Automaticl1102_lu_3_2LEDA165W-T2A[]-24D-2
Non-lightedA165S-T2A-2
3 notchesDPDTManual1102_lu_3_3LEDA165W-T3M[]-24D-2
Non-lightedA165S-T3M-2

Note: Enter the desired color symbol for the Selector in []: R (red); Y (yellow); G (green). The Selector for non-lighted
          models is black.

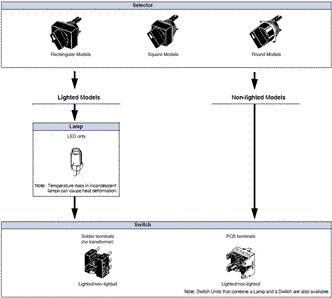

Ordering Individually

Selectors, Lamps, and Switches can be ordered separately. Combinations that are not available as sets can be created using individual Units. Also, store the parts as spares for maintenance and repairs.

A165S / W Lineup 12

Selectors (Oil-resistant IP65 Models Only)

AppearanceNumber of
notches		Reset
method		Lighting
method		ModelSelector color
symbol
Rectangular
(A165[]-J)
1102_lu_5_1		2 notchesManualLEDA165W-J2M[]Enter the desired color symbol
for the Selector in[] .
R (red),
Y (yellow),
G (green)
Non-lightedA165S-J2M
Automatic1102_lu_5_4LEDA165W-J2A[]
Non-lightedA165S-J2A
3 notchesManualLEDA165W-J3M[]
Non-lightedA165S-J3M
Fully
automatic		1102_lu_5_5LEDA165W-J3A[]
Non-lightedA165S-J3A
Square
(A165[] -A)
1102_lu_5_2		2 notchesManualLEDA165W-A2M[]Enter the desired color symbol
for the Selector in[] .
R (red),
Y (yellow),
G (green)
Non-lightedA165S-A2M
Automatic1102_lu_5_4LEDA165W-A2A[]
Non-lightedA165S-A2A
3 notchesManualLEDA165W-A3M[]
Non-lightedA165S-A3M
Fully
automatic		1102_lu_5_5LEDA165W-A3A[]
Non-lightedA165S-A3A
Round
(A165[] -T)
1102_lu_5_3		2 notchesManualLEDA165W-T2M[]Enter the desired color symbol
for the Selector in[] .
R (red),
Y (yellow),
G (green)
Non-lightedA165S-T2M
Automatic1102_lu_5_4LEDA165W-T2A[]
Non-lightedA165S-T2A
3 notchesManualLEDA165W-T3M[]
Non-lightedA165S-T3M
Fully
automatic		1102_lu_5_5LEDA165W-T3A[]
Non-lightedA165S-T3A

Note: The selector for non-lighted models is black.

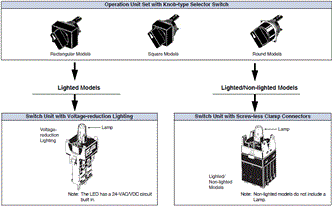

Sets

Select an Operation Unit and a Switch Unit (Lamp and Switch).

A165S / W Lineup 15

Switch Units (A Switch Unit includes a Switch and a Lamp.)

AppearanceNumber of notchesClassificationModel
1102_lu_7_12 notchesSPDT24 VSolder terminalsA16W-2N[]-24D-1
DPDTA16W-2N[]-24D-2
3 notchesDPDTA16W-3N[]-24D-2

Switch Units with Voltage Reduction Units (Solder Terminals)

AppearanceClassificationOperating voltageModel
1102_lu_8_1Standard loads and microloads2 notchesSPDT100/110 VAC/VDCA16L-[]-T1-1
2 notchesDPDTA16L-[]-T1-2
3 notchesA16W-3N[]-T1-2

Note: The LED has a 24-VAC/VDC circuit built in.

Insert one of the following letters into the box ([]).

SymbolLight color
RRed
YYellow
GGreen

Switch Units with Screw-less Clamp Connectors

AppearanceClassificationModelRemarks
1102_lu_10_1Standard
loads and
microloads		2
notches
DPDT		Non-lightedA16-2SUsed for Pushbutton
Switches and Knob-type
Selector Switches.
LightedNo voltage-reduction
lighting		A16L-Δ-[]-2S
Voltage-
reduction
lighting		100/110
VAC/VDC		A16L-Δ-T1-2S
200/220
VAC/VDC		A16L-Δ-T2-2S
3
notches
DPDT		Non-lightedA16S-3N-2LS
LightedNo voltage-reduction
lighting		A16W-3NΔ-[]-2S
Voltage-
reduction
lighting		100/110
VAC/VDC		A16W-3N-Δ-T1-2S
200/220
VAC/VDC		A16W-3N-Δ-T2-2S

Note: The 100-V models and 200-V models have a 24-VAC/VDC circuit built in.

Insert symbols in Δ and [].

Δ

SymbolLight color
RRed
YYellow
GGreen

[]

SymbolTypeOperating voltage
5DLED5 VDC
12D12 VAC/VDC
24D24 VAC/VDC

Ordering Individually

Switches

AppearanceClassificationModel
1102_lu_13_1LightedSwitches (without voltage-
reduction lighting)		2 notchesSPDTSolder terminalA16S-2N-1L
DPDTA16S-2N-2L
3 notchesDPDTA16S-3N-2L
Non-lighted2 notchesSPDTA16S-2N-1
DPDTA16S-2N-2
3 notchesDPDTA16S-3N-2
1102_lu_13_2Lighted2 notchesSPDTPCB terminalA16S-2N-1LP
DPDTA16S-2N-2LP
Non-lightedSPDTA16S-2N-1P
DPDTA16S-2N-2P

Lamps

Operating voltageSuper-bright 1102_lu_14_1
Light color5 VDC12 VAC/VDC24 VAC/VDC
RedA16-5DSRA16-12DSRA16-24DSR
YellowA16-5DSYA16-12DSYA16-24DSY
GreenA16-5DSGA16-12DSGA16-24DSG

Accessories and Tools (Order Separately)

Accessories

NameAppearanceClassificationModelRemarks
Panel Plugs1102_lu_15_1RectangularA16ZJ-3003Used for covering the panel cutouts for
future panel expansion.
Degree of protection: IP40
SquareA16ZA-3003
RoundA16ZT-3003

Tools

NameAppearanceModelApplicable typesRemarks
Push-
button
Switch		Knob-
type
Selector
Switch		Key-type
Selector
Switch		Emer-
gency
Stop
Switch		Indicator
Screw
Fitting		1102_lu_16_1A16Z-3004YesYesYesYesYesConvenient for ganged
installation.
Tighten to a torque of
0.39 Nm min.
Extractor1102_lu_16_2A16Z-5080YesYesYesYesYesConvenient for
extracting the Switches
and Lamps.

last update: September 09, 2015


OMRON A165S / W catalog

A165S / W Knob-type Selector Switch (Detachable) (Cylindrical 16-dia.)/Catalog

  • Catalog
  • CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name Catalog Number
[size] 		Last Update
A165S/W Data Sheet -
[2101KB] 		Sep 09, 201520150909 A165S/W Data Sheet


OMRON A165S / W dimension

A165S / W Knob-type Selector Switch (Detachable) (Cylindrical 16-dia.)/Dimensions

last update: November 15, 2012

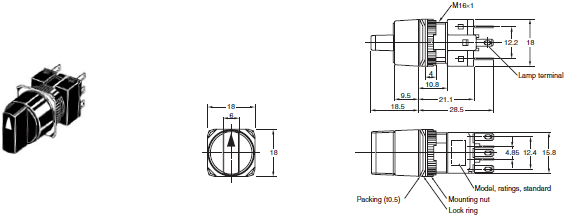

• The Dimension shows 2-switch outputs.
• The lamp terminal is not provided with non-lighted models.

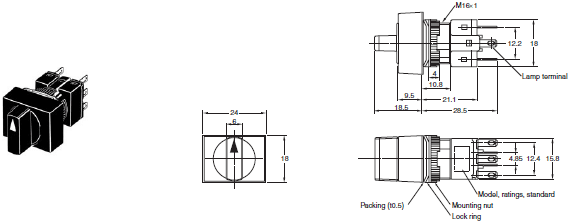

Rectangular A165[]-J
Solder terminals (tab terminals #110)

A165S / W Dimensions 2

Note: See below for panel cutouts.

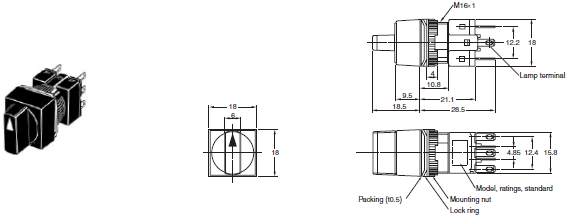

Square A165[]-A
Solder terminals (tab terminals #110)

A165S / W Dimensions 3

Note: See below for panel cutouts.

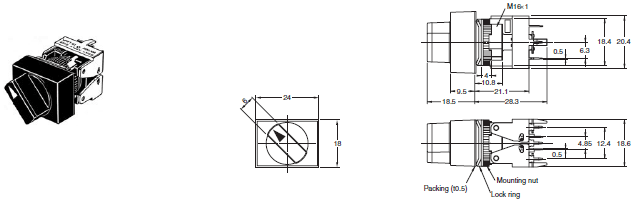

Round A165[]-T
Solder terminals (tab terminals #110)

A165S / W Dimensions 4

Note: See below for panel cutouts.

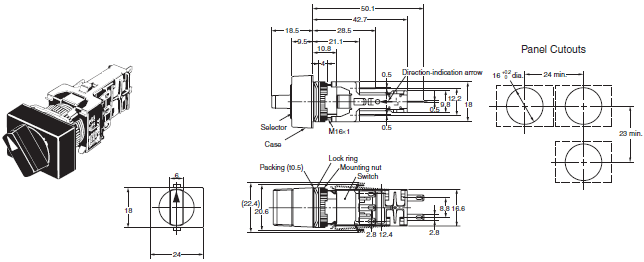

Rectangular A165[]-J
PCB terminals

A165S / W Dimensions 5

The lamp terminal is not also provided with nonlighted models.
Note: See below for panel cutouts.

Rectangular A165W[]-T
Reduced-voltage lighting solder terminals (tab terminals #110)

A165S / W Dimensions 6

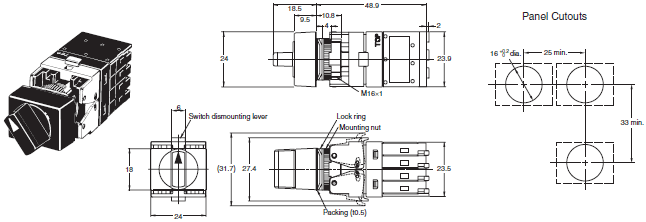

Rectangular A165[]-2S
Screw-Less Clamp

A165S / W Dimensions 7

The lamp terminal is also provided with nonlighted models.

Panel Cutouts

Models with Solder Terminals and Models with Screw-less Clamp Connectors

A165S / W Dimensions 9

Note: 1. Make sure the thickness of the mounting panel is 0.5 to 3.2 mm.
          2. If the panel is to be finished with coating, etc., make sure that the panel meets the specified dimensions after
               coating.
          3. Figures in parentheses are for screw-less clamp connectors.

Models with PCB Terminals

A165S / W Dimensions 10

Note: 1. Ensure that the variation in the distance between the centers of neighboring mounting holes is less than ±0.1
              mm.
          2. Make sure the thickness of the mounting panel is 0.5 to 3.2 mm. If, however, a Switch Guard or Dust Cover is
               used, the thickness of the mounting panel must be 0.5 to 2 mm.
          3. If the panel is to be finished with coating, etc., make sure that the panel meets the specified dimensions after
               coating.

last update: November 15, 2012


OMRON A165S / W specification

A165S / W Knob-type Selector Switch (Detachable) (Cylindrical 16-dia.)/Specifications

last update: September 09, 2015

Approved Standard Ratings

UL, cUL (File No. E41515)

5 A at 125 VAC, 3 A at 250 VAC (general use)
3 A at 30 VDC (resistive)
Note: Certification has been obtained for the Switch.
           For detailed information on individual products that have received certification, consult your supplier.

TÜV (EN60947-5-1) (Low Voltage Directive)

3 A at 250 VAC
3 A at 30 VDC

CCC (GB14048.5)

5 A at 125 VAC
3 A at 250 VAC
3 A at 30 VDC

Ratings

Switch Ratings

Rated voltageResistive load
125 VAC5A
250 VAC3A
30 VDC3A

Minimum applicable load: 1 mA at 5 VDC
Rated values are obtained from tests conducted under the following conditions.
  1. Load: Resistive load
  2. Mounting conditions: No vibration and no shock
  3. Temperature: 20±2°C
  4. Operating frequency: 20 times/min

Contact Form

NameContact form
SPDT1102_sp_2_1

Super-bright LED

Rated voltageRated currentOperating voltageInternal limiting resistor
5 VDC8 mA5 VDC ± 5%Red, yellow: 300 Ω
Green: 160 Ω
12 VAC/VDC12 VAC/VDC ± 5%Red, yellow: 1 kΩ
Green: 910 Ω
24 VAC/VDC24 VAC/VDC ± 5%2.4 kΩ

Characteristics

Socket Unit

TypeKnob-type Selector Switch
Allowable
operating
frequency		Mechanical20 operations/minute max.
Electrical10 operations/minute max.
Insulation resistance100 MΩ min. (at 500V DC)
Contact resistance100 mΩ max. (initial value)
Dielectric
strength		Between terminals of
same polarity		1,000 VAC, 50/60 Hz for 1 min
Between terminals of
different polarity		2,000 VAC, 50/60 Hz for 1 min
Between each terminal
and ground		2,000 VAC, 50/60 Hz for 1 min
Between lamp terminals1,000 VAC, 50/60 Hz for 1 min *
Vibration
resistance		Malfunction10 to 55 Hz, 1.5-mm double amplitude (malfunction within 1 ms)
Shock
resistance		Destruction500 m/s2 max.
Malfunction150 m/s2 max. (malfunction within 1 ms)
DurabilityMechanical250,000 operations min.
Electrical100,000 operations min.
Electric shock protection classClass II
PTI (tracking characteristic)175
Degree of contamination3 (IEC60947-5-1)
WeightApprox. 13 g (in the case of a lighted DPDT switch)
Ambient operating temperature-10°C to 55°C (with no icing or condensation)
Ambient operating humidity35% to 85%RH
Ambient storage temperature-25°C to 65°C (with no icing or condensation)

* With LED not mounted.
   (Perform testing with the LED not mounted.)

Screw-less Clamp

ItemTypeScrew-less Clamp
Recommended wire size0.5 mm2 twisted wire or 0.8 mm-dia. solid wire
Usable wires and tensile strengthTwisted wire0.3 mm20.5 mm20.75 mm21.25 mm2
Solid wire0.5 mm dia.0.8 mm dia.1.0 mm dia.---
Tensile strength10 N20 N30 N40 N
Length of exposed wire10 ± 1 mm
CompliantJIS C 2811 Terminal Blocks for Industrial Use

Operating Characteristics

TypeKnob-type Selector Switch
Characteristics2 notches3 notches
Operating torque (OF) max.0.1 Nm
Set position (SP)90 ± 5 °45°+10, 0

last update: September 09, 2015


Return to OMRON
