S8VM Switch Mode Power Supply (15/30/50/100/150/300/600/1,500-W Models)/Specifications
S8VM Switch Mode Power Supply (15/30/50/100/150/300/600/1,500-W Models)/Dimensions
S8VM Switch Mode Power Supply (15/30/50/100/150/300/600/1,500-W Models)/Catalog
S8VM Switch Mode Power Supply (15/30/50/100/150/300/600/1,500-W Models)/Lineup
Purchase the OMRON S8VM Switch mode power supplies

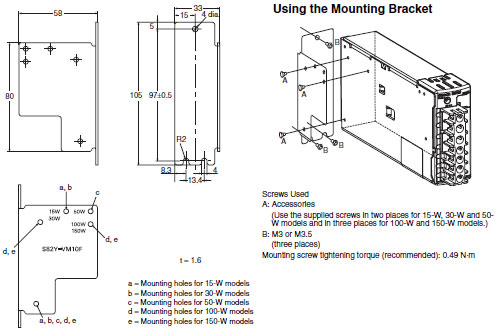

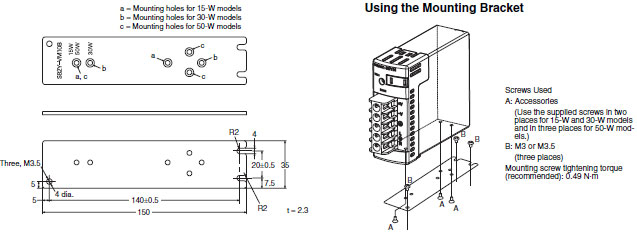

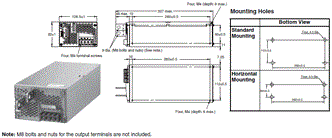

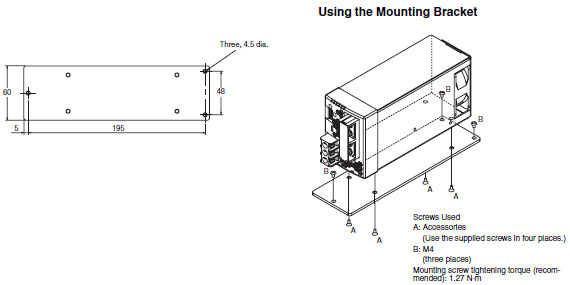

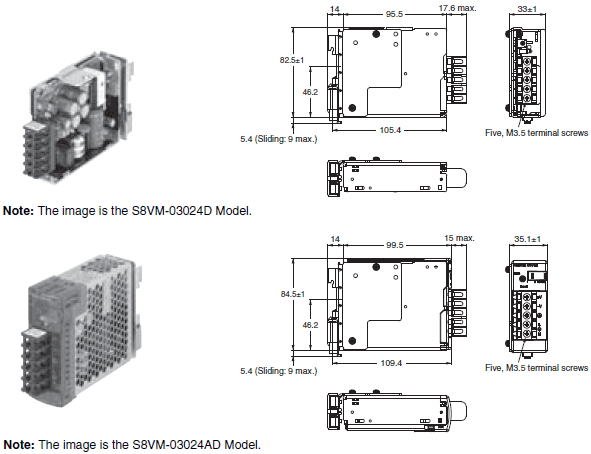

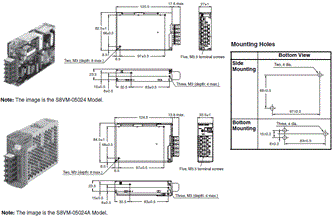

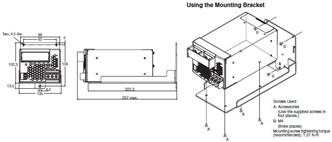

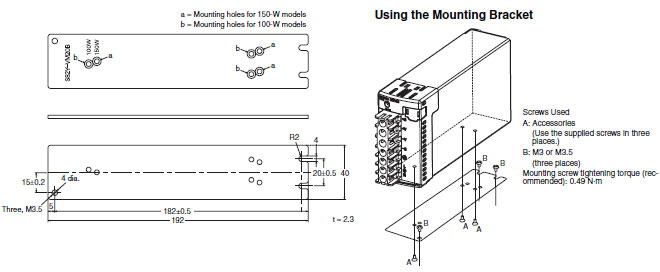

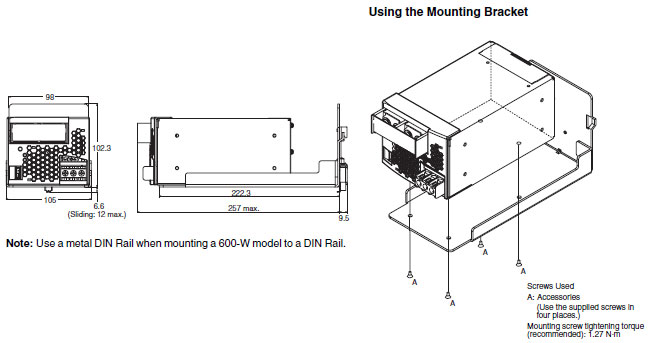

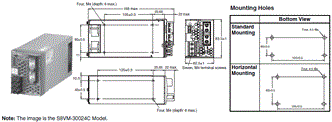

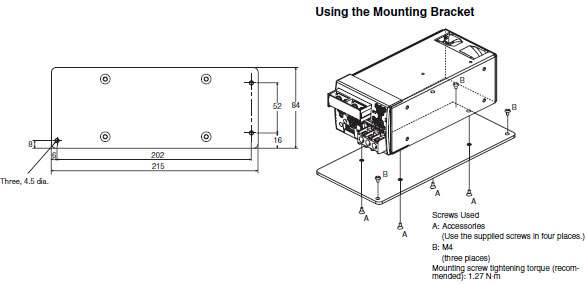

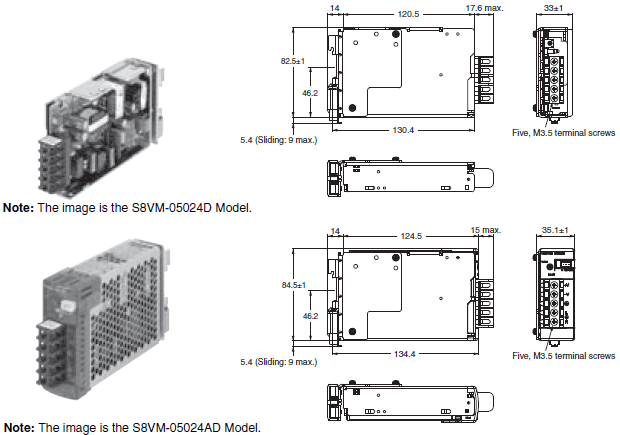

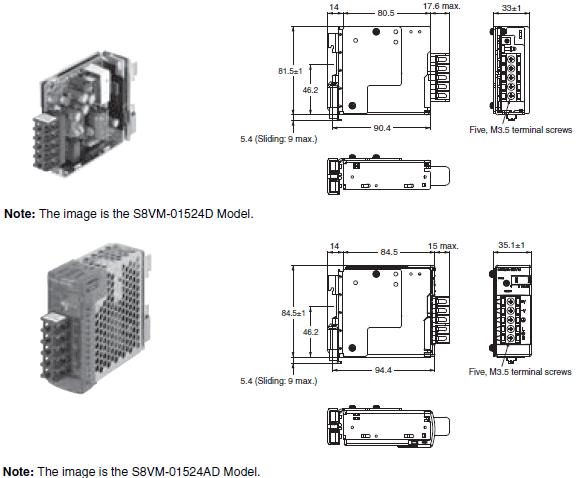

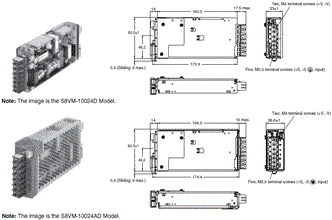

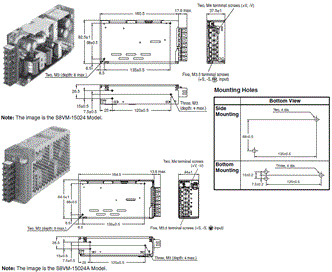

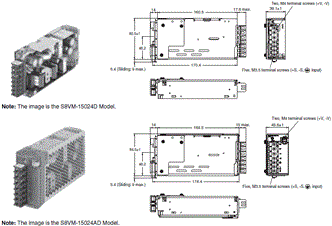

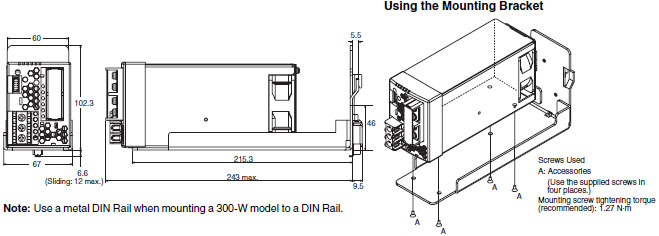

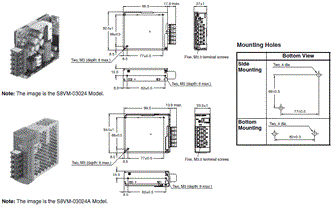

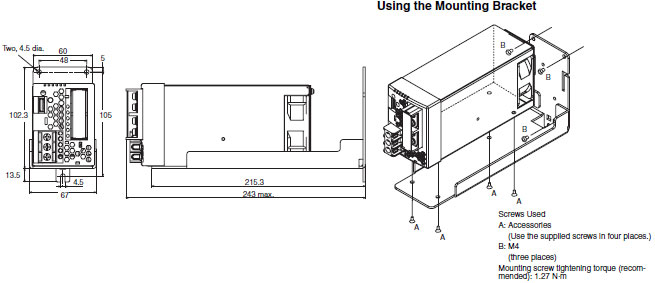

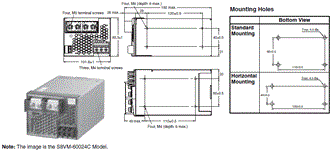

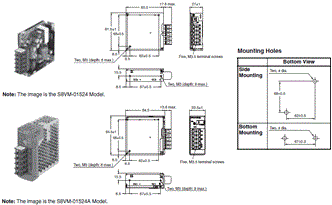

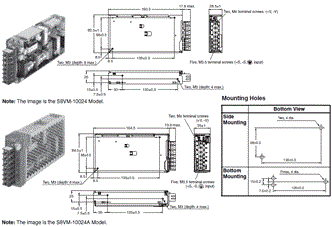

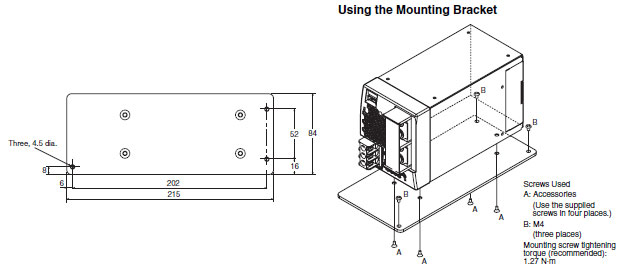

OMRON S8VM Dimensions

/Images/l_1616-25-119019-198x198.jpg

last update: April 04, 2013

New undervoltage alarm function assists in determining causes of errors (S8VM-[][][]24A[]/P[] only).

Power failure alarm function provides notification of output voltage errors (300-, 600-, and 1,500-W models only).

Broad range of possibilities with 8 capacities and 29 models to choose from.

RoHS-compliant

New, attentive design prevents screws from falling out of terminal block (except for output terminals of 300-, 600-, and 1,500-W models).

Finger protection prevents electric shock.

DIN Rail mounting.

Safety standards: UL508/60950-1, CSA C22.2 No. 14/No. 60950-1, EN50178, EN60950-1 (The 300-, 600-, and 1,500-W models will not conform to safety standards if the customer replaces the fan.)

Conforms to SEMI F47-0200 (when 200-V input is used).

Harmonic current emissions: Conforms to EN61000-3-2 (except for 15- and 30-W models).

last update: April 04, 2013

Purchase the OMRON Switch mode power supplies Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON S8VM Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the S8VM We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON S8VMPower Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

A3P (Super Luminosity Type) Lighted Pushbutton Switch (Square) Ultra Bright LED Type/Features
NX-CSG / SL5 / SI / SO NX-series Communication Control Unit/Safety Control Units/Features
E52 with Ferrule (Low-cost Models) Temperature Sensor with Ferrule (Low-cost Models)/Features
K3HB-H Temperature Indicator/Features
CS1W-B7A CS-series B7A Interface Unit/Features

OMRON S8VM specification
S8VM Switch Mode Power Supply (15/30/50/100/150/300/600/1,500-W Models)/Specifications
last update: September 02, 2015
Ratings/Characteristics

Power rating 15 W 30 W 50 W 100 W 150 W
Efficiency 5-V models 75% min. 75% min. 80% min. 81% min. 81% min.
12-V models 78% min. 79% min. 79% min. 81% min. 81% min.
15-V models 78% min. 79% min. 79% min. 81% min. 81% min.
24-V models 80% min. 81% min. 80% min. 82% min. 83% min.
Input Voltage *1 100 to 240 VAC (85 to 265 VAC)
Frequency *1 50/60 Hz (47 to 63 Hz)
Current 100-V input 0.5 A max. 0.9 A max. 0.8 A max. 1.4 A max. 2.0 A max.
200-V input 0.25 A max. 0.45 A max. 0.4 A max. 0.7 A max. 1.0 A max.
Power
factor 100-V input --- 0.98 min.
200-V input --- 0.94 min.
Harmonic current
emissions --- Conforms to EN 61000-3-2
Leakage
current 100-V input 0.4 mA max. (at rated output)
200-V input 0.75 mA max. (at rated output)
Inrush
current
*2 100-V input 17.5 A max. (for cold start at 25 °C)
200-V input 35 A max. (for cold start at 25 °C)
Output Voltage adjustment
range *3 -20% to 20% (with V. ADJ) (S8VM-[][][]24A[]/P[]: -10% to 20%)
Ripple 3.2% (p-p) max. (5 V),
1.5% (p-p) max. (12 V),
1.2% (p-p) max. (15 V),
1.0% (p-p) max. (24 V),
(at rated input/output voltage) 3.2% (p-p) max. (5 V),
1.5% (p-p) max. (12 V),
1.2% (p-p) max. (15 V),
0.75% (p-p) max. (24 V),
(at rated input/output voltage)
Input variation influence 0.4% max. (at 85 to 265 VAC input, 100%)
Load variation influence
(rated input voltage) 0.8% max. (with rated input, 0 to 100% load)
Temperature variation
influence 0.02%/°C max.
Startup time *2 1,100 ms max. (at rated
input/output voltage) 800 ms max. (at rated input/output voltage)
Hold time *2 20 ms typ. (15 ms min.) (at rated input/output voltage)
Additional
functions Overload protection *2 105% to 160% of rated load
current, voltage drop,
intermittent, automatic reset 105% to 160% of rated load current,
voltage drop (12 V, 15 V, and 24 V),
voltage drop, intermittent (5 V), automatic
reset
Overvoltage protection
*2 Yes *4

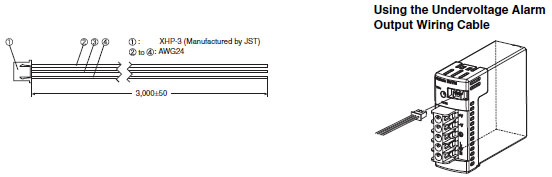

Undervoltage alarm
indication Yes (color: Yellow (DC LOW1), red (DC LOW2)) (S8VM-[][][]24A[]/P[] only)
Undervoltage alarm output No Yes (S8VM-[][][]24A[]/P[] only) (Transistor
output), 30 VDC max., 50 mA max. *8
Series operation Yes for up to 2 Power Supplies (with external diode)
Parallel operation No (However, backup operation is possible. An external diode is required.)
Remote sensing function No Yes
Other Ambient operating
temperature Refer to the derating curve in See Engineering Data on Data Sheet (15-W,
30-W, 50-W, 100-W, 150-W Models). (with no icing or condensation) *2
Storage temperature -25 to 65°C
Ambient operating
humidity 30% to 85% (Storage humidity: 25% to 90%)
Dielectric strength 3.0 kVAC for 1 min. (between all inputs and outputs; detection current: 20
mA)
2.0 kVAC for 1 min. (between all inputs and PE/FG terminals; detection
current: 20 mA)
500 VAC for 1 min. (between all outputs and PE/FG terminals; detection
current: 100 mA)
500 VAC for 1 min. (between all outputs (except the detection output
terminals) and detection output terminals; detection current: 20 mA) (S8VM-
[][][]24A[]/P[] only)
Insulation resistance 100 MΩ min. (between all outputs and all inputs, PE/FG terminals) at 500
VDC
Vibration resistance 10 to 55 Hz, 0.375-mm single amplitude for 2 hours each in X, Y, and Z
directions
Shock resistance 150 m/s², 3 times each in ±X, ±Y, ±Z directions
Output indicator Yes (color: Green)
EMI Conducted
Emission Conforms to EN55011 Group1 Class B and based on FCC Class B *5
Radiated
Emission Conforms to EN55011 Group1 Class B *6
EMS Conforms to EN61204-3 High severity levels
Approved
standards UL UL508 (Listing), UL60950-1
cUL CSA C22.2 No.14
cUR CSA No. 60950-1
EN/TÜV EN50178, EN60950-1
SELV (EN60950-1)
According to VDE0160/P100
SEMI SEMI F47-0200 (200 VAC input)
Weight *7 180 g max. 220 g max. 290 g max. 460 g max. 530 g max.

*1. Do not use an Inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available, but
       the rise in the internal temperature of the Power Supply may result in ignition or burning.
*2. Refer to Engineering Data (15-W, 30-W, 50-W, 100-W, 150-W Models) on Catalog for details.
*3. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than +20% of the voltage
       adjustment range. If the adjuster is turned too far, it may activate the overvoltage protection function and interrupt
       the output.
       When adjusting the output voltage, confirm the actual output voltage from the Power Supply and be sure that the
       load is not damaged.
*4. To reset the protection, turn OFF the input power for three minutes or longer and then turn it back ON.
*5. Conducted emissions: The noise value is affected by factors such as the wiring method. The Power Supply conforms
        to Class B when the aluminum plate is laid under the Power Supply. For 15-W models, insert a clamp filter
        (ZCAT2436-1330 by TDK: 50 Ω min. [50 to 500 MHz], or the equivalent) in the output wire to reduce noise.
*6. Radiated emissions: The noise value is affected by factors such as the wiring method. The Power Supply conforms to
       Class B when the aluminum plate is laid under the Power Supply. For 150-W models, insert a clamp filter
       (ZCAT2017-0930 by TDK: 35 Ω min. [50 to 500 MHz], or the equivalent) in the input wire to reduce noise.
*7. The weight indicated is for bottom mounting, open-frame models.
*8. A[]: Sinking type (NPN)
       P[]: Sourcing type (PNP)

Power rating 300 W 600 W 1,500 W
Efficiency 5-V models 77% min. 77% min. ---
12-V models 78% min. 79% min. ---
15-V models 79% min. 80% min. ---
24-V models 81% min. 81% min. 82% min.
Input Voltage *1 100 to 240 VAC (85 to 265 VAC) 100 to 240 VAC (85 to 265 VAC)
Frequency *1 50/60 Hz (47 to 63 Hz)
Current 100-V input 4.0 A max. (5 V)
4.3 A max. (12 V,
15 V, and 24 V) 8.0 A max. (5 V)
8.3 A max. (12 V,
15 V, and 24 V) 20.0 A max.
200-V input 2.0 A max. (5 V)
2.2 A max. (12 V,
15 V, and 24 V) 4.0 A max. (5 V)
4.2 A max. (12 V,
15 V, and 24 V) 11.0 A max.
Power
factor 100-V input 0.98 min. 0.97 min.
200-V input 0.94 min. 0.93 min.
Harmonic current
emissions Conforms to EN61000-3-2
Leakage
current 100-V input 0.4 mA max. 1.5 mA max.
200-V input 0.75 mA max. 1.5 mA max.
Inrush
current
*2 100-V input 20 A max. (for cold start at 25 °C)
200-V input 40 A max. (for cold start at 25 °C)
Output Voltage adjustment
range *3 -20% to 20% (with V. ADJ)
Ripple 3.8% (p-p) max. (5 V), 2.0% (p-p) max. (12
V), 2.0% (p-p) max. (15 V), 1.25% (p-p)
max. (24 V), (at rated input/output voltage) 1.25% (p-p) max. *7,
(at rated input/output voltage)
Input variation influence 0.4% max. (at 85 to 265 VAC input, 100%)
Load variation influence
(rated input voltage) 0.6% max. (with rated input, 0 to 100% load)
Temperature variation
influence 0.02%/°C max.
Startup time *2 1,000 ms max. (at rated input/output voltage)
Hold time *2 20 ms typ. (15 ms min.) (at rated input/output voltage)
Additional
functions Overload protection
*2 105% to 160% of rated load current (5 V,
12 V, and 15 V), 120% to 160% of rated
load current (S8VM-30024C), 115% to
160% of rated load current (S8VM-
60024C), voltage drop (12 V, 15 V, and 24
V), voltage drop, intermittent (5 V),
automatic reset 105% to 160% of rated load
current (100 VAC), 155% to 200%
of rated load current (200 VAC),
voltage drop, automatic reset
(Turns OFF when continuous for
5 s min.) *4
Overvoltage protection
*2 Yes *4
Overheat protection *2 Yes *4
Undervoltage alarm
indication No
Undervoltage alarm
output No
Power failure alarm
indication Yes (color: Red)
Power failure alarm
output Yes (Transistor output), 30 VDC max., 50 mA max.
Series operation Yes for up to 2 Power Supplies (with external diode)
Parallel operation Yes (up to 2 units)
Remote sensing function Yes
Remote control function Yes
Other Ambient operating
temperature Refer to the derating curve in See Engineering Data on Data Sheet (300-W,
600-W, 1,500-W Models). (with no icing or condensation) *2
Storage temperature -25 to 65°C
Ambient operating
humidity 30% to 85% (Storage humidity: 25% to 90%)
Dielectric strength 3.0 kVAC for 1 min. (between all inputs and
outputs; detection current: 20 mA)
2.0 kVAC for 1 min. (between all inputs and
PE terminals; detection current: 20 mA)
500 VAC for 1 min. (between all outputs
and PE terminals; detection current: 100
mA)
100 VAC for 1 min. (between all outputs
and RC terminals; detection current: 100
mA)
500 VAC for 1 min. (between all outputs
and PF terminals; detection current: 20
mA) 3.0 kVAC for 1 min. (between all
inputs and outputs; detection
current: 20 mA)
2.0 kVAC for 1 min. (between all
inputs and FG terminals; detection
current: 20 mA)
500 VAC for 1 min. (between all
outputs and FG terminals;
detection current: 300 mA)
100 VAC for 1 min. (between all
outputs and RC terminals;
detection current: 100 mA)
500 VAC for 1 min. (between all
outputs and PF terminals;
detection current: 20 mA)
Insulation resistance 100 MΩ min. (between all outputs and all
inputs, PE terminals) at 500 VDC 100 MΩ min. (between all outputs
and all inputs, FG terminals) at
500 VDC
Vibration resistance 10 to 55 Hz, 0.375-mm single amplitude
for 2 hours each in X, Y, and Z directions 10 to 55 Hz, 0.15-mm single
amplitude for 2 hours each in X,
Y, and Z directions
Shock resistance 150 m/s², 3 times each in ±X, ±Y, ±Z directions
Output indicator Yes (color: Green)
EMI Conducted
Emission Conforms to EN55011 Group1 Class B
and based on FCC Class B *5 Conforms to EN55011 Group1
Class A and based on FCC
Class A *6
Radiated
Emission Conforms to EN55011 Group1 Class B *5 Conforms to EN55011 Group1
Class A *6
EMS Conforms to EN61204-3 High severity levels
Approved
standards
*8 UL UL508 (Recognition) (5 V, 12 V, and 15 V)
UL508 (Listing) (24 V), UL60950-1 UL508, UL60950-1
cUR CSA C22.2 No.14 (24 V)
cUR CSA No. 60950-1 CSA C22.2 No.14,
CSA No. 60950-1
EN/TÜV EN50178, EN60950-1
SELVE (EN60950-1) EN50178, EN60950-1
SELVE (EN60950-1)
SEMI SEMI F47-0200 (200-VAC input)
Weight 1,100 g max. 1,700 g max. 3,800 g max.

*1. Do not use an Inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available,
but the rise in the internal temperature of the Power Supply may result in ignition or burning.
*2. Refer to Engineering Data (300-W, 600-W, 1,500-W Models) on Catalog for details.
*3. If the output voltage adjuster (V. ADJ) is turned, the voltage will increase by more than +20% of the voltage
adjustment range. If the adjuster is turned too far, it may activate the overvoltage protection function and interrupt
the output. When adjusting the output voltage, confirm the actual output voltage from the Power Supply and be
sure that the load is not damaged.
*4. To reset the protection, turn OFF the input power for three minutes or longer and then turn it back ON. Alternatively,
turn OFF the remote control signal and then turn it back ON again.
*5. Conducted emissions: The noise value is affected by factors such as the wiring method. The Power Supply conforms
to Class B when the aluminum plate is laid under the Power Supply. For 600-W models, insert a clamp filter
(ZCAT3035-1330 by TDK: 100 Ω min. [50 to 500 MHz], or the equivalent) in the input wire, and ring core
(HF60T38X14X22 by TDK: 16 Ω typ. [1 MHz], 46 Ω typ. [10 MHz], or the equivalent) in the output wire to reduce
noise
*6. Radiated emissions: The noise value is affected by factors such as the wiring method. The Power Supply conforms to
Class A when the aluminum plate is laid under the Power Supply (1,500-W models).
*7. The measuring method conforms to JEITA standard RC-9131A. Refer to Ripple under Safety Precautions on Catalog.
*8. The Power Supply will not conform to safety standards if the customer replaces the fan.

last update: September 02, 2015

OMRON S8VM dimension
S8VM Switch Mode Power Supply (15/30/50/100/150/300/600/1,500-W Models)/Dimensions
last update: December 21, 2015
Bottom Mounting Models (15-W, 30-W, 50-W, 100-W, 150-W Models)
S8VM-015[][]
S8VM-015[][]C
S8VM-01524A

S8VM-030[][]
S8VM-030[][]C
S8VM-03024A

S8VM-050[][]
S8VM-050[][]C
S8VM-05024A
S8VM-05024P

S8VM-100[][]
S8VM-100[][]C
S8VM-10024A
S8VM-10024P

S8VM-150[][]
S8VM-150[][]C
S8VM-15024A
S8VM-15024P

DIN Rail Mounting Bracket Models (15-W, 30-W, 50-W, 100-W, 150-W Models)
S8VM-015[][]D
S8VM-015[][]CD
S8VM-01524AD

S8VM-030[][]D
S8VM-030[][]CD
S8VM-03024AD

S8VM-050[][]D
S8VM-050[][]CD
S8VM-05024AD
S8VM-05024PD

S8VM-100[][]D
S8VM-100[][]CD
S8VM-10024AD
S8VM-10024PD

S8VM-150[][]D
S8VM-150[][]CD
S8VM-15024AD
S8VM-15024PD

Bottom Mounting Models (300-W, 600-W, 1,500-W Models)
S8VM-300[][]C

S8VM-600[][]C

S8VM-15224C

Mounting Brackets
Mounting Bracket A (Bottom Mounting for 15-, 30-, and 50-W Models)
S82Y-VM10B

Mounting Bracket B (Bottom Mounting for 100-, and 150-W Models)
S82Y-VM20B

Mounting Bracket C (Front Mounting for 15-, 30- 50-, 100-, and 150-W Models)
S82Y-VM10F

Mounting Bracket D (Bottom Mounting for 300-W Models)
S82Y-VM30B

Mounting Bracket E (Horizontal Bottom Mounting for 300-W Models)
S82Y-VM30S

Mounting Bracket F (Front Mounting for 300-W Models)
S82Y-VM30F

Mounting Bracket G (DIN Rail Mounting for 300-W Models)
S82Y-VM30D

Mounting Bracket H (Bottom Mounting for 600-W Models)
S82Y-VM60B

Mounting Bracket I (Horizontal Bottom Mounting for 600-W Models)
S82Y-VM60S

Mounting Bracket J (Front Mounting for 600-W Models)
S82Y-VM60F

Mounting Bracket K (DIN Rail Mounting for 600-W Models)
S82Y-VM60D

Other Items Sold Separately
Undervoltage Alarm Output Wiring Cable
S82Y-VM10H (for S8VM-05024A[]/05024P[]/10024A[]/10024P[]/15024A[]/15024P[] Only)

last update: December 21, 2015

OMRON S8VM catalog
S8VM Switch Mode Power Supply (15/30/50/100/150/300/600/1,500-W Models)/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

S8VM Data Sheet -
[8432KB] Dec 16, 201520151216 S8VM Data Sheet

S8VM Series Replacement Brackets T218-E1-01
[6407KB] Aug 09, 201820180809 S8VM Series Replacement Brackets

OMRON S8VM lineup
S8VM Switch Mode Power Supply (15/30/50/100/150/300/600/1,500-W Models)/Lineup
last update: March 06, 2014

Note: For details on normal stock models, contact your nearest OMRON representative.

Covered type

Configuration Power ratings Output voltage Output current Model
DIN Rail
mounting bracket 15 W 5 V 3 A S8VM-01505CD
12 V 1.3 A S8VM-01512CD
15 V 1 A S8VM-01515CD
24 V 0.65 A S8VM-01524CD
30 W 5 V 6 A S8VM-03005CD
12 V 2.5 A S8VM-03012CD
15 V 2 A S8VM-03015CD
24 V 1.3 A S8VM-03024CD
50 W 5 V 10 A S8VM-05005CD
12 V 4.3 A S8VM-05012CD
15 V 3.5 A S8VM-05015CD
24 V 2.2 A S8VM-05024CD
100 W 5 V 20 A S8VM-10005CD
12 V 8.5 A S8VM-10012CD
15 V 7 A S8VM-10015CD
24 V 4.5 A S8VM-10024CD
150 W 5 V 27 A S8VM-15005CD (See note 1.)
12 V 12.5 A S8VM-15012CD
15 V 10 A S8VM-15015CD
24 V 6.5 A S8VM-15024CD
Bottom mounting
(The 300-, 600-,
and 1,500-W models
use a forced cooling
method with built-in
fans.) 15 W 5 V 3 A S8VM-01505C
12 V 1.3 A S8VM-01512C
15 V 1 A S8VM-01515C
24 V 0.65 A S8VM-01524C
30 W 5 V 6 A S8VM-03005C
12 V 2.5 A S8VM-03012C
15 V 2 A S8VM-03015C
24 V 1.3 A S8VM-03024C
50 W 5 V 10 A S8VM-05005C
12 V 4.3 A S8VM-05012C
15 V 3.5 A S8VM-05015C
24 V 2.2 A S8VM-05024C
100 W 5 V 20 A S8VM-10005C
12 V 8.5 A S8VM-10012C
15 V 7 A S8VM-10015C
24 V 4.5 A S8VM-10024C
150 W 5 V 27 A S8VM-15005C (See note 1.)
12 V 12.5 A S8VM-15012C
15 V 10 A S8VM-15015C
24 V 6.5 A S8VM-15024C
300 W 5 V 60 A S8VM-30005C
12 V 27 A S8VM-30012C
15 V 22 A S8VM-30015C
24 V 14 A
Peak current:
16.5 A (200 VAC) S8VM-30024C
600 W 5 V 120 A S8VM-60005C
12 V 53 A S8VM-60012C
15 V 43 A S8VM-60015C
24 V 27 A
Peak current:
31 A (200 VAC) S8VM-60024C
1,500 W 24 V 65 A (100 VAC)
70 A (200 VAC)
Peak current:
105 A (200 VAC) S8VM-15224C (See note 2.)

Note: 1. The output capacity of the S8VM-15005[][] is 135 W.
Note: 2. M8 bolts and nuts for the output terminals are not included with the S8VM-15224C.
Note: 3. To perform front mounting using the bottom mounting models, use the Mounting Brackets (S82Y-VM[][]F, sold separately).
Note: 4. The input voltage is 100 to 240 VAC for all models.

Undervoltage Alarm Function Model with Cover

Configuration Power ratings Output voltage Output current Undervoltage
alarm model Model
DIN Rail
mounting bracket 15 W 24 V 0.65 A --- S8VM-01524AD
30 W 1.3 A --- S8VM-03024AD
50 W 2.2 A Sinking S8VM-05024AD
Sourcing S8VM-05024PD
100 W 4.5 A Sinking S8VM-10024AD
Sourcing S8VM-10024PD
150 W 6.5 A Sinking S8VM-15024AD
Sourcing S8VM-15024PD
Bottom mounting 15 W 24 V 0.65 A --- S8VM-01524A
30 W 1.3 A --- S8VM-03024A
50 W 2.2 A Sinking S8VM-05024A
Sourcing S8VM-05024P
100 W 4.5 A Sinking S8VM-10024A
Sourcing S8VM-10024P
150 W 6.5 A Sinking S8VM-15024A
Sourcing S8VM-15024P

Note: 1. To perform front mounting using the bottom mounting models, use the Mounting Brackets (S82Y-VM[][]F, sold separately).
Note: 2. The input voltage is 100 to 240 VAC for all models.

Open-frame type

Configuration Power ratings Output voltage Output current Model
DIN Rail
mounting bracket 15 W 5 V 3 A S8VM-01505D
12 V 1.3 A S8VM-01512D
15 V 1 A S8VM-01515D
24 V 0.65 A S8VM-01524D
30 W 5 V 6 A S8VM-03005D
12 V 2.5 A S8VM-03012D
15 V 2 A S8VM-03015D
24 V 1.3 A S8VM-03024D
50 W 5 V 10 A S8VM-05005D
12 V 4.3 A S8VM-05012D
15 V 3.5 A S8VM-05015D
24 V 2.2 A S8VM-05024D
100 W 5 V 20 A S8VM-10005D
12 V 8.5 A S8VM-10012D
15 V 7 A S8VM-10015D
24 V 4.5 A S8VM-10024D
150 W 5 V 27 A S8VM-15005D (See note 1.)
12 V 12.5 A S8VM-15012D
15 V 10 A S8VM-15015D
24 V 6.5 A S8VM-15024D
Bottom mounting 15 W 5 V 3 A S8VM-01505
12 V 1.3 A S8VM-01512
15 V 1 A S8VM-01515
24 V 0.65 A S8VM-01524
30 W 5 V 6 A S8VM-03005
12 V 2.5 A S8VM-03012
15 V 2 A S8VM-03015
24 V 1.3 A S8VM-03024
50 W 5 V 10 A S8VM-05005
12 V 4.3 A S8VM-05012
15 V 3.5 A S8VM-05015
24 V 2.2 A S8VM-05024
100 W 5 V 20 A S8VM-10005
12 V 8.5 A S8VM-10012
15 V 7 A S8VM-10015
24 V 4.5 A S8VM-10024
150 W 5 V 27 A S8VM-15005 (See note 1.)
12 V 12.5 A S8VM-15012
15 V 10 A S8VM-15015
24 V 6.5 A S8VM-15024

Note: 1. The output capacity of the S8VM-15005[][] is 135 W.
Note: 2. To perform front mounting using the bottom mounting models, use the Mounting Brackets (S82Y-VM[][]F, sold separately).
Note: 3. The input voltage is 100 to 240 VAC for all models.

last update: March 06, 2014

NO. S8VM

TYPE:Power Supplies Switch mode power supplies Copyright Statement

DATE:2021-06-09

Associated products:
S8JX Switch Mode Power Supply (15/35/50/100/150/300/600-W Models)/Features S8AS Smart Power Supply/Features

Power rating	15 W	30 W	50 W	100 W	150 W
Efficiency	5-V models	75% min.	75% min.	80% min.	81% min.	81% min.
12-V models	78% min.	79% min.	79% min.	81% min.	81% min.
15-V models	78% min.	79% min.	79% min.	81% min.	81% min.
24-V models	80% min.	81% min.	80% min.	82% min.	83% min.
Input	*Voltage 1**	100 to 240 VAC (85 to 265 VAC)
*Frequency 1**	50/60 Hz (47 to 63 Hz)
Current	100-V input	0.5 A max.	0.9 A max.	0.8 A max.	1.4 A max.	2.0 A max.
200-V input	0.25 A max.	0.45 A max.	0.4 A max.	0.7 A max.	1.0 A max.
Power factor	100-V input	---	0.98 min.
200-V input	---	0.94 min.
Harmonic current emissions	---	Conforms to EN 61000-3-2
Leakage current	100-V input	0.4 mA max. (at rated output)
200-V input	0.75 mA max. (at rated output)
Inrush current *2	100-V input	17.5 A max. (for cold start at 25 °C)
200-V input	35 A max. (for cold start at 25 °C)
Output	Voltage adjustment range *3	-20% to 20% (with V. ADJ) (S8VM-[][][]24A[]/P[]: -10% to 20%)
Ripple	3.2% (p-p) max. (5 V), 1.5% (p-p) max. (12 V), 1.2% (p-p) max. (15 V), 1.0% (p-p) max. (24 V), (at rated input/output voltage)	3.2% (p-p) max. (5 V), 1.5% (p-p) max. (12 V), 1.2% (p-p) max. (15 V), 0.75% (p-p) max. (24 V), (at rated input/output voltage)
Input variation influence	0.4% max. (at 85 to 265 VAC input, 100%)
Load variation influence (rated input voltage)	0.8% max. (with rated input, 0 to 100% load)
Temperature variation influence	0.02%/°C max.
*Startup time 2**	1,100 ms max. (at rated input/output voltage)	800 ms max. (at rated input/output voltage)
*Hold time 2**	20 ms typ. (15 ms min.) (at rated input/output voltage)
Additional functions	*Overload protection 2**	105% to 160% of rated load current, voltage drop, intermittent, automatic reset	105% to 160% of rated load current, voltage drop (12 V, 15 V, and 24 V), voltage drop, intermittent (5 V), automatic reset
Overvoltage protection *2	Yes *4
Undervoltage alarm indication	Yes (color: Yellow (DC LOW1), red (DC LOW2)) (S8VM-[][][]24A[]/P[] only)
Undervoltage alarm output	No	Yes (S8VM-[][][]24A[]/P[] only) (Transistor output), 30 VDC max., 50 mA max. *8
Series operation	Yes for up to 2 Power Supplies (with external diode)
Parallel operation	No (However, backup operation is possible. An external diode is required.)
Remote sensing function	No	Yes
Other	Ambient operating temperature	Refer to the derating curve in See Engineering Data on Data Sheet (15-W, 30-W, 50-W, 100-W, 150-W Models). (with no icing or condensation) *2
Storage temperature	-25 to 65°C
Ambient operating humidity	30% to 85% (Storage humidity: 25% to 90%)
Dielectric strength	3.0 kVAC for 1 min. (between all inputs and outputs; detection current: 20 mA) 2.0 kVAC for 1 min. (between all inputs and PE/FG terminals; detection current: 20 mA) 500 VAC for 1 min. (between all outputs and PE/FG terminals; detection current: 100 mA) 500 VAC for 1 min. (between all outputs (except the detection output terminals) and detection output terminals; detection current: 20 mA) (S8VM- [][][]24A[]/P[] only)
Insulation resistance	100 MΩ min. (between all outputs and all inputs, PE/FG terminals) at 500 VDC
Vibration resistance	10 to 55 Hz, 0.375-mm single amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	150 m/s², 3 times each in ±X, ±Y, ±Z directions
Output indicator	Yes (color: Green)
EMI	Conducted Emission	Conforms to EN55011 Group1 Class B and based on FCC Class B *5
Radiated Emission	Conforms to EN55011 Group1 Class B *6
EMS	Conforms to EN61204-3 High severity levels
Approved standards	UL	UL508 (Listing), UL60950-1
cUL	CSA C22.2 No.14
cUR	CSA No. 60950-1
EN/TÜV	EN50178, EN60950-1 SELV (EN60950-1) According to VDE0160/P100
SEMI	SEMI F47-0200 (200 VAC input)
*Weight 7**	180 g max.	220 g max.	290 g max.	460 g max.	530 g max.

Power rating	300 W	600 W	1,500 W
Efficiency	5-V models	77% min.	77% min.	---
12-V models	78% min.	79% min.	---
15-V models	79% min.	80% min.	---
24-V models	81% min.	81% min.	82% min.
Input	*Voltage 1**	100 to 240 VAC (85 to 265 VAC)	100 to 240 VAC (85 to 265 VAC)
*Frequency 1**	50/60 Hz (47 to 63 Hz)
Current	100-V input	4.0 A max. (5 V) 4.3 A max. (12 V, 15 V, and 24 V)	8.0 A max. (5 V) 8.3 A max. (12 V, 15 V, and 24 V)	20.0 A max.
200-V input	2.0 A max. (5 V) 2.2 A max. (12 V, 15 V, and 24 V)	4.0 A max. (5 V) 4.2 A max. (12 V, 15 V, and 24 V)	11.0 A max.
Power factor	100-V input	0.98 min.	0.97 min.
200-V input	0.94 min.	0.93 min.
Harmonic current emissions	Conforms to EN61000-3-2
Leakage current	100-V input	0.4 mA max.	1.5 mA max.
200-V input	0.75 mA max.	1.5 mA max.
Inrush current *2	100-V input	20 A max. (for cold start at 25 °C)
200-V input	40 A max. (for cold start at 25 °C)
Output	Voltage adjustment range *3	-20% to 20% (with V. ADJ)
Ripple	3.8% (p-p) max. (5 V), 2.0% (p-p) max. (12 V), 2.0% (p-p) max. (15 V), 1.25% (p-p) max. (24 V), (at rated input/output voltage)	1.25% (p-p) max. *7, (at rated input/output voltage)
Input variation influence	0.4% max. (at 85 to 265 VAC input, 100%)
Load variation influence (rated input voltage)	0.6% max. (with rated input, 0 to 100% load)
Temperature variation influence	0.02%/°C max.
*Startup time 2**	1,000 ms max. (at rated input/output voltage)
*Hold time 2**	20 ms typ. (15 ms min.) (at rated input/output voltage)
Additional functions	Overload protection *2	105% to 160% of rated load current (5 V, 12 V, and 15 V), 120% to 160% of rated load current (S8VM-30024C), 115% to 160% of rated load current (S8VM- 60024C), voltage drop (12 V, 15 V, and 24 V), voltage drop, intermittent (5 V), automatic reset	105% to 160% of rated load current (100 VAC), 155% to 200% of rated load current (200 VAC), voltage drop, automatic reset (Turns OFF when continuous for 5 s min.) *4
Overvoltage protection *2	Yes *4
*Overheat protection 2**	Yes *4
Undervoltage alarm indication	No
Undervoltage alarm output	No
Power failure alarm indication	Yes (color: Red)
Power failure alarm output	Yes (Transistor output), 30 VDC max., 50 mA max.
Series operation	Yes for up to 2 Power Supplies (with external diode)
Parallel operation	Yes (up to 2 units)
Remote sensing function	Yes
Remote control function	Yes
Other	Ambient operating temperature	Refer to the derating curve in See Engineering Data on Data Sheet (300-W, 600-W, 1,500-W Models). (with no icing or condensation) *2
Storage temperature	-25 to 65°C
Ambient operating humidity	30% to 85% (Storage humidity: 25% to 90%)
Dielectric strength	3.0 kVAC for 1 min. (between all inputs and outputs; detection current: 20 mA) 2.0 kVAC for 1 min. (between all inputs and PE terminals; detection current: 20 mA) 500 VAC for 1 min. (between all outputs and PE terminals; detection current: 100 mA) 100 VAC for 1 min. (between all outputs and RC terminals; detection current: 100 mA) 500 VAC for 1 min. (between all outputs and PF terminals; detection current: 20 mA)	3.0 kVAC for 1 min. (between all inputs and outputs; detection current: 20 mA) 2.0 kVAC for 1 min. (between all inputs and FG terminals; detection current: 20 mA) 500 VAC for 1 min. (between all outputs and FG terminals; detection current: 300 mA) 100 VAC for 1 min. (between all outputs and RC terminals; detection current: 100 mA) 500 VAC for 1 min. (between all outputs and PF terminals; detection current: 20 mA)
Insulation resistance	100 MΩ min. (between all outputs and all inputs, PE terminals) at 500 VDC	100 MΩ min. (between all outputs and all inputs, FG terminals) at 500 VDC
Vibration resistance	10 to 55 Hz, 0.375-mm single amplitude for 2 hours each in X, Y, and Z directions	10 to 55 Hz, 0.15-mm single amplitude for 2 hours each in X, Y, and Z directions
Shock resistance	150 m/s², 3 times each in ±X, ±Y, ±Z directions
Output indicator	Yes (color: Green)
EMI	Conducted Emission	Conforms to EN55011 Group1 Class B and based on FCC Class B *5	Conforms to EN55011 Group1 Class A and based on FCC Class A *6
Radiated Emission	Conforms to EN55011 Group1 Class B *5	Conforms to EN55011 Group1 Class A *6
EMS	Conforms to EN61204-3 High severity levels
Approved standards *8	UL	UL508 (Recognition) (5 V, 12 V, and 15 V) UL508 (Listing) (24 V), UL60950-1	UL508, UL60950-1
cUR	CSA C22.2 No.14 (24 V)
cUR	CSA No. 60950-1	CSA C22.2 No.14, CSA No. 60950-1
EN/TÜV	EN50178, EN60950-1 SELVE (EN60950-1)	EN50178, EN60950-1 SELVE (EN60950-1)
SEMI	SEMI F47-0200 (200-VAC input)
Weight	1,100 g max.	1,700 g max.	3,800 g max.

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
S8VM Data Sheet	- [8432KB]	Dec 16, 201520151216	S8VM Data Sheet
S8VM Series Replacement Brackets	T218-E1-01 [6407KB]	Aug 09, 201820180809	S8VM Series Replacement Brackets

Configuration	Power ratings	Output voltage	Output current	Model
DIN Rail mounting bracket	15 W	5 V	3 A	S8VM-01505CD
12 V	1.3 A	S8VM-01512CD
15 V	1 A	S8VM-01515CD
24 V	0.65 A	S8VM-01524CD
30 W	5 V	6 A	S8VM-03005CD
12 V	2.5 A	S8VM-03012CD
15 V	2 A	S8VM-03015CD
24 V	1.3 A	S8VM-03024CD
50 W	5 V	10 A	S8VM-05005CD
12 V	4.3 A	S8VM-05012CD
15 V	3.5 A	S8VM-05015CD
24 V	2.2 A	S8VM-05024CD
100 W	5 V	20 A	S8VM-10005CD
12 V	8.5 A	S8VM-10012CD
15 V	7 A	S8VM-10015CD
24 V	4.5 A	S8VM-10024CD
150 W	5 V	27 A	S8VM-15005CD (See note 1.)
12 V	12.5 A	S8VM-15012CD
15 V	10 A	S8VM-15015CD
24 V	6.5 A	S8VM-15024CD
Bottom mounting (The 300-, 600-, and 1,500-W models use a forced cooling method with built-in fans.)	15 W	5 V	3 A	S8VM-01505C
12 V	1.3 A	S8VM-01512C
15 V	1 A	S8VM-01515C
24 V	0.65 A	S8VM-01524C
30 W	5 V	6 A	S8VM-03005C
12 V	2.5 A	S8VM-03012C
15 V	2 A	S8VM-03015C
24 V	1.3 A	S8VM-03024C
50 W	5 V	10 A	S8VM-05005C
12 V	4.3 A	S8VM-05012C
15 V	3.5 A	S8VM-05015C
24 V	2.2 A	S8VM-05024C
100 W	5 V	20 A	S8VM-10005C
12 V	8.5 A	S8VM-10012C
15 V	7 A	S8VM-10015C
24 V	4.5 A	S8VM-10024C
150 W	5 V	27 A	S8VM-15005C (See note 1.)
12 V	12.5 A	S8VM-15012C
15 V	10 A	S8VM-15015C
24 V	6.5 A	S8VM-15024C
300 W	5 V	60 A	S8VM-30005C
12 V	27 A	S8VM-30012C
15 V	22 A	S8VM-30015C
24 V	14 A Peak current: 16.5 A (200 VAC)	S8VM-30024C
600 W	5 V	120 A	S8VM-60005C
12 V	53 A	S8VM-60012C
15 V	43 A	S8VM-60015C
24 V	27 A Peak current: 31 A (200 VAC)	S8VM-60024C
1,500 W	24 V	65 A (100 VAC) 70 A (200 VAC) Peak current: 105 A (200 VAC)	S8VM-15224C (See note 2.)

Configuration	Power ratings	Output voltage	Output current	Undervoltage alarm model	Model
DIN Rail mounting bracket	15 W	24 V	0.65 A	---	S8VM-01524AD
30 W	1.3 A	---	S8VM-03024AD
50 W	2.2 A	Sinking	S8VM-05024AD
Sourcing	S8VM-05024PD
100 W	4.5 A	Sinking	S8VM-10024AD
Sourcing	S8VM-10024PD
150 W	6.5 A	Sinking	S8VM-15024AD
Sourcing	S8VM-15024PD
Bottom mounting	15 W	24 V	0.65 A	---	S8VM-01524A
30 W	1.3 A	---	S8VM-03024A
50 W	2.2 A	Sinking	S8VM-05024A
Sourcing	S8VM-05024P
100 W	4.5 A	Sinking	S8VM-10024A
Sourcing	S8VM-10024P
150 W	6.5 A	Sinking	S8VM-15024A
Sourcing	S8VM-15024P

Configuration	Power ratings	Output voltage	Output current	Model
DIN Rail mounting bracket	15 W	5 V	3 A	S8VM-01505D
12 V	1.3 A	S8VM-01512D
15 V	1 A	S8VM-01515D
24 V	0.65 A	S8VM-01524D
30 W	5 V	6 A	S8VM-03005D
12 V	2.5 A	S8VM-03012D
15 V	2 A	S8VM-03015D
24 V	1.3 A	S8VM-03024D
50 W	5 V	10 A	S8VM-05005D
12 V	4.3 A	S8VM-05012D
15 V	3.5 A	S8VM-05015D
24 V	2.2 A	S8VM-05024D
100 W	5 V	20 A	S8VM-10005D
12 V	8.5 A	S8VM-10012D
15 V	7 A	S8VM-10015D
24 V	4.5 A	S8VM-10024D
150 W	5 V	27 A	S8VM-15005D (See note 1.)
12 V	12.5 A	S8VM-15012D
15 V	10 A	S8VM-15015D
24 V	6.5 A	S8VM-15024D
Bottom mounting	15 W	5 V	3 A	S8VM-01505
12 V	1.3 A	S8VM-01512
15 V	1 A	S8VM-01515
24 V	0.65 A	S8VM-01524
30 W	5 V	6 A	S8VM-03005
12 V	2.5 A	S8VM-03012
15 V	2 A	S8VM-03015
24 V	1.3 A	S8VM-03024
50 W	5 V	10 A	S8VM-05005
12 V	4.3 A	S8VM-05012
15 V	3.5 A	S8VM-05015
24 V	2.2 A	S8VM-05024
100 W	5 V	20 A	S8VM-10005
12 V	8.5 A	S8VM-10012
15 V	7 A	S8VM-10015
24 V	4.5 A	S8VM-10024
150 W	5 V	27 A	S8VM-15005 (See note 1.)
12 V	12.5 A	S8VM-15012
15 V	10 A	S8VM-15015
24 V	6.5 A	S8VM-15024

Return to OMRON

OMRON S8VMPower Supplies / In Addition/ Power Supplies/Switch mode power supplies

OMRON S8VM Dimensions

Purchase the OMRON Switch mode power supplies Please fill in the following

OMRON S8VM specification

Ratings/Characteristics

OMRON S8VM dimension

Bottom Mounting Models (15-W, 30-W, 50-W, 100-W, 150-W Models)

S8VM-015[][]S8VM-015[][]CS8VM-01524A

S8VM-030[][]S8VM-030[][]CS8VM-03024A

S8VM-050[][]S8VM-050[][]CS8VM-05024AS8VM-05024P

S8VM-100[][]S8VM-100[][]CS8VM-10024AS8VM-10024P

S8VM-150[][]S8VM-150[][]CS8VM-15024AS8VM-15024P

DIN Rail Mounting Bracket Models (15-W, 30-W, 50-W, 100-W, 150-W Models)

S8VM-015[][]DS8VM-015[][]CDS8VM-01524AD

S8VM-030[][]DS8VM-030[][]CDS8VM-03024AD

S8VM-050[][]DS8VM-050[][]CDS8VM-05024ADS8VM-05024PD

S8VM-100[][]DS8VM-100[][]CDS8VM-10024ADS8VM-10024PD

S8VM-150[][]DS8VM-150[][]CDS8VM-15024ADS8VM-15024PD

Bottom Mounting Models (300-W, 600-W, 1,500-W Models)

S8VM-300[][]C

S8VM-600[][]C

S8VM-15224C

Mounting Brackets

Mounting Bracket A (Bottom Mounting for 15-, 30-, and 50-W Models)

S82Y-VM10B

Mounting Bracket B (Bottom Mounting for 100-, and 150-W Models)

S82Y-VM20B

Mounting Bracket C (Front Mounting for 15-, 30- 50-, 100-, and 150-W Models)

S82Y-VM10F

Mounting Bracket D (Bottom Mounting for 300-W Models)

S82Y-VM30B

Mounting Bracket E (Horizontal Bottom Mounting for 300-W Models)

S82Y-VM30S

Mounting Bracket F (Front Mounting for 300-W Models)

S82Y-VM30F

Mounting Bracket G (DIN Rail Mounting for 300-W Models)

S82Y-VM30D

Mounting Bracket H (Bottom Mounting for 600-W Models)

S82Y-VM60B

Mounting Bracket I (Horizontal Bottom Mounting for 600-W Models)

S82Y-VM60S

Mounting Bracket J (Front Mounting for 600-W Models)

S82Y-VM60F

Mounting Bracket K (DIN Rail Mounting for 600-W Models)

S82Y-VM60D

Other Items Sold Separately

Undervoltage Alarm Output Wiring Cable

S82Y-VM10H (for S8VM-05024A[]/05024P[]/10024A[]/10024P[]/15024A[]/15024P[] Only)

OMRON S8VM catalog

English

Global Edition

OMRON S8VM lineup

Covered type

Undervoltage Alarm Function Model with Cover

Open-frame type

S8VM-015[][]
S8VM-015[][]C
S8VM-01524A

S8VM-030[][]
S8VM-030[][]C
S8VM-03024A

S8VM-050[][]
S8VM-050[][]C
S8VM-05024A
S8VM-05024P

S8VM-100[][]
S8VM-100[][]C
S8VM-10024A
S8VM-10024P

S8VM-150[][]
S8VM-150[][]C
S8VM-15024A
S8VM-15024P

S8VM-015[][]D
S8VM-015[][]CD
S8VM-01524AD

S8VM-030[][]D
S8VM-030[][]CD
S8VM-03024AD

S8VM-050[][]D
S8VM-050[][]CD
S8VM-05024AD
S8VM-05024PD

S8VM-100[][]D
S8VM-100[][]CD
S8VM-10024AD
S8VM-10024PD

S8VM-150[][]D
S8VM-150[][]CD
S8VM-15024AD
S8VM-15024PD
