OMRON M2BJSwitches/ Push Buttons / Indicator Lamps/φ16 Type
OMRON M2BJ Switches
OMRON M2BJ Dimensions
/Images/l_1106-25-118973-198x198.jpglast update: December 19, 2013
• Lineup includes standard-volume models (80 phons, constant) and high-volume models (70 to 95 phons, variable). Intermittent or continuous sound can be selected.
last update: December 19, 2013
Purchase the OMRON φ16 Type Please fill in the following
If you have just landed here, this product OMRON M2BJ Switches,Switches is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Switches at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the M2BJ We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON M2BJSwitches tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
CP1L CP series CP1L CPU Unit/Features
D4SL-N, D4SL-NSK10-LK[] Guard Lock Safety-door Switch/D4SL-N-mounting Slide Key/Features
H7CN Solid-state Counter/Features
DRT2-[]D32ML(-1) / []D16ML(-1) MIL Connector Terminals with Transistors/Features
CPM2C-SRT21 I/O Link Unit/Features
OMRON M2BJ catalog
M2BJ Buzzer (Cylindrical 16-dia.)/Catalog- Catalog
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 M2BJ Data Sheet | - [603KB] | Aug 29, 201220120829 | M2BJ Data Sheet |
OMRON M2BJ dimension
M2BJ Buzzer (Cylindrical 16-dia.)/Dimensionslast update: September 24, 2012

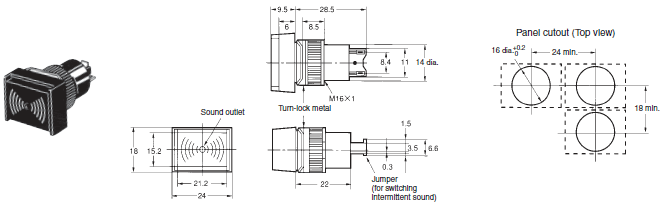

Standard-sound Models
M2BJ-B

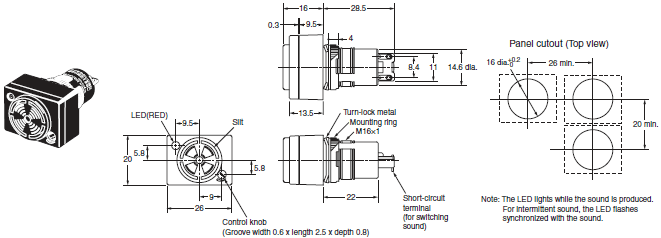

High-sound Models
M2BJ-BH
last update: September 24, 2012
OMRON M2BJ lineup
M2BJ Buzzer (Cylindrical 16-dia.)/Lineuplast update: September 24, 2012
| Appearance |  |  | |||||
|---|---|---|---|---|---|---|---|
| Standard sound | High sound *1 | ||||||
| w/jumper direction A *2 | Intermittent | Intermittent (short) | Intermittent (high-pitched) | Intermittent (short, high- pitched) | Intermittent (high-pitched) | Intermittent (short) | |
| w/jumper direction B *2 (w/o jumper) | Continuous | Intermittent (long) | Continuous (high-pitched) | Intermittent (long, high- pitched) | Continuous | Intermittent (long) | |
| Supply voltage | |||||||
| 6 VAC/VDC | Model | M2BJ-B06 | M2BJ-B06A | M2BJ-B06B | M2BJ-B06C | M2BJ-BH06D | M2BJ-BH06E |
| 12 to 24 VAC/VDC | M2BJ-B24 | M2BJ-B24A | M2BJ-B24B | M2BJ-B24C | M2BJ-BH24D | M2BJ-BH24E | |
| 12 to 24 VDC | M2BJ-B24-D | --- | M2BJ-B24B-D | --- | M2BJ-BH24D-D | M2BJ-BH24E-D | |
*1.High-sound models incorporate an LED, which lights when the Buzzer sounds.
*2.Refer to "Short-circuiting Jumper (M2BJ-BTH)" on Data Sheet for the insert direction of the jumper.
last update: September 24, 2012
OMRON M2BJ specification
M2BJ Buzzer (Cylindrical 16-dia.)/Specificationslast update: September 24, 2012
Buzzer
| Model | Standard-sound Models | ||||
|---|---|---|---|---|---|
| M2BJ-B06 | M2BJ-B06A | M2BJ-B06B | M2BJ-B06C | ||
| Operating voltage | 6 VAC/VDC | ||||
| Sound pressure (at 0.1 m and rated voltage) | Continuous sound: 80 dB (phons) min. | ||||
| Driving frequency | 2 ± 0.5 kHz | 4 ± 0.5 kHz | |||
| Intervals | 190 times/minute ± 10% | *2 Long:55 times/minute ± 10% | 190 times/minute±10% | *4 Long:55 times/minute ± 10% | |
| *1 Short:700 times/minute ± 10% | *3 Short:700 times/minute ± 10% | ||||
| Current consumption | DC | 7 mA max. | 20 mA max. | ||
| AC | 20 mA max. | ||||
| Inrush current | 1 A max. | ||||
| Life expectancy | 1,000 hours min. | ||||
| Insulation resistance | 100 MΩ min. (between ground and current-carrying parts) | ||||
| Dielectric strength | 1,000 VAC for 1 minute (between grounds) | ||||
| Ambient operating temperature | - 10°C to 55°C (no icing or condensation) | ||||
| Ambient operating humidity | 35% to 85%RH | ||||
| Ambient storage temperature | - 25°C to 65°C (no icing or condensation) | ||||
| Degree of protection | IP 40 | ||||
| Weight | Approx. 9 g | ||||
| Model | Standard-sound Models | ||||||
|---|---|---|---|---|---|---|---|
| M2BJ-B24 | M2BJ-B24A | M2BJ-B24B | M2BJ-B24C | M2BJ-B24-D | M2BJ-B24B-D | ||
| Operating voltage | 12 to 24 VAC/VDC | 12 to 24 VDC | |||||
| Sound pressure (at 0.1 m and rated voltage) | Continuous sound: 80 dB (phons) min. | ||||||
| Driving frequency | 2 ± 0.5 kHz | 4 ± 0.5 kHz | 2 ± 0.5 kHz | 4 ± 0.5 kHz | |||
| Intervals | 190 times/minute ± 10% | *2 Long:55 times/minute ±10% | 190 times/minute ± 10% | *4 Long:55 times/minute ± 10% | 190 times/minute ± 10% | ||
| *1 Short:700 times/minute ±10% | *3 Short:700 times/minute ± 10% | ||||||
| Current consumption | DC | 7 mA max. | 20 mA max. | 7 mA max. | 20 mA max. | ||
| AC | 20 mA | --- | |||||
| Inrush current | 1 A max. | --- | |||||
| Life expectancy | 1,000 hours min. | ||||||
| Insulation resistance | 100 M Ω min. (between ground and current-carrying parts) | ||||||
| Dielectric strength | 1,000 VAC for 1 minute (between grounds) | ||||||
| Ambient operating temperature | - 10°C to 55°C (no icing or condensation) | ||||||
| Ambient operating humidity | 35% to 85%RH | ||||||
| Ambient storage temperature | - 25°C to 65°C (no icing or condensation) | ||||||
| Degree of protection | IP 40 | ||||||
| Weight | Approx. 9 g | ||||||
| Model | High-sound Models | ||||||
|---|---|---|---|---|---|---|---|
| M2BJ-BH06D | M2BJ-BH24D | M2BJ-BH06E | M2BJ-BH24E | M2BJ-BH24D-D | M2BJ-BH24E-D | ||
| Operating voltage | 6 VAC/VDC | 12 to 24 VAC/VDC | 6 VAC/VDC | 12 to 24 VAC/VDC | 12 to 24 VDC | ||
| Sound pressure (The sound pressure can be adjusted. The figure for sound pressure given above is for measurement at a distance of 0.1 m at the rated voltage.) | 70 to 95 dB (phons) | ||||||
| Driving frequency | 3 ± 0.5 kHz | ||||||
| Intervals | Approx. 190 times/min. | *6 Long: Approx. 55 times/min. | Approx. 190 times/min. | *6 Long: Approx.55 times/min. | |||
| *5 Short: Approx. 700 times/min. | *5 Short: Approx.700 times/min. | ||||||
| Current consumption | DC | 50 mA max. | |||||
| AC | 100 mA max. | --- | |||||
| Inrush current | 1 A max. | --- | |||||
| Life expectancy | 1,000 hours min. | ||||||
| Insulation resistance | 100 M Ω min. (between ground and current-carrying parts) | ||||||
| Dielectric strength | 1,000 VAC for 1 minute (between grounds) | ||||||
| Ambient operating temperature | - 10 ° C to 55 ° C (no icing or condensation) | ||||||
| Ambient operating humidity | 35% to 85%RH | ||||||
| Ambient storage temperature | - 25 ° C to 65 ° C (no icing or condensation) | ||||||
| Degree of protection | IP 40 | ||||||
| Weight | Approx. 12 g | ||||||
* Tone
| *1 | Standard volume | High volume | Bird cry |
| *2 | Telephone busy signal | ||
| *3 | Continuous (high pitch) | Short beeps | |
| *4 | Long beeps | ||
| *5 | High volume | Intermittent | Alternating high-low pitch |
| *6 | Long beeps |
last update: September 24, 2012
- NO. M2BJ
- TYPE:Push Buttons / Indicator Lamps φ16 Type
Copyright Statement - DATE:2021-06-18
- Associated products:
M16 Indicator (Cylindrical 16-dia.)/Features A22NK Key-type Selector Switches/Features
