• "CP1L-EM" and "CP1L-EL" have complete with a Ethernet port.

• Pulse output for two axes. Advanced power for high-precision positioning control.

• High-speed Counters. Single-phase for four axes.

• Six interrupt inputs are built in. Faster processing of instructions speeds up the entire system.

• Serial Communications. Two ports. Select Option Boards for either RS-232C or RS-485 communications.

• "CP1L-M" and "CP1L-L" have a peripheral USB port.

• The Structured Text (ST) Language. Makes math operations even easier.

• Can be used for the CP1W series Unit. The extendibility of it is preeminently good.

• LCD displays and settings. Enabled using Option Board.

last update: April 24, 2017

Purchase the OMRON CP1 Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON CP1L Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the CP1L We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON CP1LAutomation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

A7BS / A7BL Thumbwheel Switch/Features
TL-L Ultra-long Sensing-distance Proximity Sensor/Features
H3YN-[]-B Solid-state Timer/Features
CJ1W-DRM21 CJ-series DeviceNet Unit/Features
KE1 Smart Measurement and Monitor Units/Features

OMRON CP1L catalog
CP1L CP series CP1L CPU Unit/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

CP1L Data Sheet P081-E1-03
[3487KB] Dec 03, 201820181203 CP1L Data Sheet

CP1 Catalog P082-E1-05
[5577KB] Jan 05, 201820180105 CP1 Catalog

New Functions Added to CS/CJ/CP Series Catalog P097-E1-01
[1267KB] Sep 28, 201520150928 New Functions Added to CS/CJ/CP Series Catalog

FA Controller Catalog P090-E1-07
[18214KB] Aug 20, 201820180820 FA Controller Catalog

OMRON CP1L lineup
CP1L CP series CP1L CPU Unit/Lineup
last update: December 3, 2018
Applicable standards

Refer to the OMRON website or ask your OMRON representative for the most recent applicable standards for each model.

CPU Units
Built-in Ethernet port

CPU Unit Specifications Model
CPU type Power
supply Output method Inputs Out-
puts
CP1L-EM
CPU Units
with
40 Points
Memory capacity:
10K steps
High-speed counters:
100 kHz, 4 axes
Pulse outputs:
100 kHz, 2 axes
(Models with transistor
outputs only) DC
power
supply Relay output 24 16 CP1L-EM40DR-D
Transistor output
(sinking) CP1L-EM40DT-D
Transistor output
(sourcing) CP1L-EM40DT1-D
CP1L-EM
CPU Units
with
30 Points
Memory capacity:
10K steps
High-speed counters:
100 kHz, 4 axes
Pulse outputs:
100 kHz, 2 axes
(Models with transistor
outputs only) DC
power
supply Relay output 18 12 CP1L-EM30DR-D
Transistor output
(sinking) CP1L-EM30DT-D
Transistor output
(sourcing) CP1L-EM30DT1-D
CP1L-EL
CPU Units
with
20 Points
Memory capacity:
5K steps
High-speed counters:
100 kHz, 4 axes
Pulse outputs:
100 kHz, 2 axes
(Models with transistor
outputs only) DC
power
supply Relay output 12 8 CP1L-EL20DR-D
Transistor output
(sinking) CP1L-EL20DT-D
Transistor output
(sourcing) CP1L-EL20DT1-D

Built-in USB port

CPU Unit Specifications Model
CPU type Power
supply Output method Inputs Outputs
CP1L-M CPU
Units with
60 Points
Memory capacity:
10K steps
High-speed counters:
100 kHz, 4 axes
Pulse outputs:
100 kHz, 2 axes
(Models with transistor
outputs only) AC
power
supply Relay output 36 24 CP1L-M60DR-A
Transistor output
(sinking) CP1L-M60DT-A
DC
power
supply Relay output CP1L-M60DR-D
Transistor output
(sinking) CP1L-M60DT-D
Transistor output
(sourcing) CP1L-M60DT1-D
CP1L-M CPU
Units with
40 Points
Memory capacity:
10K steps
High-speed counters:
100 kHz, 4 axes
Pulse outputs:
100 kHz, 2 axes
(Models with transistor
outputs only) AC
power
supply Relay output 24 16 CP1L-M40DR-A
Transistor output
(sinking) CP1L-M40DT-A
DC
power
supply Relay output CP1L-M40DR-D
Transistor output
(sinking) CP1L-M40DT-D
Transistor output
(sourcing) CP1L-M40DT1-D
CP1L-M CPU
Units with
30 Points
Memory capacity:
10K steps
High-speed counters:
100 kHz, 4 axes
Pulse outputs:
100 kHz, 2 axes
(Models with transistor
outputs only) AC
power
supply Relay output 18 12 CP1L-M30DR-A
Transistor output
(sinking) CP1L-M30DT-A
DC
power
supply Relay output CP1L-M30DR-D
Transistor output
(sinking) CP1L-M30DT-D
Transistor output
(sourcing) CP1L-M30DT1-D
CP1L-L CPU
Units with
20 Points
Memory capacity:
5K steps
High-speed counters:
100 kHz, 4 axes
Pulse outputs:
100 kHz, 2 axes
(Models with transistor
outputs only) AC
power
supply Relay output 12 8 CP1L-L20DR-A
Transistor output
(sinking) CP1L-L20DT-A
DC
power
supply Relay output CP1L-L20DR-D
Transistor output
(sinking) CP1L-L20DT-D
Transistor output
(sourcing) CP1L-L20DT1-D
CP1L-L CPU
Units with
14 Points
Memory capacity:
5K steps
High-speed counters:
100 kHz, 4 axes
Pulse outputs:
100 kHz, 2 axes
(Models with transistor
outputs only) AC
power
supply Relay output 8 6 CP1L-L14DR-A
Transistor output
(sinking) CP1L-L14DT-A
DC
power
supply Relay output CP1L-L14DR-D
Transistor output
(sinking) CP1L-L14DT-D
Transistor output
(sourcing) CP1L-L14DT1-D
CP1L-L CPU
Units with
10 Point
Memory capacity:
5K steps
High-speed counters:
100 kHz, 4 axes
Pulse outputs:
100 kHz, 2 axes
(Models with transistor
outputs only) AC
power
supply Relay output 6 4 CP1L-L10DR-A
Transistor output
(sinking) CP1L-L10DT-A
DC
power
supply Relay output CP1L-L10DR-D
Transistor output
(sinking) CP1L-L10DT-D
Transistor output
(sourcing) CP1L-L10DT1-D

Note: 1. Refer to "Models and Software Versions" about supported software.
2. Refer to "Option Unit Specifications" about supported Option Units.

Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
EtherNet/IP^TM is the trademarks of ODVA.
Other company names and product names in this document are the trademarks or registered trademarks of their respective companies.

Options for CPU Units

Name Specifications Model
RS-232C
Option Board Can be mounted in either CPU Unit Option Board slot 1 or 2. *1 CP1W-CIF01
RS-422A/485
Option Board CP1W-CIF11
RS-422A/485
(Isolated-type)
Option Board CP1W-CIF12-V1
Ethernet
Option Board Can be mounted in either CPU Unit Option Board slot 1 or 2.
*1 *2 *4 CP1W-CIF41
Analog Input
Option Board Can be mounted in either CPU Unit Option Board slot 1 or 2. *3
2 analog inputs. 0-10V(Resolution:1/4000), 0-20mA (Resolution:
1/2000). CP1W-ADB21
Analog Output
Option Board Can be mounted in either CPU Unit Option Board slot 1 or 2. *3
2 analog outputs. 0-10V (Resolution:1/4000). CP1W-DAB21V
Analog I/O
Option Board Can be mounted in either CPU Unit Option Board slot 1 or 2. *3
2 analog inputs. 0-10V (Resolution:1/4000), 0-20mA (Resolution:
1/2000).
2 analog outputs. 0-10V (Resolution:1/4000). CP1W-MAB221
LCD Option
Board Can be mounted only in the CPU Unit Option Board slot 1. *1 CP1W-DAM01
Memory
Cassette Can be used for backing up programs or auto-booting. CP1W-ME05M

*1. Cannot be used for the CP1L-L10.
*2. When using CP1W-CIF41 Ver.1.0, one Ethernet port can be added.
*3. CP1L-EM/EL only.
*4. Cannot be used for the CP1L-EM/EL.

Programming Devices

Name Specifications Model
Number
of
licenses Media
FA
Integrated
Tool
Package
CX-One Lite
Version 4.[] CX-One Lite is a subset of the complete CX-One
package that provides only the Support Software
required for micro PLC applications.
CX-One Lite runs on the following OS.
OS: Windows XP (Service Pack 3 or higher, 32-bit
version)/Windows Vista (32-bit/64-bit version)/
Windows 7 (32-bit/64-bit version)/Windows 8 (32-
bit/64-bit version)/Windows 8.1 (32-bit/64-bit
version)/Windows 10 (32-bit/64-bit version)

CX-One Lite Ver. 4.[] includes Micro PLC Edition
CX-Programmer Ver. 9.[]. 1 license DVD CXONE-LT01D-V4
FA
Integrated
Tool
Package
CX-One
Ver.4.[] CX-One is a package that integrates the Support
Software for OMRON PLCs and components. CX-
One runs on the following OS.
OS: Windows XP (Service Pack 3 or higher, 32-bit
version)/Windows Vista (32-bit/64-bit version)/
Windows 7 (32-bit/64-bit version)/Windows 8 (32-
bit/64-bit version)/Windows 8.1 (32-bit/64-bit
version)/Windows 10 (32-bit/64-bit version)

CX-One Ver. 4.[] includes CX-Programmer Ver. 9.[]. 1 license
*1 DVD CXONE-AL01D-V4
Programming
Device
Connecting
Cable for
CP1W-CIF01
RS-232C
Option
Board *2 Connects Personal Computers, D-Sub 9-pin
(Length: 2.0 m) For anti-static
connectors XW2Z-200S-CV
Connects Personal Computers, D-Sub 9-pin
(Length: 5.0 m) XW2Z-500S-CV
Connects Personal Computers, D-Sub 9-pin (Length: 2.0 m) XW2Z-200S-V
Connects Personal Computers, D-Sub 9-pin (Length: 5.0 m) XW2Z-500S-V

Note: 1. Refer to "Models and Software Versions" about supported software.
2. The CX-One and CX-One Lite cannot be simultaneously installed on the same computer.
*1. Multi licenses (3, 10, 30, or 50 licenses) and DVD media without licenses are also available for the CX-One.
*2. Cannot be used with a peripheral USB port.
To connect to a personal computer via a peripheral USB port, use commercially-available USB cable (A or B type, male).

The following tables lists the Support Software that can be installed from CX-One

Support Software in CX-One CX-One Lite Ver.4.[] CX-One Ver.4.[]
Micro PLC Edition CX-Programmer Ver.9.[] Yes No
CX-Programmer Ver.9.[] No Yes
CX-Integrator Ver.2.[] Yes Yes
Switch Box Utility Ver.1.[] Yes Yes
CX-Protocol Ver.1.[] No Yes
CX-Simulator Ver.1.[] Yes Yes
CX-Position Ver.2.[] No Yes
CX-Motion-NCF Ver.1.[] No Yes
CX-Motion-MCH Ver.2.[] No Yes
CX-Motion Ver.2.[] No Yes
CX-Drive Ver.2.[] Yes Yes
CX-Process Tool Ver.5.[] No Yes
Faceplate Auto-Builder for NS Ver.3.[] No Yes
CX-Designer Ver.3.[] Yes Yes
NV-Designer Ver.1.[] Yes Yes
CX-Thermo Ver.4.[] Yes Yes
CX-ConfiguratorFDT Ver.1.[] Yes Yes
CX-FLnet Ver.1.[] No Yes
Network Configurator Ver.3.[] Yes Yes
CX-Server Ver.4.[] Yes Yes

Note: For details, refer to the CX-One Catalog (Cat. No: R134).

Models and Software Versions

The following versions of the CX-One, CX-Programmer are required.

Model CX-One CX-Programmer
CP1L-EM40[][]-[]
CP1L-EM30[][]-[]
CP1L-EL20[][]-[] *1 Ver. 4.25 or higher Ver. 9.40 or higher
CP1L-M60[][]-[] *2 Ver. 2.11 or higher Ver. 7.20 or higher
CP1L-M40[][]-[]
CP1L-M30[][]-[]
CP1L-M20[][]-[]
CP1L-L14[][]-[] *2 Ver. 2.10 or higher Ver. 7.10 or higher
CP1L-L10[][]-[] *2 Ver. 2.13 or higher Ver. 7.30 or higher

*1. Update The CX-Programmer version automatically from the website using CX-Programmer version 9.0 (included with
CX-One version 4.0).
*2. Update The CX-Programmer version automatically from the website using CX-Programmer version 7.0 (included with
CX-One version 2.0).

Expansion Units

Product
name Inputs Outputs Output type Model
Input Unit 8 -- 24 VDC Input CP1W-8ED
Output Units
-- 8 Relay CP1W-8ER
Transistor (sinking) CP1W-8ET
Transistor (sourcing) CP1W-8ET1
-- 16 Relay CP1W-16ER
Transistor (sinking) CP1W-16ET
Transistor (sourcing) CP1W-16ET1
-- 32 Relay CP1W-32ER
Transistor (sinking) CP1W-32ET
Transistor (sourcing) CP1W-32ET1
I/O Units
12 8 Relay CP1W-20EDR1
Transistor (sinking) CP1W-20EDT
Transistor (sourcing) CP1W-20EDT1
24 16 Relay CP1W-40EDR
Transistor (sinking) CP1W-40EDT
Transistor (sourcing) CP1W-40EDT1
Analog
Input Unit
4CH -- Input range:
0 to 5 V, 1 to 5 V, 0 to 10 V, ±10 V,
0 to 20 mA, or 4 to 20 mA. Resolution:
1/6000 CP1W-AD041
Resolution:
1/12000 CP1W-AD042
Analog
Output Unit
-- 2CH Output range:
1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA,
or 4 to 20 mA. Resolution:
1/6000 CP1W-DA021
-- 4CH Resolution:
1/6000 CP1W-DA041
Resolution:
1/12000 CP1W-DA042
Analog
I/O Unit
4CH 4CH Input range:
0 to 5 V, 1 to 5 V, 0 to 10 V, ±10 V,
0 to 20 mA, or 4 to 20 mA.
Output range:
1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA,
or 4 to 20 mA. Resolution:
1/12000 CP1W-MAD44
4CH 2CH Resolution:
1/12000 CP1W-MAD42
2CH 1CH Resolution:
1/6000 CP1W-MAD11
Temperature
Sensor Unit
2CH -- Sensor type: Thermocouple (J or K) CP1W-TS001
4CH -- Sensor type: Thermocouple (J or K) CP1W-TS002
2CH -- Sensor type: Platinum resistance thermometer
(Pt100 or JPt100) CP1W-TS101
4CH -- Sensor type: Platinum resistance thermometer
(Pt100 or JPt100) CP1W-TS102
4CH -- Sensor type: Thermocouple (J or K)
2 channels can be used as analog input.
Input range: 1 to 5 V, 0 to 10 V, 4-20 mA Resolution:
1/12000 CP1W-TS003
12CH -- Sensor type: Thermocouple (J or K) CP1W-TS004
CompoBus/S
I/O Link Unit
8 8 CompoBus/S slave CP1W-SRT21

Note: CP1L (L Type) CPU Units with 10 points do not support Expansion Units.

I/O Connecting Cable

Name Specifications Model
I/O Connecting Cable 80 cm (for CP1W/CPM1A Expansion Units) CP1W-CN811

Note: An I/O Connecting Cable (approx. 6 cm) for horizontal connection is provided with CP1W Expansion Units.

Optional Products, Maintenance Products and DIN Track Accessories

Name Specifications Model
Battery Set For CPU Units (Use batteries within two years of manufacture.) CJ1W-BAT01
DIN Track Length: 0.5 m; Height: 7.3 mm PFP-50N
Length: 1 m; Height: 7.3 mm PFP-100N
Length: 1 m; Height: 16 mm PFP-100N2
End Plate A stopper to secure the Units on the DIN Track. PFP-M

Industrial Switching Hubs

Product
name Appear-
ance Specifications Accessories Current
con-
sump-
tion
(A) Model
No.
of
ports Failure
de-
tection
Industrial
Switching
Hubs Quality of Service (QoS):
EtherNet/IP™ control
data priority
Failure detection:
Broadcast storm and
LSI error detection
10/100BASE-TX,
Auto-Negotiation 3 No Power supply
connector 0.22 W4S1-03B
5 No 0.22 W4S1-05B
5 Yes Power supply
connector
Connector for
informing error 0.22 W4S1-05C

last update: December 3, 2018

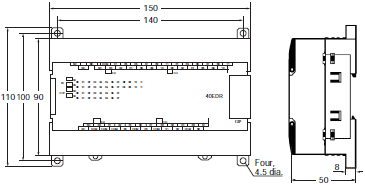

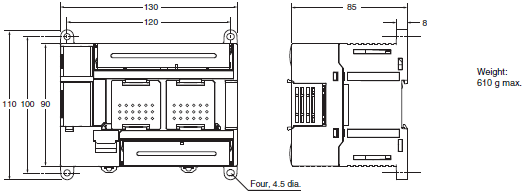

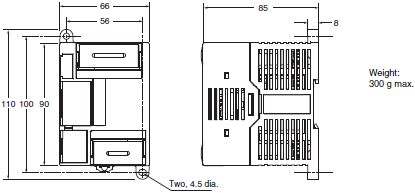

OMRON CP1L dimension

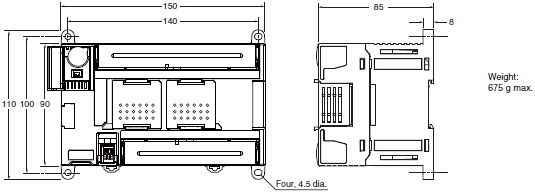

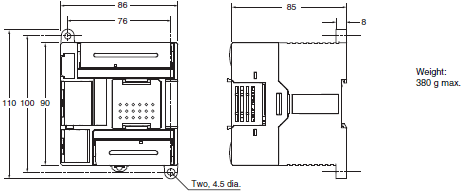

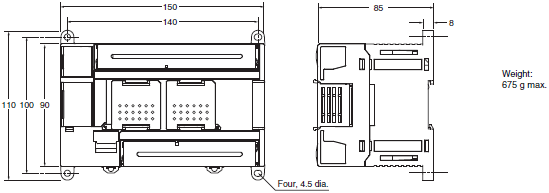

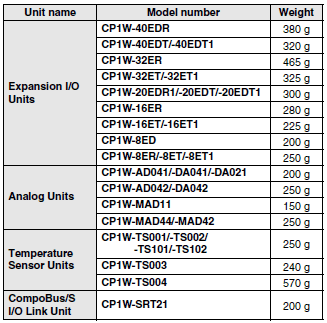

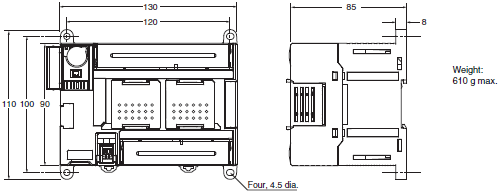

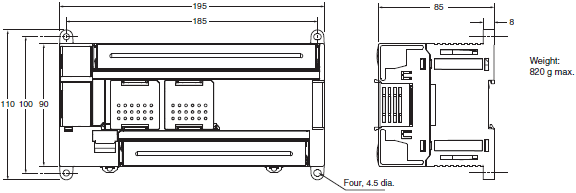

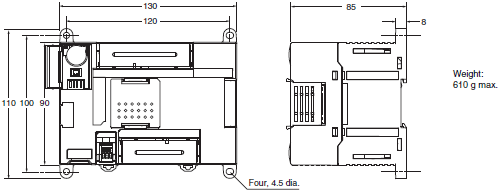

CP1L CP series CP1L CPU Unit/Dimensions
last update: June 01, 2015
CPU Units
CP1L-EM CPU Units with 40 Points

CP1L-EM CPU Units with 30 Points

CP1L-EL CPU Units with 20 Points

CP1L CPU Units with 60 I/O Points

CP1L CPU Units with 40 I/O Points

CP1L CPU Units with 30 I/O Points

CP1L CPU Units with 14 or 20 I/O Points

CP1L CPU Units with 10 I/O Points

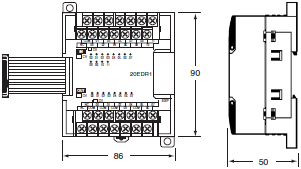

Expansion Units and Expansion I/O Units
CP1W-20ED[][], CP1W-16[][],
CP1W-AD04[], CP1W-DA021/04[],
CP1W-MAD[][], CP1W-TS[][]1/[][]2/[][]3

CP1W-8E[][]
CP1W-SRT21

CP1W-40ED[]
CP1W-32E[][]
CP1W-TS004

last update: June 01, 2015

OMRON CP1L specification
CP1L CP series CP1L CPU Unit/Specifications
last update: February 28, 2013
General Specifications

Type AC power supply models DC power supply models
Model CP1L-[][][]-A CP1L-[][][]-D
Power supply 100 to 240 VAC 50/60 Hz 24 VDC
Operating voltage
range 85 to 264 VAC 20.4 to 26.4 VDC
Power consumption 50 VA max. (CP1L-M60/-M40/-M30[][]-A)
30 VA max. (CP1L-L20/-L14/-L10[][]-A) 20 W max. (CP1L-EM40/-EM30/-M60/-M40/
-M30[][]-D)
13 W max. (CP1L-EL20/-L20/-L14/
-L10[][]-D)
Inrush current * 100 to 120 VAC inputs:
20 A max. (for cold start at room
temperature)
8 ms max.
200 to 240 VAC inputs:
40 A max. (for cold start at room
temperature),
8 ms max. 30 A max. (for cold start at room
temperature)
20 ms max.
External power supply 300 mA at 24 VDC (CP1L-M60/-M40/
-M30[][]-A)
200 mA at 24 VDC (CP1L-L20/-L14/
-L10[][]-A) None
Insulation resistance 20 MΩ min. (at 500 VDC) between the
external AC terminals and GR terminals No insulation between primary and secondary
for DC power supply
Dielectric strength 2,300 VAC at 50/60 Hz for 1 min between
the external AC and GR terminals, leakage
current: 5 mA max. No insulation between primary and secondary
for DC power supply
Noise immunity Conforms to IEC 61000-4-4. 2 kV (power supply line)
Vibration resistance CP1L-L/M:
Conforms to JIS C60068-2-6. 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration:
9.8 m/s² in X, Y, and Z directions for 80 minutes each. Sweep time: 8 minutes × 10 sweeps
= total time of 80 minutes)
CP1L-EL/EM:
5 to 8.4 Hz, 3.5 mm amplitude, 8.4 to 150 Hz, acceleration: 9.8 m/s² in X, Y, and Z directions
for 100 minutes each (time coefficient of 10 minutes × coefficient factor of 10 = total time
of 100 minutes)
Shock resistance Conforms to JIS C60068-2-27. 147 m/s² three times each in X, Y, and Z directions
Ambient operating
temperature 0 to 55°C
Ambient humidity 10% to 90% (with no condensation)
Ambient operating
environment No corrosive gas
Ambient storage
temperature -20 to 75°C (Excluding battery.)
Power holding time 10 ms min. 2 ms min.

* The above values are for a cold start at room temperature for an AC power supply, and for a cold start for a DC power
supply.
• A thermistor (with low-temperature current suppression characteristics) is used in the inrush current control circuitry
for the AC power supply. The thermistor will not be sufficiently cooled if the ambient temperature is high or if a hot
start is performed when the power supply has been OFF for only a short time. In those cases the inrush current
values may be higher (as much as two times higher) than those shown above. Always allow for this when selecting
fuses and breakers for external circuits.
• A capacitor charge-type delay circuit is used in the inrush current control circuitry for the DC power supply. The
capacitor will not be charged if a hot start is performed when the power supply has been OFF for only a short time,
so in those cases the inrush current values may be higher (as much as two times higher) than those shown above.

Performance Specifications
CP1L CPU Unit (EM/EL Type)

Type CP1L-EM40 (40 points) CP1L-EM30 (30 points) CP1L-EL20 (20 points)
Models CP1L-EM40D[]-[] CP1L-EM30D[]-[] CP1L-EL20D[]-[]
Control method Stored program method
I/O control method Cyclic scan with immediate refreshing
Program language Ladder diagram
Function blocks Maximum number of function block definitions: 128 Maximum number of instances: 256
Languages usable in function block definitions: Ladder diagrams, structured text (ST)
Instruction length 1 to 7 steps per instruction
Instructions Approx. 500 (function codes: 3 digits)
Instruction execution time Basic instructions: 0.55 μs min. Special instructions: 4.1 μs min.
Common processing time 0.4ms
Program capacity 10K steps 5K steps
FB program
memory 10K steps
Number of tasks 288 (32 cyclic tasks and 256 interrupt tasks)
Scheduled
interrupt tasks 1 (interrupt task No. 2, fixed)
Input interrupt
tasks 6 (interrupt task No. 140 to 145, fixed)
(High-speed counter interrupts and interrupt tasks specified by external interrupts can
also be executed.)
Maximum subroutine
number 256
Maximum jump number 256
I/O
areas Input Area 1,600 bits (100 words) CIO 0 to CIO 99
Built-in Input
Area 24 bits: CIO 0.00 to CIO
0.11 and CIO 1.00 to CIO
1.11 18 bits: CIO 0.00 to CIO
0.11 and CIO 1.00 to CIO
1.05 12 bits: CIO 0.00 to CIO 0.11
Output Area 1,600 bits (100 words) CIO 100 to CIO 199
Built-in Output
Area 16 bits: CIO 100.00 to CIO
100.07 and CIO 101.00 to
CIO 101.07 12 bits: CIO 100.00 to CIO
100.07 and CIO 101.00 to
CIO 101.03 8 bits: CIO 100.00 to CIO
100.07
1:1 Link Area 256 bits (16 words): CIO 3000.00 to CIO 3015.15 (CIO 3000 to CIO 3015)
Serial PLC Link
Area 1,440 bits (90 words): CIO 3100.00 to CIO 3189.15 (CIO 3100 to CIO 3189)
Work bits 4,800 bits (300 words): CIO 1200.00 to CIO 1499.15 (words CIO 1200 to CIO 1499)
6,400 bits (400 words): CIO 1500.00 to CIO 1899.15 (words CIO 1500 to CIO 1899)
15,360 bits (960 words): CIO 2000.00 to CIO 2959.15 (words CIO 2000 to CIO 2959)
9,600 bits (600 words): CIO 3200.00 to CIO 3799.15 (words CIO 3200 to CIO 3799)
37,504 bits (2,344 words): CIO 3800.00 to CIO 6143.15 (words CIO 3800 to CIO 6143)
TR Area 16 bits: TR0 to TR15
Holding Area 8,192 bits (512 words): H0.00 to H511.15 (H0 to H511)
AR Area Read-only (Write-prohibited): 7168 bits (448 words): A0.00 to A447.15 (A0 to A447)
Read/Write: 8192 bits (512 words): A448.00 to A959.15 (A448 to A959)
Timers 4,096 timer numbers: T0 to T4095
Counters 4,096 counter numbers: C0 to C4095
DM Area 32 Kwords: D0 to D32767 10 Kwords: D0 to D9999,
D32000 to D32767
Data Register Area 16 registers (16 bits): DR0 to DR15
Index Register Area 16 registers (32 bits): IR0 to IR15
Task Flag Area 32 flags (32 bits): TK0000 to TK0031
Trace Memory 4,000 words (500 samples for the trace data maximum of 31 bits and 6 words.)
Memory Cassette A special Memory Cassette (CP1W-ME05M) can be mounted.
Note: Can be used for program backups and auto-booting.
Clock function Supported. Accuracy (monthly deviation): -4.5 min to -0.5 min (ambient temperature:
55°C),
-2.0 min to +2.0 min (ambient temperature: 25°C), -2.5 min to +1.5 min (ambient
temperature: 0°C)
Communications functions Built-in Ethernet Port (Connecting Support Software, Message Communications,
Socket Service)
A maximum of two Serial Communications Option
Boards can be mounted. A maximum of one Serial
Communications Option
Board can be mounted.
Memory backup Flash memory: User programs, parameters (such as the PLC Setup), comment data,
and the entire DM Area can be saved to flash memory as initial values.
Battery backup: The Holding Area, DM Area, and counter values (flags, PV) are backed
up by a battery.
Battery service life Service life expectancy is 5 years at 25°C, less at higher temperatures. (From 0.75
to 5 years depending on model, power supply rate, and ambient temperature.)
Built-in input terminals 40 (24 inputs, 16 outputs) 30 (18 inputs, 12 outputs) 20 (12 inputs, 8 outputs)
Number of connectable
Expansion Units and
Expansion I/O Units CP-series Expansion Unit and Expansion I/O Units:
3 max. CP-series Expansion Units
and Expansion I/O Units:
1 max.
Max. number of I/O points 160 (40 built in + 40 per
Expansion (I/O) Unit x 3
Units) 150 (30 built in + 40 per
Expansion (I/O) Unit x 3
Units) 60 (20 built in + 40 per
Expansion (I/O) Unit x 1
Unit)
Interrupt inputs 6 inputs (Response time: 0.3 ms)
Interrupt inputs counter
mode 6 inputs (Response frequency: 5 kHz max. for all interrupt inputs), 16 bits Up or down
counters
Quick-response inputs 6 points (Min. input pulse width: 50 μs max.)
Scheduled interrupts 1
High-speed counters 4 inputs/2 axes (24 VDC)
Differential phases (4x), 50 kHz
Single-phase (pulse plus direction, up/down, increment), 100 kHz
Value range: 32 bits, Linear mode or ring mode
Interrupts: Target value comparison or range comparison
Pulse
outputs
(models
with
transistor
outputs
only) Pulse outputs Trapezoidal or S-curve acceleration and deceleration (Duty ratio: 50% fixed)
2 outputs, 1 Hz to 100 kHz (CCW/CW or pulse plus direction)
PWM outputs Duty ratio: 0.0% to 100.0% (specified in increments of 0.1% or 1%)
2 outputs, 0.1 to 6553.5 Hz or 1 to 32,800 Hz
(Accuracy: +1%/0% at 0.1 Hz to 10,000 Hz and +5%/0% at 10,000 Hz to 32,800 Hz)
Analog input 2 input (Resolution: 1/1000, Input range: 0 to 10 V). Not isolated.

CP1L CPU Unit (M/L Type)

Type CP1L-M60
(60 points) CP1L-M40
(40 points) CP1L-M30
(30 points) CP1L-L20
(20 points) CP1L-L14
(14 points) CP1L-L10
(10 points)
Models CP1L-
M60[][]-[] CP1L-
M40[][]-[] CP1L-
M30[][]-[] CP1L-
L20[][]-[] CP1L-
L14[][]-[] CP1L-
L10[][]-[]
Control method Stored program method
I/O control method Cyclic scan with immediate refreshing
Program language Ladder diagram
Function blocks Maximum number of function block definitions: 128 Maximum number of instances: 256
Languages usable in function block definitions: Ladder diagrams, structured text (ST)
Instruction length 1 to 7 steps per instruction
Instructions Approx. 500 (function codes: 3 digits)
Instruction execution
time Basic instructions: 0.55 μs min. Special instructions: 4.1 μs min.
Common processing
time 0.4 ms
Program capacity 10K steps 5K steps
Number of tasks 288 (32 cyclic tasks and 256 interrupt tasks)
Scheduled
interrupt
tasks 1 (interrupt task No. 2, fixed)
Input
interrupt
tasks 6 (interrupt task No. 140 to 145, fixed) 4 (interrupt
task No. 140
to 143, fixed) 2 (interrupt
task No. 140
to 141, fixed)
(Interrupt tasks can also be specified and executed for high-speed counter interrupts and
executed.)
Maximum subroutine
number 256
Maximum jump number 256
I/O
areas Input Area 1,600 bits (100 words) CIO 0 to CIO 99
Built-in
Input Area 36 bits: CIO
0.00 to CIO
0.11 and CIO
1.00 to CIO
1.11 and CIO
2.00 to CIO
2.11 24 bits: CIO
0.00 to CIO
0.11 and CIO
1.00 to CIO
1.11 18 bits: CIO
0.00 to CIO
0.11 and CIO
1.00 to CIO
1.05 12 bits: CIO
0.00 to CIO
0.11 8 bits: CIO
0.00 to CIO
0.07 6 bits: CIO
0.00 to CIO
0.05
Output Area 1,600 bits (100 words) CIO 100 to CIO 199
Built-in
Output
Area 24 bits: CIO
100.00 to CIO
100.07 and
CIO 101.00 to
CIO 101.07
and CIO
102.00 to CIO
102.07 16 bits: CIO
100.00 to CIO
100.07 and
CIO 101.00 to
CIO 101.07 12 bits: CIO
100.00 to CIO
100.07 and
CIO 101.00 to
CIO 100.03 8 bits: CIO
100.00 to
CIO 100.07 6 bits: CIO
100.00 to
CIO 100.05 4 bits: CIO
100.00 to
CIO 100.03
1:1 Link
Area 1,024 bits (64 words): CIO 3000.00 to CIO 3063.15 (CIO 3000 to CIO 3063)
Serial PLC
Link Area 1,440 bits (90 words): CIO 3100.00 to CIO 3189.15 (CIO 3100 to CIO 3189)
Work bits 8,192 bits (512 words): W000.00 to W511.15 (W0 to W511)
CIO Area: 37,504 bits (2,344 words): CIO 3800.00 to CIO 6143.15 (CIO 3800 to CIO 6143)
TR Area 16 bits: TR0 to TR15
Holding Area 8,192 bits (512 words): H0.00 to H511.15 (H0 to H511)
AR Area Read-only (Write-prohibited): 7168 bits (448 words): A0.00 to A447.15 (A0 to A447)
Read/Write: 8192 bits (512 words): A448.00 to A959.15 (A448 to A959)
Timers 4,096 timer numbers: T0 to T4095
Counters 4,096 counter numbers: C0 to C4095
DM Area 32 Kwords: D0 to D32767 10 Kwords: D0 to D9999, D32000 to
D32767
Data Register Area 16 registers (16 bits): DR0 to DR15
Index Register Area 16 registers (32 bits): IR0 to IR15
Task Flag Area 32 flags (32 bits): TK0000 to TK0031
Trace Memory 4,000 words (500 samples for the trace data maximum of 31 bits and 6 words.)
Memory Cassette A special Memory Cassette (CP1W-ME05M) can be mounted. Note: Can be used for program
backups and auto-booting.
Clock function Supported. Accuracy (monthly deviation): -4.5 min to -0.5 min (ambient temperature: 55°C),
-2.0 min to +2.0 min (ambient temperature: 25°C),
-2.5 min to +1.5 min (ambient temperature: 0°C)
Communications
functions One built-in peripheral port (USB 1.1): For connecting Support Software only.
A maximum of two Serial Communications
Option Boards can be mounted. A maximum of one Serial
Communications Option
Board can be mounted. Not
supported.
A maximum of two Ethernet Option Board
can be mounted.
When using CP1W-CIF41 Ver.1.0, one
Ethernet Option Board can be mounted. A maximum of one
Ethernet Option Board
can be mounted. Not
supported.
Memory backup Flash memory: User programs, parameters (such as the PLC Setup), comment data, and the
entire DM Area can be saved to flash memory as initial values.
Battery backup: The Holding Area, DM Area, and counter values (flags, PV) are backed up by a
battery.
Battery service life Service life expectancy is 5 years at 25°C, less at higher temperatures. (From 0.75 to 5 years
depending on model, power supply rate, and ambient temperature.)
Built-in input
terminals 60 (36
inputs,
24 outputs) 40 (24
inputs,
16 outputs) 30 (18
inputs,
12 outputs) 20 (12
inputs,
8 outputs) 14 (8
inputs,
6 outputs) 10 (6
inputs,
4 outputs)
Number of
connectable
Expansion Units and
Expansion I/O Units CP-series Expansion Unit and Expansion
I/O Units: 3 max. CP-series Expansion Units
and Expansion I/O Units: 1 max. Not
supported.
Max. number of I/O
points 180 (60 built
in + 40 per
Expansion
(I/O) Unit
× 3 Units) 160 (40 built
in + 40 per
Expansion
(I/O) Unit
× 3 Units) 150 (30 built
in + 40 per
Expansion
(I/O) Unit
× 3 Units) 60 (20 built
in + 40 per
Expansion
(I/O) Unit
× 1 Unit) 54 (14 built
in + 40 per
Expansion
(I/O) Unit
× 1 Unit) 10 (10 built
in)
Interrupt inputs 6 inputs (Response time: 0.3 ms) 4 inputs
(Response
time: 0.3 ms) 2 inputs
(Response
time: 0.3 ms)
Interrupt inputs
counter mode 6 inputs (Response frequency: 5 kHz max. for all interrupt
inputs), 16 bits
Up or down counters 4 inputs
(Response
frequency:
5 kHz max.
for all
interrupt
inputs), 16
bits Up or
down
counters 2 inputs
(Response
frequency:
5 kHz max.
for all
interrupt
inputs), 16
bits Up or
down
counters
Quick-response inputs 6 points (Min. input pulse width: 50 μs max.) 4 points (Min.
input pulse
width: 50 μs
max.) 2 points (Min.
input pulse
width: 50 μs
max.)
Scheduled interrupts 1
High-speed counters 4 inputs/2 axes (24 VDC):
Differential phases (4x), 50 kHz
Single-phase (pulse plus direction, up/down, increment), 100 kHz
Value range: 32 bits, Linear mode or ring mode
Interrupts: Target value comparison or range comparison
Pulse
outputs
(models
with
transistor
outputs
only) Pulse
outputs Trapezoidal or S-curve acceleration and deceleration (Duty ratio: 50% fixed)
2 outputs, 1 Hz to 100 kHz (CCW/CW or pulse plus direction)
PWM
outputs Duty ratio: 0.0% to 100.0% (specified in increments of 0.1% or 1%)
2 outputs, 0.1 to 6553.5 Hz or 1 to 32,800 Hz (Accuracy: +1%/0% at 0.1 Hz to 10,000 Hz and
+5%/0% at 10,000 Hz to 32,800 Hz)
Analog control 1 (Setting range: 0 to 255)
Analog input 1 input (Resolution: 1/256, Input range: 0 to 10 V). Not isolated.

last update: February 28, 2013

NO. CP1L

TYPE:Programmable Controllers CP1 Copyright Statement

DATE:2021-06-14

Associated products:
CP1E CP-series CP1E CPU Units/Features CP1H CP series CP1H CPU Unit/Features

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
CP1L Data Sheet	P081-E1-03 [3487KB]	Dec 03, 201820181203	CP1L Data Sheet
CP1 Catalog	P082-E1-05 [5577KB]	Jan 05, 201820180105	CP1 Catalog
New Functions Added to CS/CJ/CP Series Catalog	P097-E1-01 [1267KB]	Sep 28, 201520150928	New Functions Added to CS/CJ/CP Series Catalog
FA Controller Catalog	P090-E1-07 [18214KB]	Aug 20, 201820180820	FA Controller Catalog

CPU Unit	Specifications	Model
CPU type	Power supply	Output method	Inputs	Out- puts
CP1L-EM CPU Units with 40 Points	Memory capacity: 10K steps High-speed counters: 100 kHz, 4 axes Pulse outputs: 100 kHz, 2 axes (Models with transistor outputs only)	DC power supply	Relay output	24	16	CP1L-EM40DR-D
Transistor output (sinking)	CP1L-EM40DT-D
Transistor output (sourcing)	CP1L-EM40DT1-D
CP1L-EM CPU Units with 30 Points	Memory capacity: 10K steps High-speed counters: 100 kHz, 4 axes Pulse outputs: 100 kHz, 2 axes (Models with transistor outputs only)	DC power supply	Relay output	18	12	CP1L-EM30DR-D
Transistor output (sinking)	CP1L-EM30DT-D
Transistor output (sourcing)	CP1L-EM30DT1-D
CP1L-EL CPU Units with 20 Points	Memory capacity: 5K steps High-speed counters: 100 kHz, 4 axes Pulse outputs: 100 kHz, 2 axes (Models with transistor outputs only)	DC power supply	Relay output	12	8	CP1L-EL20DR-D
Transistor output (sinking)	CP1L-EL20DT-D
Transistor output (sourcing)	CP1L-EL20DT1-D

CPU Unit	Specifications	Model
CPU type	Power supply	Output method	Inputs	Outputs
CP1L-M CPU Units with 60 Points	Memory capacity: 10K steps High-speed counters: 100 kHz, 4 axes Pulse outputs: 100 kHz, 2 axes (Models with transistor outputs only)	AC power supply	Relay output	36	24	CP1L-M60DR-A
Transistor output (sinking)	CP1L-M60DT-A
DC power supply	Relay output	CP1L-M60DR-D
Transistor output (sinking)	CP1L-M60DT-D
Transistor output (sourcing)	CP1L-M60DT1-D
CP1L-M CPU Units with 40 Points	Memory capacity: 10K steps High-speed counters: 100 kHz, 4 axes Pulse outputs: 100 kHz, 2 axes (Models with transistor outputs only)	AC power supply	Relay output	24	16	CP1L-M40DR-A
Transistor output (sinking)	CP1L-M40DT-A
DC power supply	Relay output	CP1L-M40DR-D
Transistor output (sinking)	CP1L-M40DT-D
Transistor output (sourcing)	CP1L-M40DT1-D
CP1L-M CPU Units with 30 Points	Memory capacity: 10K steps High-speed counters: 100 kHz, 4 axes Pulse outputs: 100 kHz, 2 axes (Models with transistor outputs only)	AC power supply	Relay output	18	12	CP1L-M30DR-A
Transistor output (sinking)	CP1L-M30DT-A
DC power supply	Relay output	CP1L-M30DR-D
Transistor output (sinking)	CP1L-M30DT-D
Transistor output (sourcing)	CP1L-M30DT1-D
CP1L-L CPU Units with 20 Points	Memory capacity: 5K steps High-speed counters: 100 kHz, 4 axes Pulse outputs: 100 kHz, 2 axes (Models with transistor outputs only)	AC power supply	Relay output	12	8	CP1L-L20DR-A
Transistor output (sinking)	CP1L-L20DT-A
DC power supply	Relay output	CP1L-L20DR-D
Transistor output (sinking)	CP1L-L20DT-D
Transistor output (sourcing)	CP1L-L20DT1-D
CP1L-L CPU Units with 14 Points	Memory capacity: 5K steps High-speed counters: 100 kHz, 4 axes Pulse outputs: 100 kHz, 2 axes (Models with transistor outputs only)	AC power supply	Relay output	8	6	CP1L-L14DR-A
Transistor output (sinking)	CP1L-L14DT-A
DC power supply	Relay output	CP1L-L14DR-D
Transistor output (sinking)	CP1L-L14DT-D
Transistor output (sourcing)	CP1L-L14DT1-D
CP1L-L CPU Units with 10 Point	Memory capacity: 5K steps High-speed counters: 100 kHz, 4 axes Pulse outputs: 100 kHz, 2 axes (Models with transistor outputs only)	AC power supply	Relay output	6	4	CP1L-L10DR-A
Transistor output (sinking)	CP1L-L10DT-A
DC power supply	Relay output	CP1L-L10DR-D
Transistor output (sinking)	CP1L-L10DT-D
Transistor output (sourcing)	CP1L-L10DT1-D

Name	Model
RS-232C Option Board	Can be mounted in either CPU Unit Option Board slot 1 or 2. *1	CP1W-CIF01
RS-422A/485 Option Board	CP1W-CIF11
RS-422A/485 (Isolated-type) Option Board	CP1W-CIF12-V1
Ethernet Option Board	Can be mounted in either CPU Unit Option Board slot 1 or 2. 1 2 *4	CP1W-CIF41
Analog Input Option Board	Can be mounted in either CPU Unit Option Board slot 1 or 2. *3 2 analog inputs. 0-10V(Resolution:1/4000), 0-20mA (Resolution: 1/2000).	CP1W-ADB21
Analog Output Option Board	Can be mounted in either CPU Unit Option Board slot 1 or 2. *3 2 analog outputs. 0-10V (Resolution:1/4000).	CP1W-DAB21V
Analog I/O Option Board	Can be mounted in either CPU Unit Option Board slot 1 or 2. *3 2 analog inputs. 0-10V (Resolution:1/4000), 0-20mA (Resolution: 1/2000). 2 analog outputs. 0-10V (Resolution:1/4000).	CP1W-MAB221
LCD Option Board	Can be mounted only in the CPU Unit Option Board slot 1. *1	CP1W-DAM01
Memory Cassette	Can be used for backing up programs or auto-booting.	CP1W-ME05M

Name	Specifications	Model
	Number of licenses	Media
FA Integrated Tool Package CX-One Lite Version 4.[]	CX-One Lite is a subset of the complete CX-One package that provides only the Support Software required for micro PLC applications. CX-One Lite runs on the following OS. OS: Windows XP (Service Pack 3 or higher, 32-bit version)/Windows Vista (32-bit/64-bit version)/ Windows 7 (32-bit/64-bit version)/Windows 8 (32- bit/64-bit version)/Windows 8.1 (32-bit/64-bit version)/Windows 10 (32-bit/64-bit version) CX-One Lite Ver. 4.[] includes Micro PLC Edition CX-Programmer Ver. 9.[].	1 license	DVD	CXONE-LT01D-V4
FA Integrated Tool Package CX-One Ver.4.[]	CX-One is a package that integrates the Support Software for OMRON PLCs and components. CX- One runs on the following OS. OS: Windows XP (Service Pack 3 or higher, 32-bit version)/Windows Vista (32-bit/64-bit version)/ Windows 7 (32-bit/64-bit version)/Windows 8 (32- bit/64-bit version)/Windows 8.1 (32-bit/64-bit version)/Windows 10 (32-bit/64-bit version) CX-One Ver. 4.[] includes CX-Programmer Ver. 9.[].	1 license *1	DVD	CXONE-AL01D-V4
Programming Device Connecting Cable for CP1W-CIF01 RS-232C Option Board *2	Connects Personal Computers, D-Sub 9-pin (Length: 2.0 m)	For anti-static connectors	XW2Z-200S-CV
Connects Personal Computers, D-Sub 9-pin (Length: 5.0 m)	XW2Z-500S-CV
Connects Personal Computers, D-Sub 9-pin (Length: 2.0 m)	XW2Z-200S-V
Connects Personal Computers, D-Sub 9-pin (Length: 5.0 m)	XW2Z-500S-V

Support Software in CX-One	CX-One Lite Ver.4.[]	CX-One Ver.4.[]
Micro PLC Edition CX-Programmer	Ver.9.[]	Yes	No
CX-Programmer	Ver.9.[]	No	Yes
CX-Integrator	Ver.2.[]	Yes	Yes
Switch Box Utility	Ver.1.[]	Yes	Yes
CX-Protocol	Ver.1.[]	No	Yes
CX-Simulator	Ver.1.[]	Yes	Yes
CX-Position	Ver.2.[]	No	Yes
CX-Motion-NCF	Ver.1.[]	No	Yes
CX-Motion-MCH	Ver.2.[]	No	Yes
CX-Motion	Ver.2.[]	No	Yes
CX-Drive	Ver.2.[]	Yes	Yes
CX-Process Tool	Ver.5.[]	No	Yes
Faceplate Auto-Builder for NS	Ver.3.[]	No	Yes
CX-Designer	Ver.3.[]	Yes	Yes
NV-Designer	Ver.1.[]	Yes	Yes
CX-Thermo	Ver.4.[]	Yes	Yes
CX-ConfiguratorFDT	Ver.1.[]	Yes	Yes
CX-FLnet	Ver.1.[]	No	Yes
Network Configurator	Ver.3.[]	Yes	Yes
CX-Server	Ver.4.[]	Yes	Yes

Model	CX-One	CX-Programmer
CP1L-EM40[][]-[] CP1L-EM30[][]-[] CP1L-EL20[][]-[]	*1	Ver. 4.25 or higher	Ver. 9.40 or higher
CP1L-M60[][]-[]	*2	Ver. 2.11 or higher	Ver. 7.20 or higher
CP1L-M40[][]-[] CP1L-M30[][]-[] CP1L-M20[][]-[] CP1L-L14[][]-[]	*2	Ver. 2.10 or higher	Ver. 7.10 or higher
CP1L-L10[][]-[]	*2	Ver. 2.13 or higher	Ver. 7.30 or higher

Product name	Inputs	Outputs	Output type	Model
Input Unit	8	--	24 VDC Input	CP1W-8ED
Output Units	--	8	Relay	CP1W-8ER
Transistor (sinking)	CP1W-8ET
Transistor (sourcing)	CP1W-8ET1
--	16	Relay	CP1W-16ER
Transistor (sinking)	CP1W-16ET
Transistor (sourcing)	CP1W-16ET1
--	32	Relay	CP1W-32ER
Transistor (sinking)	CP1W-32ET
Transistor (sourcing)	CP1W-32ET1
I/O Units	12	8	Relay	CP1W-20EDR1
Transistor (sinking)	CP1W-20EDT
Transistor (sourcing)	CP1W-20EDT1
24	16	Relay	CP1W-40EDR
Transistor (sinking)	CP1W-40EDT
Transistor (sourcing)	CP1W-40EDT1
Analog Input Unit	4CH	--	Input range: 0 to 5 V, 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA.	Resolution: 1/6000	CP1W-AD041
Resolution: 1/12000	CP1W-AD042
Analog Output Unit	--	2CH	Output range: 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA.	Resolution: 1/6000	CP1W-DA021
--	4CH	Resolution: 1/6000	CP1W-DA041
Resolution: 1/12000	CP1W-DA042
Analog I/O Unit	4CH	4CH	Input range: 0 to 5 V, 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA. Output range: 1 to 5 V, 0 to 10 V, ±10 V, 0 to 20 mA, or 4 to 20 mA.	Resolution: 1/12000	CP1W-MAD44
4CH	2CH	Resolution: 1/12000	CP1W-MAD42
2CH	1CH	Resolution: 1/6000	CP1W-MAD11
Temperature Sensor Unit	2CH	--	Sensor type: Thermocouple (J or K)	CP1W-TS001
4CH	--	Sensor type: Thermocouple (J or K)	CP1W-TS002
2CH	--	Sensor type: Platinum resistance thermometer (Pt100 or JPt100)	CP1W-TS101
4CH	--	Sensor type: Platinum resistance thermometer (Pt100 or JPt100)	CP1W-TS102
4CH	--	Sensor type: Thermocouple (J or K) 2 channels can be used as analog input. Input range: 1 to 5 V, 0 to 10 V, 4-20 mA	Resolution: 1/12000	CP1W-TS003
12CH	--	Sensor type: Thermocouple (J or K)	CP1W-TS004
CompoBus/S I/O Link Unit	8	8	CompoBus/S slave	CP1W-SRT21

Name	Specifications	Model
I/O Connecting Cable	80 cm (for CP1W/CPM1A Expansion Units)	CP1W-CN811

Name	Specifications	Model
Battery Set	For CPU Units (Use batteries within two years of manufacture.)	CJ1W-BAT01
DIN Track	Length: 0.5 m; Height: 7.3 mm	PFP-50N
Length: 1 m; Height: 7.3 mm	PFP-100N
Length: 1 m; Height: 16 mm	PFP-100N2
	End Plate	A stopper to secure the Units on the DIN Track.	PFP-M

Product name	Appear- ance	Specifications	Accessories	Current con- sump- tion (A)	Model
	No. of ports	Failure de- tection
Industrial Switching Hubs		Quality of Service (QoS): EtherNet/IP™ control data priority Failure detection: Broadcast storm and LSI error detection 10/100BASE-TX, Auto-Negotiation	3	No	Power supply connector	0.22	W4S1-03B
	5	No	0.22	W4S1-05B
5	Yes	Power supply connector Connector for informing error	0.22	W4S1-05C

Type	AC power supply models	DC power supply models
Model	CP1L-[][][]-A	CP1L-[][][]-D
Power supply	100 to 240 VAC 50/60 Hz	24 VDC
Operating voltage range	85 to 264 VAC	20.4 to 26.4 VDC
Power consumption	50 VA max. (CP1L-M60/-M40/-M30[][]-A) 30 VA max. (CP1L-L20/-L14/-L10[][]-A)	20 W max. (CP1L-EM40/-EM30/-M60/-M40/ -M30[][]-D) 13 W max. (CP1L-EL20/-L20/-L14/ -L10[][]-D)
Inrush current *	100 to 120 VAC inputs: 20 A max. (for cold start at room temperature) 8 ms max. 200 to 240 VAC inputs: 40 A max. (for cold start at room temperature), 8 ms max.	30 A max. (for cold start at room temperature) 20 ms max.
External power supply	300 mA at 24 VDC (CP1L-M60/-M40/ -M30[][]-A) 200 mA at 24 VDC (CP1L-L20/-L14/ -L10[][]-A)	None
Insulation resistance	20 MΩ min. (at 500 VDC) between the external AC terminals and GR terminals	No insulation between primary and secondary for DC power supply
Dielectric strength	2,300 VAC at 50/60 Hz for 1 min between the external AC and GR terminals, leakage current: 5 mA max.	No insulation between primary and secondary for DC power supply
Noise immunity	Conforms to IEC 61000-4-4. 2 kV (power supply line)
Vibration resistance	CP1L-L/M: Conforms to JIS C60068-2-6. 10 to 57 Hz, 0.075-mm amplitude, 57 to 150 Hz, acceleration: 9.8 m/s² in X, Y, and Z directions for 80 minutes each. Sweep time: 8 minutes × 10 sweeps = total time of 80 minutes) CP1L-EL/EM: 5 to 8.4 Hz, 3.5 mm amplitude, 8.4 to 150 Hz, acceleration: 9.8 m/s² in X, Y, and Z directions for 100 minutes each (time coefficient of 10 minutes × coefficient factor of 10 = total time of 100 minutes)
Shock resistance	Conforms to JIS C60068-2-27. 147 m/s² three times each in X, Y, and Z directions
Ambient operating temperature	0 to 55°C
Ambient humidity	10% to 90% (with no condensation)
Ambient operating environment	No corrosive gas
Ambient storage temperature	-20 to 75°C (Excluding battery.)
Power holding time	10 ms min.	2 ms min.

Type	CP1L-EM40 (40 points)	CP1L-EM30 (30 points)	CP1L-EL20 (20 points)
Models	CP1L-EM40D[]-[]	CP1L-EM30D[]-[]	CP1L-EL20D[]-[]
Control method	Stored program method
I/O control method	Cyclic scan with immediate refreshing
Program language	Ladder diagram
Function blocks	Maximum number of function block definitions: 128 Maximum number of instances: 256 Languages usable in function block definitions: Ladder diagrams, structured text (ST)
Instruction length	1 to 7 steps per instruction
Instructions	Approx. 500 (function codes: 3 digits)
Instruction execution time	Basic instructions: 0.55 μs min. Special instructions: 4.1 μs min.
Common processing time	0.4ms
Program capacity	10K steps	5K steps
	FB program memory	10K steps
Number of tasks	288 (32 cyclic tasks and 256 interrupt tasks)
	Scheduled interrupt tasks	1 (interrupt task No. 2, fixed)
Input interrupt tasks	6 (interrupt task No. 140 to 145, fixed)
(High-speed counter interrupts and interrupt tasks specified by external interrupts can also be executed.)
Maximum subroutine number	256
Maximum jump number	256
I/O areas	Input Area	1,600 bits (100 words) CIO 0 to CIO 99
	Built-in Input Area	24 bits: CIO 0.00 to CIO 0.11 and CIO 1.00 to CIO 1.11	18 bits: CIO 0.00 to CIO 0.11 and CIO 1.00 to CIO 1.05	12 bits: CIO 0.00 to CIO 0.11
Output Area	1,600 bits (100 words) CIO 100 to CIO 199
	Built-in Output Area	16 bits: CIO 100.00 to CIO 100.07 and CIO 101.00 to CIO 101.07	12 bits: CIO 100.00 to CIO 100.07 and CIO 101.00 to CIO 101.03	8 bits: CIO 100.00 to CIO 100.07
1:1 Link Area	256 bits (16 words): CIO 3000.00 to CIO 3015.15 (CIO 3000 to CIO 3015)
Serial PLC Link Area	1,440 bits (90 words): CIO 3100.00 to CIO 3189.15 (CIO 3100 to CIO 3189)
Work bits	4,800 bits (300 words): CIO 1200.00 to CIO 1499.15 (words CIO 1200 to CIO 1499) 6,400 bits (400 words): CIO 1500.00 to CIO 1899.15 (words CIO 1500 to CIO 1899) 15,360 bits (960 words): CIO 2000.00 to CIO 2959.15 (words CIO 2000 to CIO 2959) 9,600 bits (600 words): CIO 3200.00 to CIO 3799.15 (words CIO 3200 to CIO 3799) 37,504 bits (2,344 words): CIO 3800.00 to CIO 6143.15 (words CIO 3800 to CIO 6143)
TR Area	16 bits: TR0 to TR15
Holding Area	8,192 bits (512 words): H0.00 to H511.15 (H0 to H511)
AR Area	Read-only (Write-prohibited): 7168 bits (448 words): A0.00 to A447.15 (A0 to A447) Read/Write: 8192 bits (512 words): A448.00 to A959.15 (A448 to A959)
Timers	4,096 timer numbers: T0 to T4095
Counters	4,096 counter numbers: C0 to C4095
DM Area	32 Kwords: D0 to D32767	10 Kwords: D0 to D9999, D32000 to D32767
Data Register Area	16 registers (16 bits): DR0 to DR15
Index Register Area	16 registers (32 bits): IR0 to IR15
Task Flag Area	32 flags (32 bits): TK0000 to TK0031
Trace Memory	4,000 words (500 samples for the trace data maximum of 31 bits and 6 words.)
Memory Cassette	A special Memory Cassette (CP1W-ME05M) can be mounted. Note: Can be used for program backups and auto-booting.
Clock function	Supported. Accuracy (monthly deviation): -4.5 min to -0.5 min (ambient temperature: 55°C), -2.0 min to +2.0 min (ambient temperature: 25°C), -2.5 min to +1.5 min (ambient temperature: 0°C)
Communications functions	Built-in Ethernet Port (Connecting Support Software, Message Communications, Socket Service)
A maximum of two Serial Communications Option Boards can be mounted.	A maximum of one Serial Communications Option Board can be mounted.
Memory backup	Flash memory: User programs, parameters (such as the PLC Setup), comment data, and the entire DM Area can be saved to flash memory as initial values. Battery backup: The Holding Area, DM Area, and counter values (flags, PV) are backed up by a battery.
Battery service life	Service life expectancy is 5 years at 25°C, less at higher temperatures. (From 0.75 to 5 years depending on model, power supply rate, and ambient temperature.)
Built-in input terminals	40 (24 inputs, 16 outputs)	30 (18 inputs, 12 outputs)	20 (12 inputs, 8 outputs)
Number of connectable Expansion Units and Expansion I/O Units	CP-series Expansion Unit and Expansion I/O Units: 3 max.	CP-series Expansion Units and Expansion I/O Units: 1 max.
Max. number of I/O points	160 (40 built in + 40 per Expansion (I/O) Unit x 3 Units)	150 (30 built in + 40 per Expansion (I/O) Unit x 3 Units)	60 (20 built in + 40 per Expansion (I/O) Unit x 1 Unit)
Interrupt inputs	6 inputs (Response time: 0.3 ms)
Interrupt inputs counter mode	6 inputs (Response frequency: 5 kHz max. for all interrupt inputs), 16 bits Up or down counters
Quick-response inputs	6 points (Min. input pulse width: 50 μs max.)
Scheduled interrupts	1
High-speed counters	4 inputs/2 axes (24 VDC) Differential phases (4x), 50 kHz Single-phase (pulse plus direction, up/down, increment), 100 kHz Value range: 32 bits, Linear mode or ring mode Interrupts: Target value comparison or range comparison
Pulse outputs (models with transistor outputs only)	Pulse outputs	Trapezoidal or S-curve acceleration and deceleration (Duty ratio: 50% fixed) 2 outputs, 1 Hz to 100 kHz (CCW/CW or pulse plus direction)
PWM outputs	Duty ratio: 0.0% to 100.0% (specified in increments of 0.1% or 1%) 2 outputs, 0.1 to 6553.5 Hz or 1 to 32,800 Hz (Accuracy: +1%/0% at 0.1 Hz to 10,000 Hz and +5%/0% at 10,000 Hz to 32,800 Hz)
Analog input	2 input (Resolution: 1/1000, Input range: 0 to 10 V). Not isolated.

Type	CP1L-M60 (60 points)	CP1L-M40 (40 points)	CP1L-M30 (30 points)	CP1L-L20 (20 points)	CP1L-L14 (14 points)	CP1L-L10 (10 points)
Models	CP1L- M60[][]-[]	CP1L- M40[][]-[]	CP1L- M30[][]-[]	CP1L- L20[][]-[]	CP1L- L14[][]-[]	CP1L- L10[][]-[]
Control method	Stored program method
I/O control method	Cyclic scan with immediate refreshing
Program language	Ladder diagram
Function blocks	Maximum number of function block definitions: 128 Maximum number of instances: 256 Languages usable in function block definitions: Ladder diagrams, structured text (ST)
Instruction length	1 to 7 steps per instruction
Instructions	Approx. 500 (function codes: 3 digits)
Instruction execution time	Basic instructions: 0.55 μs min. Special instructions: 4.1 μs min.
Common processing time	0.4 ms
Program capacity	10K steps	5K steps
Number of tasks	288 (32 cyclic tasks and 256 interrupt tasks)
	Scheduled interrupt tasks	1 (interrupt task No. 2, fixed)
Input interrupt tasks	6 (interrupt task No. 140 to 145, fixed)	4 (interrupt task No. 140 to 143, fixed)	2 (interrupt task No. 140 to 141, fixed)
(Interrupt tasks can also be specified and executed for high-speed counter interrupts and executed.)
Maximum subroutine number	256
Maximum jump number	256
I/O areas	Input Area	1,600 bits (100 words) CIO 0 to CIO 99
	Built-in Input Area	36 bits: CIO 0.00 to CIO 0.11 and CIO 1.00 to CIO 1.11 and CIO 2.00 to CIO 2.11	24 bits: CIO 0.00 to CIO 0.11 and CIO 1.00 to CIO 1.11	18 bits: CIO 0.00 to CIO 0.11 and CIO 1.00 to CIO 1.05	12 bits: CIO 0.00 to CIO 0.11	8 bits: CIO 0.00 to CIO 0.07	6 bits: CIO 0.00 to CIO 0.05
Output Area	1,600 bits (100 words) CIO 100 to CIO 199
	Built-in Output Area	24 bits: CIO 100.00 to CIO 100.07 and CIO 101.00 to CIO 101.07 and CIO 102.00 to CIO 102.07	16 bits: CIO 100.00 to CIO 100.07 and CIO 101.00 to CIO 101.07	12 bits: CIO 100.00 to CIO 100.07 and CIO 101.00 to CIO 100.03	8 bits: CIO 100.00 to CIO 100.07	6 bits: CIO 100.00 to CIO 100.05	4 bits: CIO 100.00 to CIO 100.03
1:1 Link Area	1,024 bits (64 words): CIO 3000.00 to CIO 3063.15 (CIO 3000 to CIO 3063)
Serial PLC Link Area	1,440 bits (90 words): CIO 3100.00 to CIO 3189.15 (CIO 3100 to CIO 3189)
Work bits	8,192 bits (512 words): W000.00 to W511.15 (W0 to W511) CIO Area: 37,504 bits (2,344 words): CIO 3800.00 to CIO 6143.15 (CIO 3800 to CIO 6143)
TR Area	16 bits: TR0 to TR15
Holding Area	8,192 bits (512 words): H0.00 to H511.15 (H0 to H511)
AR Area	Read-only (Write-prohibited): 7168 bits (448 words): A0.00 to A447.15 (A0 to A447) Read/Write: 8192 bits (512 words): A448.00 to A959.15 (A448 to A959)
Timers	4,096 timer numbers: T0 to T4095
Counters	4,096 counter numbers: C0 to C4095
DM Area	32 Kwords: D0 to D32767	10 Kwords: D0 to D9999, D32000 to D32767
Data Register Area	16 registers (16 bits): DR0 to DR15
Index Register Area	16 registers (32 bits): IR0 to IR15
Task Flag Area	32 flags (32 bits): TK0000 to TK0031
Trace Memory	4,000 words (500 samples for the trace data maximum of 31 bits and 6 words.)
Memory Cassette	A special Memory Cassette (CP1W-ME05M) can be mounted. Note: Can be used for program backups and auto-booting.
Clock function	Supported. Accuracy (monthly deviation): -4.5 min to -0.5 min (ambient temperature: 55°C), -2.0 min to +2.0 min (ambient temperature: 25°C), -2.5 min to +1.5 min (ambient temperature: 0°C)
Communications functions	One built-in peripheral port (USB 1.1): For connecting Support Software only.
A maximum of two Serial Communications Option Boards can be mounted.	A maximum of one Serial Communications Option Board can be mounted.	Not supported.
A maximum of two Ethernet Option Board can be mounted. When using CP1W-CIF41 Ver.1.0, one Ethernet Option Board can be mounted.	A maximum of one Ethernet Option Board can be mounted.	Not supported.
Memory backup	Flash memory: User programs, parameters (such as the PLC Setup), comment data, and the entire DM Area can be saved to flash memory as initial values. Battery backup: The Holding Area, DM Area, and counter values (flags, PV) are backed up by a battery.
Battery service life	Service life expectancy is 5 years at 25°C, less at higher temperatures. (From 0.75 to 5 years depending on model, power supply rate, and ambient temperature.)
Built-in input terminals	60 (36 inputs, 24 outputs)	40 (24 inputs, 16 outputs)	30 (18 inputs, 12 outputs)	20 (12 inputs, 8 outputs)	14 (8 inputs, 6 outputs)	10 (6 inputs, 4 outputs)
Number of connectable Expansion Units and Expansion I/O Units	CP-series Expansion Unit and Expansion I/O Units: 3 max.	CP-series Expansion Units and Expansion I/O Units: 1 max.	Not supported.
Max. number of I/O points	180 (60 built in + 40 per Expansion (I/O) Unit × 3 Units)	160 (40 built in + 40 per Expansion (I/O) Unit × 3 Units)	150 (30 built in + 40 per Expansion (I/O) Unit × 3 Units)	60 (20 built in + 40 per Expansion (I/O) Unit × 1 Unit)	54 (14 built in + 40 per Expansion (I/O) Unit × 1 Unit)	10 (10 built in)
Interrupt inputs	6 inputs (Response time: 0.3 ms)	4 inputs (Response time: 0.3 ms)	2 inputs (Response time: 0.3 ms)
Interrupt inputs counter mode	6 inputs (Response frequency: 5 kHz max. for all interrupt inputs), 16 bits Up or down counters	4 inputs (Response frequency: 5 kHz max. for all interrupt inputs), 16 bits Up or down counters	2 inputs (Response frequency: 5 kHz max. for all interrupt inputs), 16 bits Up or down counters
Quick-response inputs	6 points (Min. input pulse width: 50 μs max.)	4 points (Min. input pulse width: 50 μs max.)	2 points (Min. input pulse width: 50 μs max.)
Scheduled interrupts	1
High-speed counters	4 inputs/2 axes (24 VDC): Differential phases (4x), 50 kHz Single-phase (pulse plus direction, up/down, increment), 100 kHz Value range: 32 bits, Linear mode or ring mode Interrupts: Target value comparison or range comparison
Pulse outputs (models with transistor outputs only)	Pulse outputs	Trapezoidal or S-curve acceleration and deceleration (Duty ratio: 50% fixed) 2 outputs, 1 Hz to 100 kHz (CCW/CW or pulse plus direction)
PWM outputs	Duty ratio: 0.0% to 100.0% (specified in increments of 0.1% or 1%) 2 outputs, 0.1 to 6553.5 Hz or 1 to 32,800 Hz (Accuracy: +1%/0% at 0.1 Hz to 10,000 Hz and +5%/0% at 10,000 Hz to 32,800 Hz)
Analog control	1 (Setting range: 0 to 255)
Analog input	1 input (Resolution: 1/256, Input range: 0 to 10 V). Not isolated.

Return to OMRON

OMRON CP1LAutomation Systems/ Programmable Controllers/CP1

OMRON CP1L Dimensions

Purchase the OMRON CP1 Please fill in the following

OMRON CP1L catalog

English

Global Edition

OMRON CP1L lineup

Applicable standards

CPU Units

Built-in Ethernet port

Built-in USB port

Options for CPU Units

Programming Devices

Models and Software Versions

Expansion Units

I/O Connecting Cable

Optional Products, Maintenance Products and DIN Track Accessories

Industrial Switching Hubs

OMRON CP1L dimension

CPU Units

CP1L-EM CPU Units with 40 Points

CP1L-EM CPU Units with 30 Points

CP1L-EL CPU Units with 20 Points

CP1L CPU Units with 60 I/O Points

CP1L CPU Units with 40 I/O Points

CP1L CPU Units with 30 I/O Points

CP1L CPU Units with 14 or 20 I/O Points

CP1L CPU Units with 10 I/O Points

Expansion Units and Expansion I/O Units

CP1W-20ED[][], CP1W-16[][],CP1W-AD04[], CP1W-DA021/04[],CP1W-MAD[][], CP1W-TS[][]1/[][]2/[][]3

CP1W-8E[][]CP1W-SRT21

CP1W-40ED[]CP1W-32E[][]CP1W-TS004

OMRON CP1L specification

General Specifications

Performance Specifications

CP1L CPU Unit (EM/EL Type)

CP1L CPU Unit (M/L Type)

CP1W-20ED[][], CP1W-16[][],
CP1W-AD04[], CP1W-DA021/04[],
CP1W-MAD[][], CP1W-TS[][]1/[][]2/[][]3

CP1W-8E[][]
CP1W-SRT21

CP1W-40ED[]
CP1W-32E[][]
CP1W-TS004
