• In addition to Up and Down models, a reversible (Up-Down) counter is also available
• Maximum counting speed of 5,000 cps, never before attained by a small-size preset counter
• Power supply freely selectable within a range of 100 to 240 VAC. Also, power supply for the DC-operated models is selectable within a range of 12 to 48 V
• Models with memory backup function against power failure available
last update: October 25, 2012
Purchase the OMRON General-purpose Please fill in the following
If you have just landed here, this product OMRON H7CN Control Components,Control Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Control Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the H7CN We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON H7CNControl Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
D5F High-precision Optical Switch/Features
H3DT-F Twin Timer/Features
H3RN-[]-B Solid-state timer/Features
CS Series Programmable Controllers/Features
XW5T-S DIN Track Terminal Blocks with Screw Terminals/Features
OMRON H7CN lineup
H7CN Solid-state Counter/Lineuplast update: April 09, 2014
| Classification | Preset Counter | Totalizing Counter | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Input signal system (Count & reset inputs) | Contact, Transistor | Contact/ Transistor | ||||||||
| Mounting method | Flush mounting, surface mounting | |||||||||
| Display | 7-segment LEDs (10 mm high), Up indicator | 7-segment LEDs (10 mm high) | ||||||||
| Number of digits | 4 digits (0 to 9,999) | |||||||||
| Backup power for memory protection | No | Yes (100 to 240 VAC only) | No | Yes | ||||||
| Control output | Contact (SPST-NO) | Contact (SPDT) | Contact (SPST-NO) | Transistor (open-collector) | --- | |||||
| Operating mode | Up counting | Down counting | Up counting | Down counting | Reversible counting, command input | Reversible counting, individual input | Up counting | Down counting | Up counting | |
| Max. counting speed | 30 cps | H7CN- XLN | H7CN- YLN | H7CN- XLNM | H7CN- YLNM | H7CN- ALN | H7CN- BLN | --- | --- | H7CN- TXL |
| 5 kcps *1 | H7CN- XHN | H7CN- YHN | H7CN- XHNM | H7CN- YHNM | H7CN- AHN | H7CN- BHN | H7CN- XHNS | H7CN- YHNS | H7CN- TXH | |
*1. Only the transistor input signal is available when the maximum counting speed is 5,000 cps
*2. Specify the power supply voltage when ordering.
Accessories (Order Separately)
| Protective Cover | Hard | Y92A-48B |
|---|---|---|
| Soft | Y92A-48D | |
| Flush Mounting Adapter | Y92F-30 | |
Sockets
| Applicable Counter | Track Mounted Socket | Back Connecting Socket |
|---|---|---|
| H7CN-[][] | P2CF-08(-E) | P3G-08 |
| H7CN-[][]M | P2CF-11(-E) | P3GA-11 |
last update: April 09, 2014
OMRON H7CN dimension
H7CN Solid-state Counter/Dimensionslast update: April 09, 2014

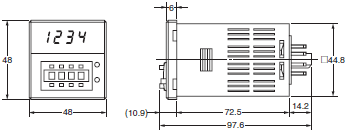

H7CN
Accessories

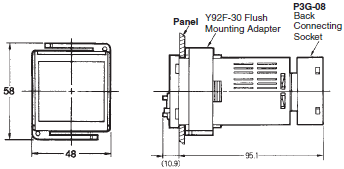

Adapter for Flush Mounting
Y90F-30
Panel Cutout
The standard panel cutout is as shown below. (Panel cutout conforms to DIN43700.)
Panel cutout for side-by-side mounting of two or more Units
When mounting n Counters in a line, dimension A can be calculated from following formula.
A = (48n-2.5) +1, 0
Connecting Sockets

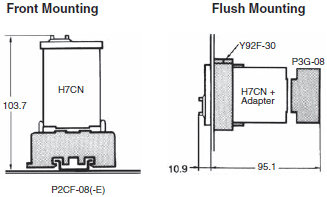

H7CN

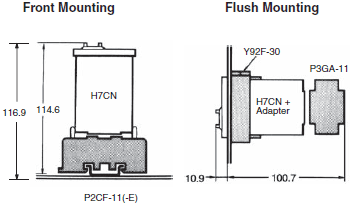

H7CN-[][]NM
Protective Cover
The Protective Cover shields the front panel, particularly the count value setting section from dust, dirt and water, and prevent malfunctioning of the Counter due to static electricity.
Note: 1. The Hard Protective Cover prevents the set count value from being altered due to accidental contact with the
pushtype thumbwheel switch.
2. The Soft Protective Cover allows the set value to be set by depressing the thumbwheel switches through it.
It may be, however, difficult to make setting changes of the Counter with the Y92A-48B Protective Cover
attached, which must be taken into consideration before using the Y92A-48B Protective Cover.
last update: April 09, 2014
OMRON H7CN catalog
H7CN Solid-state Counter/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 H7CN Data Sheet | - [1874KB] | Apr 03, 201720170403 | H7CN Data Sheet |
OMRON H7CN specification
H7CN Solid-state Counter/Specificationslast update: April 3, 2017
Ratings
| Supply voltage | 24, 100 to 240 VAC 50/60 Hz 12 to 48 VDC (contains 20% ripple max.) *1 |
|---|---|
| Operating voltage range | 85% to 110% of rated voltage |
| Power consumption *2 | Approx. 12 VA/2.5 W (at 240 VAC, 50Hz) Approx. 2.5 W (at 48 VDC) |
| Count and reset input | Impedance by short-circuiting contacts: 1 kΩ max. Residual voltage: 2 V max. Impedance by opening contacts: 100 kΩ min. |
| Max. counting speeds of count input | 30 cps (contact and transistor inputs) Minimum pulse width: 16.7 ms (ON/OFF ratio: 1:1) 5.000 cps (transistor inputs) Minimum pulse width: 0.1 ms (ON/OFF ratio: 1:1) |
| Reset system | Power-OFF reset Reset time: 0.5 s Reset time following power application 0.05 s External reset & manual reset Reset time: 0.02 s Reset time following signal application: 0.05 s |
| Control output | Contact (SPDT) output: 3 A, 250 VAC, cosϕ = 1 (resistive load) Transistor (open collector) output: 30 VDC MAX. 100 mA max. |
| Case color | Light gray (Munsell 5Y7/1) |
*1. The memory backup function is not available for this DC supply voltage range.
*2. On power application, an inrush current of approximately 10 times the normal current flows through the Counter.
Characteristics
| Item | Preset Counter | Totalizing Counter |
|---|---|---|
| Insulation resistance | 100 MΩ min. (at 500 VDC) (between current- carrying terminal and exposed non-current- carrying metal parts, and between non- continuous contacts) | 100 MΩ min. (at 500 VDC) (between current- carrying terminal and exposed non-current- carrying metal parts) |
| Dielectric strength | 2,000 VAC, 50/60 Hz for 1 min (between current-carrying terminal and exposed non- current carrying metal parts and between non-continuous contacts) | 2,000 VAC, 50/60 Hz for 1 min (between current-carrying terminal and exposed non- current carrying metal parts) |
| Impulse withstand voltage | 6 kV (between power terminals) 6 kV (between current-carrying terminal and exposed non-current-carrying metal parts) | |
| Noise immunity | ±2 kV (between power terminals), ±500 V (between input terminals), square-wave noise by noise simulator | |
| Static immunity | Malfunction: 8 kV | |
| Vibration resistance | Destruction: 10 to 55 Hz, 0.75-mm single amplitude Malfunction: 10 to 55 Hz, 0.5-mm single amplitude | |
| Shock resistance | Destruction: 300 m/s2 (approx. 30G) Malfunction: 100 m/s2 (approx. 10G) | |
| Ambient temperature | Operating: -10°C to 55°C (with no icing) Storage: -25°C to 65°C (with no icing) | |
| Ambient humidity | 35% to 85% | |
| Life expectancy | Mechanical: 10 million operations min. Electrical: 100,000 operations min. (3 A at 250 VAC, resistive load) | --- |
| Weight | Approx. 110 g | |
Applicable Standards
| Approved safety standards | UL508/CSA C22.2 No. 14 EN 61010-1 (IEC 61010-1): Pollution degree 2/overvoltage category II |
|---|---|
| EMC | (EMI) EN61326 Emission Enclosure: EN 55011 Group 1 class A Emission AC mains: EN 55011 Group 1 class A (EMS) EN61326 Immunity ESD: EN 61000-4-2 Immunity RF-interference: EN 61000-4-3 Immunity Conducted Disturbance: EN 61000-4-6 Immunity Burst: EN 61000-4-4 Immunity Surge: EN 61000-4-5 Immunity Voltage Dip/Interruption: EN 61000-4-11 |
last update: April 3, 2017
