last update: February 18, 2015

• Lever for easily mounting and removing the Switch Unit

• Finger protection mechanism on Switch Unit provided as a standard feature.

• Use 25-dia. ring to install in 25-dia. panel cutouts.

• Mounted using either open-type (fork-type) or closed-type (round-type) crimp terminals.

• IP65 oil resistance (non-lighted models)

IP65 (lighted models)

last update: February 18, 2015

Purchase the OMRON φ22(φ25) Type Please fill in the following

Title:

Email:

Tel:

Content:

Verification code:

If you have just landed here, this product OMRON A22[] Switches,Switches is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Switches at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the A22[] We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON A22[]Switches tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

A22NS / A22NW Selector Switches/Features
E5AC Digital Temperature Controller (96 x 96 mm)/Features
H3Y-[]-B Solid-state Timer/Features
CJ1W-EIP21 CJ-series EtherNet/IP Unit/Features
GX-[]D16[]1 / OC1601 Digital I/O Terminal 2-tier Terminal Block Type/Features

OMRON A22[] lineup

A22[] Knob-type Selector Switch (Cylindrical 22/25-dia.)/Lineup

last update: April 2, 2018

Completely Assembled

Shipped as a set which includes the Selector, Lamp (lighted models only), and Switch.

Non-lighted Knob-type Selector Switch (Orders will not be accepted after March 31, 2018.)

AppearanceNumber of
notches		Resetting
method		OutputModelColor of
Selector
Knob-type Selector Switch
A22S1109_lu_1_1		2 notchesManualSPST-NOA22S-2M-10Black
SPST-NCA22S-2M-01
SPST-NO + SPST-NCA22S-2M-11
SPST-NO + SPST-NOA22S-2M-20
SPST-NC + SPST-NCA22S-2M-02
AutomaticSPST-NOA22S-2A-10
SPST-NCA22S-2A-01
SPST-NO + SPST-NCA22S-2A-11
SPST-NO + SPST-NOA22S-2A-20
SPST-NC + SPST-NCA22S-2A-02
3 notchesManualSPST-NO + SPST-NCA22S-3M-11
SPST-NO + SPST-NOA22S-3M-20
SPST-NC + SPST-NCA22S-3M-02
AutomaticSPST-NO + SPST-NCA22S-3A-11
SPST-NO + SPST-NOA22S-3A-20
SPST-NC + SPST-NCA22S-3A-02

Note: The contact ratings are for standard loads.

Lighted Knob-type Selector Switch (Orders will not be accepted after March 31, 2018.)

AppearanceNumber of
notches		Resetting
method		OutputOperating
voltage		ModelIllumination
color
Knob-type Selector
Switch
A22W
LED lighting
(without Voltage
Reduction Unit)1109_lu_2_1		2 notchesManualSPST-NO6 VAC/VDCA22W-2M[]-6A-10R (red)
Y (yellow)
G (green)
A (blue)
12 VAC/VDCA22W-2M[]-12A-10
24 VAC/VDCA22W-2M[]-24A-10
SPST-NC6 VAC/VDCA22W-2M[]-6A-01
12 VAC/VDCA22W-2M[]-12A-01
24 VAC/VDCA22W-2M[]-24A-01
SPST-NO +
SPST-NC		6 VAC/VDCA22W-2M[]-6A-11
12 VAC/VDCA22W-2M[]-12A-11
24 VAC/VDCA22W-2M[]-24A-11
SPST-NO +
SPST-NO		6 VAC/VDCA22W-2M[]-6A-20
12 VAC/VDCA22W-2M[]-12A-20
24 VAC/VDCA22W-2M[]-24A-20
SPST-NC +
SPST-NC		6 VAC/VDCA22W-2M[]-6A-02
12 VAC/VDCA22W-2M[]-12A-02
24 VAC/VDCA22W-2M[]-24A-02
AutomaticSPST-NO6 VAC/VDCA22W-2A[]-6A-10
12 VAC/VDCA22W-2A[]-12A-10
24 VAC/VDCA22W-2A[]-24A-10
SPST-NC6 VAC/VDCA22W-2A[]-6A-01
12 VAC/VDCA22W-2A[]-12A-01
24 VAC/VDCA22W-2A[]-24A-01
SPST-NO +
SPST-NC		6 VAC/VDCA22W-2A[]-6A-11
12 VAC/VDCA22W-2A[]-12A-11
24 VAC/VDCA22W-2A[]-24A-11
SPST-NO +
SPST-NO		6 VAC/VDCA22W-2A[]-6A-20
12 VAC/VDCA22W-2A[]-12A-20
24 VAC/VDCA22W-2A[]-24A-20
SPST-NC +
SPST-NC		6 VAC/VDCA22W-2A[]-6A-02
12 VAC/VDCA22W-2A[]-12A-02
24 VAC/VDCA22W-2A[]-24A-02
3 notchesManualSPST-NO +
SPST-NC		6 VAC/VDCA22W-3M[]-6A-11
12 VAC/VDCA22W-3M[]-12A-11
24 VAC/VDCA22W-3M[]-24A-11
SPST-NO +
SPST-NO		6 VAC/VDCA22W-3M[]-6A-20
12 VAC/VDCA22W-3M[]-12A-20
24 VAC/VDCA22W-3M[]-24A-20
SPST-NC +
SPST-NC		6 VAC/VDCA22W-3M[]-6A-02
12 VAC/VDCA22W-3M[]-12A-02
24 VAC/VDCA22W-3M[]-24A-02
AutomaticSPST-NO +
SPST-NC		6 VAC/VDCA22W-3A[]-6A-11
12 VAC/VDCA22W-3A[]-12A-11
24 VAC/VDCA22W-3A[]-24A-11
SPST-NO +
SPST-NO		6 VAC/VDCA22W-3A[]-6A-20
12 VAC/VDCA22W-3A[]-12A-20
24 VAC/VDCA22W-3A[]-24A-20
SPST-NC +
SPST-NC		6 VAC/VDCA22W-3A[]-6A-02
12 VAC/VDCA22W-3A[]-12A-02
24 VAC/VDCA22W-3A[]-24A-02

Lighted Knob-type Selector Switch (Orders will not be accepted after March 31, 2018.)

AppearanceNumber of
notches		Resetting
method		OutputOperating
voltage		ModelSelector
symbol
(color)
Knob-type Selector
Switch
A22W
LED voltage-reduction
lighting
(with Voltage
Reduction Unit)1109_lu_3_1		2 notchesManualSPST-NO100 VACA22W-2M[]-T1-10R (red)
Y (yellow)
G (green)
A (blue)
200 VACA22W-2M[]-T2-10
SPST-NC100 VACA22W-2M[]-T1-01
200 VACA22W-2M[]-T2-01
SPST-NO +
SPST-NC		100 VACA22W-2M[]-T1-11
200 VACA22W-2M[]-T2-11
SPST-NO +
SPST-NO		100 VACA22W-2M[]-T1-20
200 VACA22W-2M[]-T2-20
SPST-NC +
SPST-NC		100 VACA22W-2M[]-T1-02
200 VACA22W-2M[]-T2-02
AutomaticSPST-NO100 VACA22W-2A[]-T1-10
200 VACA22W-2A[]-T2-10
SPST-NC100 VACA22W-2A[]-T1-01
200 VACA22W-2A[]-T2-01
SPST-NO +
SPST-NC		100 VACA22W-2A[]-T1-11
200 VACA22W-2A[]-T2-11
SPST-NO +
SPST-NO		100 VACA22W-2A[]-T1-20
200 VACA22W-2A[]-T2-20
SPST-NC +
SPST-NC		100 VACA22W-2A[]-T1-02
200 VACA22W-2A[]-T2-02
3 notchesManualSPST-NO +
SPST-NC		100 VACA22W-3M[]-T1-11
200 VACA22W-3M[]-T2-11
SPST-NO +
SPST-NO		100 VACA22W-3M[]-T1-20
200 VACA22W-3M[]-T2-20
SPST-NC +
SPST-NC		100 VACA22W-3M[]-T1-02
200 VACA22W-3M[]-T2-02
AutomaticSPST-NO +
SPST-NC		100 VACA22W-3A[]-T1-11
200 VACA22W-3A[]-T2-11
SPST-NO +
SPST-NO		100 VACA22W-3A[]-T1-20
200 VACA22W-3A[]-T2-20
SPST-NC +
SPST-NC		100 VACA22W-3A[]-T1-02
200 VACA22W-3A[]-T2-02

Note: 1. When ordering, specify the symbol that indicates color of the Selector in the [] of the model number.
           2. The contact ratings are for standard loads.

Completely Assembled

The Selector, Lamp, or Switch can be ordered separately. Use them in combination for models that are not available as assembled Units. These can also be used as inventory for maintenance parts.

A22[] Lineup 7

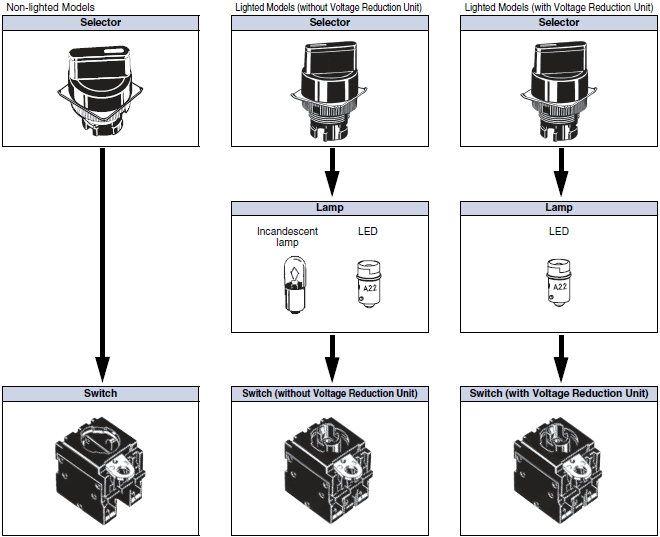

Subassembled

The Selector, Lamp, or Switch can be ordered separately. Use them in combination for models that are not available as assembled Units. These can also be used as inventory for maintenance parts.

Selectors

Non-lighted (Color: Only Black is Available)

SealingIP65 (oil-resistant)
AppearanceStandard lever
1109_lu_5_1		Long lever
1109_lu_5_2
NotchesReset methodModelModel
2 notchesManual1109_lu_5_3A22S-2M *A22S-C2M
Automatic1109_lu_5_4A22S-2A *A22S-C2A
3 notchesManual1109_lu_5_5A22S-3M *A22S-C3M
Automatic1109_lu_5_6A22S-3A *A22S-C3A

* Orders will not be accepted after March 31, 2018.

Lighted (Orders will not be accepted after March 31, 2018.)

SealingIP65
AppearanceStandard lever1109_lu_6_1
NotchesReset methodSelector colorModel
2 notchesManual1109_lu_5_3RedA22W-2MR
GreenA22W-2MG
YellowA22W-2MY
BlueA22W-2MA
Automatic1109_lu_5_4RedA22W-2AR
GreenA22W-2AG
YellowA22W-2AY
BlueA22W-2AA
3 notchesManual1109_lu_5_5RedA22W-3MR
GreenA22W-3MG
YellowA22W-3MY
BlueA22W-3MA
Automatic1109_lu_5_6RedA22W-3AR
GreenA22W-3AG
YellowA22W-3AY
BlueA22W-3AA

Note: Either incandescent lamps or LED lamps can be used with the above models.

Switches (Standard Load)

AppearanceNon-lightedLighted
1109_lu_7_1Without Voltage
Reduction Unit1109_lu_7_2		With Voltage Reduction Unit
110 VAC1109_lu_7_3		With Voltage Reduction Unit
220 VAC1109_lu_7_4
ContactsModel
SPST-NOA22-10MA22L-10MA22L-10M-T1A22L-10M-T2
SPST-NCA22-01MA22L-01MA22L-01M-T1A22L-01M-T2
SPST-NO + SPST-NCA22-11MA22L-11MA22L-11M-T1A22L-11M-T2
SPST-NO + SPST-NOA22-20MA22L-20MA22L-20M-T1A22L-20M-T2
SPST-NC + SPST-NCA22-02MA22L-02MA22L-02M-T1A22L-02M-T2

Note: For voltage-reduction lighting, use the A22-24A[]. Only 24-V LED lamps can be used.

Lamps

LED Lamp

Operating voltage6 VAC/VDC12 VAC/VDC24 VAC/VDC
AppearanceLED lightModel
1109_lu_8_1AC and DCRedA22-6ARA22-12ARA22-24AR
GreenA22-6AGA22-12AGA22-24AG
Yellow *A22-6AYA22-12AYA22-24AY
BlueA22-6AAA22-12AAA22-24AA

Note: For voltage-reduction lighting, use the A22-24A[]. Only 24-V LED lamps can be used.
* Used when the Selector color is yellow or white.

Incandescent Lamp

Operating voltage5 VAC/VDC12 VAC/VDC24 VAC/VDC
Appearance
1109_lu_9_1A22-5A22-12A22-24

last update: April 2, 2018


OMRON A22[] specification

A22[] Knob-type Selector Switch (Cylindrical 22/25-dia.)/Specifications

last update: September 24, 2012

No information is provided on the ratings and characteristics of this product.

last update: September 24, 2012


OMRON A22[] dimension

A22[] Knob-type Selector Switch (Cylindrical 22/25-dia.)/Dimensions

last update: November 06, 2012

Knob-type Selector Switch (Lighted/Non-lighted)

A22S/A22W

A22[] Dimensions 2

A22S-C

A22[] Dimensions 3

Terminal Arrangement (Bottom View)

A22[] Dimensions 4

Panel Cutouts

A22[] Dimensions 5

• When applying coating such as paint to the panel, the dimensions should be those after the plication of coating.
• Recommended panel thickness: 1 to 5 mm.
• Use an A22Z-R25 Ring when mounting to a panel with 25-mm holes.

Accessories

Refer to the relevant information in the corresponding section for the A22.

last update: November 06, 2012
