Easy to Use

• Improved wiring visibility through to a modified wiring direction. (Push-In Plus terminal block type)
• Screw terminal structure is compatible with round crimp terminals. (Screw terminal block type)
• The terminals can be secured even when a contact block is mounted. (Screw terminal block type)

Miniaturization

• No need for extra lateral space because of the modified wiring direction. (Push-In Plus terminal block type)
• Compact design.
• A22NW (lighted models) are the same size as A22NS (non-lighted models).

Safety

• Easy-to-operate lock lever for secure locking.
• Easy-mounting Contact Blocks provide finger protection.
• No loose connections of wiring means maintenance-free use. (Push-In Plus terminal block type)

Product Lineup

• Meets global safety standards.
• Can be installed in two types of panel hole dimensions: 22.3 and 25.5 dia.
• The buttons and bezels come in a wide variety of colors, shapes, and materials.
• Standard-feature degree of protection: IP66, NEMA 4X, and NEMA 13.

last update: October 03, 2016

Purchase the OMRON φ22(φ25) Type Please fill in the following

Title:

Email:

Tel:

Content:

Verification code:

If you have just landed here, this product OMRON A22NS / A22NW Switches,Switches is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Switches at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the A22NS / A22NW We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON A22NS / A22NWSwitches tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

QX-830 Series Laser Barcode Scanner/Features
ZW Series Confocal Fiber Displacement Sensor/Features
D4C Enclosed Switch/Features
E5C2 Temperature Controller/Features
SRT2-[]D16T(-1) Transistor Remote I/O Terminals with 3-tier Terminal Block/Features

OMRON A22NS / A22NW accessory

A22NS / A22NW Selector Switches/Accessory

last update: April 2, 2018

Ordering Information

Accessories and Tools (Order Separately)

ItemAppearanceClassificationModelRemarks
Protective Covera254-e1_j_1_1---A22NZ-A-303A protector designed to prevent
incorrect operation.
Cannot be used together with other
accessories.
(Rubber seal included.)
For 22.3 and 25.5-mm panel holes
diameter.
Key-type selector switches cannot
be used.
Plastic Hole Pluga254-e1_j_1_2
RoundA22NZ-A-401Can be plugged into precut panel
holes for future expansion.
Applicable panel thickness:
0.8 to 3.0 mm
For 22.3-mm panel hole diameter.
Metal Hole Pluga254-e1_j_1_3
RoundA22NZ-A-402Can be plugged into precut panel
holes for future expansion.
Applicable panel thickness:
0.8 to 6.0 mm
(Rubber seal included.)
For 22.3-mm panel hole diameter.
Lock Ringa254-e1_j_1_4
RoundA22NZ-A-403Used when a more secure lock is
required to prevent rotation inside
the Operation Unit.
(Rubber seal included.)
For 22.3-mm panel hole diameter.
Can be used together with the
A22NZ-A-50501 Lock Ring.
Lock Ringa254-e1_j_1_5
---A22NZ-A-50501Used when a more secure lock is
required to prevent rotation of the
Operation Unit.
Can be used together with the
A22NZ-A-403 Lock Ring.
Can be used with the A22N Series
and the A30N Series.
Reinforcement
Plate		a254-e1_j_1_6
---A22NZ-A-C01Used to reinforce Contact Blocks
and Lighting Units, Refer to catalog
for mounting instructions.
Keya254-e1_j_1_7
---A22NZ-K-01Used with a key-type selector switch.
Control Boxa254-e1_j_1_8
1 holeA22NZ-A-B01YApplicable Range
• Type with Screw Terminal Block
　One Switch can be linked.
• Type with Push-in Plus Terminal
　Block Compatible only with
　Switches with a Single-contact Unit.
For 22.3-mm panel hole diameter.
Connectora254-e1_j_1_9
Suitable
Cable
Diameter
(mm)		7 to 9 dia.A22Z-3500-1Plastic connector used to extend
a cable from the switch box.
Refer to catalog for details.
9 to 11 dia.A22Z-3500-2
Sealing Capsa254-e1_j_1_10
For flat modelsA22Z-3600FUsed to prevent dust or water from
entering the Operation Unit.
Color: opaque
Material: silicon
For 22.3 and 25.5-mm panel holes
diameter.
Knob-type and key-type selector
switches cannot be used.
For projection modelsA22Z-3600T
For full-guard modelsA22Z-3600G
Resin
Attachment
for 30 dia.		a254-e1_j_1_11
RoundA22Z-A30Use when mounting to a panel with
a 30-dia. hole.
Refer to catalog for details.
Purchase and mount a separate
Lock Ring when using an indicator.
Small Legend
Plate Frame		a254-e1_j_1_12
BlackA22NZ-A-50103Legend Plate with no text on black
background included.
For 22.3-mm panel hole diameter.
Small Legend
Plates
(Standard Size)		a254-e1_j_1_13
Without textA22Z-3443BBlack
A22Z-3443RRed
A22Z-3443WWhite
A22Z-3443CTransparent
○A22Z-3443R-2White text on red background
STOPA22Z-3443R-4
|A22Z-3443B-1White text on black background
STARTA22Z-3443B-3
ONA22Z-3443B-5
OFFA22Z-3443B-6
UPA22Z-3443B-7
DOWNA22Z-3443B-8
POWER ONA22Z-3443B-9
OFF-ONA22Z-3443B-10
Large Legend
Plate Frame		a254-e1_j_1_14
BlackA22NZ-A-51103Legend Plate with no text on black
background included.
For 22.3-mm panel hole diameter.
Large Legend
Plates		a254-e1_j_1_15
Without textA22Z-3453BBlack
A22Z-3453RRed
A22Z-3453WWhite
A22Z-3453CTransparent
Tightening
Wrench		a254-e1_j_1_16
---A22NZ-A-301Used to tighten Mounting Nuts from
the back of the panel.
LED Lamp
Extractor		a254-e1_j_1_17
---A22NZ-A-302Made of rubber and used to easily
remove and attach LED Lamps.
Cap Tightening
Wrench		a254-e1_j_1_18
---A22Z-3908Used to replace the Caps on Flat,
Projected, and Fullguard Pushbutton
Switches.

last update: April 2, 2018


OMRON A22NS / A22NW dimension

A22NS / A22NW Selector Switches/Dimensions

last update: August 1, 2017

(Unit: mm)

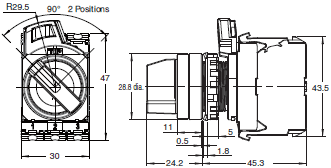

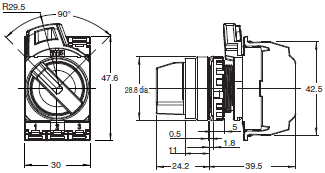

Lighted and Non-lighted Selection Switches

Two-position Switches with Plastic Bezels

A22N[]-2B[]-[][]A-G

A22NS / A22NW Dimensions 2

A22N[]-2B[]-[][]A-P

A22NS / A22NW Dimensions 3

Three-position Switches with Plastic Bezels

A22N[]-3B[]-[][]A-G

A22NS / A22NW Dimensions 4

A22N[]-3B[]-[][]A-P

A22NS / A22NW Dimensions 5

Two-position Switches with Brushed Metal Bezels

A22N[]-2M[]-[][]A-G

A22NS / A22NW Dimensions 6

A22N[]-2M[]-[][]A-P

A22NS / A22NW Dimensions 7

Three-position Switches with Brushed Metal Bezels

A22N[]-3M[]-[][]A-G

A22NS / A22NW Dimensions 8

A22N[]-3M[]-[][]A-P

A22NS / A22NW Dimensions 9

Two-position Switches with Metal Bezels

A22N[]-2R[]-[][]A-G

A22NS / A22NW Dimensions 10

A22N[]-2R[]-[][]A-P

A22NS / A22NW Dimensions 11

Three-position Switches with Metal Bezels

A22N[]-3R[]-[][]A-G

A22NS / A22NW Dimensions 12

A22N[]-3R[]-[][]A-P

A22NS / A22NW Dimensions 13

Depth with Linked Units

(Screw terminal block type)

A22NS / A22NW Dimensions 14

Depth when a double-contact unit is mounted

(Push-In Plus terminal block type)

A22NS / A22NW Dimensions 15

Subassemblies (Common)

LED Lamps

A22NZ-L-[][]

A22NS / A22NW Dimensions 17

Mounting Collar

A22NZ-H-01

A22NS / A22NW Dimensions 18

Screw terminal block

Contact Blocks

A22NZ-S-G1[]

A22NS / A22NW Dimensions 20

Lighting Units

A22NZ-T-[]

A22NS / A22NW Dimensions 21

Push-In Plus Terminal Blocks

Contact Blocks (Single Contact)

A22NZ-S-P1[]

A22NS / A22NW Dimensions 23

Contact Blocks (Double Contact)

A22NZ-S-P2[]

A22NS / A22NW Dimensions 24

Lighting Units

A22NZ-T-[]P

A22NS / A22NW Dimensions 25

Accessories and Tools

Protective Cover

A22NZ-A303

A22NS / A22NW Dimensions 27

Plastic Hole Plug

A22NZ-A-401

A22NS / A22NW Dimensions 28

Metal Hole Plug

A22NZ-A-402

A22NS / A22NW Dimensions 29

Lock Ring

A22NZ-A-403

A22NS / A22NW Dimensions 30

Lock Ring

A22NZ-A-50501

A22NS / A22NW Dimensions 31

Reinforcement Plate

A22NZ-A-C01

A22NS / A22NW Dimensions 32

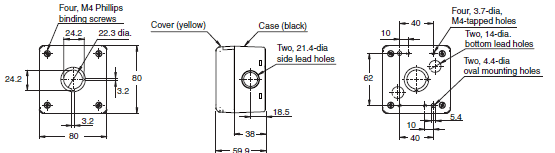

Control Box

A22NZ-A-B01Y

A22NS / A22NW Dimensions 33

Sealing cap

For Flat Models A22Z-3600F

A22NS / A22NW Dimensions 34

For projection models A22Z-3600T

A22NS / A22NW Dimensions 35

For full-guard models A22Z-3600G

A22NS / A22NW Dimensions 36

Resin Attachment for 30 dia.

A22Z-A30

A22NS / A22NW Dimensions 37

Legend Plate Frames

General A22NZ-A-50103

A22NS / A22NW Dimensions 38

Large A22NZ-A-51103

A22NS / A22NW Dimensions 39

Legend Plates

General A22Z-3443[]-[]

A22NS / A22NW Dimensions 40

Large A22Z-3453[]

A22NS / A22NW Dimensions 41

Tightening Wrench

A22NZ-A-301

A22NS / A22NW Dimensions 42

LED Lamp Extractor

A22NZ-A-302

A22NS / A22NW Dimensions 43

Cap Tightening Wrench

A22Z-3908

A22NS / A22NW Dimensions 44

last update: August 1, 2017


OMRON A22NS / A22NW catalog

A22NS / A22NW Selector Switches/Catalog

  • Catalog
  • CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name Catalog Number
[size] 		Last Update
A22N/M22N/A30N Data Sheet A254-E1-01
[55488KB] 		Jan 15, 201920190115 A22N/M22N/A30N Data Sheet
A22N-P/A30N-P, M22N-P, A22NE-P Catalog A253-E1-04
[4664KB] 		Dec 03, 201820181203 A22N-P/A30N-P, M22N-P, A22NE-P Catalog
Innovation in Control Panel Building Y218-E1-03
[13592KB] 		Oct 02, 201720171002 Innovation in Control Panel Building


OMRON A22NS / A22NW specification

A22NS / A22NW Selector Switches/Specifications

last update: October 03, 2016

Certified Safety Standard Ratings

UL 508 (File No. E76675), CSA C22.2 No.14

6 A 240 VAC, 10 A 120 VAC

TÜV (EN60947-5-1)

AC-15 3 A 240 VAC
DC-13 4 A 24 VDC

CCC (GB14048.5)

AC-15 3 A 240 VAC
DC-13 4 A 24 VDC

Application Standards

UL1059 and UL486E (Push-In Plus terminal block type)

Ratings

Contacts (Standard Load)

Rated insulation voltage600 V
Rated carry current10 A
Rated voltage24 V120 V240 V380 V440 V
AC at 50/60 HzResistive load (AC-12)10 A10 A6 A2 A2 A
Inductive load (AC-15)10 A6 A3 A1.9 A1.6 A
DCResistive load (DC-12)8 A2.2 A1.1 A------
Inductive load (DC-13)4 A1.1 A0.55 A------

Note: 1. The above ratings were obtained by conducting tests under the following conditions.
            (1) Ambient temperature: 20 ±2°C
            (2) Ambient humidity: 65% ±5% RH
            (3) Operating frequency: 30 operations/minute
         2. Minimum applicable load: 10 mA at 5 VDC.

LED Lamps

Rated voltageApplied voltageRated current
6 VAC/DC6 VAC/DC ±10%Approx. 11 mA (red, orange, yellow, or blue)
Approx. 5 mA (white or green)
12 VAC/DC12 VAC/DC ±10%Approx. 12 mA (red, orange, yellow, or blue)
Approx. 5 mA (white or green)
24 VAC/DC24 VAC/DC ±10%Approx. 12 mA (red, orange, yellow, or blue)
Approx. 5 mA (white or green)
100 VAC100 VAC ±10%Approx. 12 mA (red, orange, yellow, or blue)
Approx. 5 mA (white or green)
110 VAC110 VAC ±10%
120 VAC100 to 130 VAC
200 VAC200 VAC ±10%Approx. 12 mA (red, orange, yellow, or blue)
Approx. 5 mA (white or green)
220 VAC220 VAC ±10%
230 VAC230 VAC ±10%
240 VAC220 to 250 VAC

Characteristics

TypeSelector Switches
ItemNon-lighted modelsLighted models
Allowable
operating
frequency		Mechanical30 operations/minute max.
Electrical30 operations/minute max.
Insulation resistance100 MΩ min. (at 500 VDC)Not available for lighting units
Contact resistance100 mΩ max. (initial value)
Dielectric
strength		Between terminals of
same polarity		2,500 VAC at 50/60 Hz for 1 min.
(initial value)		Not available for lighting units
Between each terminal
and ground		2,500 VAC at 50/60 Hz for 1 min. (initial value)
Vibration
resistance		Malfunction10 to 55 Hz, 1.5-mm double amplitude (malfunction within 1 ms)
Shock
resistance		Malfunction1,000 m/s2 max. (malfunction within 1 ms)
DurabilityMechanical500,000 operations min. (Switches with 3 positions: 300,000 operations min.)
Electrical500,000 operations min. (Switches with 3 positions: 300,000 operations min.)
(250 VAC, 3 A, with an inductive load having power factor cos θ = 0.4)
Ambient operating temperature *1-25 to 70°C-25 to 55°C
Ambient operating humidity35% to 85% RH
Ambient storage temperature *1-40 to 80°C
Degree of protection *2Conforming to IP66, NEMA 4X, NEMA 13
Electric shock protection classClass II
PTI (tracking characteristic)175
Degree of contamination (application
environment)		3 (EN 60947-5-1)
WeightApprox. 50 g (for 1NC/1NO)Approx. 60 g (for 1NC/1NO)

*1. With no icing or condensation.
*2. Degree of protection from the front of the panel.

Operating Characteristics (for SPST-NO/SPST-NC)

TypeSelector Switches
ItemManual resetAutomatic reset
Total travel force (torque) (maximum TTF)0.6 Nm0.6 Nm
Total travel (TT)2 positions: Approx. 90°, 3 positions: Approx. 45°
Resetting force (torque) (RF)0.5 N·m max.---

Examples of Linked Contact Blocks (Screw terminal block type)

A22NS / A22NW Specifications 13

Selector Switches
2 positions3 positions
LightedNon-lightedLightedNon-lighted
Linking example3444_sp_3_13444_sp_3_2
*		3444_sp_3_33444_sp_3_4

* If you use three Contact Blocks in stage 1, you can add one more Contact Block in the middle of stage 2.
Note: If you increase the number of Contact Blocks, evaluate the Switch under actual working conditions before
          permanent installation and use the Switch within a number of switching operations that will not adversely affect the
          Switch's performance.

last update: October 03, 2016


OMRON A22NS / A22NW lineup

A22NS / A22NW Selector Switches/Lineup

last update: August 1, 2017

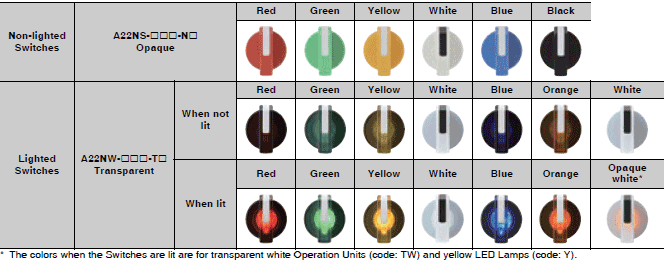

Operation Unit Colors

A22NS / A22NW Lineup 1

List of Models

A22NS / A22NW Lineup 2

Model Number Structure

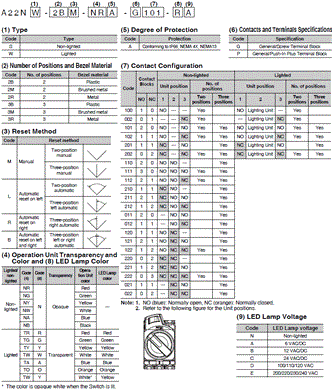

Model Number Legend

Shipped as a set that includes the Operation Unit, LED Lamp (lighted models only), Mounting Collar, Contact Block, and Lighting Unit (lighted models only).
For information on combinations, refer to Ordering Information on below.

Model Numbers for Sets

A22NS / A22NW Lineup 5

Structure

Contact Configuration Table

Two Positions

No. of outputsCodeContact configurationUnit positionContactsPosition
12
1100SPST-NO1NOON
2---------
3---------
1002SPST-NC1---------
2---------
3NCON
2102SPST-NO/
SPST-NC		1NOON
2---------
3NCON
2101DPST-NO1NOON
2---------
3NOON
2202DPST-NC1NCON
2---------
3NCON
31113PST-NO1NOON
2NOON
3NOON
32223PST-NC1NCON
2NCON
3NCON
3122SPST-NO/
DPST-NC		1NOON
2NCON
3NCON
3112DPST-NO/
SPST-NC		1NOON
2NOON
3NCON

Three Positions

No. of outputsCodeContact configurationUnit positionContactsPosition
102
2110DPST-NO1NOON
2NOONON
3------------
2011DPST-NO1------------
2NOONON
3NOON
2101DPST-NO1NOON
2------------
3NOON
2220DPST-NC1NCONON
2NCON
3------------
2022DPST-NC1------------
2NCON
3NCONON
2202DPST-NC1NCONON
2------------
3NCONON
2120SPST-NO/
SPST-NC		1NOON
2NCON
3------------
2102SPST-NO/
SPST-NC		1NOON
2------------
3NCONON
2210SPST-NO/
SPST-NC		1NCONON
2NOONON
3------------
2201SPST-NO/
SPST-NC		1NCONON
2------------
3NOON
2012SPST-NO/
SPST-NC		1------------
2NOONON
3NCONON
2021SPST-NO/
SPST-NC		1------------
2NCON
3NOON
31113PST-NO1NOON
2NOONON
3NOON
32223PST-NC1NCONON
2NCON
3NCONON
3122SPST-NO/
DPST-NC		1NOON
2NCON
3NCONON
3212SPST-NO/
DPST-NC		1NCONON
2NOONON
3NCONON
3221SPST-NO/
DPST-NC		1NCONON
2NCON
3NOONON
3211DPST-NO/
SPST-NC		1NCONON
2NOONON
3NOON
3121DPST-NO/
SPST-NC		1NOON
2NCON
3NOON
3112DPST-NO/
SPST-NC		1NOON
2NOONON
3NCONON

Operation Angle

A22NS / A22NW Lineup 10

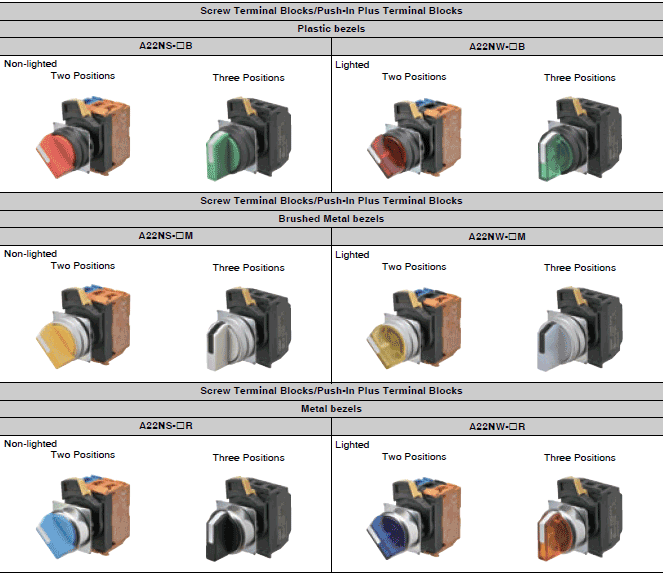

Ordering Information

Model Numbers for Sets

Shipped as a set that includes the Operation Unit, Mounting Collar, and Contact Block.

Non-lighted, Two-position, Selector Switches

AppearanceBezel
ma-
terial		No.
of
out-
puts		Model(3)
Reset
method		(4)(4)
Operation Unit
color		(7)(7)(7)
Contact
configu-
ration
Plastic bezels
3444_lu_7_1		2B1A22NS-2B(3)-(4)(4)A-G(7)(7)(7)-NNM: Manual
L: Automatic
reset on left		NR: Opaque red
NG: Opaque green
NY: Opaque yellow
NW: Opaque white
NA: Opaque blue
NB: Opaque black		100
002
A22NS-2B(3)-(4)(4)A-P(7)(7)(7)-NN
2A22NS-2B(3)-(4)(4)A-G(7)(7)(7)-NN102
101
202
A22NS-2B(3)-(4)(4)A-P(7)(7)(7)-NN
3A22NS-2B(3)-(4)(4)A-G(7)(7)(7)-NN111
222
122
112
A22NS-2B(3)-(4)(4)A-P(7)(7)(7)-NN
Brushed metal
bezels
3444_lu_7_2		2M1A22NS-2M(3)-(4)(4)A-G(7)(7)(7)-NN100
002
A22NS-2M(3)-(4)(4)A-P(7)(7)(7)-NN
2A22NS-2M(3)-(4)(4)A-G(7)(7)(7)-NN102
101
202
A22NS-2M(3)-(4)(4)A-P(7)(7)(7)-NN
3A22NS-2M(3)-(4)(4)A-G(7)(7)(7)-NN111
222
122
112
A22NS-2M(3)-(4)(4)A-P(7)(7)(7)-NN
Metal bezels
3444_lu_7_3		2R1A22NS-2R(3)-(4)(4)A-G(7)(7)(7)-NN100
002
A22NS-2R(3)-(4)(4)A-P(7)(7)(7)-NN
2A22NS-2R(3)-(4)(4)A-G(7)(7)(7)-NN102
101
202
A22NS-2R(3)-(4)(4)A-P(7)(7)(7)-NN
3A22NS-2R(3)-(4)(4)A-G(7)(7)(7)-NN111
222
122
112
A22NS-2R(3)-(4)(4)A-P(7)(7)(7)-NN

Non-lighted, Three-position, Selector Switches

AppearanceBezel
ma-
terial		No.
of
out-
puts		Model(3)
Reset
method		(4)(4)
Operation Unit
color		(7)(7)(7)
Contact
configu-
ration
Plastic bezels
3444_lu_8_1		3B2A22NS-3B(3)-(4)(4)A-G(7)(7)(7)-NNM: Manual
L: Automatic
reset on left
R: Automatic
reset on right
B: Automatic
reset on left
and right		NR: Opaque red
NG: Opaque green
NY: Opaque yellow
NW: Opaque white
NA: Opaque blue
NB: Opaque black		110
011
101
220
022
202
120
102
210
201
012
021
A22NS-3B(3)-(4)(4)A-P(7)(7)(7)-NN
3A22NS-3B(3)-(4)(4)A-G(7)(7)(7)-NN111
222
122
212
221
211
121
112
A22NS-3B(3)-(4)(4)A-P(7)(7)(7)-NN
Brushed metal
bezels
3444_lu_8_2		3M2A22NS-3M(3)-(4)(4)A-G(7)(7)(7)-NN110
011
101
220
022
202
120
102
210
201
012
021
A22NS-3M(3)-(4)(4)A-P(7)(7)(7)-NN
3A22NS-3M(3)-(4)(4)A-G(7)(7)(7)-NN111
222
122
212
221
211
121
112
A22NS-3M(3)-(4)(4)A-P(7)(7)(7)-NN
Metal bezels
3444_lu_8_3		3R2A22NS-3R(3)-(4)(4)A-G(7)(7)(7)-NN110
011
101
220
022
202
120
102
210
201
012
021
A22NS-3R(3)-(4)(4)A-P(7)(7)(7)-NN
3A22NS-3R(3)-(4)(4)A-G(7)(7)(7)-NN111
222
122
212
221
211
121
112
A22NS-3R(3)-(4)(4)A-P(7)(7)(7)-NN

Model Numbers for Sets

Shipped as a set that includes the Operation Unit, LED Lamp, Mounting Collar, Contact Block, and Lighting Unit.

Lighted, Two-position, Selector Switches

AppearanceBezel
ma-
terial		No.
of
out-
puts		Model(3)
Reset
method		(4)(4)
Operation
Unit color		(7)(7)(7)
Contact
configu-
ration		(8)
LED
Lamp
color		(9)
LED Lamp
voltage
Plastic bezels
3444_lu_9_1		2B1A22NW-2B(3)-(4)(4)A-
G(7)(7)(7)-(8)(9)		M:
Manual
L: Auto-
matic
reset on
left		TR: Trans-
parent red
TG: Trans-
parent
green
TY: Trans-
parent
yellow
TW: Trans-
parent white
TA: Trans-
parent blue
TO: Trans-
parent
orange		100
002		R: Red
G: Green
Y: Yellow
A: Blue
O: Orange
W: White		A: 6 VAC/DC
B: 12 VAC/DC
C: 24 VAC/DC
D: 100/110/
120 VAC
E: 200/220/
230/240 VAC
A22NW-2B(3)-(4)(4)A-
P(7)(7)(7)-(8)(9)
2A22NW-2B(3)-(4)(4)A-
G(7)(7)(7)-(8)(9)		102
101
202
A22NW-2B(3)-(4)(4)A-
P(7)(7)(7)-(8)(9)
Brushed
metal bezels
3444_lu_9_2		2M1A22NW-2M(3)-(4)(4)A-
G(7)(7)(7)-(8)(9)		100
002
A22NW-2M(3)-(4)(4)A-
P(7)(7)(7)-(8)(9)
2A22NW-2M(3)-(4)(4)A-
G(7)(7)(7)-(8)(9)		102
101
202
A22NW-2M(3)-(4)(4)A-
P(7)(7)(7)-(8)(9)
Metal bezels
3444_lu_9_3		2R1A22NW-2R(3)-(4)(4)A-
G(7)(7)(7)-(8)(9)		100
002
A22NW-2R(3)-(4)(4)A-
P(7)(7)(7)-(8)(9)
2A22NW-2R(3)-(4)(4)A-
G(7)(7)(7)-(8)(9)		102
101
202
A22NW-2R(3)-(4)(4)A-
P(7)(7)(7)-(8)(9)

Lighted, Three-position, Selector Switches

AppearanceBezel
ma-
terial		No.
of
out-
puts		Model(3)
Reset
method		(4)(4)
Operation
Unit color		(7)(7)(7)
Contact
configu-
ration		(8)
LED
Lamp
color		(9)
LED Lamp
voltage
Plastic bezels
3444_lu_10_1		3B2A22NW-3B(3)-(4)(4)A-
G(7)(7)(7)-(8)(9)		M:
Manual
L: Auto-
matic
reset on
left
R: Auto-
matic
reset on
right
B: Auto-
matic
reset on
left and
right		TR: Trans-
parent red
TG: Trans-
parent
green
TY: Trans-
parent
yellow
TW: Trans-
parent white
TA: Trans-
parent blue
TO: Trans-
parent
orange		101
202
102
201		R: Red
G: Green
Y: Yellow
A: Blue
O: Orange
W: White		A: 6 VAC/DC
B: 12 VAC/DC
C: 24 VAC/DC
D: 100/110/
120 VAC
E: 200/220/
230/240 VAC
A22NW-3B(3)-(4)(4)A-
P(7)(7)(7)-(8)(9)
Brushed
metal bezels
3444_lu_10_2		3M2A22NW-3M(3)-(4)(4)A-
G(7)(7)(7)-(8)(9)		101
202
102
201
A22NW-3M(3)-(4)(4)A-
P(7)(7)(7)-(8)(9)
Metal bezels
3444_lu_10_3		3R2A22NW-3R(3)-(4)(4)A-
G(7)(7)(7)-(8)(9)		101
202
102
201
A22NW-3R(3)-(4)(4)A-
P(7)(7)(7)-(8)(9)

Note: Normally, the Operation Unit and LED Lamp with the same color are combined.
         However, opaque white is available by combining a white Operation Unit and yellow LED.
         A22N[]-[][][]-TWA-[][][][]-Y[]

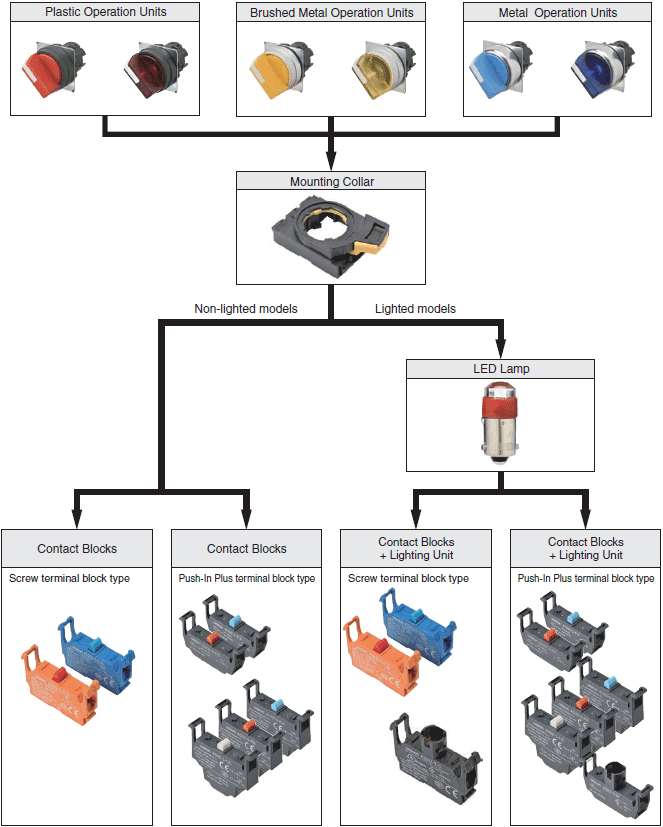

Subassemblies

You can order Operation Units, LED Lamps (lighted models only), Mounting Collars, Contact Blocks, and Lighting Units (lighted models only) separately. Use them in combination for models that are not available as assembled Switches. They can also be used as inventory for maintenance parts.

A22NS / A22NW Lineup 19

Subassemblies

You can order Operation Units, Mounting Collars, and Contact Blocks individually. Use them in combination for models that are not available as assembled Switches. They can also be used as inventory for maintenance parts.

Operation Unit

Non-lighted Switches

Bezel material and shapePlastic
3444_lu_12_1		Brushed metal
3444_lu_12_2
No. of
positions		Reset methodOperation
Unit color		ModelModel
2ManualOpaque redA22NZ-2BM-NRAA22NZ-2MM-NRA
Automatic reset on leftA22NZ-2BL-NRAA22NZ-2ML-NRA
3ManualA22NZ-3BM-NRAA22NZ-3MM-NRA
Automatic reset on leftA22NZ-3BL-NRAA22NZ-3ML-NRA
Automatic reset on rightA22NZ-3BR-NRAA22NZ-3MR-NRA
Automatic reset on left and rightA22NZ-3BB-NRAA22NZ-3MB-NRA
2ManualOpaque greenA22NZ-2BM-NGAA22NZ-2MM-NGA
Automatic reset on leftA22NZ-2BL-NGAA22NZ-2ML-NGA
3ManualA22NZ-3BM-NGAA22NZ-3MM-NGA
Automatic reset on leftA22NZ-3BL-NGAA22NZ-3ML-NGA
Automatic reset on rightA22NZ-3BR-NGAA22NZ-3MR-NGA
Automatic reset on left and rightA22NZ-3BB-NGAA22NZ-3MB-NGA
2ManualOpaque yellowA22NZ-2BM-NYAA22NZ-2MM-NYA
Automatic reset on leftA22NZ-2BL-NYAA22NZ-2ML-NYA
3ManualA22NZ-3BM-NYAA22NZ-3MM-NYA
Automatic reset on leftA22NZ-3BL-NYAA22NZ-3ML-NYA
Automatic reset on rightA22NZ-3BR-NYAA22NZ-3MR-NYA
Automatic reset on left and rightA22NZ-3BB-NYAA22NZ-3MB-NYA
2ManualOpaque whiteA22NZ-2BM-NWAA22NZ-2MM-NWA
Automatic reset on leftA22NZ-2BL-NWAA22NZ-2ML-NWA
3ManualA22NZ-3BM-NWAA22NZ-3MM-NWA
Automatic reset on leftA22NZ-3BL-NWAA22NZ-3ML-NWA
Automatic reset on rightA22NZ-3BR-NWAA22NZ-3MR-NWA
Automatic reset on left and rightA22NZ-3BB-NWAA22NZ-3MB-NWA
2ManualOpaque blueA22NZ-2BM-NAAA22NZ-2MM-NAA
Automatic reset on leftA22NZ-2BL-NAAA22NZ-2ML-NAA
3ManualA22NZ-3BM-NAAA22NZ-3MM-NAA
Automatic reset on leftA22NZ-3BL-NAAA22NZ-3ML-NAA
Automatic reset on rightA22NZ-3BR-NAAA22NZ-3MR-NAA
Automatic reset on left and rightA22NZ-3BB-NAAA22NZ-3MB-NAA
2ManualOpaque blackA22NZ-2BM-NBAA22NZ-2MM-NBA
Automatic reset on leftA22NZ-2BL-NBAA22NZ-2ML-NBA
3ManualA22NZ-3BM-NBAA22NZ-3MM-NBA
Automatic reset on leftA22NZ-3BL-NBAA22NZ-3ML-NBA
Automatic reset on rightA22NZ-3BR-NBAA22NZ-3MR-NBA
Automatic reset on left and rightA22NZ-3BB-NBAA22NZ-3MB-NBA

Bezel material and shapeMetal
3444_lu_12_3
No. of positionsReset methodOperation Unit colorModel
2ManualOpaque redA22NZ-2RM-NRA
Automatic reset on leftA22NZ-2RL-NRA
3ManualA22NZ-3RM-NRA
Automatic reset on leftA22NZ-3RL-NRA
Automatic reset on rightA22NZ-3RR-NRA
Automatic reset on left and rightA22NZ-3RB-NRA
2ManualOpaque greenA22NZ-2RM-NGA
Automatic reset on leftA22NZ-2RL-NGA
3ManualA22NZ-3RM-NGA
Automatic reset on leftA22NZ-3RL-NGA
Automatic reset on rightA22NZ-3RR-NGA
Automatic reset on left and rightA22NZ-3RB-NGA
2ManualOpaque yellowA22NZ-2RM-NYA
Automatic reset on leftA22NZ-2RL-NYA
3ManualA22NZ-3RM-NYA
Automatic reset on leftA22NZ-3RL-NYA
Automatic reset on rightA22NZ-3RR-NYA
Automatic reset on left and rightA22NZ-3RB-NYA
2ManualOpaque whiteA22NZ-2RM-NWA
Automatic reset on leftA22NZ-2RL-NWA
3ManualA22NZ-3RM-NWA
Automatic reset on leftA22NZ-3RL-NWA
Automatic reset on rightA22NZ-3RR-NWA
Automatic reset on left and rightA22NZ-3RB-NWA
2ManualOpaque blueA22NZ-2RM-NAA
Automatic reset on leftA22NZ-2RL-NAA
3ManualA22NZ-3RM-NAA
Automatic reset on leftA22NZ-3RL-NAA
Automatic reset on rightA22NZ-3RR-NAA
Automatic reset on left and rightA22NZ-3RB-NAA
2ManualOpaque blackA22NZ-2RM-NBA
Automatic reset on leftA22NZ-2RL-NBA
3ManualA22NZ-3RM-NBA
Automatic reset on leftA22NZ-3RL-NBA
Automatic reset on rightA22NZ-3RR-NBA
Automatic reset on left and rightA22NZ-3RB-NBA

Subassemblies

You can order Operation Units, LED Lamps, Mounting Collars, Contact Blocks, and Lighting Units separately.
Use them in combination for models that are not available as assembled Switches. They can also be used as inventory for maintenance parts.

Lighted Switches

Bezel material and shapePlastic
3444_lu_13_1		Brushed metal
3444_lu_13_2
No. of
positions		Reset methodOperation
Unit color		ModelModel
2ManualTransparent
red		A22NZ-2BM-TRAA22NZ-2MM-TRA
Automatic reset on leftA22NZ-2BL-TRAA22NZ-2ML-TRA
3ManualA22NZ-3BM-TRAA22NZ-3MM-TRA
Automatic reset on leftA22NZ-3BL-TRAA22NZ-3ML-TRA
Automatic reset on rightA22NZ-3BR-TRAA22NZ-3MR-TRA
Automatic reset on left and rightA22NZ-3BB-TRAA22NZ-3MB-TRA
2ManualTransparent
green		A22NZ-2BM-TGAA22NZ-2MM-TGA
Automatic reset on leftA22NZ-2BL-TGAA22NZ-2ML-TGA
3ManualA22NZ-3BM-TGAA22NZ-3MM-TGA
Automatic reset on leftA22NZ-3BL-TGAA22NZ-3ML-TGA
Automatic reset on rightA22NZ-3BR-TGAA22NZ-3MR-TGA
Automatic reset on left and rightA22NZ-3BB-TGAA22NZ-3MB-TGA
2ManualTransparent
yellow		A22NZ-2BM-TYAA22NZ-2MM-TYA
Automatic reset on leftA22NZ-2BL-TYAA22NZ-2ML-TYA
3ManualA22NZ-3BM-TYAA22NZ-3MM-TYA
Automatic reset on leftA22NZ-3BL-TYAA22NZ-3ML-TYA
Automatic reset on rightA22NZ-3BR-TYAA22NZ-3MR-TYA
Automatic reset on left and rightA22NZ-3BB-TYAA22NZ-3MB-TYA
2ManualTransparent
white		A22NZ-2BM-TWAA22NZ-2MM-TWA
Automatic reset on leftA22NZ-2BL-TWAA22NZ-2ML-TWA
3ManualA22NZ-3BM-TWAA22NZ-3MM-TWA
Automatic reset on leftA22NZ-3BL-TWAA22NZ-3ML-TWA
Automatic reset on rightA22NZ-3BR-TWAA22NZ-3MR-TWA
Automatic reset on left and rightA22NZ-3BB-TWAA22NZ-3MB-TWA
2ManualTransparent
blue		A22NZ-2BM-TAAA22NZ-2MM-TAA
Automatic reset on leftA22NZ-2BL-TAAA22NZ-2ML-TAA
3ManualA22NZ-3BM-TAAA22NZ-3MM-TAA
Automatic reset on leftA22NZ-3BL-TAAA22NZ-3ML-TAA
Automatic reset on rightA22NZ-3BR-TAAA22NZ-3MR-TAA
Automatic reset on left and rightA22NZ-3BB-TAAA22NZ-3MB-TAA
2ManualTransparent
orange		A22NZ-2BM-TOAA22NZ-2MM-TOA
Automatic reset on leftA22NZ-2BL-TOAA22NZ-2ML-TOA
3ManualA22NZ-3BM-TOAA22NZ-3MM-TOA
Automatic reset on leftA22NZ-3BL-TOAA22NZ-3ML-TOA
Automatic reset on rightA22NZ-3BR-TOAA22NZ-3MR-TOA
Automatic reset on left and rightA22NZ-3BB-TOAA22NZ-3MB-TOA

Bezel material and shapeMetal
3444_lu_13_3
No. of positionsReset methodOperation Unit colorModel
2ManualTransparent redA22NZ-2RM-TRA
Automatic reset on leftA22NZ-2RL-TRA
3ManualA22NZ-3RM-TRA
Automatic reset on leftA22NZ-3RL-TRA
Automatic reset on rightA22NZ-3RR-TRA
Automatic reset on left and rightA22NZ-3RB-TRA
2ManualTransparent greenA22NZ-2RM-TGA
Automatic reset on leftA22NZ-2RL-TGA
3ManualA22NZ-3RM-TGA
Automatic reset on leftA22NZ-3RL-TGA
Automatic reset on rightA22NZ-3RR-TGA
Automatic reset on left and rightA22NZ-3RB-TGA
2ManualTransparent yellowA22NZ-2RM-TYA
Automatic reset on leftA22NZ-2RL-TYA
3ManualA22NZ-3RM-TYA
Automatic reset on leftA22NZ-3RL-TYA
Automatic reset on rightA22NZ-3RR-TYA
Automatic reset on left and rightA22NZ-3RB-TYA
2ManualTransparent whiteA22NZ-2RM-TWA
Automatic reset on leftA22NZ-2RL-TWA
3ManualA22NZ-3RM-TWA
Automatic reset on leftA22NZ-3RL-TWA
Automatic reset on rightA22NZ-3RR-TWA
Automatic reset on left and rightA22NZ-3RB-TWA
2ManualTransparent blueA22NZ-2RM-TAA
Automatic reset on leftA22NZ-2RL-TAA
3ManualA22NZ-3RM-TAA
Automatic reset on leftA22NZ-3RL-TAA
Automatic reset on rightA22NZ-3RR-TAA
Automatic reset on left and rightA22NZ-3RB-TAA
2ManualTransparent orangeA22NZ-2RM-TOA
Automatic reset on leftA22NZ-2RL-TOA
3ManualA22NZ-3RM-TOA
Automatic reset on leftA22NZ-3RL-TOA
Automatic reset on rightA22NZ-3RR-TOA
Automatic reset on left and rightA22NZ-3RB-TOA

Subassemblies (Common)

Subassemblies

You can order Operation Units, LED Lamps, Mounting Collars, and Contact Blocks individually. Use them in combination for models that are not available as assembled Units. These can also be used as inventory for maintenance parts.

LED Lamps

AppearanceRated
voltage		Model
Color6 VAC/DC12 VAC/DC24 VAC/DC100/110/120
VAC		200/220/230/
240 VAC
a254-e1_lu_1_1RedA22NZ-L-RAA22NZ-L-RBA22NZ-L-RCA22NZ-L-RDA22NZ-L-RE
GreenA22NZ-L-GAA22NZ-L-GBA22NZ-L-GCA22NZ-L-GDA22NZ-L-GE
YellowA22NZ-L-YAA22NZ-L-YBA22NZ-L-YCA22NZ-L-YDA22NZ-L-YE
WhiteA22NZ-L-WAA22NZ-L-WBA22NZ-L-WCA22NZ-L-WDA22NZ-L-WE
BlueA22NZ-L-AAA22NZ-L-ABA22NZ-L-ACA22NZ-L-ADA22NZ-L-AE
OrangeA22NZ-L-OAA22NZ-L-OBA22NZ-L-OCA22NZ-L-ODA22NZ-L-OE

Mounting Collar

AppearanceModel
a254-e1_lu_2_1A22NZ-H-01

Contact Blocks

AppearanceTerminals SpecificationsContactsModel
a254-e1_lu_3_1Screw terminal blockSPST-NO (blue)A22NZ-S-G1A
SPST-NC (orange)A22NZ-S-G1B
a254-e1_lu_3_2Push-In Plus terminal blockSPST-NO (blue)A22NZ-S-P1A
SPST-NC (red)A22NZ-S-P1B
a254-e1_lu_3_3Push-In Plus terminal blockDPST-NO (blue)A22NZ-S-P2A
DPST-NC (red)A22NZ-S-P2B
SPST-NO/SPST-NC (white)A22NZ-S-P2C

Lighting Units

AppearanceTerminals SpecificationsRated voltageModel
a254-e1_lu_4_1Screw terminal block6 VAC/DCA22NZ-T-A
12 VAC/DCA22NZ-T-B
24 VAC/DCA22NZ-T-C
100/110/120 VACA22NZ-T-D
200/220/230/240 VACA22NZ-T-E
a254-e1_lu_4_2Push-In Plus terminal block6 VAC/DCA22NZ-T-AP
12 VAC/DCA22NZ-T-BP
24 VAC/DCA22NZ-T-CP
100/110/120 VACA22NZ-T-DP
200/220/230/240 VACA22NZ-T-EP

last update: August 1, 2017


Return to OMRON
