OMRON ZAPSwitches/ Push Buttons / Indicator Lamps/Non-lighted Pushbutton Switch
OMRON ZAP Switches
OMRON ZAP Dimensions
/Images/l_1116-25-119079-198x198.jpglast update: December 19, 2013
• Using a Basic Switch enables direct switching of large-capacity loads
• Shock-absorbing construction of Operation Unit protects the Switch
• Drip-proof Pushbutton construction enables use in locations subject to splashing water and oil and scattering dust.
• Pushbuttons are available in three shapes and six colors.
last update: December 19, 2013
Purchase the OMRON Non-lighted Pushbutton Switch Please fill in the following
If you have just landed here, this product OMRON ZAP Switches,Switches is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Switches at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the ZAP We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON ZAPSwitches tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
M22N Indicators/Features
G2RV Slim Relay/Features
E5L Electronic Thermostat/Features
NX-TS NX-series Temperature Input Unit/Features
CS1W-V680C11 / V680C12 CS Series ID Sensor Unit/Features
OMRON ZAP specification
ZAP Pushbutton Switch (Cylindrical 30-dia.)/Specificationslast update: August 06, 2013
Ratings
| Item | Rated voltage (V) | Non-inductive load (A) | Inductive load (A) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Resistive load | Lamp load | Inductive load | Motor load | ||||||
| Built-in Switch | NC | NO | NC | NO | NC | NO | NC | NO | |
| Z-15G5-B | 125 VAC 200 VAC 500 VAC | 15 15 10 | 3 2.5 1.5 | 1.5 1.25 0.75 | 15 15 6 | 5 3 1.5 | 2.5 1.5 0.75 | ||
| 8 VDC 14 VDC 30 VDC 125 VDC 250 VDC | 15 15 6 0.5 0.25 | 3 3 3 0.5 0.25 | 1.5 1.5 1.5 0.5 0.25 | 15 10 5 0.05 0.03 | 5 5 5 0.05 0.03 | 2.5 2.5 2.5 0.05 0.03 | |||
Note: 1. The above values are for steady-state currents.
2. Inductive load: Power factor = 0.4 (AC); time constant = 7 ms (DC).
3. The lamp load has an inrush current of 10 times the steady-state current.
4. The motor load has an inrush current of 6 times the steady-state current.
5. Standard testing condition.
(1) Ambient temperature: 20 ±2°C
(2) Ambient humidity: 65% ±5%RH
(3) Operating frequency: 20 times/min
Characteristics
| Operating frequency | Mechanical | 60 operations/min |
|---|---|---|
| Electrical | 20 operations/min | |
| Insulation resistance | 100 MΩ min. (at 500 VDC) | |
| Contact resistance | 30 mΩ max. (initial value) | |
| Dielectric strength | Between terminals of same polarity | 1,000 VAC, 50/60 Hz for 1 min |
| Between current-carrying metal part and ground, and between each termi- nal and non-current-carrying metal part | 2,000 VAC, 50/60 Hz for 1 minute | |
| Vibration resistance | Malfunction | 10 to 55 Hz, 1.5-mm double amplitude (1 ms max.) |
| Shock resistance | Destruction | 500 m/s2 |
| Malfunction | 200 m/s2 max. (1 ms max.) | |
| Durability | Mechanical | 1,000,000 operations min. |
| Electrical | 500,000 operations min. | |
| Weight | Approx. 130 to 210 g | |
| Inrush current | NC | 30 A max. |
| NO | 15 A max. | |
| Ambient operating temperature | -25 to 80 ° C (with no icing or condensation) | |
| Ambient operating humidity | 35% to 85%RH | |
| Ambient storage temperature | -25 to 80 ° C (with no icing or condensation) | |
| Degree of protection | IP65 (Operation Unit only) | |
| Electric shock protection class | Class II | |
| PTI (proof tracking index) | 175 | |
| Pollution degree | 3 (IEC947-5-1) | |
Operating Characteristics
| Model | ZAP-[][] | 2ZAP-[][] | |
|---|---|---|---|
| Operating characteristics | |||
| Operating force | OF | Approx. 5.88 to 14.71 N | Approx. 9.81 to 17.70 N |
Note: Operating force may vary depending on thickness of mounting panel.
Contact Form
| Name | Contact form |
|---|---|
| Double-throw contacts |  |
Approved Safety Standards
The built-in Z-15G5-B Switch is approved for UL and CSA.
last update: August 06, 2013
OMRON ZAP dimension
ZAP Pushbutton Switch (Cylindrical 30-dia.)/Dimensionslast update: November 06, 2012
Insert one of the following letters into the box ([]) at the end of the model number. Refer to Lineup for color symbols.

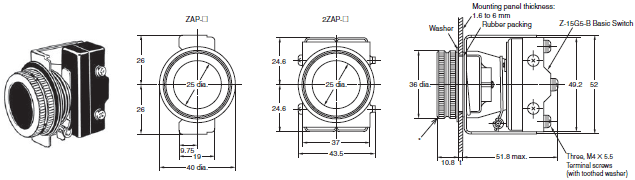

ZAP-[]
2ZAP-[]
* Chromed plating

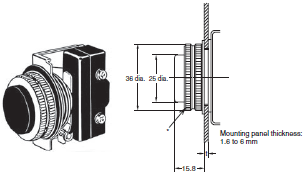

ZAP-1[]
2ZAP-1[]
* Chromed plating

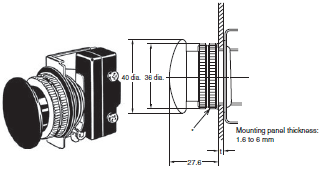

ZAP-2[]
2ZAP-2[]
* Chromed plating
Panel Cutouts
last update: November 06, 2012
OMRON ZAP catalog
ZAP Pushbutton Switch (Cylindrical 30-dia.)/Catalog- Catalog
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 ZAP Data Sheet | - [398KB] | Jul 10, 201320130710 | ZAP Data Sheet |
OMRON ZAP lineup
ZAP Pushbutton Switch (Cylindrical 30-dia.)/Lineuplast update: November 06, 2012
| Classification | Shape of Operation Unit | Output | Operation Unit color | |||||
|---|---|---|---|---|---|---|---|---|
| Blue (-A) | Black (-B) | Green (-G) | Red (-R) | White (-W) | Yellow (-Y) | |||
| Momentary operation |  | 1 | ZAP-A | ZAP-B | ZAP-G | ZAP-R | ZAP-W | ZAP-Y |
| 2 | 2ZAP-A | 2ZAP-B | 2ZAP-G | 2ZAP-R | 2ZAP-W | 2ZAP-Y | ||
 | 1 | ZAP-1A | ZAP-1B | ZAP-1G | ZAP-1R | ZAP-1W | ZAP-1Y | |
| 2 | 2ZAP-1A | 2ZAP-1B | 2ZAP-1G | 2ZAP-1R | 2ZAP-1W | 2ZAP-1Y | ||
 | 1 | ZAP-2A | ZAP-2B | ZAP-2G | ZAP-2R | ZAP-2W | ZAP-2Y | |
| 2 | 2ZAP-2A | 2ZAP-2B | 2ZAP-2G | 2ZAP-2R | 2ZAP-2W | 2ZAP-2Y | ||
Note: Models with special specifications are available for use in environments with high humidity or outdoors.
Contact your OMRON representative for information.
Accessories
Rubber Cap
Use the special rubber cap to use the Switch in locations subject to significant splashing water and oil or scattering dust.
Cannot be used, however, with the (2) ZAP-2.
| Color | Model |
|---|---|
| Blue (-A) | ZB-A |
| Black (-B) | ZB-B |
| Green (-G) | ZB-G |
| Red (-R) | ZB-R |
| White (-W) | ZB-W |
| Yellow (-Y) | ZB-Y |
last update: November 06, 2012
