last update: November 4, 2014

• Lockable test switch models now available.

• Large plug-in terminals for reliable connection.

• LED indicator and mechanical flag for status indication.

• Input type with gold plated contacts available.

• Transparent housing allows inspection of contact condition.

• Slim width to save space.

• Push-in terminals and accessories for easy wiring.

• Lloyd’s approval

last update: November 4, 2014

Purchase the OMRON For Control Panel Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON G2RV Relays,Relays is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Relays at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the G2RV We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON G2RVRelays tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

E3JK (NEW) Built-in Power Supply Photoelectric Sensor/Features
EE-SX47 / SX67 Slot-type Photomicrosensor with connector or pre-wired models (Non-modulated)*1/Fe...
E5AN-HT, E5EN-HT Programmable Temperature Controller (Digital Controller) (96 x 96 mm and 48 x 96...
CS1W-AT2[][] C200H I/O Terminal Block Conversion Adapter/Features
DeviceNet Multi-vendor Network/Features

OMRON G2RV specification
G2RV Slim Relay/Specifications
last update: November 04, 2014
Input Ratings

Rated
voltage Rated current *1 Must operate
voltage Must release
voltage Power consumption Input voltage
AC DC % of rated voltage AC (VA)
Approx. DC (mW)
Approx. % of rated
voltage
50 Hz 60 Hz
12 VDC --- --- 27.2 mA 0.8 0.1 --- 300 mW ±10%
24 VDC --- --- 13.3 mA --- 300 mW
24 VAC/DC 21.1 mA 22.5 mA 13.0 mA 0.5 VA 300 mW
48 VAC/DC 8.5 mA 9.0 mA 5.2 mA 0.4 VA 250 mW
110 VAC 7.1 mA 7.5 mA --- 0.8 VA ---
230 VAC 7.3 mA 7.9 mA --- 1.7 VA ---

*1. Rated currents are measured at 23 degrees Celsius (ambient)

Contact Ratings

Item Standard type (G2RV-SL700, 500, 701, 501) Input type (G2RV-SL700-AP, 500-AP) *2
Number of poles 1 pole
Load Resistive load
(cosφ = 1) Inductive load
(cosφ = 0.4, L/R = 7 ms) Resistive load
(cosφ = 1)
Rated load 6 A at 250 VAC;
6 A at 30 VDC 2.5 A at 250 VAC;
2 A at 30 VDC 50 mA at 30 VAC;
50 mA at 36 VDC
Rated carry current 6 A 50 mA
Max. switching voltage 400 VAC, 125 VDC 30 VAC, 36 VDC
Max. switching current 6 A 50 mA
Max. switching power 1,500 VA
180 W 500 VA
60 W ——
Failure rate (reference
value) *1 10 mA at 5 VDC (P level) 1 mA at 100 mVDC (P level)

*1. P level: λ₆₀ = 0.1 × 10^-6/operation
*2. If a gold layer is destroyed, contact ratings of standard type are applicable.

Characteristics

Item Standard type (G2RV-SL700, 500, 701, 501) Input type (G2RV-SL700-AP, 500-AP)
Contact resistance 100 mΩ max.
Operate (set) time 20 ms max.
Release time 40 ms max.
Max. operating frequency Mechanical: 18,000 operations/hr
Electrical: 1,800 operations/hr (under rated load)
Insulation resistance 1,000 MΩ min. (at 500 VDC)
Dielectric strength 4,000 VAC, 50/60 Hz for 1 min between coil and contacts*;
1,000 VAC, 50/60 Hz for 1 min between contacts of same polarity
Vibration resistance Destruction: 10 to 55 to 10 Hz, 0.50 mm single amplitude (1.0 mm double amplitude)
Malfunction: 10 to 55 to 10 Hz, 0.50 mm single amplitude (1.0 mm double amplitude)
Shock resistance Destruction: 1,000 m/s²
Malfunction: 200 m/s² when energized; 100 m/s² when not energized
Endurance Mechanical: 5,000,000 operations min.
Electrical: 100,000 Typical;
NO 70,000 operations min.;
NC 50,000 operations min. Mechanical: 5,000,000 operations min.
Electrical: 5,000,000 operations min.
Ambient temperature Operating: -40°C to 55°C (with no icing or condensation)
Ambient humidity Operating: 5% to 85%
Weight Approx. 35 g
Overvoltage category III
Pollution degree 2
Contact material AgSnIn AgSnIn + Gold Plating
Creepage distance 7.0 mm
Clearance distance 5.5 mm

Note: Values in the above table are the initial values.

Approved Standards
UL 508 (File No. E41643)

Model Contact form Coil ratings Contact ratings Operations
G2RV-SL Series SPDT 12 to 48 VDC
24 to 230 VAC 250 VAC 6 A (Resistive Load)
30 VDC 6 A (Resistive Load)
400 VAC 2 A (Resistive Load) 6,000

IEC/VDE (EN 61810)

Contact form Coil ratings Contact ratings Operations
SPDT 12, 24 VDC
24, 48 VAC/DC
110, 230 VAC 250 VAC 6 A (Resistive Load)
30 VDC 6 A (Resistive Load)
400 VAC 2 A (Resistive Load) 50,000
50,000
6,000

Lloyd's (File No. 07/10027 (E2))

Model Contact form Coil ratings Contact ratings
G2RV-SL Series SPDT 12, 24 VDC
24, 48 VAC/DC
110, 230 VAC 250 VAC 6 A (Resistive load)
250 VAC 2.5 A (PF0.4)
30 VDC 6 A (Resistive load)
30 VDC 2 A (L/R=7ms)

Accessories
PLC Interface P2RVC-8-[]-F
P2RVC-8-O-F (for G2RV-SL700 series only)

Input Rated voltage 30 VAC/VDC max.
Current capacity 0.5 A per channel
2.0 A total current, power supply terminal
Characteristics Ambient temperature Operating: 0 to 55°C
Storage: -20 to 85°C
Overvoltage category III
Pollution degree 2

P2RVC-8-I-F (for G2RV-SL700-AP series only)

Input Rated voltage 30 VAC/VDC max.
Current capacity 0.5 A per channel
2.0 A total current, power supply terminal
Characteristics Ambient temperature Operating: 0 to 55°C
Storage: -20 to 85°C
Overvoltage category III
Pollution degree 2

Cables for PLC Interface P2RVC-8-[]-F
P2RV-4-[][][]C
P2RV-4-[][][]IMC
P2RV-4-[][][]IFC
Technical data

Control line AWG28/0.08 mm², tin-plated copper
Diameter cable 10.7 mm (one end splits into 4 sections: A, B, C, D)
Operating voltage 60 VDC
Continuous current per signal wire 0.5 A
Max. total current, 4 bytes, each 1.0 A
Test voltage 0.5 KV, 50 Hz, 1 min
Operating temperature range -20°C to +50°C

P2RV-A[][][]C
Technical data

Control line AWG26/0.14 mm², tin-plated copper
Diameter cable 7.6 mm
Operating voltage 60 VDC
Continuous current per signal wire 0.5 A
Max. total current 1.0 A
Test voltage 0.5 KV, 50 Hz, 1 min
Operating temperature range -20°C to +50°C

Cross bars

Max current
(EN60947-7-1 section 8.3.3/1991) 32 A
Max. Voltage 400 VAC
Max. Voltage
when cutting Cross-bar without using separation plate or end-bracket 250 VAC

last update: November 04, 2014

OMRON G2RV catalog
G2RV Slim Relay/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

G2RV Data Sheet J11E-EN-07
[3081KB] Oct 21, 201420141021 G2RV Data Sheet

G2RV/G3RV Series Catalog J204-E1-01
[14234KB] Jun 02, 201620160602 G2RV/G3RV Series Catalog

OMRON G2RV dimension
G2RV Slim Relay/Dimensions
last update: July 11, 2014

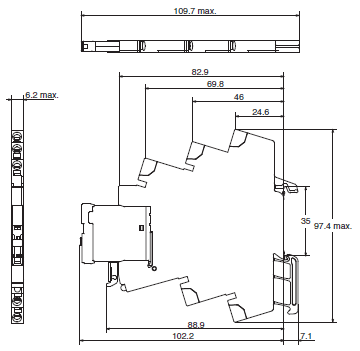

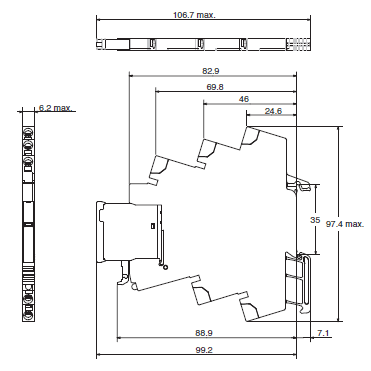

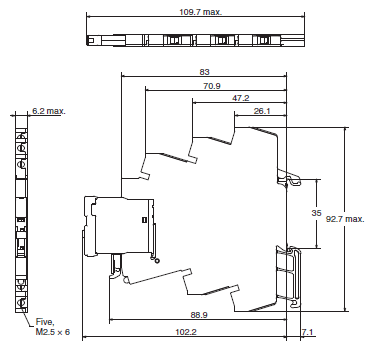

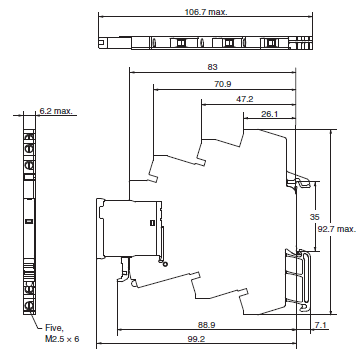

Complete Unit

G2RV-SL700
G2RV-SL700-AP

G2RV-SL701

G2RV-SL500
G2RV-SL500-AP

G2RV-SL501

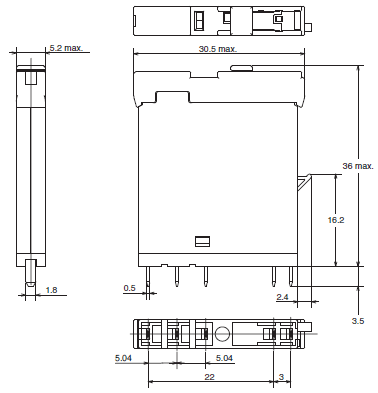

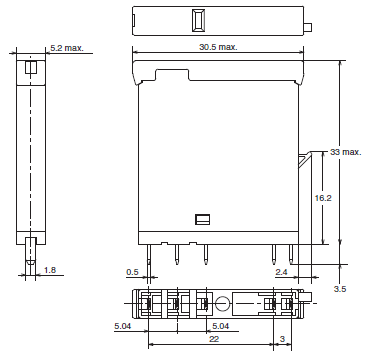

Single Relay

G2RV-1-S
G2RV-1-S-AP

G2RV-1-SI

last update: July 11, 2014

OMRON G2RV lineup
G2RV Slim Relay/Lineup
last update: July 11, 2014

Classification Enclosure
rating Input
voltage Type of
connection Test
switch Contact form (SPDT)
Standard type Input type
Plug-in terminals General-purpose Unsealed AC/DC Screw terminals No G2RV-SL700 G2RV-SL700-AP
Yes G2RV-SL701 ---
Push-in terminals No G2RV-SL500 G2RV-SL500-AP
Yes G2RV-SL501 ---

Relay and Socket Combinations
No test switch type

Input voltage Contact form (SPDT)
Standard type
Screw terminals Push-in terminals
12 VDC G2RV-SL700 12 VDC G2RV-SL500 12 VDC
24 VDC G2RV-SL700 24 VDC G2RV-SL500 24 VDC
24 VAC/DC G2RV-SL700 24 VAC/DC G2RV-SL500 24 VAC/DC
48 VAC/DC G2RV-SL700 48 VAC/DC G2RV-SL500 48 VAC/DC
110 VAC G2RV-SL700 110 VAC G2RV-SL500 110 VAC
230 VAC G2RV-SL700 230 VAC G2RV-SL500 230 VAC

Input voltage Contact form (SPDT)
Input type
Screw terminals Push-in terminals
12 VDC G2RV-SL700-AP 12 VDC G2RV-SL500-AP 12 VDC
24 VDC G2RV-SL700-AP 24 VDC G2RV-SL500-AP 24 VDC
24 VAC/DC G2RV-SL700-AP 24 VAC/DC G2RV-SL500-AP 24 VAC/DC
48 VAC/DC G2RV-SL700-AP 48 VAC/DC G2RV-SL500-AP 48 VAC/DC
110 VAC G2RV-SL700-AP 110 VAC G2RV-SL500-AP 110 VAC
230 VAC G2RV-SL700-AP 230 VAC G2RV-SL500-AP 230 VAC

Test switch type

Input voltage Contact form (SPDT)
Standard type (Test switch type) Input type (Test switch type)
Screw terminals Push-in terminals Screw terminals Push-in terminals
24 VDC G2RV-SL701 24 VDC G2RV-SL501 24 VDC --- ---
24 VAC/DC G2RV-SL701 24 VAC/DC G2RV-SL501 24 VAC/DC --- ---

Accessories
PLC Interface P2RVC-8-[]-F
P2RVC-8-O-F (for G2RV-SL70[] series only)

Model number Description Connection
P2RVC-8-O-F PLC Output Interface for 8x G2RV-SL70[]-series
PNP - type Ribbon cable connector
10 Pole, IEC603/1

P2RVC-8-I-F (for G2RV-SL700-AP series only)

Model number Description Connection
P2RVC-8-I-F PLC Output Interface for 8x G2RV-SL700-series
PNP - type Ribbon cable connector
10 Pole, IEC603/1

Cables for PLC Interface P2RVC-8-[]-F
P2RV-4-[][][]C
P2RV-4-[][][]IMC
P2RV-4-[][][]IFC

Cable to connect CJ1 to 4 × P2RVC-8-[]-F

I/O Model number Cable length Interface unit PLC Connection Connectors
Output P2RV-4-100C 1.0 m P2RVC-8-O-F × 4 OMRON PLC
CJ1 Series: MIL MIL40 - MIL10 × 4
P2RV-4-200C 2.0 m
P2RV-4-300C 3.0 m
P2RV-4-500C 5.0 m
Input P2RV-4-100IMC 1.0 m P2RVC-8-I-F × 4 OMRON PLC
CJ1 Series: MIL MIL40 - MIL10 × 4
P2RV-4-200IMC 2.0 m
P2RV-4-300IMC 3.0 m
P2RV-4-500IMC 5.0 m
Input P2RV-4-100IFC 1.0 m P2RVC-8-I-F × 4 OMRON PLC
CJ1 Series: Fujitsu FCN40 -MIL10 × 4
P2RV-4-200IFC 2.0 m
P2RV-4-300IFC 3.0 m
P2RV-4-500IFC 5.0 m

P2RV-A[][][]C

Cable, single sided 10 pole IDC connector, to connect to P2RVC-8-[]-F

I/O Model number Cable length Interface unit PLC interface Connectors
Universal
(Output/Input) P2RV-A100C 1.0 m P2RVC-8-[]-F - MIL10 - No connector
P2RV-A200C 2.0 m
P2RV-A300C 3.0 m
P2RV-A500C 5.0 m

P2RV-A[][][]C-OMR GRT1
P2RV-A[][][]IC-OMR GRT1

I/O Model number Cable
length Interface unit PLC interface Connectors
Output P2RV-A050C-OMR GRT1 0.5 m P2RVC-8-O-F OMRON Smart slice I/O module
GRT1 Series
GRT1-OD8(G)-1 XW7E 12pole -
MIL10
P2RV-A100C-OMR GRT1 1.0 m
Input P2RV-A050IC-OMR GRT1 0.5 m P2RVC-8-I-F OMRON Smart slice I/O module
GRT1 Series
GRT1-ID9(G)-1
P2RV-A100IC-OMR GRT1 1.0 m

P2RV-A[][][]C-OMR NX
P2RV-A[][][]IC-OMR NX

I/O Model number Cable length Interface unit PLC interface Connectors
Output P2RV-A050C-OMR GRT1 0.5 m P2RVC-8-O-F OMRON I/O module
NX Series XW7F 16pole- MIL10
P2RV-A100C-OMR GRT1 1.0 m
Input P2RV-A050IC-OMR GRT1 0.5 m P2RVC-8-I-F
P2RV-A100IC-OMR GRT1 1.0 m

P2RV-[][][]C-SIM S7/[]00

Cables to connect Siemens S7/300 or S7/400 to 4 × P2RVC-8-[]-F

Model number Cable length PLC type Configuration
P2RV-200C-SIM S7/300 2.0 m Siemens S7/300
4x1 Byte
P2RV-250C-SIM S7/300 2.5 m
P2RV-300C-SIM S7/300 3.0 m
P2RV-500C-SIM S7/300 5.0 m
P2RV-200C-SIM S7/400 2.0 m Siemens S7/400
4x1 Byte
P2RV-250C-SIM S7/400 2.5 m
P2RV-300C-SIM S7/400 3.0 m
P2RV-500C-SIM S7/400 5.0 m

Single Relays for Maintenance

Model number Replacement for
G2RV-1-S 11 VDC G2RV-SL700/500 12 VDC
G2RV-1-S 21 VDC G2RV-SL700/500 24 VDC
G2RV-SL700/500 24 VAC/DC
G2RV-1-S 48 VDC G2RV-SL700/500 48 VAC/DC
G2RV-SL700/500 110 VAC
G2RV-SL700/500 230 VAC
G2RV-1-S-AP 11 VDC G2RV-SL700/500-AP 12 VDC
G2RV-1-S-AP 21 VDC G2RV-SL700/500-AP 24 VDC
G2RV-SL700/500-AP 24 VAC/DC
G2RV-1-S-AP 48 VDC G2RV-SL700/500-AP 48 VAC/DC
G2RV-SL700/500-AP 110 VAC
G2RV-SL700/500-AP 230 VAC
G2RV-1-SI 21 VDC G2RV-SL701/501 24 VDC
G2RV-SL701/501 24 VAC/DC

Cross bars

Model number Poles Color
P2RVM-020[] 2 Red (R)
Blue (S)
Black (B)
P2RVM-030[] 3
P2RVM-040[] 4
P2RVM-100[] 10
P2RVM-200[] 20

[] select color: R = Red, S=Blue, B=Black

Plastic Labels for G2RV Sockets

Model number Box quantity Color
R99-15 for G2RV 1 piece = 1 sheet = 120 labels White

Labels (Stickers) for G2RV Sockets

Model number Box quantity Color
R99-16 for G2RV 1 piece = 1 sheet = 484 labels (stickers) White

Separating Plates

Model number Description
P2RV-S Provides isolation between adjacent relays to achieve 400 V isolation.

last update: July 11, 2014

NO. G2RV

TYPE:General Purpose Relays For Control Panel Copyright Statement

DATE:2021-06-13

Associated products:
G2R-[]-S (S) General-purpose Relay/Features G7T I/O Relay/Features

Rated voltage	*Rated current 1**	Must operate voltage	Must release voltage	Power consumption	Input voltage
AC	DC	% of rated voltage	AC (VA) Approx.	DC (mW) Approx.	% of rated voltage
50 Hz	60 Hz
12 VDC	---	---	27.2 mA	0.8	0.1	---	300 mW	±10%
24 VDC	---	---	13.3 mA	---	300 mW
24 VAC/DC	21.1 mA	22.5 mA	13.0 mA	0.5 VA	300 mW
48 VAC/DC	8.5 mA	9.0 mA	5.2 mA	0.4 VA	250 mW
110 VAC	7.1 mA	7.5 mA	---	0.8 VA	---
230 VAC	7.3 mA	7.9 mA	---	1.7 VA	---

Item	Standard type (G2RV-SL700, 500, 701, 501)	*Input type (G2RV-SL700-AP, 500-AP) 2**
Number of poles	1 pole
Load	Resistive load (cosφ = 1)	Inductive load (cosφ = 0.4, L/R = 7 ms)	Resistive load (cosφ = 1)
Rated load	6 A at 250 VAC; 6 A at 30 VDC	2.5 A at 250 VAC; 2 A at 30 VDC	50 mA at 30 VAC; 50 mA at 36 VDC
Rated carry current	6 A	50 mA
Max. switching voltage	400 VAC, 125 VDC	30 VAC, 36 VDC
Max. switching current	6 A	50 mA
Max. switching power	1,500 VA 180 W	500 VA 60 W	——
Failure rate (reference value) *1	10 mA at 5 VDC (P level)	1 mA at 100 mVDC (P level)

Item	Standard type (G2RV-SL700, 500, 701, 501)	Input type (G2RV-SL700-AP, 500-AP)
Contact resistance	100 mΩ max.
Operate (set) time	20 ms max.
Release time	40 ms max.
Max. operating frequency	Mechanical: 18,000 operations/hr Electrical: 1,800 operations/hr (under rated load)
Insulation resistance	1,000 MΩ min. (at 500 VDC)
Dielectric strength	4,000 VAC, 50/60 Hz for 1 min between coil and contacts*; 1,000 VAC, 50/60 Hz for 1 min between contacts of same polarity
Vibration resistance	Destruction: 10 to 55 to 10 Hz, 0.50 mm single amplitude (1.0 mm double amplitude) Malfunction: 10 to 55 to 10 Hz, 0.50 mm single amplitude (1.0 mm double amplitude)
Shock resistance	Destruction: 1,000 m/s² Malfunction: 200 m/s² when energized; 100 m/s² when not energized
Endurance	Mechanical: 5,000,000 operations min. Electrical: 100,000 Typical; NO 70,000 operations min.; NC 50,000 operations min.	Mechanical: 5,000,000 operations min. Electrical: 5,000,000 operations min.
Ambient temperature	Operating: -40°C to 55°C (with no icing or condensation)
Ambient humidity	Operating: 5% to 85%
Weight	Approx. 35 g
Overvoltage category	III
Pollution degree	2
Contact material	AgSnIn	AgSnIn + Gold Plating
Creepage distance	7.0 mm
Clearance distance	5.5 mm

Model	Contact form	Coil ratings	Contact ratings	Operations
G2RV-SL Series	SPDT	12 to 48 VDC 24 to 230 VAC	250 VAC 6 A (Resistive Load) 30 VDC 6 A (Resistive Load) 400 VAC 2 A (Resistive Load)	6,000

Contact form	Coil ratings	Contact ratings	Operations
SPDT	12, 24 VDC 24, 48 VAC/DC 110, 230 VAC	250 VAC 6 A (Resistive Load) 30 VDC 6 A (Resistive Load) 400 VAC 2 A (Resistive Load)	50,000 50,000 6,000

Model	Contact form	Coil ratings	Contact ratings
G2RV-SL Series	SPDT	12, 24 VDC 24, 48 VAC/DC 110, 230 VAC	250 VAC 6 A (Resistive load) 250 VAC 2.5 A (PF0.4) 30 VDC 6 A (Resistive load) 30 VDC 2 A (L/R=7ms)

Input	Rated voltage	30 VAC/VDC max.
Current capacity	0.5 A per channel
2.0 A total current, power supply terminal
Characteristics	Ambient temperature	Operating: 0 to 55°C Storage: -20 to 85°C
Overvoltage category	III
Pollution degree	2

Input	Rated voltage	30 VAC/VDC max.
Current capacity	0.5 A per channel
2.0 A total current, power supply terminal
Characteristics	Ambient temperature	Operating: 0 to 55°C Storage: -20 to 85°C
Overvoltage category	III
Pollution degree	2

Control line	AWG28/0.08 mm², tin-plated copper
Diameter cable	10.7 mm (one end splits into 4 sections: A, B, C, D)
Operating voltage	60 VDC
Continuous current per signal wire	0.5 A
Max. total current, 4 bytes, each	1.0 A
Test voltage	0.5 KV, 50 Hz, 1 min
Operating temperature range	-20°C to +50°C

Control line	AWG26/0.14 mm², tin-plated copper
Diameter cable	7.6 mm
Operating voltage	60 VDC
Continuous current per signal wire	0.5 A
Max. total current	1.0 A
Test voltage	0.5 KV, 50 Hz, 1 min
Operating temperature range	-20°C to +50°C

Max current (EN60947-7-1 section 8.3.3/1991)	32 A
Max. Voltage	400 VAC
Max. Voltage when cutting Cross-bar without using separation plate or end-bracket	250 VAC

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
G2RV Data Sheet	J11E-EN-07 [3081KB]	Oct 21, 201420141021	G2RV Data Sheet
G2RV/G3RV Series Catalog	J204-E1-01 [14234KB]	Jun 02, 201620160602	G2RV/G3RV Series Catalog

Classification	Enclosure rating	Input voltage	Type of connection	Test switch	Contact form (SPDT)
Standard type	Input type
Plug-in terminals	General-purpose	Unsealed	AC/DC	Screw terminals	No	G2RV-SL700	G2RV-SL700-AP
Yes	G2RV-SL701	---
Push-in terminals	No	G2RV-SL500	G2RV-SL500-AP
Yes	G2RV-SL501	---

Input voltage	Contact form (SPDT)
Standard type
Screw terminals	Push-in terminals
12 VDC	G2RV-SL700 12 VDC	G2RV-SL500 12 VDC
24 VDC	G2RV-SL700 24 VDC	G2RV-SL500 24 VDC
24 VAC/DC	G2RV-SL700 24 VAC/DC	G2RV-SL500 24 VAC/DC
48 VAC/DC	G2RV-SL700 48 VAC/DC	G2RV-SL500 48 VAC/DC
110 VAC	G2RV-SL700 110 VAC	G2RV-SL500 110 VAC
230 VAC	G2RV-SL700 230 VAC	G2RV-SL500 230 VAC

Input voltage	Contact form (SPDT)
Input type
Screw terminals	Push-in terminals
12 VDC	G2RV-SL700-AP 12 VDC	G2RV-SL500-AP 12 VDC
24 VDC	G2RV-SL700-AP 24 VDC	G2RV-SL500-AP 24 VDC
24 VAC/DC	G2RV-SL700-AP 24 VAC/DC	G2RV-SL500-AP 24 VAC/DC
48 VAC/DC	G2RV-SL700-AP 48 VAC/DC	G2RV-SL500-AP 48 VAC/DC
110 VAC	G2RV-SL700-AP 110 VAC	G2RV-SL500-AP 110 VAC
230 VAC	G2RV-SL700-AP 230 VAC	G2RV-SL500-AP 230 VAC

Input voltage	Contact form (SPDT)
Standard type (Test switch type)	Input type (Test switch type)
Screw terminals	Push-in terminals	Screw terminals	Push-in terminals
24 VDC	G2RV-SL701 24 VDC	G2RV-SL501 24 VDC	---	---
24 VAC/DC	G2RV-SL701 24 VAC/DC	G2RV-SL501 24 VAC/DC	---	---

Model number	Description	Connection
P2RVC-8-O-F	PLC Output Interface for 8x G2RV-SL70[]-series PNP - type	Ribbon cable connector 10 Pole, IEC603/1

Model number	Description	Connection
P2RVC-8-I-F	PLC Output Interface for 8x G2RV-SL700-series PNP - type	Ribbon cable connector 10 Pole, IEC603/1

I/O	Model number	Cable length	Interface unit	PLC Connection	Connectors
Output	P2RV-4-100C	1.0 m	P2RVC-8-O-F × 4	OMRON PLC CJ1 Series: MIL	MIL40 - MIL10 × 4
P2RV-4-200C	2.0 m
P2RV-4-300C	3.0 m
P2RV-4-500C	5.0 m
Input	P2RV-4-100IMC	1.0 m	P2RVC-8-I-F × 4	OMRON PLC CJ1 Series: MIL	MIL40 - MIL10 × 4
P2RV-4-200IMC	2.0 m
P2RV-4-300IMC	3.0 m
P2RV-4-500IMC	5.0 m
Input	P2RV-4-100IFC	1.0 m	P2RVC-8-I-F × 4	OMRON PLC CJ1 Series: Fujitsu	FCN40 -MIL10 × 4
P2RV-4-200IFC	2.0 m
P2RV-4-300IFC	3.0 m
P2RV-4-500IFC	5.0 m

I/O	Model number	Cable length	Interface unit	PLC interface	Connectors
Universal (Output/Input)	P2RV-A100C	1.0 m	P2RVC-8-[]-F	-	MIL10 - No connector
P2RV-A200C	2.0 m
P2RV-A300C	3.0 m
P2RV-A500C	5.0 m

I/O	Model number	Cable length	Interface unit	PLC interface	Connectors
Output	P2RV-A050C-OMR GRT1	0.5 m	P2RVC-8-O-F	OMRON Smart slice I/O module GRT1 Series GRT1-OD8(G)-1	XW7E 12pole - MIL10
P2RV-A100C-OMR GRT1	1.0 m
Input	P2RV-A050IC-OMR GRT1	0.5 m	P2RVC-8-I-F	OMRON Smart slice I/O module GRT1 Series GRT1-ID9(G)-1
P2RV-A100IC-OMR GRT1	1.0 m

I/O	Model number	Cable length	Interface unit	PLC interface	Connectors
Output	P2RV-A050C-OMR GRT1	0.5 m	P2RVC-8-O-F	OMRON I/O module NX Series	XW7F 16pole- MIL10
P2RV-A100C-OMR GRT1	1.0 m
Input	P2RV-A050IC-OMR GRT1	0.5 m	P2RVC-8-I-F
P2RV-A100IC-OMR GRT1	1.0 m

Model number	Cable length	PLC type
P2RV-200C-SIM S7/300	2.0 m	Siemens S7/300 4x1 Byte
P2RV-250C-SIM S7/300	2.5 m
P2RV-300C-SIM S7/300	3.0 m
P2RV-500C-SIM S7/300	5.0 m
P2RV-200C-SIM S7/400	2.0 m	Siemens S7/400 4x1 Byte
P2RV-250C-SIM S7/400	2.5 m
P2RV-300C-SIM S7/400	3.0 m
P2RV-500C-SIM S7/400	5.0 m

Model number	Replacement for
G2RV-1-S 11 VDC	G2RV-SL700/500 12 VDC
G2RV-1-S 21 VDC	G2RV-SL700/500 24 VDC
G2RV-SL700/500 24 VAC/DC
G2RV-1-S 48 VDC	G2RV-SL700/500 48 VAC/DC
G2RV-SL700/500 110 VAC
G2RV-SL700/500 230 VAC
G2RV-1-S-AP 11 VDC	G2RV-SL700/500-AP 12 VDC
G2RV-1-S-AP 21 VDC	G2RV-SL700/500-AP 24 VDC
G2RV-SL700/500-AP 24 VAC/DC
G2RV-1-S-AP 48 VDC	G2RV-SL700/500-AP 48 VAC/DC
G2RV-SL700/500-AP 110 VAC
G2RV-SL700/500-AP 230 VAC
G2RV-1-SI 21 VDC	G2RV-SL701/501 24 VDC
G2RV-SL701/501 24 VAC/DC

Model number	Poles	Color
P2RVM-020[]	2	Red (R) Blue (S) Black (B)
P2RVM-030[]	3
P2RVM-040[]	4
P2RVM-100[]	10
P2RVM-200[]	20

Model number	Box quantity	Color
R99-15 for G2RV	1 piece = 1 sheet = 120 labels	White

Model number	Box quantity	Color
R99-16 for G2RV	1 piece = 1 sheet = 484 labels (stickers)	White

Model number	Description
P2RV-S	Provides isolation between adjacent relays to achieve 400 V isolation.

Return to OMRON

OMRON G2RVRelays/ General Purpose Relays/For Control Panel

OMRON G2RV Dimensions

Purchase the OMRON For Control Panel Please fill in the following

OMRON G2RV specification

Input Ratings

Contact Ratings

Characteristics

Approved Standards

UL 508 (File No. E41643)

IEC/VDE (EN 61810)

Lloyd's (File No. 07/10027 (E2))

Accessories

PLC Interface P2RVC-8-[]-F

P2RVC-8-O-F (for G2RV-SL700 series only)

P2RVC-8-I-F (for G2RV-SL700-AP series only)

Cables for PLC Interface P2RVC-8-[]-F

P2RV-4-[][][]CP2RV-4-[][][]IMCP2RV-4-[][][]IFC

Technical data

P2RV-A[][][]C

Technical data

Cross bars

OMRON G2RV catalog

English

Global Edition

OMRON G2RV dimension

Complete Unit

Single Relay

OMRON G2RV lineup

Relay and Socket Combinations

No test switch type

Test switch type

Accessories

PLC Interface P2RVC-8-[]-F

P2RVC-8-O-F (for G2RV-SL70[] series only)

P2RVC-8-I-F (for G2RV-SL700-AP series only)

Cables for PLC Interface P2RVC-8-[]-F

P2RV-4-[][][]CP2RV-4-[][][]IMCP2RV-4-[][][]IFC

P2RV-A[][][]C

P2RV-A[][][]C-OMR GRT1P2RV-A[][][]IC-OMR GRT1

P2RV-A[][][]C-OMR NXP2RV-A[][][]IC-OMR NX

P2RV-[][][]C-SIM S7/[]00

Single Relays for Maintenance

Cross bars

Plastic Labels for G2RV Sockets

Labels (Stickers) for G2RV Sockets

Separating Plates

P2RV-4-[][][]C
P2RV-4-[][][]IMC
P2RV-4-[][][]IFC

P2RV-4-[][][]C
P2RV-4-[][][]IMC
P2RV-4-[][][]IFC

P2RV-A[][][]C-OMR GRT1
P2RV-A[][][]IC-OMR GRT1

P2RV-A[][][]C-OMR NX
P2RV-A[][][]IC-OMR NX
