OMRON E5L dimension

last update: April 2, 2018

(Unit: mm)

Thermostats

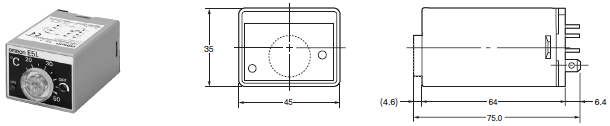

E5L-A[]

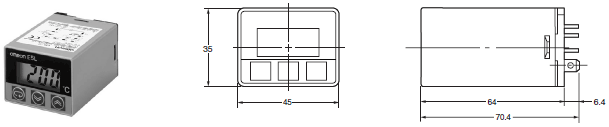

E5L-C[]

Accessories

Y92H-10 Mounting Brackets (Two)

Note: Included with product.
If a mounting bracket is missing or damaged, order a new bracket separately.

last update: April 2, 2018

OMRON E5L lineup

last update: April 2, 2018

Electronic Thermostats

E5L-A[]

Size	Type	Control method	Control output	Model
45 × 35 mm	Plug-in	ON/OFF operation	Relay	E5L-A -30-20
				E5L-A 0-50
				E5L-A 0-100
				E5L-A 100-200

E5L-C[]

Size	Type	Control method	Control output	Model
45 × 35 mm	Plug-in	ON/OFF operation	Relay	E5L-C -30-20
				E5L-C 0-100
				E5L-C 100-200

Note: The E5L-C is not available with a set temperature range of 0 to 50°C.

Options (Order Separately)

Mounting Brackets

Model
Y92H-10

Note: This Mounting Brackets is provided with the Electronic Thermostat.

Sockets

Type	Model
Front-connecting Socket	PTF14A
	PTF14A-E

last update: April 2, 2018

OMRON E5L specification

last update: September 02, 2015

Ratings

Model	E5L-A[]	E5L-C[]
Power supply voltage	100 to 240 VAC, 50/60 Hz
Operating voltage range	85% to 110% of the rated supply voltage
Power consumption	Approx. 3 VA
Inputs	Element-interchangeable thermistor
Control method	ON/OFF control
Control output	SPDT contacts, 250 VAC, 10 A, cosΦ = 1 (resistive load)	SPST-NO contacts, 250 VAC, 10 A, cosΦ = 1 (resistive load)
Setting method	Analog setting	Digital settings using keys on front panel
Indication method	No display	LCD digital display (character height: 12 mm)
Other functions		Setting protection (key protection) Input shift Direct/reverse operation
Ambient temperature	-10 to 55°C (with no icing or condensation)
Ambient humidity	25% to 85%
Storage temperature	-25°C to 65°C (with no icing or condensation)

Note: Do not use the output from an Inverter as the power supply.

Characteristics

Model	E5L-A[]	E5L-C[]
Indication accuracy	---	±(1°C + 1 digit) max. *1
Setting accuracy	---	±(1°C + 1 digit) max. *1
Hysteresis	-30 to 20°C models: Approx. 0.5 to 2.5°C (variable) 0 to 50°C models: Approx. 0.5 to 4°C (variable) 0 to 100°C models: Approx. 0.5 to 4°C (variable) 100 to 200°C models: Approx. 0.7 to 4°C (variable)	1 to 9°C (in increments of 1°C)
Repeat accuracy	1% FS max.	---
Minimum scale (standard scale)	-30 to 20°C models and 0 to 50°C models: 5°C 0 to 100°C models and 100 to 200°C models: 10°C	---
Influence of temperature	---	±((1% of PV or 2°C, whichever is greater) +1 digit) max.
Influence of voltage	---
Influence of EMS. (at EN61326-1)	---
Sampling period	---	2 s
Insulation resistance	100 MΩ max. (at 500 VDC)
Dielectric strength	2,810 VAC, 50/60 Hz for 1 min (between charged terminals and uncharged metallic parts, between power supply terminals and input terminals, between power supply terminals and output terminals, and between input terminals and output terminals)
Vibration (malfunction)	Frequency of 10 to 55 Hz, 0.5-mm double amplitude for 10 min each in X, Y, and Z directions
Vibration (destruction)	Frequency of 10 to 55-Hz, 0.75-mm double amplitude for 2 h each in X, Y, and Z directions
Shock (malfunction)	150 m/s2, 3 times each in 6 directions	100 m/s2, 3 times each in 6 directions
Shock (destruction)	300 m/s2, 3 times each in 6 directions
Electrical life expectancy (control output relay)	100,000 operations min (at maximum applicable load)
Memory protection	---	Non-volatile memory (100,000 write operations)
Weight (Thermostat)	Approx. 80 g (Thermostat only)
Degree of protection	Front panel: IP40, Terminals: IP00
Approved standards	---
Conformed standards	EN 61010-1 (IEC 61010-1), Pollution Degree 2, Overvoltage Category II
EMC Directives	EMI: EN61326-1 *2 Radiated EMI: EN55011 Group1 ClassA Conducted EMI: EN55011 Group1 ClassA EMS: EN61326-1 *2 Electrostatic discharge immunity: EN61000-4-2 Electromagnetic field strength immunity: EN61000-4-3 Burst noise immunity: EN61000-4-4 Conducted disturbance immunity: EN61000-4-6 Surge immunity: EN61000-4-5 Voltage dip and power interruption immunity: EN6100-4-11

*1. The accuracy of the accessory thermistor is not included.
*2. Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)

last update: September 02, 2015

OMRON E5L catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
E5L Data Sheet	H162-E1-02 [1711KB]	Apr 02, 201820180402	E5L Data Sheet
