OMRON VAQSwitches/ Push Buttons / Indicator Lamps/Non-lighted Pushbutton Switch
OMRON VAQ Switches
OMRON VAQ Dimensions
/Images/l_1118-25-119042-198x198.jpglast update: December 19, 2013
• Momentary operation and lock.
• Operation Unit available in six colors.
• Improved sense of touch with built-in miniature basic switch.
last update: December 19, 2013
Purchase the OMRON Non-lighted Pushbutton Switch Please fill in the following
If you have just landed here, this product OMRON VAQ Switches,Switches is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Switches at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the VAQ We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON VAQSwitches tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
QX-870 Series Laser Barcode Scanner/Features
E2E2 Long-barrel Inductive Proximity Sensor/Features
G3FM Solid State Relays/Features
ZN-CTX / CTM Portable Power Monitor/Features
K8DS-PZ Three-phase Voltage, Asymmetry, and Phase-sequence Phase-loss Relay/Features
OMRON VAQ lineup
VAQ Pushbutton Switch (Cylindrical 10.5-dia.)/Lineuplast update: November 06, 2012
| Classifica- tion | Shape of Operation Unit | Output | Operation Unit color | |||||
|---|---|---|---|---|---|---|---|---|
| Blue (-A) | Black (-B) | Green (-G) | Red (-R) | White (-W) | Yellow (-Y) | |||
| Momentary operation |  | 1 *1 | VAQ-4A-K | VAQ-4B-K | VAQ-4G-K | VAQ-4R-K | VAQ-4W-K | VAQ-4Y-K |
| 1 *2 | VAQ-4A-L | VAQ-4B-L | VAQ-4G-L | VAQ-4R-L | VAQ-4W-L | VAQ-4Y-L | ||
| 2 *2 | 2VAQ-4A | 2VAQ-4B | 2VAQ-4G | 2VAQ-4R | 2VAQ-4W | 2VAQ-4Y | ||
| Lock | 1 *2 | VAQR-4A | VAQR-4B | VAQR-4G | VAQR-4R | VAQR-4W | -- | |
*1. The Operation Unit can be inserted and removed.
*2. The Operation Unit is screwed in.
last update: November 06, 2012
OMRON VAQ dimension
VAQ Pushbutton Switch (Cylindrical 10.5-dia.)/Dimensionslast update: April 01, 2016
Insert one of the following letters into the box ([]) in the model number. Refer to Lineup for color symbols.

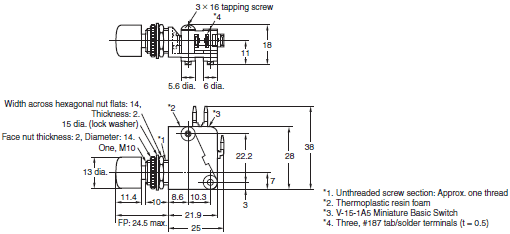

VAQ-4[]-K
Note: The Operation Unit can be inserted and removed.

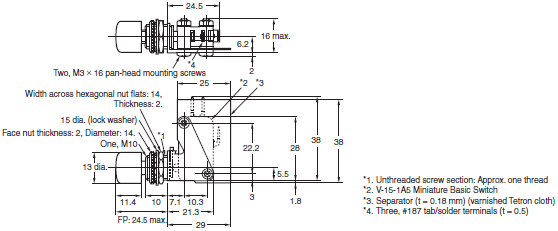

VAQ-4[]-L
Note: The Operation Unit is mounted with M3 screws.
VAQR-4[]
Note: The Operation Unit is mounted with M3 screws.

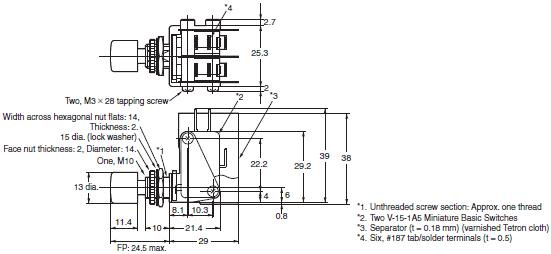

2VAQ-4[]
Note: The Operation Unit is mounted with M3 screws.
Panel Cutout
Note: Recommended panel thickness: 1 to 4 mm.
last update: April 01, 2016
OMRON VAQ catalog
VAQ Pushbutton Switch (Cylindrical 10.5-dia.)/Catalog- Catalog
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 VAQ Data Sheet | - [496KB] | Apr 01, 201620160401 | VAQ Data Sheet |
OMRON VAQ specification
VAQ Pushbutton Switch (Cylindrical 10.5-dia.)/Specificationslast update: November 06, 2012
Ratings
| Item | Rated voltage (V) | Non-inductive load (A) | Inductive load (A) | ||
|---|---|---|---|---|---|
| Built-in Switch | Resistive load | Lamp load | Inductive load | Motor load | |
| V-15-1A5 | 125 VAC 250 VAC | 15 15 | 2 2 | 10 10 | 3 3 |
| 8 VDC 30 VDC 125 VDC 250 VDC | 15 10 0.6 0.3 | 4 4 0.1 0.05 | 10 10 0.6 0.3 | 6 4 0.1 0.05 | |
Note: 1. The above values are for steady-state currents.
2. Inductive load: Power factor = 0.4 (AC); time constant = 7 ms (DC).
3. The lamp load has an inrush current of 10 times the steady-state current.
4. The motor load has an inrush current of 6 times the steady-state current.
5. The rated values above are for testing conducted under the following conditions.
(1) Ambient temperature: 20 ± 2°C.
(2) Ambient humidity: 65% ± 5%RH
(3) Operating frequency: 20 times/min.
Characteristics
| Operating frequency | Mechanical | 120 operations/min |
|---|---|---|
| Electrical | 20 operations/min | |
| Insulation resistance | 100 MΩ min. (at 500 VDC) | |
| Contact resistance | 30 mΩ max. (initial value) | |
| Dielectric strength | Between terminals of same polarity | 1,000 VAC, 50/60 Hz for 1 minute |
| Between current-carrying metal part and ground, and between each terminal and noncurrent- carrying metal part | 1,500 VAC, 50/60 Hz for 1 minute | |
| Vibration resistance | Malfunction | 10 to 55 Hz, 1.5 mm double amplitude * |
| Shock resistance | Destruction | 500 m/s2 max. |
| Malfunction | 200 m/s2 max. * | |
| Durability | Mechanical | 3,000,000 operations min. |
| Electrical | 100,000 operations min. | |
| Weight | Approx. 12 to 40 g | |
| Inrush current | NC | 36 A max. |
| NO | 36 A max. | |
| Ambient operating temperature | -25 to 80°C (with no icing or condensation) | |
| Ambient operating humidity | 35% to 85%RH | |
| Ambient storage temperature | -25 to 80°C (with no icing or condensation) | |
| Degree of protection | IP00 | |
| Electric shock protection class | Class II | |
| PTI (proof tracking index) | 175 | |
| Pollution degree | 3 (IEC947-5-1) | |
* Malfunction within 1 ms
Operating Characteristics
| Output | 1 | 2 | |
|---|---|---|---|
| Operating characteristics | |||
| Operating force | OF max. | 1.96 N | 4.90 N |
| Releasing force | RF min. | 0.39 N | 0.78 N |
| Pretravel | PT max. | 1.3 mm | 1.6 mm |
Contact Form
| Name | Contact form |
|---|---|
| Double-throw contacts |  |
last update: November 06, 2012
