• Scans / second: 300 to 1400

• Read Range: 25 to 762 mm

• Optional Embedded Ethernet TCP / IP & EtherNet / IP

• IP65 Enclosure

ESP®Easy Setup Program: Single-point software solution provides quick and easy setup and configuration of all OMRON Microscan readers.

EZ Button: This performs reader setup and configuration with no computer required.

Visible Indicators: Performance indicators include “good read” green flash and LEDs.

Sweeping Raster: This programmable feature enables the reader for multiple symbols at varying distances and locations.

QX Platform: Quick Connect system and X-Mode technology combine to provide simple connectivity, networking, and high performance decoding.

Quick Connect System

• Plug and play setup
• Single or multi-scanner solutions

X-Mode Technology

• Decodes damaged, poorly printed, or misaligned codes
• Ensures high read rates and throughput

High Performance

Aggressive decoding capabilities allow reliable reading of barcodes out to 762 mm, at up to a 254 mm beam width.

Intelligent Raster

In addition to sweep angle and speed controls, the QX-870 features a programmable raster with intelligent auto framing technology. Advanced software will automatically frame the raster height and width of the laser to match the barcode, allowing selective targeting of codes within a single read cycle.

Ethernet Protocols

The QX-870 includes optional embedded Ethernet TCP / IP and EtherNet / IP for high speed communication.

Application Examples

• Any industrial environment from light to heavy duty
• Automotive assembly
• Packaging and sortation
• Electronics production
• Embedded within machinery

QX–870: Available Codes

last update: December 3, 2018

Purchase the OMRON Code Readers Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON QX-870 Series Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the QX-870 Series We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON QX-870 SeriesSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

LVS-9580 Series Code Verification System/Features
A7CN / A7CN-L Thumbwheel Switch/Features
NS-NSRCL1 / 3 / 10 Machine Monitoring Software NS-Runtime/Features
D4ER-[]N Oil-resistant Limit Switch/Features
K8DS-PH Phase-sequence Phase-loss Relay/Features

OMRON QX-870 Series specification
QX-870 Series Laser Barcode Scanner/Specifications
last update: December 3, 2018

Applicable
codes Standard Code 39, Codabar, Code 93, Interleaved 2 of 5, Code 128, PDF417, Micro PDF417, Pharmacode, UPC, GS1 Databar
Application
standards UCC / EAN-128, AIAG
Reading
performance Mirror type Rotating, 10-faceted
Scan rate Adjustable from 300 to 1,400 scans/s, default=500
Scan width angle 60° (typ.)
Pitch ±50° max.
Skew ±40° max.
Label contrast 25% min. absolute dark to light differential at 655 nm wavelength
Communications Interface RS-232 / 422 / 485 and / or Ethernet*
Protocols Point-to-Point, Point-to-Point w / RTS / CTS, Point-to-Point w / XON / XOFF,
Point-to-Point w / RTS / CTS & XON / XOFF, Multidrop, Daisy Chain,
User-Defined Multidrop, Ethernet TCP / IP, EtherNet / IP
I / O
specifications Input 1 /
Trigger /
New Master Bi-directional optoisolated 4.5 to 28 V rated (13 mA at 24 VDC)
Outputs (1, 2 & 3) Optoisolated, 1 to 28 V rated, (I_CE <100 mA at 24 VDC, current limited by user)
Power requirement 10 to 28 VDC, 200 mV p-p max. ripple, 270 mA at 24 VDC (typ.)
Laser light Type Laser diode
Output wavelength 655 nm nominal
Beam divergence 0.4 mrad (typ.)
Pulse time 40 to 186 μs
Maximum output 1.75 mW
Operating life 50,000 hours at 25°C
Safety class Visible laser: IEC 60825-1 Class 2
Environmental
specifications Ambient
temperature range Operating: 0 to 50°C, Storage: -40 to 75°C
Ambient
humidity range Up to 90% (with no icing or condensation)
Degree of
protection IP65
Weight Approx. 453 g
Dimensions 109 x 45 x 95 mm (H x D x W)
Safety standards FCC, UL / cUL, CE, CB
Material Aluminum diecast

* Depends on model. See Ordering Information for details.

Raster Mirror Performance

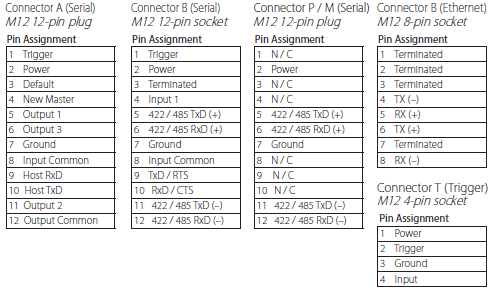

PIN ASSIGNMENTS*

*Note: Detailed connector pinout information is available in the User’s Manual.

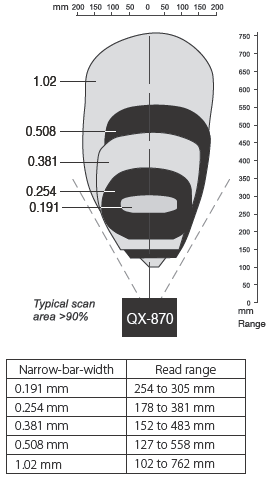

Read Ranges*
