E2E2 Long-barrel Inductive Proximity Sensor/Specifications
E2E2 Long-barrel Inductive Proximity Sensor/Dimensions
E2E2 Long-barrel Inductive Proximity Sensor/Lineup
E2E2 Long-barrel Inductive Proximity Sensor/Catalog
Purchase the OMRON E2E2 Cylindrical

OMRON E2E2 Dimensions

/Images/l_451-25-118693-198x198.jpg

last update: April 21, 2017

• Increased tightening strength. Cable protectors provided as a standard feature.

• Increased indicator visibility. A milled section for wrench grip on all models.

last update: April 21, 2017

Purchase the OMRON Cylindrical Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON E2E2 Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E2E2 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E2E2Sensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

3Z4S-LT Series Lighting System/Features
A22NS / A22NW Selector Switches/Features
CJ1W-EIP21 CJ-series EtherNet/IP Unit/Features
CJ2H-CPU6[]-EIP CJ-series CJ2H (Built-in EtherNet/IP) CPU Units/Features
GX-AD0471 / DA0271 Analog I/O Terminal 2-tier Terminal Block Type/Features

OMRON E2E2 specification
E2E2 Long-barrel Inductive Proximity Sensor/Specifications
last update: July 21, 2015
E2E2-X[]D[] DC 2-Wire Models

Size M12 M18 M30
Shielding Shielded Unshielded Shielded Unshielded Shielded Unshielded
Model E2E2-X3D[] E2E2-X8MD[] E2E2-X7D[] E2E2-X14MD[] E2E2-X10D[] E2E2-X20MD[]
Sensing distance 3 mm±10% 8 mm±10% 7 mm±10% 14 mm±10% 10 mm±10% 20 mm±10%
Set distance *1 0 to 2.4 mm 0 to 6.4 mm 0 to 5.6 mm 0 to 11.2 mm 0 to 8 mm 0 to 16 mm
Differential travel 10% max. of sensing distance
Sensing object Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering
Data on Data Sheet.)
Standard sensing
object Iron, 12 × 12
× 1 mm Iron, 30 × 30
× 1 mm Iron, 18 × 18
× 1 mm Iron, 30 × 30
× 1 mm Iron, 30 × 30
× 1 mm Iron, 54 × 54
× 1 mm
Response frequency
*2 1 kHz 800 Hz 500 Hz 400 Hz 100 Hz
Power supply voltage
(operating voltage
range) 12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max.
Leakage current 0.8 mA max.
Control
output Switching
capacity 3 to 100 mA
Residual
voltage 3 V max. (Load current: 100 mA, Cable length: 2 m)
Indicators D1 Models: Operation indicator (red) and setting indicator (green)
D2 Models: Operation indicator (red)
Operation mode
(with sensing object
approaching) D1 Models: NO
D2 Models: NC
Refer to the timing charts under I/O Circuit Diagrams on Data Sheet for details.
Protection circuits Surge absorber, Load short-circuit protection
Ambient
temperature Operating/Storage: -25 to 70°C (with no icing or condensation)
Ambient humidity Operating/Storage: 35% to 95% (with no condensation)
Temperature
influence ±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation
resistance 50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength 1000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance
(destruction) 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance
(destruction) 1,000 m/s² 10 times each in X, Y, and Z directions
Degree of
protection IEC IP67, in-house standard for oil resistance
Connection method Pre-wired Models (Standard cable length: 2 m)
Weight
(packed state) Approx. 65 g Approx. 150 g Approx. 210 g
Materials Case Brass
Sensing
surface PBT
Clamping
nuts Nickel-plated brass
Toothed
washer Zinc-plated iron
Accessories Instruction sheet

*1. Use the E2E2 within the range in which the setting indicator (green LED) is ON (except D2 Models).
*2. The response frequency is an average value. Measurement conditions are as follows: standard sensing object, a
distance of twice the standard sensing object, and a set distance of half the sensing distance.

E2E2-X[]C[] DC 3-Wire Models

Size M12 M18 M30
Shielding Shielded Unshielded Shielded Unshielded Shielded Unshielded
Model E2E2-X2C[] E2E2-X5MC[] E2E2-X5C[] E2E2-X10MC[] E2E2-X10C[] E2E2-X18MC[]
Sensing distance 2 mm±10% 5 mm±10% 5 mm±10% 10 mm±10% 10 mm±10% 18 mm±10%
Set distance 0 to 1.6 mm 0 to 4 mm 0 to 4 mm 0 to 8 mm 0 to 8 mm 0 to 14 mm
Differential travel 10% max. of sensing distance
Sensing object Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering
Data on Data Sheet.)
Standard sensing
object Iron, 12 × 12
× 1 mm Iron, 15 × 15
× 1 mm Iron, 18 × 18
× 1 mm Iron, 30 × 30
× 1 mm Iron, 30 × 30
× 1 mm Iron, 54 × 54
× 1 mm
Response frequency
*1 1.5 kHz 400 Hz 600 Hz 200 Hz 400 Hz 100 Hz
Power supply voltage
(operating voltage
range) *2 12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max.
Leakage current 13 mA max.
Control
output Load
current NPN open-collector output, 200 mA max. (30 VDC max.)
Residual
voltage 2 V max. (Load current: 200 mA, Cable length: 2 m)
Indicators Operation indicator (red)
Operation mode
(with sensing object
approaching) C1 Models: NO
C2 Models: NC
Refer to the timing charts under I/O Circuit Diagrams on Data Sheet for details.
Protection circuits Reverse polarity protection, Surge absorber, Load short-circuit protection
Ambient
temperature Operating/Storage: -40 to 85°C (with no icing or condensation)
Ambient humidity Operating/Storage: 35% to 95% (with no condensation)
Temperature
influence ±15% max. of sensing distance at 23°C in the temperature range of -40 to 85°C
±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance 50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength 1,000 VAC, 50/60 Hz for 1 minute between current carry parts and case
Vibration resistance
(destruction) 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance
(destruction) 1,000 m/s² 10 times each in X, Y, and Z directions
Degree of protection IEC IP67, in-house standard for oil resistance
Connection method Pre-wired Models (Standard cable length: 2 m) and Connector Models
Weight
(packed state) Approx. 75 g Approx. 160 g Approx. 220 g
Materials Case Brass
Sensing
surface PBT
Clamping
nuts Nickel-plated brass
Toothed
washer Zinc-plated iron
Accessories Instruction sheet

*1. The response frequency is an average value. Measurement conditions are as follows: standard sensing object, a
distance of twice the standard sensing object, and a set distance of half the sensing distance.
*2. A full-wave rectification power supply of 24 VDC ±20% (average value) can be used.

E2E2-X[]Y[] AC 2-Wire Models

Size M12 M18 M30
Shielding Shielded Unshielded Shielded Unshielded Shielded Unshielded
Model E2E2-X2Y[] E2E2-X5MY[] E2E2-X5Y[] E2E2-X10MY[] E2E2-X10Y[] E2E2-X18MY[]
Sensing distance 2 mm±10% 5 mm±10% 5 mm±10% 10 mm±10% 10 mm±10% 18 mm±10%
Set distance 0 to 1.6 mm 0 to 4 mm 0 to 4 mm 0 to 8 mm 0 to 8 mm 0 to 14 mm
Differential travel 10% max. of sensing distance
Sensing object Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering
Data on Data Sheet.)
Standard sensing
object Iron, 12 × 12
× 1 mm Iron, 15 × 15
× 1 mm Iron, 18 × 18
× 1 mm Iron, 30 × 30
× 1 mm Iron, 30 × 30
× 1 mm Iron, 54 × 54
× 1 mm
Response frequency 25 Hz
Power supply voltage
(operating voltage
range) *1 24 to 240 VAC (20 to 264 VAC), 50/60 Hz
Leakage current 1.7 mA max.
Control
output Load
current
*2 5 to 200 mA 5 to 300 mA
Residual
voltage Refer to Engineering Data on Data Sheet.
Indicators Operation indicator (red)
Operation mode
(with sensing object
approaching) Y1 Models: NO
Y2 Models: NC
Refer to the timing charts under I/O Circuit Diagrams on Data Sheet for details.
Ambient
temperature *1, 2 Operating/Storage: -40 to 85°C (with no icing or condensation)
Ambient humidity Operating/Storage: 35% to 95% (with no condensation)
Temperature
influence ±15% max. of sensing distance at 23°C in the temperature range of -40 to 85°C,
±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation
resistance 50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength 4,000 VAC, 50/60 Hz for 1 minute between current carry parts and case
Vibration resistance
(destruction) 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance
(destruction) 1,000 m/s² 10 times each in X, Y, and Z directions
Degree of
protection IEC IP67, in-house standard for oil resistance
Connection method Pre-wired Models (Standard cable length: 2 m) and Connector Models
Weight
(packed state) Approx. 65 g Approx. 150 g Approx. 210 g
Materials Case Brass
Sensing
surface PBT
Clamping
nuts Nickel-plated brass
Toothed
washer Zinc-plated iron
Accessories Instruction sheet

*1. When supplying 24 VAC to any of the above models, make sure that the operating ambient temperature range is at
least −25°C to 85°C.
*2. When using an M18 or M30 Connector Model at an ambient temperature between 70 and 85°C, make sure that the
Sensor has a control output (load current) of 5 to 200 mA max.

last update: July 21, 2015

OMRON E2E2 dimension
E2E2 Long-barrel Inductive Proximity Sensor/Dimensions
last update: October 15, 2012

Shielded

Unshielded

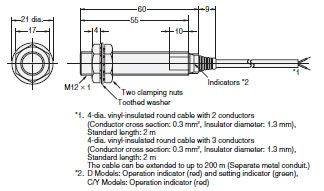

E2E2-X3D[]/E2E2-X2C[]/E2E2-X2Y[]

E2E2-X8MD[]/E2E2-X5MC[]/E2E2-X5MY[]

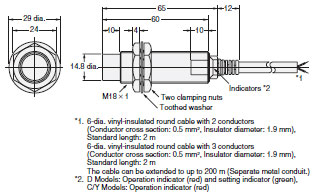

E2E2-X7D[]/E2E2-X5C[]/E2E2-X5Y[]

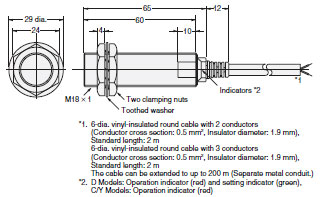

E2E2-X14MD[]/E2E2-X10MC[]/E2E2-X10MY[]

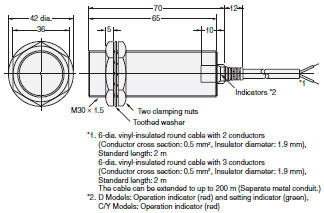

E2E2-X10D[]/E2E2-X10C[]/E2E2-X10Y[]

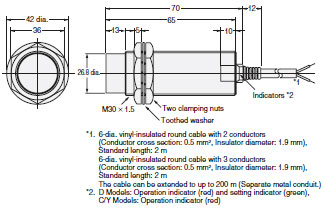

E2E2-X20MD[]/E2E2-X18MC[]/E2E2-X18MY[]

Mounting Hole Dimensions

Note:
Note:Two clamping nuts and one toothed washer are provided with each Sensors.
Note:The model number is laser-marked on the cable section and milled section.

last update: October 15, 2012

OMRON E2E2 lineup
E2E2 Long-barrel Inductive Proximity Sensor/Lineup
last update: September 24, 2012
Sensors
DC 2-Wire Models

Appearance Sensing distance Model

Operation mode

NO NC

Shielded M12 3 mm E2E2-X3D1 2M * E2E2-X3D2 2M

M18 7 mm E2E2-X7D1 2M * E2E2-X7D2 2M

M30 10 mm E2E2-X10D1 2M * E2E2-X10D2 2M

Unshielded M12 8 mm E2E2-X8MD1 2M * E2E2-X8MD2 2M

M18 14 mm E2E2-X14MD1 2M * E2E2-X14MD2 2M

M30 20 mm E2E2-X20MD1 2M * E2E2-X20MD2 2M

Note:Models with different frequencies are also available. The model numbers are E2E2-X[]5 (example: E2E2-X3D15).

DC 3-Wire Models

Appearance Sensing distance Model

Operation mode

NO NC

Shielded M12 2 mm E2E2-X2C1 2M E2E2-X2C2 2M

M18 5 mm E2E2-X5C1 2M E2E2-X5C2 2M

M30 10 mm E2E2-X10C1 2M E2E2-X10C2 2M

Unshielded M12 5 mm E2E2-X5MC1 2M E2E2-X5MC2 2M

M18 10 mm E2E2-X10MC1 2M E2E2-X10MC2 2M

M30 18 mm E2E2-X18MC1 2M E2E2-X18MC2 2M

AC 2-Wire Models

Appearance Sensing distance Model

Operation mode

NO NC

Shielded M12 2 mm E2E2-X2Y1 2M E2E2-X2Y2 2M

M18 5 mm E2E2-X5Y1 2M E2E2-X5Y2 2M

M30 10 mm E2E2-X10Y1 2M E2E2-X10Y2 2M

Unshielded M12 5 mm E2E2-X5MY1 2M E2E2-X5MY2 2M

M18 10 mm E2E2-X10MY1 2M E2E2-X10MY2 2M

M30 18 mm E2E2-X18MY1 2M E2E2-X18MY2 2M

last update: September 24, 2012

OMRON E2E2 catalog
E2E2 Long-barrel Inductive Proximity Sensor/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

E2E2 Data Sheet -
[2240KB] Nov 24, 201520151124 E2E2 Data Sheet

NO. E2E2

TYPE:Proximity Sensors Cylindrical Copyright Statement

DATE:2021-06-07

Associated products:
E2EY Aluminum-detecting Proximity Sensor/Features E2A Cylindrical Proximity Sensor/Features

Size	M12	M18	M30
Shielding	Shielded	Unshielded	Shielded	Unshielded	Shielded	Unshielded
Model	E2E2-X3D[]	E2E2-X8MD[]	E2E2-X7D[]	E2E2-X14MD[]	E2E2-X10D[]	E2E2-X20MD[]
Sensing distance	3 mm±10%	8 mm±10%	7 mm±10%	14 mm±10%	10 mm±10%	20 mm±10%
*Set distance 1**	0 to 2.4 mm	0 to 6.4 mm	0 to 5.6 mm	0 to 11.2 mm	0 to 8 mm	0 to 16 mm
Differential travel	10% max. of sensing distance
Sensing object	Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on Data Sheet.)
Standard sensing object	Iron, 12 × 12 × 1 mm	Iron, 30 × 30 × 1 mm	Iron, 18 × 18 × 1 mm	Iron, 30 × 30 × 1 mm	Iron, 30 × 30 × 1 mm	Iron, 54 × 54 × 1 mm
Response frequency *2	1 kHz	800 Hz	500 Hz	400 Hz	100 Hz
Power supply voltage (operating voltage range)	12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max.
Leakage current	0.8 mA max.
Control output	Switching capacity	3 to 100 mA
Residual voltage	3 V max. (Load current: 100 mA, Cable length: 2 m)
Indicators	D1 Models: Operation indicator (red) and setting indicator (green) D2 Models: Operation indicator (red)
Operation mode (with sensing object approaching)	D1 Models: NO D2 Models: NC Refer to the timing charts under I/O Circuit Diagrams on Data Sheet for details.
Protection circuits	Surge absorber, Load short-circuit protection
Ambient temperature	Operating/Storage: -25 to 70°C (with no icing or condensation)
Ambient humidity	Operating/Storage: 35% to 95% (with no condensation)
Temperature influence	±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence	±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance	50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength	1000 VAC, 50/60 Hz for 1 minute between current-carrying parts and case
Vibration resistance (destruction)	10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)	1,000 m/s² 10 times each in X, Y, and Z directions
Degree of protection	IEC IP67, in-house standard for oil resistance
Connection method	Pre-wired Models (Standard cable length: 2 m)
Weight (packed state)	Approx. 65 g	Approx. 150 g	Approx. 210 g
Materials	Case	Brass
Sensing surface	PBT
Clamping nuts	Nickel-plated brass
Toothed washer	Zinc-plated iron
Accessories	Instruction sheet

Size	M12	M18	M30
Shielding	Shielded	Unshielded	Shielded	Unshielded	Shielded	Unshielded
Model	E2E2-X2C[]	E2E2-X5MC[]	E2E2-X5C[]	E2E2-X10MC[]	E2E2-X10C[]	E2E2-X18MC[]
Sensing distance	2 mm±10%	5 mm±10%	5 mm±10%	10 mm±10%	10 mm±10%	18 mm±10%
Set distance	0 to 1.6 mm	0 to 4 mm	0 to 4 mm	0 to 8 mm	0 to 8 mm	0 to 14 mm
Differential travel	10% max. of sensing distance
Sensing object	Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on Data Sheet.)
Standard sensing object	Iron, 12 × 12 × 1 mm	Iron, 15 × 15 × 1 mm	Iron, 18 × 18 × 1 mm	Iron, 30 × 30 × 1 mm	Iron, 30 × 30 × 1 mm	Iron, 54 × 54 × 1 mm
Response frequency *1	1.5 kHz	400 Hz	600 Hz	200 Hz	400 Hz	100 Hz
Power supply voltage (operating voltage range) *2	12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max.
Leakage current	13 mA max.
Control output	Load current	NPN open-collector output, 200 mA max. (30 VDC max.)
Residual voltage	2 V max. (Load current: 200 mA, Cable length: 2 m)
Indicators	Operation indicator (red)
Operation mode (with sensing object approaching)	C1 Models: NO C2 Models: NC Refer to the timing charts under I/O Circuit Diagrams on Data Sheet for details.
Protection circuits	Reverse polarity protection, Surge absorber, Load short-circuit protection
Ambient temperature	Operating/Storage: -40 to 85°C (with no icing or condensation)
Ambient humidity	Operating/Storage: 35% to 95% (with no condensation)
Temperature influence	±15% max. of sensing distance at 23°C in the temperature range of -40 to 85°C ±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence	±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance	50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength	1,000 VAC, 50/60 Hz for 1 minute between current carry parts and case
Vibration resistance (destruction)	10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)	1,000 m/s² 10 times each in X, Y, and Z directions
Degree of protection	IEC IP67, in-house standard for oil resistance
Connection method	Pre-wired Models (Standard cable length: 2 m) and Connector Models
Weight (packed state)	Approx. 75 g	Approx. 160 g	Approx. 220 g
Materials	Case	Brass
Sensing surface	PBT
Clamping nuts	Nickel-plated brass
Toothed washer	Zinc-plated iron
Accessories	Instruction sheet

Size	M12	M18	M30
Shielding	Shielded	Unshielded	Shielded	Unshielded	Shielded	Unshielded
Model	E2E2-X2Y[]	E2E2-X5MY[]	E2E2-X5Y[]	E2E2-X10MY[]	E2E2-X10Y[]	E2E2-X18MY[]
Sensing distance	2 mm±10%	5 mm±10%	5 mm±10%	10 mm±10%	10 mm±10%	18 mm±10%
Set distance	0 to 1.6 mm	0 to 4 mm	0 to 4 mm	0 to 8 mm	0 to 8 mm	0 to 14 mm
Differential travel	10% max. of sensing distance
Sensing object	Ferrous metal (The sensing distance decreases with non-ferrous metal. Refer to Engineering Data on Data Sheet.)
Standard sensing object	Iron, 12 × 12 × 1 mm	Iron, 15 × 15 × 1 mm	Iron, 18 × 18 × 1 mm	Iron, 30 × 30 × 1 mm	Iron, 30 × 30 × 1 mm	Iron, 54 × 54 × 1 mm
Response frequency	25 Hz
Power supply voltage (operating voltage range) *1	24 to 240 VAC (20 to 264 VAC), 50/60 Hz
Leakage current	1.7 mA max.
Control output	Load current *2	5 to 200 mA	5 to 300 mA
Residual voltage	Refer to Engineering Data on Data Sheet.
Indicators	Operation indicator (red)
Operation mode (with sensing object approaching)	Y1 Models: NO Y2 Models: NC Refer to the timing charts under I/O Circuit Diagrams on Data Sheet for details.
Ambient temperature *1, 2	Operating/Storage: -40 to 85°C (with no icing or condensation)
Ambient humidity	Operating/Storage: 35% to 95% (with no condensation)
Temperature influence	±15% max. of sensing distance at 23°C in the temperature range of -40 to 85°C, ±10% max. of sensing distance at 23°C in the temperature range of -25 to 70°C
Voltage influence	±1% max. of sensing distance at rated voltage in the rated voltage ±15% range
Insulation resistance	50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength	4,000 VAC, 50/60 Hz for 1 minute between current carry parts and case
Vibration resistance (destruction)	10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance (destruction)	1,000 m/s² 10 times each in X, Y, and Z directions
Degree of protection	IEC IP67, in-house standard for oil resistance
Connection method	Pre-wired Models (Standard cable length: 2 m) and Connector Models
Weight (packed state)	Approx. 65 g	Approx. 150 g	Approx. 210 g
Materials	Case	Brass
Sensing surface	PBT
Clamping nuts	Nickel-plated brass
Toothed washer	Zinc-plated iron
Accessories	Instruction sheet

Appearance	Sensing distance	Model
Operation mode
NO	NC
Shielded	M12	3 mm	E2E2-X3D1 2M *	E2E2-X3D2 2M
M18	7 mm	E2E2-X7D1 2M *	E2E2-X7D2 2M
M30	10 mm	E2E2-X10D1 2M *	E2E2-X10D2 2M
Unshielded	M12	8 mm	E2E2-X8MD1 2M *	E2E2-X8MD2 2M
M18	14 mm	E2E2-X14MD1 2M *	E2E2-X14MD2 2M
M30	20 mm	E2E2-X20MD1 2M *	E2E2-X20MD2 2M

Appearance	Sensing distance	Model
Operation mode
NO	NC
Shielded	M12	2 mm	E2E2-X2C1 2M	E2E2-X2C2 2M
M18	5 mm	E2E2-X5C1 2M	E2E2-X5C2 2M
M30	10 mm	E2E2-X10C1 2M	E2E2-X10C2 2M
Unshielded	M12	5 mm	E2E2-X5MC1 2M	E2E2-X5MC2 2M
M18	10 mm	E2E2-X10MC1 2M	E2E2-X10MC2 2M
M30	18 mm	E2E2-X18MC1 2M	E2E2-X18MC2 2M

Appearance	Sensing distance	Model
Operation mode
NO	NC
Shielded	M12	2 mm	E2E2-X2Y1 2M	E2E2-X2Y2 2M
M18	5 mm	E2E2-X5Y1 2M	E2E2-X5Y2 2M
M30	10 mm	E2E2-X10Y1 2M	E2E2-X10Y2 2M
Unshielded	M12	5 mm	E2E2-X5MY1 2M	E2E2-X5MY2 2M
M18	10 mm	E2E2-X10MY1 2M	E2E2-X10MY2 2M
M30	18 mm	E2E2-X18MY1 2M	E2E2-X18MY2 2M

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
E2E2 Data Sheet	- [2240KB]	Nov 24, 201520151124	E2E2 Data Sheet

Return to OMRON
