OMRON E3X-DA-S / MDA specification
E3X-DA-S / MDA Digital Fiber Amplifier Unit/Specifications
last update: October 01, 2015

Type Light
source Re-
sponse
time Control output/input Functions
ON/
OFF
output Input Analog
output Power
tuning Timer Inter-
ference
pre-
vention Differ-
ential
detec-
tion count-
er ATC
Single-function models Red
LED 1 ms Only
main --- --- --- --- ○ --- --- ---
Standard models 50 μs
to 4 ms ○ ○
Mark-
de-
tecting
models E3X-DA[]G-S Green
LED 50 μs
to 4 ms Only
main --- --- ○ ○ ○ --- --- ---
3X-DA[]B-S Blue
LED
E3X-DA[]H-S Infrared
LED
Ad-
vanced
models Twin-output
models Red
LED 50 μs
to 4 ms Only
main ○
(1
line) --- ○ ○ ○ ○ ○ ---
External-input
models 80 μs
to 4 ms Main +
sub
(2 lines) --- ---
ATC function
models 130 μs
to 4 ms ○
Analog output 80 μs
to 4 ms Only
main ○
(1 line) --- ---
2-channel models Red
LED 130 μs
to 4 ms Main +
main
(2 inde-
pendent
lines) --- --- ○ ○ ○ --- --- ---

Fiber Amplifier Units
Single-function, Standard, and Mark-detecting Amplifier Units

Type Single-
function
models Standard models Mark-detecting models
(multiple color light sources)
Green LED Blue LED Infrared LED
Model E3X-DA[]SE-S E3X-DA[]-S E3X-DAG[]-S E3X-DAB[]-S E3X-DAH[]-S
Light source (wavelength) Red LED (635 nm) Green LED
(525 nm) Blue LED
(470 nm) Infrared LED
(870nm)
Power supply voltage 12 to 24 VDC ± 10%, ripple (p-p) 10% max.
Power consumption 960 mW max. (current consumption: 40 mA max. at power supply voltage of 24 VDC)
Control output Load power supply voltage: 26.4 VDC; NPN/PNP open collector;
load current: 50 mA max.; residual voltage: 1 V max.
Remote control input No-voltage input
(contact/non-
contact) ---
Protection circuits Reverse polarity for power supply connection, output short-circuit
Re-
sponse
time Super-high-
speed mode --- Operate: 48 μs, reset: 50 μs *1, *2
High-speed
mode --- Operate/reset: 250 μs
Standard mode Operate or reset: 1 ms
High-resolution
mode --- Operate or reset: 4 ms
Sensitivity setting Teaching or manual method
Func-
tions Power tuning --- Light emission power and reception gain, digital control method
Timer function --- Select from OFF-delay, ON-delay, or one-shot timer.
1 ms to 5 s (1 to 20 ms set in 1-ms increments, 20 to 200 ms set
in 10-ms increments, 200 ms to 1 s set in 100-ms increments,
and 1 to 5 s set in 1 s-increments)
Automatic power
control (APC) High-speed control method for emission current
Zero-reset --- Negative values can be displayed. (Threshold value is shifted.)
Initial reset Settings can be returned to defaults as required.
Mutual
interference
prevention Possible for up to 10 Units *3
Display Operation
indicator (orange) Operation indicator (orange), Power Tuning indicator (orange)
Digital display incident level +
threshold Select from incident level + threshold or other 6 patterns
Display orientation --- Switching between normal/reversed display is possible.
Ambient illumination
(Receiver side) Incandescent lamp: 10,000 lux max.
Sunlight: 20,000 lux max.
Ambient temperature
range Operating: Groups of 1 to 2 Amplifiers: -25°C to 55°C
Groups of 3 to 10 Amplifiers: -25°C to 50°C
Groups of 11 to 16 Amplifiers: -25°C to 45°C
Storage: -30°C to 70°C (with no icing or condensation)
Ambient humidity range Operating and storage: 35% to 85% (with no condensation)
Insulation resistance 20 MΩ min. (at 500 VDC)
Dielectric strength 1,000 VAC at 50/60 Hz for 1 minute
Vibration resistance Destruction: 10 to 55 Hz with a 1.5-mm double amplitude for 2 hrs each in X, Y and Z
directions
Shock resistance Destruction: 500 m/s², for 3 times each in X, Y and Z directions
Degree of protection IEC 60529 IP50 (with Protective Cover attached)
Connection method Pre-wired or amplifier unit connector
Weight (packed state) Pre-wired model: Approx. 100 g, Amplifier unit connector model: Approx. 55 g
Mate-
rials Case Polybutylene terephthalate (PBT)
Cover Polycarbonate (PC)
Accessories Instruction manual
*1. Communications are disabled if the detection mode is selected during super-high-speed mode, and the
communications functions for mutual interference prevention and the Mobile Console will not function.
*2. PNP output is as follows: Operate: 53 μs, reset: 55 μs.
*3. Mutual interference prevention can be used for only up to 6 Units if power tuning is enabled.

Advanced and 2-channel Amplifier Units

Type Advanced models
External input
models Twin output
models ATC function
models Analog output
models
Model E3X-DA[]RM-S E3X-DA[]TW-S E3X-DA[]AT-S E3X-DA[]AN-S
Light source
(wavelength) Red LED (635 nm)
Power supply voltage 12 to 24 VDC ± 10%, ripple (p-p) 10% max.
Power consumption 1,080 mW max. (current consumption: 45 mA max. at power supply voltage of 24 VDC)
Control
output ON/OFF
output Load power supply voltage: 26.4 VDC; NPN/PNP open collector;
load current: 50 mA max.; residual voltage: 1 V max.
Analog
output --- Control output
Voltage output: 1 to 5 VDC
(Connection load 10 kΩ min.)
Temperature characteristics
0.3%F.S./°C
Response speed/repeat
accuracy
Super-high-speed mode:
80 μs/1.5%F.S.
High-speed mode: 250 μs/
1.5%F.S.
Standard mode: 1 ms/1%F.S.
High-resolution mode:
4 ms/0.75%F.S.
Remote control input Load power supply
voltage: 26.4 VDC;
NPN/PNP open
collector;
load current: 50
mA max.; residual
voltage: 1 V max. ---
Protection circuits Reverse polarity for power supply connection, output short-circuit
Re-
sponse
time Super-high-
speed mode Operate: 48 μs,
reset: 50 μs
*3, *4, *5 Operate or reset: 80 μs *3
High-speed
mode Operate or reset: 250 μs
Standard
mode Operate or reset: 1ms
High-
resolution
mode Operate or reset: 4ms
Sensitivity setting Teaching or manual method
Func-
tions Power tuning Light emission power and reception gain, digital control method
Differential
detection Switchable between single edge and double edge detection
mode Single edge: Can be set to 250 μs, 500 μs, 1 ms,
10 ms, or 100 ms.
Double edge: Can be set to 500 μs, 1 ms, 2 ms, 20 ms, or
200 ms. ---
Timer
function Select from OFF-delay, ON-delay, or one-shot timer.
1 ms to 5 s (1 to 20 ms set in 1-ms increments, 20 to 200 ms set in 10-ms increments,
200 ms to 1 s set in 100-ms increments, and 1 to 5 s set in 1 s-increments)
Automatic
power control
(APC) High-speed control method for emission current
Zero-reset Negative values can be displayed. (Threshold value is shifted.)
Initial reset Settings can be returned to defaults as required.
Mutual
interference
prevention Possible for up to 10 Units *7
Counter Switchable between
up counter and
down counter.
Set count:
0 to 9,999,999 ---
I/O setting External input
setting (Select
from teaching,
power tuning, zero
reset, light OFF,
or counter reset.) Output setting
(Select from
channel 2 output,
area output, or
self-diagnosis.) Output setting
(Select from
channel 2 output,
area output, self-
diagnosis output,
or ATC error
output) Analog output setting
(offset voltage adjustable)
Display Operation indicator
(orange), Power
Tuning indicator
(orange) Operation indicator for channel 1
(orange), Operation indicator for
channel 2 (orange) Operation indicator
(orange), Power Tuning
indicator (orange)
Digital display Select from incident
level + threshold or
other 7 patterns Select from incident level + threshold or other 6 patterns
Display orientation Switching between normal/reversed display is possible.
Ambient illumination
(Receiver side) Incandescent lamp: 10,000 lux max.
Sunlight: 20,000 lux max.
Ambient temperature
range Operating: Groups of 1 to 2 Amplifiers: -25 °C to 55 °C
Groups of 3 to 10 Amplifiers: -25 °C to 50 °C
Groups of 11 to 16 Amplifiers: -25 °C to 45 °C
Storage: -30 °C to 70 °C (with no icing or condensation)
Ambient humidity range Operating and storage: 35% to 85% (with no condensation)
Insulation resistance 20 MΩ min. (at 500 VDC)
Dielectric strength 1,000 VAC at 50/60 Hz for 1 minute
Vibration resistance
(Destruction) 10 to 55 Hz with a 1.5-mm double amplitude for 2 hrs each in X, Y and Z directions
Shock resistance
(Destruction) 500 m/s², for 3 times each in X, Y and Z directions
Degree of protection IEC 60529 IP50 (with Protective Cover attached)
Connection method Pre-wired or amplifier unit connector
Weight (packed state) Pre-wired model: Approx. 100 g, Amplifier unit connector model: Approx. 55 g
Mate-
rials Case Polybutylene terephthalate (PBT)
Cover Polycarbonate (PC)
Accessories Instruction manual

Type 2-channel models *1
Standard models Model for Sensor
Communications Unit *1
Model E3X-MDA[]
([]: 11/41/6/8) E3X-MDA0
Light source (wavelength) Red LED (635 nm)
Power supply voltage 12 to 24 VDC ± 10%, ripple (p-p) 10% max.
Power consumption 1,080 mW max. (current consumption: 45 mA max. at power supply voltage of
24 VDC)
Control
output ON/OFF output Load power supply voltage: 26.4 VDC;
NPN/PNP open collector;
load current: 50 mA max.;
residual voltage: 1 V max. Supplied from the connector
through the Sensor
Communications Unit
Analog output ---
Remote control input ---
Protection circuits Reverse polarity for power supply connection, output short-circuit
Response
time Super-high-speed mode Operate or reset: 130 μs *3, *6 ---
High-speed mode Operate or reset: 450 μs
Standard mode Operate or reset: 1ms
High-resolution mode Operate or reset: 4ms
Sensitivity setting Teaching or manual method
Functions Power tuning Light emission power and reception gain, digital control method
Differential detection ---
Timer function Select from OFF-delay, ON-delay, or one-shot timer.
1 ms to 5 s (1 to 20 ms set in 1-ms increments, 20 to 200 ms set in 10-ms
increments, 200 ms to 1 s set in 100-ms increments, and 1 to 5 s set in 1
s-increments)
Automatic power
control (APC) High-speed control method for emission current
Zero-reset Negative values can be displayed. (Threshold value is shifted.)
Initial reset Settings can be returned to defaults as required.
Mutual interference
prevention Possible for up to 9 Units (18 channels) *8
Counter ---
I/O setting Output setting
(Select from channel 2 output, AND, OR, leading edge sync, falling edge sync,
or differential output)
Display Operation indicator for channel 1 (orange),
Operation indicator for channel 2 (orange)
Digital display Select from incident level for channel 1 + incident level for channel 2 or
other 7 patterns
Display orientation Switching between normal/reversed display is possible.
Ambient illumination
(Receiver side) Incandescent lamp: 10,000 lux max.
Sunlight: 20,000 lux max.
Ambient temperature range Operating: Groups of 1 to 2 Amplifiers: -25 °C to 55 °C
Groups of 3 to 10 Amplifiers: -25 °C to 50 °C
Groups of 11 to 16 Amplifiers: -25 °C to 45 °C *9
Storage: -30 °C to 70 °C (with no icing or condensation)
Ambient humidity range Operating and storage: 35% to 85% (with no condensation)
Insulation resistance 20 MΩ min. (at 500 VDC)
Dielectric strength 1,000 VAC at 50/60 Hz for 1 minute
Vibration resistance
(Destruction) 10 to 55 Hz with a 1.5-mm double
amplitude for 2 hrs each in X, Y and
Z directions 10 to 150 Hz with a 0.7-mm double
amplitude for 80 min each in X, Y,
and Z directions
Shock resistance
(Destruction) 500 m/s², for 3 times each in X, Y
and Z directions 200 m/s² for 3 times each in X, Y,
and Z directions
Degree of protection IEC 60529 IP50 (with Protective Cover attached)
Connection method Pre-wired or amplifier unit connector Connector for Sensor
Communications Unit
Weight (packed state) Pre-wired model: Approx. 100 g,
Amplifier unit connector model:
Approx. 55 g Approx. 55 g
Materials Case Polybutylene terephthalate (PBT)
Cover Polycarbonate (PC)
Accessories Instruction manual

*1.This model allows you to use an E3X-ECT EtherCAT Sensor Communications Unit or E3X-CRT CompoNet Sensor
Communications Unit.
*2.Input Specifications
Contact input (relay or switch) Non-contact input (transistor)
NPN ON: Shorted to 0 V (sourcing current: 1 mA max.).
OFF: Open or shorted to Vcc. ON: 1.5 V max. (sourcing current: 1 mA max.)
OFF: Vcc - 1.5 V to Vcc (leakage current: 0.1 mA max.)
PNP ON: Shorted to Vcc (sinking current: 3 mA max.).
OFF: Open or shorted to 0 V. ON: Vcc - 1.5 V to Vcc (sinking current: 3 mA max.)
OFF: 1.5 V max. (leakage current: 0.1 mA max.)
*3.Communications are disabled if the detection mode is selected during super-high-speed mode, and the
communications functions for mutual interference prevention and the Mobile Console will not function.
*4.PNP output is as follows: Operate: 53 μs, reset: 55 μs.
*5.When counter is enabled: 80 μs for operate and reset respectively.
*6.When differential output is selected for the output setting, the second channel output is 200 μs for operation and
reset respectively.
*7.Mutual interference prevention can be used for only up to 6 Units if power tuning is enabled.
*8.Mutual interference prevention can be used for up to 5 Units (10 channels) if power tuning is enabled.
*9.The following temperature ranges apply for operation when an E3X-ECT or E3X-CRT Sensor Communications Unit is
used with the E3X-MDA0: Groups of 1 or 2 Amplifier Units: 0 to 55°C, Groups of 3 to 10 Amplifier Units: 0 to 50°C,
Groups of 11 to 16 Amplifier Units: 0 to 45°C, Groups of 17 to 30 Amplifier Units (with the E3X-ECT): 0 to 40°C.

Amplifier Unit Connectors

Model E3X-CN11/21/22 E3X-CN12
Rated current 2.5 A
Rated voltage 50 V
Contact resistance 20 mΩ max. (20 mVDC max., 100 mA max.)
(The figure is for connection to the Fiber Amplifier Unit and the adjacent Connector. It does
not include the conductor resistance of the cable.)
No. of insertions Destruction: 50 times
(The figure for the number of insertions is for connection to the Fiber Amplifier Unit and the
adjacent Connector.)
Materials Housing Polybutylene terephthalate (PBT)
Contacts Phosphor bronze/gold-plated nickel
Weight (packed state) Approx. 55 g Approx. 25 g

Mobile Console

Model E3X-MC11-SV2
Applicable Fiber Amplifier Units E3X-DA-S
E3X-MDA
E3C-LDA
E2C-EDA
Power supply voltage Charged with AC adapter
Connection method Connected via adapter
Weight (packed state) Approx. 580 g (Console only: 120 g)

Sensing Distance

(Unit: mm)

Single-function, Standard, Advanced, and 2-channel Amplifier Units

Note: The super-high-speed mode cannot be used with the E3X-MDA0.

Threaded Models

Sensing
method Sensing
direction Size Model E3X-DA[]-S E3X-MDA[]
High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode
Through-
beam Right-angle M4 E32-T11N 2M 700 530 350 140 450 350 230 140
E32-LT11N 2M 2,300 1,750 1,150 460 1,500 1,150 750 460
Straight E32-T11R 2M 700 530 350 140 450 350 230 140
E32-LT11 2M 2,700 2,050 1,350 540 1,750 1,350 890 540
E32-LT11R 2M 2,300 1,750 1,150 460 1,500 1,150 750 460
Reflective Right-angle M3 E32-C31N 2M 40 25 16 7 24 16 10 7
E32-C21N 2M 75 65 45 20 50 45 30 20
M4 E32-D21N 2M 300 170 120 50 170 120 80 50
M6 E32-C11N 2M 280 170 110 50 160 110 70 50
E32-LD11N 2M 300 170 120 50 170 120 80 50
Straight M3 E32-D21R 2M 50 30 20 8 30 22 14 8
E32-C31 2M 120 75 50 22 75 50 30 22
E32-C31M 1M
M4 E32-D211R 2M 50 30 20 8 30 22 14 8
M6 E32-D11R 2M 300 170 120 50 170 120 80 50
E32-CC200 2M 500 300 200 90 300 210 140 90
E32-LD11 2M 305 180 125 55 175 125 85 55
E32-LD11R 2M 300 170 120 50 170 120 80 50

Cylindrical Models

Sensing
method Size Sensing
direction Model E3X-DA[]-S E3X-MDA[]
High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode
Through-
beam 1 dia. Top-view E32-T223R 2M 160 130 75 30 110 85 55 30
1.5 dia. E32-T22B 2M 240 200 110 45 150 110 70 45
Reflective 3 dia. E32-T12R 2M 700 530 350 140 450 350 230 140
Side-view E32-T14LR 2M 270 210 130 50 170 130 85 50
1.5 dia. Top-view E32-D22B 2M 50 30 20 8 30 22 14 8
1.5 dia. +
0.5 dia. E32-D43M 1M 10 6 4 2 6 4 2.5 2
3 dia. E32-D22R 2M 50 30 20 8 30 22 14 8
E32-D221B 2M 110 70 45 20 70 50 30 20
E32-D32L 2M 250 150 100 45 150 100 65 45
3 dia. +
0.8 dia. E32-D33 2M 25 16 10 4 16 10 6 4

Flat Models

Sensing
method Sensing
direction Model E3X-DA[]-S E3X-MDA[]
High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode
Through-beam Top-view E32-T15XR 2M 700 530 350 140 450 350 230 140
Side-view E32-T15YR 2M 270 210 130 50 170 130 85 50
Flat-view E32-T15ZR 2M
Reflective Top-view E32-D15XR 2M 300 170 120 50 170 120 80 50
Side-view E32-D15YR 2M 70 40 26 12 40 29 19 12
Flat-view E32-D15ZR 2M

Sleeve Models

Sensing
method Sensing
direction Model E3X-DA[]-S E3X-MDA[]
High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode
Through-
beam Side-view E32-T24R 2M 60 50 25 10 35 27 18 10
E32-T24E 2M 160 130 75 30 100 70 45 30
Top-view E32-T21-S1 2M 180 150 85 34 120 85 57 34
E32-T33 1M 53 44 25 10 35 28 18 10
E32-TC200BR 2M 700 530 350 140 450 350 230 140
Reflective Side-view E32-D24R 2M 26 15 10 4 15 10 6 4
E32-D24-S2 2M 40 26 23 7 26 23 15 7
Top-view E32-D43M 1M 10 6 4 2 6 4 2.5 2
E32-D331 2M 5 3 2 0.8 3 2 1.3 0.8
E32-D33 2M 25 16 10 4 16 10 6 4
E32-D32-S1 0.5M 21 13 9 3 14 9 6 3
E32-D31-S1 0.5M
E32-DC200F4R 2M 50 30 20 8 30 22 14 8
E32-D22-S1 2M
E32-D21-S3 2M 85 55 36 15 56 36 24 15
E32-DC200BR 2M 300 170 120 50 170 120 80 50
E32-D25-S3 2M 85 55 36 15 56 36 24 15

Small-spot, Reflective

Type Spot
diam-
eter Center
dis-
tance
(mm) Model E3X-DA[]-S E3X-MDA[]
High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode
Variable
spot 0.1 to
0.6 dia. 6 to 5 E32-C42 1M +
E39-F3A Spot diameter of 0.1 to 0.6 mm
at 6 to 15 mm. Spot diameter of 0.1 to 0.6 mm
at 6 to 15 mm.
0.3 to
1.6 dia. 10 to
30 E32-C42 1M +
E39-F17 Spot diameter of 0.3 to 1.6 mm
at 10 to 30 mm. Spot diameter of 0.3 to 1.6 mm
at 10 to 30 mm.
Parallel
light 4 dia. 0 to
20 E32-C31 2M +
E39-F3C Spot diameter of 4 mm max. at
0 to 20 mm. Spot diameter of 4 mm max. at
0 to 20 mm.
E32-C31N 2M +
E39-F3C
Integrated
lens 0.1 dia. 5 E32-C42S 1M Spot diameter of 0.1 mm at 5
mm. Spot diameter of 0.1 mm at 5
mm.
Small-
spot 0.1 dia. 7 E32-C41 1M +
E39-F3A-5 Spot diameter of 0.1 mm at 7
mm. Spot diameter of 0.1 mm at 7
mm.
0.5 dia. E32-C31 2M +
E39-F3A-5 Spot diameter of 0.5 mm at 7
mm. Spot diameter of 0.5 mm at 7
mm.
E32-C31N 2M +
E39-F3A-5
0.2 dia. 17 E32-C41 1M +
E39-F3B Spot diameter of 0.2 mm at 17
mm. Spot diameter of 0.2 mm at 17
mm.
0.5 dia. E32-C31 2M +
E39-F3B Spot diameter of 0.5 mm at 17
mm. Spot diameter of 0.5 mm at 17
mm.
E32-C31N 2M +
E39-F3B
3 dia. 50 E32-CC200 2M +
E39-F18 Spot diameter of 3 mm at 50
mm. Spot diameter of 3 mm at 50
mm.

High-power Beam

Type Sensing
direc-
tion Aper-
ture
angle Model E3X-DA[]-S E3X-MDA[]
High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode
Through-
beam
Integrated
lens Right-
angle 15 ° E32-LT11N 2M 2,300 1,750 1,150 460 1,500 1,150 750 460
Top-view 10 ° E32-T17L 10M 20,000
*1 20,000
*1 10,000 4,000 13,000 10,000 6,500 4,000
15 ° E32-LT11 2M 2,700 2,050 1,350 540 1,750 1,350 890 540
E32-LT11R 2M 2,300 1,750 1,150 460 1,500 1,150 750 460
Side-view 30 ° E32-T14 2M 4,000
*2 3,400 2,250 900 2,900 2,200 1,450 900
Through-
beam
models
with
lenses Right-
angle 12 ° E32-T11N 2M
+ E39-F1 4,000
*2 3,700 2,400 970 3,100 2,400 1,600 970
6 ° E32-T11N 2M
+ E39-F16 4,000
*2 4,000
*2 4,000
*2 1,700 4,000
*2 4,000
*2 2,900 1,700
Top-view 12 ° E32-T11R 2M
+ E39-F1 4,000
*2 3,700 2,400 970 3,100 2,400 1,600 970
6 ° E32-T11R 2M
+ E39-F16 4,000
*2 4,000
*2 4,000
*2 1,700 4,000
*2 4,000
*2 2,900 1,700
Side-view 60 ° E32-T11R 2M
+ E39-F2 520 400 250 100 330 260 170 100
Top-view 12 ° E32-T11 2M
+ E39-F1 4,000
*2 3,600 2,300 930 3,000 2,300 1,500 930
6 ° E32-T11 2M
+ E39-F16 4,000
*2 4,000
*2 4,000
*2 2,200 4,000
*2 4,000
*2 3,700 2,200
Side-view 60 ° E32-T11 2M
+ E39-F2 820 660 430 160 530 430 280 160
Top-view 12 ° E32-T51R 2M
+ E39-F1 3,900 2,900 1,900 780 2,500 1,900 1,300 780
6 ° E32-T51R 2M
+ E39-F16 4,000
*2 4,000
*2 3,500 1,400 4,000
*2 3,500 2,300 1,400
Side-view 60 ° E32-T51R 2M
+ E39-F2 500 380 250 100 320 250 160 100
Top-view 12 ° E32-T81R-S
2M + E39-F1 4,000
*2 3,200 2,100 840 2,700 2,100 1,380 840
6 ° E32-T81R-S
2M + E39-F16 4,000
*2 4,000
*2 3,700 1,500 4,000
*2 3,700 2,500 1,500
Side-view 60 ° E32-T81R-S
2M + E39-F2 540 410 270 100 350 270 170 100
Top-view 12 ° E32-T61-S
2M + E39-F1 4,000 3,400 2,200 900 3,000 2,200 1,450 900
6 ° E32-T61-S
2M + E39-F16 4,000
*2 4,000
*2 3,700 1,500 4,000
*2 3,700 2,500 1,500
Side-view 60 ° E32-T61-S
2M + E39-F2 600 450 300 120 390 300 200 120
Top-view 12 ° E32-T51 2M
+ E39-F1-33 4,000
*2 4,000
*2 3,500 1,400 4,000
*2 3,500 2,300 1,400
6 ° E32-T51 2M
+ E39-F16 4,000
*2 4,000
*2 4,000
*2 2,500 4,000
*2 4,000
*2 4,000
*2 2,500
Reflective
Integrated
lens Top-view 4 ° E32-D16 2M 40 to
1,000 40 to
700 40 to
450 40 to
240 40 to
600 40 to
490 40 to
300 40 to
240

Narrow View

Sensing
method Sensing
direction Aper-
ture
angle Model E3X-DA[]-S E3X-MDA[]
High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode
Through-
beam Side-view 1.5 ° E32-A03 2M 1,150 890 600 250 750 580 380 250
E32-A03-1 2M
3.4 ° E32-A04 2M 460 340 225 100 300 220 145 100
4 ° E32-T24SR 2M 1,480 1,100 730 290 920 730 480 290
E32-T24S 2M 1,750 1,300 870 350 1,100 870 580 350
E32-T22S 2M 2,500 1,900 1,250 500 1,600 1,250 830 500

Detection without Background Interference

Sensing
method Sensing
direction Model E3X-DA[]-S E3X-MDA[]
High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode
Limited-
reflective Flat-view E32-L16-N 2M 0 to 15 0 to 12 0 to 15 0 to 12
E32-L24S 2M 0 to 4 0 to 4
Side-view E32-L25L 2M 5.4 to 9 (center 7.2) 5.4 to 9 (center 7.2)

Transparent Object Detection (Retro-reflective)

Sensing
method Feature Size Model E3X-DA[]-S E3X-MDA[]
High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode
Retro-
reflective Film
detection M3 E32-C31 2M +
E39-F3R +
E39-RP37 250 150 100 45 150 100 65 45
Square - E32-R16 2M 150 to 1500 150 to 1500
Threaded
models M6 E32-R21 2M 10 to 250 10 to 250
Hex-shaped M6 E32-LR11NP 2M
+ E39-RP1 630 600 500 275 600 500 330 275

Transparent Object Detection (Limited-reflective)

Sensing
method Feature Sensing
direc-
tion Model E3X-DA[]-S E3X-MDA[]
High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode
Limited-
reflective Small size Flat-view E32- L24S 2M 0 to 4 0 to 4
Standard E32-L16-N 2M 0 to 15 0 to 12 0 to 15 0 to 12
Glass
substrate
alignment,
70 °C E32-A08 2M 10 to 20 - 10 to 20 -
Standard/
long-
distance E32-A12 2M 12 to 30 - 12 to 30 -
Side view
form Side-view E32-L25L 2M 5.4 to 9 (center 7.2) 5.4 to 9 (center 7.2)
Glass
substrate
mapping,
70 °C Top-view E32-A09 2M 15 to 38 - 15 to 38 -

Chemical-resistant, Oil-resistant

Sensing
method Type Sensing
direc-
tion Model E3X-DA[]-S E3X-MDA[]
High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode
Through-
beam Oil-
resistant Right-
angle E32-T11NF 2M 4,000 * 4,000 * 2,800 1,100 3,600 2,800 1,800 1,100
Chemical/
oil-
resistant Top-view E32-T12F 2M 4,000 * 3,000 2,000 800 2,600 2,000 1,300 800
E32-T11F 2M 2,500 2,000 1,300 520 1,600 1,300 850 520
Side-view E32-T14F 2M 500 400 250 100 320 250 160 100
Chemical/
oil-
resistant
at 150 °C Top-view E32-T51F 2M 1,800 1,400 900 350 1,190 920 600 350
Reflective Chemical/
oil-
resistant Top-view E32-D12F 2M 160 95 65 30 95 70 45 30
Chemical-
resistant
cable E32-D11U 2M 300 170 120 50 170 125 80 50
* The fiber length is 2 m on each side, so the sensing distance is given as 4,000 mm.

Bending-resistant

Sensing
method Size Model E3X-DA[]-S E3X-MDA[]
High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode
Through-beam 1.5 dia. E32-T22B 2M 240 200 110 45 150 110 70 45
M3 E32-T21 2M
M4 E32-T11 2M 900 680 450 180 580 450 300 180
Square E32-T25XB 2M 180 150 85 35 125 95 60 35
Reflective 1.5 dia. E32-D22B 2M 50 30 20 8 30 22 14 8
M3 E32-D21 2M
3 dia. E32-D221B 2M 110 70 45 20 70 50 30 20
M4 E32-D21B 2M
M6 E32-D11 2M 300 170 120 50 170 125 80 50
Square E32-D25XB 2M 85 50 30 15 50 35 23 15

Heat-resistant

Sensing
method Heat-
resistant
temperature Model E3X-DA[]-S E3X-MDA[]
High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode
Through-
beam 100 °C E32-T51R 2M 560 425 280 110 360 280 180 110
150 °C E32-T51 2M 1,000 760 500 200 650 500 330 200
200 °C E32-T81R-S 2M 360 280 180 70 230 180 120 70
350 °C E32-T61-S 2M 600 450 300 120 390 300 200 120
Reflective 100 °C E32-D51R 2M 240 135 95 40 130 95 60 40
150 °C E32-D51 2M 400 230 160 72 230 165 110 72
200 °C E32-D81R-S 2M 150 90 60 27 90 63 40 27
300 °C E32-A08H2 2M 10 to 20 - 10 to 20 -
E32-A09H2 2M 20 to 30 - 20 to 30 -
350 °C E32-D611-S 2M 150 90 60 27 90 63 40 27
E32-D61-S 2M
400 °C E32-D73-S 2M 100 60 40 18 60 40 25 18

Area Beam

Sensing
method Type Sensing
width Model E3X-DA[]-S E3X-MDA[]
High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode
Through-
beam Area 11 mm E32-T16PR 2M 1,100 840 560 220 730 560 370 220
E32-T16JR 2M 980 750 480 190 600 480 320 190
30 mm E32-T16WR 2M 1,700 1,300 850 340 1,100 860 570 340
Reflective Array 11 mm E32-D36P1 2M 250 150 100 45 150 100 65 45

Liquid-level Detection

Sensing
method Tube
diameter Feature Model E3X-DA[]-S E3X-MDA[]
High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode
Tube-
mounting 3.2/6.4/
9.5 dia. Stable
residual
quantity
detection E32-A01 5M Applicable tube: Transparent
tube with a diameter of 3.2,
6.4, or 9.5 mm,
Recommended wall thickness:
1 mm Applicable tube: Transparent
tube with a diameter of 3.2,
6.4, or 9.5 mm,
Recommended wall thickness:
1 mm
8 to
10 dia. Mounting
at multi
levels E32-L25T 2M Applicable tube: Transparent
tube with a diameter of 8 to
10 mm, Recommended wall
thickness: 1 mm Applicable tube: Transparent
tube with a diameter of 8 to
10 mm, Recommended wall
thickness: 1 mm
No re-
strictions Large
tubes E32-D36T 2M Applicable tube: Transparent
tube
(no restriction on diameter) Applicable tube: Transparent
tube
(no restriction on diameter)
Liquid
contact
(heat-
resistant
up to
200 °C) - - E32-D82F1 4M Liquid-contact Type Liquid-contact Type

Vacuum-resistant

Sensing
method Heat-
resistant
temperature Model E3X-DA[]-S E3X-MDA[]
High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode
Through-
beam 120 °C E32-T51V 1M 260 200 130 50 170 130 85 50
E32-T51V 1M +
E39-F1V 1,350 1,000 680 260 850 650 430 260
200 °C E32-T84SV 1M 630 480 320 130 410 310 200 130

FPD, Semiconductors, and Solar Cells

Sensing
method Appli-
cation Oper-
ating
temper-
ature Model E3X-DA[]-S E3X-MDA[]
High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode
Limited-
reflective Glass
presence
detection 70 °C E32-L16-N 2M 0 to 15 0 to 12 0 to 15 0 to 12
Glass
substrate
alignment E32-A08 2M 10 to 20 - 10 to 20 -
300 °C E32-A08H2 2M
70 °C E32-A12 2M 12 to 30 - 12 to 30 -
Glass
substrate
mapping E32-A09 2M 15 to 38 - 15 to 38 -
300 °C E32-A09H2 2M 20 to 30 - 20 to 30 -
Through-
beam Wafer
mapping 70 °C E32-A03 2M 1,150 890 600 250 750 580 380 250
E32-A03-1 2M
E32-A04 2M 460 340 225 100 300 220 145 100
E32-T24SR 2M 1,480 1,100 730 290 920 730 480 290
E32-T24S 2M 1,750 1,300 870 350 1,100 870 580 350

Mark-detecting Amplifier Units (Different Colors of Light Sources)
Threaded Models

Sensing
method Sensing
direction Size Model E3X-DAG[]-S/DAB[]-S E3X-DAH[]-S
High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode
Through-
beam Right-angle M4 E32-T11N 2M 65 50 35 30 280 190 130 55
Straight E32-T11R 2M
Reflective Straight M3 E32-C31 2M 7.5 6 4 3.5 50 37 25 8.5
M6 E32-D11R 2M 17 14 10 8 120 90 60 21
E32-CC200 2M 32 25 16 16 200 150 100 35

Cylindrical Models

Sensing
method Size Sensing
direction Model E3X-DAG[]-S/DAB[]-S E3X-DAH[]-S
High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode
Through-
beam 3 dia. Top-view E32-T12R 2M 65 50 35 30 280 190 130 55
Side-view E32-T14LR 2M 25 20 22 12 100 75 80 21
Reflective 3 dia. Top-view E32-D32L 2M 15 12 8 7.5 100 75 50 17

Flat Models

Sensing
method Sensing
direction Model E3X-DAG[]-S/DAB[]-S E3X-DAH[]-S
High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode
Through-beam Top-view E32-T15XR 2M 65 50 35 30 280 190 130 55
Side-view E32-T15YR 2M 25 20 22 12 100 75 80 21
Flat-view E32-T15ZR 2M
Reflective Top-view E32-D15XR 2M 17 14 10 8 120 90 60 21
Side-view E32-D15YR 2M 4.2 3.3 2.2 2.1 28 20 13 5
Flat-view E32-D15ZR 2M

Sleeve Models

Sensing
method Sensing
direction Model E3X-DAG[]-S/DAB[]-S E3X-DAH[]-S
High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode
Through-beam Top-view E32-TC200BR 2M 65 50 35 30 280 190 130 55
Reflective Top-view E32-DC200BR 2M 17 14 10 8 120 90 60 21

High-power Beam

Type Sensing
direction Aper-
ture
angle Model E3X-DAG[]-S/DAB[]-S E3X-DAH[]-S
High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode High-
reso-
lution
mode Stan-
dard
mode High-
speed
mode Super-
high-
speed
mode
Through-beam
Integrated lens Side-view 30 ° E32-T14 2M 320 260 220 160 1800 1200 820 360

last update: October 01, 2015

OMRON E3X-DA-S / MDA catalog
E3X-DA-S / MDA Digital Fiber Amplifier Unit/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

E3X-DA-S/MDA Data Sheet -
[1588KB] Apr 01, 201620160401 E3X-DA-S/MDA Data Sheet

E3X-DA-S/MDA Operating Procedures -
[1069KB] Jun 01, 201720170601 E3X-DA-S/MDA Operating Procedures

OMRON E3X-DA-S / MDA lineup
E3X-DA-S / MDA Digital Fiber Amplifier Unit/Lineup
last update: April 01, 2016
Fiber Amplifier Units
Amplifier Units with Cables (2 m)

Item Appearance Functions Model
NPN output PNP output
Single-function models --- E3X-DA11SE-S 2M * E3X-DA41SE-S 2M *
Standard models Timer,
Response speed
change E3X-DA11-S 2M * E3X-DA41-S 2M *
Mark-detecting
models
(multiple color
light sources) Green LED E3X-DAG11-S 2M E3X-DAG41-S 2M
Blue LED E3X-DAB11-S 2M E3X-DAB41-S 2M
Infrared LED E3X-DAH11-S 2M E3X-DAH41-S 2M
Advanced
models External-input
models Remote setting,
counter, differential
operation E3X-DA11RM-S 2M * E3X-DA41RM-S 2M *
Twin-output
models Area output,
self-diagnosis,
differential operation E3X-DA11TW-S 2M * E3X-DA41TW-S 2M *
ATC function
models ATC (Threshold
value automatic
correction) E3X-DA11AT-S 2M * E3X-DA41AT-S 2M *
Analog output
models Analog output
models E3X-DA11AN-S 2M E3X-DA41AN-S 2M
2-channel models AND/OR output E3X-MDA11 2M E3X-MDA41 2M

* Manufacture of the E3X-DA[]SE-S/DA[]-S/DA[]AT-S/DA[]RM-S/DA[]TW-S will be discontinued in March 2017.

Amplifier Units with Wire-saving Connectors

Item Appearance Functions Model
NPN output PNP output
Single-function models --- E3X-DA6SE-S *1 E3X-DA8SE-S *1
Standard models Timer,
Response speed
change E3X-DA6-S *1,2 E3X-DA8-S *1,2
Mark-detecting
models
(multiple color
light sources) Green LED E3X-DAG6-S *2 E3X-DAG8-S *2
Blue LED E3X-DAB6-S *2 E3X-DAB8-S *2
Infrared LED E3X-DAH6-S *2 E3X-DAH8-S *2
Advanced
models External-input
models Remote setting,
counter, differential
operation E3X-DA6RM-S
*1,2 E3X-DA8RM-S
*1,2
Twin-output
models Area output,
self-diagnosis,
differential operation E3X-DA6TW-S
*1,2 E3X-DA8TW-S
*1,2
ATC function
models ATC (Threshold
value automatic
correction) E3X-DA6AT-S
*1 E3X-DA8AT-S
*1
2-channel models AND/OR output E3X-MDA6 *2 E3X-MDA8 *2

*1. Manufacture of the E3X-DA[]SE-S/DA[]-S/DA[]AT-S/DA[]RM-S/DA[]TW-S will be discontinued in March 2017.
*2. These models allow you to use an E3X-DRT21-S VER.3 Sensor Communications Unit. When using the E3X-DRT21-S
VER.3, use an E3X-CN02 Connector without a Cable for the Wire-saving Connector.

Amplifier Units with Connectors for EtherCAT or CompoNet Sensor Communications Units

Item Appearance Functions Model Applicable Sensor
Communications Unit
2-channel model AND/OR output E3X-MDA0 E3X-ECT
E3X-CRT

Accessories (Order Separately)
Amplifier Unit Connectors (Required for models for Wire-saving Connectors.)

Note: Protector seals are provided as accessories.
Item Appearance Cable length No. of conductors Model
Master Connector 2 m 3 E3X-CN11
4 E3X-CN21
Slave Connector 1 E3X-CN12
2 E3X-CN22

Ordering Precaution for Amplifier Units with Wire-saving Connectors

Amplifier Units and Connectors are sold separately. Refer to the following tables when placing an order.
Fiber Amplifier Unit Applicable Connector (Order Separately)
Model NPN output PNP output Master Connector Slave Connector
Single-function models E3X-DA6SE-S E3X-DA8SE-S E3X-CN11 E3X-CN12
Standard models E3X-DA6-S E3X-DA8-S
Mark-detecting models
(multiple color light sources) E3X-DAG6-S E3X-DA8-S
E3X-DAB6-S E3X-DAB8-S
E3X-DAH6-S E3X-DAH8-S
Advanced models E3X-DA6TW-S E3X-DA8TW-S E3X-CN21 E3X-CN22
E3X-DA6RM-S E3X-DA8RM-S
E3X-DA6AT-S E3X-DA8AT-S
2-channel models E3X-MDA6 E3X-MDA8

When Using 5 Amplifier Units

Fiber Amplifier Units (5 Units) + 1 Master Connector + 4 Slave Connectors

Mobile Console

Appearance Model Remarks
E3X-MC11-SV2
(model number of set) Mobile Console with Head, Cable, and AC adapter provided
as accessories
E3X-MC11-C1-SV2 Mobile Console
E3X-MC11-H1 Head
E39-Z12-1 Cable (1.5 m)
Note: Use the E3X-MC11-SV2 Mobile Console for the E3X-DA-S/MDA-series Fiber Amplifier Units.
The E3X-MC11-SV2 is an upgraded version of the E3X-MC11-S that is fully interchangeable with the older model.

Mounting Bracket

Appearance Model Quantity
E39-L143 1

End Plate

Appearance Model Quantity
PFP-M 1

last update: April 01, 2016

OMRON E3X-DA-S / MDA dimension
E3X-DA-S / MDA Digital Fiber Amplifier Unit/Dimensions
last update: October 01, 2015

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

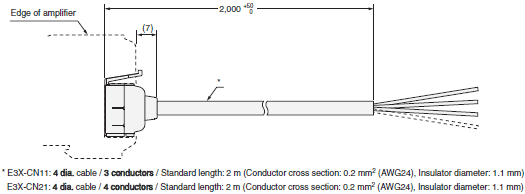

Fiber Amplifier Units

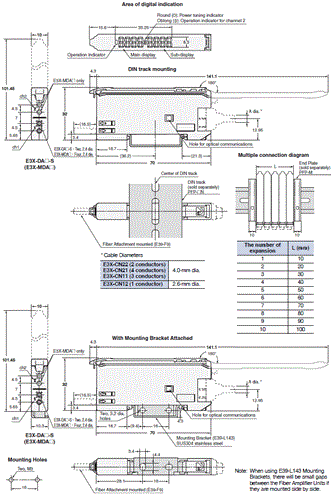

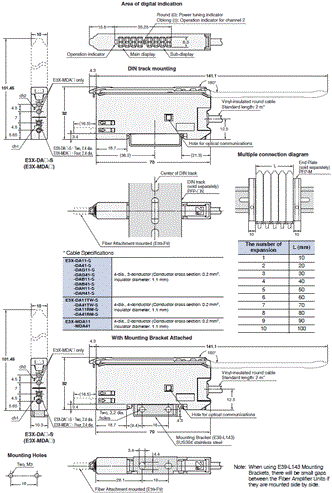

Amplifier Units with Cables
E3X-DA11-S, E3X-DA41-S
E3X-DAG11-S, E3X-DAG41-S
E3X-DAB11-S, E3X-DAB41-S
E3X-DAH11-S, E3X-DAH41-S
E3X-DA11RM-S, E3X-DA41RM-S
E3X-DA11TW-S, E3X-DA41TW-S
E3X-DA11SE-S, E3X-DA41SE-S
E3X-DA11AT-S, E3X-DA41AT-S
E3X-DA11AN-S, E3X-DA41AN-S
E3X-MDA11, E3X-MDA41

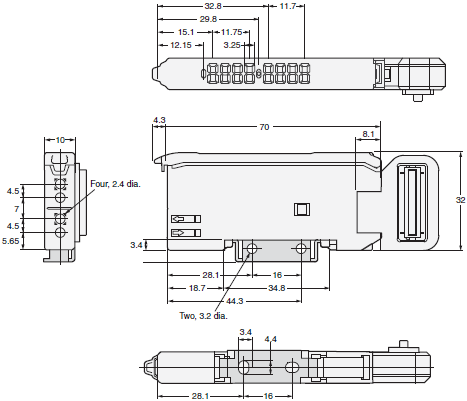

Amplifier Units with Wire-saving Connectors
E3X-DA6-S, E3X-DA8-S,
E3X-DAG6-S, E3X-DAG8-S,
E3X-DAB6-S, E3X-DAB8-S,
E3X-DAH6-S, E3X-DAH8-S,
E3X-DA6RM-S, E3X-DA8RM-S,
E3X-DA6TW-S, E3X-DA8TW-S,
E3X-DA6SE-S, E3X-DA8SE-S,
E3X-DA6AT-S, E3X-DA8AT-S,
E3X-MDA6, E3X-MDA8

Amplifier Unit with Connector for Sensor Communications Unit
E3X-MDA0

Amplifier Unit Connectors

Master Connectors
E3X-CN11
E3X-CN21

Slave Connectors
E3X-CN12
E3X-CN22

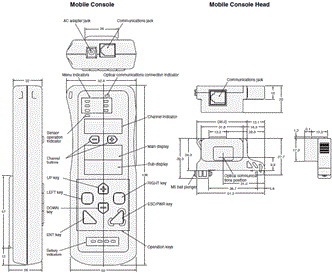

Mobile Console
E3X-MC11-SV2

last update: October 01, 2015

NO. E3X-DA-S / MDA

TYPE:Fiber Sensors Fiber Amplifier Copyright Statement

DATE:2021-06-12

Associated products:
E32-L11FP / L1[]FS, E3X-DA[][]TG-S Wet Process Sensor/Features E3X-DA-N Digital Fiber Amplifier/Features

Type	Light source	Re- sponse time	Control output/input	Functions
ON/ OFF output	Input	Analog output	Power tuning	Timer	Inter- ference pre- vention	Differ- ential detec- tion	count- er	ATC
Single-function models	Red LED	1 ms	Only main	---	---	---	---	○	---	---	---
Standard models	50 μs to 4 ms	○	○
Mark- de- tecting models	E3X-DA[]G-S	Green LED	50 μs to 4 ms	Only main	---	---	○	○	○	---	---	---
3X-DA[]B-S	Blue LED
E3X-DA[]H-S	Infrared LED
Ad- vanced models	Twin-output models	Red LED	50 μs to 4 ms	Only main	○ (1 line)	---	○	○	○	○	○	---
External-input models	80 μs to 4 ms	Main + sub (2 lines)	---	---
ATC function models	130 μs to 4 ms	○
Analog output	80 μs to 4 ms	Only main	○ (1 line)	---	---
2-channel models	Red LED	130 μs to 4 ms	Main + main (2 inde- pendent lines)	---	---	○	○	○	---	---	---

Type	Single- function models	Standard models	Mark-detecting models (multiple color light sources)
Green LED	Blue LED	Infrared LED
Model	E3X-DA[]SE-S	E3X-DA[]-S	E3X-DAG[]-S	E3X-DAB[]-S	E3X-DAH[]-S
Light source (wavelength)	Red LED (635 nm)	Green LED (525 nm)	Blue LED (470 nm)	Infrared LED (870nm)
Power supply voltage	12 to 24 VDC ± 10%, ripple (p-p) 10% max.
Power consumption	960 mW max. (current consumption: 40 mA max. at power supply voltage of 24 VDC)
Control output	Load power supply voltage: 26.4 VDC; NPN/PNP open collector; load current: 50 mA max.; residual voltage: 1 V max.
Remote control input	No-voltage input (contact/non- contact)	---
Protection circuits	Reverse polarity for power supply connection, output short-circuit
Re- sponse time	Super-high- speed mode	---	Operate: 48 μs, reset: 50 μs 1, 2
High-speed mode	---	Operate/reset: 250 μs
Standard mode	Operate or reset: 1 ms
High-resolution mode	---	Operate or reset: 4 ms
Sensitivity setting	Teaching or manual method
Func- tions	Power tuning	---	Light emission power and reception gain, digital control method
Timer function	---	Select from OFF-delay, ON-delay, or one-shot timer. 1 ms to 5 s (1 to 20 ms set in 1-ms increments, 20 to 200 ms set in 10-ms increments, 200 ms to 1 s set in 100-ms increments, and 1 to 5 s set in 1 s-increments)
Automatic power control (APC)	High-speed control method for emission current
Zero-reset	---	Negative values can be displayed. (Threshold value is shifted.)
Initial reset	Settings can be returned to defaults as required.
Mutual interference prevention	Possible for up to 10 Units *3
Display	Operation indicator (orange)	Operation indicator (orange), Power Tuning indicator (orange)
Digital display	incident level + threshold	Select from incident level + threshold or other 6 patterns
Display orientation	---	Switching between normal/reversed display is possible.
Ambient illumination (Receiver side)	Incandescent lamp: 10,000 lux max. Sunlight: 20,000 lux max.
Ambient temperature range	Operating: Groups of 1 to 2 Amplifiers: -25°C to 55°C Groups of 3 to 10 Amplifiers: -25°C to 50°C Groups of 11 to 16 Amplifiers: -25°C to 45°C Storage: -30°C to 70°C (with no icing or condensation)
Ambient humidity range	Operating and storage: 35% to 85% (with no condensation)
Insulation resistance	20 MΩ min. (at 500 VDC)
Dielectric strength	1,000 VAC at 50/60 Hz for 1 minute
Vibration resistance	Destruction: 10 to 55 Hz with a 1.5-mm double amplitude for 2 hrs each in X, Y and Z directions
Shock resistance	Destruction: 500 m/s², for 3 times each in X, Y and Z directions
Degree of protection	IEC 60529 IP50 (with Protective Cover attached)
Connection method	Pre-wired or amplifier unit connector
Weight (packed state)	Pre-wired model: Approx. 100 g, Amplifier unit connector model: Approx. 55 g
Mate- rials	Case	Polybutylene terephthalate (PBT)
Cover	Polycarbonate (PC)
Accessories	Instruction manual

Type	Advanced models
External input models	Twin output models	ATC function models	Analog output models
Model	E3X-DA[]RM-S	E3X-DA[]TW-S	E3X-DA[]AT-S	E3X-DA[]AN-S
Light source (wavelength)	Red LED (635 nm)
Power supply voltage	12 to 24 VDC ± 10%, ripple (p-p) 10% max.
Power consumption	1,080 mW max. (current consumption: 45 mA max. at power supply voltage of 24 VDC)
Control output	ON/OFF output	Load power supply voltage: 26.4 VDC; NPN/PNP open collector; load current: 50 mA max.; residual voltage: 1 V max.
Analog output	---	Control output Voltage output: 1 to 5 VDC (Connection load 10 kΩ min.) Temperature characteristics 0.3%F.S./°C Response speed/repeat accuracy Super-high-speed mode: 80 μs/1.5%F.S. High-speed mode: 250 μs/ 1.5%F.S. Standard mode: 1 ms/1%F.S. High-resolution mode: 4 ms/0.75%F.S.
Remote control input	Load power supply voltage: 26.4 VDC; NPN/PNP open collector; load current: 50 mA max.; residual voltage: 1 V max.	---
Protection circuits	Reverse polarity for power supply connection, output short-circuit
Re- sponse time	Super-high- speed mode	Operate: 48 μs, reset: 50 μs 3, 4, *5	Operate or reset: 80 μs *3
High-speed mode	Operate or reset: 250 μs
Standard mode	Operate or reset: 1ms
High- resolution mode	Operate or reset: 4ms
Sensitivity setting	Teaching or manual method
Func- tions	Power tuning	Light emission power and reception gain, digital control method
Differential detection	Switchable between single edge and double edge detection mode Single edge: Can be set to 250 μs, 500 μs, 1 ms, 10 ms, or 100 ms. Double edge: Can be set to 500 μs, 1 ms, 2 ms, 20 ms, or 200 ms.	---
Timer function	Select from OFF-delay, ON-delay, or one-shot timer.
1 ms to 5 s (1 to 20 ms set in 1-ms increments, 20 to 200 ms set in 10-ms increments, 200 ms to 1 s set in 100-ms increments, and 1 to 5 s set in 1 s-increments)
Automatic power control (APC)	High-speed control method for emission current
Zero-reset	Negative values can be displayed. (Threshold value is shifted.)
Initial reset	Settings can be returned to defaults as required.
Mutual interference prevention	Possible for up to 10 Units *7
Counter	Switchable between up counter and down counter. Set count: 0 to 9,999,999	---
I/O setting	External input setting (Select from teaching, power tuning, zero reset, light OFF, or counter reset.)	Output setting (Select from channel 2 output, area output, or self-diagnosis.)	Output setting (Select from channel 2 output, area output, self- diagnosis output, or ATC error output)	Analog output setting (offset voltage adjustable)
Display	Operation indicator (orange), Power Tuning indicator (orange)	Operation indicator for channel 1 (orange), Operation indicator for channel 2 (orange)	Operation indicator (orange), Power Tuning indicator (orange)
Digital display	Select from incident level + threshold or other 7 patterns	Select from incident level + threshold or other 6 patterns
Display orientation	Switching between normal/reversed display is possible.
Ambient illumination (Receiver side)	Incandescent lamp: 10,000 lux max. Sunlight: 20,000 lux max.
Ambient temperature range	Operating: Groups of 1 to 2 Amplifiers: -25 °C to 55 °C Groups of 3 to 10 Amplifiers: -25 °C to 50 °C Groups of 11 to 16 Amplifiers: -25 °C to 45 °C
Storage: -30 °C to 70 °C (with no icing or condensation)
Ambient humidity range	Operating and storage: 35% to 85% (with no condensation)
Insulation resistance	20 MΩ min. (at 500 VDC)
Dielectric strength	1,000 VAC at 50/60 Hz for 1 minute
Vibration resistance (Destruction)	10 to 55 Hz with a 1.5-mm double amplitude for 2 hrs each in X, Y and Z directions
Shock resistance (Destruction)	500 m/s², for 3 times each in X, Y and Z directions
Degree of protection	IEC 60529 IP50 (with Protective Cover attached)
Connection method	Pre-wired or amplifier unit connector
Weight (packed state)	Pre-wired model: Approx. 100 g, Amplifier unit connector model: Approx. 55 g
Mate- rials	Case	Polybutylene terephthalate (PBT)
Cover	Polycarbonate (PC)
Accessories	Instruction manual

Type	*2-channel models 1**
Standard models	Model for Sensor Communications Unit *1
Model	E3X-MDA[] ([]: 11/41/6/8)	E3X-MDA0
Light source (wavelength)	Red LED (635 nm)
Power supply voltage	12 to 24 VDC ± 10%, ripple (p-p) 10% max.
Power consumption	1,080 mW max. (current consumption: 45 mA max. at power supply voltage of 24 VDC)
Control output	ON/OFF output	Load power supply voltage: 26.4 VDC; NPN/PNP open collector; load current: 50 mA max.; residual voltage: 1 V max.	Supplied from the connector through the Sensor Communications Unit
Analog output	---
Remote control input	---
Protection circuits	Reverse polarity for power supply connection, output short-circuit
Response time	Super-high-speed mode	Operate or reset: 130 μs 3, 6	---
High-speed mode	Operate or reset: 450 μs
Standard mode	Operate or reset: 1ms
High-resolution mode	Operate or reset: 4ms
Sensitivity setting	Teaching or manual method
Functions	Power tuning	Light emission power and reception gain, digital control method
Differential detection	---
Timer function	Select from OFF-delay, ON-delay, or one-shot timer.
1 ms to 5 s (1 to 20 ms set in 1-ms increments, 20 to 200 ms set in 10-ms increments, 200 ms to 1 s set in 100-ms increments, and 1 to 5 s set in 1 s-increments)
Automatic power control (APC)	High-speed control method for emission current
Zero-reset	Negative values can be displayed. (Threshold value is shifted.)
Initial reset	Settings can be returned to defaults as required.
Mutual interference prevention	Possible for up to 9 Units (18 channels) *8
Counter	---
I/O setting	Output setting (Select from channel 2 output, AND, OR, leading edge sync, falling edge sync, or differential output)
Display	Operation indicator for channel 1 (orange), Operation indicator for channel 2 (orange)
Digital display	Select from incident level for channel 1 + incident level for channel 2 or other 7 patterns
Display orientation	Switching between normal/reversed display is possible.
Ambient illumination (Receiver side)	Incandescent lamp: 10,000 lux max. Sunlight: 20,000 lux max.
Ambient temperature range	Operating: Groups of 1 to 2 Amplifiers: -25 °C to 55 °C Groups of 3 to 10 Amplifiers: -25 °C to 50 °C Groups of 11 to 16 Amplifiers: -25 °C to 45 °C *9
Storage: -30 °C to 70 °C (with no icing or condensation)
Ambient humidity range	Operating and storage: 35% to 85% (with no condensation)
Insulation resistance	20 MΩ min. (at 500 VDC)
Dielectric strength	1,000 VAC at 50/60 Hz for 1 minute
Vibration resistance (Destruction)	10 to 55 Hz with a 1.5-mm double amplitude for 2 hrs each in X, Y and Z directions	10 to 150 Hz with a 0.7-mm double amplitude for 80 min each in X, Y, and Z directions
Shock resistance (Destruction)	500 m/s², for 3 times each in X, Y and Z directions	200 m/s² for 3 times each in X, Y, and Z directions
Degree of protection	IEC 60529 IP50 (with Protective Cover attached)
Connection method	Pre-wired or amplifier unit connector	Connector for Sensor Communications Unit
Weight (packed state)	Pre-wired model: Approx. 100 g, Amplifier unit connector model: Approx. 55 g	Approx. 55 g
Materials	Case	Polybutylene terephthalate (PBT)
Cover	Polycarbonate (PC)
Accessories	Instruction manual

	Contact input (relay or switch)	Non-contact input (transistor)
NPN	ON: Shorted to 0 V (sourcing current: 1 mA max.). OFF: Open or shorted to Vcc.	ON: 1.5 V max. (sourcing current: 1 mA max.) OFF: Vcc - 1.5 V to Vcc (leakage current: 0.1 mA max.)
PNP	ON: Shorted to Vcc (sinking current: 3 mA max.). OFF: Open or shorted to 0 V.	ON: Vcc - 1.5 V to Vcc (sinking current: 3 mA max.) OFF: 1.5 V max. (leakage current: 0.1 mA max.)

Model	E3X-CN11/21/22	E3X-CN12
Rated current	2.5 A
Rated voltage	50 V
Contact resistance	20 mΩ max. (20 mVDC max., 100 mA max.) (The figure is for connection to the Fiber Amplifier Unit and the adjacent Connector. It does not include the conductor resistance of the cable.)
No. of insertions	Destruction: 50 times (The figure for the number of insertions is for connection to the Fiber Amplifier Unit and the adjacent Connector.)
Materials	Housing	Polybutylene terephthalate (PBT)
Contacts	Phosphor bronze/gold-plated nickel
Weight (packed state)	Approx. 55 g	Approx. 25 g

Model	E3X-MC11-SV2
Applicable Fiber Amplifier Units	E3X-DA-S E3X-MDA E3C-LDA E2C-EDA
Power supply voltage	Charged with AC adapter
Connection method	Connected via adapter
Weight (packed state)	Approx. 580 g (Console only: 120 g)

Sensing method	Sensing direction	Size	Model	E3X-DA[]-S	E3X-MDA[]
High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through- beam	Right-angle	M4	E32-T11N 2M	700	530	350	140	450	350	230	140
E32-LT11N 2M	2,300	1,750	1,150	460	1,500	1,150	750	460
Straight	E32-T11R 2M	700	530	350	140	450	350	230	140
E32-LT11 2M	2,700	2,050	1,350	540	1,750	1,350	890	540
E32-LT11R 2M	2,300	1,750	1,150	460	1,500	1,150	750	460
Reflective	Right-angle	M3	E32-C31N 2M	40	25	16	7	24	16	10	7
E32-C21N 2M	75	65	45	20	50	45	30	20
M4	E32-D21N 2M	300	170	120	50	170	120	80	50
M6	E32-C11N 2M	280	170	110	50	160	110	70	50
E32-LD11N 2M	300	170	120	50	170	120	80	50
Straight	M3	E32-D21R 2M	50	30	20	8	30	22	14	8
E32-C31 2M	120	75	50	22	75	50	30	22
E32-C31M 1M
M4	E32-D211R 2M	50	30	20	8	30	22	14	8
M6	E32-D11R 2M	300	170	120	50	170	120	80	50
E32-CC200 2M	500	300	200	90	300	210	140	90
E32-LD11 2M	305	180	125	55	175	125	85	55
E32-LD11R 2M	300	170	120	50	170	120	80	50

Sensing method	Size	Sensing direction	Model	E3X-DA[]-S	E3X-MDA[]
High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through- beam	1 dia.	Top-view	E32-T223R 2M	160	130	75	30	110	85	55	30
1.5 dia.	E32-T22B 2M	240	200	110	45	150	110	70	45
Reflective	3 dia.	E32-T12R 2M	700	530	350	140	450	350	230	140
Side-view	E32-T14LR 2M	270	210	130	50	170	130	85	50
1.5 dia.	Top-view	E32-D22B 2M	50	30	20	8	30	22	14	8
1.5 dia. + 0.5 dia.	E32-D43M 1M	10	6	4	2	6	4	2.5	2
3 dia.	E32-D22R 2M	50	30	20	8	30	22	14	8
E32-D221B 2M	110	70	45	20	70	50	30	20
E32-D32L 2M	250	150	100	45	150	100	65	45
3 dia. + 0.8 dia.	E32-D33 2M	25	16	10	4	16	10	6	4

Sensing method	Sensing direction	Model	E3X-DA[]-S	E3X-MDA[]
High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through-beam	Top-view	E32-T15XR 2M	700	530	350	140	450	350	230	140
Side-view	E32-T15YR 2M	270	210	130	50	170	130	85	50
Flat-view	E32-T15ZR 2M
Reflective	Top-view	E32-D15XR 2M	300	170	120	50	170	120	80	50
Side-view	E32-D15YR 2M	70	40	26	12	40	29	19	12
Flat-view	E32-D15ZR 2M

Sensing method	Sensing direction	Model	E3X-DA[]-S	E3X-MDA[]
High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through- beam	Side-view	E32-T24R 2M	60	50	25	10	35	27	18	10
E32-T24E 2M	160	130	75	30	100	70	45	30
Top-view	E32-T21-S1 2M	180	150	85	34	120	85	57	34
E32-T33 1M	53	44	25	10	35	28	18	10
E32-TC200BR 2M	700	530	350	140	450	350	230	140
Reflective	Side-view	E32-D24R 2M	26	15	10	4	15	10	6	4
E32-D24-S2 2M	40	26	23	7	26	23	15	7
Top-view	E32-D43M 1M	10	6	4	2	6	4	2.5	2
E32-D331 2M	5	3	2	0.8	3	2	1.3	0.8
E32-D33 2M	25	16	10	4	16	10	6	4
E32-D32-S1 0.5M	21	13	9	3	14	9	6	3
E32-D31-S1 0.5M
E32-DC200F4R 2M	50	30	20	8	30	22	14	8
E32-D22-S1 2M
E32-D21-S3 2M	85	55	36	15	56	36	24	15
E32-DC200BR 2M	300	170	120	50	170	120	80	50
E32-D25-S3 2M	85	55	36	15	56	36	24	15

Type	Spot diam- eter	Center dis- tance (mm)	Model	E3X-DA[]-S	E3X-MDA[]
High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Variable spot	0.1 to 0.6 dia.	6 to 5	E32-C42 1M + E39-F3A	Spot diameter of 0.1 to 0.6 mm at 6 to 15 mm.	Spot diameter of 0.1 to 0.6 mm at 6 to 15 mm.
0.3 to 1.6 dia.	10 to 30	E32-C42 1M + E39-F17	Spot diameter of 0.3 to 1.6 mm at 10 to 30 mm.	Spot diameter of 0.3 to 1.6 mm at 10 to 30 mm.
Parallel light	4 dia.	0 to 20	E32-C31 2M + E39-F3C	Spot diameter of 4 mm max. at 0 to 20 mm.	Spot diameter of 4 mm max. at 0 to 20 mm.
E32-C31N 2M + E39-F3C
Integrated lens	0.1 dia.	5	E32-C42S 1M	Spot diameter of 0.1 mm at 5 mm.	Spot diameter of 0.1 mm at 5 mm.
Small- spot	0.1 dia.	7	E32-C41 1M + E39-F3A-5	Spot diameter of 0.1 mm at 7 mm.	Spot diameter of 0.1 mm at 7 mm.
0.5 dia.	E32-C31 2M + E39-F3A-5	Spot diameter of 0.5 mm at 7 mm.	Spot diameter of 0.5 mm at 7 mm.
E32-C31N 2M + E39-F3A-5
0.2 dia.	17	E32-C41 1M + E39-F3B	Spot diameter of 0.2 mm at 17 mm.	Spot diameter of 0.2 mm at 17 mm.
0.5 dia.	E32-C31 2M + E39-F3B	Spot diameter of 0.5 mm at 17 mm.	Spot diameter of 0.5 mm at 17 mm.
E32-C31N 2M + E39-F3B
3 dia.	50	E32-CC200 2M + E39-F18	Spot diameter of 3 mm at 50 mm.	Spot diameter of 3 mm at 50 mm.

Type	Sensing direc- tion	Aper- ture angle	Model	E3X-DA[]-S	E3X-MDA[]
High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through- beam Integrated lens	Right- angle	15 °	E32-LT11N 2M	2,300	1,750	1,150	460	1,500	1,150	750	460
Top-view	10 °	E32-T17L 10M	20,000 *1	20,000 *1	10,000	4,000	13,000	10,000	6,500	4,000
15 °	E32-LT11 2M	2,700	2,050	1,350	540	1,750	1,350	890	540
E32-LT11R 2M	2,300	1,750	1,150	460	1,500	1,150	750	460
Side-view	30 °	E32-T14 2M	4,000 *2	3,400	2,250	900	2,900	2,200	1,450	900
Through- beam models with lenses	Right- angle	12 °	E32-T11N 2M + E39-F1	4,000 *2	3,700	2,400	970	3,100	2,400	1,600	970
6 °	E32-T11N 2M + E39-F16	4,000 *2	4,000 *2	4,000 *2	1,700	4,000 *2	4,000 *2	2,900	1,700
Top-view	12 °	E32-T11R 2M + E39-F1	4,000 *2	3,700	2,400	970	3,100	2,400	1,600	970
6 °	E32-T11R 2M + E39-F16	4,000 *2	4,000 *2	4,000 *2	1,700	4,000 *2	4,000 *2	2,900	1,700
Side-view	60 °	E32-T11R 2M + E39-F2	520	400	250	100	330	260	170	100
Top-view	12 °	E32-T11 2M + E39-F1	4,000 *2	3,600	2,300	930	3,000	2,300	1,500	930
6 °	E32-T11 2M + E39-F16	4,000 *2	4,000 *2	4,000 *2	2,200	4,000 *2	4,000 *2	3,700	2,200
Side-view	60 °	E32-T11 2M + E39-F2	820	660	430	160	530	430	280	160
Top-view	12 °	E32-T51R 2M + E39-F1	3,900	2,900	1,900	780	2,500	1,900	1,300	780
6 °	E32-T51R 2M + E39-F16	4,000 *2	4,000 *2	3,500	1,400	4,000 *2	3,500	2,300	1,400
Side-view	60 °	E32-T51R 2M + E39-F2	500	380	250	100	320	250	160	100
Top-view	12 °	E32-T81R-S 2M + E39-F1	4,000 *2	3,200	2,100	840	2,700	2,100	1,380	840
6 °	E32-T81R-S 2M + E39-F16	4,000 *2	4,000 *2	3,700	1,500	4,000 *2	3,700	2,500	1,500
Side-view	60 °	E32-T81R-S 2M + E39-F2	540	410	270	100	350	270	170	100
Top-view	12 °	E32-T61-S 2M + E39-F1	4,000	3,400	2,200	900	3,000	2,200	1,450	900
6 °	E32-T61-S 2M + E39-F16	4,000 *2	4,000 *2	3,700	1,500	4,000 *2	3,700	2,500	1,500
Side-view	60 °	E32-T61-S 2M + E39-F2	600	450	300	120	390	300	200	120
Top-view	12 °	E32-T51 2M + E39-F1-33	4,000 *2	4,000 *2	3,500	1,400	4,000 *2	3,500	2,300	1,400
6 °	E32-T51 2M + E39-F16	4,000 *2	4,000 *2	4,000 *2	2,500	4,000 *2	4,000 *2	4,000 *2	2,500
Reflective Integrated lens	Top-view	4 °	E32-D16 2M	40 to 1,000	40 to 700	40 to 450	40 to 240	40 to 600	40 to 490	40 to 300	40 to 240

Sensing method	Sensing direction	Aper- ture angle	Model	E3X-DA[]-S	E3X-MDA[]
High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through- beam	Side-view	1.5 °	E32-A03 2M	1,150	890	600	250	750	580	380	250
E32-A03-1 2M
3.4 °	E32-A04 2M	460	340	225	100	300	220	145	100
4 °	E32-T24SR 2M	1,480	1,100	730	290	920	730	480	290
E32-T24S 2M	1,750	1,300	870	350	1,100	870	580	350
E32-T22S 2M	2,500	1,900	1,250	500	1,600	1,250	830	500

Sensing method	Sensing direction	Model	E3X-DA[]-S	E3X-MDA[]
High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Limited- reflective	Flat-view	E32-L16-N 2M	0 to 15	0 to 12	0 to 15	0 to 12
E32-L24S 2M	0 to 4	0 to 4
Side-view	E32-L25L 2M	5.4 to 9 (center 7.2)	5.4 to 9 (center 7.2)

Sensing method	Feature	Size	Model	E3X-DA[]-S	E3X-MDA[]
High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Retro- reflective	Film detection	M3	E32-C31 2M + E39-F3R + E39-RP37	250	150	100	45	150	100	65	45
Square	-	E32-R16 2M	150 to 1500	150 to 1500
Threaded models	M6	E32-R21 2M	10 to 250	10 to 250
Hex-shaped	M6	E32-LR11NP 2M + E39-RP1	630	600	500	275	600	500	330	275

Sensing method	Feature	Sensing direc- tion	Model	E3X-DA[]-S	E3X-MDA[]
High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Limited- reflective	Small size	Flat-view	E32- L24S 2M	0 to 4	0 to 4
Standard	E32-L16-N 2M	0 to 15	0 to 12	0 to 15	0 to 12
Glass substrate alignment, 70 °C	E32-A08 2M	10 to 20	-	10 to 20	-
Standard/ long- distance	E32-A12 2M	12 to 30	-	12 to 30	-
Side view form	Side-view	E32-L25L 2M	5.4 to 9 (center 7.2)	5.4 to 9 (center 7.2)
Glass substrate mapping, 70 °C	Top-view	E32-A09 2M	15 to 38	-	15 to 38	-

Sensing method	Type	Sensing direc- tion	Model	E3X-DA[]-S	E3X-MDA[]
High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through- beam	Oil- resistant	Right- angle	E32-T11NF 2M	4,000 *	4,000 *	2,800	1,100	3,600	2,800	1,800	1,100
Chemical/ oil- resistant	Top-view	E32-T12F 2M	4,000 *	3,000	2,000	800	2,600	2,000	1,300	800
E32-T11F 2M	2,500	2,000	1,300	520	1,600	1,300	850	520
Side-view	E32-T14F 2M	500	400	250	100	320	250	160	100
Chemical/ oil- resistant at 150 °C	Top-view	E32-T51F 2M	1,800	1,400	900	350	1,190	920	600	350
Reflective	Chemical/ oil- resistant	Top-view	E32-D12F 2M	160	95	65	30	95	70	45	30
Chemical- resistant cable	E32-D11U 2M	300	170	120	50	170	125	80	50

Sensing method	Size	Model	E3X-DA[]-S	E3X-MDA[]
High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through-beam	1.5 dia.	E32-T22B 2M	240	200	110	45	150	110	70	45
M3	E32-T21 2M
M4	E32-T11 2M	900	680	450	180	580	450	300	180
Square	E32-T25XB 2M	180	150	85	35	125	95	60	35
Reflective	1.5 dia.	E32-D22B 2M	50	30	20	8	30	22	14	8
M3	E32-D21 2M
3 dia.	E32-D221B 2M	110	70	45	20	70	50	30	20
M4	E32-D21B 2M
M6	E32-D11 2M	300	170	120	50	170	125	80	50
Square	E32-D25XB 2M	85	50	30	15	50	35	23	15

Sensing method	Heat- resistant temperature	Model	E3X-DA[]-S	E3X-MDA[]
High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through- beam	100 °C	E32-T51R 2M	560	425	280	110	360	280	180	110
150 °C	E32-T51 2M	1,000	760	500	200	650	500	330	200
200 °C	E32-T81R-S 2M	360	280	180	70	230	180	120	70
350 °C	E32-T61-S 2M	600	450	300	120	390	300	200	120
Reflective	100 °C	E32-D51R 2M	240	135	95	40	130	95	60	40
150 °C	E32-D51 2M	400	230	160	72	230	165	110	72
200 °C	E32-D81R-S 2M	150	90	60	27	90	63	40	27
300 °C	E32-A08H2 2M	10 to 20	-	10 to 20	-
E32-A09H2 2M	20 to 30	-	20 to 30	-
350 °C	E32-D611-S 2M	150	90	60	27	90	63	40	27
E32-D61-S 2M
400 °C	E32-D73-S 2M	100	60	40	18	60	40	25	18

Sensing method	Type	Sensing width	Model	E3X-DA[]-S	E3X-MDA[]
High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through- beam	Area	11 mm	E32-T16PR 2M	1,100	840	560	220	730	560	370	220
E32-T16JR 2M	980	750	480	190	600	480	320	190
30 mm	E32-T16WR 2M	1,700	1,300	850	340	1,100	860	570	340
Reflective	Array	11 mm	E32-D36P1 2M	250	150	100	45	150	100	65	45

Sensing method	Tube diameter	Feature	Model	E3X-DA[]-S	E3X-MDA[]
High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Tube- mounting	3.2/6.4/ 9.5 dia.	Stable residual quantity detection	E32-A01 5M	Applicable tube: Transparent tube with a diameter of 3.2, 6.4, or 9.5 mm, Recommended wall thickness: 1 mm	Applicable tube: Transparent tube with a diameter of 3.2, 6.4, or 9.5 mm, Recommended wall thickness: 1 mm
8 to 10 dia.	Mounting at multi levels	E32-L25T 2M	Applicable tube: Transparent tube with a diameter of 8 to 10 mm, Recommended wall thickness: 1 mm	Applicable tube: Transparent tube with a diameter of 8 to 10 mm, Recommended wall thickness: 1 mm
No re- strictions	Large tubes	E32-D36T 2M	Applicable tube: Transparent tube (no restriction on diameter)	Applicable tube: Transparent tube (no restriction on diameter)
Liquid contact (heat- resistant up to 200 °C)	-	-	E32-D82F1 4M	Liquid-contact Type	Liquid-contact Type

Sensing method	Heat- resistant temperature	Model	E3X-DA[]-S	E3X-MDA[]
High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through- beam	120 °C	E32-T51V 1M	260	200	130	50	170	130	85	50
E32-T51V 1M + E39-F1V	1,350	1,000	680	260	850	650	430	260
200 °C	E32-T84SV 1M	630	480	320	130	410	310	200	130

Sensing method	Appli- cation	Oper- ating temper- ature	Model	E3X-DA[]-S	E3X-MDA[]
High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Limited- reflective	Glass presence detection	70 °C	E32-L16-N 2M	0 to 15	0 to 12	0 to 15	0 to 12
Glass substrate alignment	E32-A08 2M	10 to 20	-	10 to 20	-
300 °C	E32-A08H2 2M
70 °C	E32-A12 2M	12 to 30	-	12 to 30	-
Glass substrate mapping	E32-A09 2M	15 to 38	-	15 to 38	-
300 °C	E32-A09H2 2M	20 to 30	-	20 to 30	-
Through- beam	Wafer mapping	70 °C	E32-A03 2M	1,150	890	600	250	750	580	380	250
E32-A03-1 2M
E32-A04 2M	460	340	225	100	300	220	145	100
E32-T24SR 2M	1,480	1,100	730	290	920	730	480	290
E32-T24S 2M	1,750	1,300	870	350	1,100	870	580	350

Sensing method	Sensing direction	Size	Model	E3X-DAG[]-S/DAB[]-S	E3X-DAH[]-S
High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through- beam	Right-angle	M4	E32-T11N 2M	65	50	35	30	280	190	130	55
Straight	E32-T11R 2M
Reflective	Straight	M3	E32-C31 2M	7.5	6	4	3.5	50	37	25	8.5
M6	E32-D11R 2M	17	14	10	8	120	90	60	21
E32-CC200 2M	32	25	16	16	200	150	100	35

Sensing method	Size	Sensing direction	Model	E3X-DAG[]-S/DAB[]-S	E3X-DAH[]-S
High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through- beam	3 dia.	Top-view	E32-T12R 2M	65	50	35	30	280	190	130	55
Side-view	E32-T14LR 2M	25	20	22	12	100	75	80	21
Reflective	3 dia.	Top-view	E32-D32L 2M	15	12	8	7.5	100	75	50	17

Sensing method	Sensing direction	Model	E3X-DAG[]-S/DAB[]-S	E3X-DAH[]-S
High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through-beam	Top-view	E32-T15XR 2M	65	50	35	30	280	190	130	55
Side-view	E32-T15YR 2M	25	20	22	12	100	75	80	21
Flat-view	E32-T15ZR 2M
Reflective	Top-view	E32-D15XR 2M	17	14	10	8	120	90	60	21
Side-view	E32-D15YR 2M	4.2	3.3	2.2	2.1	28	20	13	5
Flat-view	E32-D15ZR 2M

Sensing method	Sensing direction	Model	E3X-DAG[]-S/DAB[]-S	E3X-DAH[]-S
High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through-beam	Top-view	E32-TC200BR 2M	65	50	35	30	280	190	130	55
Reflective	Top-view	E32-DC200BR 2M	17	14	10	8	120	90	60	21

Type	Sensing direction	Aper- ture angle	Model	E3X-DAG[]-S/DAB[]-S	E3X-DAH[]-S
High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode	High- reso- lution mode	Stan- dard mode	High- speed mode	Super- high- speed mode
Through-beam Integrated lens	Side-view	30 °	E32-T14 2M	320	260	220	160	1800	1200	820	360

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
E3X-DA-S/MDA Data Sheet	- [1588KB]	Apr 01, 201620160401	E3X-DA-S/MDA Data Sheet
E3X-DA-S/MDA Operating Procedures	- [1069KB]	Jun 01, 201720170601	E3X-DA-S/MDA Operating Procedures

Item	Appearance	Functions	Model
NPN output	PNP output
Single-function models		---	E3X-DA11SE-S 2M *	E3X-DA41SE-S 2M *
Standard models	Timer, Response speed change	E3X-DA11-S 2M *	E3X-DA41-S 2M *
Mark-detecting models (multiple color light sources)	Green LED	E3X-DAG11-S 2M	E3X-DAG41-S 2M
Blue LED	E3X-DAB11-S 2M	E3X-DAB41-S 2M
Infrared LED	E3X-DAH11-S 2M	E3X-DAH41-S 2M
Advanced models	External-input models	Remote setting, counter, differential operation	E3X-DA11RM-S 2M *	E3X-DA41RM-S 2M *
Twin-output models	Area output, self-diagnosis, differential operation	E3X-DA11TW-S 2M *	E3X-DA41TW-S 2M *
ATC function models	ATC (Threshold value automatic correction)	E3X-DA11AT-S 2M *	E3X-DA41AT-S 2M *
Analog output models	Analog output models	E3X-DA11AN-S 2M	E3X-DA41AN-S 2M
2-channel models		AND/OR output	E3X-MDA11 2M	E3X-MDA41 2M

Item	Appearance	Functions	Model
NPN output	PNP output
Single-function models		---	*E3X-DA6SE-S 1**	*E3X-DA8SE-S 1**
Standard models	Timer, Response speed change	*E3X-DA6-S 1,2**	*E3X-DA8-S 1,2**
Mark-detecting models (multiple color light sources)	Green LED	*E3X-DAG6-S 2**	*E3X-DAG8-S 2**
Blue LED	*E3X-DAB6-S 2**	*E3X-DAB8-S 2**
Infrared LED	*E3X-DAH6-S 2**	*E3X-DAH8-S 2**
Advanced models	External-input models	Remote setting, counter, differential operation	E3X-DA6RM-S *1,2	E3X-DA8RM-S *1,2
Twin-output models	Area output, self-diagnosis, differential operation	E3X-DA6TW-S *1,2	E3X-DA8TW-S *1,2
ATC function models	ATC (Threshold value automatic correction)	E3X-DA6AT-S *1	E3X-DA8AT-S *1
2-channel models		AND/OR output	*E3X-MDA6 2**	*E3X-MDA8 2**

Item	Appearance	Functions	Model	Applicable Sensor Communications Unit
2-channel model		AND/OR output	E3X-MDA0	E3X-ECT
E3X-CRT

Item	Appearance	Cable length	No. of conductors	Model
Master Connector		2 m	3	E3X-CN11
4	E3X-CN21
Slave Connector		1	E3X-CN12
2	E3X-CN22

Fiber Amplifier Unit	Applicable Connector (Order Separately)
Model	NPN output	PNP output	Master Connector	Slave Connector
Single-function models	E3X-DA6SE-S	E3X-DA8SE-S	E3X-CN11	E3X-CN12
Standard models	E3X-DA6-S	E3X-DA8-S
Mark-detecting models (multiple color light sources)	E3X-DAG6-S	E3X-DA8-S
E3X-DAB6-S	E3X-DAB8-S
E3X-DAH6-S	E3X-DAH8-S
Advanced models	E3X-DA6TW-S	E3X-DA8TW-S	E3X-CN21	E3X-CN22
E3X-DA6RM-S	E3X-DA8RM-S
E3X-DA6AT-S	E3X-DA8AT-S
2-channel models	E3X-MDA6	E3X-MDA8

Appearance	Model	Remarks
	E3X-MC11-SV2 (model number of set)	Mobile Console with Head, Cable, and AC adapter provided as accessories
	E3X-MC11-C1-SV2	Mobile Console
	E3X-MC11-H1	Head
	E39-Z12-1	Cable (1.5 m)

Appearance	Model	Quantity
	E39-L143	1

Appearance	Model	Quantity
	PFP-M	1

Return to OMRON
