OMRON G3J-TRelays/ Solid-state Relays/For Three-phase Motors
OMRON G3J-T Relays
OMRON G3J-T Dimensions
/Images/l_980-25-118859-198x198.jpglast update: January 7, 2019
• Function like an inverter by holding down the starting current.
• Comply with UL, CSA, CCC, IEC (400-V models only), and JEM requirements.
• Mount with screws or to DIN tracks.
• Compact monoblock construction for the G3J-T217BL (W: 100 × H: 100 × D: 110 mm) with a heat sink.
• Snubber circuit and varistor are built-in.
• Operation indicator.
last update: January 7, 2019
Purchase the OMRON For Three-phase Motors Please fill in the following
If you have just landed here, this product OMRON G3J-T Relays,Relays is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Relays at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the G3J-T We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON G3J-TRelays tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
G7Z Power Relays/Features
E3FC Photoelectric sensors in M18 stainless steel housing/Features
Cobra 500 SCARA Robots/Features
KM50-E Smart Power Monitor/Features
S8AS Smart Power Supply/Features
OMRON G3J-T catalog
G3J-T Soft-start/stop Solid State Contactors/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 G3J-T Data Sheet | - [352KB] | Jan 07, 201920190107 | G3J-T Data Sheet |
| Information Common to the G3J-T, G3J-S, and G3J | - [1498KB] | Aug 24, 201220120824 | Information Common to the G3J-T, G3J-S, and G3J |
| Safety Precautions for the G3J-T-C, G3J-T, G3J-S, and G3J | - [300KB] | Aug 24, 201220120824 | Safety Precautions for the G3J-T-C, G3J-T, G3J-S, and G3J |
OMRON G3J-T lineup
G3J-T Soft-start/stop Solid State Contactors/Lineuplast update: November 06, 2012
| Number of elements | Insulation method | Rated supply voltage | Input method | Applicable motor | Model | |
|---|---|---|---|---|---|---|
| 3 | Phototriac | 12 to 24 VDC | No-voltage input (open and short- circuit input) | 2.2 kW (5.5 A) | 380 to 400 VAC | G3J-T405BL |
| 0.75 kW (2.4 A) | G3J-T403BL | |||||
| 3.7 kW (17.4 A) | 200 to 220 VAC | G3J-T217BL | ||||
| 2.2 kW (11.1 A) | G3J-T211BL | |||||
| 0.75 kW (4.8 A) | G3J-T205BL | |||||
Note: When ordering, specify the rated supply voltage.
last update: November 06, 2012
OMRON G3J-T specification
G3J-T Soft-start/stop Solid State Contactors/Specificationslast update: January 7, 2019
Ratings (at an Ambient Temperature of 25°C)
Power Supply
| Rated supply voltage | 12 to 24 VDC |
|---|---|
| Operating voltage range | 10.2 to 26.4 VDC |
| Current consumption | 50 mA max. (at 12 to 24 VDC) |
Operation Circuit
| Input current | 10 mA max. (at 12 to 24 VDC) |
|---|---|
| Input method No-voltage input (short-circuiting and opening inputs) (See note.) | Short-circuiting or opening terminals 1 and COM or 2 (+) and 1 SSR input turned ON:A maximum residual voltage of 2 V between short-circuited terminals SSR input turned OFF:A maximum leakage current of 0.15 mA Relay input: For minute signals |
Note: Refer to Safety Precautions for the G3J-T, G3J-S, and G3J.
Main Circuit
| Item | G3J-T405BL | G3J-T403BL | G3J-T217BL | G3J-T211BL | G3J-T205BL | |
|---|---|---|---|---|---|---|
| Rated load voltage | 200 to 400 VAC (50/60 Hz) | 200 to 240 VAC (50/60 Hz) | ||||
| Load voltage range | 180 to 440 VAC (50/60 Hz) | 180 to 264 VAC (50/60 Hz) | ||||
| Rated carry current (See note 1.) | 5.5 A (Ta = 40°C) | 2.4 A (Ta = 40°C) | 17.4 A (Ta = 40°C) | 11.1 A (Ta = 40°C) | 4.8 A (Ta = 40°C) | |
| Min. load current | 0.5 A | |||||
| Peak-value current resistivity | 220 A, 60 Hz, 1 cycle | 96 A, 60 Hz, 1 cycle | 500 A, 60 Hz, 1 cycle | 350 A, 60 Hz, 1 cycle | 150 A, 60 Hz, 1 cycle | |
| Overload resistance | Refer to Data Sheet. | |||||
| Closed current (effective value) | AC3 | 55 A | 24 A | 174 A | 111 A | 48 A |
| AC4 | 66 A | 28.8 A | 208.8 A | 133.2 A | 57.6 A | |
| Breaking current (effective value) | AC3 | 44 A | 19.2 A | 139.2 A | 88.8 A | 38.4 A |
| AC4 | 55 A | 24 A | 174 A | 111 A | 48 A | |
| Applicable load | 3-phase inductive motor (AC3 AC4 AC53-a) | 380 to 400 VAC, 2.2 kW, 5.5 A | 380 to 400 VAC, 0.75 kW, 2.4 A | 200 to 220 VAC, 3.7 kW, 17.4 A | 200 to 220 VAC, 2.2 kW, 11.1 A | 200 to 220 VAC, 0.75 kW, 4.8 A |
| Motors passing the AC3-class, AC4-class, and AC53-a-class switching frequency test (Ta = 40°C) under conditions specified by OMRON. Refer to Data Sheet. | ||||||
| Resistive load (AC1) (See note 2.) | 200 to 400 VAC, 5.5 A | 200 to 400 VAC, 2.4 A | 200 to 240 VAC, 17.4 A | 200 to 240 VAC, 11.1 A | 200 to 240 VAC, 4.8 A | |
Note: 1. The rated carry current varies depending on the ambient temperature. Refer to Load Current vs. Ambient
Temperature under Engineering Data in the Information Common to the G3J-T, G3J-S, and G3J for details.
2. No single-phase load can be connected.
Characteristics
| Item | G3J-T405BL | G3J-T403BL | G3J-T217BL | G3J-T211BL | G3J-T205BL |
|---|---|---|---|---|---|
| Ramp-up time | Set within a range from 1 to 25 s. | ||||
| Ramp-down time | Set within a range from 1 to 25 s. | ||||
| Starting torque | Set within a range from 200% to 450% In. | ||||
| Output ON-voltage drop | 1.8 VRMS max. | 1.6 VRMS max. | |||
| Leakage current | 20 mA max. (at 400 VAC) | 10 mA max. (at 200 VAC) | |||
| Insulation resistance | 100 MΩ min. (at 500 VDC) | ||||
| Dielectric strength | 2,500 VAC, 50/60 Hz for 1 min | ||||
| Vibration resistance | Destruction: 10 to 55 to 10 Hz, 0.75-mm single amplitude | ||||
| Shock resistance | Destruction: 294 m/s2 | ||||
| Ambient temperature | Operating: -20°C to 60°C (with no icing or condensation) Storage: -30°C to 70°C (with no icing or condensation) | ||||
| Ambient humidity | Operating: 45% to 85% | ||||
| Weight | 730 g max. | 800 g max. | 730 g max. | ||
| Standards | UL508 File No. E64562 CSA22.2 No. 14 File No. LR35535 CCC GB/T 14048.6 No. 2016010304855598 (G3J-T405BL, G3J-T403BL) CCC GB/T 14048.6 No. 2016010304855599 (G3J-T217BL, G3J-T211BL, G3J-T205BL) | ||||
last update: January 7, 2019
OMRON G3J-T dimension
G3J-T Soft-start/stop Solid State Contactors/Dimensionslast update: November 06, 2012

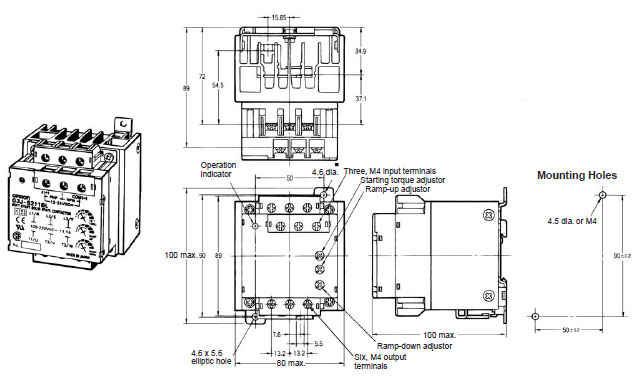

G3J-T211BL
G3J-T205BL
G3J-T405BL
G3J-T403BL

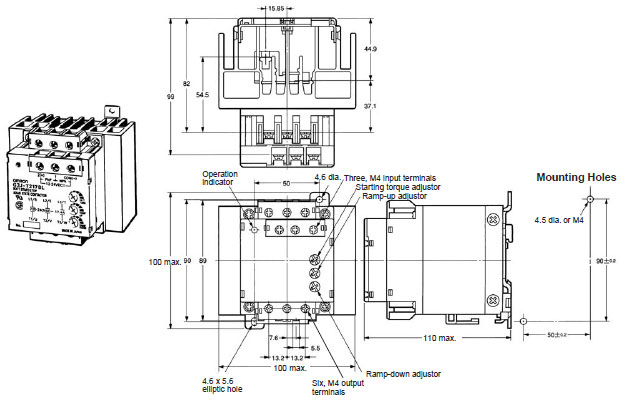

G3J-T217BL
last update: November 06, 2012
