• 1 and 2 cable types

• Meets EN ISO 13849-1 (PLd/Safety Category 3) and EN ISO 13856-1

• Can be used with MC3 Safety Mat Controller, SCC-1224A Safety Mat/Edge Controller or NX Safety Controller

• Complies with North American safety standards including ANSI/RIA 15.06

last update: October 2, 2017

Purchase the OMRON Copyright Statement Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON UMA Series Safety Components,Safety Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Safety Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the UMA Series We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON UMA SeriesSafety Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

E3X-SD / NA Simple Fiber Amplifier Unit/Features
D5V Contact Displacement Sensor/Features
D5F High-precision Optical Switch/Features
E5AR-T Programmable Digital Controller/Features
CS1W-B7A CS-series B7A Interface Unit/Features

OMRON UMA Series dimension
UMA Series Safety Mat/Dimensions
last update: October 2, 2017

(Unit: mm)

Safety Mat
1-cable mat

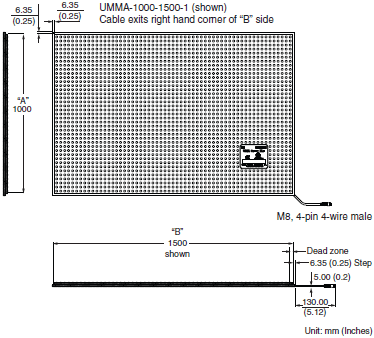

UM[][]A-[]-[]-1

The UM[][]A-[]-[]-1 mat comes with a short 4-conductor quick disconnect cables with M8 4-pin connector at a corner of the safety mat.

2-cable mat

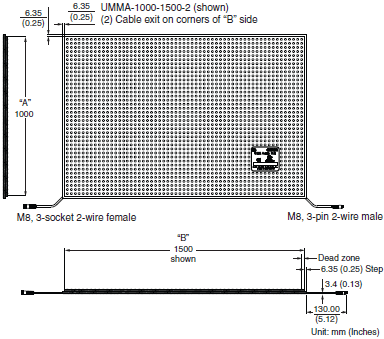

UM[][]A-[]-[]-2

The UM[][]A-[]-[]-2 mat comes with two short 2-conductor quick disconnect cables with M8 3-pin connector at two corners of the safety mat.

*1. Refer to Model Number Structure on Data Sheet for more information.
*2. "Step" portion of mat (inactive) is used to "seat/place/hold" trim.
*3. The mat has the following inactive (non-sensing) area:
- 10 mm (20 mm at corners) with a test piece of 80 mm diameter
- 15 mm (30 mm at corners) with a test piece of 11 mm diameter

Example dimensions: UMMA-0500-0500-[]

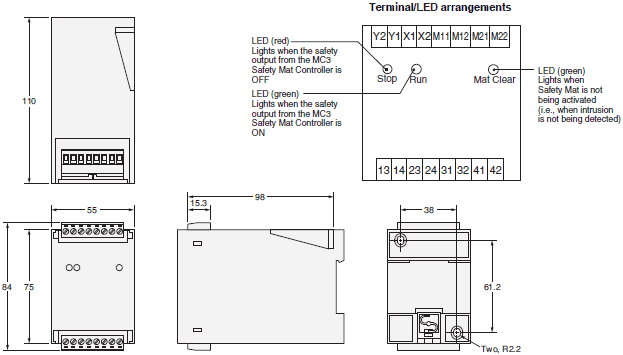

Mat Controller
MC3

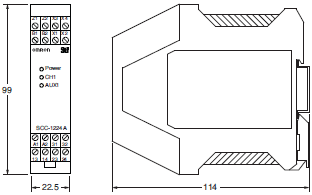

Safety Mat/Edge Controller
SCC-1224A

Accessories
Cables
Using with 1-Cable Mats

Single Connector Cable (M8, 4-socket)
Single connector cable to connect a 1-cable UMA Safety Mat to a MC3 Safety Mat Controller, SCC-1224A Safety Mat/Edge Controller or NX-series Safety Controller.
UMA-CBL-4PCF-M8-[]M

Male-Female Extension Cable (M8, 4-pin)
Extension cable to connect a 1-cable UMA Safety Mat to a UMA-CBL-4PCF-M8-[]M Single Connector Cable.
UMA-CBL-4PMF-M8-[]M

Using with 2-Cable Mats

Single Connector Cable (M8, 3-socket)
Single connector cable to connect a 2-cable UMA Safety Mat to a MC3 Safety Mat Controller, SCC-1224A Safety Mat/Edge Controller or NX-series Safety Controller.
UMA-CBL-3PCF-M8-[]M

Male-Female Extension Cable (M8, 3-pin)
Extension cable to connect a 2-cable UMA Safety Mat to a UMA-CBL-3PCF-M8-[]M Single Connector Cable or connect multiple 2-cable UMA Safety Mats in series.
UMA-CBL-3PMF-M8-[]M

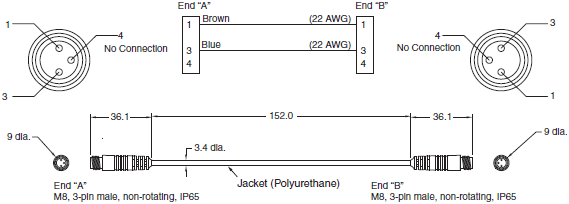

Male-Male Extension Cable (M8, 3-pin)
Used to connect the connector sockets of 2-cable UMA Safety Mats together.
UMA-CBL-3PMM-M8-0.15M

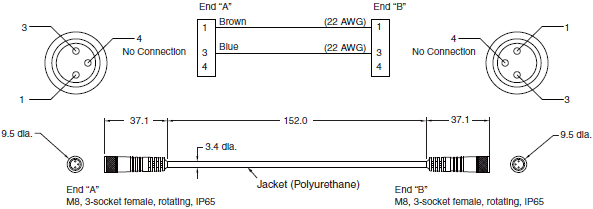

Female-Female Extension Cable (M8, 3-pin)
Used to connect the connector plugs of 2-cable UMA Safety Mats together.
UMA-CBL-3PFF-M8-0.15M

Terminating Resistor
Used to connect a 2-cable Mat (UM[][]A-[]-[]-2) to an SCC-1224A Safety Mat/Edge Controller.

Trims
Ramp Trim with Yellow PVC Cover

UMRT[]

Joining Trim

UMJS[]

Aluminum Ramp Trim

UMAL

Molded Outside Corner

UMOC

Molded Inside Corner

UMIC

last update: October 2, 2017

OMRON UMA Series specification
UMA Series Safety Mat/Specifications
last update: October 2, 2017
Safety Mat

Detection Method Pressure sensitive
Mat Type Normally open SPST
Mat Electrical Rating 20.4 V to 28.8 V
Activation Force 300 N min. to 80 mm dia. test piece
Maximum Load 2,000 N to 80 mm dia. test piece
1,862 kPa (270 lbs/in.2) (rolling load (stationary))
Response Time 50 ms max.
Mechanical Durability 1 x 10⁶operations min.
Mat Exit Cable Model No. ending ‘-1’: 1 exit cable, M8 4-pin cable, 4 conductors, 22 AWG, male
Model No. ending ‘-2’: 2 exit cables, M8 3-pin cable, 2 conductors, 22 AWG, 1 male and 1 female
Ambient operating
temperature -10 to 55°C (14 to 131°F) (with no icing or condensation)
Ambient storage temperature -10 to 55°C (14 to 131°F) (with no icing or condensation)
Ambient operating humidity 0 to 95% RH
Degree of protection IP65
Material (Mat cover) Polyurethane
Weight Approx. 25 kg/m²

Safety Mat Controller
Ratings

Model MC3 SCC-1224A
Power voltage 24 VDC 120 VAC 50/60Hz (Terminals A1 and A2)
24 VAC 50/60Hz or 24 VDC (Terminals B1 and B2)
Operating
voltage range -15% to +15% of rated supply voltage -10% to +10% of rated supply voltage
Power
consumption * 3 W max. 120 VAC: 3.8 VA max. 50 Hz, 3.5 VA max. 60 Hz
24 VAC: 1.2 VA max., 24 VDC: 1.5 W max.
Rated load 6 A at 230 VAC/6 A at 24 VDC (resistive load)
5 A at 230 VAC (AC15)/2 A at 24 VDC (DC13)
(inductive load) 3 A at 230 VAC/3 A at 24 VDC (resistive load)
1 A at 230 VAC (AC15)/2 A at 24 VDC (DC13)
(inductive load)

* Power consumption of loads is not included.

Characteristics

Model MC3 SCC-1224A
Response time 30 ms max. 13 ms max.
Safety input Mat can be connected in series
(Connectable number: 12 max.)
The external impedance must be 8 Ω or
less between M11 and M21 and between
M12 and M22. Mat can be connected in series
(Connectable number: 10 max.)
Safety output SPDT-NO SPDT-NO
Auxiliary output SPDT-NC SPST-NO
Dielectric
strength Between different
poles of outputs 1,800 VAC, 50/60 Hz for 1 sec. 1,500 VAC, 50/60 Hz for 1 sec.
Between power
supply and output
Vibration resistance Malfunction: 10 to 55 Hz, 0.15 mm single
amplitude Malfunction: 10 to 55 Hz, 0.15 mm single
amplitude
Mechanical shock resistance Malfunction: 98 m/s² Malfunction: 147 m/s²
Durability Mechanical 10,000,000 cycles min. 1,000,000 cycles min.
Electrical 100,000 cycles min. (rated load, switching
frequency: 360 cycles/hour) AC-15: 800,000 cycles min. (1A at 230
VAC)
DC-13: 250,000 cycles min. (2A at 24 VDC)
Ambient operating
temperature 0 to 55°C (with no icing or condensation) -20 to 55°C (with no icing or
condensation)
Ambient operating humidity 0% to 90% RH 0% to 90% RH
Degree of protection IP20 IP20
Terminal tightening torque 0.5 N·m 0.5 to 0.6 N·m
Weight Approx. 360 g Approx. 210 g

Approvals

Model MC3 SCC-1224A
Conforming to Standards EN ISO13856-1:2013,
EN ISO13849-1:2015,
ANSI/UL 508, CSA C22.2 No. 14 EN ISO 13856-1:2013,
EN ISO 13849-1:2015,
ANSI/UL 508, CSA C22.2 No. 14
Performance level (PL)/
safety category * PL d/safety category 3
(EN ISO 13849-1:2015) PL d/safety category 3
(EN ISO 13849-1:2015)
PFHd * 4.8× 10^-8 6.5× 10^-9

* Applicable to integrated systems of UMA Safety Mats and Safety Mat Controller.

last update: October 2, 2017

OMRON UMA Series catalog
UMA Series Safety Mat/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

UMA Series Data Sheet A250-E1-02
[5543KB] Oct 18, 201820181018 UMA Series Data Sheet

OMRON UMA Series lineup
UMA Series Safety Mat/Lineup
last update: October 18, 2018

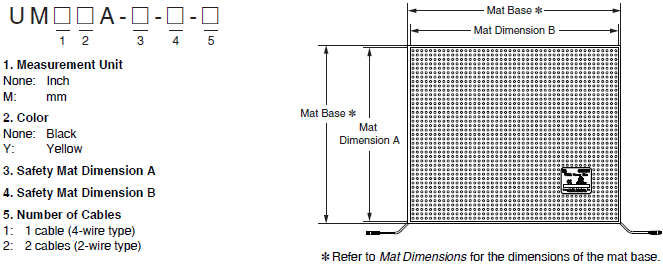

Model Number Structure

Ordering Information
Safety Mats
1-cable Mats

Appearance Dimensions Black Yellow
A (mm) B (mm) Model Model
300 300 UMMA-0300-0300-1 UMMYA-0300-0300-1
400 400 UMMA-0400-0400-1 UMMYA-0400-0400-1
500 250 UMMA-0500-0250-1 UMMYA-0500-0250-1
500 400 UMMA-0500-0400-1 UMMYA-0500-0400-1
500 500 UMMA-0500-0500-1 UMMYA-0500-0500-1
500 1500 UMMA-0500-1500-1 UMMYA-0500-1500-1
600 400 UMMA-0600-0400-1 UMMYA-0600-0400-1
750 250 UMMA-0750-0250-1 UMMYA-0750-0250-1
750 500 UMMA-0750-0500-1 UMMYA-0750-0500-1
750 750 UMMA-0750-0750-1 UMMYA-0750-0750-1
750 1500 UMMA-0750-1500-1 UMMYA-0750-1500-1
1000 500 UMMA-1000-0500-1 UMMYA-1000-0500-1
1000 750 UMMA-1000-0750-1 UMMYA-1000-0750-1
1000 1000 UMMA-1000-1000-1 UMMYA-1000-1000-1
1000 1250 UMMA-1000-1250-1 UMMYA-1000-1250-1
1000 1500 UMMA-1000-1500-1 UMMYA-1000-1500-1

2-cable Mats

Appearance Dimensions Black Yellow
A (mm) B (mm) Model Model
300 300 UMMA-0300-0300-2 UMMYA-0300-0300-2
400 400 UMMA-0400-0400-2 UMMYA-0400-0400-2
500 250 UMMA-0500-0250-2 UMMYA-0500-0250-2
500 400 UMMA-0500-0400-2 UMMYA-0500-0400-2
500 500 UMMA-0500-0500-2 UMMYA-0500-0500-2
500 1500 UMMA-0500-1500-2 UMMYA-0500-1500-2
600 400 UMMA-0600-0400-2 UMMYA-0600-0400-2
750 250 UMMA-0750-0250-2 UMMYA-0750-0250-2
750 500 UMMA-0750-0500-2 UMMYA-0750-0500-2
750 750 UMMA-0750-0750-2 UMMYA-0750-0750-2
750 1500 UMMA-0750-1500-2 UMMYA-0750-1500-2
1000 500 UMMA-1000-0500-2 UMMYA-1000-0500-2
1000 750 UMMA-1000-0750-2 UMMYA-1000-0750-2
1000 1000 UMMA-1000-1000-2 UMMYA-1000-1000-2
1000 1250 UMMA-1000-1250-2 UMMYA-1000-1250-2
1000 1500 UMMA-1000-1500-2 UMMYA-1000-1500-2

Trims

Appearance Name Model Remarks
Ramp Trim with Yellow PVC
Cover (1.22 m) UMRT4 Installed on the perimeter of the Safety Mat. Each
Trim is composed of two parts, an aluminum base
and a PVC Cover. Possible to install cables inside.
Ramp Trim with Yellow PVC
Cover (2.44 m) UMRT8
Joining Trim (1.22 m) UMJS4 The Joining Trims join the Safety Mats when two or
more Safety Mats are being combined. In addition
to joining the Safety Mats, the Joining Trims
preserve the Safety Mat's sensitivity at the joints.
Possible to install cables inside except M8
connector portion.
Joining Trim (2.44 m) UMJS8
Aluminum Ramp Trim (2.44 m) UMAL Installed on the perimeter of the Safety Mat.
Molded Outside Corner UMOC Installed at the outside corners of the Safety Mat
combining with Ramp Trims with Yellow PVC
Cover.
Molded Inside Corner UMIC Installed at the inside corners when two or more
Safety Mats combining with Ramp Trims with
Yellow PVC Cover are being combined.

Note: 12 screws (No. 8-32 × 1.25") and 12 anchors are included with Ramp Trim with Yellow PVC Cover (UMRT4 and UMRT8) and Aluminum Ramp Trim (UMAL).

Trim Kits (Not Including Safety Mat)

Applicable Safety Mat Trim Kit model Remarks
Black Yellow
UMMA-0300-0300-[] UMMYA-0300-0300-[] MTKCA-0300-0300 A set of Molded Outside Corners and Trims
• 4 UMOC Molded Outside Corners
• 4 Ramp Trims with Yellow PVC Corners that
fit the mat dimensions A and B
UMMA-0400-0400-[] UMMYA-0400-0400-[] MTKCA-0400-0400
UMMA-0500-0250-[] UMMYA-0500-0250-[] MTKCA-0500-0250
UMMA-0500-0400-[] UMMYA-0500-0400-[] MTKCA-0500-0400
UMMA-0500-0500-[] UMMYA-0500-0500-[] MTKCA-0500-0500
UMMA-0500-1500-[] UMMYA-0500-1500-[] MTKCA-0500-1500
UMMA-0600-0400-[] UMMYA-0600-0400-[] MTKCA-0600-0400
UMMA-0750-0250-[] UMMYA-0750-0250-[] MTKCA-0750-0250
UMMA-0750-0500-[] UMMYA-0750-0500-[] MTKCA-0750-0500
UMMA-0750-0750-[] UMMYA-0750-0750-[] MTKCA-0750-0750
UMMA-0750-1500-[] UMMYA-0750-1500-[] MTKCA-0750-1500
UMMA-1000-0500-[] UMMYA-1000-0500-[] MTKCA-1000-0500
UMMA-1000-0750-[] UMMYA-1000-0750-[] MTKCA-1000-0750
UMMA-1000-1000-[] UMMYA-1000-1000-[] MTKCA-1000-1000
UMMA-1000-1250-[] UMMYA-1000-1250-[] MTKCA-1000-1250
UMMA-1000-1500-[] UMMYA-1000-1500-[] MTKCA-1000-1500

Note: 1. Put 1 in the box ([]) in the model number for 1-cable Mat or 2 for 2-cable Mat.
2. 24 screws (No. 8 × 32 mm) and 24 anchors are included with a Trim Kit.

Safety Mat Controller

Product Appearance Safety outputs Auxiliary
outputs Rated voltage Terminal
block type Model
Safety Mat
Controller SPDT-NO SPDT-NC 24 VDC Screw terminals MC3
Safety Mat/
Edge Controller * SPDT-NO SPST-NO 120 VAC
or
24 VAC/DC Screw terminals SCC-1224A

* Can also be connected with SGE-series Safety Edges.
Refer to the SCC-1224A Safety Mat/Edge Controller User Manual (Cat. No. Z394) for details.

Accessories
Using with 1-cable Mats

Connecting a 1-cable Mat to a MC3 Safety Mat Controller, SCC-1224A Safety Mat/Edge Controller or NX-series Safety Controller.

Cables

Appearance Name Length Remarks Model
Single Connector
Cable 2 m Single connector cable to connect a 1-
cable Mat (UM[][]A-[]-[]-1) to a Controller.
M8, 4-socket UMA-CBL-4PCF-M8-02M
5 m UMA-CBL-4PCF-M8-05M
10 m UMA-CBL-4PCF-M8-10M
Male-Female
Extension Cable 2 m Extension cable to connect a 1-cable Mat
(UM[][]A-[]-[]-1) to a Controller. M8, 4-pin UMA-CBL-4PMF-M8-02M
5 m UMA-CBL-4PMF-M8-05M
10 m UMA-CBL-4PMF-M8-10M

Using with 2-cable Mats

Connecting a 2-cable Mat to a MC3 Safety Mat Controller, SCC-1224A Safety Mat/Edge Controller or NX-series Safety Controller.

Cables

Appearance Name Length Remarks Model
Single Connector
Cable 2 m Single connector cable to connect a 2-
cable Mat (UM[][]A-[]-[]-2) to a Controller.
M8, 3-socket UMA-CBL-3PCF-M8-02M
5 m UMA-CBL-3PCF-M8-05M
10 m UMA-CBL-3PCF-M8-10M
Male-Female
Extension Cable 2 m Extension cable to connect a 2-cable Mat
(UM[][]A-[]-[]-2) to a Controller. M8, 3-pin UMA-CBL-3PMF-M8-02M
5 m UMA-CBL-3PMF-M8-05M
10 m UMA-CBL-3PMF-M8-10M

Male-Male Extension Cable and Female-Female Extension Cable

Refer to Connection Examples of Safety Mat and Controller on Data Sheet for details on how to connect.

Appearance Name Length Remarks Model
M8, 3-pin Male to
Male Extension Cable 0.15 m To be used to connect the
connector sockets of 2-cable UMA
Safety Mat together. UMA-CBL-3PMM-M8-0.15M
M8, 3-pin Female to
Female Extension Cable 0.15 m To be used to connect the
connector plugs of 2-cable UMA
Safety Mat together. UMA-CBL-3PFF-M8-0.15M

Terminating Resistor

Appearance Remarks Model
Terminating resistor, 8.2 kΩ
To be used to connect a 2-cable Mat (UM[][]A-[]-[]-2) to an SCC-1224A Safety Mat/
Edge Controller. UMA-TRES

last update: October 18, 2018

NO. UMA Series

TYPE:Safety Mats Copyright Statement Copyright Statement

DATE:2021-06-08

Associated products:
D4N-[]R Pull-reset Safety Limit Switch/Features UM, MC3 Safety Mat/Safety Mat Controller/Features

Detection Method	Pressure sensitive
Mat Type	Normally open SPST
Mat Electrical Rating	20.4 V to 28.8 V
Activation Force	300 N min. to 80 mm dia. test piece
Maximum Load	2,000 N to 80 mm dia. test piece 1,862 kPa (270 lbs/in.2) (rolling load (stationary))
Response Time	50 ms max.
Mechanical Durability	1 x 10⁶operations min.
Mat Exit Cable	Model No. ending ‘-1’: 1 exit cable, M8 4-pin cable, 4 conductors, 22 AWG, male Model No. ending ‘-2’: 2 exit cables, M8 3-pin cable, 2 conductors, 22 AWG, 1 male and 1 female
Ambient operating temperature	-10 to 55°C (14 to 131°F) (with no icing or condensation)
Ambient storage temperature	-10 to 55°C (14 to 131°F) (with no icing or condensation)
Ambient operating humidity	0 to 95% RH
Degree of protection	IP65
Material (Mat cover)	Polyurethane
Weight	Approx. 25 kg/m²

Model	MC3	SCC-1224A
Power voltage	24 VDC	120 VAC 50/60Hz (Terminals A1 and A2) 24 VAC 50/60Hz or 24 VDC (Terminals B1 and B2)
Operating voltage range	-15% to +15% of rated supply voltage	-10% to +10% of rated supply voltage
Power consumption *	3 W max.	120 VAC: 3.8 VA max. 50 Hz, 3.5 VA max. 60 Hz 24 VAC: 1.2 VA max., 24 VDC: 1.5 W max.
Rated load	6 A at 230 VAC/6 A at 24 VDC (resistive load) 5 A at 230 VAC (AC15)/2 A at 24 VDC (DC13) (inductive load)	3 A at 230 VAC/3 A at 24 VDC (resistive load) 1 A at 230 VAC (AC15)/2 A at 24 VDC (DC13) (inductive load)

Model	MC3	SCC-1224A
Response time	30 ms max.	13 ms max.
Safety input	Mat can be connected in series (Connectable number: 12 max.) The external impedance must be 8 Ω or less between M11 and M21 and between M12 and M22.	Mat can be connected in series (Connectable number: 10 max.)
Safety output	SPDT-NO	SPDT-NO
Auxiliary output	SPDT-NC	SPST-NO
Dielectric strength	Between different poles of outputs	1,800 VAC, 50/60 Hz for 1 sec.	1,500 VAC, 50/60 Hz for 1 sec.
Between power supply and output
Vibration resistance	Malfunction: 10 to 55 Hz, 0.15 mm single amplitude	Malfunction: 10 to 55 Hz, 0.15 mm single amplitude
Mechanical shock resistance	Malfunction: 98 m/s²	Malfunction: 147 m/s²
Durability	Mechanical	10,000,000 cycles min.	1,000,000 cycles min.
Electrical	100,000 cycles min. (rated load, switching frequency: 360 cycles/hour)	AC-15: 800,000 cycles min. (1A at 230 VAC) DC-13: 250,000 cycles min. (2A at 24 VDC)
Ambient operating temperature	0 to 55°C (with no icing or condensation)	-20 to 55°C (with no icing or condensation)
Ambient operating humidity	0% to 90% RH	0% to 90% RH
Degree of protection	IP20	IP20
Terminal tightening torque	0.5 N·m	0.5 to 0.6 N·m
Weight	Approx. 360 g	Approx. 210 g

Model	MC3	SCC-1224A
Conforming to Standards	EN ISO13856-1:2013, EN ISO13849-1:2015, ANSI/UL 508, CSA C22.2 No. 14	EN ISO 13856-1:2013, EN ISO 13849-1:2015, ANSI/UL 508, CSA C22.2 No. 14
Performance level (PL)/ safety category *	PL d/safety category 3 (EN ISO 13849-1:2015)	PL d/safety category 3 (EN ISO 13849-1:2015)
PFHd *	4.8× 10^-8	6.5× 10^-9

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
UMA Series Data Sheet	A250-E1-02 [5543KB]	Oct 18, 201820181018	UMA Series Data Sheet

Appearance	Dimensions	Black	Yellow
A (mm)	B (mm)	Model	Model
	300	300	UMMA-0300-0300-1	UMMYA-0300-0300-1
400	400	UMMA-0400-0400-1	UMMYA-0400-0400-1
500	250	UMMA-0500-0250-1	UMMYA-0500-0250-1
500	400	UMMA-0500-0400-1	UMMYA-0500-0400-1
500	500	UMMA-0500-0500-1	UMMYA-0500-0500-1
500	1500	UMMA-0500-1500-1	UMMYA-0500-1500-1
600	400	UMMA-0600-0400-1	UMMYA-0600-0400-1
750	250	UMMA-0750-0250-1	UMMYA-0750-0250-1
750	500	UMMA-0750-0500-1	UMMYA-0750-0500-1
750	750	UMMA-0750-0750-1	UMMYA-0750-0750-1
750	1500	UMMA-0750-1500-1	UMMYA-0750-1500-1
1000	500	UMMA-1000-0500-1	UMMYA-1000-0500-1
1000	750	UMMA-1000-0750-1	UMMYA-1000-0750-1
1000	1000	UMMA-1000-1000-1	UMMYA-1000-1000-1
1000	1250	UMMA-1000-1250-1	UMMYA-1000-1250-1
1000	1500	UMMA-1000-1500-1	UMMYA-1000-1500-1

Appearance	Dimensions	Black	Yellow
A (mm)	B (mm)	Model	Model
	300	300	UMMA-0300-0300-2	UMMYA-0300-0300-2
400	400	UMMA-0400-0400-2	UMMYA-0400-0400-2
500	250	UMMA-0500-0250-2	UMMYA-0500-0250-2
500	400	UMMA-0500-0400-2	UMMYA-0500-0400-2
500	500	UMMA-0500-0500-2	UMMYA-0500-0500-2
500	1500	UMMA-0500-1500-2	UMMYA-0500-1500-2
600	400	UMMA-0600-0400-2	UMMYA-0600-0400-2
750	250	UMMA-0750-0250-2	UMMYA-0750-0250-2
750	500	UMMA-0750-0500-2	UMMYA-0750-0500-2
750	750	UMMA-0750-0750-2	UMMYA-0750-0750-2
750	1500	UMMA-0750-1500-2	UMMYA-0750-1500-2
1000	500	UMMA-1000-0500-2	UMMYA-1000-0500-2
1000	750	UMMA-1000-0750-2	UMMYA-1000-0750-2
1000	1000	UMMA-1000-1000-2	UMMYA-1000-1000-2
1000	1250	UMMA-1000-1250-2	UMMYA-1000-1250-2
1000	1500	UMMA-1000-1500-2	UMMYA-1000-1500-2

Appearance	Name	Model	Remarks
	Ramp Trim with Yellow PVC Cover (1.22 m)	UMRT4	Installed on the perimeter of the Safety Mat. Each Trim is composed of two parts, an aluminum base and a PVC Cover. Possible to install cables inside.
Ramp Trim with Yellow PVC Cover (2.44 m)	UMRT8
	Joining Trim (1.22 m)	UMJS4	The Joining Trims join the Safety Mats when two or more Safety Mats are being combined. In addition to joining the Safety Mats, the Joining Trims preserve the Safety Mat's sensitivity at the joints. Possible to install cables inside except M8 connector portion.
Joining Trim (2.44 m)	UMJS8
	Aluminum Ramp Trim (2.44 m)	UMAL	Installed on the perimeter of the Safety Mat.
	Molded Outside Corner	UMOC	Installed at the outside corners of the Safety Mat combining with Ramp Trims with Yellow PVC Cover.
	Molded Inside Corner	UMIC	Installed at the inside corners when two or more Safety Mats combining with Ramp Trims with Yellow PVC Cover are being combined.

Applicable Safety Mat	Trim Kit model	Remarks
Black	Yellow
UMMA-0300-0300-[]	UMMYA-0300-0300-[]	MTKCA-0300-0300	A set of Molded Outside Corners and Trims • 4 UMOC Molded Outside Corners • 4 Ramp Trims with Yellow PVC Corners that fit the mat dimensions A and B
UMMA-0400-0400-[]	UMMYA-0400-0400-[]	MTKCA-0400-0400
UMMA-0500-0250-[]	UMMYA-0500-0250-[]	MTKCA-0500-0250
UMMA-0500-0400-[]	UMMYA-0500-0400-[]	MTKCA-0500-0400
UMMA-0500-0500-[]	UMMYA-0500-0500-[]	MTKCA-0500-0500
UMMA-0500-1500-[]	UMMYA-0500-1500-[]	MTKCA-0500-1500
UMMA-0600-0400-[]	UMMYA-0600-0400-[]	MTKCA-0600-0400
UMMA-0750-0250-[]	UMMYA-0750-0250-[]	MTKCA-0750-0250
UMMA-0750-0500-[]	UMMYA-0750-0500-[]	MTKCA-0750-0500
UMMA-0750-0750-[]	UMMYA-0750-0750-[]	MTKCA-0750-0750
UMMA-0750-1500-[]	UMMYA-0750-1500-[]	MTKCA-0750-1500
UMMA-1000-0500-[]	UMMYA-1000-0500-[]	MTKCA-1000-0500
UMMA-1000-0750-[]	UMMYA-1000-0750-[]	MTKCA-1000-0750
UMMA-1000-1000-[]	UMMYA-1000-1000-[]	MTKCA-1000-1000
UMMA-1000-1250-[]	UMMYA-1000-1250-[]	MTKCA-1000-1250
UMMA-1000-1500-[]	UMMYA-1000-1500-[]	MTKCA-1000-1500

Product	Appearance	Safety outputs	Auxiliary outputs	Rated voltage	Terminal block type	Model
Safety Mat Controller		SPDT-NO	SPDT-NC	24 VDC	Screw terminals	MC3
Safety Mat/ Edge Controller *		SPDT-NO	SPST-NO	120 VAC or 24 VAC/DC	Screw terminals	SCC-1224A

Appearance	Name	Length	Remarks	Model
	Single Connector Cable	2 m	Single connector cable to connect a 1- cable Mat (UM[][]A-[]-[]-1) to a Controller. M8, 4-socket	UMA-CBL-4PCF-M8-02M
5 m	UMA-CBL-4PCF-M8-05M
10 m	UMA-CBL-4PCF-M8-10M
	Male-Female Extension Cable	2 m	Extension cable to connect a 1-cable Mat (UM[][]A-[]-[]-1) to a Controller. M8, 4-pin	UMA-CBL-4PMF-M8-02M
5 m	UMA-CBL-4PMF-M8-05M
10 m	UMA-CBL-4PMF-M8-10M

Appearance	Name	Length	Remarks	Model
	Single Connector Cable	2 m	Single connector cable to connect a 2- cable Mat (UM[][]A-[]-[]-2) to a Controller. M8, 3-socket	UMA-CBL-3PCF-M8-02M
5 m	UMA-CBL-3PCF-M8-05M
10 m	UMA-CBL-3PCF-M8-10M
	Male-Female Extension Cable	2 m	Extension cable to connect a 2-cable Mat (UM[][]A-[]-[]-2) to a Controller. M8, 3-pin	UMA-CBL-3PMF-M8-02M
5 m	UMA-CBL-3PMF-M8-05M
10 m	UMA-CBL-3PMF-M8-10M

Appearance	Name	Length	Remarks	Model
	M8, 3-pin Male to Male Extension Cable	0.15 m	To be used to connect the connector sockets of 2-cable UMA Safety Mat together.	UMA-CBL-3PMM-M8-0.15M
	M8, 3-pin Female to Female Extension Cable	0.15 m	To be used to connect the connector plugs of 2-cable UMA Safety Mat together.	UMA-CBL-3PFF-M8-0.15M

Appearance	Remarks	Model
	Terminating resistor, 8.2 kΩ To be used to connect a 2-cable Mat (UM[][]A-[]-[]-2) to an SCC-1224A Safety Mat/ Edge Controller.	UMA-TRES

Return to OMRON
