• Equipped with the standard Smart Slave functions that provide powerful preventative maintenance and troubleshooting capabilities.

• Digital I/O Terminal compatible with industry-standard sensor connectors

• Connect sensors easily without special tools. Reduce time required for wiring.

• Load short-circuit detection.

last update: December 19, 2013

Purchase the OMRON DeviceNet Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON DRT2-[]D16S(-1) Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the DRT2-[]D16S(-1) We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON DRT2-[]D16S(-1)Automation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

E2K-C Long-distance type/Features
E5AR-T Programmable Digital Controller/Features
H3YN Solid-state Timer/Features
GT1-ID / OD Digital I/O Units/Features
S8T-DCBU-01 DC Backup Block for S8TS/Features

OMRON DRT2-[]D16S(-1) specification
DRT2-[]D16S(-1) e-CON Connector Terminals/Specifications
last update: June 1, 2018
General Specifications

Model DRT2-ID16S(-1) DRT2-MD16S(-1)
Communications power supply voltage 11 to 25 VDC
Communications power supply current
consumption 45 mA max. (24 VDC), 80 mA max. (11 VDC)
Unit power supply voltage Not required (Supplied from the communications connector.)
I/O power supply voltage 20.4 to 26.4 VDC (24 VDC -15%/+10%)
Current consumption Communications power supply: 230
mA max. Communications power supply: 135
mA max.
Dielectric strength 500 VAC between isolated circuits
Noise immunity Conforms to IEC61000-4-4, 2 kV (power line)
Vibration resistance 10 to 60 Hz, 0.7-mm double amplitude, 60 to 150 Hz, 50 m/s² for 80 min
each in the X, Y, and Z directions
Shock resistance 150m/s², 6 directions, 3 times each
Mounting method DIN 35 mm-track mounting or M4 screw mounting
Screw tightening torque M2 (communications connector screws): 0.26 to 0.3 N·m
M4 (unit mounting): 0.6 to 0.98 N·m
Ambient operating temperature -10°C to 55°C
Ambient operating humidity 25 to 85% (with no condensation)
Ambient storage temperature -25°C to 65°C
Weight 90 g max. 95 g max.

Output Specifications
Terminals with 8 Inputs and 8 Outputs

Model DRT2-MD16S DRT2-MD16S-1
Internal I/O common NPN PNP
I/O points 8 outputs
Rated output current 0.3 A/point, 2.4 A/common 0.3 A/point, 1.6 A/common
Residual voltage 1.2 VDC max. (0.3 A DC between
output and G terminal) 1.2 VDC max. (0.3 A DC between
output and V terminal)
Leakage current 0.1 mA max.
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits per common 8 per common
Load short-circuit detection current 2.4 A min./common 1.6 A min./common

Input Specifications
Terminals with 16 Inputs

Model DRT2-ID16S DRT2-ID16S-1
Internal I/O common NPN PNP
I/O points 16 inputs
ON voltage 9 VDC min. (between each input terminal
and V) 9 VDC min. (between each input terminal
and G)
OFF voltage 5 VDC max. (between each input terminal
and V) 5 VDC max. (between each input terminal
and G)
OFF current 1 mA max.
Input current 11 mA max./point (at 24 VDC)
3.0 mA min./point (at 11 VDC)
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits per common 16 per common
Sensor short-circuit detection
current The total current for all of the following input points is monitored to detect sensor
short-circuits.
IN0/IN1, IN2/IN3, IN4/IN5, IN6/IN7, IN8/IN9, IN10/IN11, IN12/IN13, IN14/IN15

Terminal with 8 Inputs/8 Outputs

Model DRT2-MD16S DRT2-MD16S-1
Internal I/O common NPN PNP
I/O points 8 inputs
ON voltage 9 VDC min. (between each input terminal
and V) 9 VDC min. (between each input terminal
and G)
OFF voltage 5 VDC max. (between each input terminal
and V) 5 VDC max. (between each input terminal
and G)
OFF current 1 mA max.
Input current 11 mA max./point (at 24 VDC)
3.0 mA min./point (at 11 VDC)
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits per common 8 per common
Sensor short-circuit detection
current The total current for all of the following input points is monitored to detect sensor
short-circuits.
IN0/IN1, IN2/IN3, IN4/IN5, IN6/IN7

last update: June 1, 2018

OMRON DRT2-[]D16S(-1) dimension
DRT2-[]D16S(-1) e-CON Connector Terminals/Dimensions
last update: September 24, 2012

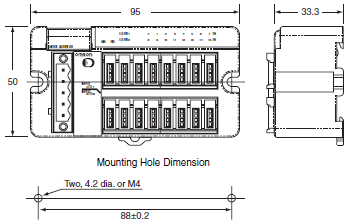

DRT2-ID16S(-1)

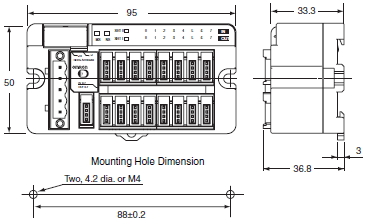

DRT2-MD16S(-1)

last update: September 24, 2012

OMRON DRT2-[]D16S(-1) catalog
DRT2-[]D16S(-1) e-CON Connector Terminals/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

DeviceNet Catalog Q102-E1-14
[30569KB] Aug 03, 201820180803 DeviceNet Catalog

OMRON DRT2-[]D16S(-1) lineup
DRT2-[]D16S(-1) e-CON Connector Terminals/Lineup
last update: September 24, 2012

Specifications I/O
connections Rated internal circuit
power supply voltage Rated I/O power supply
voltage Model

Inputs NPN (+ common) 16 inputs Sensor
connector Supplied from the
communications
connector Supplied from the
communications connector DRT2-ID16S

PNP (- common) DRT2-ID16S-1

I/O NPN (input: + common,
output: - common) 8 inputs/
8 outputs Supplied from external source
for outputs DRT2-MD16S

PNP (input: - common,
output: + common) DRT2-MD16S-1

last update: September 24, 2012

NO. DRT2-[]D16S(-1)

TYPE:Networks DeviceNet Slaves

DATE:2021-06-21

Associated products:
DRT2-[]D32ML(-1) / []D16ML(-1) MIL Connector Terminals with Transistors/Features DRT2-[]D16SL(H)(-1) / []D32SLH(-1) Screw-less Clamp Terminals with Transistors/Features

Model	DRT2-ID16S(-1)	DRT2-MD16S(-1)
Communications power supply voltage	11 to 25 VDC
Communications power supply current consumption	45 mA max. (24 VDC), 80 mA max. (11 VDC)
Unit power supply voltage	Not required (Supplied from the communications connector.)
I/O power supply voltage	20.4 to 26.4 VDC (24 VDC -15%/+10%)
Current consumption	Communications power supply: 230 mA max.	Communications power supply: 135 mA max.
Dielectric strength	500 VAC between isolated circuits
Noise immunity	Conforms to IEC61000-4-4, 2 kV (power line)
Vibration resistance	10 to 60 Hz, 0.7-mm double amplitude, 60 to 150 Hz, 50 m/s² for 80 min each in the X, Y, and Z directions
Shock resistance	150m/s², 6 directions, 3 times each
Mounting method	DIN 35 mm-track mounting or M4 screw mounting
Screw tightening torque	M2 (communications connector screws): 0.26 to 0.3 N·m M4 (unit mounting): 0.6 to 0.98 N·m
Ambient operating temperature	-10°C to 55°C
Ambient operating humidity	25 to 85% (with no condensation)
Ambient storage temperature	-25°C to 65°C
Weight	90 g max.	95 g max.

Model	DRT2-MD16S	DRT2-MD16S-1
Internal I/O common	NPN	PNP
I/O points	8 outputs
Rated output current	0.3 A/point, 2.4 A/common	0.3 A/point, 1.6 A/common
Residual voltage	1.2 VDC max. (0.3 A DC between output and G terminal)	1.2 VDC max. (0.3 A DC between output and V terminal)
Leakage current	0.1 mA max.
ON delay time	1.5 ms max.
OFF delay time	1.5 ms max.
Number of circuits per common	8 per common
Load short-circuit detection current	2.4 A min./common	1.6 A min./common

Model	DRT2-ID16S	DRT2-ID16S-1
Internal I/O common	NPN	PNP
I/O points	16 inputs
ON voltage	9 VDC min. (between each input terminal and V)	9 VDC min. (between each input terminal and G)
OFF voltage	5 VDC max. (between each input terminal and V)	5 VDC max. (between each input terminal and G)
OFF current	1 mA max.
Input current	11 mA max./point (at 24 VDC) 3.0 mA min./point (at 11 VDC)
ON delay time	1.5 ms max.
OFF delay time	1.5 ms max.
Number of circuits per common	16 per common
Sensor short-circuit detection current	The total current for all of the following input points is monitored to detect sensor short-circuits. IN0/IN1, IN2/IN3, IN4/IN5, IN6/IN7, IN8/IN9, IN10/IN11, IN12/IN13, IN14/IN15

Model	DRT2-MD16S	DRT2-MD16S-1
Internal I/O common	NPN	PNP
I/O points	8 inputs
ON voltage	9 VDC min. (between each input terminal and V)	9 VDC min. (between each input terminal and G)
OFF voltage	5 VDC max. (between each input terminal and V)	5 VDC max. (between each input terminal and G)
OFF current	1 mA max.
Input current	11 mA max./point (at 24 VDC) 3.0 mA min./point (at 11 VDC)
ON delay time	1.5 ms max.
OFF delay time	1.5 ms max.
Number of circuits per common	8 per common
Sensor short-circuit detection current	The total current for all of the following input points is monitored to detect sensor short-circuits. IN0/IN1, IN2/IN3, IN4/IN5, IN6/IN7

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
DeviceNet Catalog	Q102-E1-14 [30569KB]	Aug 03, 201820180803	DeviceNet Catalog

Specifications	I/O connections	Rated internal circuit power supply voltage	Rated I/O power supply voltage	Model
Inputs	NPN (+ common)	16 inputs	Sensor connector	Supplied from the communications connector	Supplied from the communications connector	DRT2-ID16S
PNP (- common)	DRT2-ID16S-1
I/O	NPN (input: + common, output: - common)	8 inputs/ 8 outputs	Supplied from external source for outputs	DRT2-MD16S
PNP (input: - common, output: + common)	DRT2-MD16S-1
