OMRON GT1-ID / OD Dimensions

/Images/l_1080-25-118896-198x198.jpg

last update: December 19, 2013

• Terminal block, connector, and high-density connector models are available.

• The circuit block of the terminal block model can be mounted or dismounted for ease of maintenance without disconnecting the wires.

• DIN track mounting.

last update: December 19, 2013

Purchase the OMRON DeviceNet Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON GT1-ID / OD Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the GT1-ID / OD We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON GT1-ID / ODAutomation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

V500-R2 Laser-type Bar Code Reader/Features
E3Z-LT / LR / LL Compact Laser Photoelectric Sensor with Built-in Amplifier/Features
TL-W Flat Inductive Proximity Sensor/Features
A30NS / A30NW Selector Switches/Features
G9SP Safety Controller/Features

OMRON GT1-ID / OD catalog
GT1-ID / OD Digital I/O Units/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

DeviceNet Catalog Q102-E1-14
[30569KB] Aug 03, 201820180803 DeviceNet Catalog

XW2Z-R Data Sheet G126-E1-02
[2435KB] Apr 03, 201720170403 XW2Z-R Data Sheet

OMRON GT1-ID / OD lineup
GT1-ID / OD Digital I/O Units/Lineup
last update: September 24, 2012

Unit I/O
classification Internal I/O
common I/O
points I/O
connections Power
supply
voltage I/O specification Model

Terminal
block model Digital input NPN (+ common) 16 M3 terminal board 24 VDC DC/transistor GT1-ID16

PNP (- common) GT1-ID16-1

Digital output NPN (- common) 0.5 A, DC/transistor GT1-OD16

PNP (+ common) GT1-OD16-1

Connector
model Digital input NPN (+ common) Molex connector DC/transistor GT1-ID16MX

PNP (- common) GT1-ID16MX-1

Digital output NPN (- common) 0.5 A, DC/transistor GT1-OD16MX

PNP (+ common) GT1-OD16MX-1

Digital input NPN (+ common) Fujitsu connector DC/transistor GT1-ID16ML

PNP (- common) GT1-ID16ML-1

Digital output NPN (- common) 0.5 A, DC/transistor GT1-OD16ML

PNP (+ common) GT1-OD16ML-1

Digital input NPN (+ common) D-sub 25-pin
connector DC/transistor GT1-ID16DS

PNP (- common) GT1-ID16DS-1

Digital output NPN (- common) 0.5 A, DC/transistor GT1-OD16DS

PNP (+ common) GT1-OD16DS-1

High-density
connector
model Digital input NPN (+ common) 32 Fujitsu connector DC/transistor GT1-ID32ML

PNP (- common) GT1-ID32ML-1

Digital output NPN (- common) 0.5 A, DC/transistor GT1-OD32ML

PNP (+ common) GT1-OD32ML-1

last update: September 24, 2012

OMRON GT1-ID / OD specification
GT1-ID / OD Digital I/O Units/Specifications
last update: September 24, 2012
General Specifications

I/O power supply voltage 20.4 to 26.4 VDC (24 VDC -15%/+10%)

Current consumption * Model I/O Interface Internal circuit

GT1-ID16(-1) 35 mA max. ---

GT1-OD16(-1) 35 mA max. 9 mA max.

GT1-ID16MX(-1) 35 mA max. ---

GT1-OD16MX(-1) 35 mA max. 9 mA max.

GT1-ID16ML(-1) 35 mA max. ---

GT1-OD16ML(-1) 35 mA max. 9 mA max.

GT1-ID16DS(-1) 35 mA max. ---

GT1-OD16DS(-1) 35 mA max. 9 mA max.

GT1-ID32ML(-1) 55 mA max. ---

GT1-OD32ML(-1) 65 mA max. 11 mA max.

Dielectric strength 500 VAC

Noise immunity Conforms to IEC61000-4-4 2 kV (power line)

Vibration resistance 10 to 150 Hz, 1.0-mm double amplitude or 70 m/s²

Shock resistance 200 m/s²

Mounting method DIN 35 mm-track mounting

Mounting strength No damage when 100 N pull load was applied in all directions (10 N min. in the DIN track direction)

Terminal strength No damage when 100 N pull load was applied

Screw tightening torque 0.3 to 0.5 Nm

Ambient operating temperature -10°C to 55°C (with no icing or condensation)

Ambient operating humidity 25% to 85% (with no icing or condensation)

Ambient storage temperature -25°C to 65°C

Accessories I/O Unit Connecting Cable (40 mm)

* The above current consumption is a value with all 16 and 32 points turned ON excluding the current consumption of the
external sensor connected to the Input Unit and the current consumption of the load connected to the Output Unit.

Input Specifications

Model GT1-ID[][]

ON delay 1.5 ms max.

OFF delay 1.5 ms max.

ON voltage 15 V min. (between each input terminal and V or G)

OFF voltage 5 V max. (between each input terminal and V or G)

OFF current 1 mA max.

Insulation method Photocoupler

Input indicators LED (yellow)

Output Specifications

Model GT1-OD[][]

Rated output current 0.5 A/point *

ON delay 0.5 ms max.

OFF delay 1.0 ms max.

Residual voltage 1.2 V max.

Leakage current 0.1 mA max.

Insulation method Photocoupler

Output indicators LED (yellow)

* Ensure that the total external load current does not exceed the values given in the following table.

Model Total external load current

GT1-OD16/16MX/32ML(-1) 4 A

GT1-OD16ML/16DS(-1) 2.5 A

last update: September 24, 2012

OMRON GT1-ID / OD dimension
GT1-ID / OD Digital I/O Units/Dimensions
last update: November 12, 2012

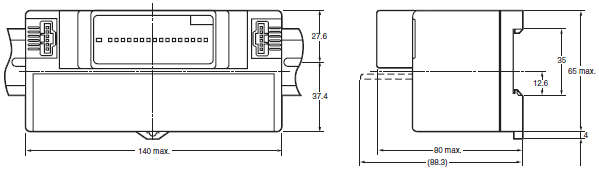

Terminal Block Model
GT1-ID16
GT1-ID16-1
GT1-OD16
GT1-OD16-1

Note: Accessory cable included.

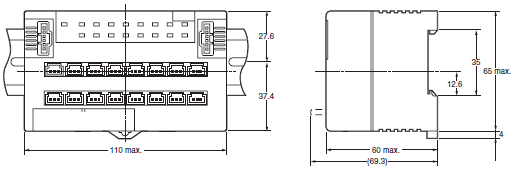

Connector Model
GT1-ID16MX
GT1-ID16MX-1
GT1-OD16MX
GT1-OD16MX-1

Note: Accessory cable included.

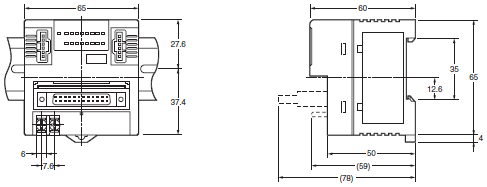

Connector Model
GT1-ID16ML
GT1-ID16ML-1
GT1-OD16ML
GT1-OD16ML-1

Note: Accessory cable included.

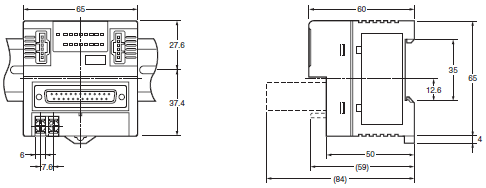

Connector Model
GT1-ID16DS
GT1-ID16DS-1
GT1-OD16DS
GT1-OD16DS-1

Note: Accessory cable included.

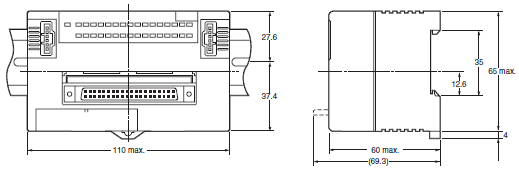

High-density Connector Model
GT1-ID32ML
GT1-ID32ML-1
GT1-OD32ML
GT1-OD32ML-1

Note: Accessory cable included.

last update: November 12, 2012
