Environment-resistive Terminals with Transistors (High-function Type)
DRT2-[]D08C(-1)/[]D16C(-1)

• Equipped with the standard Smart Slave functions that provide powerful preventative maintenance and troubleshooting capabilities.

• High degree of environmental resistance with dust-proof and drip-proof construction.

• Power supply wiring is not required for input devices.

• Connect heavy-load devices (up to 1.5 A).

• Power supply wiring is not required for input devices such as sensors. (Power supply wiring is required for output devices.)

• Detects ground faults or disconnects and notifies the Master.

Environment-resistive Terminals with Transistors (Standard Type)
DRT2-[]D04CL(-1)/[]D08CL(-1)/[]D16CL(-1)

• Common Smart Slave functionality provides strong support for equipment operation status monitoring and effective maintenance.

• High degree of environmental resistance with dust-proof and drip-proof construction. (IP67)

• Models with one connector for two outputs are available to make easier connection with hydraulic valve devices. (Models with 16 outputs and models with 16 mixed I/O)

last update: December 19, 2013

Purchase the OMRON DeviceNet Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON DRT2-[]D04CL(-1) / []D08C(-1) / []D08CL(-1) / []D16C(-1) / []D16CL(-1) Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the DRT2-[]D04CL(-1) / []D08C(-1) / []D08CL(-1) / []D16C(-1) / []D16CL(-1) We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON DRT2-[]D04CL(-1) / []D08C(-1) / []D08CL(-1) / []D16C(-1) / []D16CL(-1)Automation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

A7D / A7DP Thumbwheel Switch/Features
E2A Cylindrical Proximity Sensor/Features
PH-1 / -2 Underwater Electrode/Features
T20 Pendant Pendant/Features
XW3B Connector Terminal Boxes/Features

OMRON DRT2-[]D04CL(-1) / []D08C(-1) / []D08CL(-1) / []D16C(-1) / []D16CL(-1) lineup
DRT2-[]D04CL(-1) / []D08C(-1) / []D08CL(-1) / []D16C(-1) / []D16CL(-1) Environment-resistive Terminals with Transistors/Lineup
last update: December 05, 2013
Environment-resistive Terminals with Transistors (High-function Type)
DRT2-[]D08C(-1)/[]D16C(-1)

Specifications I/O
connections Rated internal circuit
power supply voltage Rated I/O power supply voltage Model

Input NPN (+ common) 8 points Sensor I/O
connector Supplied from the
communications connector Supplied from the communications
connector DRT2-ID08C

PNP (- common) DRT2-ID08C-1

Output NPN (- common) 24 VDC DRT2-OD08C

PNP (+ common) DRT2-OD08C-1

Input NPN (+ common) 16 points Supplied from the communications
connector DRT2-HD16C

PNP (- common) DRT2-HD16C-1

Environment-resistive Terminals with Transistors (Standard Type)
DRT2-[]D04CL(-1)/[]D08CL(-1)/[]D16CL(-1)

Specifications I/O
connections Rated internal circuit
power supply voltage Rated I/O power
supply voltage Model

Inputs NPN (+ common) 4 points Sensor I/O
connector Supplied from the
communications connector 24 VDC DRT2-ID04CL

PNP (- common) DRT2-ID04CL-1

Outputs NPN (- common) DRT2-OD04CL

PNP (+ common) DRT2-OD04CL-1

Inputs NPN (+ common) 8 points DRT2-ID08CL

PNP (- common) DRT2-ID08CL-1

Outputs NPN (- common) DRT2-OD08CL

PNP (+ common) DRT2-OD08CL-1

Inputs NPN (+ common) 16 points DRT2-HD16CL

PNP (- common) DRT2-HD16CL-1

Outputs NPN (- common) DRT2-WD16CL

PNP (+ common) DRT2-WD16CL-1

I/O NPN (input: + common,
output: - common) 8 inputs/
8 outputs DRT2-MD16CL

PNP (input: - common,
output: + common) DRT2-MD16CL-1

last update: December 05, 2013

OMRON DRT2-[]D04CL(-1) / []D08C(-1) / []D08CL(-1) / []D16C(-1) / []D16CL(-1) specification
DRT2-[]D04CL(-1) / []D08C(-1) / []D08CL(-1) / []D16C(-1) / []D16CL(-1) Environment-resistive Terminals with Transistors/Specifications
last update: May 19, 2017
Environment-resistive Terminals with Transistors (High-function Type)
DRT2-[]D08C(-1)/[]D16C(-1)
General Specifications

Model DRT2-ID08C(-1) DRT2-HD16C(-1) DRT2-OD08C(-1)
Communications power supply
voltage 11 to 25 VDC (Supplied from the communications connector)
I/O power supply voltage 20.4 to 26.4 VDC (24 VDC -15%/+10%)
Noise immunity Conforms to IEC 61000-4-4 2 kV (power line)
Communications power supply
current consumption 115 mA max. (24 VDC)
90 mA max. (11 VDC) 200 mA max. (24 VDC)
130 mA max. (11 VDC) 35 mA max. (24 VDC)
60 mA max. (11 VDC)
Vibration resistance 10 to 60 Hz, 0.7-mm double amplitude, 60 to 150 Hz, 50 m/s² for 80 min each in the
X, Y, and Z directions
Shock resistance 150 m/s², 6 directions, 3 times each
Dielectric strength 500 VAC between isolated circuits
Insulation resistance 20 MΩ min. (between isolated circuits)
Ambient operating
temperature -10°C to 55°C
Ambient operating humidity 25% to 85% (with no condensation)
Ambient operating
atmosphere No corrosive gases
Ambient storage temperature -20°C to 65°C
Degree of protection IP67
Mounting method M5 screw mounting (front and back)
Mounting strength 100 N
Connector strength 30 N
Screw tightening torque Round connectors (communications, supply voltage, and I/O): 0.39 to 0.49 N·m
M5 (Unit mounting from front): 1.47 to 1.96 N·m
Weight 340 g max. 390 g max.
I/O power supply connector --- 7/8-16UN
Communications connector M12

Input Specifications
8-point Inputs Terminals with Transistors

Model DRT2-ID08C DRT2-ID08C-1
Internal I/O common NPN PNP
I/O points 8 inputs
ON voltage 9 VDC min. (between input and V terminal) 9 VDC min. (between input and G terminal)
OFF voltage 5 VDC max. (between input and V terminal) 5 VDC max. (between input and G terminal)
OFF current 1.0 mA max.
Input current 3.0 mA min./point (at 11 VDC)
11.0 mA max./point (at 24 VDC)
Power supply voltage for
sensor Communications power supply voltage +0 V max.
Communications power supply voltage -1.5 V min.
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits per
common 8 per common

16-point Inputs Terminals with Transistors

Model DRT2-HD16C DRT2-HD16C-1
Internal I/O common NPN PNP
I/O points 16 inputs
ON voltage 9 VDC min. (between input and V terminal) 9 VDC min. (between input and G terminal)
OFF voltage 5 VDC max. (between input and V terminal) 5 VDC max. (between input and G terminal)
OFF current 1.0 mA max.
Input current 3.0 mA min./point (at 17 VDC)
11.0 mA max./point (at 24 VDC)
Power supply voltage for
sensor Communications power supply voltage +0 V max.
Communications power supply voltage -1.5 V min.
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits per
common 16 per common

Output Specifications
8-point Outputs Terminals with Transistors

Model DRT2-OD08C DRT2-OD08C-1
Internal I/O common NPN PNP
I/O points 8 inputs
Rated output current 1.5 A per point, 8.0 A per common
Residual voltage 1.2 V max. (1.5 A DC between each
output terminal and G) 1.2 V max. (1.5 A DC between each
output terminal and V)
Leakage current 0.1 mA max.
I/O power supply voltage 20.4 to 26.4 VDC (24 VDC -15%/+10%)
ON delay time 0.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits per common 8 per common

Environment-resistive Terminals with Transistors (Standard Type)
DRT2-[]D04CL(-1)/[]D08CL(-1)/[]D16CL(-1)
General Specifications

Model DRT2-
ID04CL
(-1) DRT2-
OD04CL
(-1) DRT2-
ID08CL
(-1) DRT2-
OD08CL
(-1) DRT2-
HD16CL
(-1) DRT2-
WD16CL
(-1) DRT2-
MD16CL
(-1)
Communications power supply
voltage 11 to 25 VDC (Supplied from the communications connector)
I/O power supply voltage 20.4 to 26.4 VDC (24 VDC -15%/+10%)
Noise immunity Conforms to IEC 61000-4-4 2 kV (power line)
Communications power supply
current consumption 35 mA max.
(24 VDC)
55 mA max.
(11 VDC) 35 mA max.
(24 VDC)
50 mA max.
(11 VDC) 40 mA max.
(24 VDC)
55 mA max.
(11 VDC) 35 mA max.
(24 VDC)
55 mA max.
(11 VDC) 40 mA max.
(24 VDC)
55 mA max.
(11 VDC)
Vibration resistance 10 to 60 Hz with double-amplitude of 0.7 mm, 60 to 150 Hz and 50 m/s² in X, Y, and Z
directions for 80 min each
Shock resistance 150m/s², 6 directions, 3 times each
Dielectric strength 500 VAC between isolated circuits
Insulation resistance 20 MΩ min. (between isolated circuits)
Ambient operating temperature -10°C to 55°C
Ambient operating humidity 25% to 85% (with no condensation)
Ambient operating atmosphere No corrosive gases
Ambient storage temperature -20°C to 65°C
Degree of protection IP67
Mounting method M5 screw mounting (front and back)
Mounting strength 100 N
Connector strength 30 N
Screw tightening torque Round connectors (communications, supply voltage, and I/O): 0.39 to 0.49 N·m
M5 (Unit mounting from front): 1.47 to 1.96 N·m
Weight 275 g max. 390 g max.
I/O power supply connector 7/8-16UN
Communications connector M12

Input Specifications
4-input Models

Model DRT2-ID04CL DRT2-ID04CL-1
Internal I/O common NPN PNP
I/O points 4 inputs
ON voltage 15 VDC min. (between each input
terminal and V) 15 VDC min. (between each input
terminal and G)
OFF voltage 5 VDC max. (between each input
terminal and V) 5 VDC max. (between each input
terminal and G)
OFF current 1.0 mA max.
Input current 6.0 mA max. per point at 24 VDC
3.0 mA max. per point at 17 VDC
I/O power supply voltage 20.4 to 26.4 VDC (24 VDC -15%/+10%)
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits per common 4 per common

8-input Models

Model DRT2-ID08CL DRT2-ID08CL-1
Internal I/O common NPN PNP
I/O points 8 inputs
ON voltage 15 VDC min. (between each input
terminal and V) 15 VDC min. (between each input
terminal and G)
OFF voltage 5 VDC max. (between each inpu
terminal and V) 5 VDC max. (between each input
terminal and G)
OFF current 1.0 mA max.
Input current 6.0 mA max. per point at 24 VDC
3.0 mA max. per point at 17 VDC
I/O power supply voltage 20.4 to 26.4 VDC (24 VDC -15%/+10%)
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits per common 8 per common

16-input Models

Model DRT2-HD16CL DRT2-HD16CL-1
Internal I/O common NPN PNP
I/O points 16 inputs
ON voltage 15 VDC min. (between each input
terminal and V) 15 VDC min. (between each input
terminal and G)
OFF voltage 5 VDC max. (between each input
terminal and V) 5 VDC max. (between each input
terminal and G)
OFF current 1.0 mA max.
Input current 6.0 mA max. per point at 24 VDC
3.0 mA max. per point at 17 VDC
I/O power supply voltage 20.4 to 26.4 VDC (24 VDC -15%/+10%)
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits per common 16 per common

8-input/8-output Models

Model DRT2-MD16CL DRT2-MD16CL-1
Internal I/O common NPN PNP
I/O points 8 inputs
ON voltage 15 VDC min. (between each input
terminal and V) 15 VDC min. (between each input
terminal and G)
OFF voltage 5 VDC max. (between each input
terminal and V) 5 VDC max. (between each input
terminal and G)
OFF current 1.0 mA max.
Input current 6.0 mA max. per point at 24 VDC
3.0 mA max. per point at 17 VDC
I/O power supply voltage 20.4 to 26.4 VDC (24 VDC -15%/+10%)
ON delay time 1.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits per common 8 per common

Output Specifications
4-output Models

Model DRT2-OD04CL DRT2-OD04CL-1
Internal I/O common NPN PNP
I/O points 4 outputs
Rated output current 0.5 A per point, 2.0 A per common
Residual voltage 1.2 V max. (0.5 A DC between each
output terminal and G) 1.2 V max. (0.5 A DC between each
output terminal and V)
Leakage current 0.1 mA max.
I/O power supply voltage 20.4 to 26.4 VDC (24 VDC -15%/+10%)
ON delay time 0.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits per common 4 per common

8-output Models

Model DRT2-OD08CL DRT2-OD08CL-1
Internal I/O common NPN PNP
I/O points 8 outputs
Rated output current 0.5 A per point, 4 A per common
I/O power supply voltage 20.4 to 26.4 VDC (24 VDC -15%/+10%)
Residual voltage 1.2 V max. (0.5 A DC between each
output terminal and G) 1.2 V max. (0.5 A DC between each
output terminal and V)
Leakage current 0.1 mA max.
I/O power supply voltage 20.4 to 26.4 VDC (24 VDC -15%/+10%)
ON delay time 0.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits per common 8 per common

16-output Models

Model DRT2-WD16CL DRT2-WD16CL-1
Internal I/O common NPN PNP
I/O points 16 outputs
Rated output current 0.5 A per point, 4 A per common
I/O power supply voltage 20.4 to 26.4 VDC (24 VDC -15%/+10%)
Residual voltage 1.2 V max. (0.5 A DC between each
output terminal and G) 1.2 V max. (0.5 A DC between each
output terminal and V)
Leakage current 0.1 mA max.
I/O power supply voltage 20.4 to 26.4 VDC (24 VDC -15%/+10%)
ON delay time 0.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits per common 16 per common

8-input/8-output Models

Model DRT2-MD16CL DRT2-MD16CL-1
Internal I/O common NPN PNP
I/O points 8 outputs
Rated output current 0.5 A per point, 4 A per common
I/O power supply voltage 20.4 to 26.4 VDC (24 VDC -15%/+10%)
Residual voltage 1.2 V max. (0.5 A DC between each
output terminal and G) 1.2 V max. (0.5 A DC between each
output terminal and V)
Leakage current 0.1 mA max.
I/O power supply voltage 20.4 to 26.4 VDC (24 VDC -15%/+10%)
ON delay time 0.5 ms max.
OFF delay time 1.5 ms max.
Number of circuits per common 8 per common

last update: May 19, 2017

OMRON DRT2-[]D04CL(-1) / []D08C(-1) / []D08CL(-1) / []D16C(-1) / []D16CL(-1) catalog
DRT2-[]D04CL(-1) / []D08C(-1) / []D08CL(-1) / []D16C(-1) / []D16CL(-1) Environment-resistive Terminals with Transistors/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

DeviceNet Catalog Q102-E1-14
[30569KB] Aug 03, 201820180803 DeviceNet Catalog

OMRON DRT2-[]D04CL(-1) / []D08C(-1) / []D08CL(-1) / []D16C(-1) / []D16CL(-1) dimension
DRT2-[]D04CL(-1) / []D08C(-1) / []D08CL(-1) / []D16C(-1) / []D16CL(-1) Environment-resistive Terminals with Transistors/Dimensions
last update: December 05, 2013
Environment-resistive Terminals with Transistors (High-function Type)
DRT2-[]D08C(-1)/[]D16C(-1)
Environment-resistive Terminals (8 or 16 Inputs)
DRT2-ID08C
DRT2-ID08C-1
DRT2-HD16C
DRT2-HD16C-1

Environment-resistive Terminals (8 Outputs)
DRT2-OD08C
DRT2-OD08C-1

Environment-resistive Terminals with Transistors (Standard Type)
DRT2-[]D04CL(-1)/[]D08CL(-1)/[]D16CL(-1)
DRT2-ID04CL(-1)
DRT2-OD04CL(-1)

DRT2-ID08CL(-1)
DRT2-OD08CL(-1)
DRT2-HD16CL(-1)
DRT2-WD16CL(-1)
DRT2-MD16CL(-1)

last update: December 05, 2013

NO. DRT2-[]D04CL(-1) / []D08C(-1) / []D08CL(-1) / []D16C(-1) / []D16CL(-1)

TYPE:Networks DeviceNet Slaves

DATE:2021-06-09

Associated products:
DRT2-AD04(H) / DA02 Analog I/O Terminals/Features GRT1-DRT DeviceNet Communications Unit/Features

Specifications	I/O connections	Rated internal circuit power supply voltage	Rated I/O power supply voltage	Model
Input	NPN (+ common)	8 points	Sensor I/O connector	Supplied from the communications connector	Supplied from the communications connector	DRT2-ID08C
PNP (- common)	DRT2-ID08C-1
Output	NPN (- common)	24 VDC	DRT2-OD08C
PNP (+ common)	DRT2-OD08C-1
Input	NPN (+ common)	16 points	Supplied from the communications connector	DRT2-HD16C
PNP (- common)	DRT2-HD16C-1

Specifications	I/O connections	Rated internal circuit power supply voltage	Rated I/O power supply voltage	Model
Inputs	NPN (+ common)	4 points	Sensor I/O connector	Supplied from the communications connector	24 VDC	DRT2-ID04CL
PNP (- common)	DRT2-ID04CL-1
Outputs	NPN (- common)	DRT2-OD04CL
PNP (+ common)	DRT2-OD04CL-1
Inputs	NPN (+ common)	8 points	DRT2-ID08CL
PNP (- common)	DRT2-ID08CL-1
Outputs	NPN (- common)	DRT2-OD08CL
PNP (+ common)	DRT2-OD08CL-1
Inputs	NPN (+ common)	16 points	DRT2-HD16CL
PNP (- common)	DRT2-HD16CL-1
Outputs	NPN (- common)	DRT2-WD16CL
PNP (+ common)	DRT2-WD16CL-1
I/O	NPN (input: + common, output: - common)	8 inputs/ 8 outputs	DRT2-MD16CL
PNP (input: - common, output: + common)	DRT2-MD16CL-1

Model	DRT2-ID08C(-1)	DRT2-HD16C(-1)	DRT2-OD08C(-1)
Communications power supply voltage	11 to 25 VDC (Supplied from the communications connector)
I/O power supply voltage	20.4 to 26.4 VDC (24 VDC -15%/+10%)
Noise immunity	Conforms to IEC 61000-4-4 2 kV (power line)
Communications power supply current consumption	115 mA max. (24 VDC) 90 mA max. (11 VDC)	200 mA max. (24 VDC) 130 mA max. (11 VDC)	35 mA max. (24 VDC) 60 mA max. (11 VDC)
Vibration resistance	10 to 60 Hz, 0.7-mm double amplitude, 60 to 150 Hz, 50 m/s² for 80 min each in the X, Y, and Z directions
Shock resistance	150 m/s², 6 directions, 3 times each
Dielectric strength	500 VAC between isolated circuits
Insulation resistance	20 MΩ min. (between isolated circuits)
Ambient operating temperature	-10°C to 55°C
Ambient operating humidity	25% to 85% (with no condensation)
Ambient operating atmosphere	No corrosive gases
Ambient storage temperature	-20°C to 65°C
Degree of protection	IP67
Mounting method	M5 screw mounting (front and back)
Mounting strength	100 N
Connector strength	30 N
Screw tightening torque	Round connectors (communications, supply voltage, and I/O): 0.39 to 0.49 N·m M5 (Unit mounting from front): 1.47 to 1.96 N·m
Weight	340 g max.	390 g max.
I/O power supply connector	---	7/8-16UN
Communications connector	M12

Model	DRT2-ID08C	DRT2-ID08C-1
Internal I/O common	NPN	PNP
I/O points	8 inputs
ON voltage	9 VDC min. (between input and V terminal)	9 VDC min. (between input and G terminal)
OFF voltage	5 VDC max. (between input and V terminal)	5 VDC max. (between input and G terminal)
OFF current	1.0 mA max.
Input current	3.0 mA min./point (at 11 VDC) 11.0 mA max./point (at 24 VDC)
Power supply voltage for sensor	Communications power supply voltage +0 V max. Communications power supply voltage -1.5 V min.
ON delay time	1.5 ms max.
OFF delay time	1.5 ms max.
Number of circuits per common	8 per common

Model	DRT2-HD16C	DRT2-HD16C-1
Internal I/O common	NPN	PNP
I/O points	16 inputs
ON voltage	9 VDC min. (between input and V terminal)	9 VDC min. (between input and G terminal)
OFF voltage	5 VDC max. (between input and V terminal)	5 VDC max. (between input and G terminal)
OFF current	1.0 mA max.
Input current	3.0 mA min./point (at 17 VDC) 11.0 mA max./point (at 24 VDC)
Power supply voltage for sensor	Communications power supply voltage +0 V max. Communications power supply voltage -1.5 V min.
ON delay time	1.5 ms max.
OFF delay time	1.5 ms max.
Number of circuits per common	16 per common

Model	DRT2-OD08C	DRT2-OD08C-1
Internal I/O common	NPN	PNP
I/O points	8 inputs
Rated output current	1.5 A per point, 8.0 A per common
Residual voltage	1.2 V max. (1.5 A DC between each output terminal and G)	1.2 V max. (1.5 A DC between each output terminal and V)
Leakage current	0.1 mA max.
I/O power supply voltage	20.4 to 26.4 VDC (24 VDC -15%/+10%)
ON delay time	0.5 ms max.
OFF delay time	1.5 ms max.
Number of circuits per common	8 per common

Model	DRT2- ID04CL (-1)	DRT2- OD04CL (-1)	DRT2- ID08CL (-1)	DRT2- OD08CL (-1)	DRT2- HD16CL (-1)	DRT2- WD16CL (-1)	DRT2- MD16CL (-1)
Communications power supply voltage	11 to 25 VDC (Supplied from the communications connector)
I/O power supply voltage	20.4 to 26.4 VDC (24 VDC -15%/+10%)
Noise immunity	Conforms to IEC 61000-4-4 2 kV (power line)
Communications power supply current consumption	35 mA max. (24 VDC) 55 mA max. (11 VDC)	35 mA max. (24 VDC) 50 mA max. (11 VDC)	40 mA max. (24 VDC) 55 mA max. (11 VDC)	35 mA max. (24 VDC) 55 mA max. (11 VDC)	40 mA max. (24 VDC) 55 mA max. (11 VDC)
Vibration resistance	10 to 60 Hz with double-amplitude of 0.7 mm, 60 to 150 Hz and 50 m/s² in X, Y, and Z directions for 80 min each
Shock resistance	150m/s², 6 directions, 3 times each
Dielectric strength	500 VAC between isolated circuits
Insulation resistance	20 MΩ min. (between isolated circuits)
Ambient operating temperature	-10°C to 55°C
Ambient operating humidity	25% to 85% (with no condensation)
Ambient operating atmosphere	No corrosive gases
Ambient storage temperature	-20°C to 65°C
Degree of protection	IP67
Mounting method	M5 screw mounting (front and back)
Mounting strength	100 N
Connector strength	30 N
Screw tightening torque	Round connectors (communications, supply voltage, and I/O): 0.39 to 0.49 N·m M5 (Unit mounting from front): 1.47 to 1.96 N·m
Weight	275 g max.	390 g max.
I/O power supply connector	7/8-16UN
Communications connector	M12

Model	DRT2-ID04CL	DRT2-ID04CL-1
Internal I/O common	NPN	PNP
I/O points	4 inputs
ON voltage	15 VDC min. (between each input terminal and V)	15 VDC min. (between each input terminal and G)
OFF voltage	5 VDC max. (between each input terminal and V)	5 VDC max. (between each input terminal and G)
OFF current	1.0 mA max.
Input current	6.0 mA max. per point at 24 VDC 3.0 mA max. per point at 17 VDC
I/O power supply voltage	20.4 to 26.4 VDC (24 VDC -15%/+10%)
ON delay time	1.5 ms max.
OFF delay time	1.5 ms max.
Number of circuits per common	4 per common

Model	DRT2-ID08CL	DRT2-ID08CL-1
Internal I/O common	NPN	PNP
I/O points	8 inputs
ON voltage	15 VDC min. (between each input terminal and V)	15 VDC min. (between each input terminal and G)
OFF voltage	5 VDC max. (between each inpu terminal and V)	5 VDC max. (between each input terminal and G)
OFF current	1.0 mA max.
Input current	6.0 mA max. per point at 24 VDC 3.0 mA max. per point at 17 VDC
I/O power supply voltage	20.4 to 26.4 VDC (24 VDC -15%/+10%)
ON delay time	1.5 ms max.
OFF delay time	1.5 ms max.
Number of circuits per common	8 per common

Model	DRT2-HD16CL	DRT2-HD16CL-1
Internal I/O common	NPN	PNP
I/O points	16 inputs
ON voltage	15 VDC min. (between each input terminal and V)	15 VDC min. (between each input terminal and G)
OFF voltage	5 VDC max. (between each input terminal and V)	5 VDC max. (between each input terminal and G)
OFF current	1.0 mA max.
Input current	6.0 mA max. per point at 24 VDC 3.0 mA max. per point at 17 VDC
I/O power supply voltage	20.4 to 26.4 VDC (24 VDC -15%/+10%)
ON delay time	1.5 ms max.
OFF delay time	1.5 ms max.
Number of circuits per common	16 per common

Model	DRT2-MD16CL	DRT2-MD16CL-1
Internal I/O common	NPN	PNP
I/O points	8 inputs
ON voltage	15 VDC min. (between each input terminal and V)	15 VDC min. (between each input terminal and G)
OFF voltage	5 VDC max. (between each input terminal and V)	5 VDC max. (between each input terminal and G)
OFF current	1.0 mA max.
Input current	6.0 mA max. per point at 24 VDC 3.0 mA max. per point at 17 VDC
I/O power supply voltage	20.4 to 26.4 VDC (24 VDC -15%/+10%)
ON delay time	1.5 ms max.
OFF delay time	1.5 ms max.
Number of circuits per common	8 per common

Model	DRT2-OD04CL	DRT2-OD04CL-1
Internal I/O common	NPN	PNP
I/O points	4 outputs
Rated output current	0.5 A per point, 2.0 A per common
Residual voltage	1.2 V max. (0.5 A DC between each output terminal and G)	1.2 V max. (0.5 A DC between each output terminal and V)
Leakage current	0.1 mA max.
I/O power supply voltage	20.4 to 26.4 VDC (24 VDC -15%/+10%)
ON delay time	0.5 ms max.
OFF delay time	1.5 ms max.
Number of circuits per common	4 per common

Model	DRT2-OD08CL	DRT2-OD08CL-1
Internal I/O common	NPN	PNP
I/O points	8 outputs
Rated output current	0.5 A per point, 4 A per common
I/O power supply voltage	20.4 to 26.4 VDC (24 VDC -15%/+10%)
Residual voltage	1.2 V max. (0.5 A DC between each output terminal and G)	1.2 V max. (0.5 A DC between each output terminal and V)
Leakage current	0.1 mA max.
I/O power supply voltage	20.4 to 26.4 VDC (24 VDC -15%/+10%)
ON delay time	0.5 ms max.
OFF delay time	1.5 ms max.
Number of circuits per common	8 per common

Model	DRT2-WD16CL	DRT2-WD16CL-1
Internal I/O common	NPN	PNP
I/O points	16 outputs
Rated output current	0.5 A per point, 4 A per common
I/O power supply voltage	20.4 to 26.4 VDC (24 VDC -15%/+10%)
Residual voltage	1.2 V max. (0.5 A DC between each output terminal and G)	1.2 V max. (0.5 A DC between each output terminal and V)
Leakage current	0.1 mA max.
I/O power supply voltage	20.4 to 26.4 VDC (24 VDC -15%/+10%)
ON delay time	0.5 ms max.
OFF delay time	1.5 ms max.
Number of circuits per common	16 per common

Model	DRT2-MD16CL	DRT2-MD16CL-1
Internal I/O common	NPN	PNP
I/O points	8 outputs
Rated output current	0.5 A per point, 4 A per common
I/O power supply voltage	20.4 to 26.4 VDC (24 VDC -15%/+10%)
Residual voltage	1.2 V max. (0.5 A DC between each output terminal and G)	1.2 V max. (0.5 A DC between each output terminal and V)
Leakage current	0.1 mA max.
I/O power supply voltage	20.4 to 26.4 VDC (24 VDC -15%/+10%)
ON delay time	0.5 ms max.
OFF delay time	1.5 ms max.
Number of circuits per common	8 per common

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
DeviceNet Catalog	Q102-E1-14 [30569KB]	Aug 03, 201820180803	DeviceNet Catalog

Return to OMRON

OMRON DRT2-[]D04CL(-1) / []D08C(-1) / []D08CL(-1) / []D16C(-1) / []D16CL(-1)Automation Systems/ Networks/DeviceNet

OMRON DRT2-[]D04CL(-1) / []D08C(-1) / []D08CL(-1) / []D16C(-1) / []D16CL(-1) Dimensions

Environment-resistive Terminals with Transistors (High-function Type)DRT2-[]D08C(-1)/[]D16C(-1)

Environment-resistive Terminals with Transistors (Standard Type)DRT2-[]D04CL(-1)/[]D08CL(-1)/[]D16CL(-1)

Purchase the OMRON DeviceNet Please fill in the following

OMRON DRT2-[]D04CL(-1) / []D08C(-1) / []D08CL(-1) / []D16C(-1) / []D16CL(-1) lineup

Environment-resistive Terminals with Transistors (High-function Type)DRT2-[]D08C(-1)/[]D16C(-1)

Environment-resistive Terminals with Transistors (Standard Type)DRT2-[]D04CL(-1)/[]D08CL(-1)/[]D16CL(-1)

OMRON DRT2-[]D04CL(-1) / []D08C(-1) / []D08CL(-1) / []D16C(-1) / []D16CL(-1) specification

Environment-resistive Terminals with Transistors (High-function Type)DRT2-[]D08C(-1)/[]D16C(-1)

General Specifications

Input Specifications

8-point Inputs Terminals with Transistors

16-point Inputs Terminals with Transistors

Output Specifications

8-point Outputs Terminals with Transistors

Environment-resistive Terminals with Transistors (Standard Type)DRT2-[]D04CL(-1)/[]D08CL(-1)/[]D16CL(-1)

General Specifications

Input Specifications

4-input Models

8-input Models

16-input Models

8-input/8-output Models

Output Specifications

4-output Models

8-output Models

16-output Models

8-input/8-output Models

OMRON DRT2-[]D04CL(-1) / []D08C(-1) / []D08CL(-1) / []D16C(-1) / []D16CL(-1) catalog

English

Global Edition

OMRON DRT2-[]D04CL(-1) / []D08C(-1) / []D08CL(-1) / []D16C(-1) / []D16CL(-1) dimension

Environment-resistive Terminals with Transistors (High-function Type)DRT2-[]D08C(-1)/[]D16C(-1)

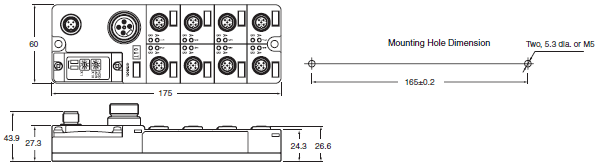

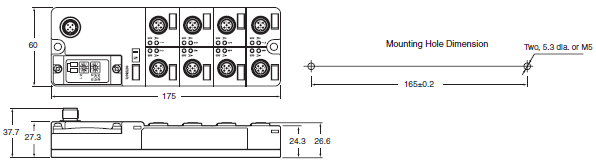

Environment-resistive Terminals (8 or 16 Inputs)DRT2-ID08CDRT2-ID08C-1DRT2-HD16CDRT2-HD16C-1

Environment-resistive Terminals (8 Outputs)DRT2-OD08CDRT2-OD08C-1

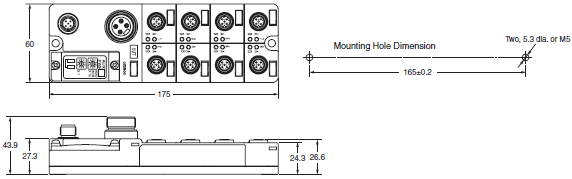

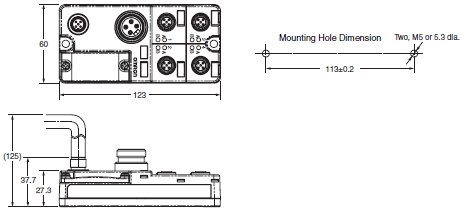

Environment-resistive Terminals with Transistors (Standard Type)DRT2-[]D04CL(-1)/[]D08CL(-1)/[]D16CL(-1)

DRT2-ID04CL(-1)DRT2-OD04CL(-1)

DRT2-ID08CL(-1)DRT2-OD08CL(-1)DRT2-HD16CL(-1)DRT2-WD16CL(-1)DRT2-MD16CL(-1)

Environment-resistive Terminals with Transistors (High-function Type)
DRT2-[]D08C(-1)/[]D16C(-1)

Environment-resistive Terminals with Transistors (Standard Type)
DRT2-[]D04CL(-1)/[]D08CL(-1)/[]D16CL(-1)

Environment-resistive Terminals with Transistors (High-function Type)
DRT2-[]D08C(-1)/[]D16C(-1)

Environment-resistive Terminals with Transistors (Standard Type)
DRT2-[]D04CL(-1)/[]D08CL(-1)/[]D16CL(-1)

Environment-resistive Terminals with Transistors (High-function Type)
DRT2-[]D08C(-1)/[]D16C(-1)

Environment-resistive Terminals with Transistors (Standard Type)
DRT2-[]D04CL(-1)/[]D08CL(-1)/[]D16CL(-1)

Environment-resistive Terminals with Transistors (High-function Type)
DRT2-[]D08C(-1)/[]D16C(-1)

Environment-resistive Terminals (8 or 16 Inputs)
DRT2-ID08C
DRT2-ID08C-1
DRT2-HD16C
DRT2-HD16C-1

Environment-resistive Terminals (8 Outputs)
DRT2-OD08C
DRT2-OD08C-1

Environment-resistive Terminals with Transistors (Standard Type)
DRT2-[]D04CL(-1)/[]D08CL(-1)/[]D16CL(-1)

DRT2-ID04CL(-1)
DRT2-OD04CL(-1)

DRT2-ID08CL(-1)
DRT2-OD08CL(-1)
DRT2-HD16CL(-1)
DRT2-WD16CL(-1)
DRT2-MD16CL(-1)
