OMRON XW3BPower Supplies / In Addition/ Sensor I/O Connectors / Sensor Controllers/Sensor I/O Connectors
OMRON XW3B Power Supplies / In Addition
OMRON XW3B Dimensions
/Images/l_890-25-137190-198x198.jpglast update: October 10, 2013
• Tough model with a significantly lower profile satisfies IP67.
• Available for Photoelectric Sensors, Proximity Sensors, and Limit Switches with Sensor I/O Connectors (M12). In addition, the rated current has been increased, a ground terminal added, and now supports connections to valves and solenoid.
• Incorporates power and operation indicators.
• Uses a single mounting method regardless of the number of ports, which ensures easy system expansion.
last update: October 10, 2013
Purchase the OMRON Sensor I/O Connectors Please fill in the following
If you have just landed here, this product OMRON XW3B Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the XW3B We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON XW3BPower Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
FL Series Lighting for Image Processing/Features
G9SX-LM Low-speed Monitoring Unit/Features
E5AC-800 Digital Temperature Controller (Simple Type) (96 × 96 mm)/Features
H8BM-R Multi-maintenance Counter/Timer (DIN 72 x 72)/Features
S8VS Switch Mode Power Supply (15/30/60/90/120/180/240/480-W Models)/Features
OMRON XW3B dimension
XW3B Connector Terminal Boxes/Dimensionslast update: October 10, 2013
(Unit: mm)

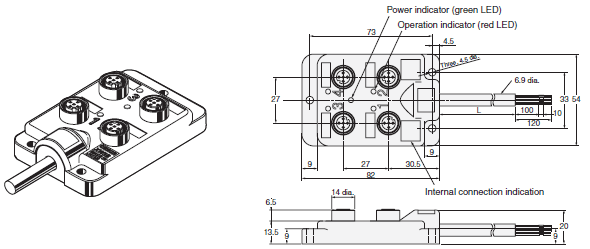

XW3B-P45[]-[]11 (Four Input Ports)

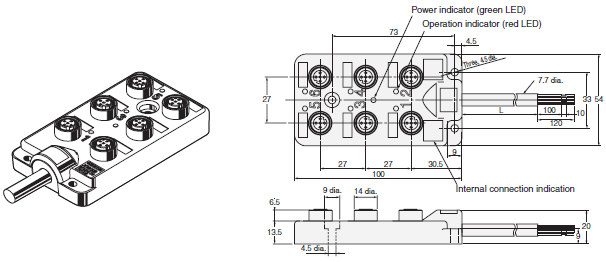

XW3B-P65[]-[]11 (Six Input Ports)

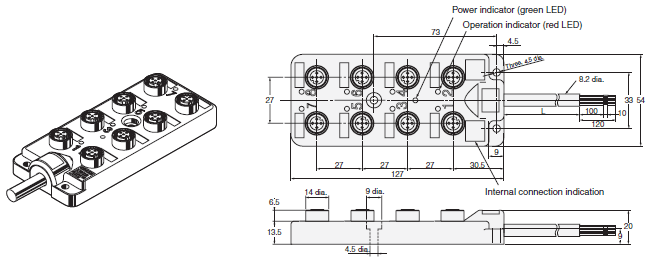

XW3B-P85[]-[]11 (Eight Input Ports)
last update: October 10, 2013
OMRON XW3B catalog
XW3B Connector Terminal Boxes/Catalog- Catalog
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 XW3B Data Sheet | - [1199KB] | May 07, 201820180507 | XW3B Data Sheet |
OMRON XW3B specification
XW3B Connector Terminal Boxes/Specificationslast update: October 10, 2013
| Rated current | 4 A/port (signal lines) 12 A/box (power lines) |
|---|---|
| Rated voltage | 10 to 30 VDC |
| Contact resistance | 40 MΩ max. (with 100 mA max., 20 mV max.) *1 |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric strength | 500 VAC for 1 min (leakage current: 1 mA max.) *2 |
| Degree of protection | IP67 (IEC529) |
| Cable retention force | 98 N/15 s |
| Insertion tolerance | 200 times |
| Ambient operating temperature range | -25 to 70°C |
*1.The contact resistance of the Connector.
*2.The dielectric strength of the Connector.
Compatible Connectors
| XS2G | Connector Plug Assemblies (crimping, soldering, or screw-on) |
|---|---|
| XS2W | Connectors on cable ends (Sockets or Plugs) |
| XS2H | Connectors on one cable end (Plugs) |
Materials and Finish
| Item | Part name | Materials and finish |
|---|---|---|
| Connectors | Lock | Brass/nickel plated |
| Contacts | Brass/nickel base, 0.4-μm gold plating | |
| Cable | Cable | Sheath color: gray Core size: AWG18/AWG22 * |
| Case | Case | PBT resin (UL94V-0)/light gray |
| Bushing | Rubber | |
| PCB | Glass-epoxy board | |
| Seal resin | Urethane resin |
*The positive power supply, negative power supply, and ground lines are AWG18. Signal lines are AWG22.
last update: October 10, 2013
OMRON XW3B lineup
XW3B Connector Terminal Boxes/Lineuplast update: October 10, 2013
| Sensor type and connections | 3-wire DC NPN/2-wire (3)-(4) | 2-wire DC1-4/without polarity (3)-(4) | 3-wire DC PNP/2-wire DC (1)-(4) | |
|---|---|---|---|---|
| Actuator connections | Actuator connections (1)-(4) | — | Actuator connections C-D | |
| No. of ports | Cable length (m) | Model | Model | Model |
| 4 | 5 | XW3B-P455-G11 | XW3B-P452-G11 | XW3B-P453-G11 |
| 6 | 5 | XW3B-P655-G11 | XW3B-P652-G11 | XW3B-P653-G11 |
| 8 | 5 | XW3B-P855-G11 | XW3B-P852-G11 | XW3B-P853-G11 |
Note: Here (1)-(4) and (3)-(4) are connector pin numbers.
Waterproof Cover (Sold Separately)
XS2Z-22
| Model | Minimum order | Materials |
|---|---|---|
| XS2Z-22 | 50 | Brass/nickel plated |
Note 1. The XW3B/XW3A comes with a dust cover. Use the optional XS2Z-22 Waterproof Cover when an IP67 degree of protection is required.
2. The XS2Z-22 is mounted by screwing it in place
last update: October 10, 2013
