OMRON A7D / A7DP lineup

last update: May 22, 2014

Switches (Single Switch Units)

Model	A7D				A7DP
Classification (See note 1.)	Screw mounting (back mounting)		Snap-in (front mounting)		Snap-in (front mounting)
Output code number	PCB terminals
	Light gray	Black	Light gray	Black	Light gray	Black
06 (binary coded decimal)	A7D-106	A7D-106-1	A7D-206	A7D-206-1	A7DP-206	A7DP-206-1

Note: 1. The classification diagrams show 4 Switch Units combined with End Caps to create 4-digit displays.
           2. The model numbers given above are for 1 Switch Unit.
           3. Models with stoppers are also available. Add “-S[][]” after the “106” or “206” in the model number and specify
                 the display range in the [][]. For example, to specify the range 0 to 6, add “-S06” to the model number
                 (e.g., A7D-106-S06-1).
           4. Models with +, - displays are also available. Add “-PM” after the “106” or “206” in the model number (e.g.,
                 A7D-106-PM or A7D-106-PM-1).

Accessories (Order Separately)

Use accessories, such as End Caps and Spacers, with the Switch Units.

Classification		Screw mounting (back mounting)		Snap-in (front mounting)
Accessory	Color	Light gray	Black	Light gray	Black
End Caps (1 pair)		A7D-1M	A7D-1M-1	A7D-2M	A7D-2M-1
Spacer		A7D-1P[] *	A7D-1P[]-1 *	A7D-2P[] *	A7D-2P[]-1 *

* The [] in the Spacer model number stands for a letter in the range A to U. (Refer to the table in the following
  explanation about Spacers.)

End Caps

End Caps are used on the Switch Units at each end and allow all the Switch Units to be securely mounted to a panel. They come in pairs, one for the left and one for the right.

Spacers

• Spacers are used for creating extra space or gaps between the Switch Units and have the same dimensions as the
    Switch Units themselves.
• There are also Spacers with engraved characters or symbols that can be used for indicating units, such as time and
    length. (Refer to the following table.) Consult your OMRON representative for details.

Symbol	A	B	C	D	E	F	G	H	J	K	L	Q	T	U
Stamp	No designation	SEC	MIN	H	g	kg	mm	cm	m	°C	PCS	x 10 SEC	0	●

last update: May 22, 2014

OMRON A7D / A7DP specification

last update: August 20, 2014

Switching capacity (resistive load)		3.3 to 30 VDC 1 mA to 0.1 A
Continuous carry current		100 mA
Contact resistance		200 mΩ max.
Insulation resistance	Between non-connected terminals	10 MΩ min. (at 250 VDC)
	Between terminal and non-current carrying part	100 MΩ min. (at 500 VDC)
Dielectric strength	Between non-connected terminals	250 VAC, 50/60 Hz for 1 min
	Between terminal and non-current carrying part	1,000 VAC, 50/60 Hz for 1 min
Vibration resistance		10 to 55 Hz, 1.5-mm double amplitude
Shock resistance		500 m/s2 min.
Durability	Mechanical	30,000 operations min.
	Electrical	20,000 operations min.
Ambient temperature		Operating: -10°C to 70°C (with no icing) Storage: -20°C to 80°C
Ambient humidity		Operating: 45% to 85%
Max. operating force		3.43 N max.

last update: August 20, 2014

OMRON A7D / A7DP dimension

last update: March 07, 2013

Switches

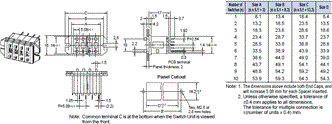

A7D-106(-1)
PCB Terminals

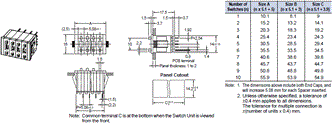

A7D-206(-1)
PCB Terminals

A7DP-206(-1)
PCB Terminals, Pen-push Model

Accessories (Order Separately)

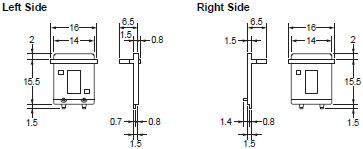

End Caps for Push-operated Switches
A7D-1M(-1) Screw Mounting (Back Mounting)

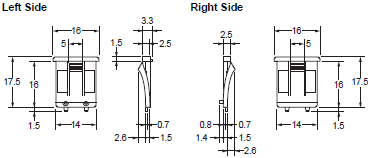

End Caps for Push-operated Switches
A7D-2M(-1) Snap-in Mounting (Front Mounting)

Spacers for Push-operated Switches
A7D-1P[](-1) Screw Mounting (Back Mounting)

Note: The [] in the Spacer model number stands for a letter in the range A to U.
          (Refer to the table under the explanation about Spacers on Catalog.)

Spacers for Push-operated Switches
A7D-2P[](-1) Snap-in Mounting (Front Mounting)

Note: The [] in the Spacer model number stands for a letter in the range A to U.
          (Refer to the table under the explanation about Spacers on Catalog.)

Note: Unless otherwise indicated, dimensional tolerances for dimensions in the models above are ± 0.4 mm.

last update: March 07, 2013

OMRON A7D / A7DP catalog

• Catalog
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
A7D, A7DP Data Sheet	- [521KB]	Sep 29, 201420140929	A7D, A7DP Data Sheet
