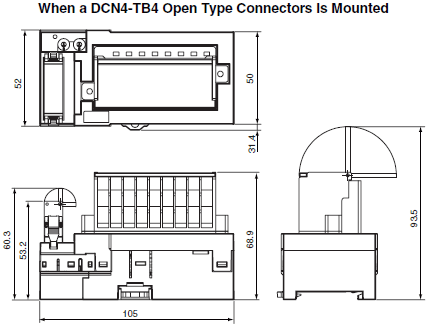

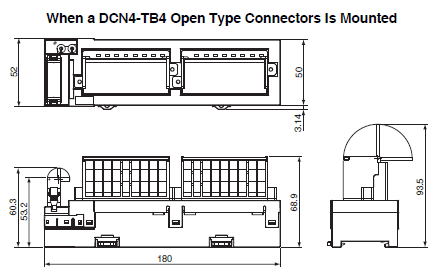

OMRON CRT1-[]D08TA(-1) / []D16TA(-1) / []D08TAH(-1) / []D16TAH(-1) Dimensions

/Images/l_1919-25-118607-198x198.jpg

last update: April 24, 2017

Doubling up wires on terminals is unnecessary and wiring locations are easy to understand with these Smart Slaves with 3-tier Terminal Blocks.

• Easy-to-understand wiring. No doubling up of wires. Easy-to-understand wiring locations.

• Simplify startup with the communications power supply monitor (Smart function).

• Collect various preventive maintenance data required to improve productivity, such as information on equipment deterioration due to aging and equipment operating time data (Smart function).

• The communications baud rate is set without using switches and addresses are set using rotary switches, so setting errors are reduced.

• Communications connector and removable I/O terminal block enable maintenance without disconnecting wiring.

last update: April 24, 2017

Purchase the OMRON CompoNet Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON CRT1-[]D08TA(-1) / []D16TA(-1) / []D08TAH(-1) / []D16TAH(-1) Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the CRT1-[]D08TA(-1) / []D16TA(-1) / []D08TAH(-1) / []D16TAH(-1) We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON CRT1-[]D08TA(-1) / []D16TA(-1) / []D08TAH(-1) / []D16TAH(-1)Automation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

ZJ-FW Fan Ionizer (Area fan type)/Features
E2EH Proximity Sensor Ideal for High Temperatures and Cleaning Processes/Features
E5EC-T Programmable Temperature Controller (Digital Controller) (48 × 96 mm)/Features
NX-V680C NX-series RFID Units/Features
CJ1W-ID / IA CJ-series Input Units/Features

OMRON CRT1-[]D08TA(-1) / []D16TA(-1) / []D08TAH(-1) / []D16TAH(-1) specification
CRT1-[]D08TA(-1) / []D16TA(-1) / []D08TAH(-1) / []D16TAH(-1) Digital I/O Slave Units with Screw Terminal Blocks (3-tier Terminal Block)/Specifications
last update: September 24, 2012
Basic Performance Specifications

Item Specification
Communications power supply voltage 14 to 26.4 VDC
I/O power supply voltage *1 20.4 to 26.4 VDC (24 VDC -15%/+10%)
Noise immunity Conforms to IEC 61000-4-4, 2 kV (power line).
Vibration resistance 10 to 60 Hz with double-amplitude of 0.7 mm, 60 to 150 Hz and 50 m/s² in X, Y, and Z
directions for 80 min each
Shock resistance 150 m/s² (3 times each in 6 directions on 3 axes)
Dielectric strength 500 VAC (between isolated circuits)
Insulation resistance 20 MΩ min. (between isolated circuits)
Ambient operating temperature -10 to 55°C
Ambient operating humidity 25% to 85% (with no condensation)
Ambient operating atmosphere No corrosive gases
Storage temperature -25 to 65°C
Storage humidity 25% to 85% (with no condensation)
Terminal block screw tightening torque *2 M3 wiring screws: 0.5 Nm
M3 mounting screws: 0.5 Nm
Installation Mounted on 35-mm DIN Track or Mounting Bracket, or secured with M4 screws
(depending on model)

*1 The I/O power supply is called the sensor power supply in information for the CRT1-VAD04S.
*2 Applicable only to Slaves to which screw terminal blocks are mounted.

Input Section Specifications
Eight-point Input Units (3-tier Terminal Block)

Item Specification
Model CRT1-ID08TA CRT1-ID08TA-1 CRT1-ID08TAH-1 CRT1-ID08TAH-1
I/O capacity 8 inputs
Internal I/O common NPN PNP NPN PNP
ON voltage 15 VDC min. (between
each input terminal and
the V terminal) 15 VDC min. (between
each input terminal and
the G terminal) 10.5 VDC min. (between
each input terminal and
the V terminal) 10.5 VDC min. (between
each input terminal and
the G terminal)
OFF voltage 5 VDC max. (between
each input terminal and
the V terminal) 5 VDC max. (between
each input terminal and
the G terminal) --- ---
OFF current 1.0 mA max.
Input current At 24 VDC: 6.0 mA max./input
At 17 VDC: 3.0 mA min./input
ON delay 1.5 ms max.
OFF delay 1.5 ms max.
Power supply short-circuit
detection --- Operates at 50 mA/point min.
Disconnection detection --- Operates at 0.3 mA/point max.
Number of circuits per
common 8 inputs/common
Isolation method Photocoupler
Input indicator LED (yellow)
Installation DIN Track
Power supply type Multi-power supply
Current supplied to input
devices 100 mA/point 50 mA/point
Communications power
supply current consumption 30 mA max. for 24-VDC power supply voltage
50 mA max. for 14-VDC power supply voltage 35 mA max. for 24-VDC power supply voltage
60 mA max. for 14-VDC power supply voltage
I/O power supply current
consumption 5 mA max. for 24-VDC power supply voltage 25 mA max. for 24-VDC power supply voltage
Weight 190 g max. 200 g max.

Sixteen-point Input Units (3-tier Terminal Block)

Item Specification
Model CRT1-ID16TA CRT1-ID16TA-1 CRT1-ID16TAH CRT1-ID16TAH-1
I/O capacity 16 inputs
Internal I/O common NPN PNP NPN PNP
ON voltage 15 VDC min. (between
each input terminal and
the V terminal) 15 VDC min. (between
each input terminal and
the G terminal) 10.5 VDC min. (between
each input terminal and
the V terminal) 10.5 VDC min. (between
each input terminal and
the G terminal)
OFF voltage 5 VDC max. (between
each input terminal and
the V terminal) 5 VDC max. (between
each input terminal and
the G terminal) --- ---
OFF current 1.0 mA max.
Input current At 24 VDC: 6.0 mA max./input
At 17 VDC: 3.0 mA min./input
ON delay 1.5 ms max.
OFF delay 1.5 ms max.
Power supply short-circuit
detection --- Operates at 50 mA/point min.
Disconnection detection --- Operates at 0.3 mA/point max.
Number of circuits per
common 8 inputs/common
Isolation method Photocoupler
Input indicator LED (yellow)
Installation DIN Track
Power supply type Multi-power supply
Communications power
supply current consumption 40 mA max. for 24-VDC power supply voltage
55 mA max. for 14-VDC power supply voltage 40 mA max. for 24-VDC power supply voltage
70 mA max. for 14-VDC power supply voltage
I/O power supply current
consumption 5 mA max. for 24-VDC power supply voltage 25 mA max. for 24-VDC power supply voltage
Weight 330 g max. 340 g max.

Output Section Specifications
Eight-point Output Units (3-tier Terminal Block)

Item Specification
Model CRT1-OD08TA CRT1-OD08TA-1 CRT1-OD08TAH CRT1-OD08TAH-1
I/O capacity 8 outputs
Internal I/O common NPN PNP NPN PNP
Rated output current 0.5 A/output, 2 A/common
Residual voltage 1.2 V max. (0.5 A DC,
between each output
terminal and the G
terminal) 1.2 V max. (0.5 A DC,
between each output
terminal and the V
terminal) 1.2 V max. (0.5 A DC,
between each output
terminal and the G
terminal) 1.2 V max. (0.5 A DC,
between each output
terminal and the V
terminal)
Leakage current 0.1 mA max.
ON delay 0.5 ms max.
OFF delay 1.5 ms max.
Load short-circuit detection --- Supported.
Disconnection detection --- Operates at 3 mA/point max.
(Does not operate at over 3 mA.)
Number of circuits per common 8 outputs/common
Isolation method Photocoupler
Output indicators LED (yellow)
Installation DIN Track
Power supply type Multi-power supply
Current supplied to output
devices 100 mA/point
Communications power
supply current consumption 35 mA max. for 24-VDC power supply voltage
55 mA max. for 14-VDC power supply voltage
I/O power supply current
consumption 15 mA max. for 24-VDC power supply voltage 15 mA max. for 24-VDC
power supply voltage 35 mA max. for 24-VDC
power supply voltage
Output handling for
communications errors Select either hold or clear from CX-Integrator.
Weight 190 g max.

Sixteen-point Output Unit (3-tier Terminal Block)

Item Specification
Model CRT1-OD16TA CRT1-OD16TA-1 CRT1-OD16TAH CRT1-OD16TAH-1
I/O capacity 16 outputs
Internal I/O common NPN PNP NPN PNP
Rated output current 0.5 A/output, 2 A/common
Residual voltage 1.2 V max. (0.5 A DC,
between each output
terminal and the G
terminal) 1.2 V max. (0.5 A DC,
between each output
terminal and the V
terminal) 1.2 V max. (0.5 A DC,
between each output
terminal and the G
terminal) 1.2 V max. (0.5 A DC,
between each output
terminal and the V
terminal)
Leakage current 0.1 mA max.
ON delay 0.5 ms max.
OFF delay 1.5 ms max.
Number of circuits per common 8 outputs/common
Load short-circuit detection --- Supported.
Disconnection detection --- Operates at 3 mA/point max.
(Does not operate at over 3 mA.)
Isolation method Photocoupler
Output indicators LED (yellow)
Installation DIN Track
Power supply type Multi-power supply
Communications power
supply current consumption 45 mA max. for 24-VDC power supply voltage
65 mA max. for 14-VDC power supply voltage 40 mA max. for 24-VDC power supply voltage
70 mA max. for 14-VDC power supply voltage
I/O power supply current
consumption 15 mA max. for 24-VDC power supply voltage 35 mA max. for 24-VDC
power supply voltage
Output handling for
communications errors Select either hold or clear from CX-Integrator.
Weight 330 g max.

Input and Output Section Specifications
8-point Input and 8-point Output Units (3-tier Terminal Block)
Common Specifications

Item Specification
Model CRT1-MD16TA CRT1-MD16TA-1 CRT1-MD16TAH CRT1-MD16TAH-1
Installation DIN Track
Communications power
supply current consumption 40 mA max. for 24-VDC power supply voltage
60 mA max. for 14-VDC power supply voltage 40 mA max. for 24-VDC power supply voltage
70 mA max. for 14-VDC power supply voltage
Weight 330 g max. 340 g max.

Input Section Specifications

Item Specification
Model CRT1-MD16TA CRT1-MD16TA-1 CRT1-MD16TAH CRT1-MD16TAH-1
I/O capacity 8 inputs
Internal I/O common NPN PNP NPN PNP
ON voltage 15 VDC min. (between
each input terminal and
the V terminal) 15 VDC min. (between
each input terminal and
the G terminal) 10.5 VDC min. (between
each input terminal and
the V terminal) 10.5 VDC min. (between
each input terminal and
the G terminal)
OFF voltage 5 VDC max. (between
each input terminal and
the V terminal) 5 VDC max. (between
each input terminal and
the G terminal) --- ---
OFF current 1.0 mA max.
Input current At 24 VDC: 6.0 mA max./input
At 17 VDC: 3.0 mA min./input
ON delay 1.5 ms max.
OFF delay 1.5 ms max.
Power supply short-circuit
detection --- Operates at 50 mA/point min.
Disconnection detection --- Operates at 0.3 mA/point max.
Number of circuits per
common 8 inputs/common
Isolation method Photocoupler
Input indicator LED (yellow)
Power supply type Multi-power supply
I/O power supply current
consumption 5 mA max. for 24-VDC power supply voltage 25 mA max. for 24-VDC power supply voltage

Output Section Specifications

Item Specification
Model CRT1-MD16TA CRT1-MD16TA-1 CRT1-MD16TAH CRT1-MD16TAH-1
I/O capacity 8 outputs
Internal I/O common NPN PNP NPN PNP
Rated output current 0.5 A/output, 2 A/common
Residual voltage 1.2 V max. (0.5 A DC,
between each output
terminal and the G
terminal) 1.2 V max. (0.5 A DC,
between each output
terminal and the V
terminal) 1.2 V max. (0.5 A DC,
between each output
terminal and the G
terminal) 1.2 V max. (0.5 A DC,
between each output
terminal and the V
terminal)
Leakage current 0.1 mA max.
ON delay 0.5 ms max.
OFF delay 1.5 ms max.
Load short-circuit detection --- Supported.
Disconnection detection --- Operates at 3 mA/point max.
(Does not operate at over 3 mA.)
Number of circuits per common 8 outputs/common
Isolation method Photocoupler
Output indicators LED (yellow)
I/O power supply current
consumption 15 mA max. for 24-VDC power supply voltage 35 mA max. for 24-VDC
power supply voltage
Output handling for
communications errors Select either hold or clear from CX-Integrator.

last update: September 24, 2012

OMRON CRT1-[]D08TA(-1) / []D16TA(-1) / []D08TAH(-1) / []D16TAH(-1) lineup
CRT1-[]D08TA(-1) / []D16TA(-1) / []D08TAH(-1) / []D16TAH(-1) Digital I/O Slave Units with Screw Terminal Blocks (3-tier Terminal Block)/Lineup
last update: September 24, 2012

Name Specifications Model

Three-tier Screw Terminal Block Inputs 8 inputs NPN Without Short-circuit and Disconnected Line Detection CRT1-ID08TA

PNP CRT1-ID08TA-1

Outputs 8 outputs NPN CRT1-OD08TA

PNP CRT1-OD08TA-1

Inputs 16 inputs NPN CRT1-ID16TA

PNP CRT1-ID16TA-1

Outputs 16 outputs NPN CRT1-OD16TA

PNP CRT1-OD16TA-1

Inputs/
Outputs 8 inputs/
8 outputs NPN CRT1-MD16TA

PNP CRT1-MD16TA-1

Inputs 8 inputs NPN With Short-circuit and Disconnected Line Detection CRT1-ID08TAH

PNP CRT1-ID08TAH-1

Outputs 8 outputs NPN CRT1-OD08TAH

PNP CRT1-OD08TAH-1

Inputs 16 inputs NPN CRT1-ID16TAH

PNP CRT1-ID16TAH-1

Outputs 16 outputs NPN CRT1-OD16TAH

PNP CRT1-OD16TAH-1

Inputs/
Outputs 8 inputs/
8 outputs NPN CRT1-MD16TAH

PNP CRT1-MD16TAH-1

last update: September 24, 2012

OMRON CRT1-[]D08TA(-1) / []D16TA(-1) / []D08TAH(-1) / []D16TAH(-1) dimension
CRT1-[]D08TA(-1) / []D16TA(-1) / []D08TAH(-1) / []D16TAH(-1) Digital I/O Slave Units with Screw Terminal Blocks (3-tier Terminal Block)/Dimensions
last update: May 09, 2016

CRT1-ID08TA (-1)
CRT1-OD08TA(-1)

CRT1-ID16TA(-1)
CRT1-OD16TA(-1)
CRT1-MD16TA(-1)

last update: May 09, 2016

OMRON CRT1-[]D08TA(-1) / []D16TA(-1) / []D08TAH(-1) / []D16TAH(-1) catalog
CRT1-[]D08TA(-1) / []D16TA(-1) / []D08TAH(-1) / []D16TAH(-1) Digital I/O Slave Units with Screw Terminal Blocks (3-tier Terminal Block)/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

CompoNet Catalog P056-E1-08
[4302KB] May 07, 201820180507 CompoNet Catalog

NO. CRT1-[]D08TA(-1) / []D16TA(-1) / []D08TAH(-1) / []D16TAH(-1)

TYPE:Networks CompoNet Digital I/O Slave Units

DATE:2021-06-15

Associated products:
CRT1-[]D08(-1) / []D16(-1) / ROS[] / ROF[] Digital I/O Slave Units with Screw Terminal Blocks (2-tier Terminal Block/Relay Output/SSR Output)/Features CRT1-[]D16S(-1) / []D32S(-1) / []D16SH(-1) / []D32SH(-1) Digital I/O Slave Units with e-CON Connectors/Features

Item	Specification
Communications power supply voltage	14 to 26.4 VDC
*I/O power supply voltage 1**	20.4 to 26.4 VDC (24 VDC -15%/+10%)
Noise immunity	Conforms to IEC 61000-4-4, 2 kV (power line).
Vibration resistance	10 to 60 Hz with double-amplitude of 0.7 mm, 60 to 150 Hz and 50 m/s² in X, Y, and Z directions for 80 min each
Shock resistance	150 m/s² (3 times each in 6 directions on 3 axes)
Dielectric strength	500 VAC (between isolated circuits)
Insulation resistance	20 MΩ min. (between isolated circuits)
Ambient operating temperature	-10 to 55°C
Ambient operating humidity	25% to 85% (with no condensation)
Ambient operating atmosphere	No corrosive gases
Storage temperature	-25 to 65°C
Storage humidity	25% to 85% (with no condensation)
*Terminal block screw tightening torque 2**	M3 wiring screws: 0.5 Nm M3 mounting screws: 0.5 Nm
Installation	Mounted on 35-mm DIN Track or Mounting Bracket, or secured with M4 screws (depending on model)

Item	Specification
Model	CRT1-ID08TA	CRT1-ID08TA-1	CRT1-ID08TAH-1	CRT1-ID08TAH-1
I/O capacity	8 inputs
Internal I/O common	NPN	PNP	NPN	PNP
ON voltage	15 VDC min. (between each input terminal and the V terminal)	15 VDC min. (between each input terminal and the G terminal)	10.5 VDC min. (between each input terminal and the V terminal)	10.5 VDC min. (between each input terminal and the G terminal)
OFF voltage	5 VDC max. (between each input terminal and the V terminal)	5 VDC max. (between each input terminal and the G terminal)	---	---
OFF current	1.0 mA max.
Input current	At 24 VDC: 6.0 mA max./input At 17 VDC: 3.0 mA min./input
ON delay	1.5 ms max.
OFF delay	1.5 ms max.
Power supply short-circuit detection	---	Operates at 50 mA/point min.
Disconnection detection	---	Operates at 0.3 mA/point max.
Number of circuits per common	8 inputs/common
Isolation method	Photocoupler
Input indicator	LED (yellow)
Installation	DIN Track
Power supply type	Multi-power supply
Current supplied to input devices	100 mA/point	50 mA/point
Communications power supply current consumption	30 mA max. for 24-VDC power supply voltage 50 mA max. for 14-VDC power supply voltage	35 mA max. for 24-VDC power supply voltage 60 mA max. for 14-VDC power supply voltage
I/O power supply current consumption	5 mA max. for 24-VDC power supply voltage	25 mA max. for 24-VDC power supply voltage
Weight	190 g max.	200 g max.

Item	Specification
Model	CRT1-ID16TA	CRT1-ID16TA-1	CRT1-ID16TAH	CRT1-ID16TAH-1
I/O capacity	16 inputs
Internal I/O common	NPN	PNP	NPN	PNP
ON voltage	15 VDC min. (between each input terminal and the V terminal)	15 VDC min. (between each input terminal and the G terminal)	10.5 VDC min. (between each input terminal and the V terminal)	10.5 VDC min. (between each input terminal and the G terminal)
OFF voltage	5 VDC max. (between each input terminal and the V terminal)	5 VDC max. (between each input terminal and the G terminal)	---	---
OFF current	1.0 mA max.
Input current	At 24 VDC: 6.0 mA max./input At 17 VDC: 3.0 mA min./input
ON delay	1.5 ms max.
OFF delay	1.5 ms max.
Power supply short-circuit detection	---	Operates at 50 mA/point min.
Disconnection detection	---	Operates at 0.3 mA/point max.
Number of circuits per common	8 inputs/common
Isolation method	Photocoupler
Input indicator	LED (yellow)
Installation	DIN Track
Power supply type	Multi-power supply
Communications power supply current consumption	40 mA max. for 24-VDC power supply voltage 55 mA max. for 14-VDC power supply voltage	40 mA max. for 24-VDC power supply voltage 70 mA max. for 14-VDC power supply voltage
I/O power supply current consumption	5 mA max. for 24-VDC power supply voltage	25 mA max. for 24-VDC power supply voltage
Weight	330 g max.	340 g max.

Item	Specification
Model	CRT1-OD08TA	CRT1-OD08TA-1	CRT1-OD08TAH	CRT1-OD08TAH-1
I/O capacity	8 outputs
Internal I/O common	NPN	PNP	NPN	PNP
Rated output current	0.5 A/output, 2 A/common
Residual voltage	1.2 V max. (0.5 A DC, between each output terminal and the G terminal)	1.2 V max. (0.5 A DC, between each output terminal and the V terminal)	1.2 V max. (0.5 A DC, between each output terminal and the G terminal)	1.2 V max. (0.5 A DC, between each output terminal and the V terminal)
Leakage current	0.1 mA max.
ON delay	0.5 ms max.
OFF delay	1.5 ms max.
Load short-circuit detection	---	Supported.
Disconnection detection	---	Operates at 3 mA/point max. (Does not operate at over 3 mA.)
Number of circuits per common	8 outputs/common
Isolation method	Photocoupler
Output indicators	LED (yellow)
Installation	DIN Track
Power supply type	Multi-power supply
Current supplied to output devices	100 mA/point
Communications power supply current consumption	35 mA max. for 24-VDC power supply voltage 55 mA max. for 14-VDC power supply voltage
I/O power supply current consumption	15 mA max. for 24-VDC power supply voltage	15 mA max. for 24-VDC power supply voltage	35 mA max. for 24-VDC power supply voltage
Output handling for communications errors	Select either hold or clear from CX-Integrator.
Weight	190 g max.

Item	Specification
Model	CRT1-OD16TA	CRT1-OD16TA-1	CRT1-OD16TAH	CRT1-OD16TAH-1
I/O capacity	16 outputs
Internal I/O common	NPN	PNP	NPN	PNP
Rated output current	0.5 A/output, 2 A/common
Residual voltage	1.2 V max. (0.5 A DC, between each output terminal and the G terminal)	1.2 V max. (0.5 A DC, between each output terminal and the V terminal)	1.2 V max. (0.5 A DC, between each output terminal and the G terminal)	1.2 V max. (0.5 A DC, between each output terminal and the V terminal)
Leakage current	0.1 mA max.
ON delay	0.5 ms max.
OFF delay	1.5 ms max.
Number of circuits per common	8 outputs/common
Load short-circuit detection	---	Supported.
Disconnection detection	---	Operates at 3 mA/point max. (Does not operate at over 3 mA.)
Isolation method	Photocoupler
Output indicators	LED (yellow)
Installation	DIN Track
Power supply type	Multi-power supply
Communications power supply current consumption	45 mA max. for 24-VDC power supply voltage 65 mA max. for 14-VDC power supply voltage	40 mA max. for 24-VDC power supply voltage 70 mA max. for 14-VDC power supply voltage
I/O power supply current consumption	15 mA max. for 24-VDC power supply voltage	35 mA max. for 24-VDC power supply voltage
Output handling for communications errors	Select either hold or clear from CX-Integrator.
Weight	330 g max.

Item	Specification
Model	CRT1-MD16TA	CRT1-MD16TA-1	CRT1-MD16TAH	CRT1-MD16TAH-1
Installation	DIN Track
Communications power supply current consumption	40 mA max. for 24-VDC power supply voltage 60 mA max. for 14-VDC power supply voltage	40 mA max. for 24-VDC power supply voltage 70 mA max. for 14-VDC power supply voltage
Weight	330 g max.	340 g max.

Item	Specification
Model	CRT1-MD16TA	CRT1-MD16TA-1	CRT1-MD16TAH	CRT1-MD16TAH-1
I/O capacity	8 inputs
Internal I/O common	NPN	PNP	NPN	PNP
ON voltage	15 VDC min. (between each input terminal and the V terminal)	15 VDC min. (between each input terminal and the G terminal)	10.5 VDC min. (between each input terminal and the V terminal)	10.5 VDC min. (between each input terminal and the G terminal)
OFF voltage	5 VDC max. (between each input terminal and the V terminal)	5 VDC max. (between each input terminal and the G terminal)	---	---
OFF current	1.0 mA max.
Input current	At 24 VDC: 6.0 mA max./input At 17 VDC: 3.0 mA min./input
ON delay	1.5 ms max.
OFF delay	1.5 ms max.
Power supply short-circuit detection	---	Operates at 50 mA/point min.
Disconnection detection	---	Operates at 0.3 mA/point max.
Number of circuits per common	8 inputs/common
Isolation method	Photocoupler
Input indicator	LED (yellow)
Power supply type	Multi-power supply
I/O power supply current consumption	5 mA max. for 24-VDC power supply voltage	25 mA max. for 24-VDC power supply voltage

Item	Specification
Model	CRT1-MD16TA	CRT1-MD16TA-1	CRT1-MD16TAH	CRT1-MD16TAH-1
I/O capacity	8 outputs
Internal I/O common	NPN	PNP	NPN	PNP
Rated output current	0.5 A/output, 2 A/common
Residual voltage	1.2 V max. (0.5 A DC, between each output terminal and the G terminal)	1.2 V max. (0.5 A DC, between each output terminal and the V terminal)	1.2 V max. (0.5 A DC, between each output terminal and the G terminal)	1.2 V max. (0.5 A DC, between each output terminal and the V terminal)
Leakage current	0.1 mA max.
ON delay	0.5 ms max.
OFF delay	1.5 ms max.
Load short-circuit detection	---	Supported.
Disconnection detection	---	Operates at 3 mA/point max. (Does not operate at over 3 mA.)
Number of circuits per common	8 outputs/common
Isolation method	Photocoupler
Output indicators	LED (yellow)
I/O power supply current consumption	15 mA max. for 24-VDC power supply voltage	35 mA max. for 24-VDC power supply voltage
Output handling for communications errors	Select either hold or clear from CX-Integrator.

Name	Specifications	Model
Three-tier Screw Terminal Block	Inputs	8 inputs	NPN	Without Short-circuit and Disconnected Line Detection	CRT1-ID08TA
PNP	CRT1-ID08TA-1
Outputs	8 outputs	NPN	CRT1-OD08TA
PNP	CRT1-OD08TA-1
Inputs	16 inputs	NPN	CRT1-ID16TA
PNP	CRT1-ID16TA-1
Outputs	16 outputs	NPN	CRT1-OD16TA
PNP	CRT1-OD16TA-1
Inputs/ Outputs	8 inputs/ 8 outputs	NPN	CRT1-MD16TA
PNP	CRT1-MD16TA-1
Inputs	8 inputs	NPN	With Short-circuit and Disconnected Line Detection	CRT1-ID08TAH
PNP	CRT1-ID08TAH-1
Outputs	8 outputs	NPN	CRT1-OD08TAH
PNP	CRT1-OD08TAH-1
Inputs	16 inputs	NPN	CRT1-ID16TAH
PNP	CRT1-ID16TAH-1
Outputs	16 outputs	NPN	CRT1-OD16TAH
PNP	CRT1-OD16TAH-1
Inputs/ Outputs	8 inputs/ 8 outputs	NPN	CRT1-MD16TAH
PNP	CRT1-MD16TAH-1

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
CompoNet Catalog	P056-E1-08 [4302KB]	May 07, 201820180507	CompoNet Catalog

Return to OMRON
