OMRON E4PA-NSensors/ Displacement Sensors / Measurement Sensors/Other Displacement Sensors
OMRON E4PA-N Sensors
OMRON E4PA-N Dimensions
/Images/l_1467-25-118760-198x198.jpglast update: December 19, 2013
High-precision detection with a wide range of measurements.
Four types of Sensors are available with maximum sensing distances of 0.5 m, 2 m, 4 m, and 6 m. With the 0.5-m type, a repeat accuracy of 1 mm or better has been achieved.
The Sensor is ultrasonic, so it is not affected by the color of objects.
A variety of materials can be measured, including transparent and reflective objects. Measurements are performed with no contact, so even highly-viscous liquids are no problem.
A setting plug with a temperature compensation function makes it easy to set the sensing range.
The sensing range can be set by the Setting Plug, which is included with the Sensor. No special controller is required. The Setting Plug’s built-in temperature sensor provides superior temperature characteristics of ±1% FS.
The mutual interference prevention function allows up to five Sensors to be used in close proximity.
last update: December 19, 2013
Purchase the OMRON Other Displacement Sensors Please fill in the following
If you have just landed here, this product OMRON E4PA-N Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the E4PA-N We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON E4PA-NSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
ZW-SQ Series Confocal Fiber Displacement Sensor Sensor Head/Features
ZG2 Smart Sensor (2D Measurement Sensor)/Features
EE-SPY801 / 802 Wafer-carrier Mounting Photomicrosensors/Features
E5AC-T Programmable Temperature Controller (Digital Controller) (96 × 96 mm)/Features
SmartVision MX Vision System/Features
OMRON E4PA-N catalog
E4PA-N Ultrasonic Displacement Sensor/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 E4PA-N Data Sheet | - [500KB] | Oct 11, 201220121011 | E4PA-N Data Sheet |
OMRON E4PA-N dimension
E4PA-N Ultrasonic Displacement Sensor/Dimensionslast update: October 25, 2012
Sensors

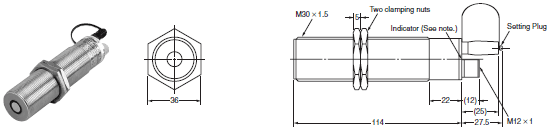

E4PA-LS50-M1-N
Note: RUN indicator (yellow)
Power indicator (green)
Error indicator (red)

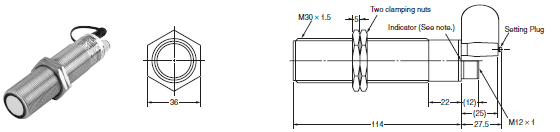

E4PA-LS200-M1-N
Note: RUN indicator (yellow)
Power indicator (green)
Error indicator (red)

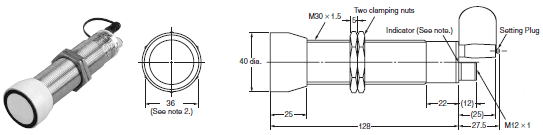

E4PA-LS400-M1-N
Note: 1. RUN indicator (yellow)
Power indicator (green)
Error indicator (red)
2. This is the dimension between the flat sides of the nuts.

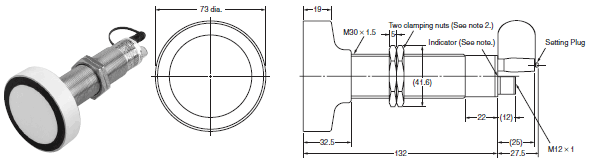

E4PA-LS600-M1-N
Note: 1. RUN indicator (yellow)
Power indicator (green)
Error indicator (red)
2. The distance between the flat sides of the nuts is 36 mm.
Accessories (Order Separately)
Standard (Straight)
XS2F-D521-DG0-A (L=2 m)
XS2F-D521-GG0-A (L=5 m)

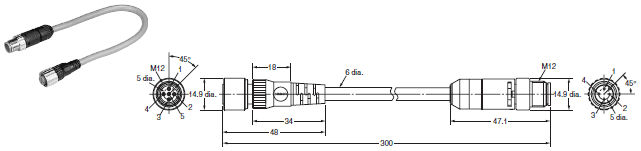

4-to-5 Conductor Conversion Cable
E4PA-C01
Setting Plug
E4PA-P1
last update: October 25, 2012
OMRON E4PA-N specification
E4PA-N Ultrasonic Displacement Sensor/Specificationslast update: February 04, 2013
Ratings/Characteristics
| Item | E4PA-LS50-M1-N | E4PA-LS200-M1-N | E4PA-LS400-M1-N | E4PA-LS600-M1-N |
|---|---|---|---|---|
| Sensing range | 50 to 500 mm | 120 to 2,000 mm | 240 to 4,000 mm | 400 to 6,000 mm |
| Dead band distance | 0 to 50 mm | 0 to 120 mm | 0 to 240 mm | 0 to 400 mm |
| Standard sensing object | 100 × 100 mm flat plate | |||
| Applied frequency | Approx. 380 kHz | Approx. 180 kHz | Approx. 85 kHz | Approx. 65 kHz |
| Response time | 63 ms max. | 195 ms max. | 440 ms max. | 850 ms max. |
| Power supply voltage | 10 to 30 VDC; ripple (p-p): 10% max. | |||
| Power consumption | 1,800 mW max. | |||
| Analog output | Current output: 4 to 20 mA (Allowable load resistance: 500 Ω max.) Voltage output: 0 to 10 V (1,000 Ω min.) | |||
| Protective circuit | Load short-circuit protection, mutual interference prevention | |||
| Mutual interference prevention cycle time | 10 ms | 34 ms | 77 ms | 143 ms |
| Linearity | ±1% FS max. | |||
| Repeat accuracy * | 0.1% FS max. | |||
| Temperature influence | ±1% FS of output value at +23°C in the temperature range of -10 to 55°C | |||
| Voltage influence | ±5% FS max. within rated power supply voltage range | |||
| Ambient temperature | Operating: -10 to 55°C (with no icing or condensation) Storage: -40 to 85°C (with no icing or condensation) | |||
| Ambient humidity | Operating and storage: 35% to 85% (with no condensation) | |||
| Insulation resistance | 50 MΩ min. (at 500 VDC) between current-carrying parts and case | |||
| Dielectric strength | 1,000 VAC (50/60 Hz) for 1 min between current-carrying parts and case | |||
| Vibration resistance | Destruction: 10 to 55 Hz, 1-mm double amplitude for 2 hours each in X, Y, and Z directions | |||
| Shock resistance | Destruction: 300 m/s2 three times each in X, Y, and Z directions | |||
| Connection method | 5-conductor connector | |||
| Degree of protection | IEC60529: IP65 | |||
| Weight (packed) | Approx. 240 g | Approx. 320 g | Approx. 400 g | |
| Materials | Case: Stainless steel (SUS303) Sensing surface: PBT resin, polyurethane, glass epoxy resin Clamping nut: Stainless steel (SUS303) | |||
| Accessories | Operation Manual | |||
* Values are given one hour after power-up. The outputs may fluctuate due to external disturbances.
last update: February 04, 2013
OMRON E4PA-N lineup
E4PA-N Ultrasonic Displacement Sensor/Lineuplast update: February 04, 2013
Sensors
| Sensing range | Model |
|---|---|
| 50 to 500 mm | E4PA-LS50-M1-N |
| 120 to 2,000 mm | E4PA-LS200-M1-N |
| 240 to 4,000 mm | E4PA-LS400-M1-N |
| 400 to 6,000 mm | E4PA-LS600-M1-N |
Accessories (Order Separately)
Sensor I/O Connectors
A Connector is not provided with the Sensor. Be sure to order a Connector separately.
| Cable | Shape | Cable length | Model | |
|---|---|---|---|---|
| Standard Cable | Straight | 2 m | 5 conductors | XS2F-D521-DG0-A |
| 5 m | XS2F-D521-GG0-A | |||
| 4-to-5 Conductor Conversion Cable * |  | 0.3 m | --- | E4PA-C01 |
* When you use a 4-pole sensor connector cable, the E4PA-C01 is useful for converting from 4 to 5 poles. If this is done,
however, you cannot use the mutual interference prevention function.
Setting Plug
A plug is not provided with the Sensor.
| Shape | Model | Remarks |
|---|---|---|
 | E4PA-P1 | Attached to each Sensor |
last update: February 04, 2013
