OMRON ZW-SQ Series Sensors
last update: May 7, 2018
• The slim design measures only 24 × 24 mm. It weighs only 105 g.
• Measuring shiny objects with an inclination of ±8°
• The sensor head has no electronic parts to eliminate problems of electronic and magnetic noise.
• Sampling rate as fast as 80 μs
last update: May 7, 2018
If you have just landed here, this product OMRON ZW-SQ Series Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the ZW-SQ Series We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON ZW-SQ SeriesSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
E3S-A Built-in Amplifier Photoelectric Sensor (Medium Size)/Features
FJ Series (Camera and Software Vision Package) PC Vision System/Features
TL-L Ultra-long Sensing-distance Proximity Sensor/Features
EE-SPX613 Pipe-mounting Liquid Level Photomicrosensor with Built-in Amplifier/Features
A3P (Super Luminosity Type) Lighted Pushbutton Switch (Square) Ultra Bright LED Type/Features
last update: May 7, 2018
(Unit: mm)

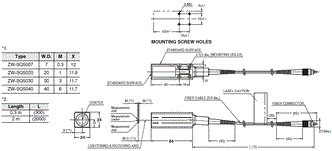

Square straight type
ZW-SQ5007[]M/-SQ5020[]M/-SQ5030[]M/-SQ5040[]M

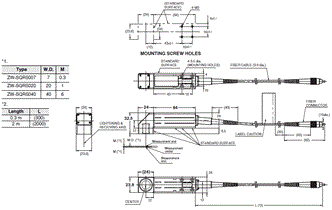

Square Right-angle type
ZW-SQR5007[]M/-SQR5020[]M/-SQR5040[]M

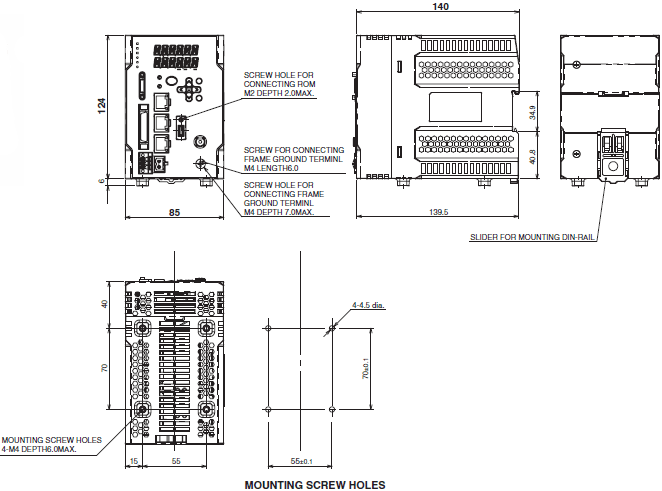

ZW-5000T

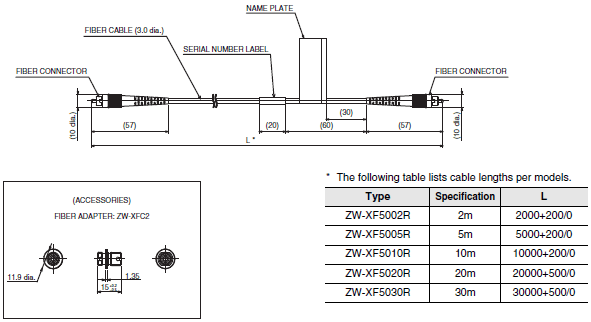

ZW-XF5002R/XF5005R/XF5010R/XF5020R/XF5030R
last update: May 7, 2018
Catalog Name | Catalog Number [size] | Last Update | |
---|---|---|---|
![]() | Q260-E1-01 [1866KB] | Nov 01, 201820181101 | ZW-SQ Data Sheet |
last update: November 1, 2018
Appearance | Measuring range | Spot diameter | Static resolution * | Model |
---|---|---|---|---|
![]() | ![]() | 18 μm dia. | 0.25 μm | ZW-SQ5007 2M |
ZW-SQ5007 0.3M | ||||
![]() | 40 μm dia. | 0.25 μm | ZW-SQ5020 2M | |
ZW-SQ5020 0.3M | ||||
![]() | 60 μm dia. | 0.25 μm | ZW-SQ5030 2M | |
ZW-SQ5030 0.3M | ||||
![]() | 80 μm dia. | 0.25 μm | ZW-SQ5040 2M | |
ZW-SQ5040 0.3M |
* Values when the sensor controller ZW-5000T is used.
Appearance | Measuring range | Spot diameter | Static resolution * | Model |
---|---|---|---|---|
![]() | ![]() | 18 μm dia. | 0.25 μm | ZW-SQR5007 2M |
ZW-SQR5007 0.3M | ||||
![]() | 40 μm dia. | 0.25 μm | ZW-SQR5020 2M | |
ZW-SQR5020 0.3M | ||||
![]() | 80 μm dia. | 0.25 μm | ZW-SQR5040 2M | |
ZW-SQR5040 0.3M |
* Values when the sensor controller ZW-5000T is used.
Appearance | Power supply | Output type | Model |
---|---|---|---|
![]() | 24VDC | NPN/PNP | ZW-5000T |
Appearance | Item | Cable length | Model |
---|---|---|---|
![]() | Extension Fiber Cable (from Sensor Head to Sensor Controller), (Fiber Adapter ZW-XFC2 is included) | 2 m | ZW-XF5002R |
5 m | ZW-XF5005R | ||
10 m | ZW-XF5010R | ||
20 m | ZW-XF5020R | ||
30 m | ZW-XF5030R | ||
![]() | Fiber Adapter (used between Sensor Head pre-wired cable and Extension Fiber Cable) | - | ZW-XFC2 |
Note: Extension Fiber Cable ZW-XF50[][]R can be used with the firmware version 2.100 or later. If you have an old version sensor controller, register as a Sysmac member and download the latest firmware and tools to update your sensor controller. Refer to the Sysmac member registration sheet that is enclosed with the sensor controller for details on member registration and firmware download.
Appearance | Item | Cable length | Model |
---|---|---|---|
![]() | Parallel caable for ZW-5000T 32-pole (included with Sensor Controller ZW-5000T) | 2 m | ZW-XCP2E |
![]() | RS-232C Cable for personal computer | 2 m | ZW-XRS2 |
![]() | RS-232C Cable for PLC/programmable terminal | 2 m | ZW-XPT2 |
Use Straight STP (shielded twisted-pair) cable of category 5 or higher with double shielding (braiding and aluminum foil tape) for EtherCAT.
Item | Appearance | Recommended manufacturer | Cable length (m) *1 | Model |
---|---|---|---|---|
Standard type Cable with Connectors on Both Ends (RJ45/RJ45) Wire Gauge and Number of Pairs: AWG26, 4-pair Cable Cable Sheath material: LSZH *2 Cable color: Yellow *3 | ![]() | OMRON | 0.3 | XS6W-6LSZH8SS30CM-Y |
0.5 | XS6W-6LSZH8SS50CM-Y | |||
1 | XS6W-6LSZH8SS100CM-Y | |||
2 | XS6W-6LSZH8SS200CM-Y | |||
3 | XS6W-6LSZH8SS300CM-Y | |||
5 | XS6W-6LSZH8SS500CM-Y | |||
Rugged type Cable with Connectors on Both Ends (RJ45/RJ45) Wire Gauge and Number of Pairs: AWG22, 2-pair Cable | ![]() | OMRON | 0.3 | XS5W-T421-AMD-K |
0.5 | XS5W-T421-BMD-K | |||
1 | XS5W-T421-CMD-K | |||
2 | XS5W-T421-DMD-K | |||
5 | XS5W-T421-GMD-K | |||
10 | XS5W-T421-JMD-K | |||
Rugged type Cable with Connectors on Both Ends (M12 Straight/RJ45) Wire Gauge and Number of Pairs: AWG22, 2-pair Cable | ![]() | OMRON | 0.3 | XS5W-T421-AMC-K |
0.5 | XS5W-T421-BMC-K | |||
1 | XS5W-T421-CMC-K | |||
2 | XS5W-T421-DMC-K | |||
5 | XS5W-T421-GMC-K | |||
10 | XS5W-T421-JMC-K | |||
Rugged type Cable with Connectors on Both Ends (M12 Right-angle/RJ45) Wire Gauge and Number of Pairs: AWG22, 2-pair Cable | ![]() | OMRON | 0.3 | XS5W-T422-AMC-K |
0.5 | XS5W-T422-BMC-K | |||
1 | XS5W-T422-CMC-K | |||
2 | XS5W-T422-DMC-K | |||
5 | XS5W-T422-GMC-K | |||
10 | XS5W-T422-JMC-K |
Note: For details, refer to Cat.No.G019.
*1. Standard type cables length 0.2, 0.3, 0.5, 1, 1.5, 2, 3, 5, 7.5, 10, 15 and 20m are available.
Rugged type cables length 0.3, 0.5, 1, 2, 3, 5, 10 and 15m are available.
*2. The lineup features Low Smoke Zero Halogen cables for in-cabinet use and PUR cables for out-of-cabinet use.
*3. Cables colors are available in blue, yellow, or Green
Item | Appearance | Recommended manufacturer | Model |
---|---|---|---|
Cables | ⎯ | Hitachi Metals, Ltd. | NETSTAR-C5E SAB 0.5 × 4P * |
⎯ | Kuramo Electric Co. | KETH-SB * | |
⎯ | SWCC Showa Cable Systems Co. | FAE-5004 * | |
RJ45 Connectors | ⎯ | Panduit Corporation | MPS588-C * |
* We recommend to use above cable and connector together.
Item | Appearance | Recommended manufacturer | Model |
---|---|---|---|
Cables | ⎯ | Kuramo Electric Co. | KETH-PSB-OMR * |
⎯ | JMACS Japan Co.,Ltd. | PNET/B * | |
RJ45 Assembly Connector | ![]() | OMRON | XS6G-T421-1 * |
Note: Connect both ends of cable shielded wires to the connector hoods.
* We recommend to use above cable and connector together.
Appearance | Number of ports | Failure detection | Current consumption | Model |
---|---|---|---|---|
![]() | 3 | None | 0.22A | W4S1-03B |
![]() | 5 | None | 0.22A | W4S1-05B |
Supported | W4S1-05C |
Note: Industrial switching hubs are cannot be used for EtherCAT.
Appearance | Number of ports | Power supply voltage | Current consumption | Model |
---|---|---|---|---|
![]() | 3 | 20.4 to 28.8 VDC (24 VDC 15 to 20%) | 0.08A | GX-JC03 |
![]() | 6 | 0.17A | GX-JC06 |
Note: 1. Please do not connect EtherCAT junction slave with OMRON position control unit, Model CJ1W-NC[]81/[]82.
2. EtherCAT junction slaves cannot be used for EtherNet/IPTM and Ethernet.
Please purchase a DVD and required number of licenses the first time you purchase the Sysmac Studio. DVDs and licenses are available individually.
Each model of licenses does not include DVD.
Item | Specifications | Model | Stand- ards | ||
---|---|---|---|---|---|
Number of licenses | Media | ||||
Sysmac Studio Standard Edition Ver.1[][] *2 | The Sysmac Studio is the software that provides an integrated environment for setting, programming, debugging and maintenance of machine automation controllers including the NJ/NX-series CPU Units, NY-series Industrial PC, EtherCat Slave, and the HMI. Sysmac Studio runs on the following OS. Windows 7 (32-bit/64-bit version)/ Windows 8 (32-bit/64-bit version)/ Windows 8.1 (32-bit/64-bit version)/ Windows 10 (32-bit/64-bit version) This software provides functions of the Measurement Sensor Edition. Refer to your OMRON website for details. | ⎯ (Media only) | DVD | SYSMAC-SE200D | ⎯ |
1 license*1 | ⎯ | SYSMAC-SE201L | ⎯ | ||
Sysmac Studio Measurement Sensor Edition Ver.1.[][] | Sysmac Studio Measurement Sensor Edition is a limited license that provides selected functions required for ZW-series Displacement Sensor settings. Because this product is a license only, you need the Sysmac Standard Edition DVD media to install it. | 1 license | ⎯ | SYSMAC-ME001L | ⎯ |
3 license | ⎯ | SYSMAC-ME003L | ⎯ |
*1. Multiple licenses are available for the Sysmac Studio (3, 10, 30, or 50 licenses).
*2. ZW-5000T is supported by Sysmac Studio version 1.18 or higher.
Item | Recommended manufacturer | Model | Applicable Model | Contacts |
---|---|---|---|---|
ZW-5000 | ||||
Fiber Connector Cleaner *1 | OMRON | ZW-XCL | Yes | OMRON |
OPTIPOP R1 | NTT Advanced Technology Corporation | ATC-RE-01 | Yes (Sensor Head only) | *2 |
*1. Place orders in units of boxes (contacting 10 units).
*2. Contacts
[Request for an Estimate]
http://www.ntt-at.com/product/optical_cleaner/Distributors.html
[Request for Information]
NTT Advanced Technology Corporation
Muza Kawasaki Central Tower, 1310 Omiya-cho Saiwai-ku, Kawasaki-shi, Kanagawa, 212-0014, Japan
TEL: +81 44 589 5894
http://www.ntt-at.com/product/optical_cleaner/
last update: November 1, 2018
last update: May 7, 2018
Item | ZW-SQ5007 | ZW-SQ5020 | ZW-SQ5030 | ZW-SQ5040 | ZW-SQR5007 | ZW-SQR5020 | ZW-SQR5040 | |
---|---|---|---|---|---|---|---|---|
Sensor Controller | ZW-5000[] | |||||||
Sensor Head | Square straight type | Square Right-angle type | ||||||
Measuring center distance | 7 mm | 20 mm | 30 mm | 40 mm | 7 mm | 20 mm | 40 mm | |
Measuring range | ±0.3 mm | ±1 mm | ±3 mm | ±6 mm | ±0.3 mm | ±1 mm | ±6 mm | |
Static resolution *1 | 0.25 μm | |||||||
Linearity *2 | ±0.8 μm | ±1.2 μm | ±4.5 μm | ±7.0 μm | ±1.1 μm | ±1.6 μm | ±9.3 μm | |
Spot diameter *3 | Near | 20 μm dia. | 45 μm dia. | 70 μm dia. | 90 μm dia. | 20 μm dia. | 45 μm dia. | 90 μm dia. |
Center | 18 μm dia. | 40 μm dia. | 60 μm dia. | 80 μm dia | 18 μm dia. | 40 μm dia. | 80 μm dia | |
Far | 20 μm dia. | 45 μm dia. | 70 μm dia. | 90 μm dia | 20 μm dia. | 45 μm dia. | 90 μm dia | |
Measuring cycle *4 | 80 μs to 1600 μs | |||||||
Operating ambient illumination | Illumination on object surface 10,000 lx or less: incandescent light | |||||||
Ambient temperature range | Operating: 0 to 50°C, Storage: -15 to 60°C (with no icing or condensation) | |||||||
Ambient humidity range | Operating and storage: 35% to 85%RH (with no condensation) | |||||||
Degree of protection | IP40 (IEC60529) | |||||||
Vibration resistance (destructive) | 10 to 150 Hz, 0.35 mm single amplitude, 80 min each in X, Y, and Z directions | |||||||
Shock resistance (destructive) | 150 m/s2 3 times each in six directions (up/down, left/right, forward/backward) | |||||||
Temperature characteristic *5 | 0.6 μm/ °C | 1.5 μm/ °C | 2.8 μm/ °C | 4.8 μm/ °C | 0.6 μm/ °C | 1.5 μm/ °C | 4.8 μm/ °C | |
LED Safety | Risk Group 3 (IEC62471) | |||||||
Materials | Case: aluminum die-cast Fiber cable sheat: PVC Calibration ROM: PC | |||||||
Fiber cable length | 0.3 m, 2 m (Flex-resistant cable) | |||||||
Fiber cable minimum bending radius | 20 mm | |||||||
Insulation resistance (Calibration ROM) | Between case and all terminals: 20 MΩ (by 250 V megger) | |||||||
Dielectric strength (Calibration ROM) | Between case and all terminals: 1,000 VAC, 50/60 Hz, 1 min | |||||||
Weight | Fiber cable length 0.3 m Approx. 100g Fiber cable length 2 m Approx. 105g | Fiber cable length 0.3 m Approx. 125g Fiber cable length 2 m Approx. 130g | ||||||
Accessories included with sensor head | Calibration ROM fixing screws (M2 × 5mm) ×1, Fiber protection cap × 1, Strap × 1, Instruction Manual, Precautions |
*1. Capacity value when OMRON standard mirror surface target is measured at the measurement center distance as the average of 16,384 times
The value when the sensor controller ZW-5000T is connected
*2. Material setting for the OMRON standard mirror surface target: Error from an ideal straight line when measuring on mirror surface
*3. Capacity value defined by 1/e2 (13.5%) of the peak optical intensity of the measurement wavelength.
*4. When an extension fiber cable of 5 m or longer is connected, the setting rage of the measurement cycle (exposure time) changes. For details, refer to Setting Measurement Cycle in the ZW-8000/7000/5000 User's Manual (Cat. No. Z362).
*5. Capacity value of temperature characteristic at the measurement center distance when fastened with an aluminum jig between the Sensor Head and the target and the Sensor Head and the Sensor Controller are set in the same temperature environment.
Item | ZW-5000T | |||
---|---|---|---|---|
Input/output type | NPN/PNP dual type | |||
Number of connected sensor heads | 1 | |||
Sensor head compatibility | ZW-SQ50[][]/SQR50[][] | |||
LED Safety | Risk Group 3 (IEC62471) | |||
Segment Display | Main display | 11-segment white display, 6 digits | ||
Sub-display | 11-segment green display, 6 digits | |||
Display | Status indicators | HIGH (orange), PASS (green), LOW (orange), STABILITY (green), ZERO (green), ENABLE (green), THRESHOLD-H (orange), THRESHOLD-L (orange), RUN (green) | ||
EtherCAT indicator | ECAT RUN (green), L/A IN (Link/Activity IN) (green), L/A OUT (Link/Activity OUT) (green), ECAT ERR (red) | |||
External I/F | Ethernet | 100BASE-TX/10BASE-T, Non-procedure (TCP/UDP), EtherNet/IP | ||
EtherCAT | EtherCAT exclusive protocol 100BASE-TX | |||
RS-232C | Max. 115,200 bps | |||
Analog output terminal block | Analog voltage output (OUT V) | -10 V to +10 V, output impedance: 100 Ω | ||
Analog current output (OUT A) | 4 mA to 20 mA, max. load resistance: 300 Ω | |||
32-pole expansion connector | Judgment output (HIGH/PASS/LOW) | Transistor output system Output voltage: 21.6 to 30 VDC Load current: 50 mA or less Residual voltage when turning ON: 2 V or less Leakage voltage when turning OFF: 0.1 mA or less | ||
Busy output (BUSY) | ||||
Alarm output (ALARM) | ||||
Enable output (ENABLE) | ||||
Sync flag output (SYNFLG) | ||||
Trigger busy output (TRIGBUSY) | ||||
Logging state output (LOGSTAT) | ||||
Logging error output (LOGERR) | ||||
Stability output (STABILITY) | ||||
Task state output (TASKSTAT) | ||||
LIGHT OFF input (LIGHT OFF) | DC input system Input voltage: 24 VDC ± 10% (21.6 to 26.4 VDC) Input current: 7 mA Type. (24 VDC) ON voltage/ON current: 19 V/3 mA or less ON voltage/ON current: 5 V/1 mA or less | |||
Zero reset input (ZERO) | ||||
Timing input (TIMING) | ||||
Reset input (RESET) | ||||
Sync input (SYNC) | ||||
Trigger input (TRIG) | ||||
Logging input (LOGGING) | ||||
Bank | Currently selected bank output (BANK_OUT 1 to 3) | Transistor output system Output voltage: 21.6 to 30 VDC Load current: 50 mA or less Residual voltage when turning ON: 2 V or less Leakage voltage when turning OFF: 0.1 mA or less | ||
Bank Selection input (BANK_SEL 1 to 3) | DC input system Input voltage: 24 VDC ± 10% (21.6 to 26.4 VDC) Input current: 7 mA Type. (24 VDC) ON voltage/ON current: 19 V/3 mA or more OFF voltage/OFF current: 5 V/1 mA or less | |||
Main functions | Exposure time | Automatic/Fixed | ||
Measuring cycle *1 | 80 μs to 1600 μs | |||
Material setting | Standard/Mirror/Rough surfaces | |||
Measurement item | Height/Thickness of transparent object/Calculation | |||
Filtering | Median/Average/Differentiation/High pass/Low pass/Band pass | |||
Output | Scaling/Different holds/Zero reset/Logging for a measured value/ Keep, Clamp | |||
Display | Measured value/Threshold value/Analog output voltage or current value/Judgment result/ Resolution/Light power/Internal logging condition/Peak amount of received light | |||
Number of configurable banks | Max. 8 banks (NORMAL mode) Max. 32 banks (JUDGMENT mode) | |||
Task process | Multi-task (up to 4 tasks per bank) | |||
System | Save/Initialization/Display measured information/Communication settings/ Sensor head calibration/Key-lock/Zero reset memory/Timing input | |||
Rating | Power supply voltage | 21.6 to 26.4 VDC (including ripple) | ||
Current consumption | 800 mA max. | |||
Insulation resistance | Across all lead wires and FG terminal: 20 MΩ (by 250 VDC) | |||
Dielectric strength | Between all lead wires and FG terminal: 500 VAC, 50/60 Hz, 1 minute | |||
Environmental resistance | Degree of protection | IP20 (IEC60529) | ||
Vibration resistance (destructive) | 10 to 55 Hz (half amplitude 0.35 mm), 50 mins in each of X/Y/Z directions | |||
Shock resistance (destructive) | 150 m/s2, 6 direction, 3 times each (up/down, left/right, forward/backward) | |||
Ambient temperature range | Operation: 0 to 40°C, Storage: -15 to +60°C (No freezing and condensation) | |||
Ambient humidity range | Operation/storage: 35 to 85%RH (No condensation) | |||
Grounding | D-type grounding (grounding resistance of 100 Ω or less) Note: For conventional Class D grounding | |||
Material | Chassis: PC | |||
Weight | Approx. 900g (main unit only), Approx. 150 g (Parallel cable) | |||
Accessories | Parallel cable × 1 (ZW-XCP2E) 10 Fiber cleaners × 1 (ZW-XCL) Fiber adapter cap × 1, Strap × 1 Instruction Manual, Member registration sheet, Precautions |
Note: The Export Trade Control Order compatible Sensor Controller (ZW-5000T) is available.
When using this Sensor Controller, the minimum resolution is 0.25 μm regardless of the connected Sensor Head and setting conditions.
*1. When an extension fiber cable of 5 m or longer is connected, the setting rage of the measurement cycle (exposure time) changes. For details, refer to Setting Measurement Cycle in the ZW-8000/7000/5000 User's Manual (Cat. No. Z362).
Item | Specification |
---|---|
Communications standard | IEC61158 Type12 |
Physical layer | 100BASE-TX(IEEE802.3) |
Connectors | RJ45 × 2 ECAT IN: EtherCAT input ECAT OUT: EtherCAT output |
Communications media | Category 5 or higher (cable with double, aluminum tape and braided shielding) is recommended. |
Communications distance | Distance between nodes: 100 m max. |
Process data | Variable PDO mapping |
Mailbox (CoE) | Emergency messages, SDO requests, SDO responses, and SDO information |
Distributed clock | Synchronization in DC mode. |
LED display | L/A IN (Link/Activity IN) × 1, AL/A OUT (Link/Activity OUT) × 1, AECAT RUN × 1, AECAT ERR × 1 |
Item | Operating environment *3 |
---|---|
Operating system (OS) *1 | Windows 7 (32-bit/64-bit version)/Windows 8 (32-bit/64-bit version)/Windows 8.1 (32-bit/64-bit version)/ Windows 10(32-bit/64-bit version) |
CPU | Windows computers with Intel® Celeron® processor 540 (1.8 GHz) or faster CPU. Intel® Core™ i5 M520 processor (2.4 GHz) or equivalent or faster recommended. |
Main memory | 2 GB min. 4 GB min. recommended |
Hard disk | Minimum 4.6 GB of Hard disk space is required to install. *2 |
Display | XGA 1024 × 768, 16 million colors. WXGA 1280 × 800 dots or higher resolution is recommended. |
Disk drive | DVD-ROM drive |
Communications ports | USB port corresponded to USB 2.0, or Ethernet port *4 |
Supported languages | Japanese, English, German, French, Italian, Spanish, simplified Chinese, traditional Chinese, Korean |
*1. Note about Sysmac Studio compatible operating systems: The required system and hard disk capacity differs according to the system environment.
*2. Separate logging memory is required to use the file logging function.
*3. Describes System Requirements and notes of Sysmac Studio Measurement Sensor Edition.
For detail of System Requirements and notes of Sysmac Studio Measurement Sensor Edition, refer to Sysmac Studio Version 1 Operation Manual.
*4. For information on how to connect a personal computer with the sensor controller or other hardware and information on required cables, refer to manuals for each hardware.
The applicable version of the Sensor Controller varies depending on the Sensor Head or Cable. The versions are listed below.
Use the latest version of Sysmac Studio Standard Edition/Measurement Sensor Edition.
Sensor head/Cable | ZW Series | Version of Sensor Controller | Corresponding version of Sysmac Studio Standard Edition/Measurement Sensor Edition | |
---|---|---|---|---|
Type | Model | |||
Square straight type | ZW-SQ50[][] []M | ZW-5000T | Version 2.110 or later | Version 1.18 or higher |
Square Right-angle type | ZW-SQR50[][] []M | |||
Extension Fiber Cable | ZW-XF50[][]R | Version 2.100 or later |
Note: Refer to the Firmware Update in the ZW-8000/7000/5000 User's Manual (Cat. No. Z362) for how to update the Sensor Controller.
last update: May 7, 2018
