• The mounting position is set with a pedestal.
• The contact surface with the wafer carrier uses a special chemical-resistant fluororesin.
• The unique optical system enables stable detection of almost all wafer-carriers.
• Light modulation effectively reduces external light interference.
• Utilizes talc-free clean cables.
last update: December 19, 2013
Purchase the OMRON For Special Applications Please fill in the following
If you have just landed here, this product OMRON EE-SPY801 / 802 Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the EE-SPY801 / 802 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON EE-SPY801 / 802Sensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
V400-F 2D Code Reader/Features
3G3MX2-V1 Multi-function Compact Inverter/Features
CJ1M-CPU1[] CJ-series CJ1M CPU Units/Features
CRT1-[]D08(-1) / []D16(-1) / ROS[] / ROF[] Digital I/O Slave Units with Screw Terminal Blocks (2-...
CRT1-[]D08SL(-1) / []D16SL(-1) Digital I/O Slaves Units with Clamp Terminals/Features
OMRON EE-SPY801 / 802 catalog
EE-SPY801 / 802 Wafer-carrier Mounting Photomicrosensors/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 EE-SPY801/SPY802 Data Sheet | - [358KB] | Aug 24, 201220120824 | EE-SPY801/SPY802 Data Sheet |
OMRON EE-SPY801 / 802 lineup
EE-SPY801 / 802 Wafer-carrier Mounting Photomicrosensors/Lineuplast update: September 24, 2012
Sensors
| Appearance | Sensing method | Sensing distance | Output configuration | Cable length | Model |
|---|---|---|---|---|---|
 | Reflective type | 0 to 3 mm (Infrared light) | Turns ON when wafer carrier is present. | 2 m | EE-SPY801 2M |
 | EE-SPY802 2M |
Accessories (Order Separately)
| Item | Model |
|---|---|
| Pedestal | EE9-C01 |
| EE9-C02 |
Note: There are no sensor functions provided.
last update: September 24, 2012
OMRON EE-SPY801 / 802 dimension
EE-SPY801 / 802 Wafer-carrier Mounting Photomicrosensors/Dimensionslast update: November 12, 2012
Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.
Sensors

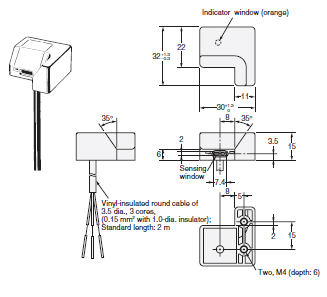

EE-SPY801

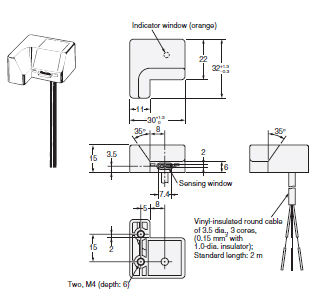

EE-SPY802
Accessories (Order Separately)
Pedestal

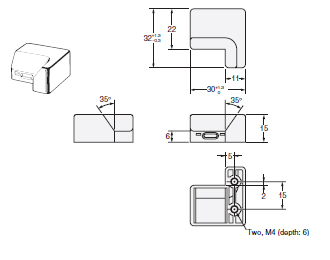

EE9-C01
Pedestal

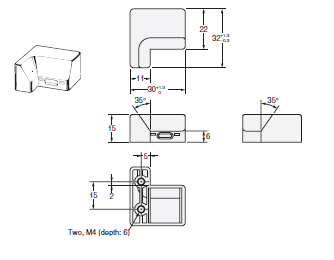

EE9-C02
