OMRON DRT2-[]D16TA(-1) specification

last update: May 19, 2017

General Specifications

Communications power supply voltage	11 to 25 VDC (Supplied from communications connector)
Communications power supply current consumption	45 mA max. (24 VDC), 80 mA max. (11 VDC)
Noise immunity	Conforms to IEC61000-4-4, 2 kV (power line)
Vibration resistance	10 to 60 Hz, 0.7-mm double amplitude, 60 to 150 Hz, 50 m/s2 for 80 min each in the X, Y, and Z directions
Shock resistance	150 m/s2 (3 times each in 6 directions on 3 axes)
Dielectric strength	500 VAC (between isolated circuits)
Insulation resistance	20 MΩ min. (between isolated circuits)
Ambient operating temperature	-10°C to 55°C
Ambient operating humidity	25% to 85% (with no condensation)
Ambient atmosphere	No corrosive gases
Ambient storage temperature	-25°C to 65°C
Mounting method	DIN 35 mm-track mounting, M4 screw mounting
Screw tightening torque	M2 (communications connector screws): 0.26 to 0.3 N·m M3 (screw terminals): 0.5 N·m M3 (screw terminals): 0.5 N·m M4 (unit mounting): 0.6 to 0.98 N·m
Weight	300 g max.

Input Specifications

16-point Inputs Terminals with Transistors

Model	DRT2-ID16TA	DRT2-ID16TA-1
Internal I/O common	NPN	PNP
I/O points	16 inputs
ON voltage	15 VDC min. (between input and V terminal)	15 VDC min. (between input and G terminal)
OFF voltage	5 VDC max. (between input and V terminal)	5 VDC max. (between input and G terminal)
OFF current	1.0 mA max.
Input current	24 VDC: 6.0 mA max./point 17 VDC: 3.0 mA max./point
ON delay time	1.5 ms max.
OFF delay time	1.5 ms max.
Number of circuits per common	8 per common

8-point Inputs/8-point Outputs Terminals with Transistors

Model	DRT2-MD16TA	DRT2-MD16TA-1
Internal I/O common	NPN	PNP
I/O points	8 inputs
ON voltage	15 VDC min. (between input and V terminal)	15 VDC min. (between input and G terminal)
OFF voltage	5 VDC max. (between input and V terminal)	5 VDC max. (between input and G terminal)
OFF current	1.0 mA max.
Input current	24 VDC: 6.0 mA max./point 17 VDC: 3.0 mA max./point
ON delay time	1.5 ms max.
OFF delay time	1.5 ms max.
Number of circuits per common	8 per common

Output Specifications

16-point Outputs Terminals with Transistors

Model	DRT2-OD16TA	DRT2-OD16TA-1
Internal I/O common	NPN	PNP
I/O points	16 outputs
Rated output current	0.5 A/point
Residual voltage	1.2 VDC max. (0.5 A DC between output and G terminal)	1.2 VDC max. (0.5 A DC between output and V terminal)
Leakage current	0.1 mA max.
ON delay time	0.5 ms max.
OFF delay time	1.5 ms max.
Number of circuits per common	8 per common

8-point Inputs/8-point Outputs Terminals with Transistors

Model	DRT2-MD16TA	DRT2-MD16TA-1
Internal I/O common	NPN	PNP
I/O points	8 outputs
Rated output current	0.5 A/point
Residual voltage	1.2 VDC max. (0.5 A DC between output and G terminal)	1.2 VDC max. (0.5 A DC between output and V terminal)
Leakage current	0.1 mA max.
ON delay time	0.5 ms max.
OFF delay time	1.5 ms max.
Number of circuits per common	8 per common

last update: May 19, 2017

OMRON DRT2-[]D16TA(-1) lineup

last update: September 24, 2012

Specifications			I/O connections	Rated internal circuit power supply voltage	I/O power supply voltage	Model
Inputs	NPN (+ common)	16 points	M3 screw terminals	Supplied from Basic Unit.	24 VDC	DRT2-ID16TA
	PNP (- common)					DRT2-ID16TA-1
Outputs	NPN (- common)					DRT2-OD16TA
	PNP (+ common)					DRT2-OD16TA-1
I/O	NPN (input: + common, output: - common)	Input: 8 points/ Output: 8 points				DRT2-MD16TA
	PNP (input: - common, output: + common)					DRT2-MD16TA-1

last update: September 24, 2012

OMRON DRT2-[]D16TA(-1) dimension

last update: November 12, 2012

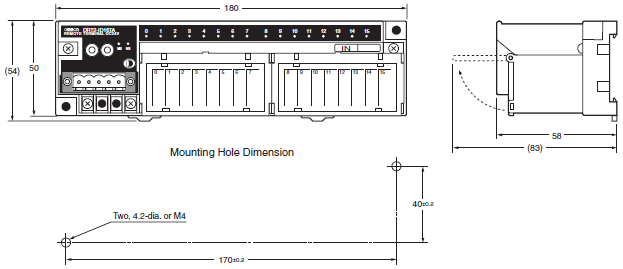

DRT2-ID16TA(-1)
DRT2-OD16TA(-1)
DRT2-MD16TA(-1)

( ) Dimensions in parentheses are reference values.

last update: November 12, 2012
