OMRON E3ZM specification

last update: June 15, 2016

Ratings and Specifications

Sensing method		Through-beam		Retro-reflective with MSR function	Diffuse-reflective Models
Model	NPN output	E3ZM-T61 E3ZM-T66	E3ZM-T63 E3ZM-T68	E3ZM-R61 E3ZM-R66	E3ZM-D62 E3ZM-D67
	PNP output	E3ZM-T81 E3ZM-T86	E3ZM-T83 E3ZM-T88	E3ZM-R81 E3ZM-R86	E3ZM-D82 E3ZM-D87
Sensing distance		15 m	0.8 m	4 m [100 mm] (Using E39-R1S) 3 m [100 mm] (Using E39-R1)	1 m (White paper 300 × 300 mm)
Spot diameter (typical)		---
Standard sensing object		Opaque: 12-mm dia. min.	Opaque: 2-mm dia. min.	Opaque: 75-mm dia. min.	---
Differential travel		---			20% of sensing distance max.
Black/white error		---
Directional angle		Emitter, Receiver: 3° to 15°		Sensor: 3° to 10° Reflector: 30°	---
Light source (wavelength)		Infrared LED (870 nm)		Red LED (660 nm)	Infrared LED (860 nm)
Power supply voltage		10 to 30 VDC, including 10% ripple (p-p)
Current consumption		40 mA max. (Emitter 20 mA max., Receiver 20 mA max.)		25 mA max.
Control output		Load power supply voltage: 30 VDC max., Load current: 100 mA max. (Residual voltage: 2 V max.) Open-collector output (NPN/PNP output depending on model) Light-ON/Dark-ON switch selectable
Protection circuits		Reversed power supply polarity protection, Output short-circuit protection, and Reversed output polarity protection		Reversed power supply polarity protection, Output short-circuit protection, Mutual interference prevention, and Reversed output polarity protection
Response time		Operate or reset: 1 ms max.
Sensitivity adjustment		One-turn adjuster
Ambient illumination (Receiver side)		Incandescent lamp: 3,000 lx max., Sunlight: 10,000 lx max.
Ambient temperature range		Operating: -25 to 55°C, Storage: -40 to 70°C (with no icing or condensation)
Ambient humidity range		Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation resistance		20 MΩ min. at 500 VDC
Dielectric strength		1,000 VAC, 50/60 Hz for 1 min
Vibration resistance		Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance		Destruction: 500 m/s2 3 times each in X, Y, and Z directions
Degree of protection *		IEC: IP67, DIN 40050-9: IP69K
Connection method		Pre-wired cable (standard length: 2 m) M8 4-pin Connector
Indicator		Operation indicator (yellow), Stability indicator (green) (Emitter has only power supply indicator (green).)
Weight (packed state)	Pre-wired models (with 2-m cable)	Approx. 150 g		Approx. 90 g
	Connector models	Approx. 60 g		Approx. 40 g
Materials	Case	SUS316L
	Lens	PMMA (polymethylmethacrylate)
	Display	PEI (Polyetherimide)
	Sensitivity adjustment and mode selector switch	PEEK (polyetheretherketone)
	Seals	Fluoro rubber
Accessories		Instruction sheet (Note: Reflectors and Mounting Brackets are sold separately.)

* IP69K Degree of Protection Specifications
IP69K is a protection specification stipulated by DIN 40050 Part 9 of the German standards.
The test item is sprayed with 80°C water from a nozzle of a specified shape at a water pressure of 80 to 100 bar. The amount of water is 14 to 16 liters per minute.
The distance between the test item and the nozzle is 10 to 15 cm. The water is discharged at angles of 0°, 30°, 60°, and 90° from the horizontal plane for 30 seconds at each angle while the test item is rotated horizontally.

Sensing method		BGS Reflective Models
Model	NPN output	E3ZM-LS61H E3ZM-LS66H	E3ZM-LS62H E3ZM-LS67H	E3ZM-LS64H E3ZM-LS69H
	PNP output	E3ZM-LS81H E3ZM-LS86H	E3ZM-LS82H E3ZM-LS87H	E3ZM-LS84H E3ZM-LS89H
Sensing distance		10 to 100 mm (White paper 100 × 100 mm)	10 to 150 mm (White paper 100 × 100 mm)	10 to 200 mm (White paper 100 × 100 mm)
Spot diameter (typical)		4-mm dia. at sensing distance of 100 mm	12-mm dia. at sensing distance of 150 mm	18-mm dia. at sensing distance of 200 mm
Standard sensing object		---
Differential travel		3% of sensing distance max.	15% of sensing distance max.	20% of sensing distance max.
Black/white error		5% of sensing distance max.	10% of sensing distance max.	20% of sensing distance max.
Directional angle		---
Light source (wavelength)		Red LED (650 nm)	Red LED (660 nm)
Power supply voltage		10 to 30 VDC, including 10% ripple (p-p)
Current consumption		25 mA max.
Control output		Load power supply voltage: 30 VDC max., Load current: 100 mA max. (Residual voltage: 2 V max.) Open-collector output (NPN/PNP output depending on model) Light-ON/Dark-ON cable connection selectable
Protection circuits		Reversed power supply polarity protection, Output short-circuit protection, Reversed output polarity protection, Mutual interference protection
Response time		Operate or reset: 1 ms max.
Sensitivity adjustment		---
Ambient illumination (Receiver side)		Incandescent lamp: 3,000 lx max., Sunlight: 10,000 lx max.
Ambient temperature range		Operating: -25 to 55°C, Storage: -40 to 70°C (with no icing or condensation)
Ambient humidity range		Operating: 35% to 85%, Storage: 35% to 95% (with no condensation)
Insulation resistance		20 MΩ min. at 500 VDC
Dielectric strength		1,000 VAC, 50/60 Hz for 1 min
Vibration resistance		Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance		Destruction: 500 m/s2 3 times each in X, Y, and Z directions
Degree of protection *		IEC: IP67, DIN 40050-9: IP69K
Connection method		Pre-wired cable (standard length: 2 m) M8 4-pin Connector
Indicator		Operation indicator (yellow), Stability indicator (green)
Weight (packed state)	Pre-wired models (with 2-m cable)	Approx. 90 g
	Connector models	Approx. 40 g
Materials	Case	SUS316L
	Lens	PMMA (polymethylmethacrylate)
	Display	PEI (Polyetherimide)
	Seals	Fluoro rubber
Accessories		Instruction sheet (Note: Mounting Brackets are sold separately.)

* IP69K Degree of Protection Specifications
IP69K is a protection specification stipulated by DIN 40050 Part 9 of the German standards.
The test item is sprayed with 80°C water from a nozzle of a specified shape at a water pressure of 80 to 100 bar. The amount of water is 14 to 16 liters per minute.
The distance between the test item and the nozzle is 10 to 15 cm. The water is discharged at angles of 0°, 30°, 60°, and 90° from the horizontal plane for 30 seconds at each angle while the test item is rotated horizontally.

last update: June 15, 2016

OMRON E3ZM lineup

last update: April 09, 2015

Sensors

Sensing method	Appearance	Connection method	Sensing distance	Model
				NPN output	PNP output
Through- beam (Emitter + Receiver)		Pre-wired (2 m)	15 m (Infrared light)	E3ZM-T61 2M Emitter E3ZM-T61-L 2M Receiver E3ZM-T61-D 2M	E3ZM-T81 2M Emitter E3ZM-T81-L 2M Receiver E3ZM-T81-D 2M
		Connector (M8, 4 pins)		E3ZM-T66 Emitter E3ZM-T66-L Receiver E3ZM-T66-D	E3ZM-T86 Emitter E3ZM-T86-L Receiver E3ZM-T86-D
		Pre-wired (2 m)	0.8 m (apertures built in) (Infrared light)	E3ZM-T63 2M Emitter E3ZM-T63-L 2M Receiver E3ZM-T63-D 2M	E3ZM-T83 2M Emitter E3ZM-T83-L 2M Receiver E3ZM-T83-D 2M
		Connector (M8, 4 pins)		E3ZM-T68 Emitter E3ZM-T68-L Receiver E3ZM-T68-D	E3ZM-T88 Emitter E3ZM-T88-L Receiver E3ZM-T88-D
Retro- reflective with MSR function	*1	Pre-wired (2 m)	4 m (100 mm) *2 (Using E39-R1S) (Red light)	E3ZM-R61 2M	E3ZM-R81 2M
		Connector (M8, 4 pins)		E3ZM-R66	E3ZM-R86
Diffuse- reflective		Pre-wired (2 m)	1 m (Infrared light)	E3ZM-D62 2M	E3ZM-D82 2M
		Connector (M8, 4 pins)		E3ZM-D67	E3ZM-D87
BGS reflective (fixed distance)		Pre-wired (2 m)	10 to 100 mm (Red light)	E3ZM-LS61H 2M	E3ZM-LS81H 2M
		Connector (M8, 4 pins)		E3ZM-LS66H	E3ZM-LS86H
		Pre-wired (2 m)	10 to 150 mm (Red light)	E3ZM-LS62H 2M	E3ZM-LS82H 2M
		Connector (M8, 4 pins)		E3ZM-LS67H	E3ZM-LS87H
		Pre-wired (2 m)	10 to 200 mm (Red light)	E3ZM-LS64H 2M	E3ZM-LS84H 2M
		Connector (M8, 4 pins)		E3ZM-LS69H	E3ZM-LS89H

*1. The Reflector is sold separately. Select the Reflector model most suited to the application.
*2. Values in parentheses indicate the minimum required distance between the Sensor and Reflector.

Accessories (Order Separately)

Reflectors

(A Reflector is required for each Retro-reflective Sensor: A Reflector is not provided with the Sensor. Be sure to order a Reflector.)

Name	E3ZM-R Sensing distance *		Model	Quantity	Remarks
	Rated value	Reference value
Reflector	3 m (100 mm)	---	E39-R1	1	Reflectors are not provided with Retro-reflective models. •The MSR function is enabled.
	4 m (100 mm)	---	E39-R1S	1
	---	5 m (100 mm)	E39-R2	1
	---	2.5 m (100 mm)	E39-R9	1
	---	3.5 m (100 mm)	E39-R10	1
Fog Preventive Coating	---	3 m (100 mm)	E39-R1K	1
Small Reflector	---	1.5 m (50 mm)	E39-R3	1
Tape Reflector	---	700 mm (150 mm)	E39-RS1	1
	---	1.1 m (150 mm)	E39-RS2	1
	---	1.4 m (150 mm)	E39-RS3	1

Note: If you use the Reflector at any distance other than the rated distance, make sure that the stability indicator lights
          properly when you install the Sensor.
* Values in parentheses indicate the minimum required distance between the Sensor and Reflector.

Mounting Brackets

A Mounting Bracket is not enclosed with the Sensor. Order a Mounting Bracket separately if required.

Appearance	Model (Material)	Quantity	Remarks
	E39-L153 (SUS304) *1	1	Mounting Brackets
	E39-L104 (SUS304) *1	1
	E39-L43 (SUS304) *2	1	Horizontal Mounting Bracket
	E39-L142 (SUS304) *2	1	Horizontal Protective Cover Bracket
	E39-L44 (SUS304)	1	Rear Mounting Bracket
	E39-L98 (SUS304) *2	1	Metal Protective Cover Bracket
	E39-L150 (SUS304)	1 set	(Sensor adjuster) Easily mounted to the aluminum frame rails of conveyors and easily adjusted. For left to right adjustment
	E39-L151 (SUS304)	1 set
	E39-L144 (SUS304) *2	1	Compact Protective Cover Bracket

Note: When using a Through-beam Sensor, order one Mounting Bracket for the Receiver and one for the Emitter.
*1. Cannot be used for Standard Connector models with mounting surface on the bottom. In that case, use Pre-wired
       Connector models.
*2. Cannot be used for Standard Connector models.

Sensor I/O Connectors (Sockets on One Cable End)

(Models for Connectors: A Connector is not provided with the Sensor. Be sure to order a Connector separately.)

Size	Cable	Appearance		Cable type		Model
M8 (4 pins) *1	Standard	Straight *2		2 m	4-wire	XS3F-M421-402-A
				5 m		XS3F-M421-405-A
		L-shaped *2 *3		2 m		XS3F-M422-402-A
				5 m		XS3F-M422-405-A

Note: When using a Through-beam Sensor, order one Mounting Bracket for the Receiver and one for the Emitter.
*1. Cable specifications: Outer coating material: PVC, Nut material: Stainless steel, Degree of protection: IP67 (IEC
       60529)
*2. The connector will not rotate after connecting.
*3. The cable is fixed at an angle of 180° from the sensor emitter/receiver surface.

last update: April 09, 2015

OMRON E3ZM dimension

last update: November 15, 2012

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

Sensors

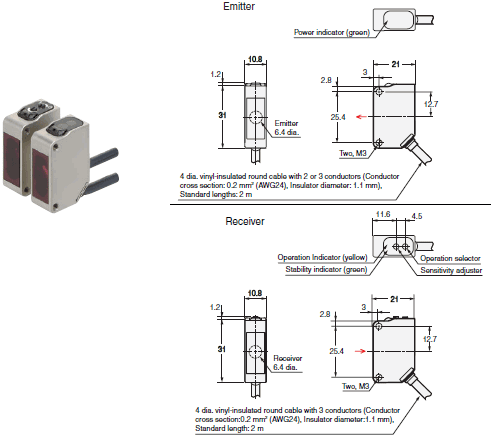

Through-beam Models*Pre-wired ModelsE3ZM-T61E3ZM-T81E3ZM-T63E3ZM-T83

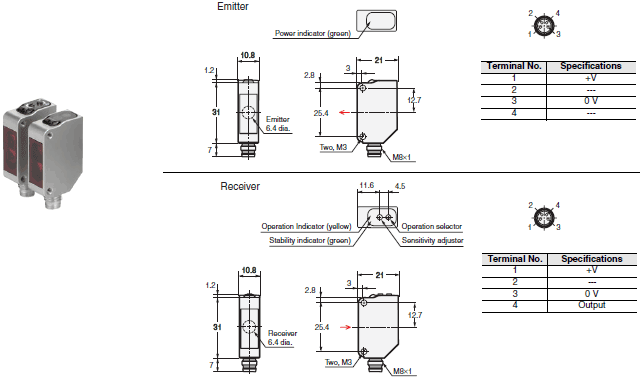

Through-beam Models*Standard ConnectorE3ZM-T66E3ZM-T86E3ZM-T68E3ZM-T88

* Models numbers for Through-beam Sensors (E3ZM-T[][]) are for sets that include both the Emitter and Receiver.   The model number of the Emitter is expressed by adding "-L" to the set model number (example: E3ZM-T61-L 2M),
   the model number of the Receiver, by adding "-D" (example: E3ZM-T61-D 2M.) Refer to Ordering Information to
   confirm model numbers for Emitter and Receivers.

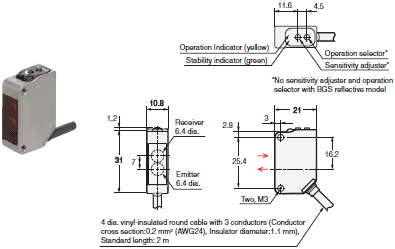

Retro-reflective ModelsPre-wired ModelsE3ZM-R61E3ZM-R81
Diffuse-reflective ModelsStandard ConnectorE3ZM-D62E3ZM-D82
BGS Reflective ModelsPre-wired ModelsE3ZM-LS61HE3ZM-LS62HE3ZM-LS64HE3ZM-LS81HE3ZM-LS82HE3ZM-LS84H

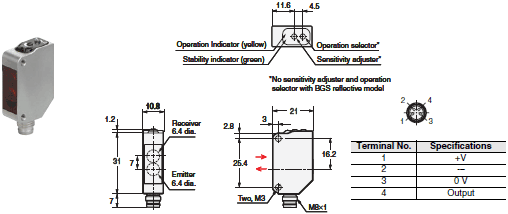

Retro-reflective ModelsStandard ConnectorE3ZM-R66E3ZM-R86
Diffuse-reflective ModelsStandard ConnectorE3ZM-D67E3ZM-D87
BGS Reflective ModelsStandard ConnectorE3ZM-LS66HE3ZM-LS67HE3ZM-LS69HE3ZM-LS86HE3ZM-LS87HE3ZM-LS89H

last update: November 15, 2012
