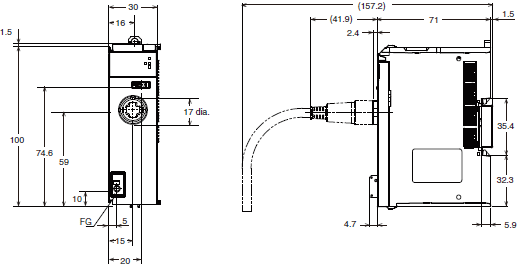

OMRON NX-V680C dimension

last update: November 1, 2018

(Unit: mm)

NX-V680C1 (One-channel)

NX-V680C2 (Two-channels)

last update: November 1, 2018

OMRON NX-V680C specification

last update: December 6, 2018

General Specifications

Item		Specifications
Enclosure		Mounted in a panel
Grounding Methods		Ground to less than 100 Ω
Operating environment	Ambient operating temperature	0 to 55°C
	Ambient operating humidity	10 to 95% (with no condensation or icing)
	Atmosphere	Must be free from corrosive gases.
	Ambient storage temperature	-25 to 70°C (with no condensation or icing)
	Altitude	2,000 m max.
	Pollution degree	2 or less: Conforms to JIS B3502 and IEC 61131-2
	Noise immunity	2 kV on power supply line (Conforms to IEC61000-4-4.)
	Overvoltage category	Category II: Conforms to JIS B3502 and IEC 61131-2
	EMC immunity level	Zone B
	Vibration resistance	Conforms to IEC 60068-2-6. 5 to 8.4 Hz with amplitude of 3.5 mm, 8.4 to 150 Hz, acceleration of 9.8 m/s2 100 min each in X, Y, and Z directions (10 sweeps of 10 min each = 100 min total)
	Shock resistance	Conforms to IEC 60068-2-27, 147 m/s2, 3 times each in X, Y, and Z directions
Applicable standards		cULus: Listed (UL61010-2-201), ANSI/ISA12.12.01, EU: EN61131-2, RCM, KC: KC Registration, EAC

Functions

This section describes the functions provided in an RFID Unit.

Function name	Description
RF Communications option function	This function switches the operation sequence during communications with an RF Tag.
Communications command function	This function reads or writes the memory for a RF Tag on the antenna communications area.
Write protection function	This function prevents the loss of data due to overwriting by specifying the areas in which it is not possible to write to an RF Tag.
RF Tag service life detection function	This function records the number of times data is rewritten to an RF Tag, and determines the maximum rewrite count.
RF Tag memory error detection function	This function detects an error during reading by performing CRC calculation for the memory of an RF Tag.
RF Tag memory error correction function	This function detects an error during reading by performing ECC calculation for the memory of an RF Tag, and corrects the error to an appropriate value.
Test command function	This function checks the margin in communications with an RF Tag, and measures the surrounding noise.

Individual Specifications

NX-V680C1

Unit name	One-channel RFID Unit	Model	NX-V680C1
Number of antennas connected	1	External connection terminal	FG terminal block (1 terminal)
I/O refreshing method	Free-Run Refreshing
Indicators	TS indicator, RF indicator, NORM indicator, and ERR indicator	Communications protocol	ISO/IEC18000-3 (15693)
		Connectable Antennas	V680-series Antenna with Separate Amplifier: V680-HS[][] Antenna with Built-in Amplifier: V680-H01-V2
		Applicable RF Tags	V680S-series RF or V680-series RF Tags
		RF Tag reading/ writing size	8,192 bytes max.
		Divided data size	16 to 128 bytes
		Backup function	Supported.
Dimensions	30 mm (W) x 100 mm (H) x 71 mm (D)	Isolation method	Digital isolator isolation
Insulation resistance	20 MΩ min. between isolated circuits (at 100 VDC)	Dielectric strength	510 VAC between isolated circuits for 1 minute with a leakage current of 5 mA max.
I/O power supply method	Supplied from the NX bus	Current consumption from I/O power supply	• V680-H01-V2 connection 250 mA max. • V680-HA63[] connection 210 mA max.
NX Unit power consumption	• Connected to a CPU Unit 1.00 W max. • Connected to Communications Coupler Unit 0.90 W max.	Weight	120 g max.
Installation orientation and restrictions	Installation orientation: • Connected to a CPU Unit Possible in upright installation. • Connected to a Communications Coupler Unit Possible in 6 orientations Restrictions: No restrictions

NX-V680C2

Unit name	Two-channels RFID Unit	Model	NX-V680C2
Number of antennas connected	2	External connection terminal	FG terminal block (1 terminal)
I/O refreshing method	Free-Run Refreshing
Indicators	[TS] LED, [RF] LED, [NORM] LED, [ERR] LED TS indicator, RF indicator, NORM indicator, and ERR indicator	Communications protocol	ISO/IEC18000-3 (15693)
		Connectable Antennas	V680-series Antenna with Separate Amplifier: V680-HS[][]
		Applicable RF Tags	V680S-series RF or V680-series RF Tags
		RF Tag reading/ writing size	8,192 bytes max.
		Divided data size	16 to 128 bytes
		Backup function	Supported.
Dimensions	30 mm (W) x 100 mm (H) x 71 mm (D)	Isolation method	Digital isolator isolation
Insulation resistance	20 MΩ min. between isolated circuits (at 100 VDC)	Dielectric strength	510 VAC between isolated circuits for 1 minute with a leakage current of 5 mA max.
I/O power supply method	Supplied from the NX bus.	Current consumption from I/O power supply	V680-HA63[] connection 380 mA max
NX Unit power consumption	• Connected to a CPU Unit 1.00 W max. • Connected to Communications Coupler Unit 0.90 W max.	Weight	130 g max.
Installation orientation and restrictions	Installation orientation: • Connected to a CPU Unit Possible in upright installation. • Connected to a Communications Coupler Unit Possible in 6 orientations Restrictions: No restrictions

Version Information

Connected to a CPU Unit

Refer to the user's manual for the CPU Unit for the models of CPU Unit to which RFID Units can be connected.

NX Units		Corresponding unit versions/versions
Model	Units Versions	CPU Units	Sysmac Studio
NX-V680C1	Ver. 1.0	Version 1.13 or higher	Version 1.25 or higher
NX-V680C2

Connected to an EtherCAT Coupler Unit

NX Unit		Corresponding unit versions/versions
Model	Unit Version	EtherCAT Couplers Units	CPU Unit or Industrial PC	Sysmac Studio
NX-V680C1	Ver. 1.0	1.0 or later *	1.05 or higher	Version 1.25 or higher
NX-V680C2

* When connecting with other manufacturer's master, use the EtherCAT Coupler Unit with unit version Ver.1.5 or later.

Connected to an EtherNet/IP Coupler Unit

NX Unit		Corresponding unit versions/versions
Model	Unit Version	Use with an NJ/NX/NY-series Controller *1			Use with an CS/CJ/CP-series PLC *2
		EtherNet/IP Coupler Unit	CPU Unit or Industrial PC	Sysmac Studio	EtherNet/IP Coupler Unit	Sysmac Studio	NX-IO Configurator
NX-V680C1	Ver. 1.0	Version 1.2 or later	Version 1.14 or later	Version 1.25 or higher	Version 1.2 or later	Version 1.25 or higher	Version 1.13 or later
NX-V680C2

*1. Refer to the user's manual of the EtherNet/IP Coupler Unit for the unit versions of EtherNet/IP Units corresponding to
      EtherNet/IP Coupler Units.
*2. Refer to the user's manual of the EtherNet/IP Coupler Unit for the unit versions of CPU Units and EtherNet/IP Units
      corresponding to EtherNet/ IP Coupler Units.

last update: December 6, 2018

OMRON NX-V680C lineup

last update: November 1, 2018

Applicable standards

Refer to ask your OMRON representative for the most recent applicable standards for each model.

RFID Units

RFID Units	Appearance	Product name	Amplifier/Antenna	Number of Units connected	Model
NX-series RFID Units		RFID Units	V680 series	1	NX-V680C1
				2	NX-V680C2

last update: November 1, 2018
