OMRON DRT2-[]D16SL(H)(-1) / []D32SLH(-1) Dimensions
/Images/l_1488-25-118680-198x198.jpglast update: December 19, 2013
Screw-less structure eliminates tightening work.
Detachable terminal blocks for easier maintenance.
Single-step wiring by simply inserting pole terminals.
![DRT2-[]D16SL(H)(-1) / []D32SLH(-1) Features 4 DRT2-[]D16SL(H)(-1)/[]D32SLH(-1)_Features](/Images/1488_fe_125-104838.jpg)
Applicable wire sizes range from AWG24 to AWG16 (0.2 to 1.25 mm2 dia.)
last update: December 19, 2013
Purchase the OMRON DeviceNet Please fill in the following
If you have just landed here, this product OMRON DRT2-[]D16SL(H)(-1) / []D32SLH(-1) Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the DRT2-[]D16SL(H)(-1) / []D32SLH(-1) We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON DRT2-[]D16SL(H)(-1) / []D32SLH(-1)Automation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
E2E2 Long-barrel Inductive Proximity Sensor/Features
H3YN-[]-B Solid-state Timer/Features
H7CN Solid-state Counter/Features
V640 Series RFID System (Conforms to SEMI standard, Electromagnetic Inductive 134 kHz)/Features
D6FZ-FGT Series Air Flow Sensor/Features
OMRON DRT2-[]D16SL(H)(-1) / []D32SLH(-1) dimension
DRT2-[]D16SL(H)(-1) / []D32SLH(-1) Screw-less Clamp Terminals with Transistors/Dimensionslast update: September 24, 2012

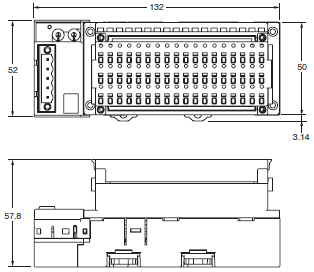

DRT2-ID16SLH(-1)
DRT2-OD16SLH(-1)
DRT2-ID16SL(-1)
DRT2-OD16SL(-1)
![DRT2-[]D16SL(H)(-1) / []D32SLH(-1) Dimensions 2 DRT2-ID16SLH(-1)_Dim](/images/8767/1488_dm_125-104840.gif)

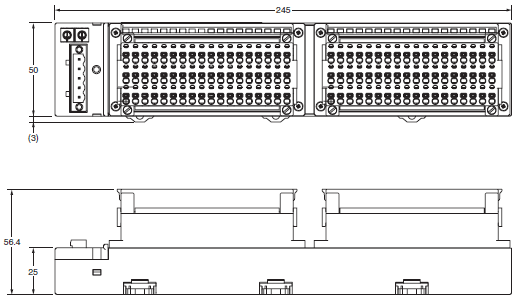

DRT2-ID32SLH(-1)
DRT2-OD32SLH(-1)
DRT2-MD32SLH(-1)
![DRT2-[]D16SL(H)(-1) / []D32SLH(-1) Dimensions 4 DRT2-ID32SLH(-1)_Dim](/images/8767/1488_dm_225-104842.gif)
last update: September 24, 2012
OMRON DRT2-[]D16SL(H)(-1) / []D32SLH(-1) catalog
DRT2-[]D16SL(H)(-1) / []D32SLH(-1) Screw-less Clamp Terminals with Transistors/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 DeviceNet Catalog | Q102-E1-14 [30569KB] | Aug 03, 201820180803 | DeviceNet Catalog |
OMRON DRT2-[]D16SL(H)(-1) / []D32SLH(-1) lineup
DRT2-[]D16SL(H)(-1) / []D32SLH(-1) Screw-less Clamp Terminals with Transistors/Lineuplast update: September 24, 2012
| Short/ disconnection detection | Specifications | I/O connections | Rated internal circuit power supply voltage | Rated I/O power supply voltage | Model | ||
|---|---|---|---|---|---|---|---|
| Supported | Inputs | NPN (+ common) | 16 points | Clamp terminals | Supplied from communications connector. | 24 VDC | DRT2-ID16SLH |
| PNP (- common) | DRT2-ID16SLH-1 | ||||||
| Outputs | NPN (- common) | DRT2-OD16SLH | |||||
| PNP (+ common) | DRT2-OD16SLH-1 | ||||||
| Not supported | Inputs | NPN (+ common) | DRT2-ID16SL | ||||
| PNP (- common) | DRT2-ID16SL-1 | ||||||
| Outputs | NPN (- common) | DRT2-OD16SL | |||||
| PNP (+ common) | DRT2-OD16SL-1 | ||||||
| Supported | Inputs | NPN (+ common) | 32 points | DRT2-ID32SLH | |||
| PNP (- common) | DRT2-ID32SLH-1 | ||||||
| Outputs | NPN (- common) | DRT2-OD32SLH | |||||
| PNP (+ common) | DRT2-OD32SLH-1 | ||||||
| I/O | NPN (input: + common, output: - common) | 16 inputs/ 16 outputs | DRT2-MD32SLH | ||||
| PNP (input: - common, output: + common) | DRT2-MD32SLH-1 | ||||||
last update: September 24, 2012
OMRON DRT2-[]D16SL(H)(-1) / []D32SLH(-1) specification
DRT2-[]D16SL(H)(-1) / []D32SLH(-1) Screw-less Clamp Terminals with Transistors/Specificationslast update: May 19, 2017
General Specifications
| Communications power supply voltage | 11 to 25 VDC (Supplied from the communications connector.) |
|---|---|
| Communications power supply current consumption | DRT2-ID16SL(-1): 30 mA max. (24 VDC), 55 mA max. (11 VDC) DRT2-OD16SL(-1): 35 mA max. (24 VDC), 65 mA max. (11 VDC) DRT2-ID16SLH(-1): 35 mA max. (24 VDC), 65 mA max. (11 VDC) DRT2-OD16SLH(-1): 35 mA max. (24 VDC), 70 mA max. (11 VDC) DRT2-ID32SL: 55 mA max. (24 VDC), 100 mA max. (11 VDC) DRT2-ID32SL-1: 55 mA max. (24 VDC), 90 mA max. (11 VDC) DRT2-OD32SL: 50 mA max. (24 VDC), 80 mA max. (11 V DC) DRT2-OD32SL-1: 50 mA max. (24 VDC), 75 mA max. (11 VDC) DRT2-MD32SL(-1): 50 mA max. (24 VDC), 80 mA max. (11 VDC) DRT2-ID32SLH: 65 mA max. (24 VDC), 100 mA max. (11 VDC) DRT2-ID32SLH-1: 65 mA max. (24 VDC), 105 mA max. (11 VDC) DRT2-OD32SLH: 55 mA max. (24 VDC), 80 mA max. (11 VDC) DRT2-OD32SLH-1: 55 mA max. (24 VDC), 85 mA max. (11 VDC) DRT2-MD32SLH(-1): 60 mA max. (24 VDC), 90 mA max. (11 VDC) |
| Noise immunity | Conforms to IEC61000-4-4, 2 kV (power line) |
| Vibration resistance | 10 to 60 Hz, 0.7-mm double amplitude, 60 to 150 Hz, 50 m/s2 for 80 min each in the X, Y, and Z directions |
| Shock resistance | 150m/s2, 6 directions, 3 times each |
| Dielectric strength | 500 VAC (between isolated circuits) |
| Insulation resistance | 20 MΩ min. (between isolated circuits) |
| Ambient operating temperature | -10°C to 55°C |
| Ambient operating humidity | 25% to 85% (with no condensation) |
| Ambient operating atmosphere | No corrosive gases |
| Ambient storage temperature | -20°C to 65°C |
| Mounting method | DIN 35 mm-track mounting |
| Weight | 480 g max. |
I/O Specifications
16-point Inputs Terminals with Transistors (Input Specifications)
| Model | DRT2-ID16SL | DRT2-ID16SL-1 | DRT2-ID16SLH | DRT2-ID16SLH-1 |
|---|---|---|---|---|
| Internal I/O common | NPN | PNP | NPN | PNP |
| Input points | 16 inputs | |||
| I/O power supply voltage | 20.4 to 26.4 VDC (24 VDC -15%/+10%) | |||
| Input current | 24 VDC: 6.0 mA max./point 17 VDC: 3.0 mA max./point | |||
| Input resistance | 4 kΩ | |||
| ON delay time | 1.5 ms max. | |||
| OFF delay time | 1.5 ms max. | |||
| ON voltage | 15 VDC min. (between each input terminal and V) | 15 VDC min. (between each input terminal and G) | 15 VDC min. (between each input terminal and V) | 15 VDC min. (between each input terminal and G) |
| OFF voltage | 5 VDC max. (between each input terminal and V) | 5 VDC max. (between each input terminal and G) | 5 VDC max. (between each input terminal and V) | 5 VDC max. (between each input terminal and G) |
| ON current | 3.0 mA max. | |||
| OFF current | 1.0 mA max. | |||
| Number of circuits per common | 16 per common | |||
| Power short-circuit protection | --- | Operates at 50 mA/point min. | ||
| Disconnection detection | --- | Operates at 0.3 mA/point max. | ||
| Input power supply current | 100 mA per point | 50 mA per point | ||
32-point Inputs Terminals with Transistors (Input Specifications)
| Model | DRT2-ID32SLH | DRT2-ID32SLH-1 |
|---|---|---|
| Internal I/O common | NPN | PNP |
| Input points | 32 inputs | |
| I/O power supply voltage | 20.4 to 26.4 VDC (24 VDC -15%/+10%) | |
| Input current | 6.0 mA max. per point at 24 VDC 3.0 mA max. per point at 17 VDC | |
| Input resistance | 4 kΩ | |
| ON delay time | 1.5 ms max. | |
| OFF delay time | 1.5 ms max. | |
| ON voltage | 15 VDC min. (between each input terminal and V) | 15 VDC min. (between each input terminal and G) |
| OFF voltage | 5 VDC max. (between each input terminal and V) | 5 VDC max. (between each input terminal and G) |
| ON current | 3 mA min. | |
| OFF current | 1.0 mA max. | |
| Number of circuits per common | 16 per common | |
| Power short-circuit protection | Operates at 50 mA/point min. | |
| Disconnection detection | Operates at 0.3 mA/point max. | |
16-point Outputs Terminals with Transistors (Output Specifications)
| Model | DRT2-OD16SL | DRT2-OD16SL-1 | DRT2-OD16SLH | DRT2-OD16SLH-1 |
|---|---|---|---|---|
| Internal I/O common | NPN | PNP | NPN | PNP |
| I/O points | 16 outputs | |||
| I/O power supply voltage | 20.4 to 26.4 VDC (24 VDC -15%/+10%) | |||
| Output current | 0.5 A per point, 4 A per common | |||
| Residual voltage | 1.2 V max. | |||
| Leakage current | 0.1 mA max. | 0.1 mA max. *1 | ||
| ON delay time | 0.5 ms max. | |||
| OFF delay time | 1.5 ms max. | |||
| Disconnection detection | --- | *2 | ||
| Output power supply current | 100 mA per point | |||
| Output for errors | According to hold/clear setting for errors (default: clear) | |||
*1. To enable detection of external load disconnections, a current of 0.1 mA or less is output to the load even when the
output is OFF. Make sure that the load will not operate for this current.
*2. Disconnection detection can be used when the load current is 3 mA or higher. If the load current is less than 3 mA,
disconnections may be falsely detected.
32-point Outputs Terminals with Transistors (Output Specifications)
| Model | DRT2-OD32SLH | DRT2-OD32SLH-1 |
|---|---|---|
| Internal I/O common | NPN | PNP |
| I/O points | 32 outputs | |
| I/O power supply voltage | 20.4 to 26.4 VDC (24 VDC -15%/+10%) | |
| Output current | 0.5 A per point, 4 A per common | |
| Residual voltage | 1.2 V max. | |
| Leakage current | 0.1 mA max. *1 | |
| ON delay time | 0.5 ms max. | |
| OFF delay time | 1.5 ms max. | |
| Disconnection detection | *2 | |
| Output for errors | According to hold/clear setting for errors (default: clear) | |
*1. To enable detection of external load disconnections, a current of 0.1 mA or less is output to the load even when the
output is OFF. Make sure that the load will not operate for this current.
*2. Disconnection detection can be used when the load current is 3 mA or higher. If the load current is less than 3 mA,
disconnections may be falsely detected.
16-point Inputs/16-point Outputs Terminals with Transistors (Input Specifications)
| Model | DRT2-MD32SLH | DRT2-MD32SLH-1 |
|---|---|---|
| Internal I/O common | NPN | PNP |
| Input points | 16 inputs | |
| I/O power supply voltage | 20.4 to 26.4 VDC (24 VDC -15%/+10%) | |
| Input current | 6.0 mA max. per point at 24 VDC 3.0 mA max. per point at 17 VDC | |
| Input resistance | 4 kΩ | |
| ON delay time | 1.5 ms max. | |
| OFF delay time | 1.5 ms max. | |
| ON voltage | 15 VDC min. (between each input terminal and V) | 15 VDC min. (between each input terminal and G) |
| OFF voltage | 5 VDC max. (between each input terminal and V) | 5 VDC max. (between each input terminal and G) |
| ON current | 3 mA min. | |
| OFF current | 1.0 mA max. | |
| Number of circuits per common | 16 per common | |
| Power short-circuit protection | Operates at 50 mA/point min. | |
| Disconnection detection | Operates at 0.3 mA/point max | |
16-point Inputs/16-point Outputs Terminals with Transistors (Output Specifications)
| Model | DRT2-MD32SLH | DRT2-MD32SLH-1 |
|---|---|---|
| Internal I/O common | NPN | PNP |
| I/O points | 16 outputs | |
| I/O power supply voltage | 20.4 to 26.4 VDC (24 VDC -15%/+10%) | |
| Output current | 0.5 A per point, 4 A per common | |
| Residual voltage | 1.2 V max. | |
| Leakage current | 0.1 mA max. *1 | |
| ON delay time | 0.5 ms max. | |
| OFF delay time | 1.5 ms max. | |
| Disconnection detection | *2 | |
| Output for errors | According to hold/clear setting for errors (default: clear) | |
*1. To enable detection of external load disconnections, a current of 0.1 mA or less is output to the load even when the
output is OFF. Make sure that the load will not operate for this current.
*2. Disconnection detection can be used when the load current is 3 mA or higher. If the load current is less than 3 mA,
disconnections may be falsely detected.
last update: May 19, 2017
