OMRON D6FZ-FGT Series dimension

last update: December 03, 2014

Unspecified dimensions tolerances: Tolerance class IT16

Air Flow Sensor

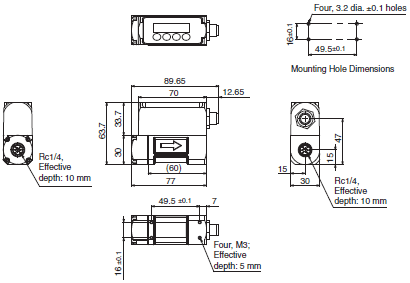

D6FZ-FGT200

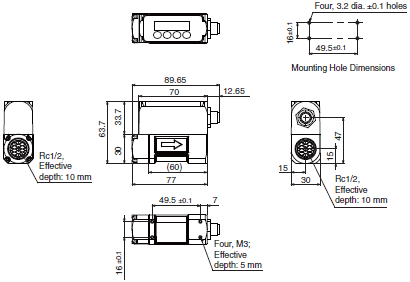

D6FZ-FGT500

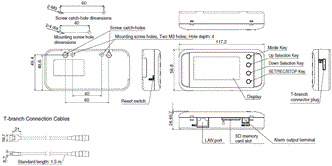

Air Flow Station

D6FZ-FGX21

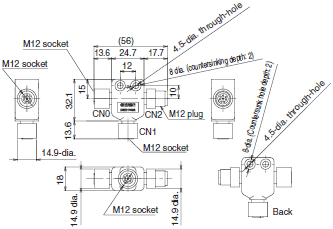

T-branch Connector

D6FZ-FC02

Mounting Bracket

D6FZ-FC03

Cables with Connector on One End

D6FZ-JD3A (L = 3 m)
D6FZ-JD10A (L = 10 m)
D6FZ-JD20A (L = 20 m)

Cables with Connectors on Both Ends

D6FZ-JD3B (L = 3 m)
D6FZ-JD5B (L = 5 m)
D6FZ-JD10B (L = 10 m)
D6FZ-JD20B (L = 20 m)

last update: December 03, 2014

OMRON D6FZ-FGT Series specification

last update: December 01, 2016

Ratings

Air Flow Sensor

Model			D6FZ-FGT200	D6FZ-FGT500
Applicable fluid			Air or nitrogen (N2) *1
Maximum working pressure			0.75 MPa (withstand pressure: 1.5 MPa)
Measurement range *2			0 to 200 L/min	0 to 500 L/min
Measurement range for specified accuracy *2			2 to 200 L/min	5 to 500 L/min
Display resolution *2			1 L/min
Accuracy *2			±2.0% F.S. at 50 L/min or higher
			±0.5% F.S. at less than 50 L/min
Temperature characteristic			±3% F.S.
Repeat accuracy			±1% F.S.
Operating temperature			Operation: -10 to 60°C, Storage: -20 to 70°C (with no condensation or icing)
Operating humidity			Operation: 25% to 90% RH, Storage: 0% to 90% RH (with no condensation or icing)
Shock resistance (destruction)			150 m/s2 3 times each in six directions (up/down, left/right, forward/backward)
Pressure loss			2 kPa max.	4 kPa max.
Power supply voltage			12 to 24 VDC ±10% ripple (p-p): 10% max.
Current consumption			120 mA max.
Functions			Momentary flow, total flow, display reversal, zero point adjustment, peak and bottom hold, key lock, eco mode, scaling (analog output), judgement hysteresis, and teaching
Indications			11-segment digital display (red); RUN, FUN, and THR (yellow); Out1 and Out2 (yellow); key lock (yellow); flow unit (green); and flow unit on reversed display (yellow)
Output	Output interface	Analog	Current output: 4 to 20 mA (1 output), Maximum load resistance: 300 Ω
		ON/OFF	Open-collector output (2 outputs): 26.4 VDC 50 mA max. ON residual voltage: 2 V max. (Outputs can be selected from judgement output, pulse output, and Sensor error output.)
		RS-485	2-wire half-duplex communications with start-stop synchronization Baud rate: 9.6, 19.2, 38.4, or 115.2 kbps, Data bit length: 7 or 8 bits, Stop bit length: 1 or 2 bits, Parity: none, even, or odd, Terminating resistance (120 Ω): ON/OFF, Communications protocol: Conforms to CompoWay/F.
	Output values		Momentary flow, Integrated flow, Judgement output *3, Unit error output
Degree of protection			IP65
Installation Direction and Straight Pipe Section			A straight pipe section must be provided during installation and piping if the Sensor is installed horizontally and the display is on the top. *4
Connection pipe diameter			Rc1/4 (8 A)	Rc1/2 (15 A)
Materials			Main unit: PBT, Flow channel: Zinc
Dimensions			30 × 77 × 63.7 mm (W × D × H)
Weight (in package)			Approx. 400 g (500 g)
Accessories			Instruction Sheet

*1. Clean dry gas (Must not contain large particles, e.g. dust, oils, or mist.)
*2. The flow rates are converted for the following conditions. Standard flow rate (std): 1 atmospheric pressure (101.3 kPa)
       at 20°C (default setting) Normal flow rate (nor): 1 atmospheric pressure (101.3 kPa) at 0°C
*3. To prevent chattering, a judgement output is made when the judgement continues for one minute or longer.
*4. The accuracy will depend on the length of the straight pipe section. Refer to Flow rate accuracy characteristics for a
       length of straight pipe on page 12 for details.

Air Flow Station

Model	D6FZ-FGX21
Connectable Sensors	D6FZ-FGT200, D6FZ-FGT500, and D6FZ-FGS1000
Maximum number of connected Sensors	8 *1
Indications	7-segment 5-digit 2-row LCD, auxiliary information indicators
Recording interval	1 s, 2 s, 5 s, 10 s, 20 s, 30 s, or 1 min
Displayed data	Momentary flow rate, total flow rate, pressure, temperature, and billing amount/CO2 conversion
Recorded data	Momentary flow rate, total flow rate, volume flow rate, pressure, and temperature
Calculation functions	Conversion of total flow rate to billing amount/CO2
Recording modes	Continue Mode *2 and Ring Mode *3
External output	Alarm output (photocoupler output) *4
Communications interface	Ethernet (10Base-T or 100Base-TX)
Internal storage device	Internal memory: Approx. 4,200 data items when 1 Sensor is connected, Approx. 650 data items when 8 Sensors are connected.
External storage device	SD card (to save measured values and to save/read set values), Recommended SD card: HMC-SD291 (manufactured by OMRON) *5
Power supply voltage	DC input: 24 VDC ±10%, ripple (p-p): 10% max.
Current consumption	80 mA max.
Operating temperature	Without Ethernet: -10 to 40°C (with no condensation or icing), with Ethernet: 0 to 40°C (with no condensation or icing)
Operating humidity	35% to 85% RH (with no condensation or icing)
Storage humidity/ temperature	-15 to 60°C, 20% to 85% RH (with no condensation or icing)
Insulation resistance	20 MΩ (at 500 VDC)
Withstand voltage	1,000 VAC, 50/60 Hz for 1 min
Vibration resistance (destruction)	10 to 150 Hz with a 0.7-mm double amplitude or acceleration of 50 m/s2 for 80 min each in X, Y, and Z directions
Shock resistance (destruction)	150 m/s2 3 times each in six directions (up/down, left/right, forward/backward) *6
Material	ABS
Degree of protection	IP30
Mounting method	Magnet mounting, screw mounting, or hooks
Dimensions	117.2 × 24.6 × 56.8 mm (W×D×H) (excluding protruding parts)
Weight (in package)	Approx. 150 g (Approx. 500 g)
Accessories	Instruction Sheet, Startup Guide, Connection Cable, *7 Alarm Output Connector *8

*1. Up to 8 Sensors can be connected when the recording cycle is 2 seconds or longer; up to 4 Sensors can be connected
      when the recording cycle is 1 second.
*2. Data is automatically written to the SD memory card when the internal memory reaches its capacity and recording
     continues until the SD memory card capacity is reached. Recording stops if there is no SD memory card inserted, when
     the internal memory capacity is reached, or when the SD memory card is write protected. (Recording can be resumed
     after inserting an SD memory card and outputting the data to it by pressing a button.) The default is Continue Mode. Use
     the PC Software to change the recording mode.
*3. Recording of the latest measured values continues until the internal memory reaches its capacity. (If the internal
     memory capacity is exceeded, data is overwritten from the oldest data in the memory.)
*4. An alarm is output when the upper or lower limit of the air flow that was set in threshold setting mode is exceeded.
*5. You can temporarily read and write data with an SD card that complies with SD/SDHC card standards and was made by
     another company, but the SD card may suddenly not be recognized, preventing you from accessing the data.
*6. When mounting the Sensor with magnets, be sure to install it in a location where it will not be subjected to shock.
*7. A T-branch connector to connect to D6FZ-FC02.
*8. OMRON's XW4B-02B1-H1 Connector.

last update: December 01, 2016

OMRON D6FZ-FGT Series lineup

last update: December 03, 2014

Units

Appearance	Product name	Model
	200L-type Air Flow Sensor	D6FZ-FGT200
	500L-type Air Flow Sensor	D6FZ-FGT500
	Air Flow Station (cable length: 1.5 m, including T-branch Connector cable)	D6FZ-FGX21

Option (sold separately)

Appearance	Product name			Model
	T-branch Connector			D6FZ-FC02
	(D6FZ-FGT Air Flow Sensor only) Mounting Bracket • Mounting Bracket: 1 • Phillips screws (M3): 4			D6FZ-FC03
	(D6FZ-FGX21 Air Flow Station only) Mounting magnets * • Mounting magnets: 2 • Phillips screws (M3): 2			ZN9-EM01-S
	Cable with Connector on One End	Cable length: 3 m	M12 connector (8-pin)	D6FZ-JD3A
		Cable length: 10 m		D6FZ-JD10A
		Cable length: 20 m		D6FZ-JD20A
	Cable with Connectors on Both Ends	Cable length: 3 m	M12 connector (8-pin)	D6FZ-JD3B
		Cable length: 5 m		D6FZ-JD5B
		Cable length: 10 m		D6FZ-JD10B
		Cable length: 20 m		D6FZ-JD20B

* When magnets are used, the maximum vibration resistance is 55 Hz.
