OMRON NT-AL001Automation Systems/ Programmable Terminals/
Copyright Statement
OMRON NT-AL001 Automation Systems
OMRON NT-AL001 Dimensions
/Images/l_154-25-136803-198x198.jpglast update: February 03, 2014
Use the NT-AL001 to connect 1:N NT Link communications, to connect to multivendor communications, or anytime signal conversion is required.
last update: February 03, 2014
Purchase the OMRON Copyright Statement Please fill in the following
If you have just landed here, this product OMRON NT-AL001 Automation Systems,Automation Systems is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Automation Systems at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the NT-AL001 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON NT-AL001Automation Systems tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
E2KQ-X Chemical-resistant Proximity Sensor/Features
F3SR-B Safety Light Curtain/Features
SRT2-[]D16T(-1) Transistor Remote I/O Terminals with 3-tier Terminal Block/Features
S8VK-R Redundancy Unit/Features
XW5T-P DIN Track Push-in Terminal Blocks/Features
OMRON NT-AL001 catalog
NT-AL001 RS-232C/RS-422A Adapter/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 Programmable Terminals Catalog | V02E-EN-01 [2726KB] | Feb 03, 200520050203 | Programmable Terminals Catalog |
OMRON NT-AL001 dimension
NT-AL001 RS-232C/RS-422A Adapter/Dimensionslast update: February 03, 2014

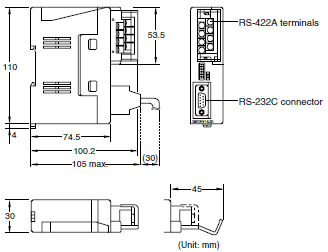

30 x 114 x 100.2 mm (W x H x D) with RS-422A terminal cover removed.
30 x 114 x 119.5 mm (W x H x D) with RS-422A terminal cover in place.
last update: February 03, 2014
OMRON NT-AL001 lineup
NT-AL001 RS-232C/RS-422A Adapter/Lineuplast update: February 03, 2014
| Name | Specifications | Model |
|---|---|---|
| RS-232C/RS-422A Adapter | For CV-series, C200HS, C1000H, and C500 PLCs | NT-AL001 |
last update: February 03, 2014
OMRON NT-AL001 specification
NT-AL001 RS-232C/RS-422A Adapter/Specificationslast update: February 03, 2014
General Specifications
| Item | Specification |
|---|---|
| Model number | NT-AL001 |
| Ambient operating temperature | 0 to 55°C |
| Ambient operating humidity | 10% to 90% (with no condensation) |
| Rated power supply voltage | +5 V ±10% (supplied from pin 6 of RS-232C connector) |
| Rated power supply current | 150 mA max. |
| Surge current | 0.8 mA max. |
| Insulation resistance | 20 MΩ min. (at 500 V DC) between RS-422A signal lines and functional ground terminal |
| Dielectric strength | 1,500 V AC between RS-422A signal lines and functional ground terminal for 1 min, leakage current: 10 mA max. |
| Operating environment | No corrosive gases |
| Ambient storage temperature | -20 to 75°C |
| Vibration resistance | Conforms to JISC 0911, 80 min each in X, Y, and Z directions |
| Shock resistance | Conforms to JISC 0912, 15G for 3 times each in X, Y, and Z directions |
| Weight | 200 g |
RS-232C Interface
| Item | Specification |
|---|---|
| Baud rate | 64 kbps max. |
| Transmission distance | 2 m max. |
| Connector | D-Sub, 9-pin connector (female) |
RS-422A Interface
| Item | Specification |
|---|---|
| Baud rate | 64 kbps max. (depends on RS-232C baud rate) |
| Transmission distance | 500 m max. |
| Terminals | 8-terminal removable terminal block, M3.0 terminals |
last update: February 03, 2014
- NO. NT-AL001
- TYPE:Programmable Terminals Copyright Statement Copyright Statement
- DATE:2021-06-17
- Associated products:
CJ1W-CIF11 SYSMAC Option RS-422A Converter/Features CS1W-CIF31 USB-Serial Conversion Cable/Features
