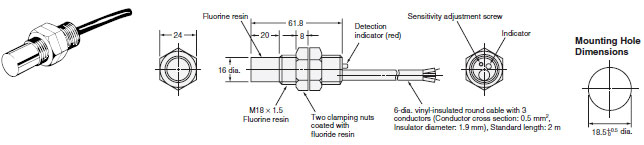

OMRON E2KQ-X dimension

last update: November 12, 2012

Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

E2KQ-X10ME[]

last update: November 12, 2012

OMRON E2KQ-X catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
E2KQ-X Data Sheet	- [520KB]	Nov 01, 201820181101	E2KQ-X Data Sheet

OMRON E2KQ-X specification

last update: September 24, 2012

Model		E2KQ-X10ME1	E2KQ-X10ME2
Sensing distance *1		10 mm
Sensing distance adjustable range		6 to 10 mm
Differential travel		4% to 20% of sensing distance
Detectable object		Conductors and dielectrics
Standard sensing object		Grounded metal plate: 50 × 50 × 1 mm
Response frequency		35 Hz
Power supply voltage (operating voltage range)		12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max.
Current consumption		15 mA max.
Control output	Load current	100 mA
	Residual voltage	1.5 V max. (Load current: 100 mA, Cable length: 2 m)
Indicators		Detection indicator (red)
Operation mode (with sensing object approaching) *2		NO	NC
Protection circuits		Reverse polarity protection, Surge suppressor
Ambient temperature range		Operating: -10 to 55°C, Storage: -25 to 55°C (with no icing or condensation)
Ambient humidity range		Operating/storage: 35% to 85% (with no condensation)
Temperature influence		±15% max. of sensing distance at 23°C in the temperature range of -10 to 55°C
Voltage influence		±2% max. of sensing distance at rated voltage at rated voltage ±20%
Insulation resistance		50 MΩ min. (at 500 VDC) between current-carrying parts and case
Dielectric strength		500 VAC, 50/60 Hz for 1 min between current-carrying parts and case
Vibration resistance		Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistance		Destruction: 500 m/s2 3 times each in X, Y, and Z directions
Degree of protection		IP66 (IEC), in-house standards: oil-resistant
Connection method		Pre-wired Models (Standard cable length: 2 m)
Weight (packed state)		Approx. 150 g
Materials	Case, sensing surface	Fluorine resin
	Clamping nuts
	Cable	Vinyl chloride
Accessories		Adjustment screwdriver, Instruction manual

*1. The above values are sensing distances for the standard sensing object. Refer to Engineering Data on the Data
       Sheet for other materials.
*2. Refer to the timing charts under I/O Circuit Diagrams on Data Sheet for details.

last update: September 24, 2012

OMRON E2KQ-X lineup

last update: November 1, 2018

Sensors

Appearance		Sensing distance (Adjustable range)	Output Model	Operation mode	Model
Unshielded	M18	10 mm (6 to 10 mm)	DC 3-wire NPN	NO	E2KQ-X10ME1 2M
				NC	E2KQ-X10ME2 2M

last update: November 1, 2018
