OMRON 3Z4S-LT Series catalog

• Catalog
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
3Z4S-LT Series Catalog	Q164-E1-01 [5783KB]	May 07, 201520150507	3Z4S-LT Series Catalog

OMRON 3Z4S-LT Series dimension

last update: May 07, 2015

Direct Ring Light

MDRL-C[]10

MDRL-C[]16

MDRL-CR28

MDRL-C[]31

MDRL-C[]35

MDRL-C[]36

MDRL-C[]50

MDRL-C[]56

Standard cable length: 500 mm
Mounting hole position: Equally spaced starting at a 45° offset from where the cable is connected to the unit. (Hole diameters, depths, and quantities are shown in the drawings.)

Low Angle Ring Light

MLRL-C[]25

MLRL-C[]46

MLRL-C[]48

MLRL-C[]68

MLRL-C[]100

Standard cable length: 500 mm
Mounting hole locations: Equally spaced starting at a 45° offset from where the cable is connected to the unit. (Hole diameters, depths, and quantities are shown in the drawings.)

Coaxial Light/Simulated Coaxial Episcopic Light

MCEL-C[]8

MSCL-C[]24

MSCL-C[]39

MSCL-C[]56

MSCL-C[]74

MSCL-C[]105

Standard cable length: 500 mm

Shadowless Light

MSRL-C[]20 *

MSRL-C[]33 *

MSRL-C[]44 *

MSLL-C[]109 *

MSQL-C[]32

MSQL-C[]48

Standard cable length: 500 mm
* Mounting hole locations: Equally spaced starting at a 45° offset from where the cable is connected to the unit. (Hole diameters, depths, and quantities are shown in the drawings.)

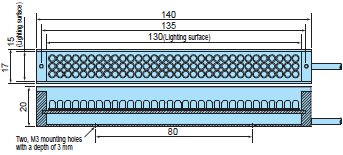

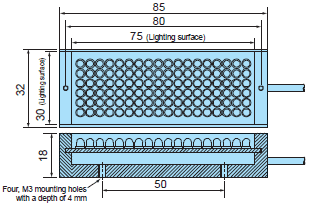

Bar Light/Line Light

MBRL-C[]5015 *

MBRL-C[]7530 *

MBRL-C[]13015 *

Standard cable length: 500 mm
* Mounting hole locations: Arranged around the center of the mounting surface.

Dome Light

MDML-C[]50

Standard cable length: 500 mm

High-powered Spot LED Light

MCEP-C[]8

Removing the Point Rod

Standard cable length: 500 mm
Undo the two screws (1) then remove (2).
It can be connected to the MCEP-AD Series

IR Light

MBRL-CIR7530

Standard cable length: 500 mm
Mounting hole locations: Arranged around the center of the mounting surface.

Direct Backlight

MDBL-C[]25

MDBL-C[]70

MDBL-C[]100

MDBL-C[]180100

MDBC-C[]100

* R→10
   G, B, W→15

MDBC-C[]150

Standard cable length: 500 mm

Edge-type Backlight

MEBL-C[]25

MEBL-C[]50

MEBL-C[]7050

MEBL-C[]10080

MEBL-C[]145

Standard cable length: 500 mm

Square Oblique Light

MDQL-C[]58

MDQL-C[]108

Standard cable length: 500 mm

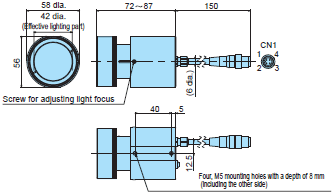

Spot Led Light

MSPP-C[]42

MSPP-C[]74

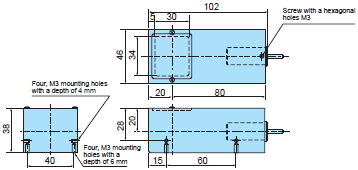

Parallel Light

MCBP-C[]3430

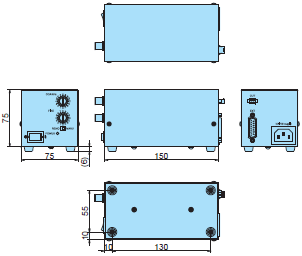

New Power Supplies for MCEP/MSPP Series

MLEP Analog Series

MLEP-A035W1LR/A070W1LR

MLEP-A035W3LR/A070W3LR

MLEP Digtal Series

MLEP-A035W1LRD/A070W1LRD

MLEP-A035W3LRD/A070W3LRD

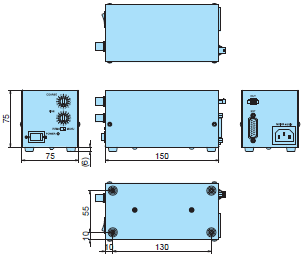

New Power Supplies for MG-Wave Series

A080/230W Analog Series (Total current: 0.8 A or 2.3 A)

MLEK-A[][][]W1LR

MLEK-A[][][]W2LR

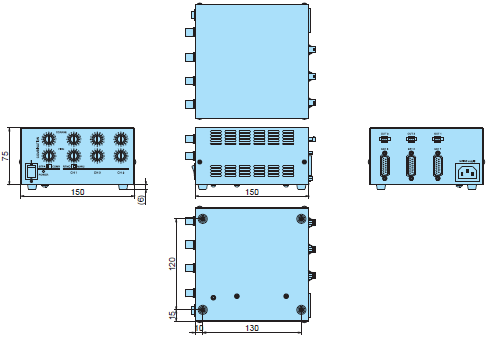

A080/230W Digtal Series (Total current: 0.8 A or 2.3 A)

MLEK-A[][][]W1LRD

MLEK-A[][][]W2LRD

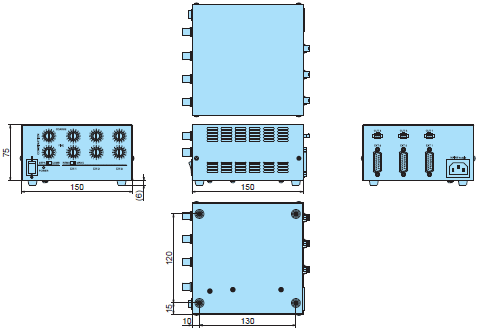

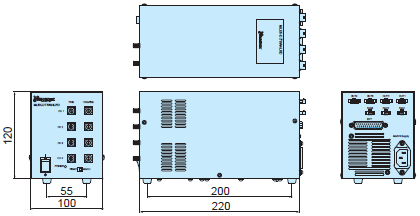

Multichannel series

MLEK-D770W4LRD

Optional Accessories

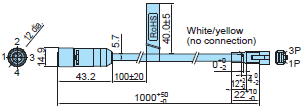

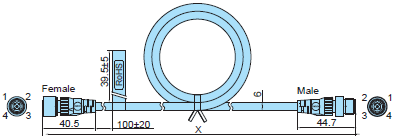

Cable

M-RCB4[][]L (Straight connection)

M-RCB3[][]L (Straight connection)

M-XS4[][]C

M-RCB301XS

M-RCB0[][]L (Straight connection)

last update: May 07, 2015

OMRON 3Z4S-LT Series lineup

last update: May 07, 2015

Direct Ring Light

Model	Liminescent Color	Max. rated current IFM (A)	Weight (g)	Power supply	Connection to strobe controller
MDRL-CR10	Red	0.11	50	080	○
MDRL-CB10	Blue	0.17		080	○
MDRL-CW10	White	0.17		080	○
MDRL-CR16	Red	0.24	65	080	○
MDRL-CB16	Blue	0.37		080	○
MDRL-CW16	White	0.37		080	○
MDRL-CR28	Red	0.20	65	080	○
MDRL-CB28	Blue	0.31		080	○
MDRL-CW28	White	0.31		080	○
MDRL-CR31	Red	0.36	130	080	○
MDRL-CB31	Blue	0.55		080	○
MDRL-CW31	White	0.55		080	○
MDRL-CR35	Red	0.34	150	080	○
MDRL-CB35	Blue	0.52		080	○
MDRL-CW35	White	0.52		080	○
MDRL-CR36	Red	0.36	120	080	○
MDRL-CB36	Blue	0.55		080	○
MDRL-CW36	White	0.55		080	○
MDRL-CR50	Red	0.64	180	080	○
MDRL-CB50	Blue	0.96		230	×
MDRL-CW50	White	0.96		230	×
MDRL-CR56	Red	1.12	520	230	×
MDRL-CB56	Blue	1.55		230	×
MDRL-CW56	White	1.55		230	×

The MDRL-C[]35 provides perpendicular illumination to enable a long working distance.
The recommended working distance is 65 mm or longer, but if a reflective surface is being illuminated, the working distance can be as long as 200 mm.

Low Angle Ring Light

Model	Liminescent Color	Max. rated current IFM (A)	Weight (g)	Power supply	Connection to strobe controller
MLRL-CR25	Red	0.15	70	080	○
MLRL-CB25	Blue	0.24		080	○
MLRL-CW25	White	0.24		080	○
MLRL-CR46	Red	0.17	80	080	○
MLRL-CB46	Blue	0.27		080	○
MLRL-CW46	White	0.27		080	○
MLRL-CR48	Red	0.30	110	080	○
MLRL-CB48	Blue	0.47		080	○
MLRL-CW48	White	0.47		080	○
MLRL-CR68	Red	0.57	190	080	○
MLRL-CB68	Blue	0.61		080	○
MLRL-CW68	White	0.61		080	○
MLRL-CR100	Red	0.96	320	230	×
MLRL-CB100	Blue	1.03		230	×
MLRL-CW100	White	1.03		230	×

Options

Model	Applicable model
MDF-LR25	MLRL-C (R, G, B, W) 25
MDF-LR48	MLRL-C (R, G, B, W) 48
MDF-LR68	MLRL-C (R, G, B, W) 68
MDF-LR100	MLRL-C (R, G, B, W) 100

Coaxial Light/Simulated Coaxial Episcopic Light

Coaxial Light

Model	Liminescent Color	Max. rated current IFM (A)	Weight (g)	Power supply	Connection to strobe controller
MCEL-CR8	Red	0.04	35	080	×
MCEL-CB8	Blue	0.03		080	×
MCEL-CW8	White	0.03		080	×

Simulated Coaxial Episcopic Light

Model	Liminescent Color	Max. rated current IFM (A)	Weight (g)	Power supply	Connection to strobe controller
MSCL-CR24	Red	0.09	110	080	○
MSCL-CB24	Blue	0.20		080	○
MSCL-CW24	White	0.20		080	○
MSCL-CR39	Red	0.16	160	080	○
MSCL-CB39	Blue	0.31		080	○
MSCL-CW39	White	0.31		080	○
MSCL-CR56-B	Red	0.33	320	080	○
MSCL-CB56-B	Blue	0.66		080	○
MSCL-CW56-B	White	0.66		080	○
MSCL-CR74-B	Red	0.62	520	080	○
MSCL-CB74-B	Blue	1.11		230	×
MSCL-CW74-B	White	1.11		230	×
MSCL-CR105-B *	Red	2.14	920	230	×
MSCL-CB105-B *	Blue	2.07		230	×
MSCL-CW105-B *	White	2.07		230	×

* Always run the cooling fan to prevent heat build-up.
* A Power Supply Extension Cable (M-RCB00[]L) is require for the built-in fan. This is in addition to the normal Extension
    Cable. (Refer to Catalog.)

Shadowless Light

Shadowless

Model	Liminescent Color	Max. rated current IFM (A)	Weight (g)	Power supply	Connection to strobe controller
MSRL-CR20	Red	0.32	140	080	○
MSRL-CW20	White	0.50		080	○
MSRL-CR33	Red	0.45	210	080	○
MSRL-CW33	White	0.69		080	○
MSRL-CR44	Red	0.57	270	080	○
MSRL-CB44	Blue	0.80		080	○
MSRL-CW44	White	0.80		080	○

Shadowless Low Angle Ring

Model	Liminescent Color	Max. rated current IFM (A)	Weight (g)	Power supply	Connection to strobe controller
MSLL-CR109	Red	0.62	320	080	○
MSLL-CW109	White	1.10		230	×

Shadowless Low Angle Square

Model	Liminescent Color	Max. rated current IFM (A)	Weight (g)	Power supply	Connection to strobe controller
MSQL-CW32	White	0.14	80	080	○
MSQL-CW48	White	0.20	120	080	○

Bar Light/Line Light

Bar Light

Model	Liminescent Color	Max. rated current IFM (A)	Weight (g)	Power supply	Connection to strobe controller
MBRL-CR5015	Red	0.13	50	080	○
MBRL-CB5015	Blue	0.26		080	○
MBRL-CW5015	White	0.26		080	○
MBRL-CR7530	Red	0.36	120	080	○
MBRL-CB7530	Blue	0.52		080	○
MBRL-CW7530	White	0.52		080	○
MBRL-CR13015	Red	0.32	85	080	○
MBRL-CB13015	Blue	0.53		080	○
MBRL-CW13015	White	0.53		080	○

Dome Light

Model	Liminescent Color	Max. rated current IFM (A)	Weight (g)	Power supply	Connection to strobe controller
MDML-CR50	Red	0.24	130	080	○
MDML-CW50	White	0.37		080	○

High-powered Spot LED Light

Model	Liminescent Color	Dominant wavelength *	Color temperature	Max. rated current IFM (A)	Weight (g)	Connection to strobe controller
MCEP-CR8	Red	620.5 to 645 nm	-	0.35	50	×
MCEP-CB8	Blue	470 to 480 nm	-	0.35		×
MCEP-CW8	White	All	5000 to 6000 K	0.35		×

* The dominant wavelength of visible color according to CIE color coordinates. There are differences in the illuminated
    color for the dominant wavelengths of these LEDs. Colors may appear to be different even for the same model
    number.

IR Light

Model	Liminescent Color	Max. rated current IFM (A)	Weight (g)	Power supply	Connection to strobe controller
MBRL-CIR7530	Infrared	0.40	120	080	○

* The dominant wavelength of visible color according to CIE color coordinates. There are differences in the illuminated
   color for the dominant wavelengths of these LEDs. Colors may appear to be different even for the same model number.

Direct Backlight

Shell type

Model	Liminescent Color	Max. rated current IFM (A)	Weight (g)	Power supply	Connection to strobe controller
MDBL-CR25	Red	0.14	60	080	○
MDBL-CB25	Blue	0.27		080	○
MDBL-CW25	White	0.27		080	○
MDBL-CR70	Red	0.48	190	080	○
MDBL-CB70	Blue	0.96		230	×
MDBL-CW70	White	0.96		230	×
MDBL-CR100	Red	1.43	290	230	×
MDBL-CB100	Blue	1.55		230	×
MDBL-CW100	White	1.55		230	×
MDBL-CR180100	Red	2.30	520	230	×
MDBL-CB180100	Blue	2.30		230	×
MDBL-CW180100	White	2.30		230	×

Chip mounting type

Model	Liminescent Color	Max. rated current IFM (A)	Weight (g)	Power supply	Connection to strobe controller
MDBC-CR100	Red	0.81	170	230	×
MDBC-CW100	White	0.95		230	×
MDBC-CR150	Red	0.99	310	230	×
MDBC-CW150	White	2.14		230	×

Edge-type Backlight

Model	Liminescent Color	Max. rated current IFM (A)	Weight (g)	Power supply	Connection to strobe controller
MEBL-CR25	Red	0.03	45	080	○
MEBL-CB25	Blue	0.04		080	○
MEBL-CW25	White	0.04		080	○
MEBL-CR50	Red	0.17	110	080	○
MEBL-CB50	Blue	0.29		080	○
MEBL-CW50	White	0.29		080	○
MEBL-CR7050	Red	0.15	140	080	○
MEBL-CB7050	Blue	0.25		080	○
MEBL-CW7050	White	0.25		080	○
MEBL-CR10080	Red	0.32	230	080	○
MEBL-CB10080	Blue	0.57		080	○
MEBL-CW10080	White	0.57		080	○
MEBL-CR145	Red	0.45	460	080	○
MEBL-CB145	Blue	0.8		080	○
MEBL-CW145	White	0.8		080	○

Square Oblique Light

Model	Liminescent Color	Max. rated current IFM (A)	Weight (g)	Power supply	Connection to strobe controller
MDQL-CR58	Red	0.09	55	080	○
MDQL-CW58	White	0.17		080	○
MDQL-CR108	Red	0.42	210	080	○
MDQL-CW108	White	0.84		230	×

Spot Led Light

Wide projection

Model	Liminescent Color	Max. rated current IFM (A)	Weight (g)	Power supply	Connection to strobe controller
MSPP-CR42	Red	0.7	460	MLEP-A070 series	×
MSPP-CW42	White	0.7	460	MLEP-A070 series	×

Nallow projection

Model	Liminescent Color	Max. rated current IFM (A)	Weight (g)	Power supply	Connection to strobe controller
MSPP-CR74	Red	0.7	600	MLEP-A070 series	×
MSPP-CW74	White	0.7	600	MLEP-A070 series	×

* Always connect a Conversion Cable (3Z4S-LT M-RCB301XS) when connecting the power supply.

Parallel Light

Model	Liminescent Color	Max. rated current IFM (A)	Weight (g)	Power supply	Connection to strobe controller
MCBP-CB3430	Blue	0.07	260	080	×
MCBP-CW3430	White	0.07		080	×

New Power Supplies for MCEP/MSPP Series

These constant-current power supplies are designed specifically for the MCEP Series of High-power LED Spot Lights and MSPP Series of LED Spot Lights.

MLEP Analog Series

Model

MLEP-A035W1LR-100V

MLEP-A035W1LR-200V

MLEP-A070W1LR-100V

MLEP-A070W1LR-200V

MLEP-A035W3LR-100V

MLEP-A035W3LR-200V

MLEP-A070W3LR-100V

MLEP-A070W3LR-200V

MLEP Digtal Series

Model

MLEP-A035W1LRD-100V

MLEP-A035W1LRD-200V

MLEP-A070W1LRD-100V

MLEP-A070W1LRD-200V

MLEP-A035W3LRD-100V

MLEP-A035W3LRD-200V

MLEP-A070W3LRD-100V

MLEP-A070W3LRD-200V

New Power Supplies for MG-Wave Series

These new power supplies are designed specifically for Moritex Constant-current LED Lights (except for the MCEP Series). Even when combining with an LED Light from the broad lineup and possible applications, you can select the ideal Constant-current Power Supply for the required current consumption. The Power Supplies suppress heat generation and will make the most of the characteristics of any of the LED Light. External output controls and other features are also provided.

A080/230W Analog Series (Total current: 0.8 A or 2.3 A)

Model

MLEK-A080W1LR-100V

MLEK-A080W1LR-200V

MLEK-A080W2LR-100V

MLEK-A080W2R-200V

Model

MLEK-A230W1LR-100V

MLEK-A230W1LR-200V

MLEK-A230W2LR-100V

MLEK-A230W2LR-200V

A080/230W Digtal Series (Total current: 0.8 A or 2.3 A)

Model

MLEK-A080W1LRD-100V

MLEK-A080W1LRD-200V

MLEK-A080W2LRD-100V

MLEK-A080W2RD-200V

Model

MLEK-A230W1LRD-100V

MLEK-A230W1LRD-200V

MLEK-A230W2LRDB-100V

MLEK-A230W2LRDB-200V

Multichannel series

Model

MLEK-D770W4LRD-100V

MLEK-D770W4LRD-200V

Optional Accessories

* When ordering, provide the specific model number after "SZ4S-LT" (example: SZ4S-LT MDF-DR10).

Options for lights

The following optional accessories are available to improve the functionality of the lighting devices.

Diffusion plate: MDF Series

The MDF series features a diffusion plate that increases the light diffusion and reduces reflection and glare from the element.

Model	Product type	Compatible light models
MDF-DQ108	Square oblique light diffusion plate	MDQL-CR (CG, CB, CW) for 108, 4 pieces/set
MDF-DR10	Diffusion plate for direct-ring lights	MDRL-CR (CG, CB, CW) for 10
MDF-DR16	Diffusion plate for direct-ring lights	MDRL-CR (CG, CB, CW) for 16
MDF-DR28	Diffusion plate for direct-ring lights	MDRL-CR (CG, CB, CW) for 28
MDF-DR31	Diffusion plate for direct-ring lights	MDRL-CR (CG, CB, CW) for 31
MDF-DR50	Diffusion plate for direct-ring lights	MDRL-CR (CG, CB, CW) for 50
MDF-DR56	Diffusion plate for direct-ring lights	MDRL-CR (CG, CB, CW) for 56
MDF-LR25	Diffusion plate for low-angle ring lights	MLRL-CR (CG, CB, CW) for 25
MDF-LR48	Diffusion plate for low-angle ring lights	MLRL-CR (CG, CB, CW) for 48
MDF-LR68	Diffusion plate for low-angle ring lights	MLRL-CR (CG, CB, CW) for 68
MDF-LR100	Diffusion plate for low-angle ring lights	MLRL-CR (CG, CB, CW) for 100
MDF-BR5015	Diffusion plate for bar lights	MBRL-CR (CG, CB, CW) for 5015
MDF-BR7530	Diffusion plate for bar lights	MBRL-CR (CG, CB, CW) for 7530
MDF-BR13015	Diffusion plate for bar lights	MBRL-CR (CG, CB, CW) for 13015

An asterisk ([]) in "compatible light models" refers to any LED color (R,G,B or W) of the light.

Polarizing plate: MPL Series

The MPL series polarizing plates are attached to LEDs with Moritex’s lenses in order to reduce unwanted glare and reflection during image processing.

Model	Product type	Compatible light models
MPL-DQ108	Square oblique light polarizing plate	MDQL-CR (CG, CB, CW) for 108, 4 pieces/set
MPL-SC56	Simulated coaxial light polarizing plate	MSCL-CR (CG, CB, CW) for 56
MPL-SC74	Simulated coaxial light polarizing plate	MSCL-CR (CG, CB, CW) for 72
MPL-SC105	Simulated coaxial light polarizing plate	MSCL-CR (CG, CB, CW) for 105
MPL-DR10-B	Polarizing plate for direct-ring lights	MDRL-CR (CG, CB, CW) for 10
MPL-DR16-B	Polarizing plate for direct-ring lights	MDRL-CR (CG, CB, CW) for 16
MPL-DR28-B	Polarizing plate for direct-ring lights	MDRL-CR (CG, CB, CW) for 28
MPL-DR31-B	Polarizing plate for direct-ring lights	MDRL-CR (CG, CB, CW) for 31
MPL-DR50-B	Polarizing plate for direct-ring lights	MDRL-CR (CG, CB, CW) for 50
MPL-DR56-B	Polarizing plate for direct-ring lights	MDRL-CR (CG, CB, CW) for 56
MPL-BR5015-B	Polarizing plate for bar lights	MBRL-CR (CG, CB, CW) for 5015
MPL-BR7530-B	Polarizing plate for bar lights	MBRL-CR (CG, CB, CW) for 7530
MPL-BR13015-B	Polarizing plate for bar lights	MBRL-CR (CG, CB, CW) for 13015

An asterisk ([]) in "compatible light models" refers to any LED color (R,G,B or W) of the light.

Adapter: MAD Series

The MAD series is essential when a diffusion or polarizing plate is attached to a ring light.

Model	Product type	Compatible light models	How to use the MAD series
MAD-DR10	Plate attachment adapter for direct- ring lights	MDRL-CR (CG, CB, CW) for 10
MAD-DR16	Plate attachment adapter for direct- ring lights	MDRL-CR (CG, CB, CW) for 16
MAD-DR28	Plate attachment adapter for direct- ring lights	MDRL-CR (CG, CB, CW) for 28
MAD-DR31	Plate attachment adapter for direct- ring lights	MDRL-CR (CG, CB, CW) for 31
MAD-DR50	Plate attachment adapter for direct- ring lights	MDRL-CR (CG, CB, CW) for 50
MAD-DR56	Plate attachment adapter for direct- ring lights	MDRL-CR (CG, CB, CW) for 56

An asterisk ([]) in "compatible light models" refers to any LED color (R,G,B or W) of the light.

Light control film: MLM Series

The MLM series are resin films that transform diffused light into near-parallel light. Attached to a simulated coaxiallight, it makes the light distribution pattern smoother.

Model	Product type	Compatible light models	Usage for the MLM Series
MLM-SC56	Light control fi lm for simulated coaxial lights	MSCL-CR (CG, CB, CW) for 56
MLM-SC74	Light control fi lm for simulated coaxial lights	MSCL-CR (CG, CB, CW) for 74
MLM-SC105	Light control fi lm for simulated coaxial lights	MSCL-CR (CG, CB, CW) for 105

An asterisk ([]) in "compatible light models" refers to any LED color (R,G,B or W) of the light.
Note: Do not apply any unnecessary load to the lens.

Simulated Coaxial Light/CCTV Lens Adapter: MLA-SC Series

The MLA-SC Series enables small siulated coaxial lights to be mounted at the end of CCTV lenses.

Model	Product type	Compatible light models	How to use the MLA-SC series
MLA-SCBS	Mount base for simulated coaxial lights	MSCL-C[]24/39/56	The rotation angle is adjustable after fastening the light to the lens.
MLA-SCM255	Base/lens adapter for simulated coaxial lights	Filter screw: M25.5P0.5 lens
MLA-SCM270	Base/lens adapter for simulated coaxial lights	Filter screw: M27P0.5 lens
MLA-SCM305	Base/lens adapter for simulated coaxial lights	Filter screw: M30.5P0.5 lens

An asterisk (*) in “compatible light models” refers to any LED color (R,G,B or W) of the light.
* Do not apply any unnecessary load to the lens.

MML/CCTV Lens Adapter

The adapter can be easily used in combination with CCTV lenses.

Model	Product type	Compatible light models	How to use the MLA-DR series
MLA-DR1616	Lens attachment adapter	MDRL-C[]16 and R-16 mm lenses
MLA-DR3125	Lens attachment adapter	MDRL-C[]31 and R-25 mm lenses
MLA-DR3130	Lens attachment adapter	MDRL-C[]31 and R-30 mm lenses
MLA-DR31M255	Lens attachment adapter	MDRL-C[]31 and M25.5P0.5 lenses
MLA-DR31M270	Lens attachment adapter	MDRL-C[]31 and M27P0.5 lenses
MLA-DR31M305	Lens attachment adapter	MDRL-C[]31 and M30.5P0.5 lenses

An asterisk ([]) in "compatible light models" refers to any LED color (R,G,B or W) of the light.

Sharp-cut Filter R64 Series

These Files can be attached to the end of a CCTV lens to prevent light interference when using red light.

Model	Product type	Size
ML-R64-25	Sharp-cut filter for mounting to end of lens	Filter screw: M25.5 P0.5 lenz
ML-R64-27	Sharp-cut filter for mounting to end of lens	Filter screw: M27 P0.5 lenz
ML-R64-30	Sharp-cut filter for mounting to end of lens	Filter screw: M30.5 P0.5 lenz

Cables

Model	Product type	Applications	Length
M-RCB401L	4-pin type extension cable	For all lights (except the MCEP series)	1 m
M-RCB402L	4-pin type extension cable		2 m
M-RCB403L	4-pin type extension cable		3 m
M-RCB301L	3-pin type extension cable	For the MCEP series	1 m
M-RCB302L	3-pin type extension cable		2 m
M-RCB303L	3-pin type extension cable		3 m
M-XS402C	Pin type extension cable	For the MSPP series	2 m
M-XS405C	Pin type extension cable		5 m
M-XS410C	Pin type extension cable		10 m
M-RCB301XS	Pin type MSPP-MLEP-A070 conversion cable	For the MSPP series and MLEP-A070	1 m
M-RCB001L	2-pin type extension cable	For power sources for built-in fans	1 m
M-RCB002L	2-pin type extension cable		2 m
M-RCB003L	2-pin type extension cable		3 m
MC-EXC-02	Cable for DSUB15 pin external control	-	2 m
MC-EXC-07	Cable for DSUB15 pin external control	-

last update: May 07, 2015

OMRON 3Z4S-LT Series specification

last update: April 01, 2015

New Power Supplies for MCEP/MSPP Series

MLEP Analog Series

Model	MLEP- A035W1L R-100V	MLEP- A035W1L R-200V	MLEP- A070W1L R-100V	MLEP- A070W1L R-200V	MLEP- A035W3L R-100V	MLEP- A035W3L R-200V	MLEP- A070W3L R-100V	MLEP- A070W3L R-200V
AC Type	100 V	200 V	100 V	200 V	100 V	200 V	100 V	200 V
Output	Single-channel out put max. 350 mA		Single-channel out put max. 700 mA		3-channel out put for each channel max. 350 mA		3-channel out put for each channel max. 700 mA
Input voltage	100-240 V AC 50/60 Hz				100-240 V AC 50/60 Hz
Input current	0.35/0.25 A (at AC 100/240 V)				0.35/0.25 A (at AC 100/240 V)
Surge current	20 A or lower (at 100 V AC) 40 A or lower (at 240 V AC)				20 A or lower (at 100 V AC) 40 A or lower (at 240 V AC)
Operating temperature	0 to +45˚C				0 to +45˚C
Output system	Continuous DC output				Continuous DC output
Output control system	Constant current control (the current can be changed)				Constant current control (the current can be changed)
External light control	Supported (0 to 5 V)				Supported (0 to 5 V)
Lighting on/ off function	Supported (photocoupler insulation)				Supported (photocoupler insulation)
Cooling system	Natural air cooling				forcible air cooling
Installation	Horizontal installation on the rubber supports at the bottom of the unit				Horizontal installation on the rubber supports at the bottom of the unit
Weight	Approximately 0.9 kg				Approximately 1.4 kg

MLEP Digtal Series

Model	MLEP- A035W1L RD-100V	MLEP- A035W1L RD-200V	MLEP- A070W1L RD-100V	MLEP- A070W1L RD-200V	MLEP- A035W3L RD-100V	MLEP- A035W3L RD-200V	MLEP- A070W3L RD-100V	MLEP- A070W3L RD-200V
AC Type	100 V	200 V	100 V	200 V	100 V	200 V	100 V	200 V
Output	Single-channel out put max. 350 mA		Single-channel out put max. 700 mA		3-channel out put for each channel max. 350 mA		3-channel out put for each channel max. 700 mA
Input voltage	100-240 V AC 50/60 Hz				100-240 V AC 50/60 Hz
Input current	0.35/0.25 A (at AC 100/240 V)				0.35/0.25 A (at AC 100/240 V)
Surge current	20 A or lower (at 100 V AC) 40 A or lower (at 240 V AC)				20 A or lower (at 100 V AC) 40 A or lower (at 240 V AC)
Operating temperature	0 to +45˚C				0 to +45˚C
Output system	Continuous DC output				Continuous DC output
Output control system	Constant current control (the current can be changed)				Constant current control (the current can be changed)
External light control	Supported (8 bit digital)				Supported (for each channel, 8 bit digital)
Lighting on/ off function	Supported (photocoupler insulation)				Supported (photocoupler insulation)
Cooling system	Natural air cooling				forcible air cooling
Installation	Horizontal installation on the rubber supports at the bottom of the unit				Horizontal installation on the rubber supports at the bottom of the unit
Weight	Approximately 0.9 kg				Approximately 1.4 kg

New Power Supplies for MG-Wave Series

A080/230W Analog Series (Total current: 0.8 A or 2.3 A)

Model	MLEK- A080W1LR-100V	MLEK- A080W1LR-200V	MLEK- A080W2LR-100V	MLEK- A080W2R-200V
AC Type	100 V	200 V	100 V	200 V
Output	Single-channel output of 0.8 A (for connection to all lights except the MCEP Series)		Two-channel maximum, output of 0.8 A for each channel (for connection to all lights except the MCEP Series)
Input voltage	100-240 V AC 50/60 Hz		100-240 V AC 50/60 Hz
Input current	0.3/0.15 A (at AC 100/240 V)		0.3/0.15 A (at AC 100/240 V)
Surge current	15 A or lower (at 100 V AC) 35 A or lower (at 240 V AC)		15 A or lower (at 100 V AC) 35 A or lower (at 240 V AC)
Operating temperature	0 to +45˚C		0 to +45˚C
Output system	Continuous DC output		Continuous DC output
Output control system	Constant current control (the current can be changed)		Constant current control (the current can be changed)
External light control	Supported (0 to 5 V)		Supported (0 to 5 V)
Lighting on/off function	Supported (photocoupler insulation)		Supported (photocoupler insulation)
Error output	Supported (photocoupler insulation, control error)		Supported (photocoupler insulation, control error)
Cooling system	Natural air cooling		Natural air cooling
Installation	Horizontal installation on the rubber supports at the bottom of the unit		Horizontal installation on the rubber supports at the bottom of the unit
Weight	Approximately 1 kg		Approximately 1.3 kg

Model	MLEK- A230W1LR-100V	MLEK- A230W1LR-200V	MLEK- A230W2LR-100V	MLEK- A230W2LR-200V
AC Type	100 V	200 V	100 V	200 V
Output	Single-channel output of 2.3 A (for connection to all lights except the MCEP Series)		Two-channel maximum, output of 2.3 A for each channel (for connection to all lights except the MCEP Series)
Input voltage	100-240 V AC 50/60 Hz		100-240 V AC 50/60 Hz
Input current	0.7/0.4 A (at AC 100/240 V)		0.7/0.4 A (at AC 100/240 V)
Surge current	15 A or lower (at 100 V AC) 35 A or lower (at 240 V AC)		15 A or lower (at 100 V AC) 35 A or lower (at 240 V AC)
Operating temperature	0 to +45˚C		0 to +45˚C
Output system	Continuous DC output		Continuous DC output
Output control system	Supported (0 to 5 V dimmer signal/External VR input)		Supported (0 to 5 V dimmer signal/External VR input)
External light control	Constant current control (the current can be changed)		Constant current control (the current can be changed)
Lighting on/off function	Supported (photocoupler insulation)		Supported (photocoupler insulation)
Error output	Supported (photocoupler insulation, control error)		Supported (photocoupler insulation, control error)
Cooling system	forcible air cooling		forcible air cooling
Installation	Horizontal installation on the rubber supports at the bottom of the unit		Horizontal installation on the rubber supports at the bottom of the unit
Weight	Approximately 1.1 kg		Approximately 1.4 kg

A080/230W Digtal Series (Total current: 0.8 A or 2.3 A)

Model	MLEK- A080W1LRD-100V	MLEK- A080W1LRD-200V	MLEK- A080W2LRD-100V	MLEK- A080W2RD-200V
AC Type	100 V	200 V	100 V	200 V
Output	Single-channel output of 0.8 A (for connection to all lights except the MCEP Series)		Two-channel maximum, output of 0.8 A for each channel (for connection to all lights except the MCEP Series)
Input voltage	100-240 V AC 50/60 Hz		100-240 V AC 50/60 Hz
Input current	0.3/0.15 A (at AC 100/240 V)		0.3/0.15 A (at AC 100/240 V)
Surge current	15 A or lower (at 100 V AC) 35 A or lower (at 240 V AC)		15 A or lower (at 100 V AC) 35 A or lower (at 240 V AC)
Operating temperature	0 to +45˚C		0 to +45˚C
Output system	Continuous DC output		Continuous DC output
Output control system	Constant current control (the current can be changed)		Constant current control (the current can be changed)
External light control	Supported (8 bit digital)		Supported (for each channel, 8 bit digital)
Lighting on/off function	Supported (photocoupler insulation)		Supported (photocoupler insulation)
Error output	Supported (photocoupler insulation, control error)		Supported (photocoupler insulation, control error)
Cooling system	Natural air cooling		Natural air cooling
Installation	Horizontal installation on the rubber supports at the bottom of the unit		Horizontal installation on the rubber supports at the bottom of the unit
Weight	Approximately 1 kg		Approximately 1.3 kg

Model	MLEK- A230W1LRD-100V	MLEK- A230W1LRD-200V	MLEK- A230W2LRDB-100V	MLEK- A230W2LRDB-200V
AC Type	100 V	200 V	100 V	200 V
Output	Single-channel output of 2.3 A (for connection to all lights except the MCEP Series)		Two-channel maximum, output of 2.3 A for each channel (for connection to all lights except the MCEP Series)
Input voltage	100-240 V AC 50/60 Hz		100-240 V AC 50/60 Hz
Input current	0.7/0.4 A (at AC 100/240 V)		0.7/0.4 A (at AC 100/240 V)
Surge current	15 A or lower (at 100 V AC) 35 A or lower (at 240 V AC)		15 A or lower (at 100 V AC) 35 A or lower (at 240 V AC)
Operating temperature	0 to +45˚C		0 to +45˚C
Output system	Continuous DC output		Continuous DC output
Output control system	Constant current control (the current can be changed)		Constant current control (the current can be changed)
External light control	Supported (8 bit digital)		Supported (for each channel, 8 bit digital)
Lighting on/off function	Supported (photocoupler insulation)		Supported (photocoupler insulation)
Error output	Supported (photocoupler insulation, control error)		Supported (photocoupler insulation, control error)
Cooling system	forcible air cooling		forcible air cooling
Installation	Horizontal installation on the rubber supports at the bottom of the unit		Horizontal installation on the rubber supports at the bottom of the unit
Weight	Approximately 1.1 kg		Approximately 1.4 kg

Multichannel series

Model	MLEK-D770W4LRD-100V	MLEK-D770W4LRD-200V
AC Type	100 V	200 V
Output	4-channel output Total max. 7.7 A (CH1 to CH 3: max. 2.3 A CH4: max. 0.8 A) (for connection to all lights except the MCEP Series)
Input voltage	100-240 V AC 50/60 Hz
Input current	1.7/0.8 A (at AC 100/240 V)
Surge current	18 A or lower (at 100 V AC) 41 A or lower (at 230 V AC)
Operating temperature	0 to +45˚C
Output system	Continuous DC output
Output control system	Constant current control (the current can be changed)
External light control	Supported (for each channel, 8 bit digital or 10 bit digital)
Lighting on/off function	Supported (photocoupler insulation)
Error output	Supported (photocoupler insulation, control error)
Cooling system	forcible air cooling
Installation	Horizontal installation on the rubber supports at the bottom of the unit
Weight	Approximately 2 kg

last update: April 01, 2015

• NO. 3Z4S-LT Series
• TYPE:Vision Sensors / Machine Vision Systems Lighting System Copyright Statement
• DATE:2021-06-09
• Associated products:
  FL Series Lighting for Image Processing/Features 3Z4S-LE SV-V Series Lens for C-mount Cameras/Features
