OMRON CS1W-MAD44 specification

last update: October 09, 2013

Item		CS1W-MAD44
Applicable PLC model		CS series
Unit type		CS1 Special I/O Unit
Isolation		Between I/O and PLC signals: Photocoupler (No isolation between individual I/O signals.)
External terminals		21-point detachable terminal block (M3 screws)
Power consumption		200 mA max. at 5 VDC, 200 mA max. at 26 VDC
Dimensions (mm) *1		35 × 130 × 126 (W × H × D)
Weight		450 g max.
General specifications		Conforms to general specifications for SYSMAC CS-series Series.
Mounting position		CS-series CPU Rack or CS-series Expansion Rack (Cannot be mounted to a C200H Expansion I/O Rack or a SYSMAC BUS Slave Rack.)
Maximum number of Units		Units per Rack (CPU Rack or Expansion Rack) *2	Power Supply Unit	Maximum number of Units per Rack
			C200HW-PA204 C200HW-PA204S C200HW-PA204R C200HW-PD024	3 Units max.
			C200HW-PA209R	6 Units max.
		Units per basic system	When C200HW-PA209R Power Supply Units only are used: 6 Units max. × 8 Racks = 48 Units max.
Data exchange with CPU Units		Special I/O Unit Area CIO 200000 to CIO 295915 (Words CIO 2000 to CIO 2959)	Exchanges 10 words of data per Unit.	CPU Unit to Analog I/O Unit	Analog output Peak value hold Conversion Enable Bit
				Analog I/O Unit to CPU Unit	Analog input Input disconnection detection Alarm flags
		Internal Special I/O Unit DM Area (D20000 to D29599)	Transmits 100 words of data per Unit at power-up or when the Unit is restarted.	CPU Unit to Analog I/O Unit	Input signal conversion enable/disable, input signal range setting Output signal conversion enable/disable, output signal range setting Ratio conversion function setting, constants Output status for output hold Mean value function setting
Input	Specifications	Input signal *4		Voltage input	Current input
		Number of analog inputs		4
		Input signal range *3		1 to 5 V 0 to 5 V 0 to 10 V - 10 to 10 V	4 to 20 mA
		Maximum rated input (for 1 point) *5		± 15 V	± 30 mA
		Input impedance		1 M Ω min.	250 Ω (rated value)
		Resolution		4,000 (full scale)
		Converted output data		16-bit binary data
		Accuracy *6	23 ± 2 °C	± 0.2% of full scale	± 0.4% of full scale
			0 °C to 55 °C	± 0.4% of full scale	± 0.6% of full scale
		A/D conversion time *7		1.0 ms/point max.
	Functions	Mean value processing		Stores the last "n" data conversions in the buffer, and stores the the mean value of the conversion values. Buffer number: n = 2, 4, 8, 16, 32, 64
		Peak value holding		Stores the maximum conversion value while the Peak Value Hold Bit is ON.
		Input disconnection detection *9		Detects the disconnection and turns ON the Disconnection Detection Flag.
Output	Specifications	Output signal		Voltage output
		Number of analog outputs		4
		Output signal range *3		1 to 5 V 0 to 5 V 0 to 10 V - 10 to 10 V
		Output impedance (for 1 point)		0.5 Ω max.
		Max. output current		12 mA
		Resolution		4,000 (full scale)
		Set data		16-bit binary data
		Accuracy *6	23 ± 2 °C	± 0.3% of full scale
			0 °C to 55 °C	± 0.5% of full scale
		D/A conversion time *7		1.0 ms/point max.
	Functions	Output hold function		Outputs the specified output status (CLR, HOLD, or MAX) under any of the following circumstances. When the Conversion Enable Bit is OFF. *8 In adjustment mode, when a value other than the output number is output during adjustment. When there is an output setting error or a fatal error occurs at the PLC. When the CPU Unit is on standby. When the Load is OFF.
Other	Functions	Ratio conversion function		Stores the results of positive and negative gradient analog inputs calculated for ratio and bias as analog output values. Positive gradient: Analog output = A × Analog input + B (A = 0 to 99.99, B = 8,000 to 7FFF Hex) Negative gradient: Analog output = F - A × Analog input + B (A = 0 to 99.99, B = 8,000 to 7FFF Hex, F = output range max. value)

*1. Refer to Dimensions for details on the Unit's dimensions.
*2. The maximum number of Analog I/O Units that can be mounted to one Rack will varies depending on the current
       consumption of the other Units mounted to the Rack.
*3. Input and output signal ranges can be set for each input and output.
*4. Voltage input or current input are chosen by using the voltage/current switch at the back of the terminal block.
*5. The Analog I/O Unit must be operated according to the input specifications provided here. Operating the Unit outside
       these specifications will cause the Unit to malfunction.
*6. The accuracy is given for full scale. For example, an accuracy of ±0.2% means a maximum error of ±8 (BCD).
       The default setting is adjusted for voltage input. To use current input, perform the offset and gain adjustments as
       required.
*7. A/D conversion time is the time it takes for an analog signal to be stored in memory as converted data after it has
       been input. It takes at least one cycle before the converted data is read by the CPU Unit. D/A conversion time is the
       time required for converting and outputting the PLC data. It takes at least one cycle for the data stored in the PLC to
       be read by the Analog I/O Unit.
*8. When the operation mode for the CPU Unit is changed from RUN mode or MONITOR mode to PROGRAM mode, or
       when the power is turned ON, the Output Conversion Enable Bit will turn OFF. The output status specified according
       to the output hold function will be output.
*9. Input disconnection detection is valid only when the 1 to 5-V or 4 to 20-mA range is set. If there is no input signal for
       when the 1 to 5-V or 4 to 20-mA range is set, the Disconnection Detection Flag will turn ON.

last update: October 09, 2013

OMRON CS1W-MAD44 lineup

last update: December 3, 2018

Applicable standards

Refer to the OMRON website (Models with Standards Certification) or ask your OMRON representative for the most recent applicable standards for each model.

Analog I/O Units

Unit type	Prod- uct name	Specifications						Model	No. of Unit num- bers allo- cated	Current con- sump- tion (A)
		I/O points	Signal range selec- tion	Signal range	Reso- lution	Con- ver- sion speed	Ex- ternal con- nec- tion
										5 V	26 V
CS1 Special analog I/O Units	Analog I/O Units	4 inputs	Set sepa- rately for each input	1 to 5 V, 0 to 5 V, 0 to 10 V, -10 V to 10 V, 4 to 20 mA	1/4,000	1 ms/ point	Re- movable terminal block	CS1W-MAD44	1	0.20	0.20
		4 out- puts		1 to 5 V, 0 to 5 V, 0 to 10 V, -10 V to 10 V	1/4,000	1 ms/ point

last update: December 3, 2018

OMRON CS1W-MAD44 catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
CS1W-AD/DA/MAD Data Sheet	- [1481KB]	Dec 03, 201820181203	CS1W-AD/DA/MAD Data Sheet

OMRON CS1W-MAD44 dimension

last update: October 08, 2015

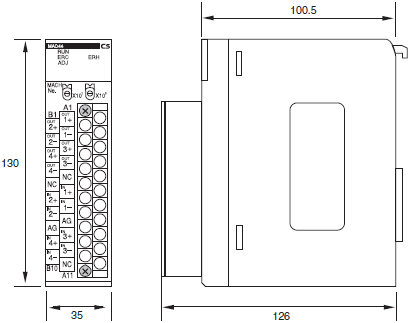

CS1W-MAD44

Terminal Block Dimensions

last update: October 08, 2015

• NO. CS1W-MAD44
• TYPE:Programmable Controllers CS1 Special I/O Units
