Select the Nozzle for the Application
Standard Nozzle
An application example of the basic standard nozzle.
Shower Nozzle
Injects ionized air over an angle of 60° or 90°.
Flat Nozzle
• Injects ionized air over an angle of 90° to enable ionization of comparatively wide objects.
• The air blow direction can be changed.
Combination of Standard Nozzle and Optional Tube
Attach the Optional Tube to the Standard Nozzle to blow ionized air close to the workpiece for pin-point ionization.
Straight Bar Nozzle
• Neutralizes static electricity over a wide area.
• Five ionization areas from 100 to 500 mm.
• The air blow direction can be changed.
Combination of Flexible Tube Nozzle and Optional Cap
Combine the nozzle cap at the tip of the nozzle to enable many ionization applications.
Efficient Pin-point Ionization
High-speed ionization of the target spot is possible by using a tube or metal pipe to get closer to the workpiece.
The Ionizer can be brought as close as 1 mm to the workpiece.
24-VDC Power Supply with No High-voltage Wiring Required
Only the 24-VDC power supply for the Ionizer is needed.
No dangerous high-voltage wiring is required.
High-frequency AC Method with Excellent Ion Balance
Uses more compact high-frequency AC method with excellent ion balance and stability.
Compact Type with Built-in Controller
Controller section built in. Simple all-in-one Unit that installs easily just about anywhere.
last update: May 23, 2013
Purchase the OMRON Copyright Statement Please fill in the following
If you have just landed here, this product OMRON KS1 Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the KS1 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON KS1Power Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
QX-830 Series Laser Barcode Scanner/Features
61F-AN / -APN2 Alternate Operation Relay/Features
CJ1W-SPU01-V2 CJ-series High-speed Data Storage Unit (SPU Unit)/Features
CRT1-[]D16S(-1) / []D32S(-1) / []D16SH(-1) / []D32SH(-1) Digital I/O Slave Units with e-CON Conne...
ZN-DPX21-S Differential Pressure Station/Features
OMRON KS1 dimension
KS1 Ionizer (Air Push Type)/Dimensionslast update: June 16, 2017
(Unit: mm)
Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.

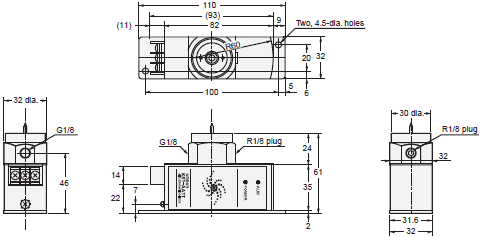

Ionizer
KS1
Nozzles and Optional Products Used with the Ionizer
Nozzles
Standard Nozzle
KS1-ANNS01
60° Shower Nozzle
KS1-ANSW60
90° Shower Nozzle
KS1-ANSW90

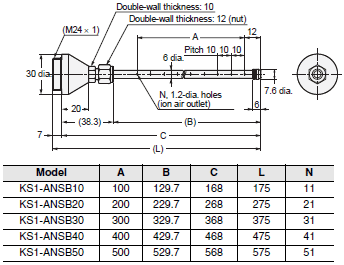

Straight Bar Nozzles
KS1-ANSB[]
Flat Nozzle
KS1-ANFT90

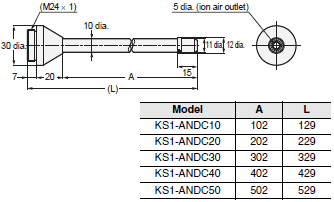

Flexible Tube Nozzles
KS1-ANDC[]
Caps

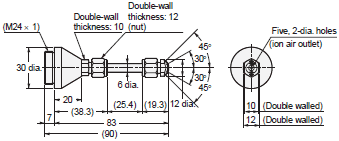

Flexible Flat Nozzle Cap
KS1-ANDC-FT90
Flexible Shower Nozzle Caps
KS1-ANDC-SW[]
Optional Tubes
Optional Tubes for Standard Nozzles
KS1-ANNS-[]
Optional Products
Optional Air Clean Filter
KS1-AZ04

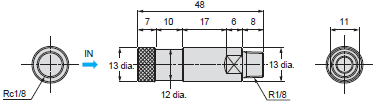

Stainless Steel Connector
