OMRON 61F-AN / -APN2 Dimensions

/Images/l_249-25-118522-198x198.jpg

last update: December 19, 2013

• Electronic Relay with the same operation as the G4Q Latching Relay. Compared with the G4Q, the 61F-AN/-APN2 has a shorter power supply application time and no restrictions on mounting direction.

• Compact Models (61F-AN) and Compact Plug-in Models (61FAPN2) available.

Note: A changeover switch must be included in the sequence to enable operating only one pump.

last update: December 19, 2013

Purchase the OMRON Floatless Level Controllers Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON 61F-AN / -APN2 Switches,Switches is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Switches at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the 61F-AN / -APN2 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON 61F-AN / -APN2Switches tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

E3X-DRT21-S VER.3 Fiber Amplifier Sensor Communication Unit/Features
E3C Compact Head Amplifier-separated Photoelectric Sensor/Features
3Z4S-LE VS-MCA Series Vibrations and Shocks Resistant Lens for C-mount Cameras/Features
M2P Indicators/Features
G3PJ Solid State Relays for Heaters/Features

OMRON 61F-AN / -APN2 specification
61F-AN / -APN2 Alternate Operation Relay/Specifications
last update: September 24, 2012
Ratings

Supply voltage 100, 110, 200, 220 VAC; 50/60 Hz

Operating voltage range 85% to 110% of rated voltage

Power consumption 3 VA

Accessories Hold-down clip PFC-N8 *

Note:Hold-down clip PFC-N8 is attached only 61F-APN2.

Contact Ratings (with G2RK Keep Relay)

Item Resistive load (cosΦ = 1) Inductive load (cosΦ = 0.4, L/R = 7 ms)

Max. load 3 A at 250 VAC 1.5 A at 250 VAC

Carry contact 0.125

Max. operating current 0.125

Max. switching capacity 750 VA 375 VA

Characteristics

Response time Operate: 25 ms max.
Release: 30 ms max.

Minimum pulse width Min. ON time: 40 ms min.
Min. OFF time: 200 ms min.

Insulation resistance 100 MΩ min. at 500 VDC (between each terminal and power supply)

Dielectric strength 2,000 VAC, 50/60 Hz for 1 min (between each terminal and power supply)

Vibration resistance 10 to 55 Hz, 1-mm double amplitude

Shock resistance 10 G (approx. 98 m/s²)

Life expectancy Mechanical: 1,000,000 operations (at operating frequency of 1,800 operations/hour)
Electrical: 100,000 operations min.
(rated load)

Ambient temperature Operating: -10 to 55°C

Ambient humidity Operating: 45% to 85% RH

Weight 61F-AN: Approx. 215 g
61F-APN2: Approx. 190 g

last update: September 24, 2012

OMRON 61F-AN / -APN2 catalog
61F-AN / -APN2 Alternate Operation Relay/Catalog

Catalog

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

61F-AN/-APN2 Data Sheet -
[1792KB] Oct 08, 201420141008 61F-AN/-APN2 Data Sheet

Device Selection Guide for Water Level Control Applications N217-E1-01
[2428KB] Jun 12, 201720170612 Device Selection Guide for Water Level Control Applications

OMRON 61F-AN / -APN2 dimension
61F-AN / -APN2 Alternate Operation Relay/Dimensions
last update: October 15, 2014

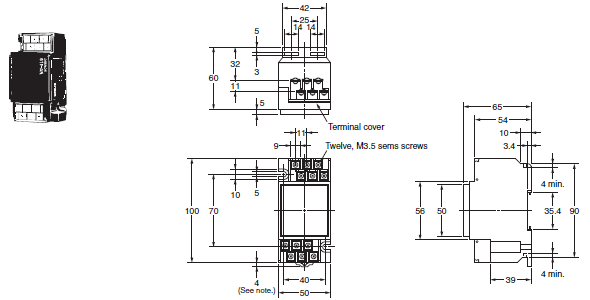

61F-AN

Note: Dimensions are with the DIN rail mounting (sliding) bracket attached.

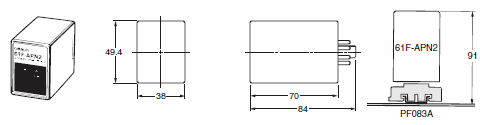

61F-APN2

Use a PFC-N8 Mounting Bracket to mount the Level Controller to a PF083A Rail-mounted Socket.

PFC-N8

Note: PFC-N8 Mounting Bracket (provided with the Level Controller)

last update: October 15, 2014

OMRON 61F-AN / -APN2 lineup
61F-AN / -APN2 Alternate Operation Relay/Lineup
last update: September 24, 2012

Type Model

Alternate Operation Relay 61F-AN

61F-APN2

Note:When ordering, specify the desired operating voltage at the end of the model number.

last update: September 24, 2012
