OMRON EE-SA701 / 801 specification

last update: September 24, 2012

Model	NPN output	EE-SA801A	EE-SA801A-R	EE-SA701-R
	PNP output	EE-SA801R	EE-SA801R-R	EE-SA701P-R
Indicator		Light red when actuator is pressed.		Lit red while there is no load on actuator
Operation Specifications *1	Free position (FP)	5.0±0.4 mm
	Operating position (OP)	3.5 to 4.5 mm *2
	Total travel position (TTP)	0 mm max.
Operating load *3		3 N max. (typical: 0.5 N)
Supply voltage		12 to 24 VDC±10%, ripple (p-p): 10% max.
Current consumption		35 mA max.
Control output		NPN Models: NPN open collector, 5 to 24 VDC, 50 mA max.; residual voltage of 0.4 V max. at 50-mA load current OFF current: 0.5 mA max. PNP Models: PNP open collector, 5 to 24 VDC, 50 mA max.; residual voltage of 0.4 V max. at 50-mA load current OFF current: 0.5 mA max.
External diagnosis input	Input	NPN Models Emission OFF: Shorted to 0 V or 0.5 V max. (source current: 30 mA max.) Emission ON: Open (leakage current: 0.4 mA max.) PNP Models Emission OFF: Shorted to +DC or +DC-0.5 V max. (sink current: 30 mA max.) Emission ON: Open (leakage current: 0.4 mA max.)
	Response time	1 ms max.
Protection circuits		Reversed power supply polarity protection
Ambient temperature range		Operating: -25 to +55°C Storage: -30 to +60°C (with no icing or condensation)
Ambient humidity range		Operating: 5% to 85% Storage: 5% to 95% (with no condensation)
Mechanical durability		5,000,000 operations min. (One operation is from the free position to operating position and back to the free position.)
Vibration resistance		Destruction: 10 to 500 Hz, 1.0-mm single amplitude or 150 m/s2 3 times each in X, Y, and Z directions for 11 min. each
Shock resistance		Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions
Degree of protection		IEC IP40
Connecting method		Pre-wired (standard cable length: 1 m)	Pre-wired (robot cable length: 1 m)
Weight		Approx. 16.1 g
Material	Case	Polycarbonate
	Actuator	Polyacetal
Accessories		Instruction Manual

*1. Free position (FP): The position of the top of the actuator when no force is being applied to the actuator.
       Operating position (OP): The position of the top of the actuator when the actuator is pressed and the output transistor
       changes from OFF to ON for the EESA701-R/-SA701P-R and from ON to OFF for all other models.
       Total travel position (TTP): The position of the top of the actuator when the actuator is pressed as far as it can be
       pressed.

*2. This does not indicate that the output will be ON from 3.5 to 4.5 mm, but rather that the output will change from ON to
       OFF at some point between 3.5 and 4.5 mm.
*3. The force required to press the actuator from the FP to the OP.

last update: September 24, 2012

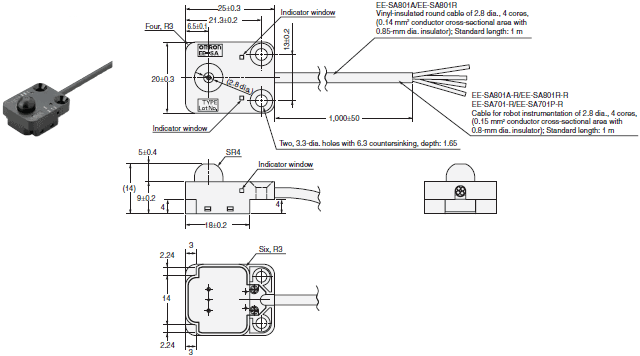

OMRON EE-SA701 / 801 dimension

last update: November 12, 2012

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.

Sensor

EE-SA801A/-SA801A-R
EE-SA801R/-SA801R-R
EE-SA701-R
EE-SA701P-R

last update: November 12, 2012

OMRON EE-SA701 / 801 lineup

last update: September 24, 2012

Appearance	Sensing distance	Sensing method	Operation mode	Cable length	Model
					NPN output	PNP output
	0 to 3.5 mm (pressed position) (See note 1.)	Pushbutton	ON with no load	1 m	EE-SA801A 1M	EE-SA801R 1M
				1 m (robot cable)	EE-SA801A-R 1M	EE-SA801R-R 1M
			OFF with no load		EE-SA701-R 1M	EE-SA701P-R 1M

Note: 1. Distance from the top surface of the housing to the top of the actuator.
           2. Output reverses between 3.5 and 4.5 mm.

last update: September 24, 2012
