OMRON CS1W-AD lineup

last update: December 3, 2018

Applicable standards

Refer to the OMRON website (Models with Standards Certification) or ask your OMRON representative for the most recent applicable standards for each model.

Analog Input Units

Unit type: CS-series Special I/O Units

Product name		Specifications						Model	No. of Unit num- bers allo- cated	Current consump- tion (A)
		I/O points	Signal range selection	Signal range	Resolu- tion	Conver- sion speed	External connec- tion			5V	26V
Analog Input Units		4 inputs	Set separately for each input	1 to 5 V, 0 to 5 V, 0 to 10 V, - 10 V to 10 V, 4 to 20 mA	1/8,000 (Settable to 1/4,000)	250 s/ point max. (Settable to 1 ms/ point)	Removable terminal block	CS1W-AD041-V1	1	0.12	0.09
		8 inputs		1 to 5 V, 0 to 5 V, 0 to 10 V, - 10 V to 10 V, 4 to 20 mA	1/8,000 (Settable to 1/4,000)	250 s/ point max. (Settable to 1 ms/ point)	Removable terminal block	CS1W-AD081-V1	2	0.12	0.09
		16 inputs					MIL connector	CS1W-AD161		0.15	0.06
	CS1W- AD161 Connector- Terminal block conversion Units	Slim-type terminal block 34 terminal, dimensions: 128 × 40 × 39 mm						XW2D-34G6	---
		Connecting cable Length: 2 m						XW2Z-200C	---

last update: December 3, 2018

OMRON CS1W-AD catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
CS1W-AD/DA/MAD Data Sheet	- [1481KB]	Dec 03, 201820181203	CS1W-AD/DA/MAD Data Sheet

OMRON CS1W-AD dimension

last update: October 08, 2015

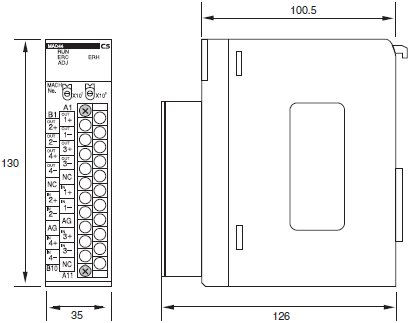

CS1W-AD041-V1/081-V1

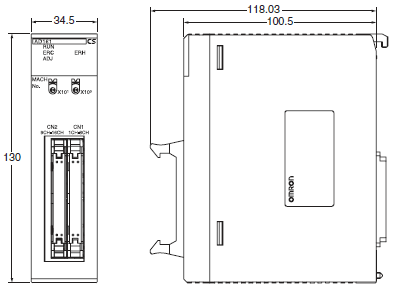

CS1W-AD161

Terminal Block Dimensions

last update: October 08, 2015

OMRON CS1W-AD specification

last update: September 24, 2012

Item			CS1W-AD041-V1	CS1W-AD081-V1	CS1W-AD161
Applicable PLC model			CS series
Unit type			CS1 Special I/O Unit
Isolation *1			Between I/O and PLC signals: Photocoupler (No isolation between individual I/O signals.)
External terminals			21-point detachable terminal block (M3 screws)		Two 34-pin MIL connectors
Affect on CPU Unit cycle time			0.2 ms
Power consumption			120 mA max. at 5 VDC, 90 mA max. at 26 VDC		150 mA max. at 5 VDC, 55 mA max. at 26 VDC
Dimensions (mm) *2			35 × 130 × 126 (W × H × D)		35 × 130 × 119 (W × H × D)
Weight			450 g max.
General specifications			Conforms to general specifications for SYSMAC CS Series.
Mounting position			CS-series CPU Rack or CS-series Expansion Rack (Cannot be mounted to a C200H Expansion I/O Rack or a SYSMAC BUS Slave Rack.)
Maximum number of Units			Depends on the power supply Unit. *3
Data exchange with CPU Units *4			Special I/O Unit Area in CIO Area (CIO 2000 to CIO 2959): 10 words per Unit Special I/O Unit Area in DM Area (D20000 to D29599): 100 words per Unit		Special I/O Unit Area in CIO Area (CIO 2000 to CIO 2959): 20 words per Unit Special I/O Unit Area in DM Area (D20000 to D29599): 200 words per Unit
Input specifications	Number of analog inputs		4	8	16
	Input signal range *5		1 to 5 V 0 to 5 V 0 to 10 V - 10 to 10 V 4 to 20 mA *6
	Maximum rated input (for 1 point) *7		Voltage Input: ± 15 V Current Input: ± 30 mA
	Input impedance		Voltage Input: 1 M Ω min. Current Input: 250 Ω (rated value)
	Resolution		4,000/8,000 *8
	Converted output data		16-bit binary data
	Accuracy *9	23 ± 2 °C	Voltage Input: ± 0.2% of full scale Current Input: ± 0.4% of full scale		Voltage Input: ± 0.2% of full scale Current Input: ± 0.2% of full scale
		0 °C to 55 °C	Voltage Input: ± 0.4% of full scale Current Input: ± 0.6% of full scale		Voltage Input: ± 0.4% of full scale Current Input: ± 0.4% of full scale
	A/D conversion time *10		1.0 ms or 250 μs per point max. *8
	Mean value processing		Stores the last "n" data conversions in the buffer, and stores the mean value of the conversion values. Buffer number: n = 2, 4, 8, 16, 32, 64
	Peak value holding		Stores the maximum conversion value while the Peak Value Hold Bit is ON.
	Input disconnection detection		Detects the disconnection and turns ON the Disconnection Detection Flag. *11
	Scaling function		None	None	Enabled only for conversion time of 1 ms and resolution of 4,000. Setting any values within a range of ± 32,000 as the upper and lower limits allows the A/D conversion result to be output with these values as full scale.

*1. Do not apply a voltage higher than 600 V to the terminal block when performing withstand voltage test on this Unit.
       Otherwise, internal elements may deteriorate.
*2. Refer to Dimensions for details on the Unit's dimensions.
*3. The maximum number of Analog Input Units that can be mounted to one Rack depends on the Power Supply Unit
       mounted to the Rack.

Power Supply Unit	Rack	CS1W-AD041-V1 CS1W-AD081-V1 (5 VDC 120 mA)	CS1W-DA041 CS1W-DA08V (5 VDC 130 mA)	CS1W-MAD44 (5 VDC 200 mA)	CS1W-DA08C (5 VDC 130 mA)	CS1W-AD161 (5 VDC 150 mA)
C200HW-PA204 C200HW-PA204S C200HW-PA204R C200HW-PA204C C200HW-PD024 (4.6 A at 5 VDC)	CPU Rack	6	3	3	2	8
	Expansion Rack	6	3	3	2	9
C200HW-PA209R (9 A at 5 VDC)	CPU Rack	10	7	6	5	10
	Expansion Rack	10	7	6	5	10
CS1D-PA207R (7 A at 5 VDC)	CPU Rack	8	5	4	4	8
	Expansion Rack	9	6	5	4	9
CS1D-PD024 (4.3 A at 5 VDC)	CPU Rack	6	3	2	2	7
	Expansion Rack	6	3	2	2	8

        The above limits may be reduced depending on the power consumed by other Units on the same Rack.
*4. Data Exchange with the CPU Unit

Area	Number of words	Data transfer timing	Transfer direction	Data contents
Special I/O Unit Area in CIO Area (CIO 2000 to CIO 2959, CIO 2000.00 to CIO 2959.15)	CS1W-AD041-V1/081-V1: 10 words per Unit CS1W-AD161: 20 words per Unit	Constantly	CPU Unit to Analog Input Unit	Peak hold indicators
			Analog Input Unit to CPU Unit	Analog input values Line disconnection detection Alarm flags Etc.
Special I/O Unit Area in DM Area (D20000 to D26959)	CS1W-AD041-V1/081-V1: 100 words per Unit CS1W-AD161: 200 words per Unit	When power is turned ON or Unit is restarted	CPU Unit to Analog Input Unit	Input signal conversion ON/OFF Signal range specifications Averaging specifications Resolution/conversion time setting Operation mode setting Scaling setting (CS1W-AD161 only)

        The resolution/conversion time setting and operation mode setting are supported only by version-1 Analog Input
        Units.
*5. Input signal ranges can be set for each input.
*6. Voltage input or current input is selected for the CS1W-AD041-V1 and CS1W-AD081-V1 by using the voltage/current
       switch at the back of the terminal block. Voltage input or current input is selected for the CS1W-AD161 by wiring the
       connector terminals. Voltage/current selection for input ranges 1 to 5 V or 4 to 20 mA can be set in DM word m+52.
*7. Use the analog input voltage/current value within the specified input signal range. Exceeding the specified range may
       result in malfunction.
*8. With Analog Input Units, the resolution can be changed from 4,000 to 8,000 and the conversion time changed from 1
       ms to 250 μs in DM word m+18 for CS1W-AD041-V1 and CS1W-AD081-V1 or in DM word m+19 for CS1W-AD161.
*9. The following are adjusted at the factory.
       CS1W-AD041-V1/081-V1: Voltage inputs
       CS1W-AD161: Voltage inputs and current inputs
                                  Calibration conditions: Recommended Terminal Block-Connector Conversion Unit used. (The
                                  factory calibration for a current input can be made effective by setting DM word m+52.)
       To use current inputs with the CS1W-AD041-V1/081-V1 or to use the CS1W-AD161 with products other than the
       recommended ones, adjust the offset and gain as required.
*10. A/D conversion time is the time it takes for an analog signal to be stored in memory as converted data after it has
         been input. It takes at least one cycle before the converted data is read by the CPU Unit.
*11. Input disconnection detection is valid only when the 1 to 5-V or 4 to 20-mA range is set. If there is no input signal
         for when the 1 to 5-V or 4 to 20-mA range is set, the Disconnection Detection Flag will turn ON.
