Smart In-line Measurement of Production Site Static Electricity
Compact Sensor Head and Smart Amplifier
Hand-held devices and large measuring devices are not suitable for easily measuring static charges of workpieces in-line.
The Sensor Head of the Smart Electrostatic Sensor is small (6 × 6 × 67 mm) and the bracket has a rotating mechanism, making it possible to mount it even where space is limited.
Smart Static Electricity Monitoring
For effective discharge, measurements must be made at more than one location and changes over time need to be monitored. With the ZJ-SD, multi-point measurements from up to 5 Units can be made easily if a Calculating Unit is connected between Amplifiers. And the Electrostatic Sensor measurement data can be displayed and logged on a personal computer via an Interface Unit and used for static electricity countermeasures.
Our Highest Priority: Easy Onsite Operation
Simple Settings Using Key Operations
A seven-segment, two-row display is provided for workpiece charge and threshold displays.
Settings are easy to make using Up, Down, Left, and Right Keys.
Remote Detection
Use the ZX-XC[]A (order separately) to extend the cable to 2, 5, or 9 m.
Best Long-distance, High-precision Measurements in the Industry
The ZJ-SD provides the highest detection accuracy in the industry when combined with a ZX Displacement Sensor. And even more precise measurements are possible with the compensation function that adjusts to the size of the workpiece.
[Workpiece Distance Compensation]
Long-distance, High-precision Measurements
The best sensing range in the industry at 100 mm/ ±50 kV.
Sensors that measure static charges are greatly affected by the measurement distance. The ZJ-SD solves this problem by combining with a ZX-series Displacement Sensor to enable communicating distance information and thus achieve high-accuracy measurements.
Note: Ultrasonic Displacement Sensors are also available. Contact your OMRON representative for details.
Unaffected by Measurement Distance
In addition to distance data compensation performed by the Displacement Sensor, errors from distance fluctuations can also be reduced by directly inputting the installation distance into the Amplifier.
[Workpiece Size Compensation]
Accurate Static Charge Measurements for Small Workpieces
The Electrostatic Sensor's sensing area is approximately five times the installation distance.
Enter the workpiece size to measure the static charge of workpieces smaller than the sensing area. (See note.)
The ZJ-SD can compensate the static charge based on a comparison of the installation distance recorded in the Preamplifier and the size of the sensing area.
Note: Except for the workpiece, static charge inside the sensing area must be 0 V. Use a measurement error of approximately 10% as a guide for a measurement distance of 5 mm and a workpiece of 10 mm in diameter.
last update: May 23, 2013
Purchase the OMRON Copyright Statement Please fill in the following
If you have just landed here, this product OMRON ZJ-SD Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the ZJ-SD We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON ZJ-SDPower Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
R88M-K, R88D-KN[]-ECT G5 Series AC Servomotor/Servo Drives with built-in EtherCAT Communications/...
ZFV-C Smart Sensors with Ultra-High-Speed Color CCD Cameras/Features
CJ1W-PNT21 PROFINET IO controller/Features
KM-N3-FLK Power Monitor/Features
XS2 Round Water-resistant Connectors (M12 Threads)/Features
OMRON ZJ-SD specification
ZJ-SD Smart Electrostatic Sensor/Specificationslast update: May 23, 2013
Sensor Head
| Model | ZJ-SD100 |
|---|---|
| Applicable Amplifier | ZJ-SDA11 |
| Sensing distance | 5 to 100 mm |
| Measurement voltage | Standard mode: ±50 KV, Precision mode: ±5 KV max. *1 |
| Display resolution | Standard mode: 10 V, Precision mode: 1 V *2 |
| Linearity *3 | ±5% FS *4 |
| Response time | 20 ms |
| Ambient temperature range | Operating and storage: 0 to 50°C (with no condensation or icing) |
| Ambient humidity range | Operating and storage: 35% to 85% (with no condensation) |
| Dielectric strength | 1,000 VAC, 50/60 Hz, 1 min *5 |
| Vibration resistance | Sensor Head: 3-mm double amplitude at 10 to 55 Hz for 45 min each in the X, Y, and Z directions, Preamplifier: 1.5-mm double amplitude at 10 to 55 Hz for 2 h each in the X, Y, and Z directions |
| Degree of protection | IP20 |
| Connecting method | Pre-wired Connector (standard length: 2 m) |
| Weight (packed state) | Approx. 150 g |
| Materials | Sensor Head: Stainless steel Preamplifier: PC |
| Accessories | Instruction sheet, Preamplifier Mounting Brackets (ZX-XBT1) |
*1. The measurement may become saturated if the Sensor is too close to an object being measured, even if it is within
the measurement voltage range. Use the distance from the measurement surface (mm) times 1 KV as a guide.
*2. This is the minimum value obtainable when a ZJ-SDA11 Amplifier Unit is connected.
*3. When the ambient temperature is stable at 25°C.
*4. When the measurement distance is 10 mm and the measurement voltage is -5 to 5 KV.
*5. When a Preamplifier is used (excluding the Sensor Head).
Amplifier
| Model | ZJ-SDA11 |
|---|---|
| Measurement period | 1 ms |
| Possible average count settings *1 | 1, 2, 4, 8, 16, 32, 64, 128, 256, 512, or 1,024 |
| Linear output *2 | Current output: 4 to 20 mA/FS, Max. load resistance: 300 Ω Voltage output: ±4 V (±5 V, 1 to 5 V *3), Output impedance: 100 Ω |
| Judgment outputs (3 outputs: OPE1, OPE2, and OPE3) | NPN open-collector output, 30 VDC, 20 mA max. Residual voltage: 1.2 V max. |
| Bank shift input, zero reset input, timing input, reset input | ON: Short-circuited with 0-V terminal or 1.5 V or less OFF: Open (leakage current: 0.1 mA max.) |
| Functions | Measurement value display, display reverse, scaling, peak and bottom hold, distance compensation, present value display, limit number of display digits, monitor focus, mask hold, sensing area compensation, output value display, zero reset, linear output compensation, distance trigger, warning output, setting value display, zero reset memory, peak hold, delay hold, bank switching, resolution display, various timers, bottom hold, delay time setting, enable display, initialization, sample hold, timing inputs, zero reset display, teaching, peak-to-peak, key lock, judgment output display, direct threshold value setting, hold, clamp value setting, ECO mode, hysteresis adjustment, average hold, precise measurement mode |
| Indications | Operation indicators (OPE1 (orange), OPE2 (green), OPE3 (yellow), 7-segment main digital display (red), 7-segment sub-digital display (yellow), power ON indicator (green), zero reset indicator (green), enable indicator (green) |
| Power supply voltage | 24 VDC ±10%, Ripple (p-p): 10% max. |
| Current consumption | 24-VDC power supply: 140 mA max. |
| Ambient temperature range | Operating and storage: 0 to 50°C (with no icing or condensation) |
| Ambient humidity range | Operating and storage: 35% to 85% (with no condensation) |
| Insulation resistance | 20 MΩ (at 500 VDC) |
| Dielectric strength | 1,000 VAC, 50/60 Hz, 1 min |
| Shock resistance | Destruction: 300 m/s2 3 times each in 6 directions (up/down, left/right, and forward/ backward) |
| Vibration resistance | Destruction: 0.7-mm double amplitude at 10 to 150 Hz for 80 min each in the X, Y, and Z directions |
| Connecting method | Pre-wired (standard length: 2 m) |
| Weight (packed state) | Approx. 350 g |
| Materials | Case: PBT (polybutylene terephthalate), Cover: Polycarbonate |
| Accessories | Instruction sheet |
*1. The response time of the linear outputs is calculated as follows: Measurement period × (Average count setting + 1).
The response time of the judgment outputs is calculated as follows: Measurement period × (Average count setting +
1).
*2. The output can be switched between a current output and voltage output using a switch on the bottom of the Amplifier.
*3. Setting is possible using the monitor focus function.
last update: May 23, 2013
OMRON ZJ-SD lineup
ZJ-SD Smart Electrostatic Sensor/Lineuplast update: July 15, 2015
Electrostatic Sensor
Sensor Head
| Appearance | Sensing distance | Model |
|---|---|---|
 | 5 to 100 mm | ZJ-SD100 |
Amplifier
| Appearance | Cable length | Power supply | Output method | Model |
|---|---|---|---|---|
 | 2 m | DC | NPN output | ZJ-SDA11 |
Accessories (Order Separately)
Calculating Unit
| Appearance | Model |
|---|---|
 | ZX-CAL2 |
SmartMonitor Sensor Setup Tool for Personal Computer Connection
| Appearance | Name | Model |
|---|---|---|
 +CD-ROM | Communications Interface Unit and software for setup and display | ZJ-SFW11 |
Preamplifier Mounting Brackets
| Appearance | Model | Remarks |
|---|---|---|
 | ZX-XBT1 | Included with Sensor Head. |
 | ZX-XBT2 | For DIN Track mounting |
Cables with Connectors on Both Ends (for Extension)
| Cable length | Model | Quantity |
|---|---|---|
| 1 m | ZX-XC1A | 1 |
| 4 m | ZX-XC4A | |
| 8 m | ZX-XC8A |
Sensor Head Mounting Bracket for Distance Compensation
| Appearance | Model | Remarks |
|---|---|---|
 | ZJ-XBU1 | Used for distance compensation using a Displacement Sensor. |
last update: July 15, 2015
OMRON ZJ-SD dimension
ZJ-SD Smart Electrostatic Sensor/Dimensionslast update: September 01, 2016
Tolerance class IT16 applies to dimensions in this data sheet unless otherwise specified.
Electrostatic Sensor
Sensor Head

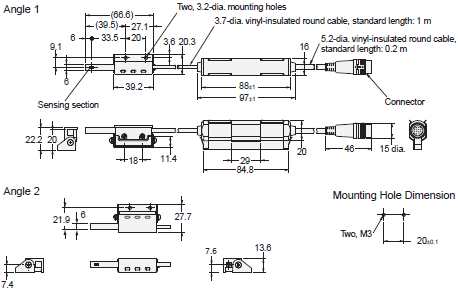

ZJ-SD100
Amplifier

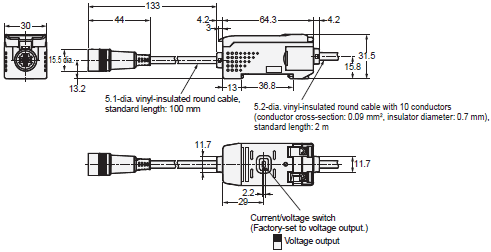

ZJ-SDA11
Accessories (Order Separately)
Preamplifier Mounting Brackets

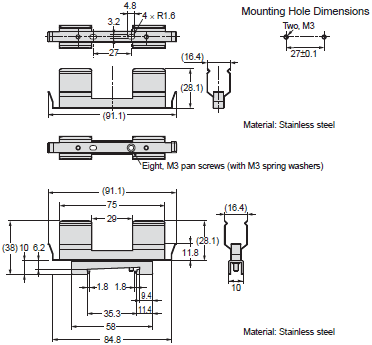

ZX-XBT1

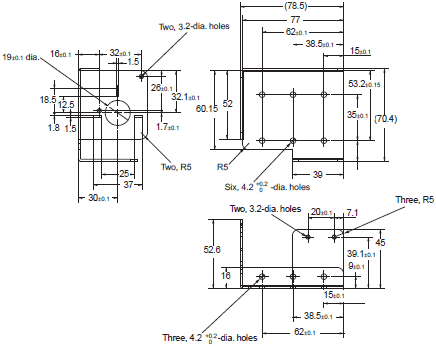

Sensor Head Mounting Bracket for Distance Compensation
ZJ-XBU1

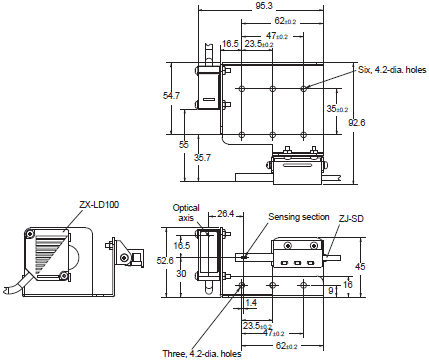

Dimensions with ZX-LD100 Sensor Head
