• Compact FA connectors meet IP67 requirements and ensure a 94V-0 fire retardant rating.

• A wide array of connectors makes a wiring system more modular, simplifies maintenance, and reduces downtime.

• Connectors with Cables and Connector Assemblies are available.

• Three types of Connector Assembly: Crimping, soldering, and screw-on.

• Connectors with Cables are UL certified.

• Based on IEC61076-2-101 (IEC60947-5-2) and NECA 4202.

last update: April 21, 2017

Purchase the OMRON Sensor I/O Connectors Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON XS2 Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the XS2 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON XS2Power Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

K6CM Motor Condition Monitoring Device/Features
E6C2-C Slim Incremental 50-mm-dia. Rotary Encoder/Features
H3DT-A Power ON-delay Timer/Features
CS1W-LCB01 / LCB05 Loop Control Boards/Features
NX-EIC202 NX-series EtherNet/IP™ Coupler Unit/Features

OMRON XS2 dimension
XS2 Round Water-resistant Connectors (M12 Threads)/Dimensions
last update: December 14, 2018

(Unit: mm)

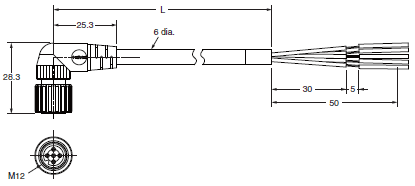

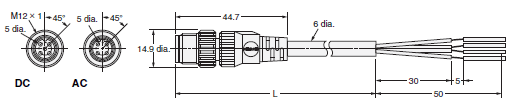

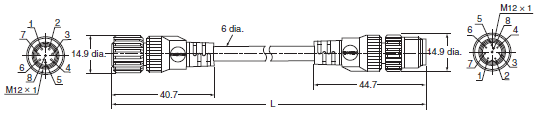

XS2W Sockets and Plugs on Cable Ends

Straight/Straight
Fire-retardant, Robot cable XS2W-D421-[]81-F
Spatter-resistant cable XS2W-D421-D81-SA

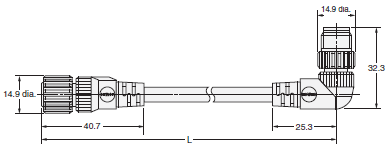

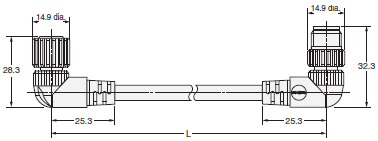

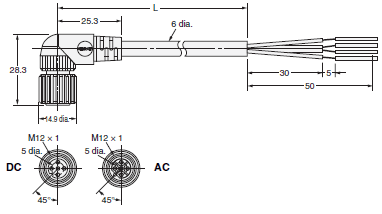

Right-angle/Right-angle
Fire-retardant, Robot cable
XS2W-D422-[]81-F

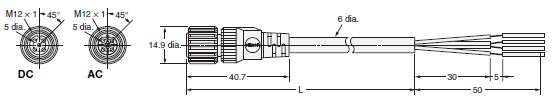

Straight (Socket)/Right-angle (Plug)
Fire-retardant, Robot cable
XS2W-D423-[]81-F

Right-angle (Socket)/Straight (Plug)
Fire-retardant, Robot cable
XS2W-D421-[]81-F

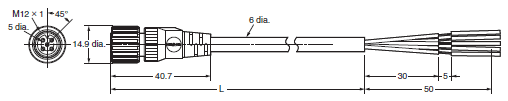

XS2F Sockets on One Cable End

Straight Connectors
Fire-retardant, Robot cable
XS2F-D421-[][]0-F
XS2F-A421-[][]0-F
Non-polar DC Connectors with Standard cable
XS2F-D421-[][]0
XS2F-A421-[][]0
E2E models with conventional connector pin with Fire-retardant, Robot cable
XS2F-D421-[][]0
Heat-resistant cable up to 105°C
XS2F-E421-[]80-E
Spatter-resistant cable
XS2F-D421-[]80-SA

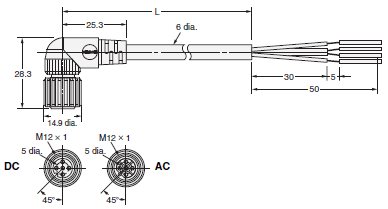

Right-angle Connectors
Fire-retardant, Robot cable
XS2F-D422-[][]0-F
XS2F-A422-[][]0-F
Non-polar DC Connectors with Standard cable
XS2F-D422-[][]0
XS2F-A422-[][]0
E2E models with conventional connector pin with Fire-retardant, Robot cable
XS2F-D422-[][]0
Heat-resistant cable up to 105°C
XS2F-E422-[]80-E

Straight
XS2F-D521-[]G0-A

Note: Use the XS2H-D521-[]G0-A in combination with the XS2F-D521-[]G0-A.

Right-angle
XS2F-D522-[]G0-A

XS2F-G/H Connectors with Cables, Socket on One Cable End, Screw Loosening-preventing Structure Type

Straight Connectors
XS2F-G421-[]80-F
XS2F-G421-[]90-F

Right-angle
XS2F-G422-[]80-F
XS2F-G422-[]90-F

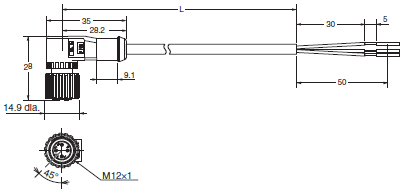

XS2F Sockets on One Cable End with Indicator

Right-angle
XS2F-M12PVC3A[]MPLED
XS2F-M12PVC4A[]MPLED

XS2H Plugs on One Cable End

Straight (4 poles)
Fire-retardant, Robot cable XS2H-[]421-[][]0-F
Spatter-resistant cable XS2H-D421-[]80-SA

Straight (5 poles)
Standard cable XS2H-D521-[]G0-A (For DC)

Note: Use the XS2F-D521-[]G0-A in combination with the XS2H-D521-[]G0-A.

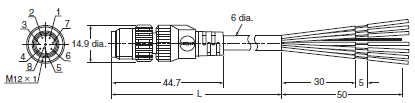

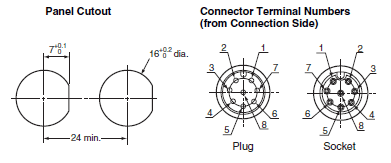

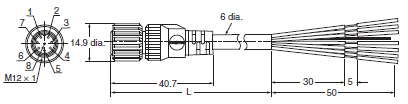

XS2[] Sensor I/O Connectors on Cables (8-pole)

Plug on One Cable End (M12)
XS2H

Socket on One Cable End (M12)
XS2F

Socket and Plug on Both Cable Ends (M12)
XS2W

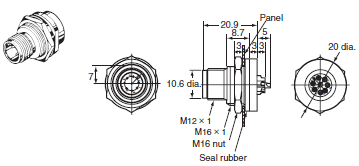

Panel-mounting Socket (M12)
Rear Lock Model
XS2P-D821-2 (with Solder Cup Pins)

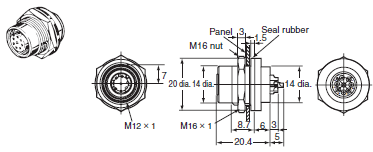

Panel-mounting Plug (M12)
Front Lock Model
XS2M-D824-4 (with Solder Cup Pins)

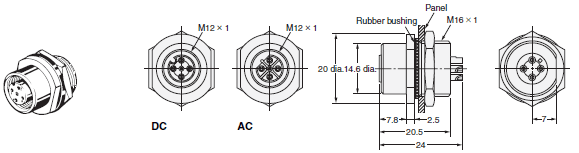

Panel-mounting Socket (M12)
Front Lock Model
XS2P-D822-2 (with Solder Cup Pins)

Note 1. Mounting panel thickness: 1 to 4 mm.
2.Applicable core wire size for solder cup pins: 0.5 mm² max.
3.The M16 nut and seal rubber are included.

XS2G Crimping/Soldering Plug Assemblies

Straight Connectors
XS2G-[]4C[] (Crimping Model)
XS2G-[]42[] (Soldering Model)

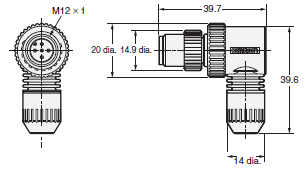

Right-angle
XS2G-D42[] (Soldering Model)

XS2U Crimping Pin for XS2G
XS2U-312[]

* A special tool must be used for crimping. For details, refer to Catalog.

XS2C Crimping/Soldering Socket Assemblies
Straight Connectors

Right-angle Connectors

XS2U Crimping Pin for XS2C
Socket Pin

* A special tool must be used for crimping. For details, refer to Catalog.

XS2G Screw-on Plug Assemblies

Straight Connectors
Applicable Cable Outer Diameter: 8 mm
XS2G-D5S7 (5poles)
XS2G-D4S7 (4 poles)
Applicable Cable Outer Diameter: 7 mm
XS2G-D5S9 (5poles)
XS2G-D4S9 (4 poles)

Straight Connectors
Applicable Cable Outer Diameter: 6 mm
XS2G-D5S1 (5poles)
XS2G-D4S1 (4 poles)
Applicable Cable Outer Diameter: 4 mm
XS2G-D4S3 (4 poles)
Applicable Cable Outer Diameter: 3 mm
XS2G-D4S5 (4 poles)

Right-angle Connectors
Applicable Cable Outer Diameter: 6 mm
XS2G-D5S2 (5poles)
XS2G-D4S2 (4 poles)
Applicable Cable Outer Diameter: 4 mm
XS2G-D4S4 (4 poles)
Applicable Cable Outer Diameter: 3 mm
XS2G-D4S6 (4 poles)

XS2C Screw-on Socket Assemblies

Straight Connectors
Applicable Cable Outer Diameter: 8 mm
XS2C-D5S7 (5 poles)
XS2C-D4S7 (4 poles)
Applicable Cable Outer Diameter: 7 mm
XS2C-D5S9 (5 poles)
XS2C-D4S9 (4 poles)

Straight Connectors
Applicable Cable Outer Diameter: 6 mm
XS2C-D5S1 (5 poles)
XS2C-D4S1 (4 poles)
Applicable Cable Outer Diameter: 4 mm
XS2C-D4S3 (4 poles)
Applicable Cable Outer Diameter: 3 mm
XS2C-D4S5 (4 poles)

Right-angle Connectors
Applicable Cable Outer Diameter: 6 mm
XS2C-D5S2 (5 poles)
XS2C-D4S2 (4 poles)
Applicable Cable Outer Diameter: 4 mm
XS2C-D4S4 (4 poles)
Applicable Cable Outer Diameter: 3 mm
XS2C-D4S6 (4 poles)

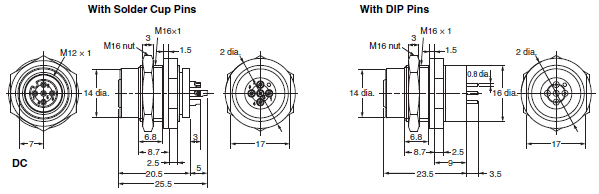

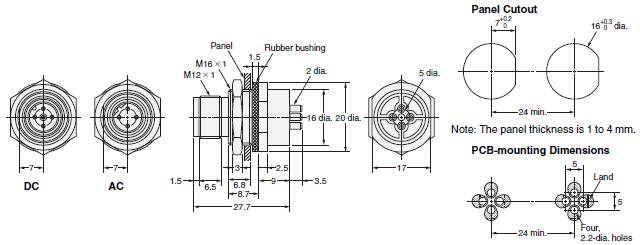

XS2P Panel-mounting Sockets for Terminal Boxes

Rear Lock Model
XS2P-[]421-2 (with Solder Cup Pins)

Front Lock Model
XS2P-[]422-1 (with DIP Pins)
XS2P-[]422-2 (with Solder Cup Pins)

Front Lock Model
XS2P-D522-1 (with DIP Pins)
XS2P-D522-2 (with Solder Cup Pins)

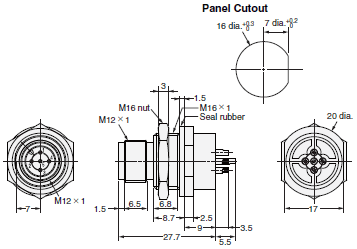

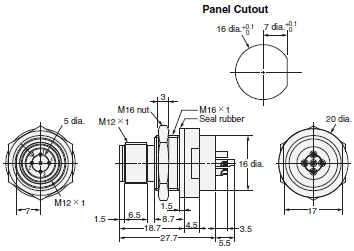

Panel Cutout

Note:The panel thickness is 1 to 4 mm.

PCB-mounting Dimensions With DIP Pins

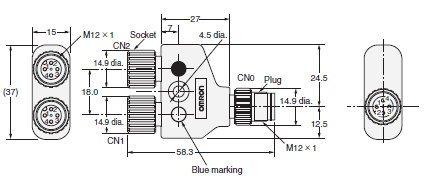

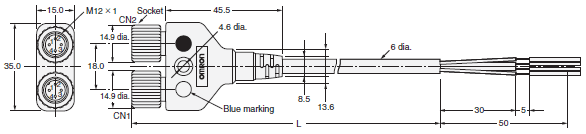

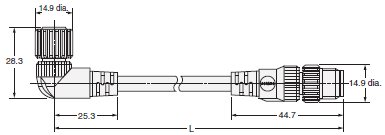

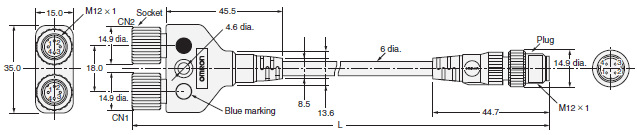

XS2R Y-Joint Plug/Socket Connectors

Connectors on Both Cable Ends (Y-Joint Plug/Socket)
XS2R-D426-[]11-F

Connectors on One Cable End (Y-Joint Socket)
XS2R-D426-[]10-F

Y-Joint Plug/Socket without Cable
XS2R-D426-1

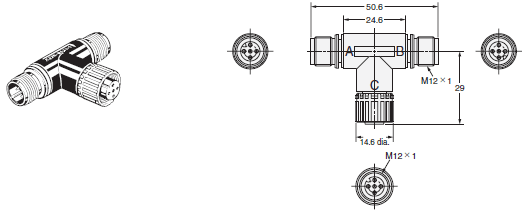

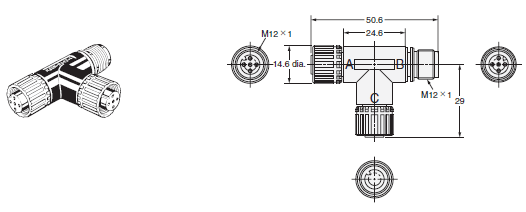

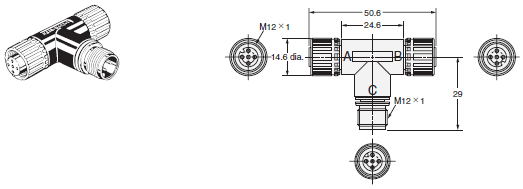

XS2R T-Joint Plug/Socket Connectors

Aggregate model
XS2R-D422-1
XS2R-D422-5

Bifurcated model
XS2R-D423-1

Daisy-chain model
XS2R-D424-1

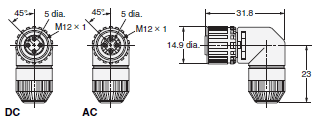

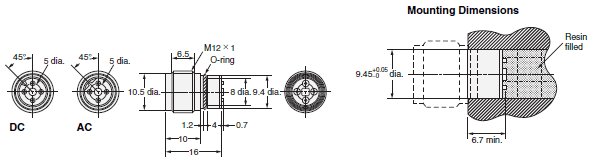

XS2M Sensor-embedded Plugs

Embedded with screw threads
XS2M-D421 (For DC)
XS2M-A421 (For AC)

Note: After mounting, anchor the solder cup pins by injecting resin.

Embedded without screw threads
XS2M-D422 (For DC)
XS2M-A422 (For AC)

Note: After mounting, anchor the solder cup pins by injecting resin.

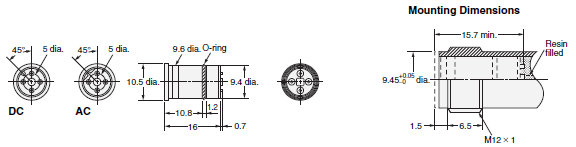

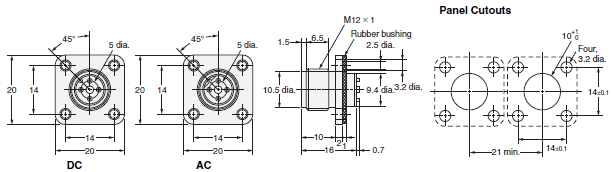

XS2M Panel-mounting Plugs

Flange-mounting
XS2M-D423 (For DC)
XS2M-A423 (For AC)

Screw-mounting
XS2M-[]424-1 For DIP (Resin Body)
XS2M-[]424-2 Solder Cup Pins (Resin Body)

Solder Cup Pins (Resin Body)
XS2M-D524-2

Solder Cup Pins (Metal Body)
XS2M-D524-4

XS2Z Connector Covers
Water-resistive Covers

XS2Z-11

XS2Z-22

last update: December 14, 2018

OMRON XS2 specification
XS2 Round Water-resistant Connectors (M12 Threads)/Specifications
last update: December 14, 2018
Ratings and Specifications

Rated current 4 A
Rated voltage 250 VAC/VDC
Contact resistance (Connector) 40 mΩ max. (20 mV max. and 100 mA max.)
Insulation resistance 1,000 MΩ min. (at 500 VDC)
Dielectric strength (Connector) 1,500 VAC for 1 min (leakage current: 1 mA max.)
Degree of protection IP67 (IEC60529)
Insertion tolerance 200 times
Cable holding strength Cable diameter:
6 mm 98 N/15 s
4 to 5 mm 49 N/15 s
3 mm 29 N/15 s
Ambient operating temperature range - 25°C to 70°C *
Ambient humidity range 20% to 85%

*Use the robot cable within a temperature range between 0°C and 70°C to prevent the wires inside the cable from being broken when bending it.

Materials and Finish

Model XS2F/H/W XS2F-LED XS2M/R/P XS2C/G
Contacts Copper alloy/Gold plating Brass
Thread bracket Brass/Copper alloy *
Pin block PBT resin PA resin PBT resin
O-ring Rubber
Cover Soft PBT resin TPU resin --- PBT resin
Cable Fire-retardant,
Robot cable UL AWM2464 CL3, 6 mm dia.
AWG20 (0.5 mm²) --- --- ---
Non-polar DC
Connectors with
Standard cable 6 mm dia.
AWG20 (0.5 mm²) --- --- ---
E2E models with
conventional
connector pin with
Fire-retardant,
Robot cable UL AWM2464 CL3, 6 mm dia.
AWG20 (0.5 mm²) --- --- ---
Heat-resistant cable
up to 105°C 6 mm dia.
AWG20 (0.5 mm²) --- --- ---
Spatter-resistant
cable 6.6 mm dia.
AWG20 (0.5 mm²) --- --- ---
Standard cable
(XS2F-LED) --- UL AWM2464
5.0 mm dia. (3 conductors)
5.4 mm dia. (4 conductors)
0.34 mm² --- ---

* The T-joint of the XS2R is aluminum/white.

Connection Combinations

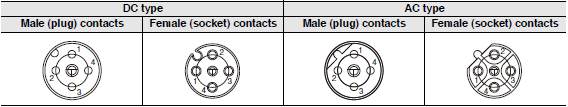

Pin Arrangement

Note: The AC and DC mating section forms are different as shown here and therefore cannot be connected together.

last update: December 14, 2018

OMRON XS2 lineup
XS2 Round Water-resistant Connectors (M12 Threads)/Lineup
last update: December 14, 2018
Model Number Legend
Connectors with Cables Model Number Legend

Connector Cable
specifications XS2: M12 Screw Connection XS5: One-touch Smartclick
Connection *
(compatible with M12
connectors)
Cable
length
(m) Model Cable
length
(m) Model
Connectors on both
cable ends Fire-retardant,
robot cable 0.5 — 0.5 XS5W-D421-B81-F
1 XS2W-D421-C81-F 1 XS5W-D421-C81-F
2 XS2W-D421-D81-F 2 XS5W-D421-D81-F
3 XS2W-D421-E81-F 3 XS5W-D421-E81-F
4 — 4 XS5W-D421-F81-F
5 XS2W-D421-G81-F 5 XS5W-D421-G81-F
10 XS2W-D421-J81-F 10 XS5W-D421-J81-F
Spatter-resistant
cable 2 XS2W-D421-D81-SA 2 XS5W-D421-D81-SA
5 XS2W-D421-G81-SA 5 XS5W-D421-G81-SA
Connector on one
cable end
(Socket) Fire-retardant,
robot cable 1 XS2F-D421-C80-F 1 XS5F-D421-C80-F
2 XS2F-D421-D80-F 2 XS5F-D421-D80-F
3 — 3 XS5F-D421-E80-F
5 XS2F-D421-G80-F 5 XS5F-D421-G80-F
10 XS2F-D421-J80-F 10 XS5F-D421-J80-F
Spatter-resistant
cable 2 XS2F-D421-D80-SA 2 XS5F-D421-D80-SA
5 XS2F-D421-G80-SA 5 XS5F-D421-G80-SA
Connector on one
cable end
(Plug) Fire-retardant,
robot cable 0.3 XS2H-D421-A80-F 0.3 XS5H-D421-A80-F
0.5 XS2H-D421-B80-F 0.5 XS5H-D421-B80-F
1 XS2H-D421-C80-F 1 XS5H-D421-C80-F
2 XS2H-D421-D80-F 2 XS5H-D421-D80-F
3 — 3 XS5H-D421-E80-F
5 XS2H-D421-G80-F 5 XS5H-D421-G80-F
Spatter-resistant
cable 0.3 XS2H-D421-A80-SA 0.3 XS5H-D421-A80-SA
1 XS2H-D421-C80-SA 1 XS5H-D421-C80-SA

*For details, refer to the data sheet of the XS5 Round Water-resistant Connectors (M12 Smartclick).
Note 1. Only DC, straight, 4-core types, and common cable specifications are shown above. Refer to the catalog for other products.
Note 2. Other than the M12 sizes introduced above, M8-sized (XS3) products are also available.
For details, refer to the data sheet of the XS3 Round Water-resistant Connectors (M8/S8).

XS2W Sockets and Plugs on Cable Ends

Cable
Specifi-
cations Cable connection
direction Cable
diam-
eter
(mm) No. of
cable
cores Cable core
cross-
sectional
area (mm²) Cable
length L
(m) DC UL
Model
Fire-
retardant,
Robot
cable Straight/Straight 6.0
dia. 4 0.5 1 XS2W-D421-C81-F UL 2238
acquired
(File No.
E207683)
2 XS2W-D421-D81-F
3 XS2W-D421-E81-F
5 XS2W-D421-G81-F
10 XS2W-D421-J81-F
Right-angle/
Right-angle 2 XS2W-D422-D81-F
5 XS2W-D422-G81-F
Straight (Socket)/
Right-angle (Plug) 2 XS2W-D423-D81-F
5 XS2W-D423-G81-F
Right-angle (Socket)/
Straight (Plug) 2 XS2W-D424-D81-F
5 XS2W-D424-G81-F
Spatter-
resistant
Cables Straight/Straight 6.6
dia. 2 XS2W-D421-D81-SA ---
5 XS2W-D421-G81-SA

Note: Ask your OMRON representative about other cable lengths, and about 5-core cables.

XS2F Socket on One Cable End

Cable core cross-sectional area (mm²) : 0.5

Cable
Specifications Cable
connec-
tion
direction No. of
cable
cores Cable
diameter
(mm) Cable
length
L (m) DC AC UL
Model Model
Fire-retardant,
Robot cable Straight 2 6.0 dia. 1 XS2F-D421-CA0-F XS2F-A421-CB0-F UL 2238
acquired
(File No.
E207683)
3 XS2F-D421-CC0-F ---
4 XS2F-D421-C80-F XS2F-A421-C90-F
2 2 XS2F-D421-DA0-F XS2F-A421-DB0-F
3 XS2F-D421-DC0-F ---
4 XS2F-D421-D80-F XS2F-A421-D90-F
2 5 XS2F-D421-GA0-F XS2F-A421-GB0-F
3 XS2F-D421-GC0-F ---
4 XS2F-D421-G80-F XS2F-A421-G90-F
2 10 XS2F-D421-JA0-F XS2F-A421-JB0-F
3 XS2F-D421-JC0-F ---
4 XS2F-D421-J80-F XS2F-A421-J90-F
Right-angle 2 1 XS2F-D422-CA0-F XS2F-A422-CB0-F
3 XS2F-D422-CC0-F ---
4 XS2F-D422-C80-F ---
2 2 XS2F-D422-DA0-F XS2F-A422-DB0-F
3 XS2F-D422-DC0-F ---
4 XS2F-D422-D80-F ---
2 5 XS2F-D422-GA0-F XS2F-A422-GB0-F
3 XS2F-D422-GC0-F ---
4 XS2F-D422-G80-F ---
2 10 XS2F-D422-JA0-F XS2F-A422-JB0-F
3 XS2F-D422-JC0-F ---
4 XS2F-D422-J80-F ---
Non-polar DC
Connectors with
Standard cable Straight 2 2 XS2F-D421-310 XS2F-A421-310 ---
2 5 XS2F-D421-410 XS2F-A421-410
Right-angle 2 2 XS2F-D422-310 XS2F-A422-310
2 5 XS2F-D422-410 XS2F-A422-410
E2E models with
conventional
connector pin with
Fire-retardant,
Robot cable Straight 2 2 XS2F-D421-DD0 --- ---
2 5 XS2F-D421-GD0 ---
Right-angle 2 2 XS2F-D422-DD0 ---
2 5 XS2F-D422-GD0 ---
Heat-resistant
cable up to
105°C * Straight 4 2 XS2F-E421-D80-E --- ---
5 XS2F-E421-G80-E ---
Right-angle 2 XS2F-E422-D80-E ---
5 XS2F-E422-G80-E ---
Spatter-
resistant cable Straight 4 6.6 dia. 2 XS2F-D421-D80-SA --- ---
5 XS2F-D421-G80-SA ---

Note: Ask your OMRON representative about other cable lengths.
* The heat-resistant fixture material is SUS316L stainless steel without surface treatment.

Cable connection
direction No. of cable cores Cable core cross-
sectional area (mm²) Cable length L
(m) DC UL
Model
Straight 5 0.3 2 XS2F-D521-DG0-A ---
5 XS2F-D521-GG0-A
10 XS2F-D521-JG0-A
Right-angle 2 XS2F-D522-DG0-A
5 XS2F-D522-GG0-A

Note: Ask your OMRON representative about other cable lengths.

XS2F-G/H Connectors with Cables, Socket on One Cable End, Screw Loosening-preventing Structure Type

Cable connection
direction No. of cable
cores Cable length L
(m) DC AC UL
Model Model
Straight 4 5 XS2F-G421-G80-F XS2F-H421-G90-F UL 2238 acquired
(File No. E207683)
10 XS2F-G421-J80-F XS2F-H421-J90-F
Right-angle 5 XS2F-G422-G80-F XS2F-H422-G90-F
10 XS2F-G422-J80-F XS2F-H422-J90-F

XS2F Sockets on One Cable End with Indicator

Cable
Specifi-
cations Cable
connec-
tion
direction Cable
diameter
(mm) No. of
cable
cores Cable core
cross-
sectional
area (mm²) Cable
length
L (m) LED Model UL
PVC Right-angle 5 dia. 3 0.34 2 PNP XS2F-M12PVC3A2MPLED UL 2238
acquired
(File No.
E207683)
5 XS2F-M12PVC3A5MPLED
10 XS2F-M12PVC3A10MPLED
2 NPN XS2F-M12PVC3A2MNLED
5 XS2F-M12PVC3A5MNLED
10 XS2F-M12PVC3A10MNLED
5.4 dia. 4 2 PNP XS2F-M12PVC4A2MPLED
5 XS2F-M12PVC4A5MPLED
10 XS2F-M12PVC4A10MPLED

XS2H Plugs on One Cable End

Cable connection direction : Straight Connectors

Cable
Specifi-
cations No. of
con-
nector
poles Cable
diameter
(mm) No. of
cable
cores Cable
core
cross-
sectional
area
(mm²) Cable
length
L (m) DC AC UL
Model Model
Fire-
retardant,
Robot
cable 4 6.0 dia. 2 0.5 0.3 XS2H-D421-AA0-F XS2H-A421-AB0-F UL 2238
acquired
(File No.
E207683)
3 XS2H-D421-AC0-F ---
4 XS2H-D421-A80-F XS2H-A421-A90-F
0.5 XS2H-D421-B80-F ---
2 1 XS2H-D421-CA0-F XS2H-A421-CB0-F
3 XS2H-D421-CC0-F ---
4 XS2H-D421-C80-F XS2H-A421-C90-F
2 XS2H-D421-D80-F ---
5 XS2H-D421-G80-F ---
Spatter-
resistant
cable 4 6.6 dia. 4 0.3 XS2H-D421-A80-SA --- ---
1 XS2H-D421-C80-SA ---
Standard
cable 5 6.0 dia. 5 0.3 0.3 XS2H-D521-AG0-A ---
1 XS2H-D521-CG0-A ---

Note: Ask your OMRON representative about other cable lengths.

XS2[] Sensor I/O Connectors on Cables (8-pole)

Connector type Cable
connection
direction Number
of cores Cable
length L
(m) Applicable
wire
diameter Model UL
Panel-mounting Plug — — — AWG22 to 28 XS2M-D824-4 —
Panel-mounting socket XS2P-D821-2 UL 2238
acquired
(File No.
E207683)
XS2P-D822-2
Plug on one cable end Straight 8 0.3 --- XS2H-D821-AH0-C
1 XS2H-D821-CH0-C
Socket on one cable end 2 XS2F-D821-DH0-C
5 XS2F-D821-GH0-C
Plug and socket on
both cable ends 2 XS2W-D821-DH1-C
5 XS2W-D821-GH1-C

Note: Ask your OMRON representative about other cable lengths.
Ask your OMRON representative about robot cable models (-R).

XS2G Crimping/Soldering Plug Assemblies

Suitable cable
(mm) Core
conductor
size (mm²) Suitable
sheath
material Cable connection
direction Connection
method DC AC UL
Model Model
6 dia. (5 to 6 dia.) 0.18 to 0.3
0.5 to 0.75 * PVC, PE,
PUR Straight Crimping XS2G-D4C1 XS2G-A4C1 UL 2238
acquired
(File No.
E207683)
0.5 max. Soldering XS2G-D421 XS2G-A421
Right-angle XS2G-D422 ---
4 dia. (4 to 5 dia.) 0.18 to 0.3
0.5 to 0.75 * Straight Crimping XS2G-D4C3 XS2G-A4C3
0.5 max. Soldering XS2G-D423 XS2G-A423
Right-angle XS2G-D424 ---
3 dia. (3 to 4 dia.) 0.18 to 0.3
0.5 to 0.75 * Straight Crimping XS2G-D4C5 XS2G-A4C5
0.5 max. Soldering XS2G-D425 XS2G-A425
Right-angle XS2G-D426 ---

*There are two types of contacts.
Note: Crimping plug pins are sold separately.
　　　Use a cable of mentioning. If you do not use one of these cables, there is a possibility that the performance can’t be met.
　　　Ask your OMRON representative about selecting a cable of other than above.

XS2U Crimping Pin for XS2G

Suitable core size (mm²) Model
0.18 to 0.3 XS2U-3121
0.5 to 0.75 XS2U-3122

XS2C Crimping/Soldering Socket Assemblies

Suitable cable
(mm) Core
conductor
size (mm²) Suitable
sheath
material Cable connection
direction Connection
method DC AC UL
Model Model
6 dia. (5 to 6 dia.) 0.18 to 0.3
0.5 to 0.75 * PVC, PE,
PUR Straight Crimping XS2C-D4C1 XS2C-A4C1 UL 2238
acquired
(File No.
E207683)
0.5 max. Soldering XS2C-D421 XS2C-A421
0.18 to 0.3
0.5 to 0.75 * Right-angle Crimping XS2C-D4C2 XS2C-A4C2
0.5 max. Soldering XS2C-D422 XS2C-A422
4 dia. (4 to 5 dia.) 0.18 to 0.3
0.5 to 0.75 * Straight Crimping XS2C-D4C3 XS2C-A4C3
0.5 max. Soldering XS2C-D423 XS2C-A423
0.18 to 0.3
0.5 to 0.75 * Right-angle Crimping XS2C-D4C4 XS2C-A4C4
0.5 max. Soldering XS2C-D424 XS2C-A424
3 dia. (3 to 4 dia.) 0.18 to 0.3
0.5 to 0.75 * Straight Crimping XS2C-D4C5 XS2C-A4C5
0.5 max. Soldering XS2C-D425 XS2C-A425
0.18 to 0.3
0.5 to 0.75 * Right-angle Crimping XS2C-D4C6 XS2C-A4C6
0.5 max. Soldering XS2C-D426 XS2C-A426

*There are two types of contacts.
Note: Crimping plug contacts are sold separately.
　　　Use a cable of mentioning. If you do not use one of these cables, there is a possibility that the performance can’t be met.
　　　Ask your OMRON representative about selecting a cable of other than above.

XS2U Crimping Pin for XS2C

Suitable core size (mm²) Model
0.18 to 0.3 XS2U-2221
0.5 to 0.75 XS2U-2222

XS2G Screw-on Plug Assemblies

No. of
poles Suitable cable (mm) Core
conductor
size (mm²) Suitable sheath
material Straight
connectors
(for DC) Right-angle
connectors
(for DC) UL
Model Model
5 8 dia. (7 to 8 dia.) 0.18 to 0.75 PVC, PE, PUR XS2G-D5S7 --- UL 2238 acquired
(File No. E207683)
7 dia. (6 to 7 dia.) XS2G-D5S9 ---
6 dia. (5 to 6 dia.) XS2G-D5S1 XS2G-D5S2
4 8 dia. (7 to 8 dia.) XS2G-D4S7 ---
7 dia. (6 to 7 dia.) XS2G-D4S9 ---
6 dia. (5 to 6 dia.) XS2G-D4S1 XS2G-D4S2
4 dia. (4 to 5 dia.) XS2G-D4S3 XS2G-D4S4
3 dia. (3 to 4 dia.) XS2G-D4S5 XS2G-D4S6

Note: XS2G Screw-on Plugs cannot be connected to side by side to the CN1 and CN2 connectors of XS2R Y-Joint Sockets/Plugs.
　　　Use a cable of mentioning. If you do not use one of these cables, there is a possibility that the performance can’t be met.
　　　Ask your OMRON representative about selecting a cable of other than above.

XS2C Screw-on Socket Assemblies

No. of
poles Suitable cable (mm) Core
conductor
size (mm²) Suitable sheath
material Straight
connectors
(for DC) Right-angle
connectors
(for DC) UL
Model Model
5 8 dia. (7 to 8 dia.) 0.18 to 0.75 PVC, PE, PUR XS2C-D5S7 --- UL 2238 acquired
(File No. E207683)
7 dia. (6 to 7 dia.) XS2C-D5S9 ---
6 dia. (5 to 6 dia.) XS2C-D5S1 XS2C-D5S2
4 8 dia. (7 to 8 dia.) XS2C-D4S7 ---
7 dia. (6 to 7 dia.) XS2C-D4S9 ---
6 dia. (5 to 6 dia.) XS2C-D4S1 XS2C-D4S2
4 dia. (4 to 5 dia.) XS2C-D4S3 XS2C-D4S4
3 dia. (3 to 4 dia.) XS2C-D4S5 XS2C-D4S6

Note: Use a cable of mentioning. If you do not use one of these cables, there is a possibility that the performance can’t be met.
　　　Ask your OMRON representative about selecting a cable of other than above.

XS2P Panel-mounting Sockets for Terminal Boxes

No. of
poles Lock method Pin shape * Applicable wire
diameter DC AC UL
Model Model
4 Rear lock Solder cup pin AWG20 to 28 XS2P-D421-2 XS2P-A421-2 UL 2238 acquired
(File No. E207683)
Front lock Solder cup pin XS2P-D422-2 XS2P-A422-2
DIP pin XS2P-D422-1 XS2P-A422-1
5 Front lock Solder cup pin XS2P-D522-2 --- —
DIP pin XS2P-D522-1 ---

*The solder cup pin is for wire mounting, and the DIP pin is for PCB mounting. Soldering is required for both pins.

XS2R Y-Joint Plug/Socket Connectors

Cable Connector DC UL
Cable length L (m) Model
With cable Connectors on both cable ends 0.5 XS2R-D426-B11-F UL 2238 acquired
(File No. E207683)
1 XS2R-D426-C11-F
2 XS2R-D426-D11-F
3 XS2R-D426-E11-F
Connector on one cable end 2 XS2R-D426-D10-F
5 XS2R-D426-G10-F

Cable Connector DC UL
Cable length L (m) Model
Without cable Connectors on both cable ends --- XS2R-D426-1 UL 2238 acquired
(File No. E207683)
XS2R-D426-5
XS2R-D426-81
XS2R-D426-82

Note: XS2G Screw-on Plugs cannot be connected side-by-side to the CN1 and CN2 connectors.
Consider using a crimping or soldering model instead. Refer to catalog Data Sheet for details.

XS2R T-Joint Plug/Socket Connectors

Type DC UL
Model
Aggregate model XS2R-D422-1 UL 2238 acquired
(File No. E207683)
XS2R-D422-5
Bifurcated model XS2R-D423-1
Daisy-chain model XS2R-D424-1

XS2M Sensor-embedded Plugs

No. of
poles Mounting method Pin shape Applicable wire
diameter DC AC UL
Model Model
4 Embedded with screw
threads Solder cup
pin AWG22 to 28 XS2M-D421 XS2M-A421 UL 2238 acquired
(File No. E207683)
Embedded without
screw threads XS2M-D422 XS2M-A422

XS2M Panel-mounting Plugs

No. of
poles Mounting method Pin shape *1 Applicable wire
diameter DC AC UL
Model Model
4 Flange-mounting Solder cup pin AWG22 to 28 XS2M-D423 XS2M-A423 UL 2238
acquired
(File No.
E207683)
Screw-mounting DIP pin --- XS2M-D424-1 XS2M-A424-1
Solder cup pin AWG20 to 28 XS2M-D424-2 XS2M-A424-2
5 Screw-mounting Solder cup pin XS2M-D524-2 ---
Solder cup pin XS2M-D524-4 *2 ---

*1. The solder cup pin is for wire mounting, and the DIP pin is for PCB mounting. Soldering is required for both pins.
*2. XS2M-D524-4 plugs have a metal body.
Note: 4-pole DC screw-mounting models (XS2M-D424-[]) with metal bodies are also available.
Ask your OMRON representative for details.

XS2Z Connector Covers
Waterproof Covers

Model Material Suitable connector
Model Mounting portion
XS2Z-11 Brass/
nickel plated XS2G/XS2H/XS2M/XS2R/XS2W/XS5H/XS5M/XS5W M12 male screw
XS2Z-22 XS2C/XS2R/XS2F/XS2P/XS2W/XW3B/XS5F/XS5W/
XS5R/XS5P/XW3D M12 female screw
(thread bracket)

Dust Covers

Model Materials Suitable connector
Model Mounting portion
XS2Z-13 Rubber/black XS2G/XS2H/XS2M/XS2R M12 male screw
XS2Z-14 XS2C/XS2R/XS2F/XS2P/XW3A/XW3B Pin block (female pins)
XS2Z-15 M12 female screw (thread bracket)

Loosening-preventing C-ring

Model Materials Suitable connector
XS2Z-18 POM XS2F/H/W

Sputter Protective Cover

Model Materials Suitable connector
XS2Z-31 Silicone rubber/black XS2F/XS2H/XS2W

Tools

Model
Torque Wrench XY2F-0004
Crimp Tool XY2F-0002
Locator XY2F-0003
Pin-block Extraction Tool XY2F-0001

last update: December 14, 2018

OMRON XS2 catalog
XS2 Round Water-resistant Connectors (M12 Threads)/Catalog

Catalog

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

XS2 Data Sheet -
[8669KB] Dec 14, 201820181214 XS2 Data Sheet

Sensor I/O Connector Over -
[3203KB] Apr 02, 201820180402 Sensor I/O Connector Over

NO. XS2

TYPE:Sensor I/O Connectors / Sensor Controllers Sensor I/O Connectors Copyright Statement

DATE:2021-06-09

Associated products:
XS5[]R Oil-resistant Connectors/Features XS5 Round Water-resistant Connectors (M12 Smartclick)/Features

Rated current	4 A
Rated voltage	250 VAC/VDC
Contact resistance (Connector)	40 mΩ max. (20 mV max. and 100 mA max.)
Insulation resistance	1,000 MΩ min. (at 500 VDC)
Dielectric strength (Connector)	1,500 VAC for 1 min (leakage current: 1 mA max.)
Degree of protection	IP67 (IEC60529)
Insertion tolerance	200 times
Cable holding strength	Cable diameter: 6 mm 98 N/15 s 4 to 5 mm 49 N/15 s 3 mm 29 N/15 s
Ambient operating temperature range	- 25°C to 70°C *
Ambient humidity range	20% to 85%

Model	XS2F/H/W	XS2F-LED	XS2M/R/P	XS2C/G
Contacts	Copper alloy/Gold plating	Brass
Thread bracket	Brass/Copper alloy *
Pin block	PBT resin	PA resin	PBT resin
O-ring	Rubber
Cover	Soft PBT resin	TPU resin	---	PBT resin
Cable	Fire-retardant, Robot cable	UL AWM2464 CL3, 6 mm dia. AWG20 (0.5 mm²)	---	---	---
Non-polar DC Connectors with Standard cable	6 mm dia. AWG20 (0.5 mm²)	---	---	---
E2E models with conventional connector pin with Fire-retardant, Robot cable	UL AWM2464 CL3, 6 mm dia. AWG20 (0.5 mm²)	---	---	---
Heat-resistant cable up to 105°C	6 mm dia. AWG20 (0.5 mm²)	---	---	---
Spatter-resistant cable	6.6 mm dia. AWG20 (0.5 mm²)	---	---	---
Standard cable (XS2F-LED)	---	UL AWM2464 5.0 mm dia. (3 conductors) 5.4 mm dia. (4 conductors) 0.34 mm²	---	---

Connector	Cable specifications	XS2: M12 Screw Connection	XS5: One-touch Smartclick Connection * (compatible with M12 connectors)
Cable length (m)	Model	Cable length (m)	Model
Connectors on both cable ends	Fire-retardant, robot cable	0.5	—	0.5	XS5W-D421-B81-F
1	XS2W-D421-C81-F	1	XS5W-D421-C81-F
2	XS2W-D421-D81-F	2	XS5W-D421-D81-F
3	XS2W-D421-E81-F	3	XS5W-D421-E81-F
4	—	4	XS5W-D421-F81-F
5	XS2W-D421-G81-F	5	XS5W-D421-G81-F
10	XS2W-D421-J81-F	10	XS5W-D421-J81-F
Spatter-resistant cable	2	XS2W-D421-D81-SA	2	XS5W-D421-D81-SA
5	XS2W-D421-G81-SA	5	XS5W-D421-G81-SA
Connector on one cable end (Socket)	Fire-retardant, robot cable	1	XS2F-D421-C80-F	1	XS5F-D421-C80-F
2	XS2F-D421-D80-F	2	XS5F-D421-D80-F
3	—	3	XS5F-D421-E80-F
5	XS2F-D421-G80-F	5	XS5F-D421-G80-F
10	XS2F-D421-J80-F	10	XS5F-D421-J80-F
Spatter-resistant cable	2	XS2F-D421-D80-SA	2	XS5F-D421-D80-SA
5	XS2F-D421-G80-SA	5	XS5F-D421-G80-SA
Connector on one cable end (Plug)	Fire-retardant, robot cable	0.3	XS2H-D421-A80-F	0.3	XS5H-D421-A80-F
0.5	XS2H-D421-B80-F	0.5	XS5H-D421-B80-F
1	XS2H-D421-C80-F	1	XS5H-D421-C80-F
2	XS2H-D421-D80-F	2	XS5H-D421-D80-F
3	—	3	XS5H-D421-E80-F
5	XS2H-D421-G80-F	5	XS5H-D421-G80-F
Spatter-resistant cable	0.3	XS2H-D421-A80-SA	0.3	XS5H-D421-A80-SA
1	XS2H-D421-C80-SA	1	XS5H-D421-C80-SA

Cable Specifi- cations	Cable connection direction	Cable diam- eter (mm)	No. of cable cores	Cable core cross- sectional area (mm²)	Cable length L (m)	DC	UL
Model
Fire- retardant, Robot cable	Straight/Straight	6.0 dia.	4	0.5	1	XS2W-D421-C81-F	UL 2238 acquired (File No. E207683)
2	XS2W-D421-D81-F
3	XS2W-D421-E81-F
5	XS2W-D421-G81-F
10	XS2W-D421-J81-F
Right-angle/ Right-angle	2	XS2W-D422-D81-F
5	XS2W-D422-G81-F
Straight (Socket)/ Right-angle (Plug)	2	XS2W-D423-D81-F
5	XS2W-D423-G81-F
Right-angle (Socket)/ Straight (Plug)	2	XS2W-D424-D81-F
5	XS2W-D424-G81-F
Spatter- resistant Cables	Straight/Straight	6.6 dia.	2	XS2W-D421-D81-SA	---
5	XS2W-D421-G81-SA

Cable Specifications	Cable connec- tion direction	No. of cable cores	Cable diameter (mm)	Cable length L (m)	DC	AC	UL
Model	Model
Fire-retardant, Robot cable	Straight	2	6.0 dia.	1	XS2F-D421-CA0-F	XS2F-A421-CB0-F	UL 2238 acquired (File No. E207683)
3	XS2F-D421-CC0-F	---
4	XS2F-D421-C80-F	XS2F-A421-C90-F
2	2	XS2F-D421-DA0-F	XS2F-A421-DB0-F
3	XS2F-D421-DC0-F	---
4	XS2F-D421-D80-F	XS2F-A421-D90-F
2	5	XS2F-D421-GA0-F	XS2F-A421-GB0-F
3	XS2F-D421-GC0-F	---
4	XS2F-D421-G80-F	XS2F-A421-G90-F
2	10	XS2F-D421-JA0-F	XS2F-A421-JB0-F
3	XS2F-D421-JC0-F	---
4	XS2F-D421-J80-F	XS2F-A421-J90-F
Right-angle	2	1	XS2F-D422-CA0-F	XS2F-A422-CB0-F
3	XS2F-D422-CC0-F	---
4	XS2F-D422-C80-F	---
2	2	XS2F-D422-DA0-F	XS2F-A422-DB0-F
3	XS2F-D422-DC0-F	---
4	XS2F-D422-D80-F	---
2	5	XS2F-D422-GA0-F	XS2F-A422-GB0-F
3	XS2F-D422-GC0-F	---
4	XS2F-D422-G80-F	---
2	10	XS2F-D422-JA0-F	XS2F-A422-JB0-F
3	XS2F-D422-JC0-F	---
4	XS2F-D422-J80-F	---
Non-polar DC Connectors with Standard cable	Straight	2	2	XS2F-D421-310	XS2F-A421-310	---
2	5	XS2F-D421-410	XS2F-A421-410
Right-angle	2	2	XS2F-D422-310	XS2F-A422-310
2	5	XS2F-D422-410	XS2F-A422-410
E2E models with conventional connector pin with Fire-retardant, Robot cable	Straight	2	2	XS2F-D421-DD0	---	---
2	5	XS2F-D421-GD0	---
Right-angle	2	2	XS2F-D422-DD0	---
2	5	XS2F-D422-GD0	---
Heat-resistant cable up to 105°C *	Straight	4	2	XS2F-E421-D80-E	---	---
5	XS2F-E421-G80-E	---
Right-angle	2	XS2F-E422-D80-E	---
5	XS2F-E422-G80-E	---
Spatter- resistant cable	Straight	4	6.6 dia.	2	XS2F-D421-D80-SA	---	---
5	XS2F-D421-G80-SA	---

Cable connection direction	No. of cable cores	Cable core cross- sectional area (mm²)	Cable length L (m)	DC	UL
Model
Straight	5	0.3	2	XS2F-D521-DG0-A	---
5	XS2F-D521-GG0-A
10	XS2F-D521-JG0-A
Right-angle	2	XS2F-D522-DG0-A
5	XS2F-D522-GG0-A

Cable connection direction	No. of cable cores	Cable length L (m)	DC	AC	UL
Model	Model
Straight	4	5	XS2F-G421-G80-F	XS2F-H421-G90-F	UL 2238 acquired (File No. E207683)
10	XS2F-G421-J80-F	XS2F-H421-J90-F
Right-angle	5	XS2F-G422-G80-F	XS2F-H422-G90-F
10	XS2F-G422-J80-F	XS2F-H422-J90-F

Cable Specifi- cations	Cable connec- tion direction	Cable diameter (mm)	No. of cable cores	Cable core cross- sectional area (mm²)	Cable length L (m)	LED	Model	UL
PVC	Right-angle	5 dia.	3	0.34	2	PNP	XS2F-M12PVC3A2MPLED	UL 2238 acquired (File No. E207683)
5	XS2F-M12PVC3A5MPLED
10	XS2F-M12PVC3A10MPLED
2	NPN	XS2F-M12PVC3A2MNLED
5	XS2F-M12PVC3A5MNLED
10	XS2F-M12PVC3A10MNLED
5.4 dia.	4	2	PNP	XS2F-M12PVC4A2MPLED
5	XS2F-M12PVC4A5MPLED
10	XS2F-M12PVC4A10MPLED

Cable Specifi- cations	No. of con- nector poles	Cable diameter (mm)	No. of cable cores	Cable core cross- sectional area (mm²)	Cable length L (m)	DC	AC	UL
Model	Model
Fire- retardant, Robot cable	4	6.0 dia.	2	0.5	0.3	XS2H-D421-AA0-F	XS2H-A421-AB0-F	UL 2238 acquired (File No. E207683)
3	XS2H-D421-AC0-F	---
4	XS2H-D421-A80-F	XS2H-A421-A90-F
0.5	XS2H-D421-B80-F	---
2	1	XS2H-D421-CA0-F	XS2H-A421-CB0-F
3	XS2H-D421-CC0-F	---
4	XS2H-D421-C80-F	XS2H-A421-C90-F
2	XS2H-D421-D80-F	---
5	XS2H-D421-G80-F	---
Spatter- resistant cable	4	6.6 dia.	4	0.3	XS2H-D421-A80-SA	---	---
1	XS2H-D421-C80-SA	---
Standard cable	5	6.0 dia.	5	0.3	0.3	XS2H-D521-AG0-A	---
1	XS2H-D521-CG0-A	---

Connector type	Cable connection direction	Number of cores	Cable length L (m)	Applicable wire diameter	Model	UL
Panel-mounting Plug	—	—	—	AWG22 to 28	XS2M-D824-4	—
Panel-mounting socket	XS2P-D821-2	UL 2238 acquired (File No. E207683)
XS2P-D822-2
Plug on one cable end	Straight	8	0.3	---	XS2H-D821-AH0-C
1	XS2H-D821-CH0-C
Socket on one cable end	2	XS2F-D821-DH0-C
5	XS2F-D821-GH0-C
Plug and socket on both cable ends	2	XS2W-D821-DH1-C
5	XS2W-D821-GH1-C

Suitable cable (mm)	Core conductor size (mm²)	Suitable sheath material	Cable connection direction	Connection method	DC	AC	UL
Model	Model
6 dia. (5 to 6 dia.)	0.18 to 0.3 0.5 to 0.75 *	PVC, PE, PUR	Straight	Crimping	XS2G-D4C1	XS2G-A4C1	UL 2238 acquired (File No. E207683)
0.5 max.	Soldering	XS2G-D421	XS2G-A421
Right-angle	XS2G-D422	---
4 dia. (4 to 5 dia.)	0.18 to 0.3 0.5 to 0.75 *	Straight	Crimping	XS2G-D4C3	XS2G-A4C3
0.5 max.	Soldering	XS2G-D423	XS2G-A423
Right-angle	XS2G-D424	---
3 dia. (3 to 4 dia.)	0.18 to 0.3 0.5 to 0.75 *	Straight	Crimping	XS2G-D4C5	XS2G-A4C5
0.5 max.	Soldering	XS2G-D425	XS2G-A425
Right-angle	XS2G-D426	---

Suitable core size (mm²)	Model
0.18 to 0.3	XS2U-3121
0.5 to 0.75	XS2U-3122

Suitable cable (mm)	Core conductor size (mm²)	Suitable sheath material	Cable connection direction	Connection method	DC	AC	UL
Model	Model
6 dia. (5 to 6 dia.)	0.18 to 0.3 0.5 to 0.75 *	PVC, PE, PUR	Straight	Crimping	XS2C-D4C1	XS2C-A4C1	UL 2238 acquired (File No. E207683)
0.5 max.	Soldering	XS2C-D421	XS2C-A421
0.18 to 0.3 0.5 to 0.75 *	Right-angle	Crimping	XS2C-D4C2	XS2C-A4C2
0.5 max.	Soldering	XS2C-D422	XS2C-A422
4 dia. (4 to 5 dia.)	0.18 to 0.3 0.5 to 0.75 *	Straight	Crimping	XS2C-D4C3	XS2C-A4C3
0.5 max.	Soldering	XS2C-D423	XS2C-A423
0.18 to 0.3 0.5 to 0.75 *	Right-angle	Crimping	XS2C-D4C4	XS2C-A4C4
0.5 max.	Soldering	XS2C-D424	XS2C-A424
3 dia. (3 to 4 dia.)	0.18 to 0.3 0.5 to 0.75 *	Straight	Crimping	XS2C-D4C5	XS2C-A4C5
0.5 max.	Soldering	XS2C-D425	XS2C-A425
0.18 to 0.3 0.5 to 0.75 *	Right-angle	Crimping	XS2C-D4C6	XS2C-A4C6
0.5 max.	Soldering	XS2C-D426	XS2C-A426

Suitable core size (mm²)	Model
0.18 to 0.3	XS2U-2221
0.5 to 0.75	XS2U-2222

No. of poles	Suitable cable (mm)	Core conductor size (mm²)	Suitable sheath material	Straight connectors (for DC)	Right-angle connectors (for DC)	UL
Model	Model
5	8 dia. (7 to 8 dia.)	0.18 to 0.75	PVC, PE, PUR	XS2G-D5S7	---	UL 2238 acquired (File No. E207683)
7 dia. (6 to 7 dia.)	XS2G-D5S9	---
6 dia. (5 to 6 dia.)	XS2G-D5S1	XS2G-D5S2
4	8 dia. (7 to 8 dia.)	XS2G-D4S7	---
7 dia. (6 to 7 dia.)	XS2G-D4S9	---
6 dia. (5 to 6 dia.)	XS2G-D4S1	XS2G-D4S2
4 dia. (4 to 5 dia.)	XS2G-D4S3	XS2G-D4S4
3 dia. (3 to 4 dia.)	XS2G-D4S5	XS2G-D4S6

No. of poles	Suitable cable (mm)	Core conductor size (mm²)	Suitable sheath material	Straight connectors (for DC)	Right-angle connectors (for DC)	UL
Model	Model
5	8 dia. (7 to 8 dia.)	0.18 to 0.75	PVC, PE, PUR	XS2C-D5S7	---	UL 2238 acquired (File No. E207683)
7 dia. (6 to 7 dia.)	XS2C-D5S9	---
6 dia. (5 to 6 dia.)	XS2C-D5S1	XS2C-D5S2
4	8 dia. (7 to 8 dia.)	XS2C-D4S7	---
7 dia. (6 to 7 dia.)	XS2C-D4S9	---
6 dia. (5 to 6 dia.)	XS2C-D4S1	XS2C-D4S2
4 dia. (4 to 5 dia.)	XS2C-D4S3	XS2C-D4S4
3 dia. (3 to 4 dia.)	XS2C-D4S5	XS2C-D4S6

No. of poles	Lock method	Pin shape *	Applicable wire diameter	DC	AC	UL
Model	Model
4	Rear lock	Solder cup pin	AWG20 to 28	XS2P-D421-2	XS2P-A421-2	UL 2238 acquired (File No. E207683)
Front lock	Solder cup pin	XS2P-D422-2	XS2P-A422-2
DIP pin	XS2P-D422-1	XS2P-A422-1
5	Front lock	Solder cup pin	XS2P-D522-2	---	—
DIP pin	XS2P-D522-1	---

Cable	Connector	DC	UL
Cable length L (m)	Model
With cable	Connectors on both cable ends	0.5	XS2R-D426-B11-F	UL 2238 acquired (File No. E207683)
1	XS2R-D426-C11-F
2	XS2R-D426-D11-F
3	XS2R-D426-E11-F
Connector on one cable end	2	XS2R-D426-D10-F
5	XS2R-D426-G10-F

Cable	Connector	DC	UL
Cable length L (m)	Model
Without cable	Connectors on both cable ends	---	XS2R-D426-1	UL 2238 acquired (File No. E207683)
XS2R-D426-5
XS2R-D426-81
XS2R-D426-82

Type	DC	UL
Model
Aggregate model	XS2R-D422-1	UL 2238 acquired (File No. E207683)
XS2R-D422-5
Bifurcated model	XS2R-D423-1
Daisy-chain model	XS2R-D424-1

No. of poles	Mounting method	Pin shape	Applicable wire diameter	DC	AC	UL
Model	Model
4	Embedded with screw threads	Solder cup pin	AWG22 to 28	XS2M-D421	XS2M-A421	UL 2238 acquired (File No. E207683)
Embedded without screw threads	XS2M-D422	XS2M-A422

No. of poles	Mounting method	*Pin shape 1**	Applicable wire diameter	DC	AC	UL
Model	Model
4	Flange-mounting	Solder cup pin	AWG22 to 28	XS2M-D423	XS2M-A423	UL 2238 acquired (File No. E207683)
Screw-mounting	DIP pin	---	XS2M-D424-1	XS2M-A424-1
Solder cup pin	AWG20 to 28	XS2M-D424-2	XS2M-A424-2
5	Screw-mounting	Solder cup pin	XS2M-D524-2	---
Solder cup pin	*XS2M-D524-4 2**	---

Model	Material	Suitable connector
Model	Mounting portion
XS2Z-11	Brass/ nickel plated	XS2G/XS2H/XS2M/XS2R/XS2W/XS5H/XS5M/XS5W	M12 male screw
XS2Z-22	XS2C/XS2R/XS2F/XS2P/XS2W/XW3B/XS5F/XS5W/ XS5R/XS5P/XW3D	M12 female screw (thread bracket)

Model	Materials	Suitable connector
Model	Mounting portion
XS2Z-13	Rubber/black	XS2G/XS2H/XS2M/XS2R	M12 male screw
XS2Z-14	XS2C/XS2R/XS2F/XS2P/XW3A/XW3B	Pin block (female pins)
XS2Z-15	M12 female screw (thread bracket)

Model	Materials	Suitable connector
XS2Z-18	POM	XS2F/H/W

Model	Materials	Suitable connector
XS2Z-31	Silicone rubber/black	XS2F/XS2H/XS2W

	Model
Torque Wrench	XY2F-0004
Crimp Tool	XY2F-0002
Locator	XY2F-0003
Pin-block Extraction Tool	XY2F-0001

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
XS2 Data Sheet	- [8669KB]	Dec 14, 201820181214	XS2 Data Sheet
Sensor I/O Connector Over	- [3203KB]	Apr 02, 201820180402	Sensor I/O Connector Over

Return to OMRON
