OMRON ZFV-C Dimensions

/Images/l_1746-25-119085-198x198.jpg

last update: January 8, 2014

• One-touch automatic setting for stable detection

• 2.2-inch monitor integrated in compact housing

• Sensor Heads with field of view up to 150 mm

last update: January 8, 2014

Purchase the OMRON Other Vision Sensors Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON ZFV-C Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the ZFV-C We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON ZFV-CSensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

NS-NSRCL1 / 3 / 10 Machine Monitoring Software NS-Runtime/Features
E3S-R Transparent Object Detection Sensor/Features
E4PA-N Ultrasonic Displacement Sensor/Features
61F-UHS / HSL Floatless Level Switch (Ultra High-sensitivity Type)/Features
V680 Series RFID System/Features

OMRON ZFV-C lineup
ZFV-C Smart Sensors with Ultra-High-Speed Color CCD Cameras/Lineup
last update: January 07, 2016
Sensor Heads

Appearance Type Setting distance Sensing area Degree of
protection Model
Narrow View 34 to 49 mm
(variable) 5 ✕ 4.6 mm to 9 ✕ 8.3 mm
(variable) IP65 ZFV-SC10
IP65 ZFV-SC10R *
Standard 31 to 187 mm
(variable) 10 ✕ 9.2 mm to 50 ✕ 46 mm
(variable) IP65 ZFV-SC50
IP65 ZFV-SC50R *
IP67 ZFV-SC50W
Wide View 66 to 141 mm
(variable) 50 ✕ 46 mm (H ✕ V) to
90 ✕ 83 mm (H ✕ V) IP65 ZFV-SC90
IP65 ZFV-SC90R *
IP67 ZFV-SC90W
Ultra-wide View 114 to 226 mm
(variable) 90 ✕ 83 mm (H ✕ V) to
150 ✕ 138 mm (H ✕ V) IP65 ZFV-SC150
IP65 ZFV-SC150R *
IP67 ZFV-SC150W

* Robot Cable type.

Amplifier Units

Appearance Type Power supply Output type Model
Single-function Amplifier Unit 24 VDC NPN ZFV-CA40
PNP ZFV-CA45
Multifunction Amplifier Unit NPN ZFV-CA50
PNP ZFV-CA55

Accessories
Data Storage Units

Appearance Power supply Output type Model
24 VDC NPN ZS-DSU11
PNP ZS-DSU41

Controller Link Unit

Appearance Model
ZS-XCN

Sensor Head Extension Cable

Cable length Model
3 m ZFV-XC3BV2
3 m ZFV-XC3BRV2 (Robot cable type)
8 m ZFV-XC8BV2 *

Note: A maximum of two Extension Cables can be connected to extend the cable length of each Sensor Head. There are
no restrictions on the combinations of the two Extension Cables to be used.
* The ZFV-XC8BV2 Extension Cable can be used only with ZFV-SC10/SC50/SC50W Sensor Heads.

Panel-mounting Adapter

Appearance Model
ZS-XPM1 First Unit
ZS-XPM2 Additional Units (for expansion)

External Lighting

Appearance Type Model
Bar Lighting ZFV-LTL01
Bar Double Lighting ZFV-LTL02
Bar Low-angle Lighting ZFV-LTL04
Light Source for Through-beam Lighting ZFV-LTF01

last update: January 07, 2016

OMRON ZFV-C catalog
ZFV-C Smart Sensors with Ultra-High-Speed Color CCD Cameras/Catalog

Catalog

Manual

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

ZFV-C Data Sheet -
[2563KB] Jan 06, 201620160106 ZFV-C Data Sheet

OMRON ZFV-C specification
ZFV-C Smart Sensors with Ultra-High-Speed Color CCD Cameras/Specifications
last update: January 08, 2014
Sensor Heads

Item ZFV-
SC10 ZFV-
SC10R ZFV-
SC50/
SC50W ZFV-
SC50R ZFV-
SC90/
SC90W ZFV-
SC90R ZFV-
SC150/
SC150W ZFV-
SC150R
Type Narrow View Type Standard Type Wide View Type Ultra-wide View Type
Setting distance (L) 34 to 49 mm
(variable) 31 to 187 mm
(variable) 67 to 142 mm
(variable) 115 to 227 mm
(variable)
Sensing range (H × V) 5 × 4.6 mm to
9 × 8.3 mm
(variable) 10 × 9.2 mm to
50 × 46 mm
(variable) 50 × 46 mm to
90 × 83 mm
(variable) 90 × 83 mm to
150 × 138 mm
(variable)
Relation between setting
distance and sensing
range
Built-in lens Focus: f15.65 Focus: f13.47 Focus: f6.1 ---
Object lighting method Pulse lighting
Object light source Eight white LEDs Thirty-six white
LEDs Twenty white LEDs Seventy-two white
LEDs
Optional lighting
interface No Yes No
Sensing element 1/3-inch CCD
Shutter Electronic shutter, shutter time: 1/500 to 1/8,000
Power supply voltage 15 VDC (Supplied
from Amplifier Unit.) 15 VDC, 48 VDC (Supplied from Amplifier Unit.)
Current consumption Approx. 200 mA Approx. 350 mA (15 V: approx. 150 mA, 48 V: approx. 200 mA,
including current when external light is connected)
Dielectric strength 1,000 VAC, 50/60 Hz for 1 min
Vibration resistance
(destruction) 10 to 150 Hz, 0.35-mm single amplitude, 10 times each in X, Y, and Z directions for 8 min
Shock resistance
(destruction) 150 m/s², three times each in six directions (up/down, left/right, forward/backward)
Ambient temperature
range Operating: 0 to 40°C, Storage: -20 to +65°C (with no icing or condensation)
Ambient humidity range Operating and storage: 35% to 85% (with no condensation)
Ambient atmosphere Must be free of corrosive gas.
Connection method Prewired, Standard cable length: 2 m
Cable length Standard
Cable:
2m Robot
Cable:
2m Standard
Cable:
2m Robot
Cable:
2m Standard
Cable:
2m Robot
Cable:
2m Standard
Cable:
2m Robot
Cable:
2m
Degree of protection
(IEC 60529 standard) IP65 ZFV-SC[][][]: IP65 ZFV-SC[][][]W: IP67 ZFV-SC[][]R: IP65
Materials Case ABS
Mounting
brack ZFV-SC[][][]/SC[][][]W/SC150R: PBT
ZFV-SC10R/SC50R/SC90R base: aluminum, bracket: stainless steel
Weight (including
mounting bracket and
cord) Approx.
200 g Approx.
270 g Approx.
270 g Approx.
400 g Approx.
300 g Approx.
400 g Approx. 600 g
Accessories Mounting
brack ZFV-
XMF (1) ZFV-
XMF3 (1) ZFV-
XMF2 (1) ZFV-
XMF4 (1) ZFV-
XMF2 (1) ZFV-
XMF4 (1) ---
Ferrite core 2
Instruction
sheet 1
LED class Risk Group 1 (IEC62471)

Amplifier Units

Item ZFV-CA40 ZFV-CA45 ZFV-CA50 ZFV-CA55
Output method NPN open collector,
30 VDC 50 mA max.,
residual voltage 1.2
V max. PNP open collector,
50 mA max.,
residual voltage 1.2
V max. NPN open collector,
30 VDC 50 mA max.,
residual voltage 1.2
V max. PNP open collector,
50 mA max.,
residual voltage 1.2
V max.
Serial I/O USB2.0 1 port, full-speed (12 Mbps) MINI-B
RS-232C 1 port, 115200 bps max.
Number of inspection items
that can be executed
simultaneously 1 item 8 items max.
Inspection items Patterns (PATTERN), Brightness (BRIGHT), Area (AREA), Width (WIDTH),
Position (POSITION), Count (COUNT), Color inspection (HUE), Character (CHARA)
Teaching area Rectangular, one area
Teaching area size Patterns (PATTERN), Brightness (BRIGHT): Any rectangular area (256 × 256 max.)
Area (AREA), Width (WIDTH), Position (POSITION), Count (COUNT),
Color inspection (HUE), Character (CHARA): Any rectangular area (full screen max.)
Sensing area Full screen
Resolution 468 ✕ 432 (H ✕ V) max.
Number of
models that
can be
registered Amplifier Unit 8 models 1 model *2
External bank
*1 128 models 16 models *2
logging *1 Logging trigger Stores NG images or all images (selectable).
Sampling rate ZFV measurement cycle *2
Number of
logged images Logs up to 128 images in series
Image input cycle 13 ms (Standard), 8 ms (FAST mode), 5 ms (MAX mode)
Other functions Control output switching: ON for OK or ON for NG, ON delay/OFF delay, One-shot
output, "ECO" mode
Gang-mounting Amplifier
Units 5 units max. Not connectable
Output signals (1) Control output (OUTPUT) (2) Enable output (ENABLE) (3) Error output (ERROR)
Input signals (1) Sync measurement input (TRIG)/Continuous measurement input (TRIG); switched
from menu
(2) Bank selection input (BANK1-3)
(3) Object stationary teaching (TEACH)/Object motion teaching (TEACH); switched
from menu
Sensor Head interface Digital interface
Image display TFT 2.2-inch LCD (Display dots: 930 ✕ 234)
Indicators · Judgment result indicator (OUTPUT, Color: orange)
· Inspection mode indicator (RUN, Color: green)
· Error indicator (ERR, Color: red) · Ready status indicator (READY, Color: blue)
Operation interface · Cursor keys (up, down, left, right) · Setting key (SET) · Escape key (ESC)
· Operating mode switching (slide switch) · Menu switching (slide switch)
· Teaching/Display switching key (TEACH/VIEW) · Function keys (A to D, 4 inputs)
Power supply voltage 20.4 to 26.4 VDC (including ripple)
Current consumption 800mA max. (with Sensor Head ZFV-SC10/SC50/SC90 connected, power supply
voltage 24VDC)
930mA max. (with Sensor Head ZFV-SC150 /Option Lighting Unit ZFV-LTL01/LTL02
connected, power supply voltage 24VDC)
1050mA max. (Option Lighting Unit ZFV-LTL04/LTF01 connected, power supply voltage
24VDC)
Dielectric strength 1,000 VAC, 50/60 Hz for 1 min between leads and Amplifier Unit case
Noise immunity 1 kV, Pulse rise: 5 ns, Pulse width: 50 ns, Burst duration: 15 ms, Cycle: 300 ms
Vibration resistance
(destruction) 10 to 150 Hz, 0.1-mm single amplitude, 10 times each in X, Y, and Z directions for 8 min
Shock resistance
(destruction) 150 m/s², three times each in six directions (up/down, left/right, forward/backward)
Ambient temperature range Operating: 0 to 50°C, Storage: -25 to +65°C (with no icing or condensation)
Ambient humidity range Operating and storage: 35% to 85% (with no condensation)
Ambient atmosphere Must be free of corrosive gas.
Degree of protection IEC 60529, IP20
Materials Polycarbonate
Weight Approx. 300 g (including cord; packaged condition: 450 g)
Accessories Ferrite core (1), Instruction sheet

*1 A ZS-DSU Data Storage Unit is required. There are restrictions in the versions of Units that can be connected. Ask your
OMRON representative for details.
*2 If there is only one inspection item, the measurement mode can be switched to Single Bank Mode to increase the
number of models that can be registered to eight for the Amplifier Unit and 128 for the external bank.

last update: January 08, 2014

OMRON ZFV-C dimension
ZFV-C Smart Sensors with Ultra-High-Speed Color CCD Cameras/Dimensions
last update: January 08, 2014

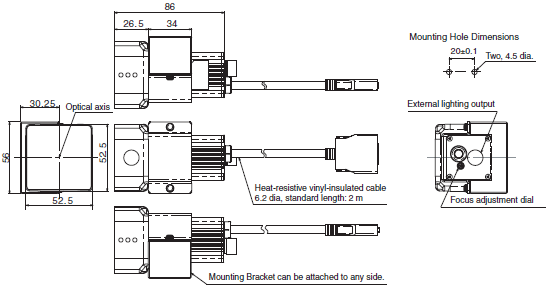

Sensor Heads

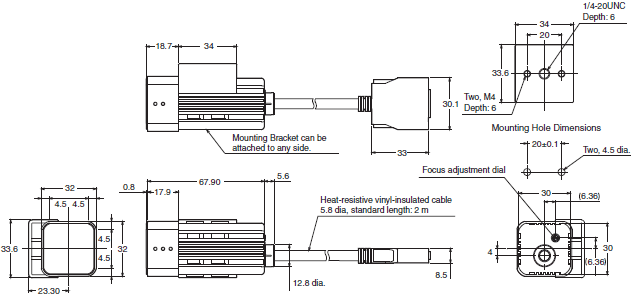

ZFV-SC10

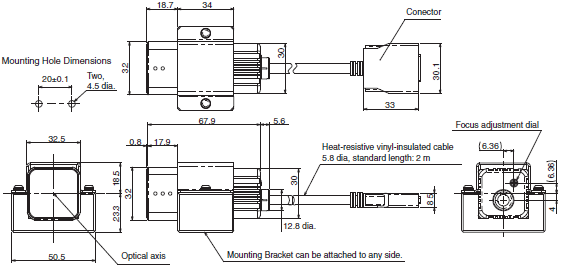

ZFV-SC10R

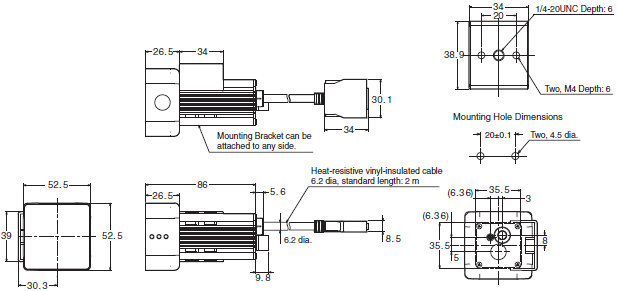

ZFV-SC50/SC50W

ZFV-SC50R

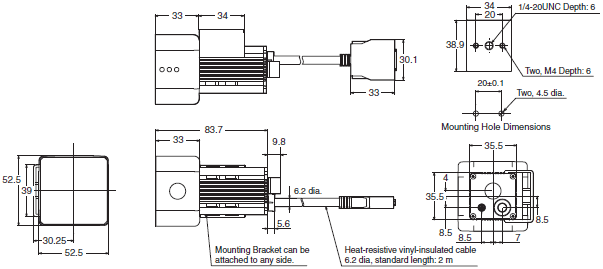

ZFV-SC90/SC90W

ZFV-SC90R

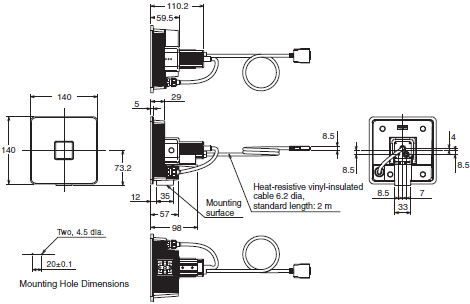

ZFV-SC150/SC150W/SC150R

Amplifier Units

ZFV-CA[][]

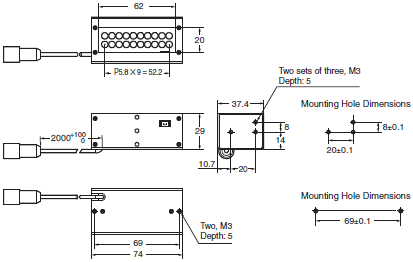

Optional Lighting

ZFV-LTL01

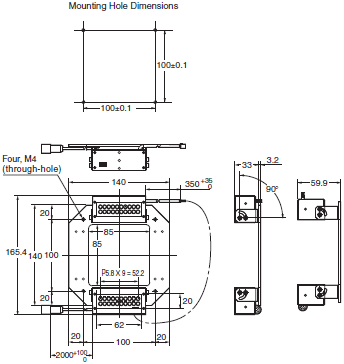

ZFV-LTL02

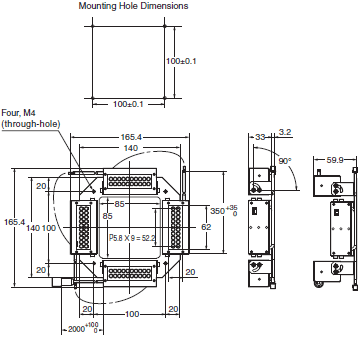

ZFV-LTL04

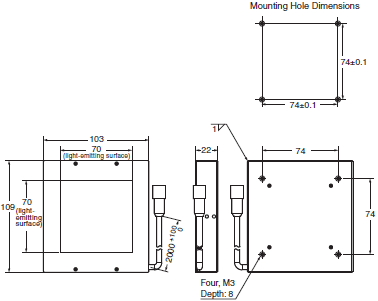

ZFV-LTF01

last update: January 08, 2014

NO. ZFV-C

TYPE:Vision Sensors / Machine Vision Systems Other Vision Sensors Copyright Statement

DATE:2021-06-08

Associated products:
ZFX Smart Sensor (Vision sensor with built-in LCD monitor)/Features E2E / E2EQ NEXT Series Proximity Sensor/Features

Appearance	Type	Setting distance	Sensing area	Degree of protection	Model
	Narrow View	34 to 49 mm (variable)	5 ✕ 4.6 mm to 9 ✕ 8.3 mm (variable)	IP65	ZFV-SC10
IP65	ZFV-SC10R *
Standard	31 to 187 mm (variable)	10 ✕ 9.2 mm to 50 ✕ 46 mm (variable)	IP65	ZFV-SC50
IP65	ZFV-SC50R *
IP67	ZFV-SC50W
Wide View	66 to 141 mm (variable)	50 ✕ 46 mm (H ✕ V) to 90 ✕ 83 mm (H ✕ V)	IP65	ZFV-SC90
IP65	ZFV-SC90R *
IP67	ZFV-SC90W
Ultra-wide View	114 to 226 mm (variable)	90 ✕ 83 mm (H ✕ V) to 150 ✕ 138 mm (H ✕ V)	IP65	ZFV-SC150
IP65	ZFV-SC150R *
IP67	ZFV-SC150W

Appearance	Type	Power supply	Output type	Model
	Single-function Amplifier Unit	24 VDC	NPN	ZFV-CA40
PNP	ZFV-CA45
Multifunction Amplifier Unit	NPN	ZFV-CA50
PNP	ZFV-CA55

Appearance	Power supply	Output type	Model
	24 VDC	NPN	ZS-DSU11
PNP	ZS-DSU41

Appearance	Model
	ZS-XCN

Cable length	Model
3 m	ZFV-XC3BV2
3 m	ZFV-XC3BRV2 (Robot cable type)
8 m	ZFV-XC8BV2 *

Appearance	Model
	ZS-XPM1	First Unit
	ZS-XPM2	Additional Units (for expansion)

Appearance	Type	Model
	Bar Lighting	ZFV-LTL01
	Bar Double Lighting	ZFV-LTL02
	Bar Low-angle Lighting	ZFV-LTL04
	Light Source for Through-beam Lighting	ZFV-LTF01

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.
Catalog Name	Catalog Number [size]	Last Update
ZFV-C Data Sheet	- [2563KB]	Jan 06, 201620160106	ZFV-C Data Sheet

Item	ZFV- SC10	ZFV- SC10R	ZFV- SC50/ SC50W	ZFV- SC50R	ZFV- SC90/ SC90W	ZFV- SC90R	ZFV- SC150/ SC150W	ZFV- SC150R
Type	Narrow View Type	Standard Type	Wide View Type	Ultra-wide View Type
Setting distance (L)	34 to 49 mm (variable)	31 to 187 mm (variable)	67 to 142 mm (variable)	115 to 227 mm (variable)
Sensing range (H × V)	5 × 4.6 mm to 9 × 8.3 mm (variable)	10 × 9.2 mm to 50 × 46 mm (variable)	50 × 46 mm to 90 × 83 mm (variable)	90 × 83 mm to 150 × 138 mm (variable)
Relation between setting distance and sensing range
Built-in lens	Focus: f15.65	Focus: f13.47	Focus: f6.1	---
Object lighting method	Pulse lighting
Object light source	Eight white LEDs	Thirty-six white LEDs	Twenty white LEDs	Seventy-two white LEDs
Optional lighting interface	No	Yes	No
Sensing element	1/3-inch CCD
Shutter	Electronic shutter, shutter time: 1/500 to 1/8,000
Power supply voltage	15 VDC (Supplied from Amplifier Unit.)	15 VDC, 48 VDC (Supplied from Amplifier Unit.)
Current consumption	Approx. 200 mA	Approx. 350 mA (15 V: approx. 150 mA, 48 V: approx. 200 mA, including current when external light is connected)
Dielectric strength	1,000 VAC, 50/60 Hz for 1 min
Vibration resistance (destruction)	10 to 150 Hz, 0.35-mm single amplitude, 10 times each in X, Y, and Z directions for 8 min
Shock resistance (destruction)	150 m/s², three times each in six directions (up/down, left/right, forward/backward)
Ambient temperature range	Operating: 0 to 40°C, Storage: -20 to +65°C (with no icing or condensation)
Ambient humidity range	Operating and storage: 35% to 85% (with no condensation)
Ambient atmosphere	Must be free of corrosive gas.
Connection method	Prewired, Standard cable length: 2 m
Cable length	Standard Cable: 2m	Robot Cable: 2m	Standard Cable: 2m	Robot Cable: 2m	Standard Cable: 2m	Robot Cable: 2m	Standard Cable: 2m	Robot Cable: 2m
Degree of protection (IEC 60529 standard)	IP65	ZFV-SC[][][]: IP65 ZFV-SC[][][]W: IP67 ZFV-SC[][]R: IP65
Materials	Case	ABS
Mounting brack	ZFV-SC[][][]/SC[][][]W/SC150R: PBT ZFV-SC10R/SC50R/SC90R base: aluminum, bracket: stainless steel
Weight (including mounting bracket and cord)	Approx. 200 g	Approx. 270 g	Approx. 270 g	Approx. 400 g	Approx. 300 g	Approx. 400 g	Approx. 600 g
Accessories	Mounting brack	ZFV- XMF (1)	ZFV- XMF3 (1)	ZFV- XMF2 (1)	ZFV- XMF4 (1)	ZFV- XMF2 (1)	ZFV- XMF4 (1)	---
Ferrite core	2
Instruction sheet	1
LED class	Risk Group 1 (IEC62471)

Item	ZFV-CA40	ZFV-CA45	ZFV-CA50	ZFV-CA55
Output method	NPN open collector, 30 VDC 50 mA max., residual voltage 1.2 V max.	PNP open collector, 50 mA max., residual voltage 1.2 V max.	NPN open collector, 30 VDC 50 mA max., residual voltage 1.2 V max.	PNP open collector, 50 mA max., residual voltage 1.2 V max.
Serial I/O	USB2.0	1 port, full-speed (12 Mbps) MINI-B
RS-232C	1 port, 115200 bps max.
Number of inspection items that can be executed simultaneously	1 item	8 items max.
Inspection items	Patterns (PATTERN), Brightness (BRIGHT), Area (AREA), Width (WIDTH), Position (POSITION), Count (COUNT), Color inspection (HUE), Character (CHARA)
Teaching area	Rectangular, one area
Teaching area size	Patterns (PATTERN), Brightness (BRIGHT): Any rectangular area (256 × 256 max.) Area (AREA), Width (WIDTH), Position (POSITION), Count (COUNT), Color inspection (HUE), Character (CHARA): Any rectangular area (full screen max.)
Sensing area	Full screen
Resolution	468 ✕ 432 (H ✕ V) max.
Number of models that can be registered	Amplifier Unit	8 models	1 model *2
External bank *1	128 models	16 models *2
Image logging *1	Logging trigger	Stores NG images or all images (selectable).
Sampling rate	ZFV measurement cycle *2
Number of logged images	Logs up to 128 images in series
Image input cycle	13 ms (Standard), 8 ms (FAST mode), 5 ms (MAX mode)
Other functions	Control output switching: ON for OK or ON for NG, ON delay/OFF delay, One-shot output, "ECO" mode
Gang-mounting Amplifier Units	5 units max.	Not connectable
Output signals	(1) Control output (OUTPUT) (2) Enable output (ENABLE) (3) Error output (ERROR)
Input signals	(1) Sync measurement input (TRIG)/Continuous measurement input (TRIG); switched from menu (2) Bank selection input (BANK1-3) (3) Object stationary teaching (TEACH)/Object motion teaching (TEACH); switched from menu
Sensor Head interface	Digital interface
Image display	TFT 2.2-inch LCD (Display dots: 930 ✕ 234)
Indicators	· Judgment result indicator (OUTPUT, Color: orange) · Inspection mode indicator (RUN, Color: green) · Error indicator (ERR, Color: red) · Ready status indicator (READY, Color: blue)
Operation interface	· Cursor keys (up, down, left, right) · Setting key (SET) · Escape key (ESC) · Operating mode switching (slide switch) · Menu switching (slide switch) · Teaching/Display switching key (TEACH/VIEW) · Function keys (A to D, 4 inputs)
Power supply voltage	20.4 to 26.4 VDC (including ripple)
Current consumption	800mA max. (with Sensor Head ZFV-SC10/SC50/SC90 connected, power supply voltage 24VDC) 930mA max. (with Sensor Head ZFV-SC150 /Option Lighting Unit ZFV-LTL01/LTL02 connected, power supply voltage 24VDC) 1050mA max. (Option Lighting Unit ZFV-LTL04/LTF01 connected, power supply voltage 24VDC)
Dielectric strength	1,000 VAC, 50/60 Hz for 1 min between leads and Amplifier Unit case
Noise immunity	1 kV, Pulse rise: 5 ns, Pulse width: 50 ns, Burst duration: 15 ms, Cycle: 300 ms
Vibration resistance (destruction)	10 to 150 Hz, 0.1-mm single amplitude, 10 times each in X, Y, and Z directions for 8 min
Shock resistance (destruction)	150 m/s², three times each in six directions (up/down, left/right, forward/backward)
Ambient temperature range	Operating: 0 to 50°C, Storage: -25 to +65°C (with no icing or condensation)
Ambient humidity range	Operating and storage: 35% to 85% (with no condensation)
Ambient atmosphere	Must be free of corrosive gas.
Degree of protection	IEC 60529, IP20
Materials	Polycarbonate
Weight	Approx. 300 g (including cord; packaged condition: 450 g)
Accessories	Ferrite core (1), Instruction sheet

Return to OMRON
