OMRON XW2D Dimensions
/Images/l_864-25-119066-198x198.jpglast update: December 19, 2013
• Mounting area reduced by 35% (in comparison with 40-pole XW2B Units) to contribute to downsizing control panels and automatic equipment.
• Fallout prevention for terminal screws.
• Round or forked crimp terminals can be used.
• Mount to DIN Track or via screws.
Unique DIN Track lock can maintain open status during DIN Track attachment and removal.
• Terminal cover can be locked open.
• Screw terminals are arranged by color in groups of five to simplify counting terminal numbers.
last update: December 19, 2013
Purchase the OMRON Connector-Terminal Block Conversion Units Please fill in the following
If you have just landed here, this product OMRON XW2D Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the XW2D We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON XW2DPower Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
D5V Contact Displacement Sensor/Features
E2S Super-compact Proximity Sensor/Features
Accessories 61F Connecting Sockets, Mounting Brackets, DIN Rails/Features
G3NA Solid State Relays/Features
CS1W-PMV SYSMAC CS-series Process Analog I/O Units/Features
OMRON XW2D lineup
XW2D Slim Connector-Terminal Block Conversion Units/Lineuplast update: June 22, 2017
Connectors
| Mounted Connector | No. of poles | Model | Mounted Connector model | Cable Connector model |
|---|---|---|---|---|
| XG4A MIL Connectors | 20 | XW2D-20G6 | XG4A-2031 | XG4M-2030-T |
| 34 | XW2D-34G6 | XG4A-3431 | XG4M-3430-T | |
| 40 | XW2D-40G6 | XG4A-4031 | XG4M-4030-T | |
| XW2D-40G6-RF *1 | XG4A-4031 | XG4M-4030-T | ||
| XW2D-40G6-RM *2 | XG4A-4031 | XG4M-4030-T | ||
| 50 | XW2D-50G6 | XG4A-5031 | XG4M-5030-T | |
| MR Sockets | 20 | XW2D-20X6 | MR-20RFD2 *3 | MR-20M *3 |
| 34 | XW2D-34X6 | MR-34RFD2 *3 | MR-34M *3 | |
| 50 | XW2D-50X6 | MR-50RFD2 *3 | MR-50M *3 | |
| MR Plugs | 20 | XW2D-20Y6 | MR-20RMD2 *3 | MR-20F*3 |
| 34 | XW2D-34Y6 | MR-34RMD2 *3 | MR-34F *3 | |
| 50 | XW2D-50Y6 | MR-50RMD2 *3 | MR-50F *3 |
*1. This model has built-in bleeder resistance and is used for inputs to Units with Fujitsu connectors, i.e., the CJ1W-ID231/
-ID261/-MD261.
*2. This model has built-in bleeder resistance and is used for inputs on Units with MIL connectors, i.e., the CJ1W-ID232/
-ID262/-MD263/-MD563.
*3. The MR Connector is made by Honda Tsushin Kogyo.
Accessories (Order Separately)
Connecting Cables for Connector-Terminal Block Conversion Units
Refer to the XW2Z Datasheet.
last update: June 22, 2017
OMRON XW2D catalog
XW2D Slim Connector-Terminal Block Conversion Units/Catalog- Catalog
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 XW2D Data Sheet | - [730KB] | Jul 06, 201820180706 | XW2D Data Sheet |
| XW2 Series Table of Connector-Terminal Block Conversion Units and connectable device combinations | G129-E1-02 [950KB] | Jun 01, 201820180601 | XW2 Series Table of Connector-Terminal Block Conversion Units and connectable device combinations |
OMRON XW2D dimension
XW2D Slim Connector-Terminal Block Conversion Units/Dimensionslast update: June 22, 2017
(Unit: mm)

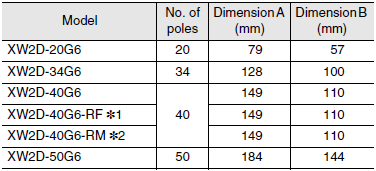

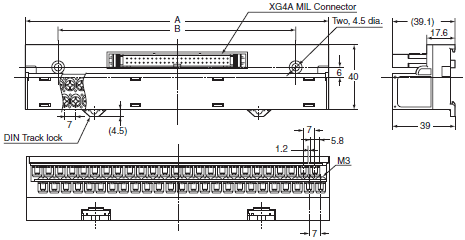

XW2D-[][]G6
Mounted Connector: XG4A MIL Connector
Note: There is only one DIN Track lock located in the center of the terminal block for a 20-pole Unit.
*1. This model has built-in bleeder resistance and is used for inputs to Units with Fujitsu connectors, i.e., the CJ1W-
ID231/-ID261/-MD261.
*2. This model has built-in bleeder resistance and is used for inputs on Units with MIL connectors, i.e., the CJ1W-ID232/
-ID262/-MD263/-MD563.

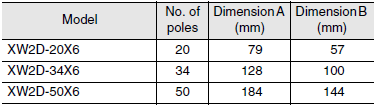

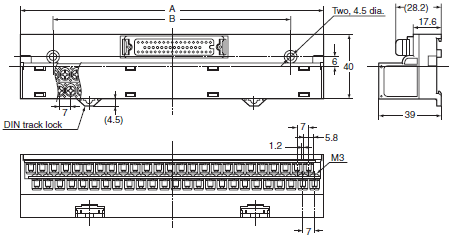

XW2D-[][]X6
Mounted Connector: MR Socket
Note: There is only one DIN Track lock located in the center of the Connector for a 20-pole Unit.

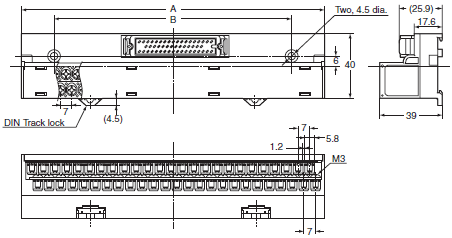

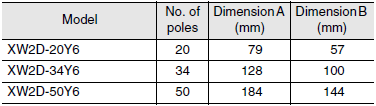

XW2D-[][]Y6
Mounted Connector: MR Plug
Note: There is only one DIN Track lock located in the center of the terminal block for a 20-pole Unit.
last update: June 22, 2017
OMRON XW2D specification
XW2D Slim Connector-Terminal Block Conversion Units/Specificationslast update: September 24, 2012
| Rated current | 1 A |
|---|---|
| Rated voltage | 125 VAC, 24 VDC |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric strength | 500 VAC for 1 min (leakage current: 1 mA max.) |
| Ambient operating temperature | 0 to 55°C |
last update: September 24, 2012
