• Slim amplifier (50 × 7.5 × 12 mm) can be handled like a cable.
• Provided with two operation indicators, enabling monitoring from the amplifier housing and sensor head.
• Simple wiring with a 3-conductor cable.
• Wide operating voltage range: 12 to 24 VDC
last update: April 19, 2017
Purchase the OMRON Through-beam Please fill in the following
If you have just landed here, this product OMRON EE-SPW321 / 421 Sensors,Sensors is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Sensors at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the EE-SPW321 / 421 We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON EE-SPW321 / 421Sensors tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
E3ZR-C Oil-resistant Photoelectric Sensors/Features
E3S-A Built-in Amplifier Photoelectric Sensor (Medium Size)/Features
G3RV Solid State Relays/Features
E5EC, E5EC-B Digital Temperature Controller (48 x 96 mm)/Features
CJ1W-PTS CJ-series Process Analog I/O Unit/Features
OMRON EE-SPW321 / 421 dimension
EE-SPW321 / 421 Photomicrosensor with Amplifier and Cable/Dimensionslast update: November 12, 2012

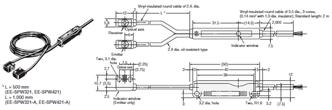

Tolerance class IT16 applies to dimensions in this datasheet unless otherwise specified.
