OMRON V400-F Sensors

• V400-F 2D Code Reader/Dimensions
• V400-F 2D Code Reader/Lineup
• V400-F 2D Code Reader/Specifications
• V400-F 2D Code Reader/Catalog
• Purchase the OMRON V400-F Code Readers

OMRON V400-F Dimensions

last update: December 19, 2013

Simplified Setup...
For Faster Startups

Simpler Selection with a One-piece Design

The selection process is greatly simplified by the integrated lens and lighting design.
No more worrying about having to match each workpiece to a vast number of lens and lighting combinations.

Easier Initial Adjustments

Teaching functions that anybody can use.

Easy, one-step teaching lets you set the reading parameters instantly.
Naturally, adjustments are also possible using commands from external devices.
* Support Software is also available for setting the parameters from a personal computer.
  (Ask your OMRON representative or dealer for details.)

Banks...
Dramatically Reduce Process Changeover Steps

Change the Process without Stopping the Line

The Auto Bank Change function lets the operator automatically change preset reading conditions recorded in banks. Up to five banks can be set in advance to greatly reduce bothersome steps when changing the line process.

High Performance...
For Stable Reading

Stable, Accurate Reading for Any Workpiece

We have achieved high accuracy for directly marked codes by combining the industry's most advanced reading algorithm with lighting control that is optimized for data reading. Even directly marked 2D codes printed onto materials with varying reflectivity, such as metals, printed wiring boards, and glass, can be read with excellent accuracy.

Three Types to Choose from for Each Application

There are three 2D Code Readers to choose from to matchyour application. This enables flexible response to differentworkpieces and production site conditions. Use the C-mountmodel when specific settings are necessary for the lighting orlens.

Sensitive Response to Workpiece Changes

The Retry and Preprocess Filtering functions allow stable reading even under harsh conditions. They eliminate the effects of printing conditions and workpiece changes, such as oil, ambient light, and varying substrate types.

Retry Function

Multiple readings can be taken while changing the exposure time and adjusting the brightness of the light.

Preprocess Filtering Function

Three of the following four types of filtering can be usedfor images that have been taken: Smoothing, Dilation,Erosion, and Median.

last update: December 19, 2013

Purchase the OMRON Code Readers Please fill in the following

---

OMRON V400-F dimension

V400-F 2D Code Reader/Dimensions

last update: March 01, 2016

2D Code Readers

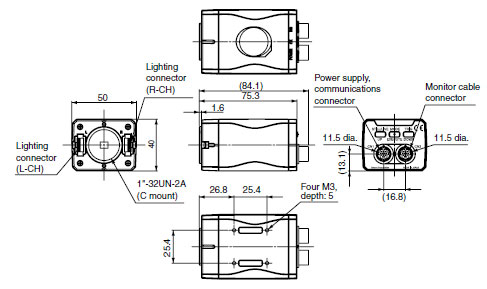

V400-F050

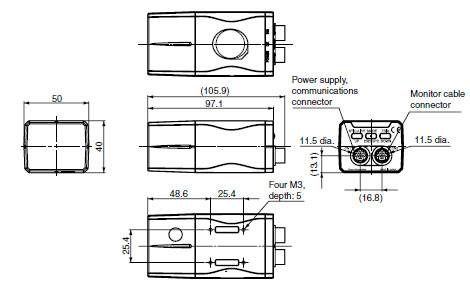

V400-F250/350

Communications Cable and Monitor Cable

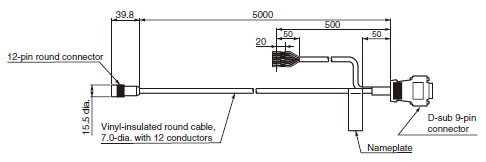

V400-W23/23P/24/24P

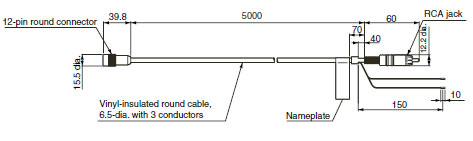

V400-WM0

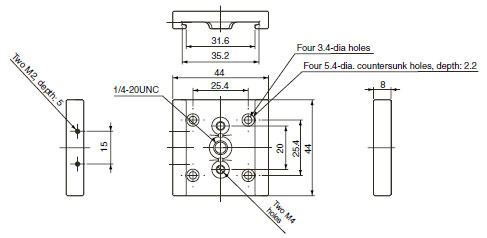

Mounting Base

last update: March 01, 2016

OMRON V400-F lineup

V400-F 2D Code Reader/Lineup

last update: April 21, 2016

2D Code Readers

Name	Model	Field of vision
Special Lighting Lens	V400-F250	14 ´ 18 mm
	V400-F350	31 ´ 42 mm
C-Mount	V400-F050	Changes according to the lens.

Accessories (Order Separately) and Cables

Name	Model	Cable length	Remarks
Communications Cable	V400-W23 5M (NPN)	5 m	For connection to SYSMAC Series PLC (includes power line)
	V400-W23P 5M (PNP)
	V400-W24 5M (NPN)		For connection to an IBM PC/AT or compatible (includes power line)
	V400-W24P 5M (PNP)
Monitor Cable	V400-WM0 5M	5 m

last update: April 21, 2016

OMRON V400-F specification

V400-F 2D Code Reader/Specifications

last update: March 01, 2016

Model	V400-F050	V400-F250	V400-F350
Dimensions	40 ´ 50 ´ 75.3 mm	40 ´ 50 ´ 97.1 mm
Working distance (WD)	Depends on the lens.	Approx. 100 mm	Approx. 200 mm
Field of vision	Depends on the lens.	Approx. 14 ´ 18 mm	Approx. 31 ´ 42 mm
Lighting	Up to two can be directly powered	Red LED
Applicable codes	Data Matrix, ECC200, 10 ´ 10 to 64 ´ 64, 8 ´ 18 to 16 ´ 48, QR Code (Models 1, 2), 21 ´ 21 to 57 ´ 57 (Versions 1 to 10)
Image sensor	1/3" CCD
Effective pixels	640 ´ 480 pixels
Power supply voltage	24 VDC ±10%
Power consumption	0.5 A max. (power consumption for monitor, not included)
Insulation resistance	20 MΩ min.
Withstand voltage	1,000 VAC for 1 min
Leakage current	0.25 mA max.
Noise resistance	Power line: 2 kVp-p, Pulse width: 50 ns, Rise time: 5 ns, Consecutive burst time: 15 ms, Cycle: 300 ms
Applicable standards	CE: EN 61326:1997, +A1:1998, +A2:2001 (EMI: Class A)
Vibration resistance	10 to 150 Hz, 0.35-mm half-amplitude (maximum acceleration: 50 m/s2) 10 times for 8 minutes each in 3 directions
Shock resistance	150 m/s2 3 times each in 6 directions
Ambient humidity	Operating: 0 to 45°C, Storage: -25 to 65°C
Ambient temperature	Operating/storage: 25% to 85% (with no icing or condensation)
Ambient environment	No corrosive gasses
Degree of protection	None	IEC 60529 IP67
Weight	Approx. 130 g	Approx. 150 g

last update: March 01, 2016

OMRON V400-F catalog

V400-F 2D Code Reader/Catalog

• Catalog
• Manual
• CAD

English

Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.

*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name	Catalog Number [size]	Last Update
V400-F Catalog	Q148-E1 [1597KB]	Apr 21, 201620160421	V400-F Catalog
