Opening Constructed Not to Obstruct Laminar Airflow
The opening does not obstruct the airflow from the Air Clean Unit eliminating worries about disrupting the laminar airflow.
Wide Discharge Area by Adopting Variable DC Ionization Method
Variale DC ionization is used to discharge over a wide area.
Automatic Ion Balance
Two Sensors provide constant feedback on the ion balance to maintain uniform discharging.
Self-diagnosis and Display Functions
LED indicators and external outputs provide notification when discharge needles require cleaning or discharge errors occur. Cleaning outputs are made at two levels: warnings and alarms.
Ozone Buildup Prevention (Patent pending)
Discharging is stopped when a signal indicating that the Air Clean Unit fan has stopped is received. This function prevents ozone from remaining due to discharging.
Simple Maintenance
Discharge needles are modular and can be easily replaced.
Simple Mounting and Wiring
The Ionizer can be installed easily by inserting it between the Air Clean Unit and the top of the Clean Booth and securing it with screws. Wiring work is greatly reduced by the connectors used for connection to the Air Clean Units.
last update: December 19, 2013
Purchase the OMRON Copyright Statement Please fill in the following
If you have just landed here, this product OMRON ZN-J Energy Conservation Support / Environment Measure Equipment,Energy Conservation Support / Environment Measure Equipment is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Energy Conservation Support / Environment Measure Equipment at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the ZN-J We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON ZN-JEnergy Conservation Support / Environment Measure Equipment tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
ZX-E Smart Sensors (Inductive Displacement Type)/Features
E2NC Smart Proximity Sensor/Features
MS4800 Series Safety Light Curtain/Features
E5GC Digital Temperature Controller (48 × 24 mm)/Features
CRT1-VID08S(-1) / VOD08S(-1) Digital I/O Slave Units with e-CON Connector (Vertical type)/Features
OMRON ZN-J lineup
ZN-J Ionizers for Air Clean Unit/Lineuplast update: September 24, 2012
Ionizers
| Appearance | Application | Power supply | Model |
|---|---|---|---|
 | 250 × 250 mm | Supplied from the Air Clean Unit. | ZN-J25A * |
| 410 × 410 mm | ZN-J41A * |
Note: Connection Cable to the Air Clean Unit is provided. (Air Clean Units should be ordered separately.)
Accessories
| Model | Qty. | |
|---|---|---|
| Replacement Discharge Needles | ZN9-JH04 | 4 per pack |
Single-sided Connector Cables
(for DC power supply or I/O connection)
| Cable length | Model | Qty. |
|---|---|---|
| 2 m | ZN9-JC02 | 1 |
last update: September 24, 2012
OMRON ZN-J dimension
ZN-J Ionizers for Air Clean Unit/Dimensionslast update: September 24, 2012

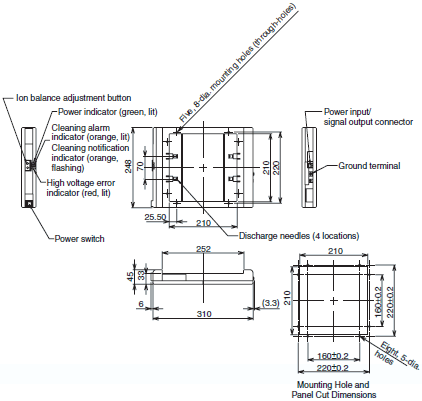

ZN-J25A

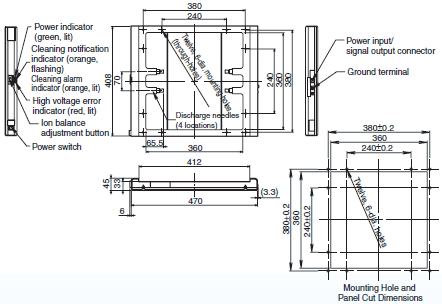

ZN-J41A
last update: September 24, 2012
OMRON ZN-J specification
ZN-J Ionizers for Air Clean Unit/Specificationslast update: October 10, 2012
| Model | ZN-J25A | ZN-J41A |
|---|---|---|
| Applicable Air Clean Units | ZN-A2502 | ZN-A4105 |
| Power supply voltage | 24 VDC±10%, Ripple (p-p): 10% max. | |
| Current consumption | 300 mA max | |
| Output voltage | ±7 kV max | |
| Discharge method | Variable DC | |
| Discharge time (typical) *1 | 5 s max. | |
| Ion balance (typical) *2 | ±30 V max. | |
| Indicators | Power (green), Cleaning notice (orange flashing), Cleaning alarm (orange), High voltage error (red) | |
| Outputs | High voltage error output, cleaning output: photo-MOS relay (30 VDC, 300 mA max.) | |
| Functions | Manual Ion balance adjustment, cleaning alarm, high voltage error alarm | |
| Ambient temperature range | Operating and storage: 0 to 40°C (with no icing or condensation) | |
| Ambient humidity range | Operating and storage: 35% to 65% (with no condensation) | |
| Materials | Unit: ABS, Discharge needles: Tungsten | |
| Dimensions (mm) | 248 × 310 × 45 mm (W × D × H) | 408 × 470 × 45 mm (W × D × H) |
| Weight | Approx. 0.6 kg (Packed state: Approx. 1.4 kg) | Approx. 1.5 kg (Packed state: Approx. 2.7 kg) |
| Accessories | Instruction Sheet Sealing parts Mounting screws Connector cable for Air Clean Unit (excluding ZN- A2502D, ZN-A4105D.) Ferrite core English warning label | Instruction Sheet Sealing parts Mounting screws Connector cable for Air Clean Unit (excluding ZN- A2502D, ZN-A4105D.) Ferrite core English warning label |
Note 1. Measurement conditions:
Distance: 300 mm
Air Clean Unit: ZN-A Series with air level 5 at center of air outlet
Discharging from ±1000 V to ±100 V with Charge Plate Monitor (150 × 150 mm, 20 pF)
Temperature: 18 to 28°C, Humidity: 35% to 65%
The performance may not be satisfied when gases such as solvents are in the measurement area.
2. Measurement conditions:
Distance: 300 mm
Air Clean Unit: ZN-A Series with air level 5 at center of air outlet
Discharging with Charge Plate Monitor (150 × 150 mm, 20 pF) for 10 s
Temperature: 18 to 28°C, Humidity: 35% to 65%
The performance may not be satisfied when gases such as solvents are in the measurement area.
last update: October 10, 2012
OMRON ZN-J catalog
ZN-J Ionizers for Air Clean Unit/Catalog- Catalog
- Manual
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 ZN Series Catalog | E383-E1-01 [2417KB] | Jul 03, 201720170703 | ZN Series Catalog |
- NO. ZN-J
- TYPE:Clean Equipment Copyright Statement Copyright Statement
- DATE:2021-06-18
- Associated products:
ZN-A Air Clean Units/Features K6CM Motor Condition Monitoring Device/Features
