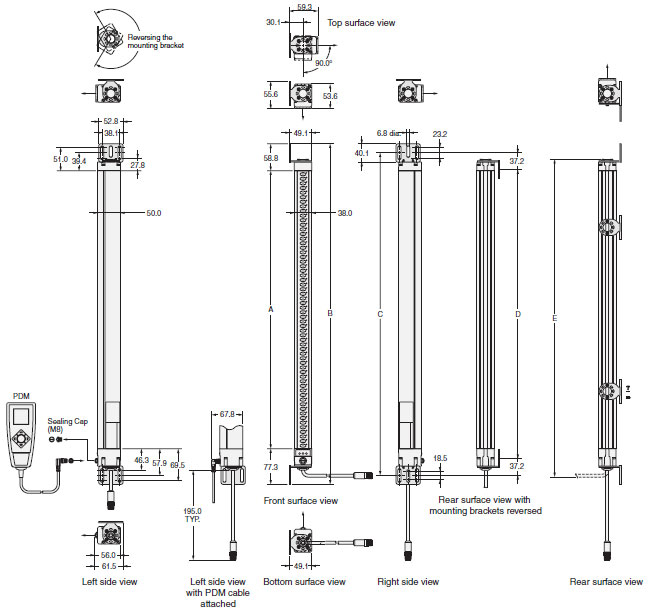

OMRON MS4800 Series Dimensions
/Images/l_1960-25-118985-198x198.jpglast update: December 19, 2013
Durable Housing with a Thickness of 3 mm Min. Withstands Vibration and Impacts
Unlike conventional Safety Light Curtains, the MS4800 Series uses a thick aluminum case (3 mm at its thinnest parts). This makes it ideal for applications with considerable vibration or impacts.
Long Maximum Sensing Distance of 20 m
The long, 20-m maximum sensing distance of the MS4800 Series marks the highest level in the industry. Even in applications where large, complicated machines are guarded, the use of mirrors can reduce the number of Safety Light Curtains required.
A Wide Lineup for a Variety of Applications
Two series are available to meet your needs: the Advanced Series with sophisticated functions and the Basic Series with specialized, basic functions.
Series Connection of Up to Four Systems with No Controller Necessary
(Allowing a total of 256 beams max.) (MSF4800 only)
Up to four systems can be connected in series (for a total of 256 beams) without having to connect a controller. Models for which the smallest detectable object is different can even be connected to respond flexibly to virtually any application.
Intuitive Operation with the Programming and Diagnostics Module (PDM)
Complete with an LCD that displays in either English or Japanese, the PDM makes it easy and intuitive to program, change settings, and troubleshoot the MS4800 Series.
- Easy operation with five function buttons.
- Allows setting changes and status monitoring.
- IP65 protection.
- Safety outputs operate while the PDM is connected, making it possible to monitor during operation.
Easy-to-understand Individual Beam Indicators (IBI)
The MS4800-series Receiver is equipped with OMRON STI's unique Individual Beam Indicator (IBI) function. When a beam is interrupted, or when it is out of alignment, an individual LED lights at each corresponding Receiver beam position to notify the operator. This makes it easy to align beams even from a distance. An error code is also displayed when an error is occurs. (This function is provided only on the Receiver.)
Four Blanking Functions for Disabling Beams (Advanced series only)
When a machine or a workpiece is present inside the sensing area of the Safety Light Curtain, the output turns OFF and the machine cannot be started. However, a blanking function can be used to disable the appropriate beams of the Safety Light Curtain and allow work to continue without stopping the machine. The MS4800 Series provides four blanking functions to combine both safety and productivity in a wide range of applications.
Fixed Blanking
This function is used when a machine or workpiece constantly interrupts beams in a part of the sensing area. Fixed Blanking allows the Safety Light Curtain to remain in the RUN state while the obstruction is fixed (as a non-moving object) within the sensing area. The output is turned OFF when a beam other than the set fixed blanking beams is interrupted, or when light is incident on a fixed blanking beam.
Floating Blanking
This function turns OFF the output when the total number of interrupted beams inside the sensing area exceeds the number of set beams (1 or 2).
Monitored Blanking
This function is used when a machine or workpiece constantly interrupts beams in a part of the sensing area and moves within the sensing area. Monitored Blanking allows the Safety Light Curtain to remain in the RUN state while the obstruction moves within the sensing area. The output is turned OFF when the machine or workpiece disappears from the monitored blanking area that was set by teaching, or when the total number of interrupted beams increases due to a different obstruction.
Reduced Resolution Blanking
When the resolution of the MS/MSF4800A is reduced, the size of the smallest detectable object is increased. The output will not turn OFF regardless of how many continuous interrupted beams there are in the sensing area as long as the beams are fewer than the set number (1, 2, or 3 beams). When an object whose size exceeds the set number of beams intrudes, the output is turned OFF. For example, in an application where a conveyor cart approaches a robot work area, the Safety Light Curtain can be set so that it does not detect only the wheels of the cart, allowing the MS/MSF4800A to be used as a presence sensing device.
Muting Functions for Temporarily Disabling the Safety Light Curtain (MSF4800A only)
In applications where it is necessary for an object to regularly pass through the sensing area, for example to supply workpieces to a machine, the output will turn OFF each time the object passes through, thus lowering productivity. The muting function makes it possible to raise productivity in this kind of application by temporarily disabling the Safety Light Curtain.
Select from among four muting modes to match each application with the appropriate number and placement of muting sensors.
Complies with the Newest Global Safety Standards
The MS4800-series Safety Light Curtains comply with ISO 13849-1 (Safety Category 4, Ple).
They are Type 4 safety light curtains under the IEC 61496-1 and IEC 61496-2 international standards for safety light curtains. They also comply with the IEC 61508 (SIL3) international standard for function safety.
These standards ensure safe, reliable use virtually anywhere.
last update: December 19, 2013
Purchase the OMRON Safety Light Curtains Please fill in the following
If you have just landed here, this product OMRON MS4800 Series Safety Components,Safety Components is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Safety Components at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the MS4800 Series We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON MS4800 SeriesSafety Components tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.
FZ-LES Series Lens for FZ-series Small Cameras/Features
H3DT-N / -L Multi-range, Multi-mode Timer/Features
CP1W-MODTCP61 CP1 Modbus/TCP Adapter/Features
CJ1W-MD CJ-series Mixed I/O Units/Features
S3D2 Sensor Controller/Features
OMRON MS4800 Series catalog
MS4800 Series Safety Light Curtain/Catalog- Catalog
- CAD
English
Global Edition
| Catalog Name | Catalog Number [size] | Last Update | |
|---|---|---|---|
 MS4800 Series Catalog | F084-E1-01 [4671KB] | Jun 11, 201820180611 | MS4800 Series Catalog |
OMRON MS4800 Series lineup
MS4800 Series Safety Light Curtain/Lineuplast update: June 11, 2018
Safety Light Curtains
MS/MSF4800-series Safety Light Curtains
| Series | Minimum detectable object | Beam gap | Sensing distance | Number of beams | Protective height (mm) | Model | ||
|---|---|---|---|---|---|---|---|---|
| Individual use | Series connection (for muting *1) | |||||||
| Advanced Series | 30-mm-dia. | 20 mm | 0.3 to 20 m (Infrared light) | 14 to 106 | 280 to 2120 | MS4800A-30-[] | Master | MSF4800A-30-[] |
| Slave *2 | MSF4800-30-[]-XR2 | |||||||
| 40-mm-dia. | 30 mm | 12 to 68 | 360 to 2040 | MS4800A-40-[] | Master | MSF4800A-40-[] | ||
| Slave *2 | MSF4800-40-[]-XR2 | |||||||
| Basic Series | 30-mm-dia. | 20 mm | 14 to 106 | 280 to 2120 | MS4800B-30-[] | Master | MSF4800B-30-[] | |
| Slave *2 | MSF4800-30-[]-XR2 | |||||||
| 40-mm-dia. | 30 mm | 12 to 68 | 360 to 2040 | MS4800B-40-[] | Master | MSF4800B-40-[] | ||
| Slave *2 | MSF4800-40-[]-XR2 | |||||||
Note: A 4-digit number indicating the protective height of the Light Curtain must be included in place of the box ([]) in the
model number.
*1. There is no muting function in Basic-series Safety Light Curtains.
*2. The same Slave Light Curtains are used for both the Advanced Series and Basic Series. These Slaves cannot be
used individually.
Functional Comparison of Advanced Series and Basic Series
| Function | Series | Advanced Series | Basic Series |
|---|---|---|---|
| Model | MS/MSF4800A | MS/MSF4800B | |
| Scan code for mutual interference reduction | Supported. *1 | Supported. *1 | |
| External device monitoring (EDM) | Supported. *2 | Supported. *2 | |
| Operation mode | Supported. *1 | Supported. *1 | |
| Machine test signal (MTS) | Supported. *1 | Supported. *1 | |
| Auxiliary output (PNP transistor x 1, or NPN transistor x 1) | Supported. *1 | Supported. (PNP/control output synchronizing only) | |
| Muting via the MS4800-RM6 Resource Module | Supported. *1 (MSF4800A only) | ||
| Floating blanking | Supported. *1 | ||
| Fixed blanking | Supported. *1 | ||
| Monitored blanking | Supported. *1 | ||
| Reduced resolution blanking | Supported. *1 | ||
| Sensing distance setting | Supported. *1 | Supported. *1 | |
| Start input method | Supported. *1 | ||
| Response time adjustment | Supported. *1 | ||
*1. This function can be set by using the Programming and Diagnostics Module (PDM).
*2. This function can be set by using the PDM or a wiring connection.
Safety Light Curtain Model List
Advanced-series Curtains Used Individually
(Minimum detectable object: 30-mm dia., Beam gap: 20 mm)
| Model | Number of beams | Protective height (mm) |
|---|---|---|
| MS4800A-30-0280 | 14 | 280 |
| MS4800A-30-0320 | 16 | 320 |
| MS4800A-30-0360 | 18 | 360 |
| MS4800A-30-0400 | 20 | 400 |
| MS4800A-30-0440 | 22 | 440 |
| MS4800A-30-0480 | 24 | 480 |
| MS4800A-30-0520 | 26 | 520 |
| MS4800A-30-0560 | 28 | 560 |
| MS4800A-30-0600 | 30 | 600 |
| MS4800A-30-0640 | 32 | 640 |
| MS4800A-30-0680 | 34 | 680 |
| MS4800A-30-0720 | 36 | 720 |
| MS4800A-30-0760 | 38 | 760 |
| MS4800A-30-0800 | 40 | 800 |
| MS4800A-30-0840 | 42 | 840 |
| MS4800A-30-0880 | 44 | 880 |
| MS4800A-30-0920 | 46 | 920 |
| MS4800A-30-0960 | 48 | 960 |
| MS4800A-30-1000 | 50 | 1000 |
| MS4800A-30-1040 | 52 | 1040 |
| MS4800A-30-1080 | 54 | 1080 |
| MS4800A-30-1120 | 56 | 1120 |
| MS4800A-30-1160 | 58 | 1160 |
| MS4800A-30-1200 | 60 | 1200 |
| MS4800A-30-1240 | 62 | 1240 |
| MS4800A-30-1280 | 64 | 1280 |
| MS4800A-30-1320 | 66 | 1320 |
| MS4800A-30-1360 | 68 | 1360 |
| MS4800A-30-1400 | 70 | 1400 |
| MS4800A-30-1440 | 72 | 1440 |
| MS4800A-30-1480 | 74 | 1480 |
| MS4800A-30-1520 | 76 | 1520 |
| MS4800A-30-1560 | 78 | 1560 |
| MS4800A-30-1600 | 80 | 1600 |
| MS4800A-30-1640 | 82 | 1640 |
| MS4800A-30-1680 | 84 | 1680 |
| MS4800A-30-1720 | 86 | 1720 |
| MS4800A-30-1760 | 88 | 1760 |
| MS4800A-30-1800 | 90 | 1800 |
| MS4800A-30-1840 | 92 | 1840 |
| MS4800A-30-1880 | 94 | 1880 |
| MS4800A-30-1920 | 96 | 1920 |
| MS4800A-30-1960 | 98 | 1960 |
| MS4800A-30-2000 | 100 | 2000 |
| MS4800A-30-2040 | 102 | 2040 |
| MS4800A-30-2080 | 104 | 2080 |
| MS4800A-30-2120 | 106 | 2120 |
Basic-series Curtains Used Individually
(Minimum detectable object: 30-mm dia., Beam gap: 20 mm)
| Model | Number of beams | Protective height (mm) |
|---|---|---|
| MS4800B-30-0280 | 14 | 280 |
| MS4800B-30-0320 | 16 | 320 |
| MS4800B-30-0360 | 18 | 360 |
| MS4800B-30-0400 | 20 | 400 |
| MS4800B-30-0440 | 22 | 440 |
| MS4800B-30-0480 | 24 | 480 |
| MS4800B-30-0520 | 26 | 520 |
| MS4800B-30-0560 | 28 | 560 |
| MS4800B-30-0600 | 30 | 600 |
| MS4800B-30-0640 | 32 | 640 |
| MS4800B-30-0680 | 34 | 680 |
| MS4800B-30-0720 | 36 | 720 |
| MS4800B-30-0760 | 38 | 760 |
| MS4800B-30-0800 | 40 | 800 |
| MS4800B-30-0840 | 42 | 840 |
| MS4800B-30-0880 | 44 | 880 |
| MS4800B-30-0920 | 46 | 920 |
| MS4800B-30-0960 | 48 | 960 |
| MS4800B-30-1000 | 50 | 1000 |
| MS4800B-30-1040 | 52 | 1040 |
| MS4800B-30-1080 | 54 | 1080 |
| MS4800B-30-1120 | 56 | 1120 |
| MS4800B-30-1160 | 58 | 1160 |
| MS4800B-30-1200 | 60 | 1200 |
| MS4800B-30-1240 | 62 | 1240 |
| MS4800B-30-1280 | 64 | 1280 |
| MS4800B-30-1320 | 66 | 1320 |
| MS4800B-30-1360 | 68 | 1360 |
| MS4800B-30-1400 | 70 | 1400 |
| MS4800B-30-1440 | 72 | 1440 |
| MS4800B-30-1480 | 74 | 1480 |
| MS4800B-30-1520 | 76 | 1520 |
| MS4800B-30-1560 | 78 | 1560 |
| MS4800B-30-1600 | 80 | 1600 |
| MS4800B-30-1640 | 82 | 1640 |
| MS4800B-30-1680 | 84 | 1680 |
| MS4800B-30-1720 | 86 | 1720 |
| MS4800B-30-1760 | 88 | 1760 |
| MS4800B-30-1800 | 90 | 1800 |
| MS4800B-30-1840 | 92 | 1840 |
| MS4800B-30-1880 | 94 | 1880 |
| MS4800B-30-1920 | 96 | 1920 |
| MS4800B-30-1960 | 98 | 1960 |
| MS4800B-30-2000 | 100 | 2000 |
| MS4800B-30-2040 | 102 | 2040 |
| MS4800B-30-2080 | 104 | 2080 |
| MS4800B-30-2120 | 106 | 2120 |
Advanced-series Curtains Used Individually
(Minimum detectable object: 40-mm dia., Beam gap: 30 mm)
| Model | Number of beams | Protective height (mm) |
|---|---|---|
| MS4800A-40-0360 | 12 | 360 |
| MS4800A-40-0480 | 16 | 480 |
| MS4800A-40-0600 | 20 | 600 |
| MS4800A-40-0720 | 24 | 720 |
| MS4800A-40-0840 | 28 | 840 |
| MS4800A-40-0960 | 32 | 960 |
| MS4800A-40-1080 | 36 | 1080 |
| MS4800A-40-1200 | 40 | 1200 |
| MS4800A-40-1320 | 44 | 1320 |
| MS4800A-40-1440 | 48 | 1440 |
| MS4800A-40-1560 | 52 | 1560 |
| MS4800A-40-1680 | 56 | 1680 |
| MS4800A-40-1800 | 60 | 1800 |
| MS4800A-40-1920 | 64 | 1920 |
| MS4800A-40-2040 | 68 | 2040 |
Basic-series Curtains Used Individually
(Minimum detectable object: 40-mm dia., Beam gap: 30 mm)
| Model | Number of beams | Protective height (mm) |
|---|---|---|
| MS4800B-40-0360 | 12 | 360 |
| MS4800B-40-0480 | 16 | 480 |
| MS4800B-40-0600 | 20 | 600 |
| MS4800B-40-0720 | 24 | 720 |
| MS4800B-40-0840 | 28 | 840 |
| MS4800B-40-0960 | 32 | 960 |
| MS4800B-40-1080 | 36 | 1080 |
| MS4800B-40-1200 | 40 | 1200 |
| MS4800B-40-1320 | 44 | 1320 |
| MS4800B-40-1440 | 48 | 1440 |
| MS4800B-40-1560 | 52 | 1560 |
| MS4800B-40-1680 | 56 | 1680 |
| MS4800B-40-1800 | 60 | 1800 |
| MS4800B-40-1920 | 64 | 1920 |
| MS4800B-40-2040 | 68 | 2040 |
Advanced-series Curtains Connected in Series
(Minimum detectable object: 30-mm dia., Beam gap: 20 mm)
Masters
| Model | Number of beams | Protective height (mm) |
|---|---|---|
| MSF4800A-30-0280 | 14 | 280 |
| MSF4800A-30-0320 | 16 | 320 |
| MSF4800A-30-0360 | 18 | 360 |
| MSF4800A-30-0400 | 20 | 400 |
| MSF4800A-30-0440 | 22 | 440 |
| MSF4800A-30-0480 | 24 | 480 |
| MSF4800A-30-0520 | 26 | 520 |
| MSF4800A-30-0560 | 28 | 560 |
| MSF4800A-30-0600 | 30 | 600 |
| MSF4800A-30-0640 | 32 | 640 |
| MSF4800A-30-0680 | 34 | 680 |
| MSF4800A-30-0720 | 36 | 720 |
| MSF4800A-30-0760 | 38 | 760 |
| MSF4800A-30-0800 | 40 | 800 |
| MSF4800A-30-0840 | 42 | 840 |
| MSF4800A-30-0880 | 44 | 880 |
| MSF4800A-30-0920 | 46 | 920 |
| MSF4800A-30-0960 | 48 | 960 |
| MSF4800A-30-1000 | 50 | 1000 |
| MSF4800A-30-1040 | 52 | 1040 |
| MSF4800A-30-1080 | 54 | 1080 |
| MSF4800A-30-1120 | 56 | 1120 |
| MSF4800A-30-1160 | 58 | 1160 |
| MSF4800A-30-1200 | 60 | 1200 |
| MSF4800A-30-1240 | 62 | 1240 |
| MSF4800A-30-1280 | 64 | 1280 |
| MSF4800A-30-1320 | 66 | 1320 |
| MSF4800A-30-1360 | 68 | 1360 |
| MSF4800A-30-1400 | 70 | 1400 |
| MSF4800A-30-1440 | 72 | 1440 |
| MSF4800A-30-1480 | 74 | 1480 |
| MSF4800A-30-1520 | 76 | 1520 |
| MSF4800A-30-1560 | 78 | 1560 |
| MSF4800A-30-1600 | 80 | 1600 |
| MSF4800A-30-1640 | 82 | 1640 |
| MSF4800A-30-1680 | 84 | 1680 |
| MSF4800A-30-1720 | 86 | 1720 |
| MSF4800A-30-1760 | 88 | 1760 |
| MSF4800A-30-1800 | 90 | 1800 |
| MSF4800A-30-1840 | 92 | 1840 |
| MSF4800A-30-1880 | 94 | 1880 |
| MSF4800A-30-1920 | 96 | 1920 |
| MSF4800A-30-1960 | 98 | 1960 |
| MSF4800A-30-2000 | 100 | 2000 |
| MSF4800A-30-2040 | 102 | 2040 |
| MSF4800A-30-2080 | 104 | 2080 |
| MSF4800A-30-2120 | 106 | 2120 |
Advanced-series Curtains Connected in Series
(Minimum detectable object: 40-mm dia., Beam gap: 30 mm)
Masters
| Model | Number of beams | Protective height (mm) |
|---|---|---|
| MSF4800A-40-0360 | 12 | 360 |
| MSF4800A-40-0480 | 16 | 480 |
| MSF4800A-40-0600 | 20 | 600 |
| MSF4800A-40-0720 | 24 | 720 |
| MSF4800A-40-0840 | 28 | 840 |
| MSF4800A-40-0960 | 32 | 960 |
| MSF4800A-40-1080 | 36 | 1080 |
| MSF4800A-40-1200 | 40 | 1200 |
| MSF4800A-40-1320 | 44 | 1320 |
| MSF4800A-40-1440 | 48 | 1440 |
| MSF4800A-40-1560 | 52 | 1560 |
| MSF4800A-40-1680 | 56 | 1680 |
| MSF4800A-40-1800 | 60 | 1800 |
| MSF4800A-40-1920 | 64 | 1920 |
| MSF4800A-40-2040 | 68 | 2040 |
Basic-series Curtains Connected in Series
(Minimum detectable object: 30-mm dia., Beam gap: 20 mm)
Masters
| Model | Number of beams | Protective height (mm) |
|---|---|---|
| MSF4800B-30-0280 | 14 | 280 |
| MSF4800B-30-0320 | 16 | 320 |
| MSF4800B-30-0360 | 18 | 360 |
| MSF4800B-30-0400 | 20 | 400 |
| MSF4800B-30-0440 | 22 | 440 |
| MSF4800B-30-0480 | 24 | 480 |
| MSF4800B-30-0520 | 26 | 520 |
| MSF4800B-30-0560 | 28 | 560 |
| MSF4800B-30-0600 | 30 | 600 |
| MSF4800B-30-0640 | 32 | 640 |
| MSF4800B-30-0680 | 34 | 680 |
| MSF4800B-30-0720 | 36 | 720 |
| MSF4800B-30-0760 | 38 | 760 |
| MSF4800B-30-0800 | 40 | 800 |
| MSF4800B-30-0840 | 42 | 840 |
| MSF4800B-30-0880 | 44 | 880 |
| MSF4800B-30-0920 | 46 | 920 |
| MSF4800B-30-0960 | 48 | 960 |
| MSF4800B-30-1000 | 50 | 1000 |
| MSF4800B-30-1040 | 52 | 1040 |
| MSF4800B-30-1080 | 54 | 1080 |
| MSF4800B-30-1120 | 56 | 1120 |
| MSF4800B-30-1160 | 58 | 1160 |
| MSF4800B-30-1200 | 60 | 1200 |
| MSF4800B-30-1240 | 62 | 1240 |
| MSF4800B-30-1280 | 64 | 1280 |
| MSF4800B-30-1320 | 66 | 1320 |
| MSF4800B-30-1360 | 68 | 1360 |
| MSF4800B-30-1400 | 70 | 1400 |
| MSF4800B-30-1440 | 72 | 1440 |
| MSF4800B-30-1480 | 74 | 1480 |
| MSF4800B-30-1520 | 76 | 1520 |
| MSF4800B-30-1560 | 78 | 1560 |
| MSF4800B-30-1600 | 80 | 1600 |
| MSF4800B-30-1640 | 82 | 1640 |
| MSF4800B-30-1680 | 84 | 1680 |
| MSF4800B-30-1720 | 86 | 1720 |
| MSF4800B-30-1760 | 88 | 1760 |
| MSF4800B-30-1800 | 90 | 1800 |
| MSF4800B-30-1840 | 92 | 1840 |
| MSF4800B-30-1880 | 94 | 1880 |
| MSF4800B-30-1920 | 96 | 1920 |
| MSF4800B-30-1960 | 98 | 1960 |
| MSF4800B-30-2000 | 100 | 2000 |
| MSF4800B-30-2040 | 102 | 2040 |
| MSF4800B-30-2080 | 104 | 2080 |
| MSF4800B-30-2120 | 106 | 2120 |
Basic-series Curtains Connected in Series
(Minimum detectable object: 40-mm dia., Beam gap: 30 mm)
Masters
| Model | Number of beams | Protective height (mm) |
|---|---|---|
| MSF4800B-40-0360 | 12 | 360 |
| MSF4800B-40-0480 | 16 | 480 |
| MSF4800B-40-0600 | 20 | 600 |
| MSF4800B-40-0720 | 24 | 720 |
| MSF4800B-40-0840 | 28 | 840 |
| MSF4800B-40-0960 | 32 | 960 |
| MSF4800B-40-1080 | 36 | 1080 |
| MSF4800B-40-1200 | 40 | 1200 |
| MSF4800B-40-1320 | 44 | 1320 |
| MSF4800B-40-1440 | 48 | 1440 |
| MSF4800B-40-1560 | 52 | 1560 |
| MSF4800B-40-1680 | 56 | 1680 |
| MSF4800B-40-1800 | 60 | 1800 |
| MSF4800B-40-1920 | 64 | 1920 |
| MSF4800B-40-2040 | 68 | 2040 |
Advanced Series/Basic-series Curtains Connected in Series
(Minimum detectable object: 30-mm dia., Beam gap: 20 mm)
Slaves
| Model | Number of beams | Protective height (mm) |
|---|---|---|
| MSF4800-30-0280-XR2 | 14 | 280 |
| MSF4800-30-0320-XR2 | 16 | 320 |
| MSF4800-30-0360-XR2 | 18 | 360 |
| MSF4800-30-0400-XR2 | 20 | 400 |
| MSF4800-30-0440-XR2 | 22 | 440 |
| MSF4800-30-0480-XR2 | 24 | 480 |
| MSF4800-30-0520-XR2 | 26 | 520 |
| MSF4800-30-0560-XR2 | 28 | 560 |
| MSF4800-30-0600-XR2 | 30 | 600 |
| MSF4800-30-0640-XR2 | 32 | 640 |
| MSF4800-30-0680-XR2 | 34 | 680 |
| MSF4800-30-0720-XR2 | 36 | 720 |
| MSF4800-30-0760-XR2 | 38 | 760 |
| MSF4800-30-0800-XR2 | 40 | 800 |
| MSF4800-30-0840-XR2 | 42 | 840 |
| MSF4800-30-0880-XR2 | 44 | 880 |
| MSF4800-30-0920-XR2 | 46 | 920 |
| MSF4800-30-0960-XR2 | 48 | 960 |
| MSF4800-30-1000-XR2 | 50 | 1000 |
| MSF4800-30-1040-XR2 | 52 | 1040 |
| MSF4800-30-1080-XR2 | 54 | 1080 |
| MSF4800-30-1120-XR2 | 56 | 1120 |
| MSF4800-30-1160-XR2 | 58 | 1160 |
| MSF4800-30-1200-XR2 | 60 | 1200 |
| MSF4800-30-1240-XR2 | 62 | 1240 |
| MSF4800-30-1280-XR2 | 64 | 1280 |
| MSF4800-30-1320-XR2 | 66 | 1320 |
| MSF4800-30-1360-XR2 | 68 | 1360 |
| MSF4800-30-1400-XR2 | 70 | 1400 |
| MSF4800-30-1440-XR2 | 72 | 1440 |
| MSF4800-30-1480-XR2 | 74 | 1480 |
| MSF4800-30-1520-XR2 | 76 | 1520 |
| MSF4800-30-1560-XR2 | 78 | 1560 |
| MSF4800-30-1600-XR2 | 80 | 1600 |
| MSF4800-30-1640-XR2 | 82 | 1640 |
| MSF4800-30-1680-XR2 | 84 | 1680 |
| MSF4800-30-1720-XR2 | 86 | 1720 |
| MSF4800-30-1760-XR2 | 88 | 1760 |
| MSF4800-30-1800-XR2 | 90 | 1800 |
| MSF4800-30-1840-XR2 | 92 | 1840 |
| MSF4800-30-1880-XR2 | 94 | 1880 |
| MSF4800-30-1920-XR2 | 96 | 1920 |
| MSF4800-30-1960-XR2 | 98 | 1960 |
| MSF4800-30-2000-XR2 | 100 | 2000 |
| MSF4800-30-2040-XR2 | 102 | 2040 |
| MSF4800-30-2080-XR2 | 104 | 2080 |
| MSF4800-30-2120-XR2 | 106 | 2120 |
Advanced Series/Basic-series Curtains Connected in Series
(Minimum detectable object: 40-mm dia., Beam gap: 30 mm)
Slaves
| Model | Number of beams | Protective height (mm) |
|---|---|---|
| MSF4800-40-0360-XR2 | 12 | 360 |
| MSF4800-40-0480-XR2 | 16 | 480 |
| MSF4800-40-0600-XR2 | 20 | 600 |
| MSF4800-40-0720-XR2 | 24 | 720 |
| MSF4800-40-0840-XR2 | 28 | 840 |
| MSF4800-40-0960-XR2 | 32 | 960 |
| MSF4800-40-1080-XR2 | 36 | 1080 |
| MSF4800-40-1200-XR2 | 40 | 1200 |
| MSF4800-40-1320-XR2 | 44 | 1320 |
| MSF4800-40-1440-XR2 | 48 | 1440 |
| MSF4800-40-1560-XR2 | 52 | 1560 |
| MSF4800-40-1680-XR2 | 56 | 1680 |
| MSF4800-40-1800-XR2 | 60 | 1800 |
| MSF4800-40-1920-XR2 | 64 | 1920 |
| MSF4800-40-2040-XR2 | 68 | 2040 |
Accessories (Sold Separately)

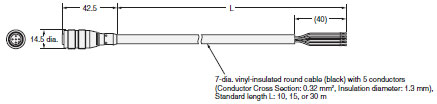

Connector Cables with a Connector on One End
| Type | Appearance | Specifications | Cable length | Model | Application |
|---|---|---|---|---|---|
| Transmitter Cables |  | M12 connector (5-pin) | 10 m | MS4800-CBLTX-10M | For wiring safety circuits containing individual relays with forcibly guided contacts, safety relay units, safety controllers, etc. |
| 15 m | MS4800-CBLTX-15M | ||||
| 30 m | MS4800-CBLTX-30M | ||||

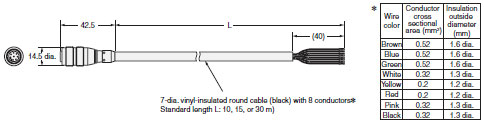

| Receiver Cables |  | M12 connector (8-pin) | 10 m | MS4800-CBLRX-10M | |
| 15 m | MS4800-CBLRX-15M | ||||
| 30 m | MS4800-CBLRX-30M |
Connector Cables with Connectors on Both Ends
| Type | Appearance | Specifications | Cable length | Model | Application |
|---|---|---|---|---|---|
| Transmitter Cables |  | M12 connector (5-pin) | 5 m | MS4800-CBLTXT-05M | Extension cables for connector cables with a connector on one end. |
| 10 m | MS4800-CBLTXT-10M | ||||
| 15 m | MS4800-CBLTXT-15M | ||||
| 25 m | MS4800-CBLTXT-25M | ||||
| Receiver Cables |  | M12 connector (8-pin) | 5 m | MS4800-CBLRXT-05M | |
| 10 m | MS4800-CBLRXT-10M | ||||
| 15 m | MS4800-CBLRXT-15M | ||||
| 25 m | MS4800-CBLRXT-25M |

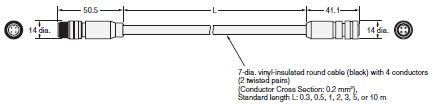

Series Connection Cables
| Type | Appearance | Specifications | Cable length | Model | Application |
|---|---|---|---|---|---|
| Transmitter Cables |  | M12 connector (4-pin) | 0.3 m | MS4800-CBLTXIC-003M | For series connection. |
| 0.5 m | MS4800-CBLTXIC-005M | ||||
| 1 m | MS4800-CBLTXIC-01M | ||||
| 2 m | MS4800-CBLTXIC-02M | ||||
| 3 m | MS4800-CBLTXIC-03M | ||||
| 5 m | MS4800-CBLTXIC-05M | ||||
| 10 m | MS4800-CBLTXIC-10M | ||||
| Receiver Cables |  | M12 connector (4-pin) | 0.3 m | MS4800-CBLRXIC-003M | |
| 0.5 m | MS4800-CBLRXIC-005M | ||||
| 1 m | MS4800-CBLRXIC-01M | ||||
| 2 m | MS4800-CBLRXIC-02M | ||||
| 3 m | MS4800-CBLRXIC-03M | ||||
| 5 m | MS4800-CBLRXIC-05M | ||||
| 10 m | MS4800-CBLRXIC-10M |
Adaptor Cables for Replacement Use
| Type | Appearance | Specifications | Cable length | Model | Application |
|---|---|---|---|---|---|
| Transmitter Cables |  | M12 connector (8-pin) | 0.22 m | MS4800-ADPT-TXM | For replacing an MS4600 (with test input) with an MS4800. |
| M12 connector (5-pin) | 0.22 m | MS4800-ADPT-TXS | For replacing an F3SL or MS4600 (without test input) with an MS4800. | ||
| Receiver Cables |  | M12 connector (8-pin) | 0.22 m | MS4800-ADPT-RX | For replacing an F3SL or MS4600 with an MS4800. |
Loose-wire Connectors for Relays
| Type | Appearance | Specifications | Cable length | Model | Application |
|---|---|---|---|---|---|
| Transmitter Cables |  | M12 connector (5-pin) | 1 m | MS4800-PMCTX-01M | Loose-wire connectors for mounting in relay boxes. |
| 5 m | MS4800-PMCTX-05M | ||||
| Receiver Cables |  | M12 connector (8-pin) | 1 m | MS4800-PMCRX-01M | |
| 5 m | MS4800-PMCRX-05M |
Programming and Diagnostics Module (PDM)
| Appearance | Model | Remarks |
|---|---|---|
 | MS4800-PDM | Cable length: 2 m |

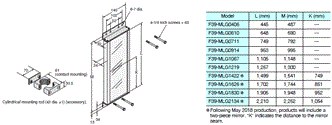

Mirrors (12% Sensing Distance Attenuation)
| Appearance | Mirror material | Width (mm) | Thickness (mm) | Length L (mm) | Model | Remarks |
|---|---|---|---|---|---|---|
 | Glass mirror | 145 | 32 | 445 | F39-MLG0406 | 2 sets of cylinder mounting brackets and 4 screws are included. |
| 648 | F39-MLG0610 | |||||
| 749 | F39-MLG0711 | |||||
| 953 | F39-MLG0914 | |||||
| 1,105 | F39-MLG1067 | |||||
| 1,257 | F39-MLG1219 | |||||
| 1,499 | F39-MLG1422 | |||||
| 1,702 | F39-MLG1626 | |||||
| 1,905 | F39-MLG1830 | |||||
| 2,210 | F39-MLG2134 |
MS4800-RM6 Connection Cables
| Appearance | Cable length | Model | Application |
|---|---|---|---|
 | 10 m | MS4800-CBLMT-10M | For connecting an MSF4800A Receiver and an MS4800-RM6 Resource Module. |
| 15 m | MS4800-CBLMT-15M | ||
| 30 m | MS4800-CBLMT-30M |
Resource Module
| Appearance | Model | Application |
|---|---|---|
 | MS4800-RM6 | A special terminal module for using muting. |
Water-resistant IP67 Cases (for Both Transmitters and Receivers, 2 Cases Per Set) (10% Maximum Sensing Distance Attenuation Per Case)
| Type | Appearance | Model | Remarks |
|---|---|---|---|
| For individual use |  | MS4800-IP67-[] * | Accessories: Two mounting brackets (one top, one bottom) Material: Acryl |
| For series-connection use | MSF4800-IP67-[] * |
*A 4-digit number indicating the protective height of the Light Curtain must be included in place of the box ([]) in the model
number.
Spatter Protection Covers (for Both Transmitters and Receivers, 2 Covers Per Set) (10% Maximum Sensing Distance Attenuation Per Cover)
| Type | Appearance | Model | Remarks |
|---|---|---|---|
| MS4800 Cover |  | MS4800WS-[] * | Material: Acryl |
*A 4-digit number indicating the protective height of the Light Curtain must be included in place of the box ([]) in the model
number.
last update: June 11, 2018
OMRON MS4800 Series specification
MS4800 Series Safety Light Curtain/Specificationslast update: September 24, 2012
Safety Light Curtains
MS/MSF4800-series Safety Light Curtains
| Series | Advanced Series | Basic Series | |||
|---|---|---|---|---|---|
| Model | Individual use | MS4800A-30-[] | MS4800A-40-[] | MS4800B-30-[] | MS4800B-40-[] |
| Series connection | MSF4800A-30-[] | MSF4800A-40-[] | MSF4800B-30-[] | MSF4800B-40-[] | |
| Sensor type | Type 4 Safety Light Curtain | ||||
| Setting tool connection | Connectable | ||||
| Applicable safety category | Category 4, 3, 2, 1, or B | ||||
| Minimum detectable object | Opaque object: 30-mm dia. | Opaque object: 40-mm dia. | Opaque object: 30-mm dia. | Opaque object: 40-mm dia. | |
| Beam gap (P) | 20 mm | 30 mm | 20 mm | 30 mm | |
| Number of beams (n) | 14 to 106 | 12 to 68 | 14 to 106 | 12 to 68 | |
| Protective height (PH) | 280 to 2120 mm | 360 to 2040 mm | 280 to 2120 mm | 360 to 2040 mm | |
| Sensing distance *1 | 0.3 to 20 m (selectable from 0.3 to 8 m with the Programming and Diagnostics Module) | ||||
| Lens diameter | Diameter 7 mm | ||||
| Response time (under stable light incident condition) (Refer to Response Time below for details.) | ON to OFF | Individual: 14 to 32 ms | Individual: 14 to 23 ms | Individual: 14 to 32 ms | Individual: 14 to 23 ms |
| OFF to ON | 320 ms max. | ||||
| Startup waiting time | 3.5 s max. for individual use, 4.5 s max. for series connection | ||||
| Power supply voltage (Vs) | 24 VDC ±20% (ripple p-p: 5% max.) | ||||
| Current consumption *2 (no load) | Transmitter | 285 mA max. | |||
| Receiver | 450 mA max. | ||||
| Light source (emitted wavelength) | Infrared LEDs (wavelength: 880 nm) | ||||
| Effective aperture angle (EAA) | Within ±2.5° for the Transmitter and Receiver at a sensing distance of at least 3 m according to IEC 61496-2. | ||||
| Control output (OSSD) *3 | Output transistor: PNP × 2, Load current: 625 mA max. (at 24 VDC), short-circuit protection | ||||
| Auxiliary output *3 (non-safety output) | Output transistor: PNP × 1 or NPN × 1, selectable with the Programming and Diagnostics Module, Load current: 100 mA max. (at 24 VDC) Output mode: Control output synchronizing or alarm is selectable with the Programming and Diagnostics Module | Output transistor: PNP × 1, Load current: 100 mA max. (at 24 VDC) Output mode: Control output synchronizing | |||
| Output operation mode | Control output 1, 2: Light-ON Auxiliary output: Control Output Synchronizing Mode: Auxiliary output goes ON when control output goes ON Alarm Mode: Auxiliary output goes ON when the MS4800 enters alarm (lockout) condition | ||||
| Input voltage | External device monitoring input ON voltage: 11 to 28.8 V, OFF voltage: 0 to 2.6 V Start input ON voltage: 11 to 28.8 V, OFF voltage: 0 to 1.2 V For the MS4800B, use NC contacts for the start input switch. For the MS4800A, refer to Start Input Methods (MS/MSF4800A Only) on Data Sheet. | ||||
| Internal indicators | Transmitter | Transmitter Indicator (Yellow): Indicator is ON when transmitting | |||
| Receiver | Blanking Indicator (Orange): Indicator is ON in Blanking Active State Interlock or Alarm (Lockout) Indicator: Indicator is ON in Interlock State, and indicator flashes in Alarm (Lockout) State Machine Run/Stop Indicator (Green/Red): Green indicator is ON when Control Output is ON, and red indicator is ON when Control Output is OFF | ||||
| Mutual interference prevention function | The scan code (A/B) can be switched with the Programming and Diagnostics Module | ||||
| Series connection | MSF4800 only • Connectable segments: 4 max. • Total number of beams: 256 max. • Maximum cable length between segments: 10 m • Response time when connected: Refer to Data Sheet. | ||||
| Test functions | • Self test (when power is turned ON and while power is supplied) • External test (light emission stop function by test input) | ||||
| Safety functions | • Selection of auto start mode and interlock mode • External device monitoring • Muting (MSF4800A only) (MS4800-RM6 (sold separately) is required.) • Fixed blanking • Floating blanking • Monitored blanking • Reduced resolution blanking | • Selection of auto start mode and interlock mode • External device monitoring | |||
| Connection method | Power supply connectors (M12, Transmitter: 5-pin, Receiver: 8-pin) Series-connection connectors: (M12, Transmitter: 4-pin, Receiver: 4-pin) | ||||
| Protective circuit | Output short-circuit protection, reverse polarity protection | ||||
| Ambient temperature | Operating: -10 to 55°C (with no icing), storage: -25 to 70°C | ||||
| Ambient humidity | 95% max. (with no condensation) | ||||
| Insulation resistance | 20 MΩ min. (at 500 VDC) | ||||
| Dielectric strength | Transmitter: 350 VAC 60 Hz 1 min Receiver: 500 VDC 1 min | ||||
| Degree of protection | IP65 (IEC 60529) | ||||
| Vibration resistance | Malfunction: 10 to 55 Hz, 0.7-mm double amplitude, 20 sweeps in X, Y, and Z directions | ||||
| Shock resistance | Malfunction: 10G, 1,000 times in X, Y, and Z directions | ||||
| Materials | Case: Aluminum with polyurethane powder coating Cap: Polycarbonate | ||||
| Weight (packed state) | • MS4800[]-30-[][][][]: Weight (g) = α x Protective height + 349 • MSF4800[]-30-[][][][]: Weight (g) = α x Protective height + 361 • MSF4800[]-30-[][][][]-XR2: Weight (g) = α x Protective height • MS4800[]-40-[][][][]: Weight (g) = α x Protective height + 370 • MSF4800[]-40-[][][][]: Weight (g) = α x Protective height + 382 • MSF4800[]-40-[][][][]-XR2: Weight (g) = α x Protective height The values for α are as follows: For protective height from 240 to 280: 10 For protective height from 320 to 360: 9 For protective height from 400 to 1,080: 8 For protective height from 1,120 to 1,840: 7 For protective height from 1,880 to 2,120: 6 | ||||
| Accessories | Test rod, Instruction Manual, mounting set (2 top, 2 bottom mounting brackets), surge absorber | ||||
| Applicable standards | IEC 61496-1, EN 61496-1, UL 61496-1 Type 4 ESPE (Electro-Sensitive Protective Equipment), IEC 61496-2, CLC/TS61496-2, UL 61496-2 Type 4 AOPD (Active Opto-electronic Protective Devices), IEC 61508 SIL3 | ||||
*1. Use of the Spatter Protection Cover causes a 10% maximum sensing distance attenuation.
*2. The consumption current must not exceed 1.35 A for both the control outputs and auxiliary output. The rated current
is the sum of the Transmitter (285 mA), Receiver (450 mA), control output 1 (625 mA), control output 2 (625 mA),
and auxiliary output (100 mA).
*3. The 24-VDC value is a nominal value. The actual voltage depends on the supply voltage. Actual voltage = Supply
voltage − 1 V.
Response Time
Curtains Used Individually (1-segment System)
| Minimum number of beams | Maximum number of beams | Response time (ms) | |
|---|---|---|---|
| Normal | Delayed * | ||
| 0 | 16 | 14 | 23 |
| 17 | 71 | 23 | 38 |
| 72 | 126 | 32 | 53 |
| 127 | 180 | 41 | 68 |
| 181 | 235 | 50 | 83 |
| 236 | 256 | 59 | 99 |
Curtains Used in Series Connection (3-segment System)
| Minimum number of beams | Maximum number of beams | Response time (ms) | |
|---|---|---|---|
| Normal | Delayed * | ||
| 0 | 59 | 23 | 38 |
| 60 | 114 | 32 | 53 |
| 115 | 168 | 41 | 68 |
| 169 | 223 | 50 | 83 |
| 224 | 256 | 59 | 99 |
Curtains Used in Series Connection (2-segment System)
| Minimum number of beams | Maximum number of beams | Response time (ms) | |
|---|---|---|---|
| Normal | Delayed * | ||
| 0 | 65 | 23 | 38 |
| 66 | 120 | 32 | 53 |
| 121 | 174 | 41 | 68 |
| 175 | 229 | 50 | 83 |
| 230 | 256 | 59 | 99 |
Curtains Used in Series Connection (4-segment System)
| Minimum number of beams | Maximum number of beams | Response time (ms) | |
|---|---|---|---|
| Normal | Delayed * | ||
| 0 | 53 | 23 | 38 |
| 54 | 108 | 32 | 53 |
| 109 | 162 | 41 | 68 |
| 163 | 217 | 50 | 83 |
| 218 | 256 | 59 | 99 |
* Refer to Response Time Adjustment (MS/MSF4800A Only) on Data Sheet.
Cable Extension Length
The maximum length and wire gauge for input and output signals are given in the following table.
| Type | Signal name | Wire gauge | Rated maximum length |
|---|---|---|---|
| Receiver | Control outputs 1 and 2 | 22 AW G (0.32 mm) | 300-mA load: 45 m, 625-mA load: 22 m |
| Auxiliary output | 22 AW G (0.32 mm) | 50 m | |
| Start input | 24 AW G (0.20 mm) | 50 m | |
| External device monitoring (EDM) input | 24 AW G (0.20 mm) | 50 m | |
| +24 V, 0 V | 20 AW G (0.52 mm) | 1.8-A load: 12.5 m, 1-A load: 22 m | |
| Transmitter | +24 V, 0 V | 22 AW G (0.32 mm) | 0.3-A load: 47 m |
| Machine test signal (MTS) | 22 AW G (0.32 mm) | 50 m |
Note: Keep the cable length within the rated length. Failure to do so is dangerous because it may prevent safety functions
from operating normally.
Accessories
Resource Module
| Model | MS4800-RM6 |
|---|---|
| Input power supply | 24 VDC ± 20%, 30 mA max. |
| Ambient temperature | 0 to 55 ° C |
| Ambient humidity | 95% max. (with no condensation) |
| Storage temperature | - 25 to 75 ° C |
| Vibration resistance | Malfunction: 10 to 55 Hz, 0.7-mm double amplitude, 20 sweeps in X, Y, and Z directions |
| Shock resistance | Malfunction: 10G, 1,000 times in X, Y, and Z directions |
| Degree of protection | IP2 0 (IEC 60529) |
| Muting sensor | PNP 24-VDC (power consumption: 20 mA) Dark-ON/Light-ON or NO/NC combination |
| Muting indicator output * | 10 to 100 mA (NPN), 30 VDC max. |
| Applicable safety category | IEC 61496-1 Type 4 |
*1. For details, refer to Mini Safe 4800 Series Light Curtains Installation and Operating Manual.
*2. The muting indicator output contains a current monitoring circuit to confirm normal operation. Connect an external
indicator load that supplies 10 to 100 mA of current.
Programming and Diagnostics Module
| Model | MS4800-PDM |
|---|---|
| Display | LCD multi-line display |
| Language capability | English, Japanese |
| Degree of protection | Conforms to IP65 |
last update: September 24, 2012
OMRON MS4800 Series dimension
MS4800 Series Safety Light Curtain/Dimensionslast update: June 11, 2018
(Unit: mm)
Safety Light Curtains
Safety Light Curtains Used Individually
MS4800

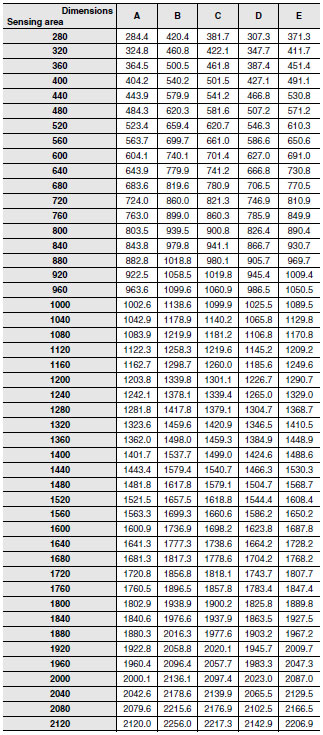

MS4800-30 Transmitter and Receiver Dimensions

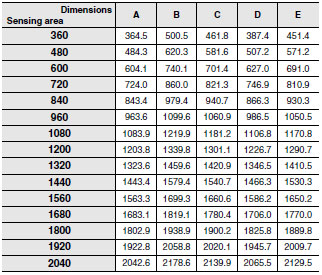

MS4800-40 Transmitter and Receiver Dimensions
Safety Light Curtains in Series Connection
MSF4800

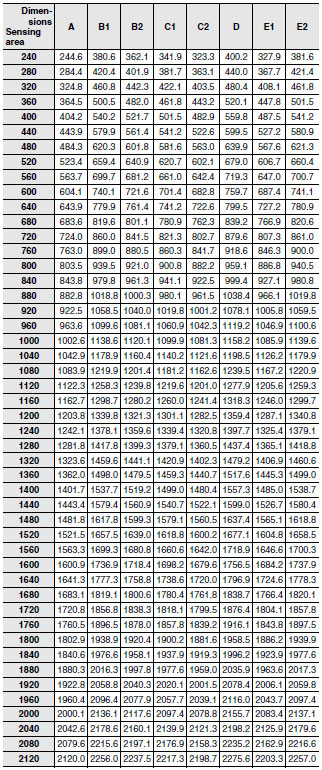

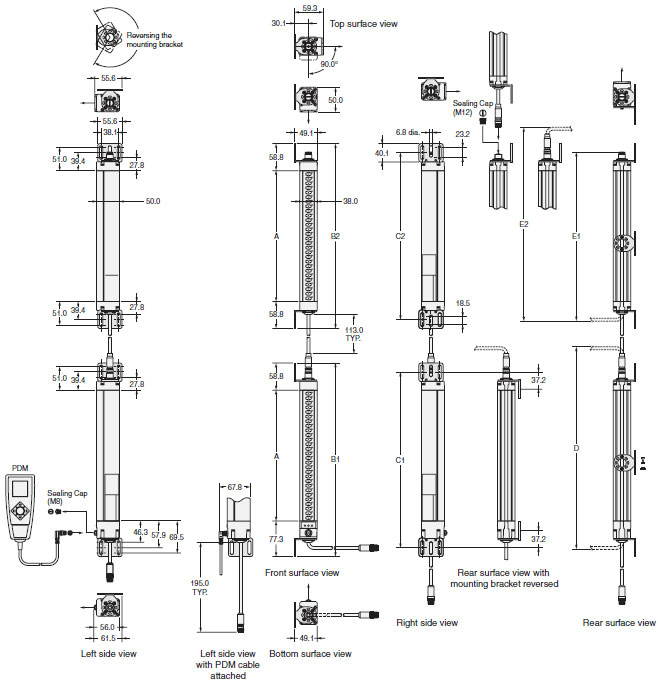

MSF4800-30 Transmitter and Receiver Dimensions

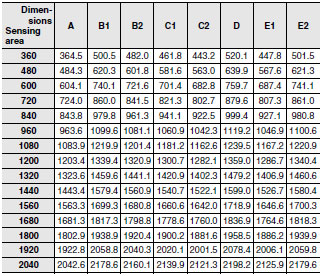

MSF4800-40 Transmitter and Receiver Dimensions
Accessories
Cables with Connector on One End for Transmitter
MS4800-CBLTX-10M (L = 10 m)
MS4800-CBLTX-15M (L = 15 m)
MS4800-CBLTX-30M (L = 30 m)
Cables with Connector on One End for Receiver
MS4800-CBLRX-10M (L = 10 m)
MS4800-CBLRX-15M (L = 15 m)
MS4800-CBLRX-30M (L = 30 m)
Series Connection Cables for Transmitter
MS4800-CBLTXIC-003M (L = 0.3 m)
MS4800-CBLTXIC-005M (L = 0.5 m)
MS4800-CBLTXIC-01M (L = 1 m)
MS4800-CBLTXIC-02M (L = 2 m)
MS4800-CBLTXIC-03M (L = 3 m)
MS4800-CBLTXIC-05M (L = 5 m)
MS4800-CBLTXIC-10M (L = 10 m)
Series Connection Cables for Receiver
MS4800-CBLRXIC-003M (L = 0.3 m)
MS4800-CBLRXIC-005M (L = 0.5 m)
MS4800-CBLRXIC-01M (L = 1 m)
MS4800-CBLRXIC-02M (L = 2 m)
MS4800-CBLRXIC-03M (L = 3 m)
MS4800-CBLRXIC-05M (L = 5 m)
MS4800-CBLRXIC-10M (L = 10 m)
Mirrors
F39-MLG[]
Resource Module
MS4800-RM6
last update: June 11, 2018
- NO. MS4800 Series
- TYPE:Safety Light Curtains / Single-beam Safety Sensors Safety Light Curtains
Copyright Statement - DATE:2021-06-09
- Associated products:
F3SR-B Safety Light Curtain/Features F39-TC5 Connector Terminal Box (Muting Terminals)/Features
