last update: May 14, 2018

• Simplified wiring without tightening screws.

• Two wires can be independently wired for each terminal.

• Coil terminals and contact terminals are completely separated in an organized wiring layout.

• Release Levers and Labels are available (sold separately).

Structured for Easy Wiring

Complete Wiring in Three Steps

• A spring holds the wire in place to reduce wiring work by 30% (according to OMRON comparison) and eliminates the need to manage torque.

• DIN terminal numbers also indicated.

last update: May 14, 2018

Purchase the OMRON Copyright Statement Please fill in the following

Title:

Email:

Tel:

Content:Name: Country/Region:

Verification code:

If you have just landed here, this product OMRON PYF[][]S / P2RF-[][]-S Power Supplies / In Addition,Power Supplies / In Addition is offered online by Tianin FLD Technical Co.,Ltd. This is an online store providing Power Supplies / In Addition at wholesale prices for consumers. You can call us or send enquiry, we would give you the prices, packing,deliverty and more detailed information on the PYF[][]S / P2RF-[][]-S We cooperate with DHL,TNT,FEDEX,UPS,EMS,etc.They guarantee to meet your needs in terms of time and money,even if you need your OMRON PYF[][]S / P2RF-[][]-SPower Supplies / In Addition tomorrow morning (aka overnight or next day air) on your desk, 2, 3 days or more.Note to international customers, YES, we ship worldwide.

V430-F Series Auto Focus Multi Code Reader/Features
R6Y3 Delta robot/Features
E3S-LS3[] PCB Sensors/Features
H3YN-[]-B Solid-state Timer/Features
H3RN-[]-B Solid-state timer/Features

OMRON PYF[][]S / P2RF-[][]-S specification
PYF[][]S / P2RF-[][]-S Screwless Clamp Terminal Sockets/Specifications
last update: May 14, 2018
Characteristics
Sockets
PYF[][]S

Model PYF08S PYF14S
Ambient operating temperature -55 to 70°C
Ambient operating humidity 5% to 85%
Continuous carry current * 10 A 5 A
Dielectric
strength Between contact terminals of same polarity 2,000 VAC, 1 min 2,000 VAC, 1 min
Between contact terminals of different polarity 2,000 VAC, 1 min 2,000 VAC, 1 min
Between coil and contact terminals 2,000 VAC, 1 min 2,000 VAC, 1 min
Insulation resistance 1,000 MΩ min.
Weight (approx.) 46 g 62 g

* The continuous carry current of 10 A for the PYF08S is for an ambient temperature of 55°C.
At an ambient temperature of 70°C, the value is 7 A.

P2RF-[][]-S

Model P2RF-05-S P2RF-08-S
Ambient operating temperature -40 to 70°C
Ambient operating humidity 5% to 85%
Continuous carry current 10 A 5 A
Dielectric
strength Between contact terminals of same polarity 1,000 VAC, 1 min 1,000 VAC, 1 min
Between contact terminals of different polarity --- 3,000 VAC, 1 min
Between coil and contact terminals 4,000 VAC, 1 min 4,000 VAC, 1 min
Insulation resistance 1,000 MΩ min.
Weight (approx.) 36 g 40 g

Socket Accessories
Short Bars

Application Applicable
sockets Model Maximum carry
current Ambient operating
temperature Ambient operating
humidity
For Coil terminals PYF08S PYDM-08S[] 10 A -40 to 70°C 5% to 85%
PYF14S PYDM-14S[] 10 A -40 to 70°C 5% to 85%

Ratings for Safety Standard Certification
PYF[][]S

Standard File No.
VDE0627 (EN61984) Certificate No. 40015509
UL508 (UL1059) E87929 Vol.3
CSA C22.2 No.14 (CSA C22.2 No.158) LR31928

P2RF-[][]-S

Standard File No.
VDE0627 (EN61984) Certificate No. 40002313
UL508 (UL1059) E87929 Vol.3
CSA C22.2 No.14 (CSA C22.2 No.158) LR31928

last update: May 14, 2018

OMRON PYF[][]S / P2RF-[][]-S lineup
PYF[][]S / P2RF-[][]-S Screwless Clamp Terminal Sockets/Lineup
last update: May 14, 2018
Sockets

Applicable model (typical example) Socket
Model
MY2 PYF08S
MY4 PYF14S
G2R-1-S P2RF-05-S
G2R-2-S P2RF-08-S

Options (Order Separately)

Applicable Socket Release Bar Labels Short Bars with
Red Insulation Short Bars with
Blue Insulation
Model Model Model Model
PYF08S PYCM-08S R99-11 PYDM-08SR PYDM-08SB
PYF14S PYCM-14S PYDM-14SR PYDM-14SB
P2RF-05-S P2CM-S P2RM-SR P2RM-SB
P2RF-08-S

Note: Pieces per Package
Labels: 100
Short Bars: 50

last update: May 14, 2018

OMRON PYF[][]S / P2RF-[][]-S dimension
PYF[][]S / P2RF-[][]-S Screwless Clamp Terminal Sockets/Dimensions
last update: May 14, 2018

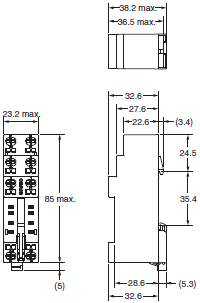

(Unit: mm)

Sockets
PYF08S

PYF14S

P2RF-05-S

P2RF-08-S

Accessories (Order Separately)

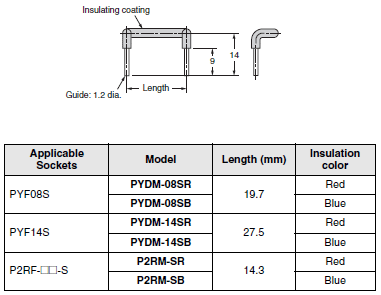

Short Bars

Note: Use the Socket Bridges for relay coil bridge wiring.

Release Levers
PYCM-14S

PYCM-08S

P2CM-S

Mounting Heights
PYF08S

PYF14S

P2RF-[][]-S

Figures of height in () is with G2R Relays with Latching Lervers.
Values indicated with asterisks are for when using a PFP-N Track.
The values increase by approximately 9 mm when using a PFP-N Track.

last update: May 14, 2018

OMRON PYF[][]S / P2RF-[][]-S catalog
PYF[][]S / P2RF-[][]-S Screwless Clamp Terminal Sockets/Catalog

Catalog

CAD

English
Global Edition

For ordering in Singapore, please note some product models not sold in Singapore may be included in the following catalog(s) for our global customers.
*It is recommended to select “Save” from the right-click due to large size of catalog PDF data.

Catalog Name Catalog Number
[size] Last Update

PYF[][]S/P2RF-[][]-S Data Sheet -
[1830KB] May 14, 201820180514 PYF[][]S/P2RF-[][]-S Data Sheet

NO. PYF[][]S / P2RF-[][]-S
